SSANGYONG RODIUS 2012 Service Manual

03-237410-01

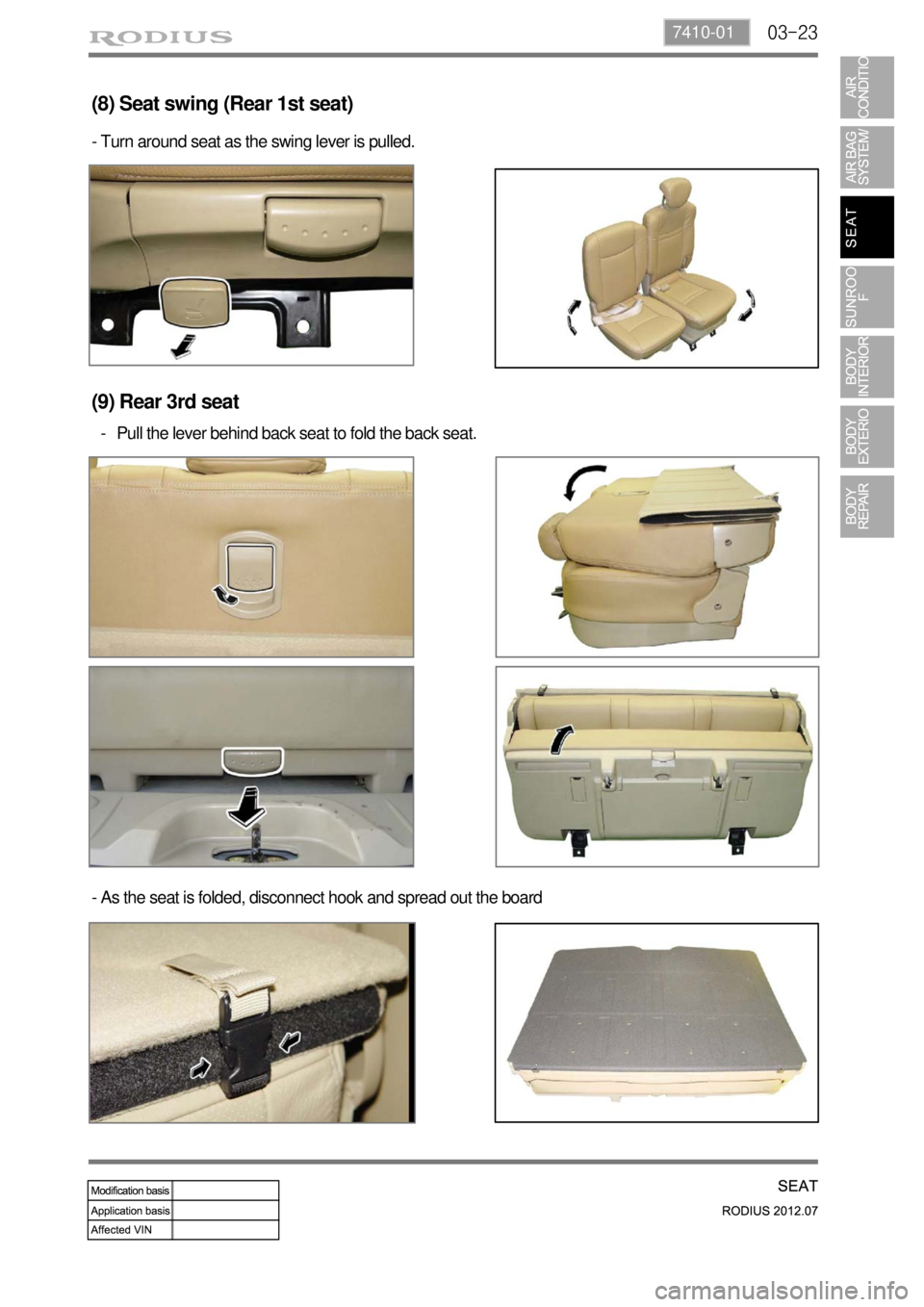

(8) Seat swing (Rear 1st seat)
- Turn around seat as the swing lever is pulled.
- As the seat is folded, disconnect hook and spread out the board
(9) Rear 3rd seat
Pull the lever behind back seat to fold the back seat. -

04-37340-01
1. SUNROOF LAYOUT

04-4
2. COMPONENTS OF SUNROOF

04-57340-01
Drain hose Control switch Sun shade & glass
Control unit Sun roof motor
3. COMPONENTS AND LOCATIONS

04-6
4. SUNROOF OPERATION
1) Tilting
Push the front side of the button when the glass
is closed then, mtor actuate the operating
cable to lift up the glass.
Push the rear side of the button to put down the
glass.
Motor actuates the operating cable
Mechanical equipment lifts up & down the glass

04-77340-01

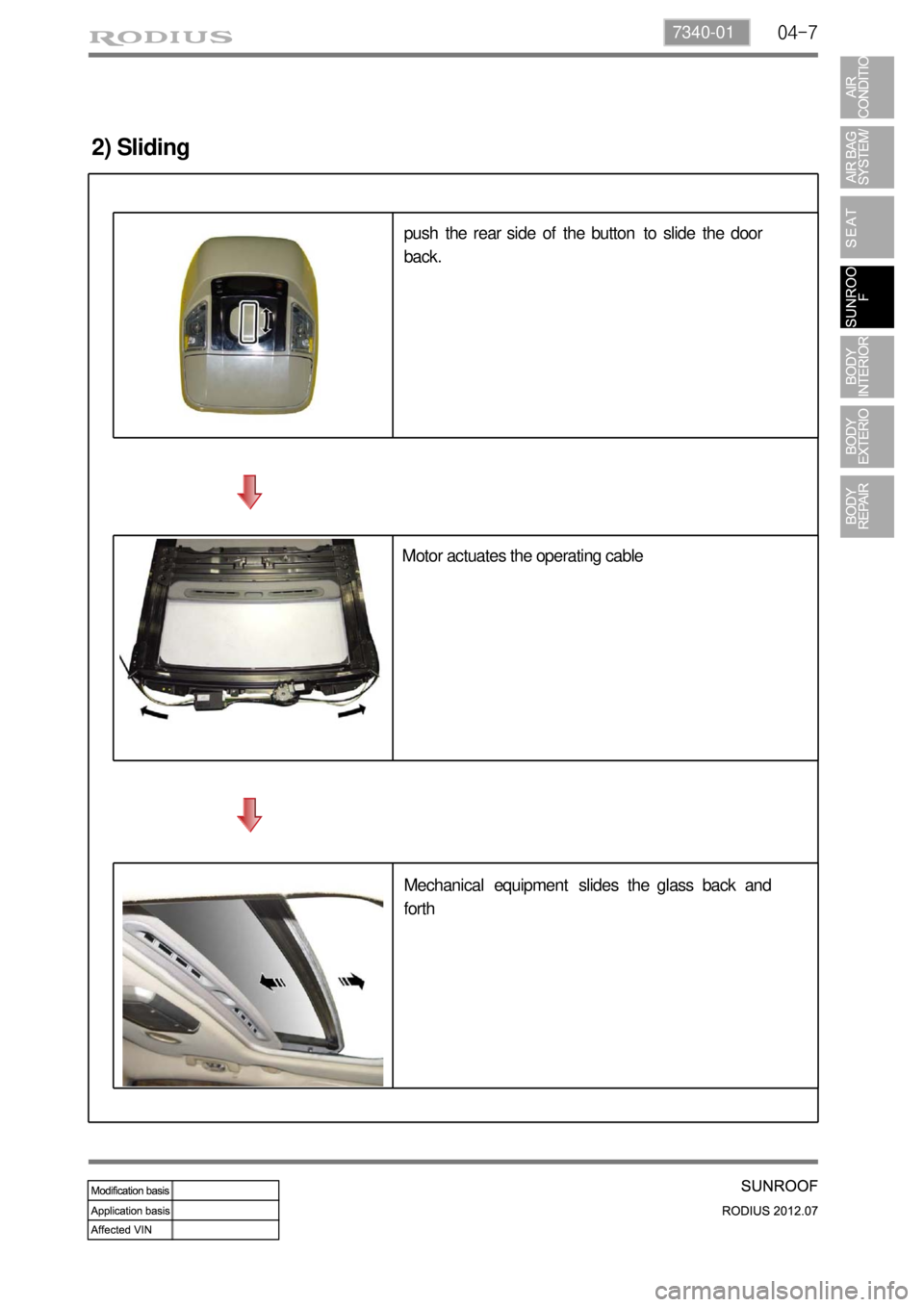

2) Sliding
push the rear side of the button to slide the door
back.
Motor actuates the operating cable
Mechanical equipment slides the glass back and
forth

04-8

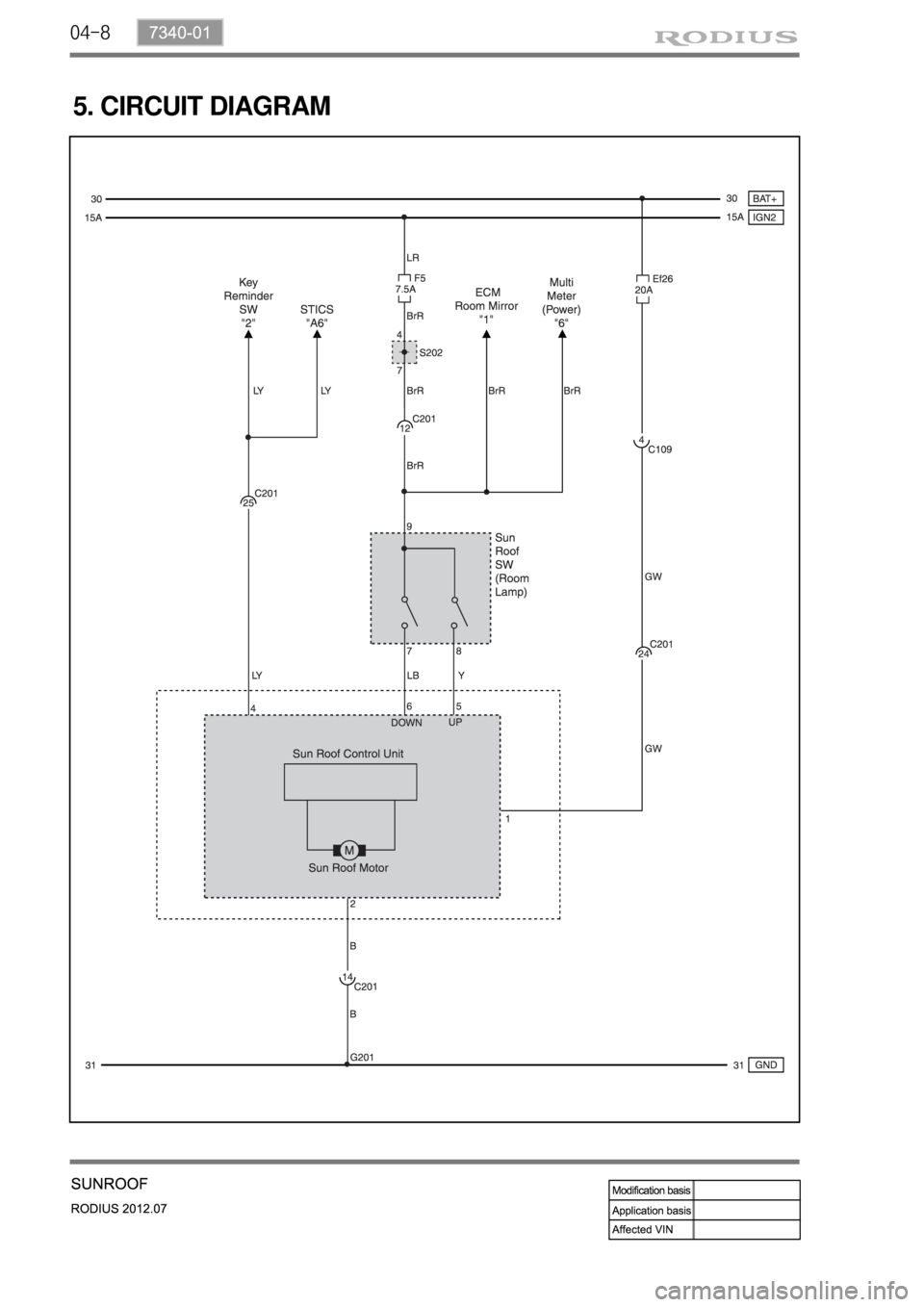

5. CIRCUIT DIAGRAM

05-37630-01
1. BODY INTERIOR
1) Storage Boxes
Overhead console
Front door map pocket
Center consoleGlove box
CD carrier & Coin box
Seatback pocket

05-4
2) Convenient Devices
Ticket holder
Seatback table
Power outlet
Rear cup holders
Tea tablePower outlets Front cigarette lighter Front cup holder

05-57630-01
3) Assist Grips
(1) On passenger side ceiling
(2) On B-pillar
(3) On ceiling above rear seats
Above rear 1st seatAbove rear 2nd seat
