SSANGYONG RODIUS 2012 Service Manual

03-137410-01

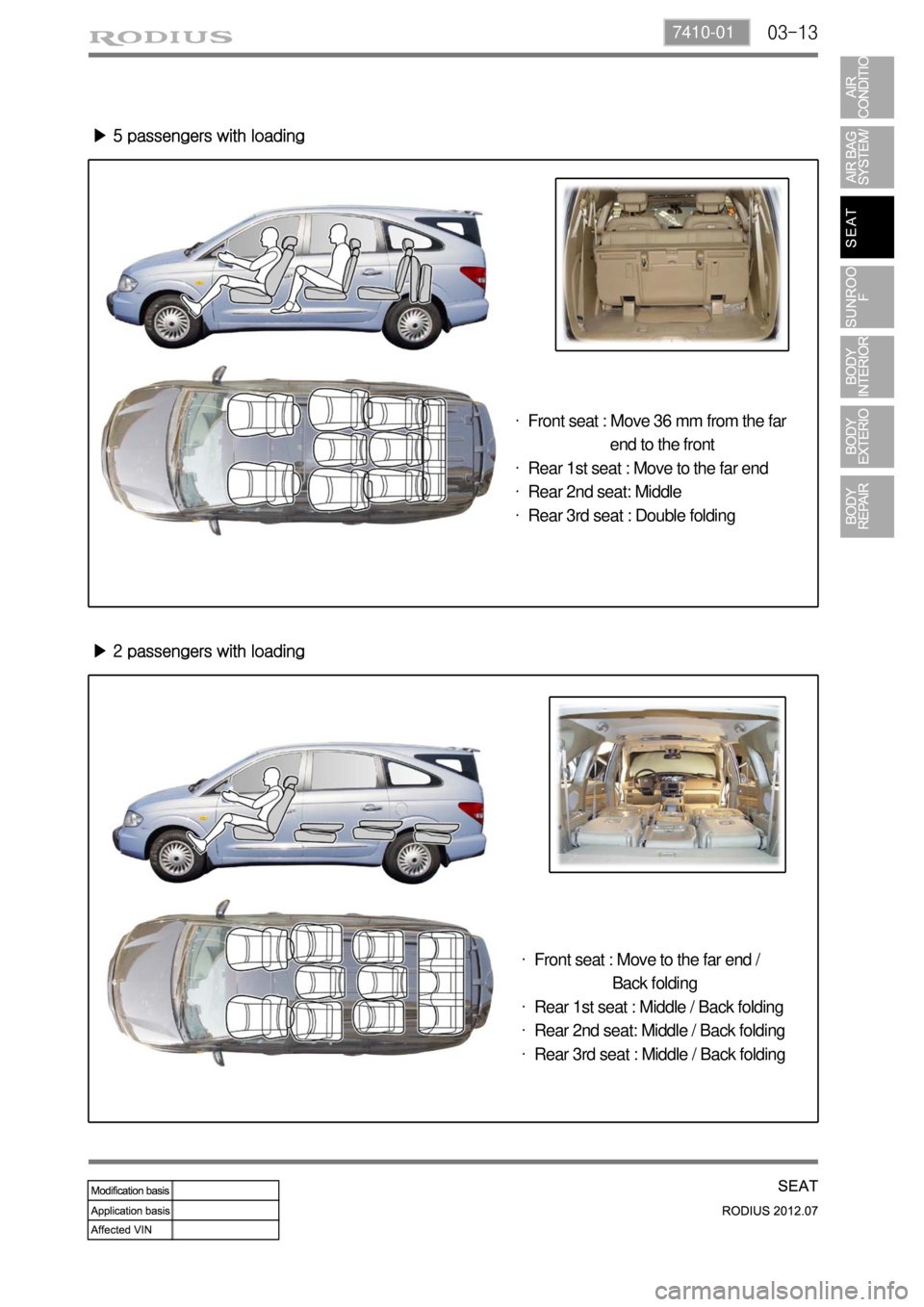

▶ 5 passengers with loading
▶ 2 passengers with loading
Front seat : Move 36 mm from the far
end to the front
Rear 1st seat : Move to the far end
Rear 2nd seat: Middle
Rear 3rd seat : Double folding ·
·
·
·
Front seat : Move to the far end /
Back folding
Rear 1st seat : Middle / Back folding
Rear 2nd seat: Middle / Back folding
Rear 3rd seat : Middle / Back folding ·
·
·
·

03-14

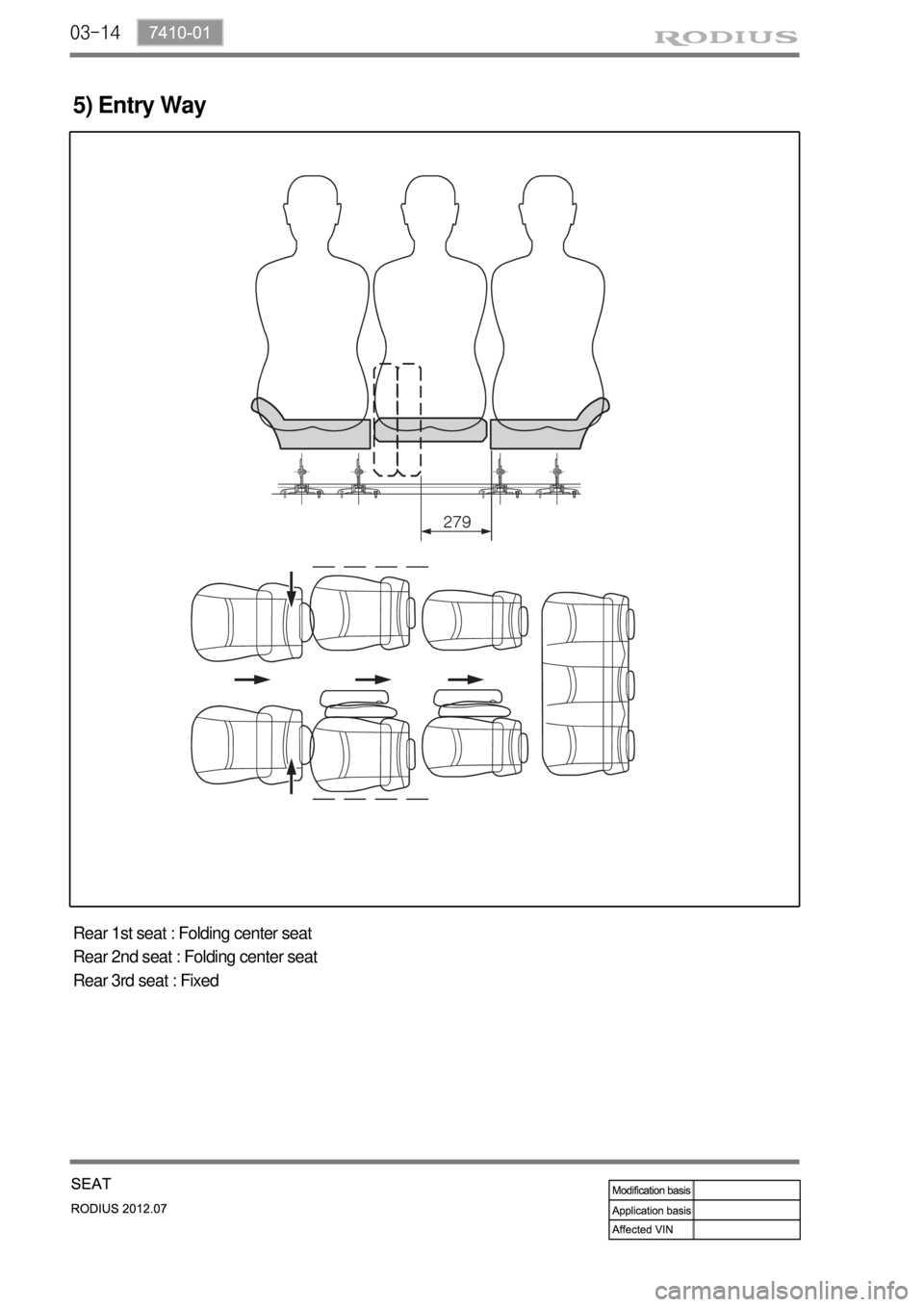

5) Entry Way
Rear 1st seat : Folding center seat
Rear 2nd seat : Folding center seat
Rear 3rd seat : Fixed

03-157410-01

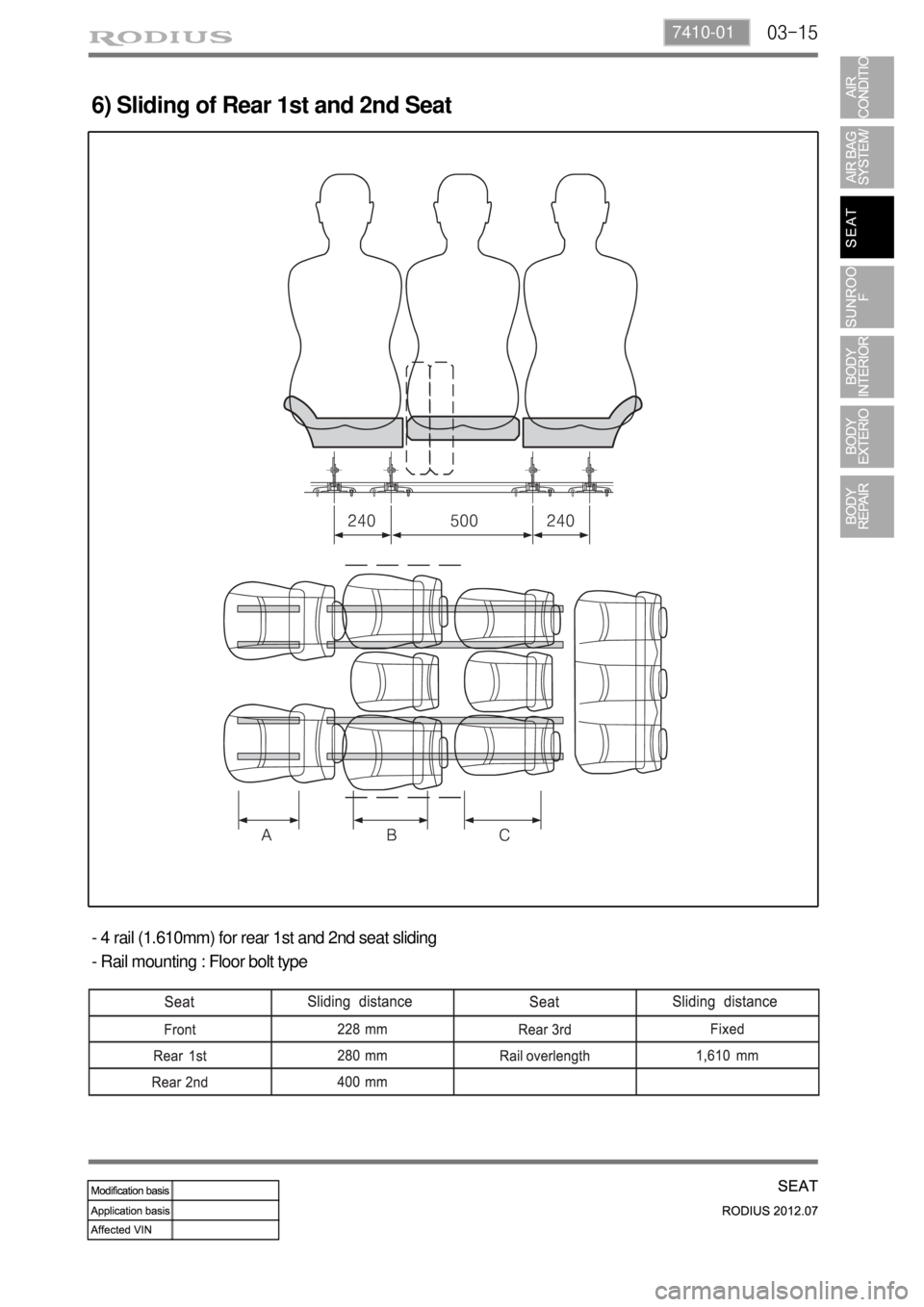

6) Sliding of Rear 1st and 2nd Seat
- 4 rail (1.610mm) for rear 1st and 2nd seat sliding
- Rail mounting : Floor bolt type

03-16

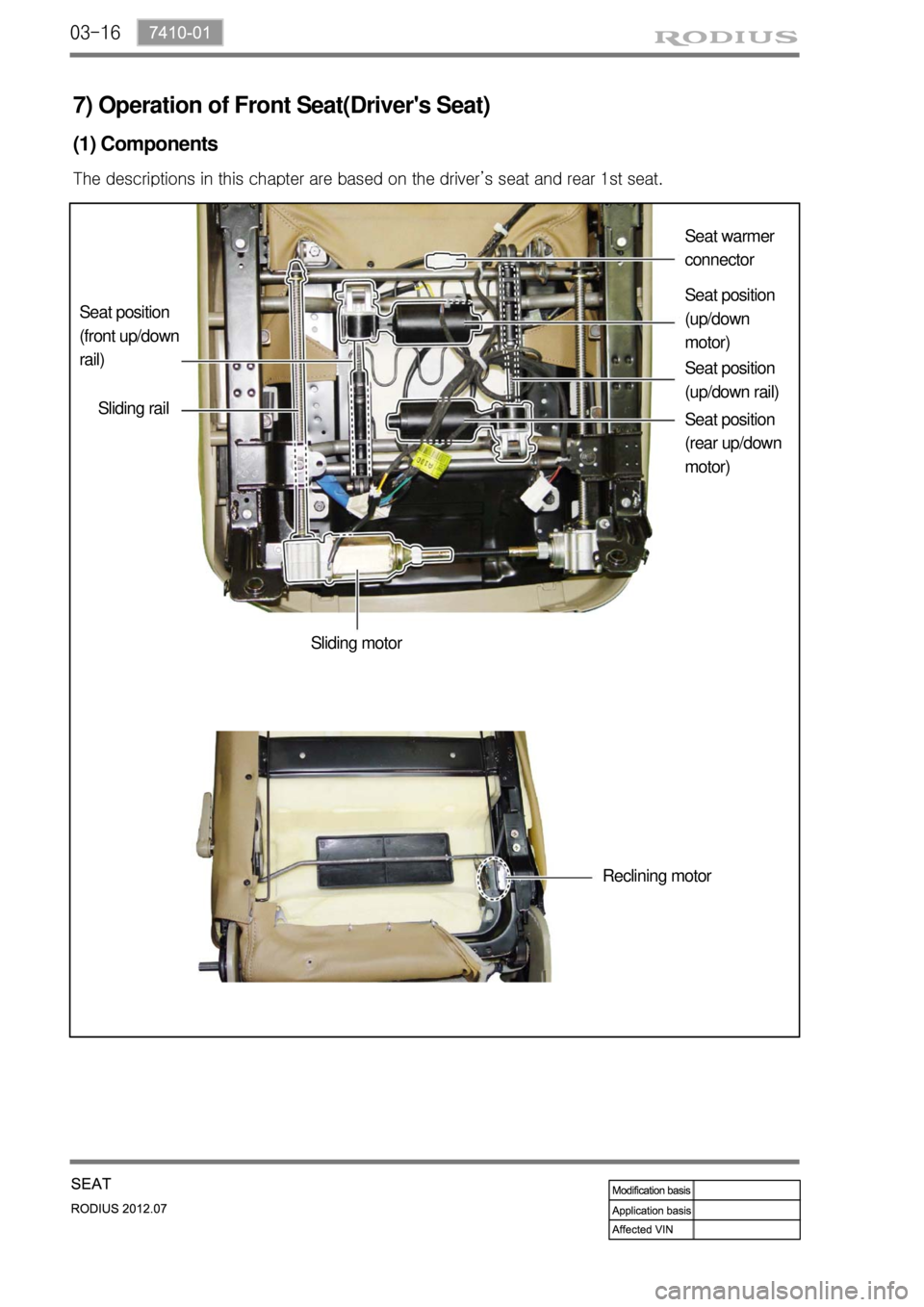

7) Operation of Front Seat(Driver's Seat)
<007b008f008c0047008b008c009a008a009900900097009b009000960095009a0047009000950047009b008f0090009a0047008a008f00880097009b008c0099004700880099008c004700890088009a008c008b0047009600950047009b008f008c004700
8b00990090009d008c009902c5009a0047009a008c0088009b> and rear 1st seat.
(1) Components
Seat warmer
connector
Seat position
(up/down
motor)
Seat position
(up/down rail)
Seat position
(rear up/down
motor) Seat position
(front up/down
rail)
Sliding rail
Sliding motor
Reclining motor

03-177410-01
Seat cushion angle adjustment
(rear end)
Front side of seat moves
up/down controlled by seat
position control switch
(2) Operation of seat
Sliding
Seat moves from front to rear
controllde by sliding control
switch
Seat cushion angle adjustment
(front end)
Rear side of seat moves
up/down controlled by seat
position control switch

03-18
Seat cushion height adjustment
Seat moves up/down
controlled by seat height
control switch
Seatback reclining
Seat back reclining controlled
by seat reclining control
switch

03-197410-01
When seating
When jumping

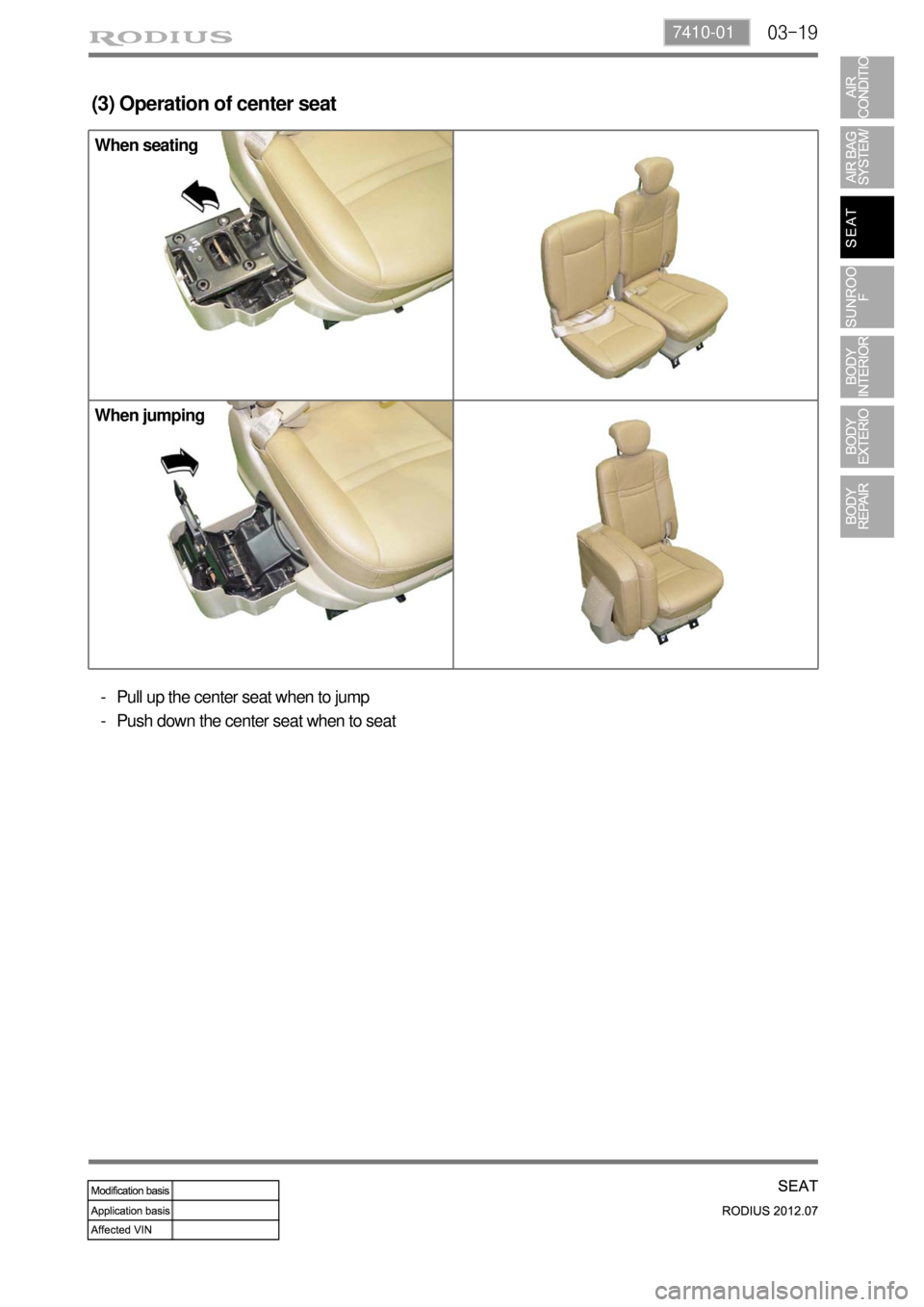

(3) Operation of center seat
Pull up the center seat when to jump
Push down the center seat when to seat -
-

03-20
(4) OPERATION OF REAR SEAT
Rear 1st seat (swivel seat) ▶
Jumping mechanism
Seat back folding cableSeat back flat cable
Sliding cable
Swivel leverSliding lever

03-217410-01

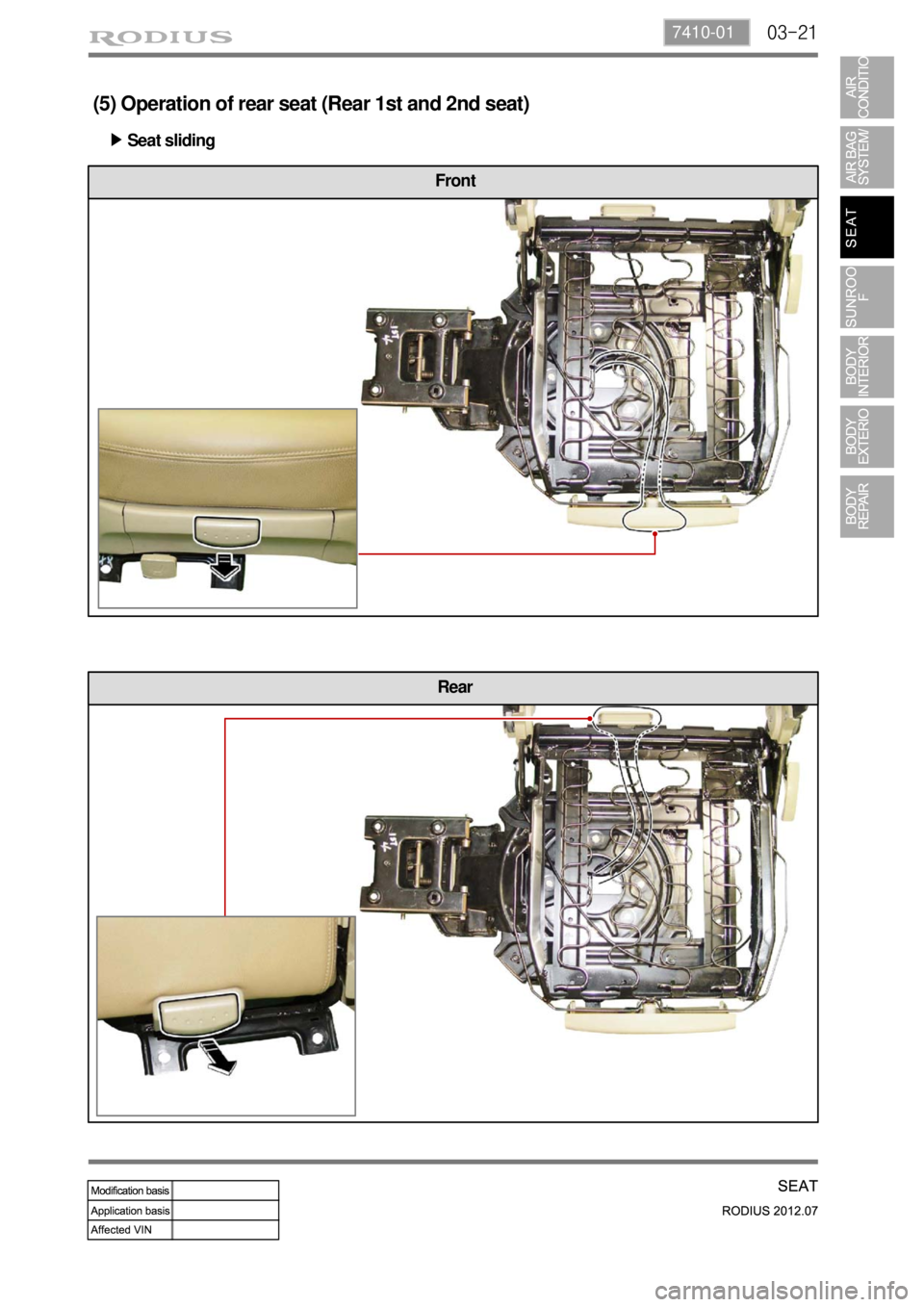

(5) Operation of rear seat (Rear 1st and 2nd seat)
Seat sliding ▶
Front
Rear

03-22
Rear 1st/2nd seat
Rear 2nd
Rear 1st
(6) Seat back flat
- When to recline or to flat fully.
(7) Seat back folding
- Fold the rear 1st or 2nd raw seat back to put something on or to utilize it as a table.
