3. INSPECTION
Pedal stroke and height ▶
Pedal stroke (A)
A.
Stop the engine.
Measure the current pedal position.
Depress the clutch pedal all the way and
measure the pedal stroke (A). 1)
2)
3)
Stroke (A)150 ± 3 mm
Pedal height (B) B.
Stop the engine.
Remove the floor mat from the driver’s
footwall.
Measure the pedal height (B). 1)
2)
3)
Height (B)95.2 ± 3 mm
Adjustment-
Release the lock nut (D) on stopper bolt (C).
Turn the stopper bolt to adjust the pedal
height.
Tighten the lock nut to the specified tightening
torque. 1)
2)
3)

03-6
Pedal free play ▶
Pedal free play (A) A.
Stop the engine.
Measure the current pedal position.
Lightly depress the clutch pedal until you feel
the resistance from the pedal and measure
the distance. 1)
2)
3)
Free play (A)5 ~ 15 mm
Adjustment-
Release the lock nut (B) from the master
cylinder.
Turn the push rod (C) to adjust the pedal
free play.
Tighten the lock nut to the specified
tightening torque. 1)
2)
3)

03-73010-00
1. OVERVIEW
The hydraulic clutch transmits the force required to operate the clutch pedal to the concentric slave
cylinder fitted to the clutch housing as a hydraulic pressure.
(The hydraulic pressure is transmitted in the following order: Clutch pedal - Clutch master cylinder -
Clutch pipe - Clutch damper - Clutch pipe and hose - Concentric slave cylinder - Pressure plate -
Flywheel.)
If a driver depress the clutch pedal, the hydraulic pressure is generated in the master cylinder. It is
transmitted to the concentric slave cylinder through the pipe, resulting in the cylinder being forced out.
At this time, the clutch disc is forced against the cylinder by pushing the cover. This, in turn, remove the
flywheel from the pressure plate. As a consequence, the power from the engine will be cut off and the
gear change can be carried out.

03-8

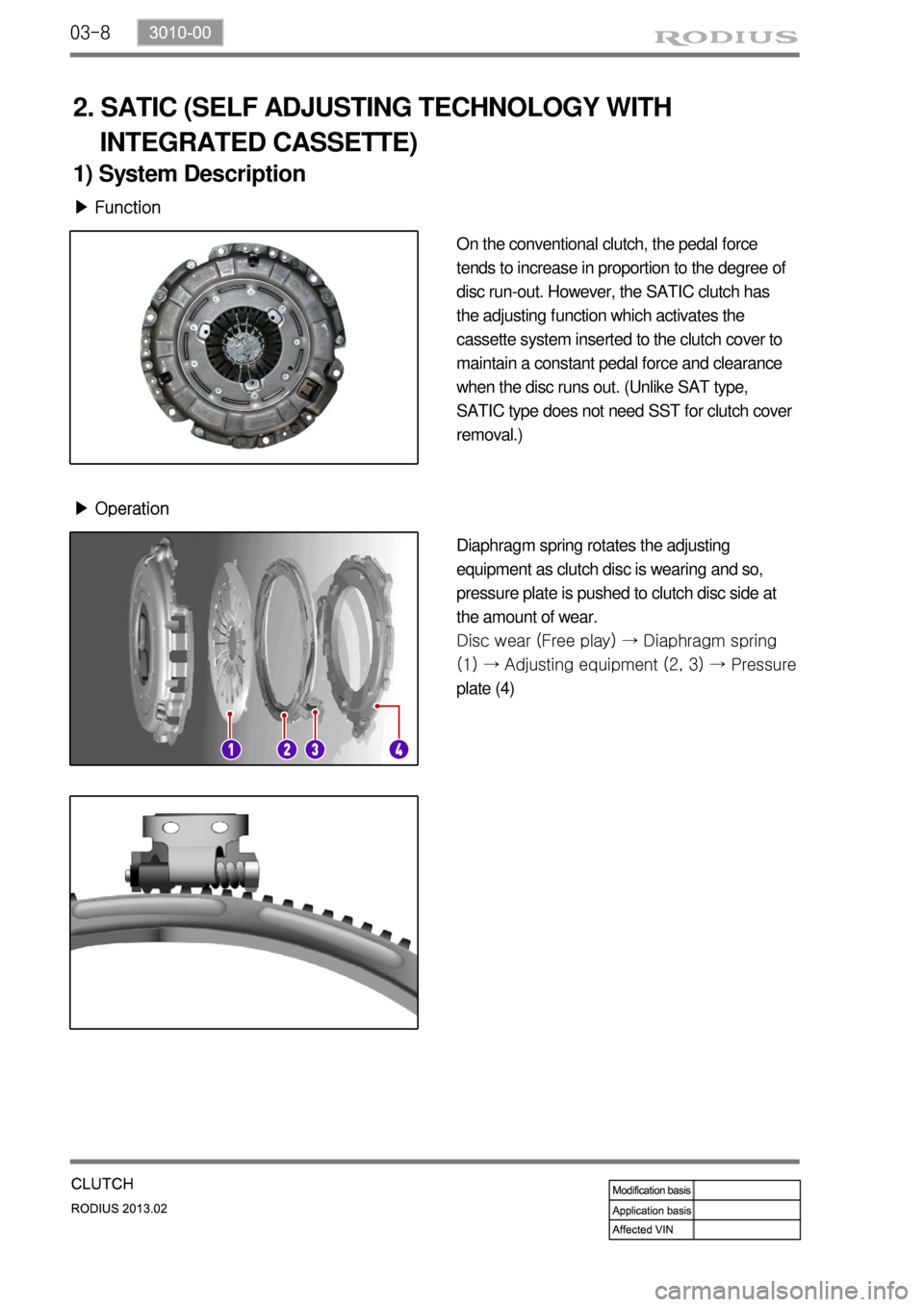

2. SATIC (SELF ADJUSTING TECHNOLOGY WITH
INTEGRATED CASSETTE)
1) System Description
▶ Function
On the conventional clutch, the pedal force
tends to increase in proportion to the degree of
disc run-out. However, the SATIC clutch has
the adjusting function which activates the
cassette system inserted to the clutch cover to
maintain a constant pedal force and clearance
when the disc runs out. (Unlike SAT type,
SATIC type does not need SST for clutch cover
removal.)
▶ Operation
Diaphragm spring rotates the adjusting
equipment as clutch disc is wearing and so,
pressure plate is pushed to clutch disc side at
the amount of wear.
Disc wear (Free play) → Diaphragm spring
(1) → Ad
justing equipment (2, 3) → Pressure
plate (4)

03-93010-00
2) Overview
Driving elements ▶
The driving elements consist of two flat surfaces machined to a smooth finish.
One of these is the rear face of the engine flywheel and the other is the clutch pressure plate. The
clutch pressure plate is fitted into a clutch steel cover, which is bolted to the flywheel.
Driven elements ▶
The driven element is the clutch disc with a splined hub which is free to slide lengthwise along the
splines of the input shaft.
The driving and driven elements are held in contact by spring pressure. This pressure is exerted by a
diaphragm spring in the clutch cover pressure plate assembly.
Operating Elements ▶
The clutch "release" system consists of the clutch pedal and clutch release cylinder.
This system directly releases the clutch by using hydraulic pressure while the conventional clutch
system releases the clutch by using release lever and release fork. This system provides higher
efficiency than conventional clutch system, and its durability is superior.
Clutch master cylinder (mounted on clutch pedal)
Concentric slave cylinder pipe (mounted inside of transmission) -
-

03-10
Clutch cover assembly
3) Layout
Clutch disc
Dual mass flywheel (DMF)Concentric slave cylinder
T/M Input shaft

03-113010-00
3. DUAL MASS FLYWHEEL (DMF)
The dual mass flywheel (DMF) is of having a mass divided into two halves.
While one mass is connected to the engine crankshaft, which is affected by the mass moment of
inertia of the engine, the other mass is affected by one of the transmission.
The divided dual masses are connected to the coil spring and damping system internally.
The DMF has the following benefits: ▶
Reducing fuel consumption by lowering engine speed
Reducing rattling noise and vehicle vibration in all driving ranges
Reducing synchronization wear
Facilitating gear change
Protecting power train parts by preventing excessive load from being delivered -
-
-
-
-
Primary flywheel
Secondary flywheel
Arc damper spring
Torque limiter
Ring gear 1.
2.
3.
4.
5.

04-34120-01
1. SPECIFICATIONS
Front Axle ▶
Rear Axle ▶
Description Specification
Drive shaft type CV joint
Axle housing type Build up
DifferentialType Conventional type
Gear type Hypoid Gear
Final gear reduction ratioEngine + M/T 4.55
Engine + A/T 3.54
OilCapacity 1.2 L
Specification SAE 80W / 90, API GL-5
Description Specification
Axle shaft type Semi-floating
Axle housing type Build up
DifferentialType Conventional type
Gear type Hypoid Gear
Final gear reduction ratioEngine + M/T 4.55
Engine + A/T 3.54
OilCapacity 1.5 L
Specification TOTAL-ISU EP-B 85W/90

04-4
Rear axle assembly
Mounting hole position and seat pan angle for rear axle changed due to change of rear sub frame
2. CHANGES
Changes in rear axle assembly ▶
Changes in rear axle shaft assembly ▶
Rear Axle Shaft Assembly
Increased rear axle shaft length (15.0 mm) due to change of rear sub frame
Mounting section

04-54120-01
1. OVERVIEW
The axle is the device of transferring the drive power from the engine to the wheels; its inside is fitted to
the side gear spline of the differential gear and outside is connected to the drive wheels. The axles in
front and rear of vehicle are known as the front axle and rear axle respectively.
For the FR (Front engine, Rear wheel drive) type vehicle driven by the rear wheels, the drive power is
basically transferred to the rear wheels in the following order in 2WD mode: Engine-
>Clutch→Transmission→Propeller shaft (Rear propeller shaft)→Final reduction gear (Rear
axle)→Rear axle shaft→Rear wheels. In 4WD mode, the drive power to the rear wheels is
distributed to the front wheels in order of Front propeller shaft->Front axle->Front axle shaft->Front
wheel via the T/C assembly. And, 4WD solenoid valve releases the vacuum and engage the locking
hub actuator to the LH/RH front hub end gear to transfer the drive power of the axle shaft to the front
wheels.
The front axle and front axle shaft are used in only 4WD model. The rear axle has the independent
rear drive axle (IRDA) which is used on the independent rear suspension (IRS).
Front axleTransmission
Transfer case
Front propeller shaft Rear propeller shaftRear axle
