SSANGYONG TURISMO 2013 Service Manual

05-12
1) 2H Mode (2 Wheel Drive)
Power Flow ▶
Output shaft of
transmission
Rear propeller shaftRear wheel
Rear axle
Rear wheel
The driving force is directly engaged (1:1) to rear axle and is transferred only to the rear wheels.
Input shaft of transfer
case
↓
Output shaft of transfer
case

05-133240-01
2) 4H Mode (4 Wheel Drive - High Speed)
Power Flow ▶
The driving force is pass through 4WD High magnetic clutch in transfer case and is distributed
on front wheels and rear wheels (50;50).

05-14
3) 4L Mode (4 Wheel Drive - Low Speed)
Power Flow ▶
The gear ratio is reduced to 2.48;1 while passing through 4WD Low range and planetary gear set
in transfer case and the driving force is distributed on front wheels and rear wheels (50;50).

06-33310-01
1. SPECIFICATIONS
Description Specification
StructureUniversal joint with yoke arm and spider and CV joint
Front propeller shaft (4WD) One universal joint and one CV joint
Rear propeller shaft Two universal joint and one CV joint
Run-out below 0.4 mm
UnbalanceMax. 18g·cm / 4,500rpm
Length of front propeller
shaft4WD A/T 531.2 ± 1.0 mm
Length of rear propeller
shaft2WD M/T 1892.1 ± 2.0 mm
A/T 1975.1 ± 2.0 mm
4WD A/T 1593.1 ± 2.0 mm

06-4
2. MAJOR CHANGES
Rear propeller shaft assembly
- Increased part B of rear propeller shaft assembly due to change of rear sub frame (6.0 mm)
Specifications
ItemM/T 2WD A/T 2WD A/T 4WD
Old New Old New Old New
A (mm) 1886.1 1892.1 1969.1 1975.1 1587.1 1593.1
B (mm) 769.5 775.5 769.5 775.5 769.5 775.5

06-53310-01
1. OVERVIEW
The propeller shaft transfers the power through the transmission and transfer case to the front/rear
axle differential carrier (final reduction gear). It is manufactured by a thin rounded steel pipe to have
the strong resisting force against the torsion and bending. Both ends of propeller shaft are connected
to the spider and the center of propeller shaft is connected to the spline to accommodate the changes
of the height and length. The rubber bushing that covers the intermediate bearing keeps the balance o
f
rear propeller shaft and absorbs its vibration.
Function of propeller shaft ▶
Transmits driving torque.
Compensates the angle change (universal joint / CV joint).
Compensates the axial length change (splines for the slip joint). -
-
-
4WD AT 2WD MT

06-6

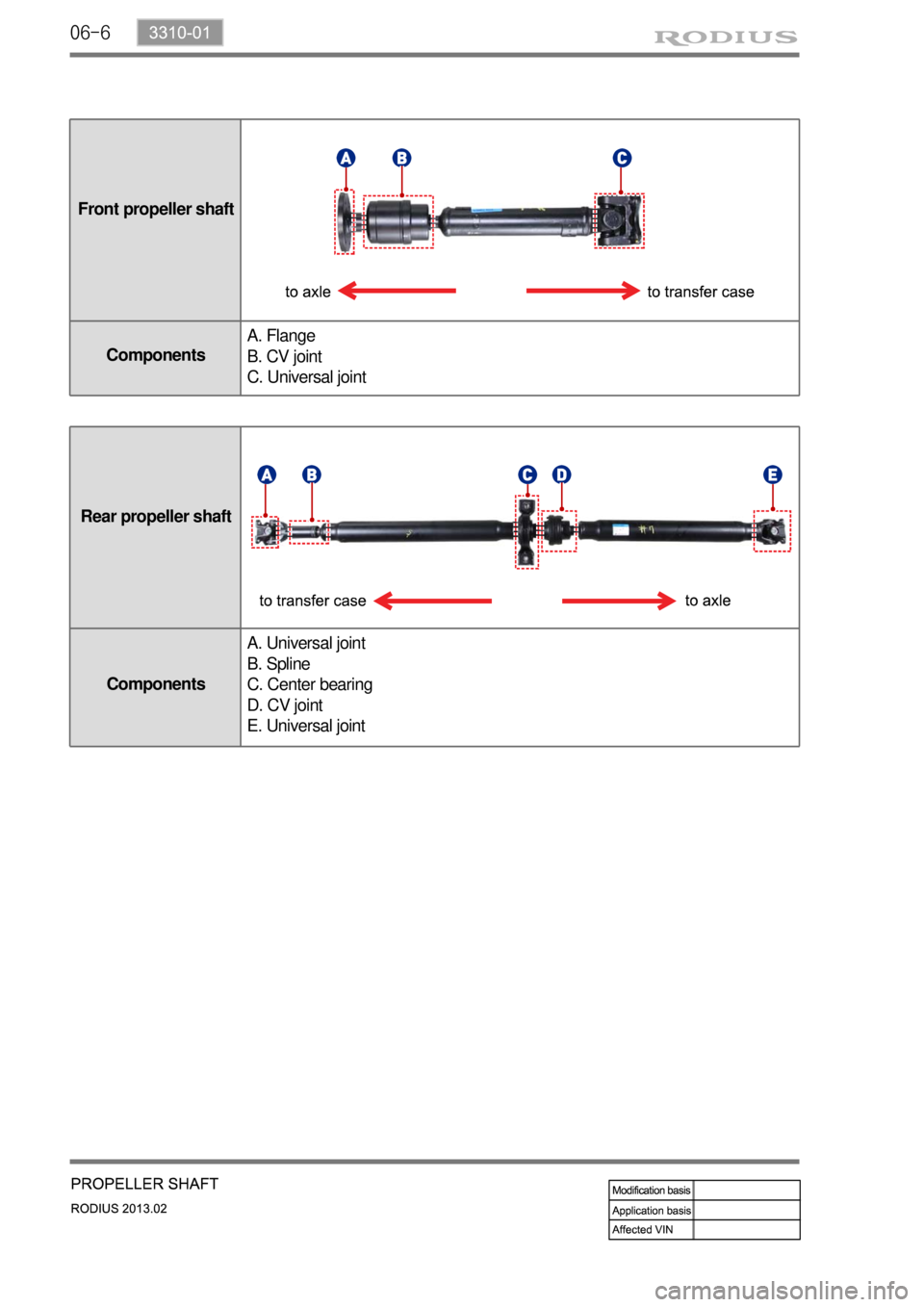

Front propeller shaft
Components
A. Flange
B. CV joint
C. Universal joint
Rear propeller shaft
Components
A. Universal joint
B. Spline
C. Center bearing
D. CV joint
E. Universal joint

07-34411-01
1. SPECIFICATIONS
DescriptionSpecification
Front Suspension Rear Suspension
Suspension typeDouble wishbone Multi-link type
Spring typeCoil spring Coil spring
Shock absorber typeReciprocating cylindrical type
(gas type)Reciprocating cylindrical type
(gas type)
Stabilizer bar typeTorsion bar type Torsion bar type
2. WHEEL ALIGNMENT
Front Wheel
AlignmentToe-in0.˚±0.10˚
Camber-0.12˚±0.50˚
Caster4.80˚±0.50˚
Rear Wheel
AlignmentToe-in0.48˚±0.15˚
Camber-1.20˚±0.50˚
Caster-

07-4

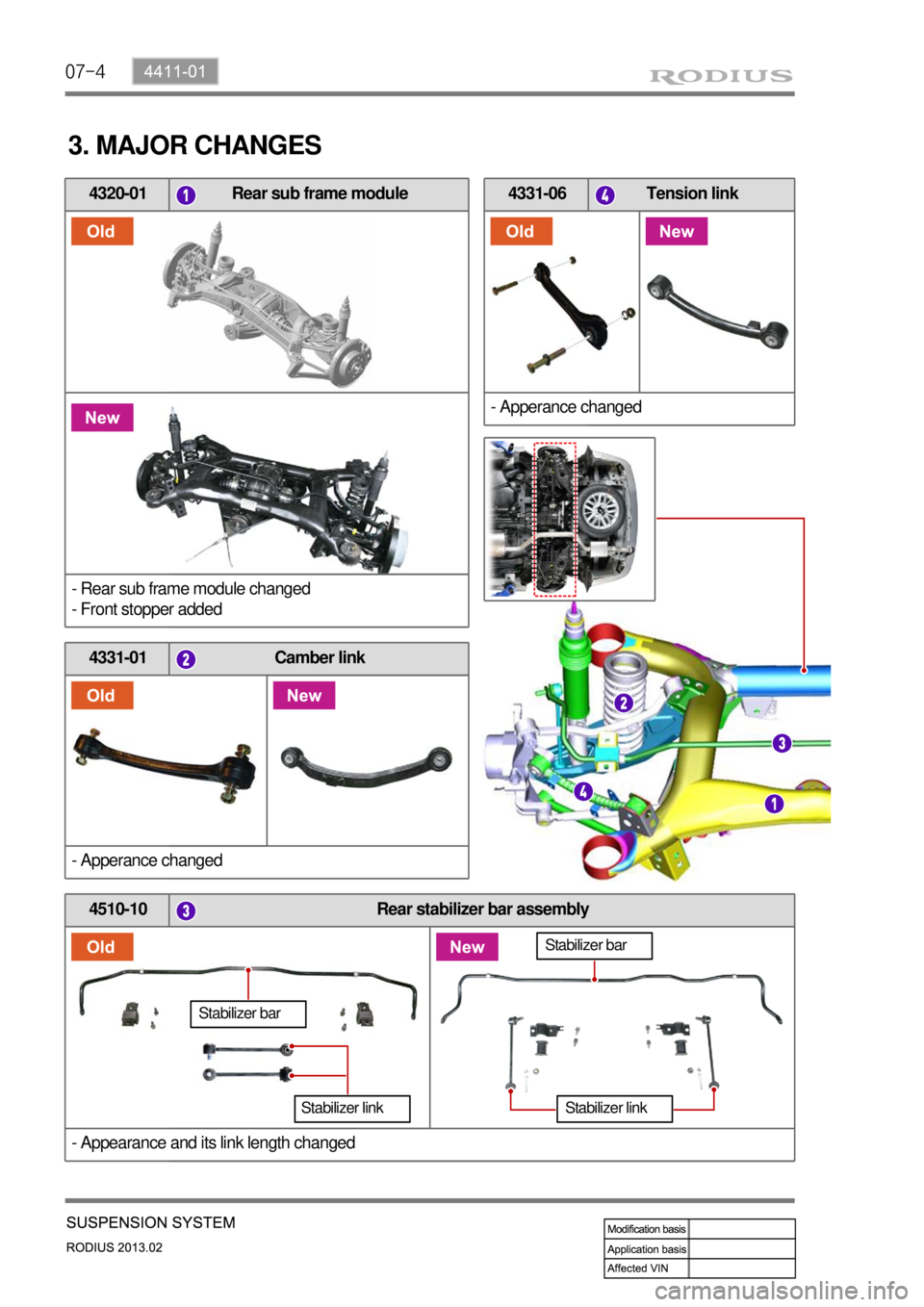

4510-10 Rear stabilizer bar assembly
- Appearance and its link length changed
Stabilizer bar
Stabilizer link
Stabilizer bar
Stabilizer link
4320-01 Rear sub frame module
- Rear sub frame module changed
- Front stopper added
4331-01 Camber link
- Apperance changed
4331-06 Tension link
- Apperance changed
3. MAJOR CHANGES

07-54411-01

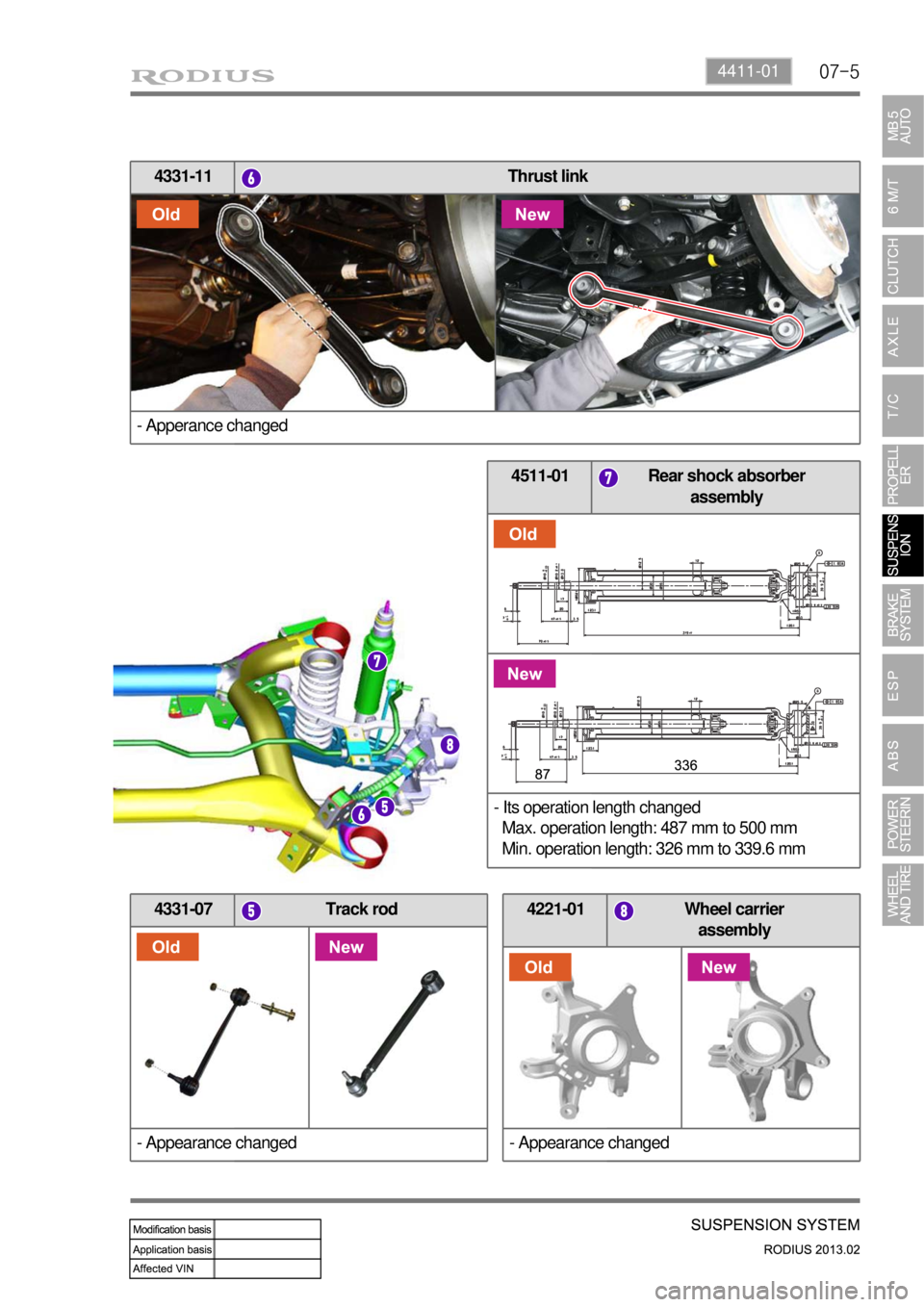

4331-07 Track rod
- Appearance changed4221-01 Wheel carrier
assembly
- Appearance changed
4331-11 Thrust link
- Apperance changed
4511-01 Rear shock absorber
assembly
- Its operation length changed
Max. operation length: 487 mm to 500 mm
Min. operation length: 326 mm to 339.6 mm
