SUBARU BAJA 2006 1.G Owners Manual

11 - 7 6
Maintenance and service
„
License plate light„
License plate light
„ Replacing bulbs
„ License plate light0

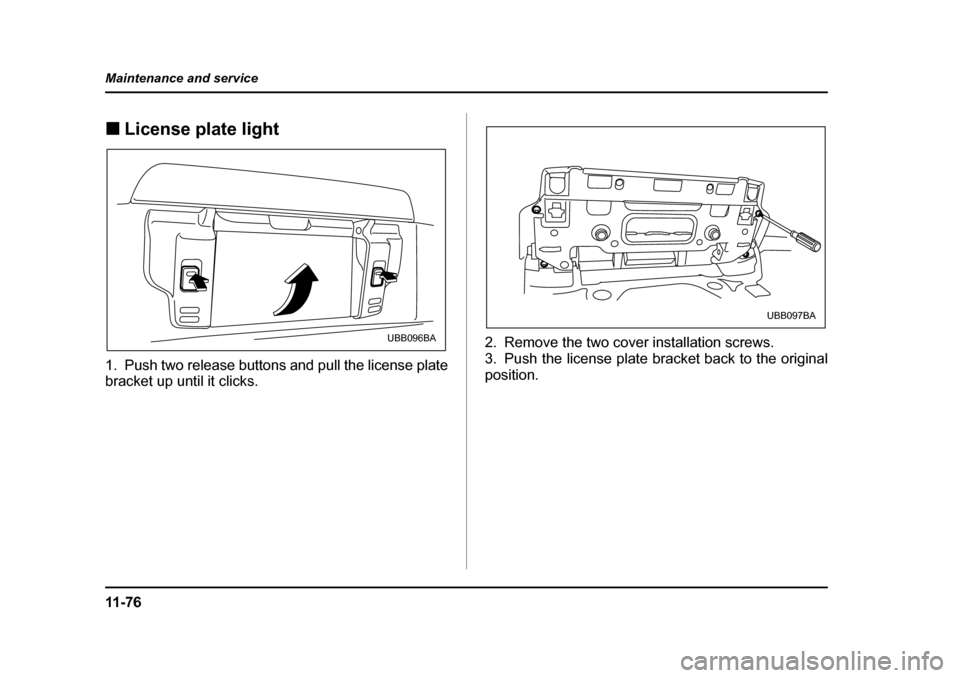

1. Push two release buttons and pull the license plate
bracket up until it clicks. 2. Remove the two cove
r installation screws.
3. Push the license plate bracket back to the original position.
UBB096BA
UBB097BA

11 -7 7
Maintenance and service
– CONTINUED –

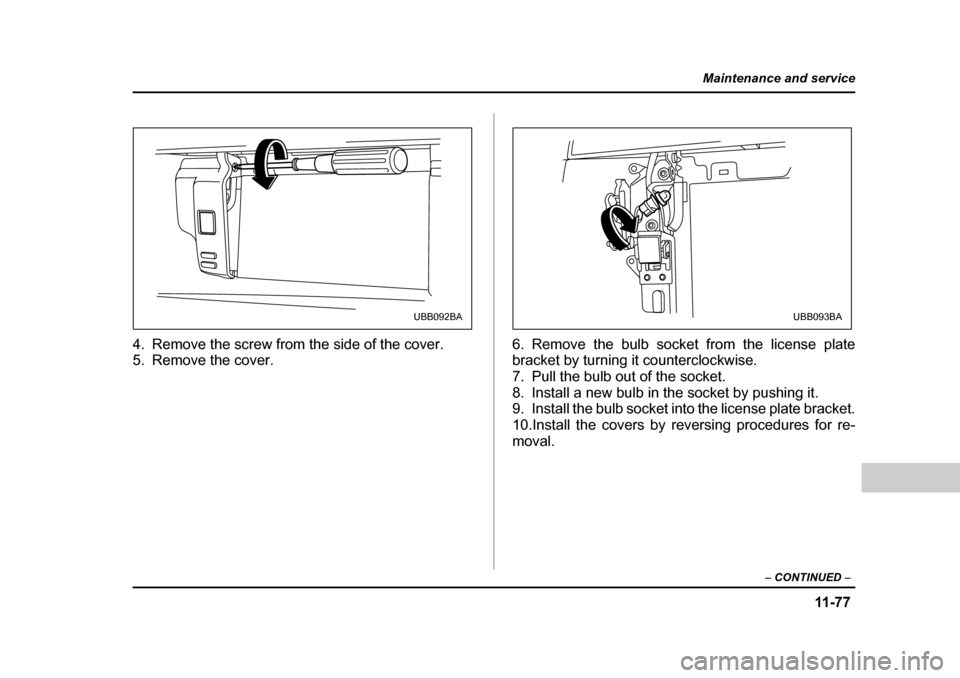

4. Remove the screw from the side of the cover.
5. Remove the cover. 6. Remove the bulb socket from the license plate
bracket by turning it counterclockwise.
7. Pull the bulb out of the socket.
8. Install a new bulb in the socket by pushing it.
9. Install the bulb socket into the license plate bracket.
10.Install the covers by reversing procedures for re-moval.
UBB092BAUBB093BA

11 - 7 8
Maintenance and service
„

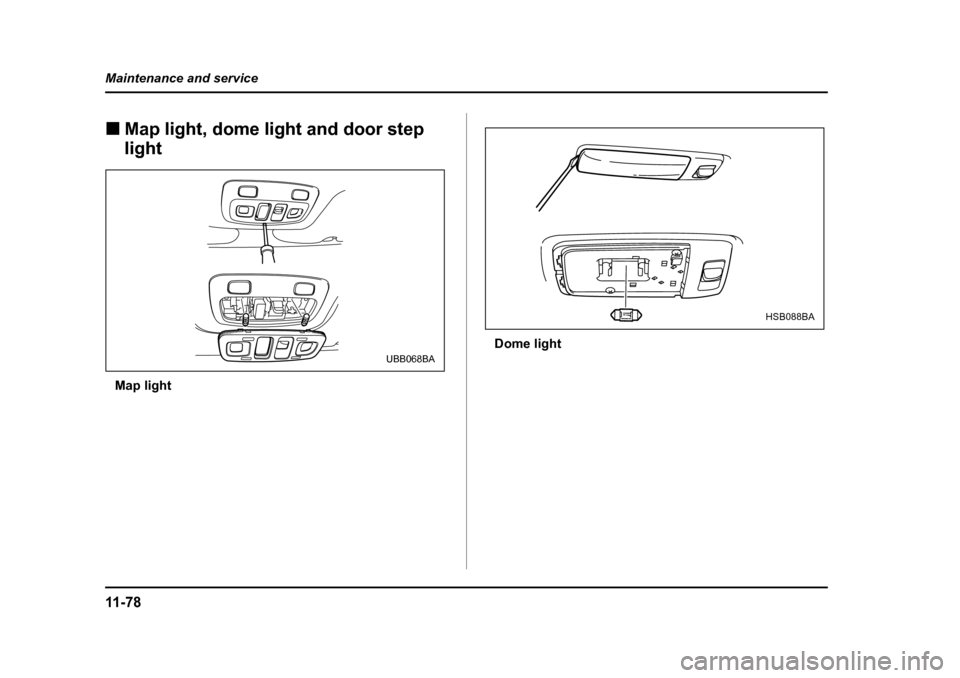

Map light, dome light and door step light
„Replacing bulbs
„ Dome light
„ Dome light
„ Replacing bulbs
„ Map light
Map light Dome light
UBB068BA
HSB088BA

11 -7 9
Maintenance and service
– CONTINUED –

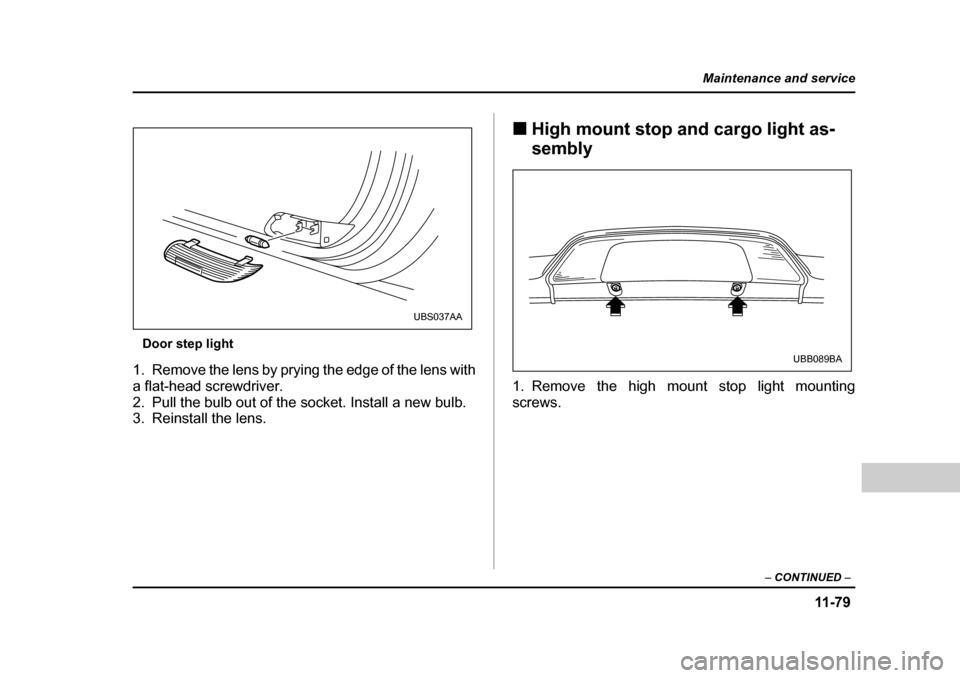

Door step light
1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens. „
High mount stop and cargo light as-
sembly
„Replacing bulbs
„ High mount stop light assembly
„ Replacing bulbs
„ Cargo light assembly
„ High mount stop and cargo light assembly
1. Remove the high mount stop light mounting screws.
UBS037AA
UBB089BA

11 - 8 0
Maintenance and service

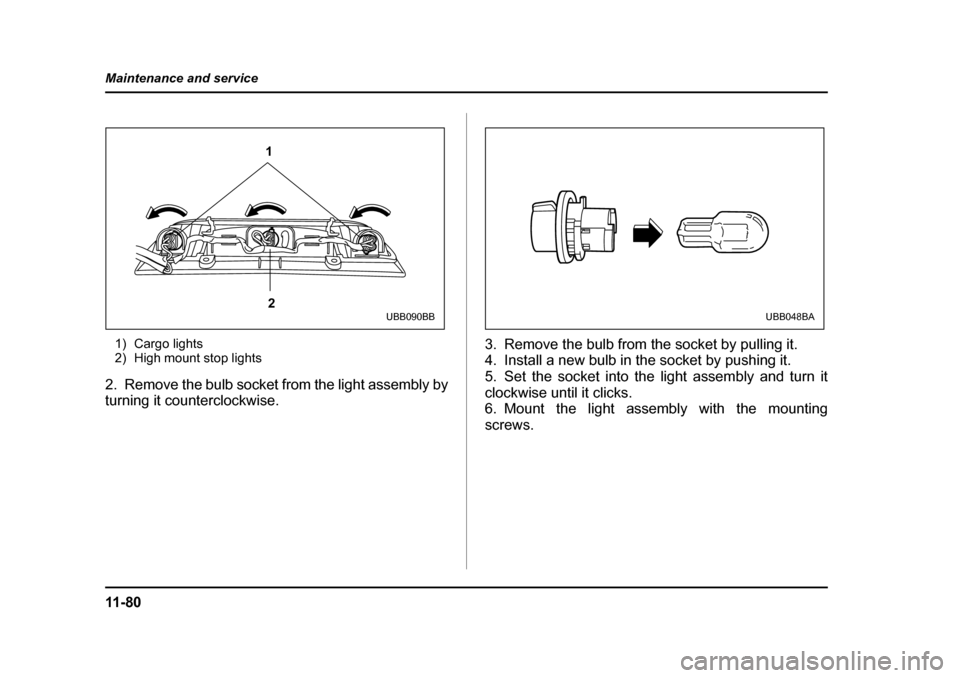

1) Cargo lights
2) High mount stop lights
2. Remove the bulb socket from the light assembly by
turning it counterclockwise. 3. Remove the bulb from the socket by pulling it.
4. Install a new bulb in the socket by pushing it.
5. Set the socket into the light assembly and turn it
clockwise until it clicks.
6. Mount the light assembly with the mounting screws.
1
2
UBB090BBUBB048BA

11 -8 1
Maintenance and service
– CONTINUED –

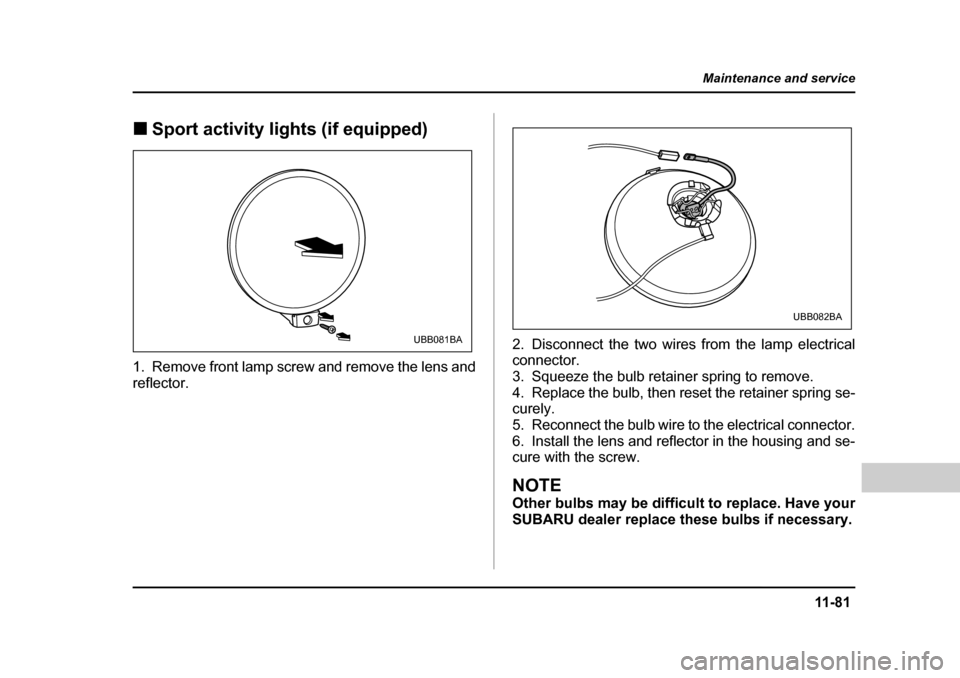

„Sport activity lights (if equipped)„
Sport activity lights
1. Remove front lamp screw and remove the lens and
reflector. 2. Disconnect the two wires from the lamp electrical
connector.
3. Squeeze the bulb retainer spring to remove.
4. Replace the bulb, then reset the retainer spring se- curely.
5. Reconnect the bulb wire to the electrical connector.
6. Install the lens and reflector in the housing and se-
cure with the screw.
NOTE
Other bulbs may be difficult to replace. Have your
SUBARU dealer replace these bulbs if necessary.
UBB081BA
UBB082BA

12-1
12
Specifications
Specifications ................................................ 12-2 Dimensions ....................................................... 12-2
Engine ................................................................ 12-2
Electrical system .............................................. 12-3
Capacities .......................................................... 12-3
Tires ................................................................... 12-4
Wheel alignment ............................................... 12-4
Fuses and circuits ........................................ 12-5 Fuse panel located behind the coin tray ........ 12-5
Fuse panel located in the engine compartment .................................................. 12-6
Bulb chart ...................................................... 12-8
Vehicle identification .................................... 12-9

12-2
Specifications
SpecificationsSpecifications
These specifications are subj
ect to change without notice.

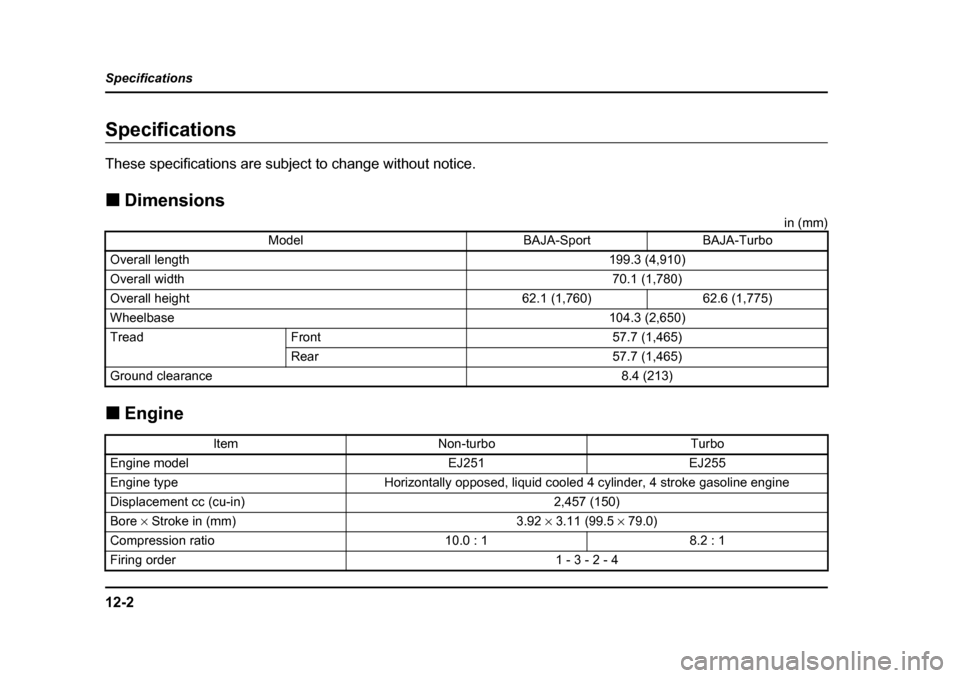

„ Dimensions
in (mm)
„ Engine
ModelBAJA-SportBAJA-Turbo
Overall length199.3 (4,910)
Overall width70.1 (1,780)
Overall height62.1 (1,760)62.6 (1,775)
Wheelbase104.3 (2,650)
TreadFront57.7 (1,465)
Rear57.7 (1,465)
Ground clearance8.4 (213)
ItemNon-turboTurbo
Engine modelEJ251EJ255
Engine typeHorizontally opposed, liquid cooled 4 cylinder, 4 stroke gasoline engine
Displacement cc (cu-in)2,457 (150)
Bore

12-3
Specifications
– CONTINUED –

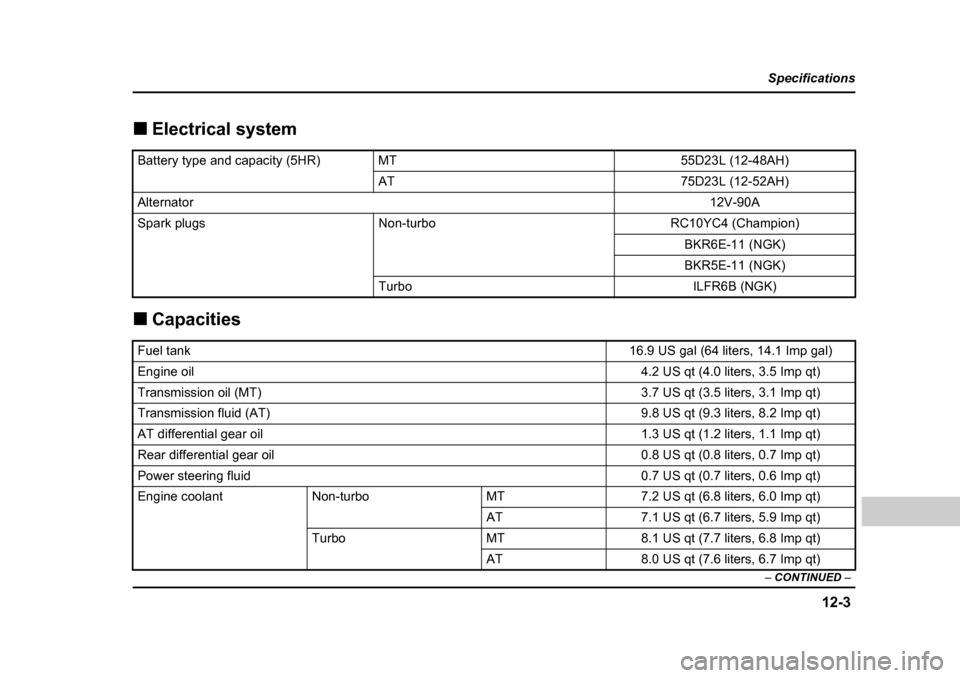

„Electrical system
„ Capacities
Battery type and capacity (5HR)MT55D23L (12-48AH)
AT75D23L (12-52AH)
Alternator12V-90A
Spark plugsNon-turboRC10YC4 (Champion)
BKR6E-11 (NGK)
BKR5E-11 (NGK)
TurboILFR6B (NGK)
Fuel tank16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil4.2 US qt (4.0 liters, 3.5 Imp qt)
Transmission oil (MT)3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT)9.8 US qt (9.3 liters, 8.2 Imp qt)
AT differential gear oil1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oil0.8 US qt (0.8 liters, 0.7 Imp qt)
Power steering fluid0.7 US qt (0.7 liters, 0.6 Imp qt)
Engine coolantNon-turboMT7.2 US qt (6.8 liters, 6.0 Imp qt)
AT7.1 US qt (6.7 liters, 5.9 Imp qt)
TurboMT8.1 US qt (7.7 liters, 6.8 Imp qt)
AT8.0 US qt (7.6 liters, 6.7 Imp qt)
