SUBARU BAJA 2006 1.G Owners Manual

12-4
Specifications „
Tires
„ Wheel alignment
TypeSteel belted radial, Tubeless
Tire sizeP225/60R16 97H
Wheel size16

12-5
Specifications
– CONTINUED –
Fuses and circuits „Fuse panel located behind the coin tray
19
18
17
16
20
15
14
12
11
10 9
8
7
6
5
4
3
2
1
13
UBC001BB
Fuse panelFuse ratingCircuit
115Ay
Heater fan
215AyHeater fan
315AyPower door lock
y Keyless entry
420AyMirror heater
y Cigarette lighter
y Remote controlled rear
view mirrors
510AyTail light
y Parking light
615AySRS airbag
715AyFront fog light
830AyABS solenoid
915AyRadio
y Clock
1015AyTrailer
1115AyEngine ignition system
y SRS airbag

12-6
Specifications
„
Fuse panel located in the engine com- partment
A) FWD socket
B) Main fuse
1210Ay Illumination brightness control
1315AyFuel pump
1410AyRear window wiper and washer
1530AyWindshield wiper and washer
1620AyBrake light
1715AyAir conditioner
1815AyBackup light
y Cruise control
y ABS control
1920AyWiper deicer
y Sports activity light
y Cargo lamp
2020AyAccessory power outlet
y Seat heater
Fuse panelFuse ratingCircuit
A
B
1
2
3 45 6 7 8 9 10 11 12
UBC003BB

12-7
Specifications
– CONTINUED –
Fuse panelFuse ratingCircuit
120A (Non-tur-
bo)yRadiator cooling fan (Main)
30A (Turbo)
220A (Non-tur-
bo)yRadiator cooling fan (Sub)
30A (Turbo)
330AyABS motor
420AyRear window defogger
515AyHazard warning flasher
y Horn
615AyMeter
y SRS airbag system warning light
710AyAutomatic transmis- sion control unit
y ABS UNIT
810AyAlternator
915AyHeadlight (right side)
1015AyHeadlight (left side)
1120AyLighting switch
1215AyClock
y Interior light
Fuse panelFuse ratingCircuit

12-8
Specifications
Bulb chart
Description Wattage Bulb No.
Headlight
S models 12V-65/55W 9007 (HB5)
Except S modelsLow beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
Front turn signal light 12V-27W 1156NA (Amber)
Spot light 12V-8W –
Dome light 12V-8W –
Door step light 12V-3.4W –
Parking and front
side marker light 12V-27/8W 1157NA
(Amber)
Front fog light 12V-51W 9006 (HB4)
Backup light 12V-21W 7440
High mount stop light 12V-13W 912
Brake·Rear turn sig-
nal light/Tail light 12V-21/5W 7443
Rear finisher light 12V-5W 168
License plate light 12V-5W 168
Cargo light 12V-13W 912
Sports activity light 12V-55W H3

12-9
Specifications
– CONTINUED –

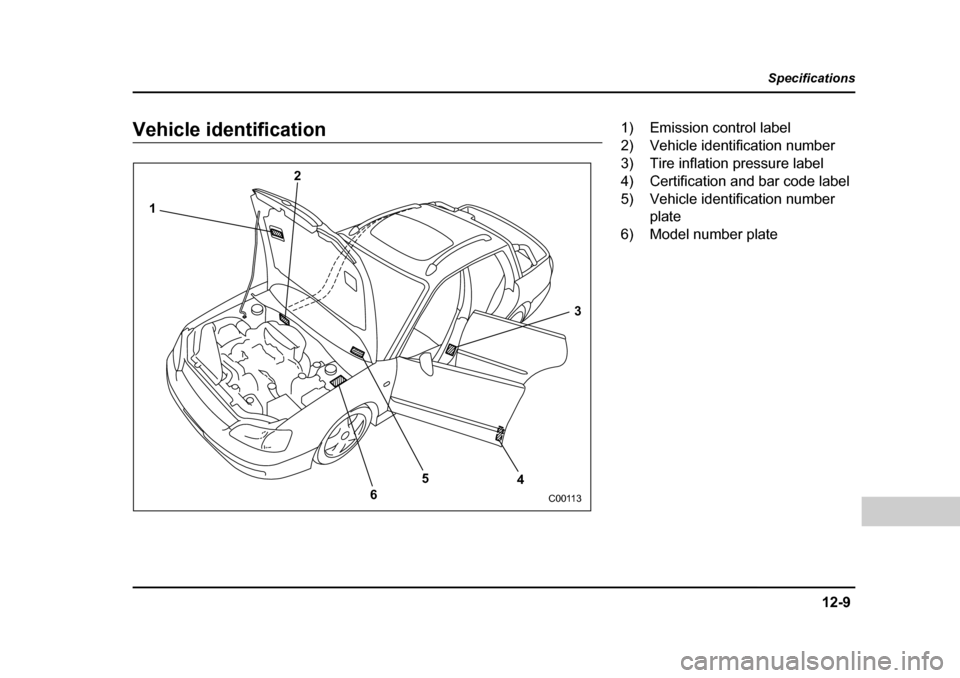

Vehicle identification
2
1
65
43
C00113
1) Emission control label
2) Vehicle identification number
3) Tire inflation pressure label
4) Certification and bar code label
5) Vehicle identification number
plate
6) Model number plate

13-1
13
Consumer information and Reporting safety defectsTire information ............................................. 13-2Tire labeling ....................................................... 13-2
Recommended tire inflation pressure ............ 13-5
Glossary of tire terminology ............................ 13-6
Tire care – maintenance and safety practices 13-8
Vehicle load limit – how to determine ............. 13-8
Determining compatibility of tire and vehicle load capacities ............................................... 13-13
Adverse safety consequences of overloading on handling and stopping and on tires ........ 13-14
Steps for Determining Correct Load Limit ..... 13-14
Uniform tire quality grading standards ....... 13-15 Treadwear .......................................................... 13-15
Traction AA, A, B, C .......................................... 13-15
Temperature A, B, C ......................................... 13-16
Reporting safety defects (U SA) ................... 13-17

13-2
Consumer information and Reporting safety defects
Consumer information and Reporting safety defectsFor U.S.A.
The following information has been compiled accord-
ing to Code of Federal Regulations “Title 49, Part
575”.
Tire information „
Tire labeling
Many markings (e.g. Tire size, Tire Identification
Number or TIN) are placed on the sidewall of a
tire by tire manufacturers. These marking can
provide you with useful information on the tire. T Tire size
Your vehicle comes equipped with P-Metric tire
size. It is important to understand the sizing sys-
tem in selecting the proper tire for your vehicles.
Here is a brief review of the tire sizing system
with a breakdown of its individual elements. V P Metric
With the P-Metric system, Section Width is mea-
sured in millimeters. To convert millimeters into
inches, divide by 25.4. The Aspect Ratio (Sec-
tion Height divided by Section Width) helps pro- vide more dimensional information about the tire
size. Example:
(1) P = Certain tire type used on light duty vehi-
cles such as passenger cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height

13-3
Consumer information and Reporting safety defects
– CONTINUED –
Example:
(6) Load Index: A numerical code which speci-
fies the maximum load a tire can carry at the
speed indicated by its speed symbol, at maxi-
mum inflation pressure.
For example, “97” means 1,609 lbs (730 kg)
Load indices apply only to the tire, not to
the vehicle. Putting a load rated tire on any
vehicle does not mean the vehicle can be
loaded up to the tire’s rated load.
(7) Speed Rating: An alphabetical system de-
scribing a tire’s capability to travel at established
and predetermined speeds.
For example, “H” means 130 mph (210 km/h)
y Speed ratings apply only to the tire, not
to the vehicle. Putting a speed rated tire on
any vehicle does not mean the vehicle can
be operated at the tire’s rated speed. y The speed rating is void if the tires are
worn out, damaged, repaired, retreaded, or
otherwise altered from their original condi-
tion. If tires are repaired, retreaded, or oth-
erwise altered, they may not be suitable for
original equipment tire designed loads and
speeds.
T Tire Identification Number (TIN)
Tire Identification Number (TIN) is marked on the
intended outboard sidewall. The TIN is com-
posed of four groups. Here is a brief review of the
TIN with a breakdown of its individual elements.
(1) Manufacturer’s Id entification Mark
P 225 / 60 R 16 97 H
Size designation (6) (7)
DOT XX XX XXX XXXX
(1) (2) (3)(4)
