SRS Airbag (Supplemental Restraint System Airbag)
85
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

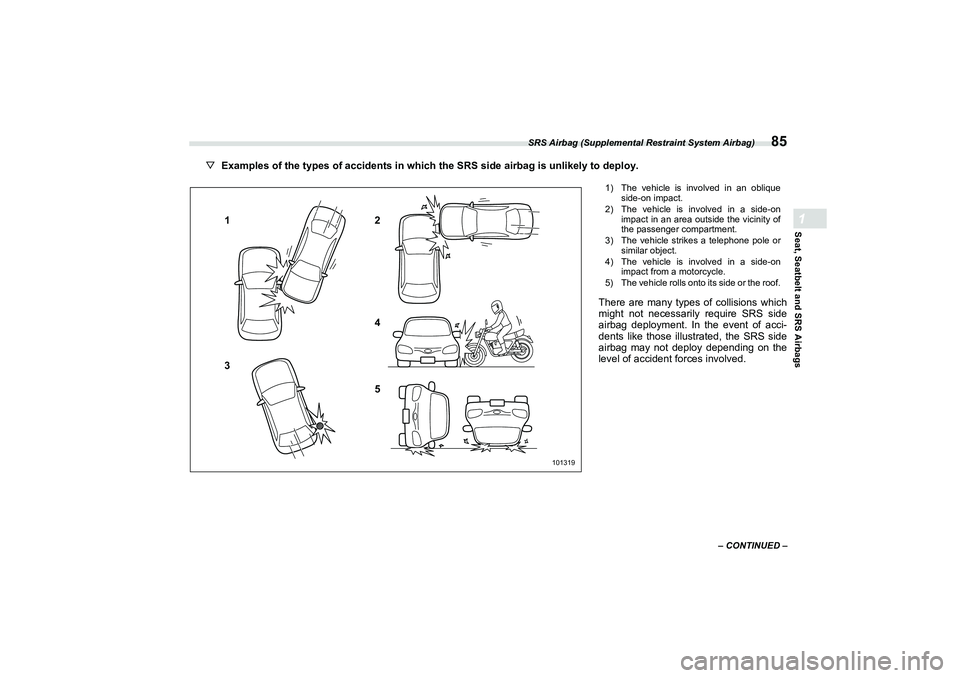

▽Examples of the types of accidents in which the SRS side airbag is unlikely to deploy.
1
3 2
4
5
101319
1) The vehicle is involved in an oblique
side-on impact.
2) The vehicle is involved in a side-on impact in an area outside the vicinity of
the passenger compartment.
3) The vehicle strikes a telephone pole or similar object.
4) The vehicle is involved in a side-on impact from a motorcycle.
5) The vehicle rolls onto its side or the roof.There are many types of collisions which
might not necessarily require SRS side
airbag deployment. In the event of acci-
dents like those illustrated, the SRS side
airbag may not deploy depending on the
level of accident forces involved.
B 5 = B 8. E R R N 5 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 92 of 432
SRS Airbag (Supplemental Restraint System Airbag)
86

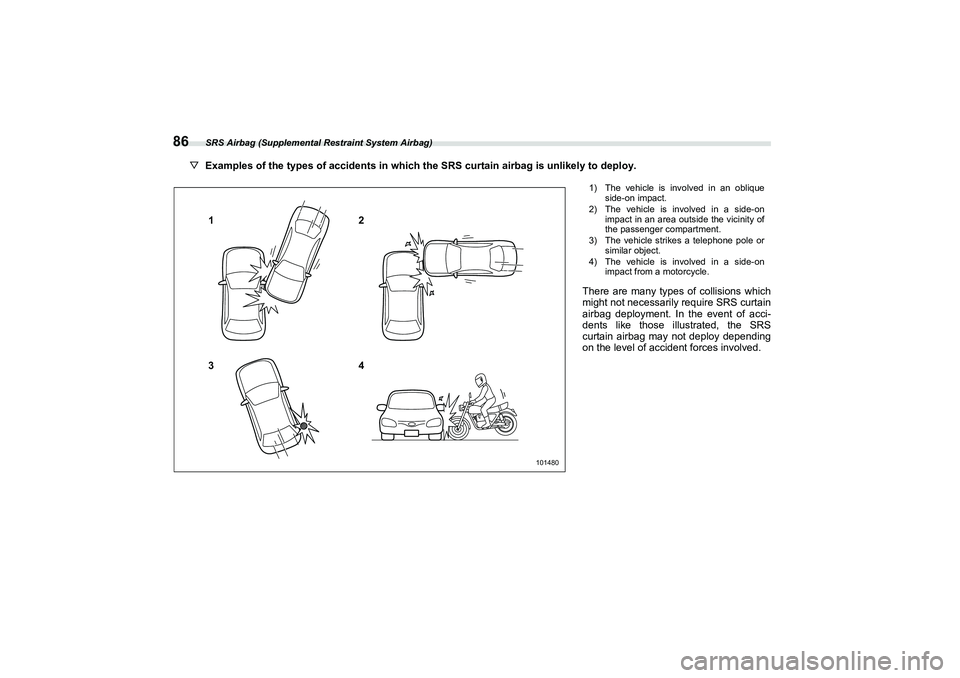

▽Examples of the types of accidents in which the SRS curtain airbag is unlikely to deploy.
1
32
4
101480
1) The vehicle is involved in an oblique
side-on impact.
2) The vehicle is involved in a side-on impact in an area outside the vicinity of
the passenger compartment.
3) The vehicle strikes a telephone pole or similar object.
4) The vehicle is involved in a side-on impact from a motorcycle.There are many types of collisions which
might not necessarily require SRS curtain
airbag deployment. In the event of acci-
dents like those illustrated, the SRS
curtain airbag may not deploy depending
on the level of accident forces involved.
B 5 = B 8. E R R N 6 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 93 of 432
SRS Airbag (Supplemental Restraint System Airbag)
87
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

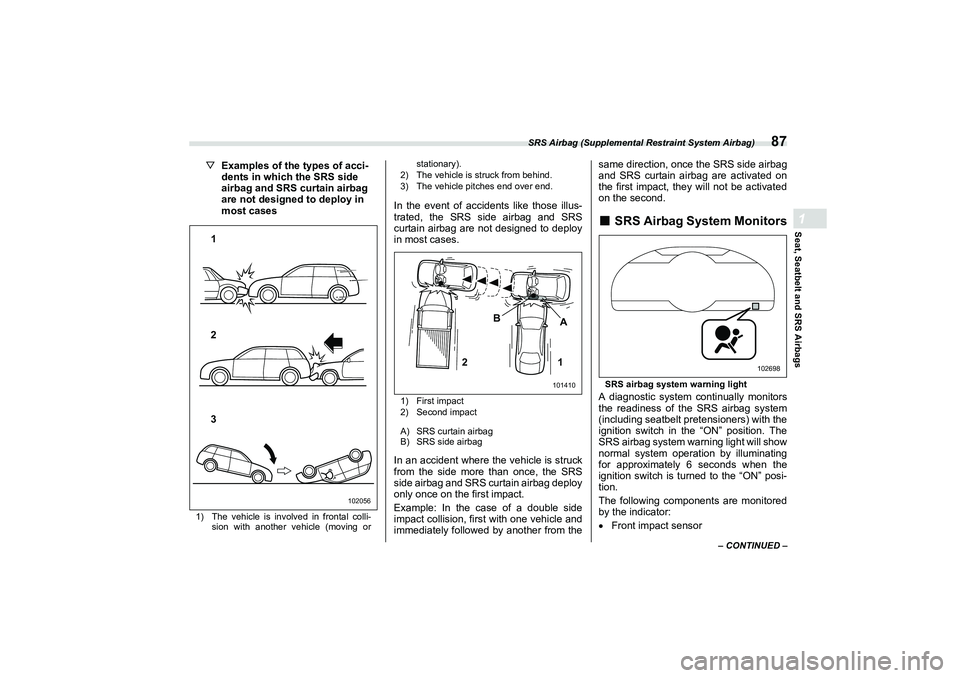

▽Examples of the types of acci -
dents in which the SRS side
airbag and SRS curtain airbag
are not designed to deploy in
most cases1) The vehicle is involved in frontal colli- sion with another vehicle (moving or stationary).
2) The vehicle is struck from behind.
3) The vehicle pitches end over end.
In the event of accidents like those illus-
trated, the SRS side airbag and SRS
curtain airbag are not designed to deploy
in most cases.1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbagIn an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.
Example: In the case of a double side
impact collision, first with one vehicle and
immediately followed by another from the same direction, once the SRS side airbag
and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second.
■
SRS Airbag System MonitorsSRS airbag system warning lightA diagnostic system continually monitors
the readiness of the SRS airbag system
(including seatbelt pretensioners) with the
ignition switch in the “ON” position. The
SRS airbag system warn
ing light will show
normal system operation by illuminating
for approximately 6 seconds when the
ignition switch is turned to the “ON” posi-
tion.
The following components are monitored
by the indicator:
Front impact sensor
1
3 2
102056
B
A
1
2
101410
102698
B 5 = B 8. E R R N ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 94 of 432
SRS Airbag (Supplemental Restraint System Airbag)
88

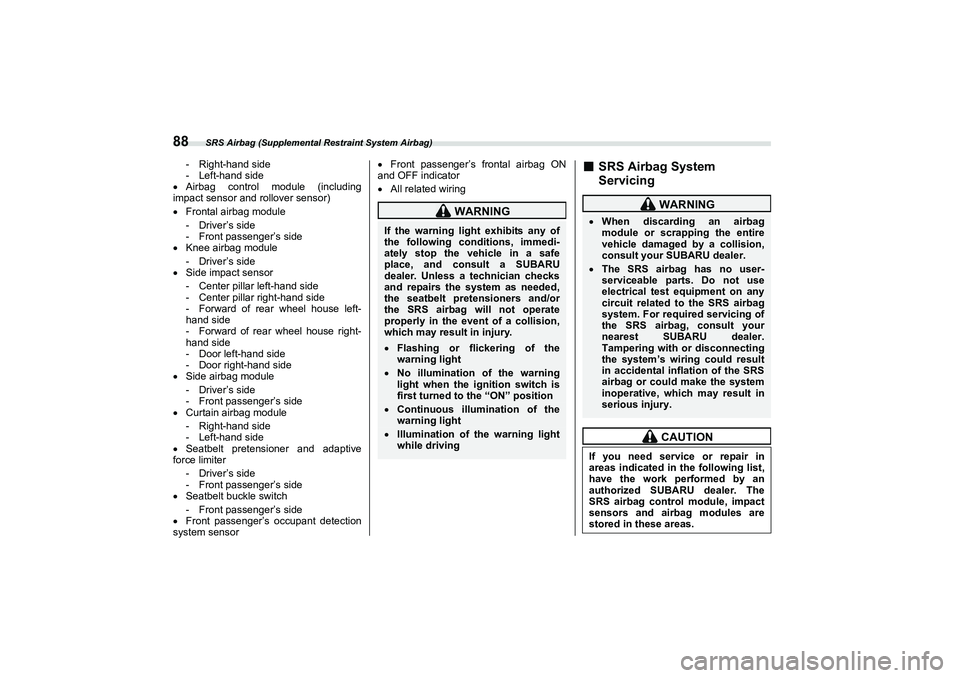

- Right-hand side
- Left-hand side
Airbag control module (including
impact sensor and rollover sensor)
Frontal airbag module
- Driver’s side
- Front passenger’s side
Knee airbag module
- Driver’s side
Side impact sensor
- Center pillar left-hand side
- Center pillar right-hand side
- Forward of rear wheel house left-
hand side
- Forward of rear wheel house right-
hand side
- Door left-hand side
- Door right-hand side
Side airbag module
- Driver’s side
- Front passenger’s side
Curtain airbag module
- Right-hand side
- Left-hand side
Seatbelt pretensioner and adaptive
force limiter
- Driver’s side
- Front passenger’s side
Seatbelt buckle switch
- Front passenger’s side
Front passenger’s occupant detection
system sensor
Front passenger’s frontal airbag ON
and OFF indicator
All related wiring
■
SRS Airbag System
Servicing
WARNING
If the warning light exhibits any of
the following conditions, immedi-
ately stop the vehicle in a safe
place, and consult a SUBARU
dealer. Unless a technician checks
and repairs the system as needed,
the seatbelt pretensioners and/or
the SRS airbag will not operate
properly in the event of a collision,
which may result in injury.Flashing or flickering of the
warning lightNo illumination of the warning
light when the ignition switch is
first turned to the “ON” positionContinuous illumination of the
warning lightIllumination of the warning light
while driving
WARNING
When discarding an airbag
module or scrapping the entire
vehicle damaged by a collision,
consult your SUBARU dealer.The SRS airbag has no user-
serviceable parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer.
Tampering with or disconnecting
the system’s wiring could result
in accidental inflation of the SRS
airbag or could make the system
inoperative, which may result in
serious injury.
CAUTION
If you need service or repair in
areas indicated in the following list,
have the work performed by an
authorized SUBARU dealer. The
SRS airbag control module, impact
sensors and airbag modules are
stored in these areas.
B 5 = B 8. E R R N ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 95 of 432
SRS Airbag (Supplemental Restraint System Airbag)
89
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

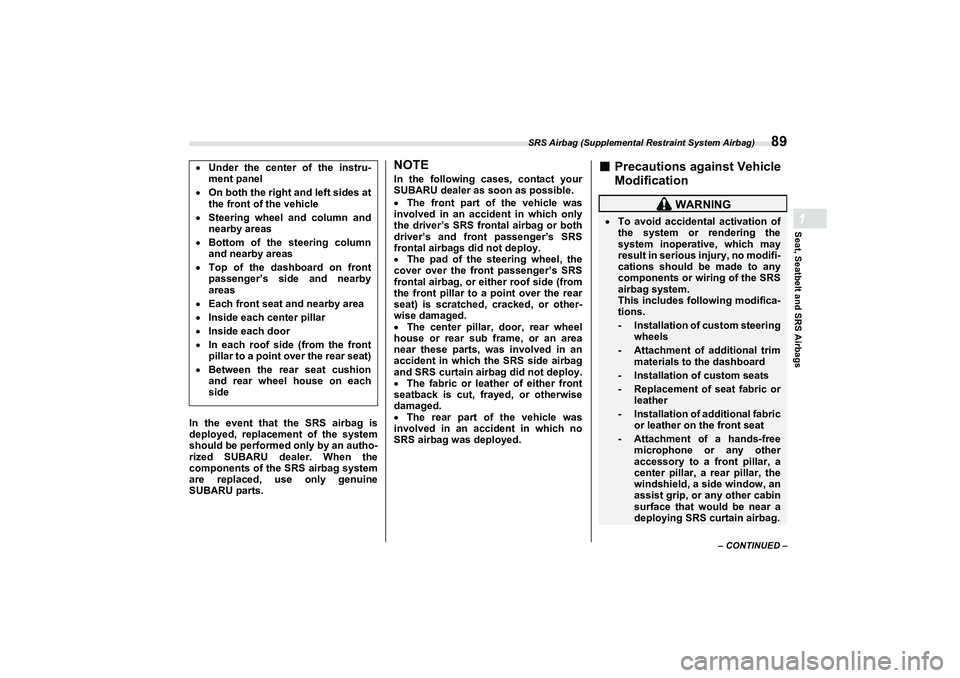

In the event that the SRS airbag is
deployed, replacement of the system
should be performed only by an autho-
rized SUBARU dealer. When the
components of the SRS airbag system
are replaced, use only genuine
SUBARU parts.
NOTEIn the following cases, contact your
SUBARU dealer as soon as possible.
The front part of the vehicle was
involved in an accident in which only
the driver’s SRS fron tal airbag or both
driver’s and front passenger’s SRS
frontal airbags did not deploy.
The pad of the steering wheel, the
cover over the front passenger’s SRS
frontal airbag, or ei ther roof side (from
the front pillar to a point over the rear
seat) is scratched, cracked, or other-
wise damaged.
The center pillar, door, rear wheel
house or rear sub frame, or an area
near these parts, was involved in an
accident in which the SRS side airbag
and SRS curtain airbag did not deploy.
The fabric or leather of either front
seatback is cut, frayed, or otherwise
damaged.
The rear part of the vehicle was
involved in an accident in which no
SRS airbag was deployed.
■
Precautions against Vehicle
Modification
Under the center of the instru-
ment panelOn both the right and left sides at
the front of the vehicleSteering wheel and column and
nearby areasBottom of the steering column
and nearby areasTop of the dashboard on front
passenger’s side and nearby
areasEach front seat and nearby areaInside each center pillarInside each doorIn each roof side (from the front
pillar to a point over the rear seat)Between the rear seat cushion
and rear wheel house on each
side
WARNING
To avoid accidental activation of
the system or rendering the
system inoperative, which may
result in serious injury, no modifi-
cations should be made to any
components or wiring of the SRS
airbag system.
This includes following modifica-
tions.
- Installation of custom steering
wheels- Attachment of additional trimmaterials to the dashboard- Installation of custom seats- Replacement of seat fabric or
leather- Installation of additional fabricor leather on the front seat- Attachment of a hands-freemicrophone or any other
accessory to a front pillar, a
center pillar, a rear pillar, the
windshield, a side window, an
assist grip, or any other cabin
surface that would be near a
deploying SRS curtain airbag.
B 5 = B 8. E R R N ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 96 of 432
SRS Airbag (Supplemental Restraint System Airbag)
90

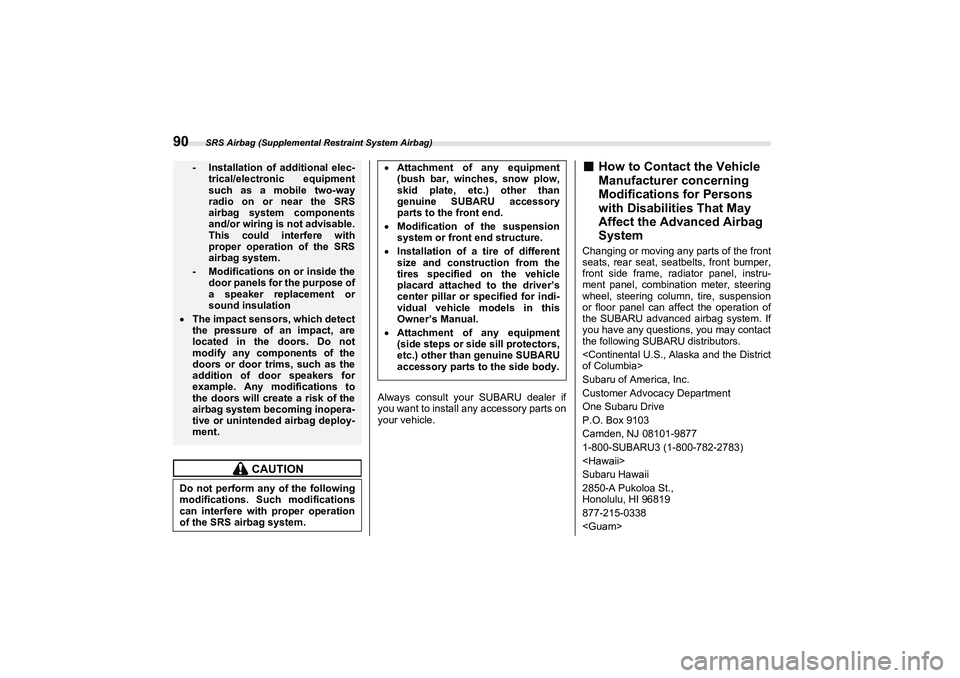

Always consult your SUBARU dealer if
you want to install any accessory parts on
your vehicle.
■
How to Contact the Vehicle
Manufacturer concerning
Modifications for Persons
with Disabilities That May
Affect the Advanced Airbag
System
Changing or moving any parts of the front
seats, rear seat, seatbelts, front bumper,
front side frame, radiator panel, instru-
ment panel, combination meter, steering
wheel, steering column, tire, suspension
or floor panel can affect the operation of
the SUBARU advanced airbag system. If
you have any questions, you may contact
the following SUBARU distributors.
Subaru of America, Inc.
Customer Advocacy Department
One Subaru Drive
P.O. Box 9103
Camden, NJ 08101-9877
1-800-SUBARU3 (1-800-782-2783)
Subaru Hawaii
2850-A Pukoloa St.,
Honolulu, HI 96819
877-215-0338
- Installation of additional elec- trical/electronic equipment
such as a mobile two-way
radio on or near the SRS
airbag system components
and/or wiring is not advisable.
This could interfere with
proper operation of the SRS
airbag system.- Modifications on or inside thedoor panels for the purpose of
a speaker replacement or
sound insulation
The impact sensors, which detect
the pressure of an impact, are
located in the doors. Do not
modify any components of the
doors or door trims, such as the
addition of door speakers for
example. Any modifications to
the doors will create a risk of the
airbag system becoming inopera-
tive or unintended airbag deploy-
ment.
CAUTION
Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the SRS airbag system.
Attachment of any equipment
(bush bar, winches, snow plow,
skid plate, etc.) other than
genuine SUBARU accessory
parts to the front end.Modification of the suspension
system or front end structure.Installation of a tire of different
size and construction from the
tires specified on the vehicle
placard attached to the driver’s
center pillar or specified for indi-
vidual vehicle models in this
Owner’s Manual.Attachment of any equipment
(side steps or side sill protectors,
etc.) other than genuine SUBARU
accessory parts to the side body.
B 5 = B 8. E R R N 0 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 97 of 432
SRS Airbag (Supplemental Restraint System Airbag)
91
Seat, Seatbelt and SRS Airbags1

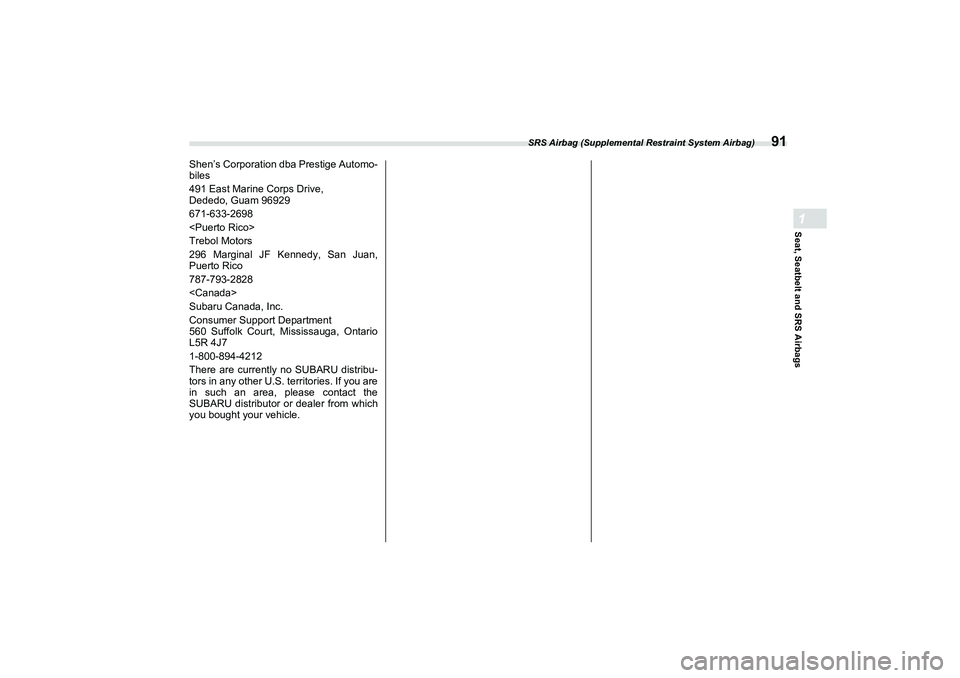

Shen’s Corporation dba Prestige Automo-
biles
491 East Marine Corps Drive,
Dededo, Guam 96929
671-633-2698
Trebol Motors
296 Marginal JF Kennedy, San Juan,
Puerto Rico
787-793-2828
Subaru Canada, Inc.
Consumer Support Department
560 Suffolk Court, Mississauga, Ontario
L5R 4J7
1-800-894-4212
There are currently no SUBARU distribu-
tors in any other U.S. territories. If you are
in such an area, please contact the
SUBARU distributor or dealer from which
you bought your vehicle.
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 98 of 432
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²B 5 = B 8. E R R N 2 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 99 of 432

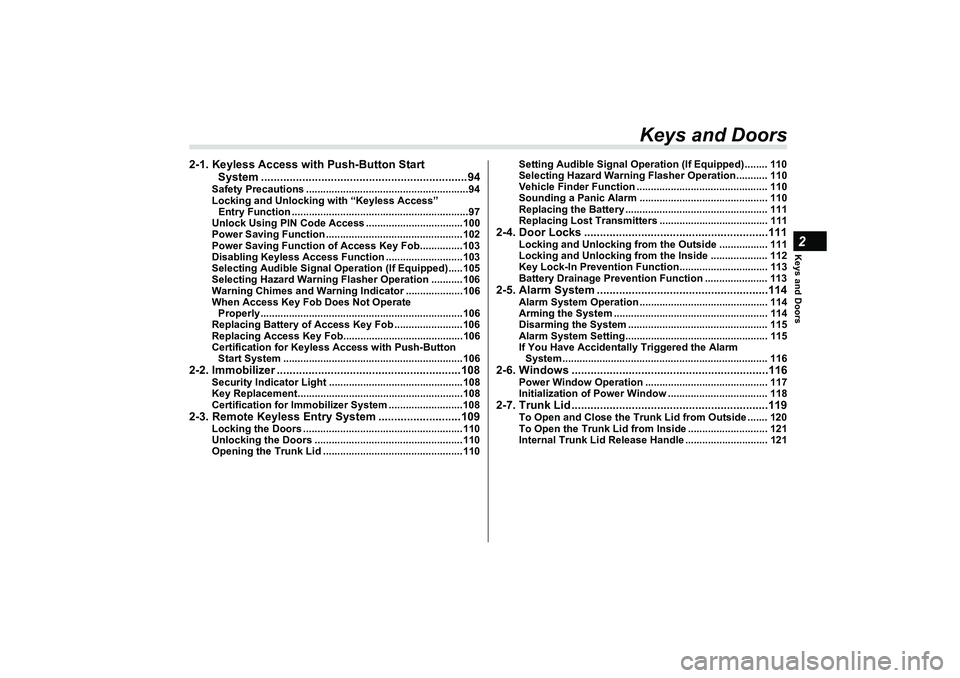

Keys and Doors2
Keys and Doors
2-1. Keyless Access with Push-Button Start System .................................................................94
Safety Precautions ..... .......................................... ..........94
Locking and Unlocking with “Keyless Access” Entry Function ..............................................................97
Unlock Using PIN Code Access ..................................100
Power Saving Function ................................................102
Power Saving Function of Access Key Fob...............103
Disabling Keyless Access Function ...........................103
Selecting Audible Signal Operation (If Equipped).....105
Selecting Hazard Warning Flasher Operation ...........106
Warning Chimes and Warning Indicator ....................106
When Access Key Fob Does Not Operate Properly.......................................................................106
Replacing Battery of Access Key Fob ........................106
Replacing Access Key Fob..........................................106
Certification for Keyless Access with Push-Button Start System ...............................................................106
2-2. Immobilizer ..........................................................108
Security Indicator Light ...............................................108
Key Replacement..........................................................108
Certification for Immobilizer System ..........................108
2-3. Remote Keyless Entry System ..........................109
Locking the Doors ........................................................110
Unlocking the Doors ....................................................110
Opening the Trunk Lid .................................................110 Setting Audible Signal Operation (If Equipped)........ 110
Selecting Hazard Warning Flasher Operation........... 110
Vehicle Finder Function .............................................. 110
Sounding a Panic Alarm ............................................. 110
Replacing the Battery .................................................. 111
Replacing Lost Transmitters ...................................... 111
2-4. Door Locks ..........................................................111
Locking and Unlocking from the Outside ................. 111
Locking and Unlocking from the Inside .................... 112
Key Lock-In Prevention Function............................... 113
Battery Drainage Prevention Function ...................... 113
2-5. Alarm System ......................................................114
Alarm System Operation ............................................. 114
Arming the System ...................................................... 114
Disarming the System ................................................. 115
Alarm System Setting.................................................. 115
If You Have Accidentally Triggered the Alarm
System........................................................................ 116
2-6. Windows ..............................................................116
Power Window Operation ........................................... 117
Initialization of Power Window ................................... 118
2-7. Trunk Lid ..............................................................119
To Open and Close the Trunk Lid from Outside ....... 120
To Open the Trunk Lid from Inside ............................ 121
Internal Trunk Lid Release Handle ............................. 121
B 5 = B 8. E R R N 3 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 100 of 432

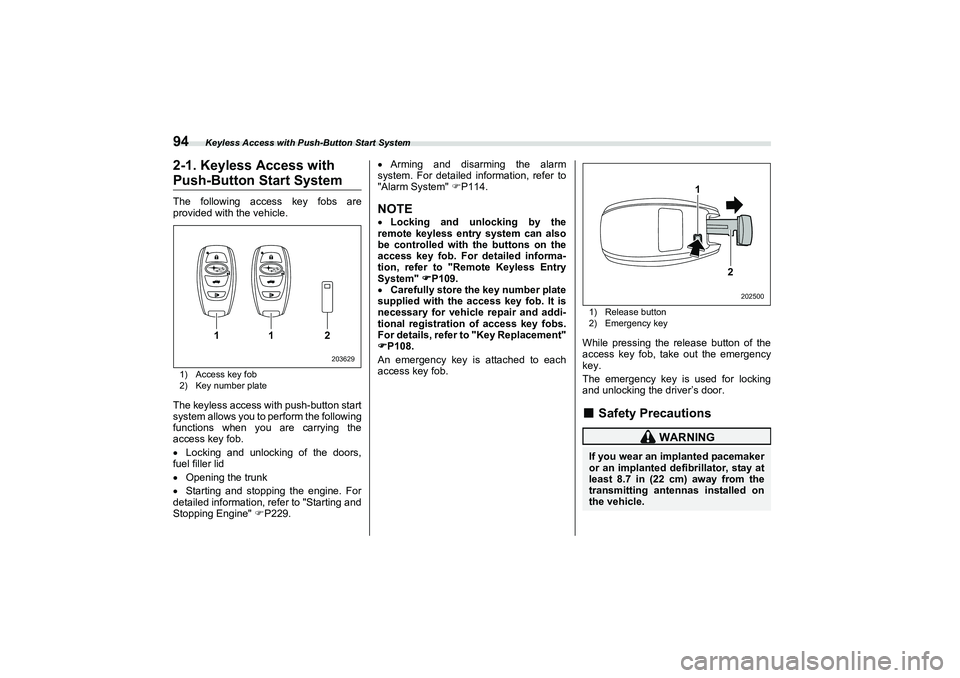

Keyless Access with Push-Button Start System
942-1. Keyless Access withPush-Button Start SystemThe following access key fobs are
provided with the vehicle.1) Access key fob
2) Key number plateThe keyless access with push-button start
system allows you to perform the following
functions when you are carrying the
access key fob.
Locking and unlocking of the doors,
fuel filler lid
Opening the trunk
Starting and stopping the engine. For
detailed information, refer to "Starting and
Stopping Engine" P229.
Arming and disarming the alarm
system. For detailed in formation, refer to
"Alarm System" P114.
NOTE Locking and unlocking by the
remote keyless entry system can also
be controlled with the buttons on the
access key fob. For detailed informa-
tion, refer to "Remote Keyless Entry
System"
P109.
Carefully store the key number plate
supplied with the access key fob. It is
necessary for vehicle repair and addi-
tional registration of access key fobs.
For details, refer to "Key Replacement"
P108.
An emergency key is attached to each
access key fob.
1) Release button
2) Emergency keyWhile pressing the release button of the
access key fob, take out the emergency
key.
The emergency key is used for locking
and unlocking the driver’s door.■
Safety Precautions
203629
11 2
WARNING
If you wear an implanted pacemaker
or an implanted defibrillator, stay at
least 8.7 in (22 cm) away from the
transmitting antennas installed on
the vehicle.
1
2
202500
B 5 = B 8. E R R N 4 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
