SRS Airbag (Supplemental Restraint System Airbag)
65
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
For that reason, we strongly recom-
mend that ALL children (including
those in child restraint systems) sit
in the REAR seat properly
restrained at all times in a child
restraint device or in a seatbelt,
whichever is appropriate for the
child’s age, height and weight.Secure ALL types of child restraint
systems (including forward facing
child restraint system) in the REAR
seats at all times.According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating posi-
tions.For instructions and precautions
concerning the child restraint sys-
tem, refer to "Chi ld Restraint Sys-
tems"
P46.

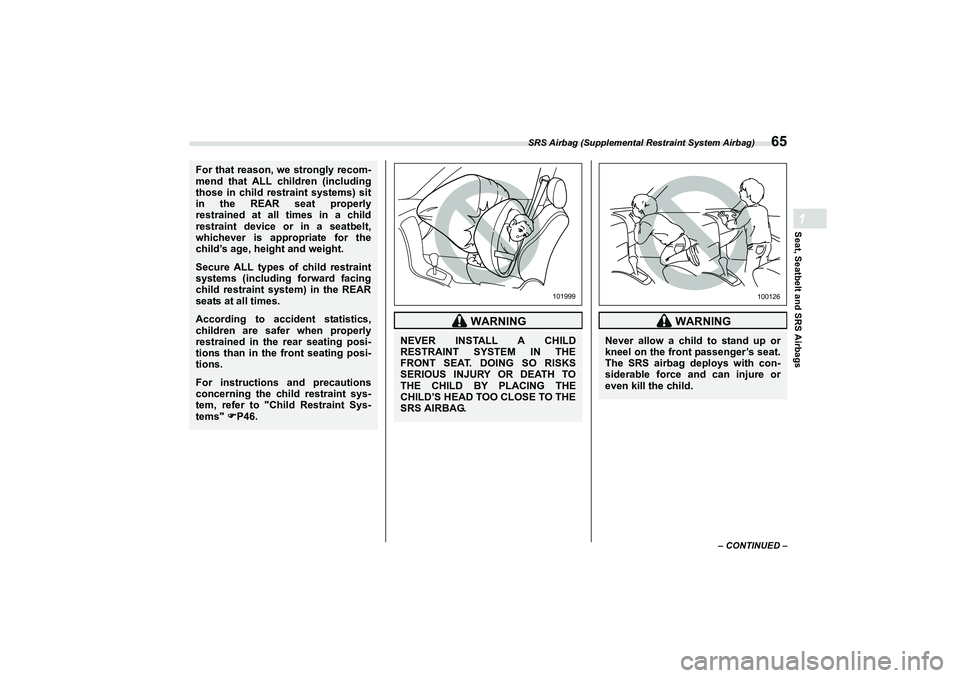

WARNING
NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
101999
WARNING
Never allow a child to stand up or
kneel on the front passenger’s seat.
The SRS airbag deploys with con-
siderable force and can injure or
even kill the child.
100126
B 5 = B 8. E R R N 65 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 72 of 432

SRS Airbag (Supplemental Restraint System Airbag)
66

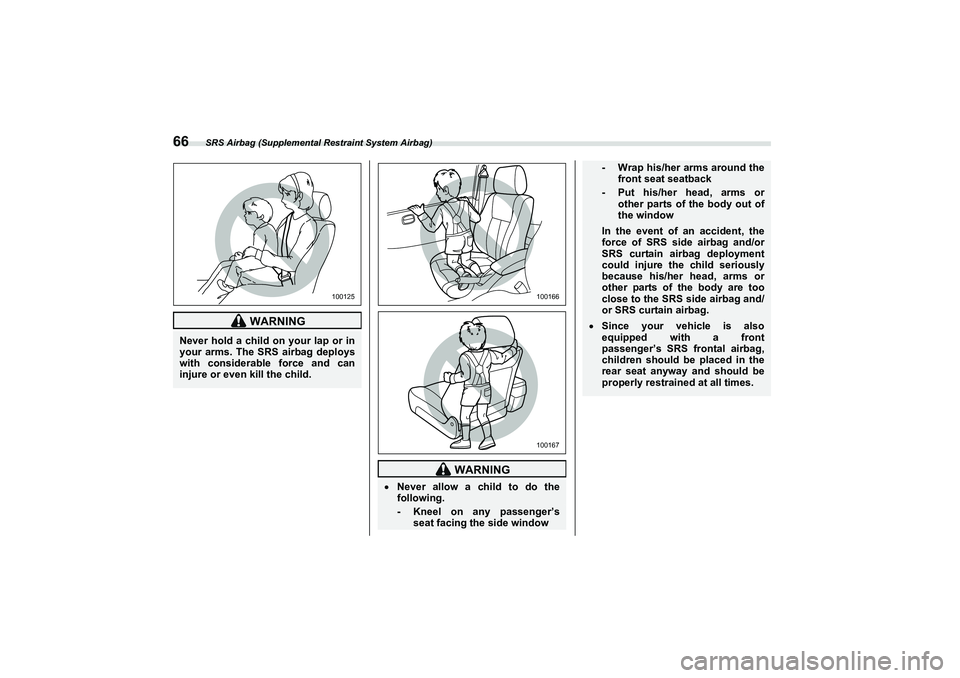

WARNING
Never hold a child on your lap or in
your arms. The SRS airbag deploys
with considerable force and can
injure or even kill the child.
100125
WARNING
Never allow a child to do the
following.
- Kneel on any passenger’s
seat facing the side window
100166100167
- Wrap his/her arms around thefront seat seatback- Put his/her head, arms orother parts of the body out of
the windowIn the event of an accident, the
force of SRS side airbag and/or
SRS curtain airbag deployment
could injure the child seriously
because his/her head, arms or
other parts of the body are too
close to the SRS side airbag and/
or SRS curtain airbag.
Since your vehicle is also
equipped with a front
passenger’s SRS frontal airbag,
children should be placed in the
rear seat anyway and should be
properly restrained at all times.
B 5 = B 8. E R R N 66 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 73 of 432

SRS Airbag (Supplemental Restraint System Airbag)
67
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
■

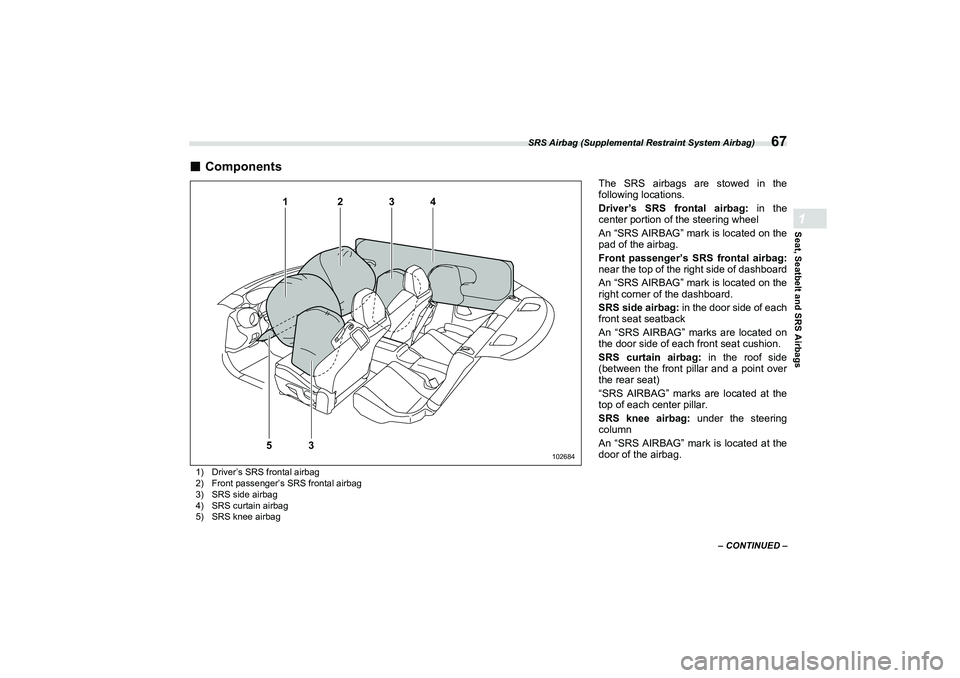

Components1) Driver’s SRS frontal airbag
2) Front passenger’s SRS frontal airbag
3) SRS side airbag
4) SRS curtain airbag
5) SRS knee airbag
1
5
2
3
4
3
102684
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: in the
center portion of the steering wheel
An “SRS AIRBAG” mark is located on the
pad of the airbag.
Front passenger’s SRS frontal airbag:
near the top of the right side of dashboard
An “SRS AIRBAG” mark is located on the
right corner of the dashboard.
SRS side airbag: in the door side of each
front seat seatback
An “SRS AIRBAG” marks are located on
the door side of each front seat cushion.
SRS curtain airbag: in the roof side
(between the front pillar and a point over
the rear seat)
“SRS AIRBAG” marks are located at the
top of each center pillar.
SRS knee airbag: under the steering
column
An “SRS AIRBAG” mark is located at the
door of the airbag.
B 5 = B 8. E R R N 6 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 74 of 432

SRS Airbag (Supplemental Restraint System Airbag)
68
120
2
3
4
6
14
9
7
5
10
11
13
12
8
15
21
22
23
17
16
19
18
102764

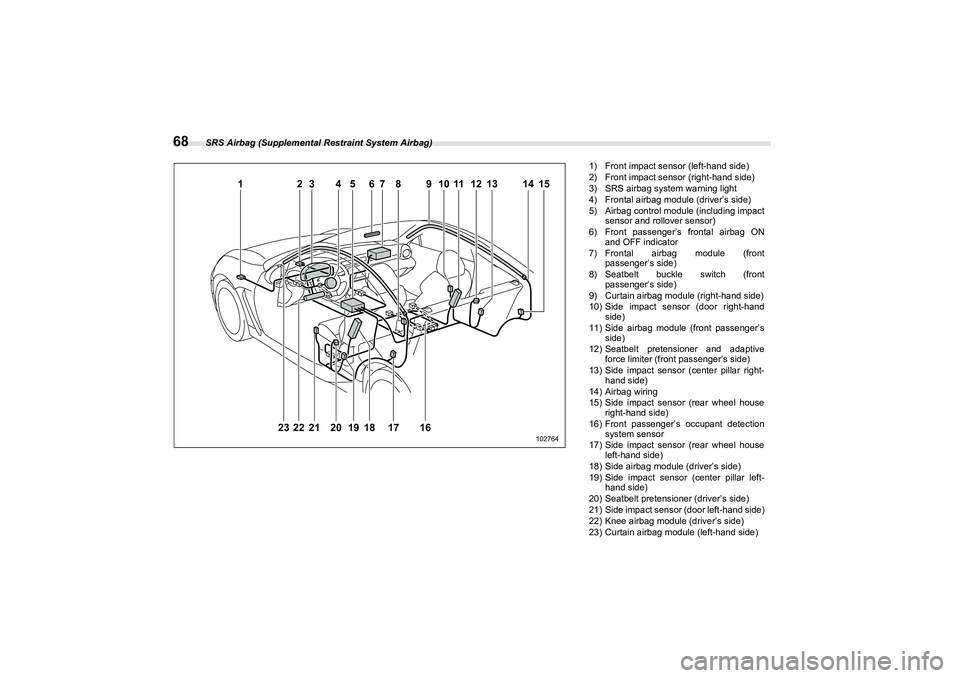

1) Front impact sensor (left-hand side)
2) Front impact sensor (right-hand side)
3) SRS airbag system warning light
4) Frontal airbag module (driver’s side)
5) Airbag control module (including impactsensor and rollover sensor)
6) Front passenger’s frontal airbag ON and OFF indicator
7) Frontal airbag module (front passenger’s side)
8) Seatbelt buckle switch (front passenger’s side)
9) Curtain airbag module (right-hand side)
10) Side impact sensor (door right-hand side)
11) Side airbag module (front passenger’s side)
12) Seatbelt pretensioner and adaptive force limiter (front passenger’s side)
13) Side impact sensor (center pillar right- hand side)
14) Airbag wiring
15) Side impact sensor (rear wheel house right-hand side)
16) Front passenger’s occupant detection system sensor
17) Side impact sensor (rear wheel house left-hand side)
18) Side airbag module (driver’s side)
19) Side impact sensor (center pillar left- hand side)
20) Seatbelt pretensi oner (driver’s side)
21) Side impact sensor (door left-hand side)
22) Knee airbag module (driver’s side)
23) Curtain airbag module (left-hand side)
B 5 = B 8. E R R N 6 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 75 of 432

SRS Airbag (Supplemental Restraint System Airbag)
69
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
■

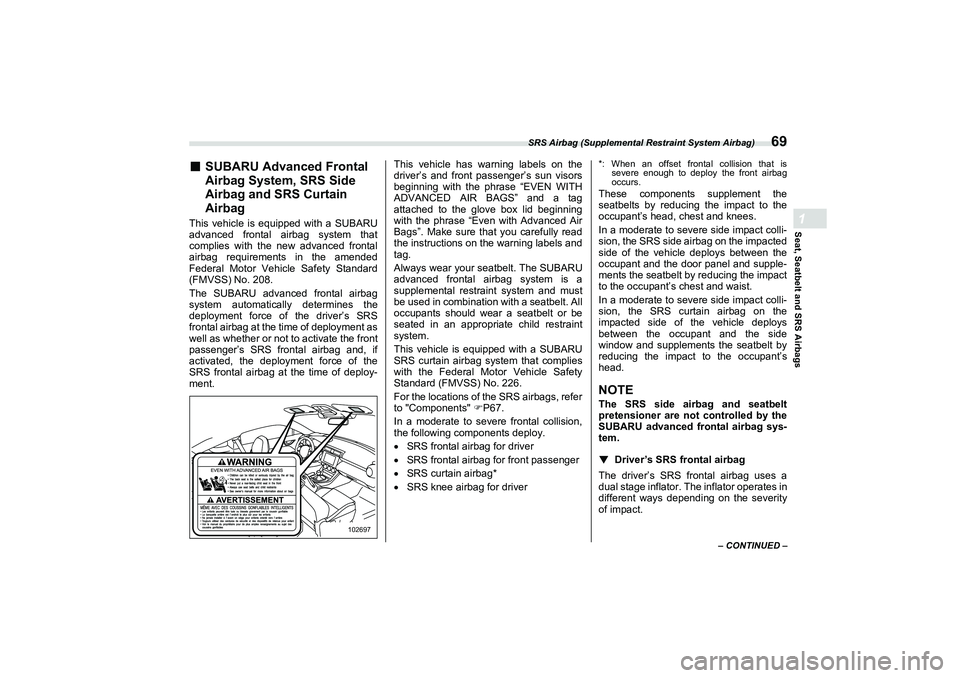

SUBARU Advanced Frontal
Airbag System, SRS Side
Airbag and SRS Curtain
Airbag
This vehicle is equipped with a SUBARU
advanced frontal airbag system that
complies with the new advanced frontal
airbag requirements in the amended
Federal Motor Vehicle Safety Standard
(FMVSS) No. 208.
The SUBARU advanced frontal airbag
system automatically determines the
deployment force of the driver’s SRS
frontal airbag at the time of deployment as
well as whether or not to activate the front
passenger’s SRS frontal airbag and, if
activated, the deployment force of the
SRS frontal airbag at the time of deploy-
ment.This vehicle has warning labels on the
driver’s and front passenger’s sun visors
beginning with the phrase “EVEN WITH
ADVANCED AIR BAGS” and a tag
attached to the glove box lid beginning
with the phrase “Even with Advanced Air
Bags”. Make sure th
at you carefully read
the instructions on the warning labels and
tag.
Always wear your seatbelt. The SUBARU
advanced frontal airbag system is a
supplemental restraint system and must
be used in combination with a seatbelt. All
occupants should wear a seatbelt or be
seated in an appropriate child restraint
system.
This vehicle is equipped with a SUBARU
SRS curtain airbag system that complies
with the Federal Motor Vehicle Safety
Standard (FMVSS) No. 226.
For the locations of the SRS airbags, refer
to "Components" P67.
In a moderate to severe frontal collision,
the following components deploy.
SRS frontal airbag for driver
SRS frontal airbag for front passenger
SRS curtain airbag*
SRS knee airbag for driver
*: When an offset frontal collision that is
severe enough to deploy the front airbag
occurs.These components supplement the
seatbelts by reducing the impact to the
occupant’s head, chest and knees.
In a moderate to severe side impact colli-
sion, the SRS side airbag on the impacted
side of the vehicle deploys between the
occupant and the door panel and supple-
ments the seatbelt by reducing the impact
to the occupant’s chest and waist.
In a moderate to severe side impact colli-
sion, the SRS curtain airbag on the
impacted side of the vehicle deploys
between the occupant and the side
window and supplements the seatbelt by
reducing the impact to the occupant’s
head.NOTEThe SRS side airbag and seatbelt
pretensioner are not controlled by the
SUBARU advanced frontal airbag sys-
tem.
▼
Driver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a
dual stage inflator. The inflator operates in
different ways depending on the severity
of impact.
102697
B 5 = B 8. E R R N 6 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 76 of 432

SRS Airbag (Supplemental Restraint System Airbag)
70SRS airbag system warning lightHave the system inspected by your
SUBARU dealer immediately if the SRS
airbag system warning light illuminates.
▼
Front passenger’s SRS frontal
airbag
The front passenger’s SRS frontal airbag
uses a dual stage inflator. The inflator
operates in different ways depending on
the severity of impact.

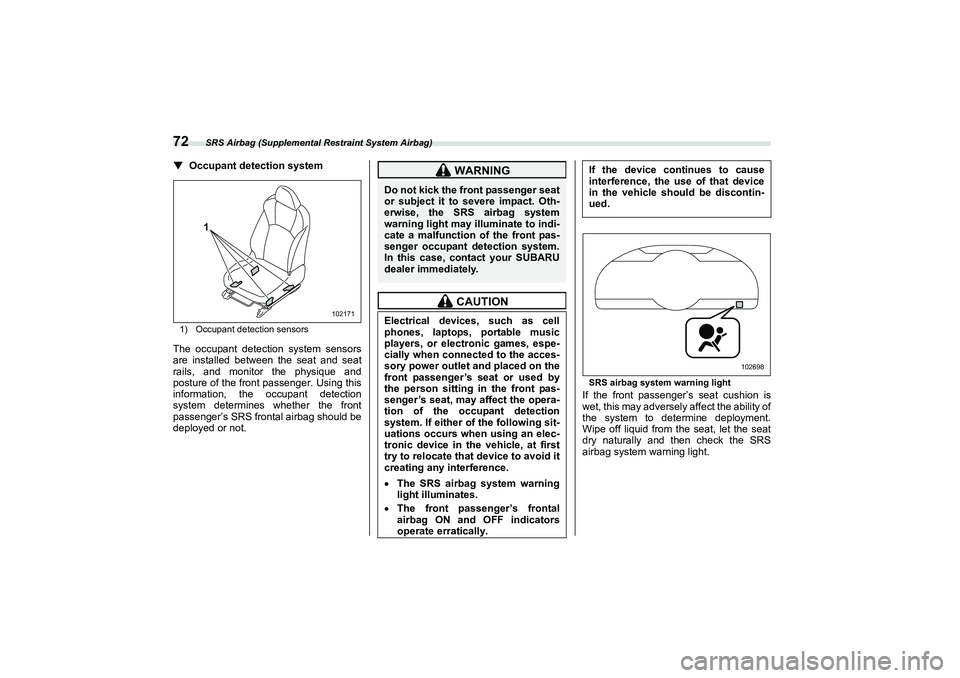

1) Occupant detection sensorsThe occupant detection system sensors
are installed between the seat and seat
rails, and monitor the physique and
posture of the front passenger. Using this
information, the occupant detection
system determines whether the front
passenger’s SRS frontal airbag should be
deployed or not.
The occupant detection system may not
inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal
airbag deploys. This is normal. In this
case, although the front passenger’s SRS
frontal airbag does no t operate, the front
passenger’s seatbelt pretensioner oper-
ates with the driver’s seatbelt
pretensioner. For details about the seatbelt pretensioner, refer to "Seatbelt
Pretensioners"
P44.
102698
102171
1
CAUTION
Observe the following precautions.
Failure to do so may prevent the
SUBARU advanced frontal airbag
system from functioning correctly
or cause the system to fail. Do not apply any strong impact to
the front passenger’s seat such
as by kicking.Do not let rear passengers rest
their feet between the front
seatback and seat cushion.Do not spill liquid on the front
passenger’s seat. If liquid is
spilled, wipe it off immediately.Do not remove or disassemble
the front passenger’s seat.Do not install any accessory
(such as an audio amplifier) other
than a genuine SUBARU acces-
sory under the front passenger’s
seat.Do not place anything (shoes,
umbrella, etc.) under the front
passenger’s seat.Do not place any objects (books,
etc.) around the front
passenger’s seat.
B 5 = B 8. E R R N 0 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 77 of 432

SRS Airbag (Supplemental Restraint System Airbag)
71
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

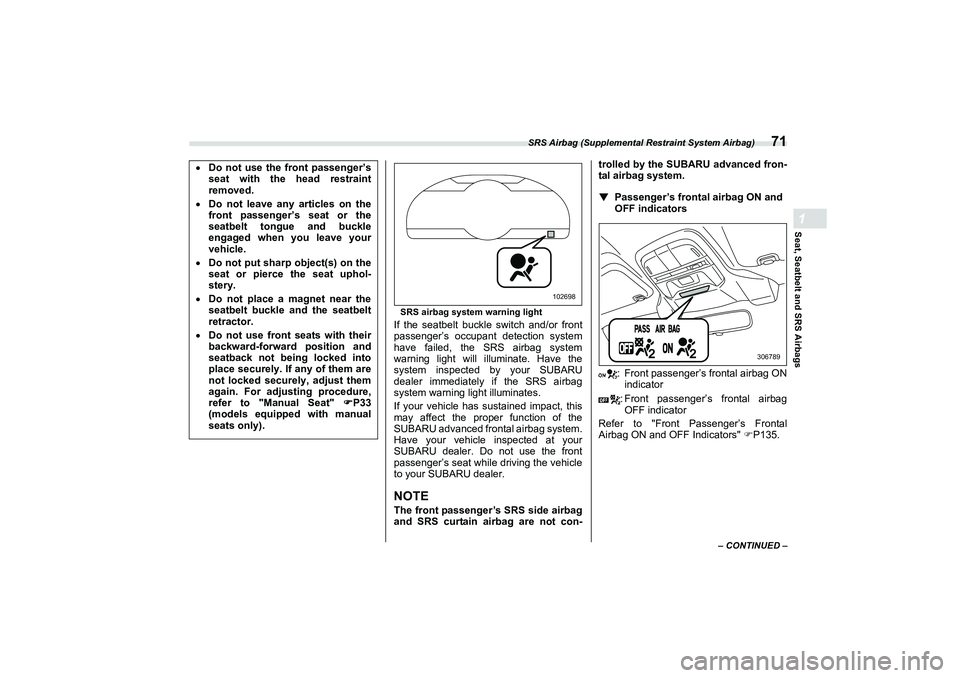

SRS airbag system warning light
If the seatbelt buckle switch and/or front
passenger’s occupant detection system
have failed, the SRS airbag system
warning light will illuminate. Have the
system inspected by your SUBARU
dealer immediately if the SRS airbag
system warning light illuminates.
If your vehicle has sustained impact, this
may affect the proper function of the
SUBARU advanced frontal airbag system.
Have your vehicle inspected at your
SUBARU dealer. Do not use the front
passenger’s seat while driving the vehicle
to your SUBARU dealer.NOTEThe front passenger’s SRS side airbag
and SRS curtain airbag are not con- trolled by the SUBARU advanced fron-
tal airbag system.
▼
Passenger’s frontal airbag ON and
OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
Refer to "Front Passenger’s Frontal
Airbag ON and OFF Indicators" P135.
Do not use the front passenger’s
seat with the head restraint
removed.Do not leave any articles on the
front passenger’s seat or the
seatbelt tongue and buckle
engaged when you leave your
vehicle.Do not put sharp object(s) on the
seat or pierce the seat uphol-
stery.Do not place a magnet near the
seatbelt buckle and the seatbelt
retractor.Do not use front seats with their
backward-forward position and
seatback not being locked into
place securely. If any of them are
not locked securely, adjust them
again. For adjusting procedure,
refer to "Manual Seat"
P33
(models equipped with manual
seats only).
102698
306789
B 5 = B 8. E R R N 1 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 78 of 432

SRS Airbag (Supplemental Restraint System Airbag)
72▼
Occupant detection system1) Occupant detection sensorsThe occupant detection system sensors
are installed between the seat and seat
rails, and monitor the physique and
posture of the front passenger. Using this
information, the occupant detection
system determines whether the frontpassenger’s SRS frontal airbag should be
deployed or not.
SRS airbag system warning lightIf the front passenger’s seat cushion is
wet, this may adversely affect the ability of
the system to determine deployment.
Wipe off liquid from the seat, let the seat
dry naturally and then check the SRS
airbag system warning light.
102171
1
WARNING
Do not kick the front passenger seat
or subject it to severe impact. Oth-
erwise, the SRS airbag system
warning light may illuminate to indi-
cate a malfunction of the front pas-
senger occupant detection system.
In this case, contact your SUBARU
dealer immediately.
CAUTION
Electrical devices, such as cell
phones, laptops, portable music
players, or electronic games, espe-
cially when connected to the acces-
sory power outlet and placed on the
front passenger’s seat or used by
the person sitting in the front pas-
senger’s seat, may affect the opera-
tion of the occupant detection
system. If either of the following sit-
uations occurs when using an elec-
tronic device in the vehicle, at first
try to relocate that device to avoid it
creating any interference. The SRS airbag system warning
light illuminates.The front passenger’s frontal
airbag ON and OFF indicators
operate erratically.
If the device continues to cause
interference, the use of that device
in the vehicle should be discontin-
ued.
102698
B 5 = B 8. E R R N 2 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 79 of 432

SRS Airbag (Supplemental Restraint System Airbag)
73
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

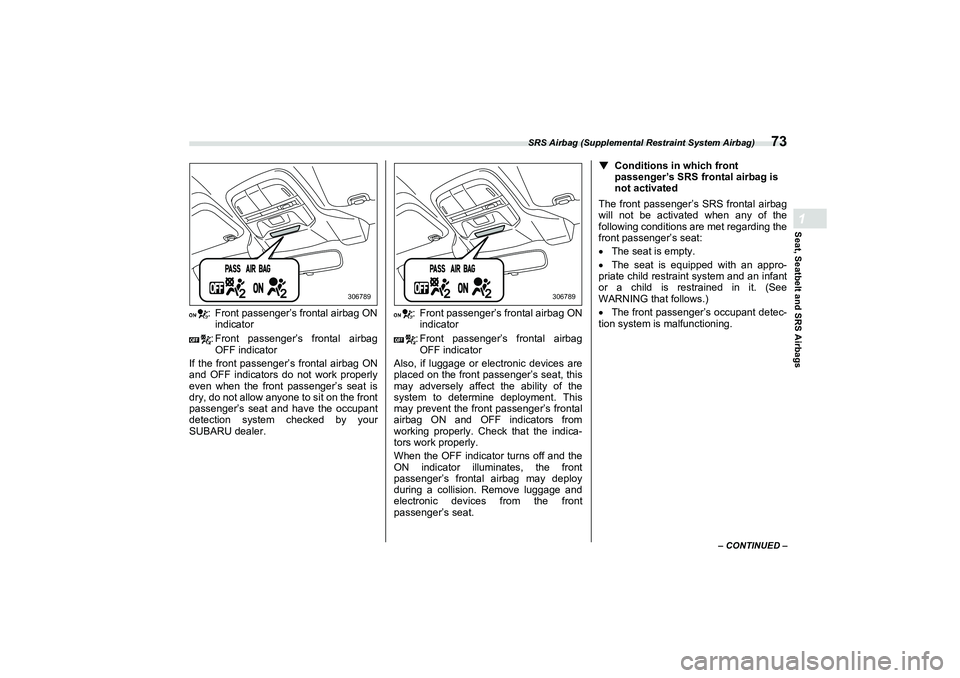

: Front passenger’s frontal airbag ONindicator
: Front passenger’s frontal airbag OFF indicator
If the front passenger’s frontal airbag ON
and OFF indicators do not work properly
even when the front passenger’s seat is
dry, do not allow anyone to sit on the front
passenger’s seat and have the occupant
detection system checked by your
SUBARU dealer. : Front passenger’s frontal airbag ON
indicator
: Front passenger’s frontal airbag OFF indicator
Also, if luggage or electronic devices are
placed on the front passenger’s seat, this
may adversely affect the ability of the
system to determine deployment. This
may prevent the front passenger’s frontal
airbag ON and OFF indicators from
working properly. Check that the indica-
tors work properly.
When the OFF indicator turns off and the
ON indicator illuminates, the front
passenger’s frontal airbag may deploy
during a collision. Remove luggage and
electronic devices from the front
passenger’s seat. ▼
Conditions in which front
passenger’s SRS frontal airbag is
not activated
The front passenger’s SRS frontal airbag
will not be activated when any of the
following conditions are met regarding the
front passenger’s seat:
The seat is empty.
The seat is equipped with an appro-
priate child restrain t system and an infant
or a child is restrained in it. (See
WARNING that follows.)
The front passenger’s occupant detec-
tion system is malfunctioning.
306789
306789
B 5 = B 8. E R R N 3 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 80 of 432

SRS Airbag (Supplemental Restraint System Airbag)
74

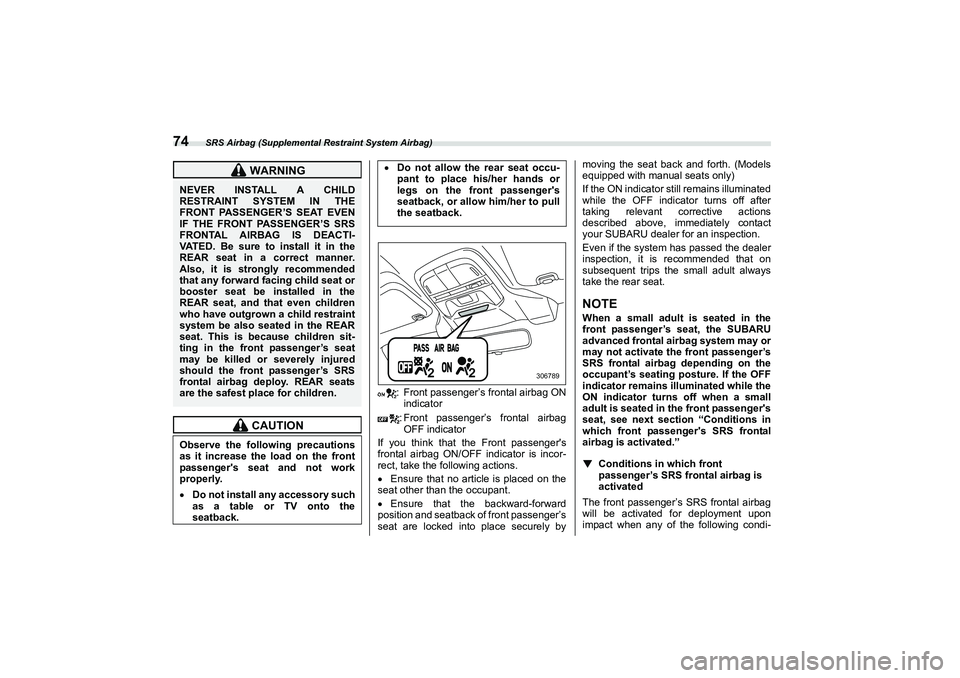

: Front passenger’s frontal airbag ONindicator
: Front passenger’s frontal airbag OFF indicator
If you think that the Front passenger's
frontal airbag ON/OFF indicator is incor-
rect, take the following actions.
Ensure that no article is placed on the
seat other than the occupant.
Ensure that the backward-forward
position and seatback of front passenger’s
seat are locked into place securely by moving the seat back and forth. (Models
equipped with manual seats only)
If the ON indicator still remains illuminated
while the OFF indicator turns off after
taking relevant corrective actions
described above, immediately contact
your SUBARU dealer for an inspection.
Even if the system has
passed the dealer
inspection, it is recommended that on
subsequent trips the small adult always
take the rear seat.
NOTEWhen a small adult is seated in the
front passenger’s seat, the SUBARU
advanced frontal airbag system may or
may not activate th e front passenger’s
SRS frontal airbag depending on the
occupant’s seating posture. If the OFF
indicator remains illuminated while the
ON indicator turns off when a small
adult is seated in the front passenger's
seat, see next section “Conditions in
which front passenger's SRS frontal
airbag is activated.”
▼ Conditions in which front
passenger’s SRS frontal airbag is
activated
The front passenger’s SRS frontal airbag
will be activated for deployment upon
impact when any of the following condi-
WARNING
NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT PASSENGER’S SEAT EVEN
IF THE FRONT PASSENGER’S SRS
FRONTAL AIRBAG IS DEACTI-
VATED. Be sure to install it in the
REAR seat in a correct manner.
Also, it is strongly recommended
that any forward facing child seat or
booster seat be installed in the
REAR seat, and that even children
who have outgrown a child restraint
system be also seated in the REAR
seat. This is because children sit-
ting in the front passenger’s seat
may be killed or severely injured
should the front passenger’s SRS
frontal airbag deploy. REAR seats
are the safest place for children.
CAUTION
Observe the following precautions
as it increase the load on the front
passenger's seat and not work
properly. Do not install any accessory such
as a table or TV onto the
seatback.
Do not allow the rear seat occu-
pant to place his/her hands or
legs on the front passenger's
seatback, or allow him/her to pull
the seatback.
306789
A4600BEscusenvhch01.fm 74 ページ 2021年7月9日 金曜日 午後4時33分
