SUBARU BRZ 2022 Owners Manual

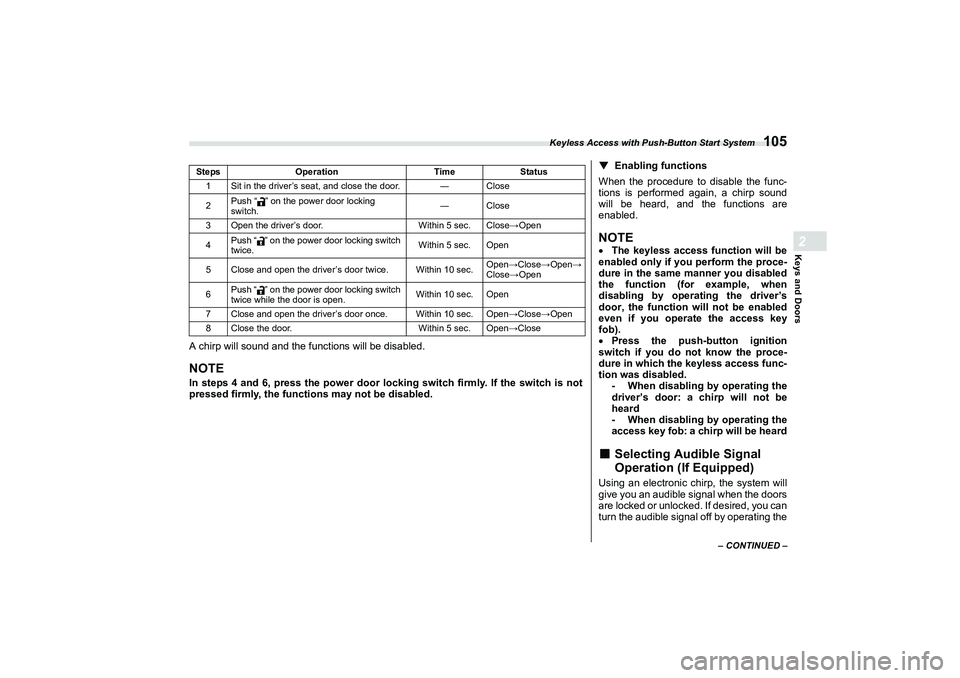

Keyless Access with Push-Button Start System
105
Keys and Doors2
– CONTINUED –
A chirp will sound and the functions will be disabled.NOTEIn steps 4 and 6, press the power door locking switch firmly. If the switch is not
pressed firmly, the functions may not be disabled.Steps Operation TimeStatus
1 Sit in the driver’s seat, and close the door. ―Close
2 Push “ ” on the power door locking
switch. ―
Close
3 Open the driver’s door. Within 5 sec. Close
:Open
4 Push “ ” on the power door locking switch
twice. Within 5 sec. Open
5 Close and open the driver’s door twice. Within 10 sec. Open
:
Close
:Open
:
Close
:Open
6 Push “ ” on the power door locking switch
twice while the door is open. Within 10 sec. Open
7 Close and open the driver’s door once. Within 10 sec. Open
:Close
:Open
8 Close the door. Within 5 sec. Open
:Close
▼
Enabling functions
When the procedure to disable the func-
tions is performed again, a chirp sound
will be heard, and the functions are
enabled.
NOTE The keyless access function will be
enabled only if you perform the proce-
dure in the same manner you disabled
the function (fo r example, when
disabling by operating the driver’s
door, the function wi ll not be enabled
even if you operate the access key
fob).
 Press the push-b utton ignition
switch if you do not know the proce-
dure in which the keyless access func-
tion was disabled. - When disabling by operating the
driver’s door: a chirp will not be
heard
- When disabling by operating the
access key fob: a chirp will be heard■
Selecting Audible Signal
Operation (If Equipped)
Using an electronic chirp, the system will
give you an audible signal when the doors
are locked or unlocked. If desired, you can
turn the audible signal off by operating the
B5=B8.ERRN 105 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

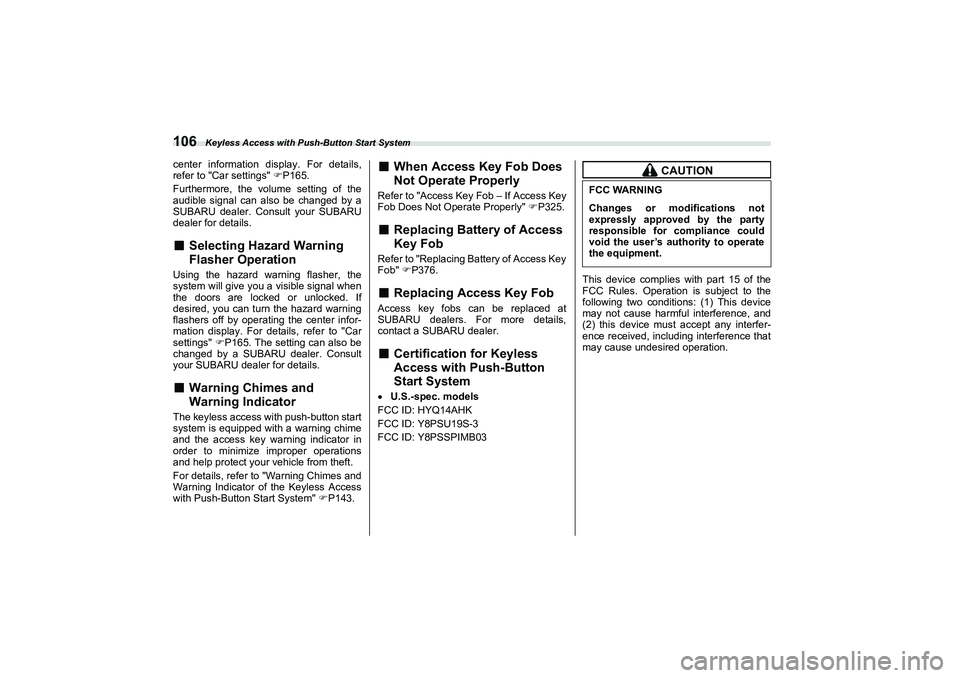

Keyless Access with Push-Button Start System
106center information display. For details,
refer to "Car settings" P165.
Furthermore, the volume setting of the
audible signal can also be changed by a
SUBARU dealer. Consult your SUBARU
dealer for details.■
Selecting Hazard Warning
Flasher Operation
Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the center infor-
mation display. For details, refer to "Car
settings" P165. The setting can also be
changed by a SUBARU dealer. Consult
your SUBARU dealer for details.■
Warning Chimes and
Warning Indicator
The keyless access with push-button start
system is equipped with a warning chime
and the access key wa rning indicator in
order to minimize improper operations
and help protect your vehicle from theft.
For details, refer to "Warning Chimes and
Warning Indicator of the Keyless Access
with Push-Button Start System"  P143.
■
When Access Key Fob Does
Not Operate Properly
Refer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.■
Replacing Battery of Access
Key Fob
Refer to "Replacing Battery of Access Key
Fob" P376.■
Replacing Access Key Fob
Access key fobs can be replaced at
SUBARU dealers. For more details,
contact a SUBARU dealer.■
Certification for Keyless
Access with Push-Button
Start System
 U.S.-spec. models
FCC ID: HYQ14AHK
FCC ID: Y8PSU19S-3
FCC ID: Y8PSSPIMB03 This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
CAUTION
FCC WARNINGChanges or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
B5=B8.ERRN 106 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

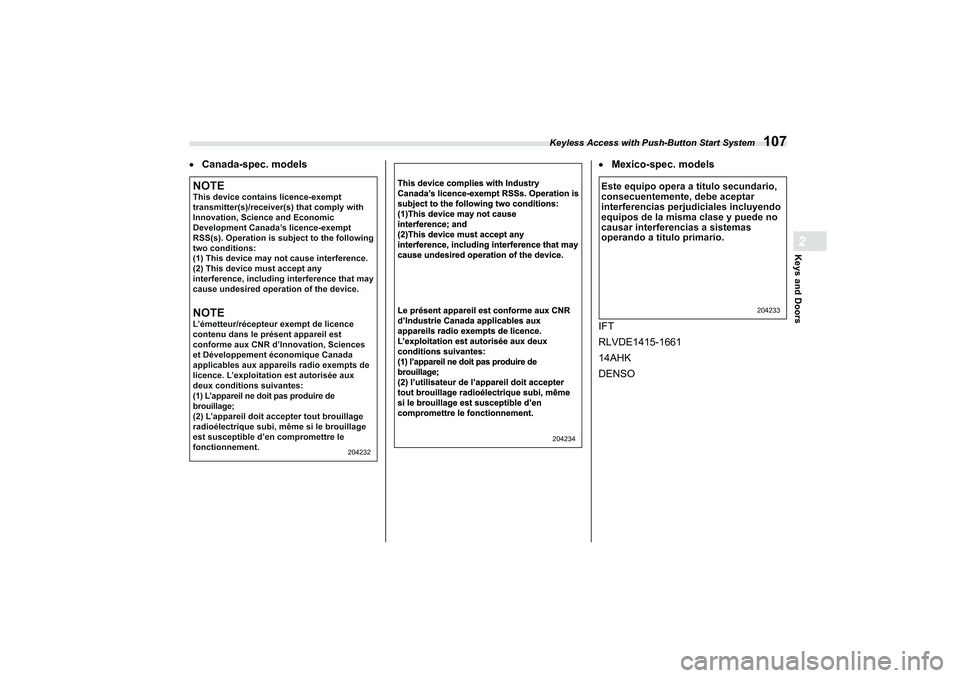

Keyless Access with Push-Button Start System
107
Keys and Doors2
Canada-spec. models Mexico-spec. models
IFT
RLVDE1415-1661
14AHK
DENSO
204232
204234
204233
B5=B8.ERRN 10 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

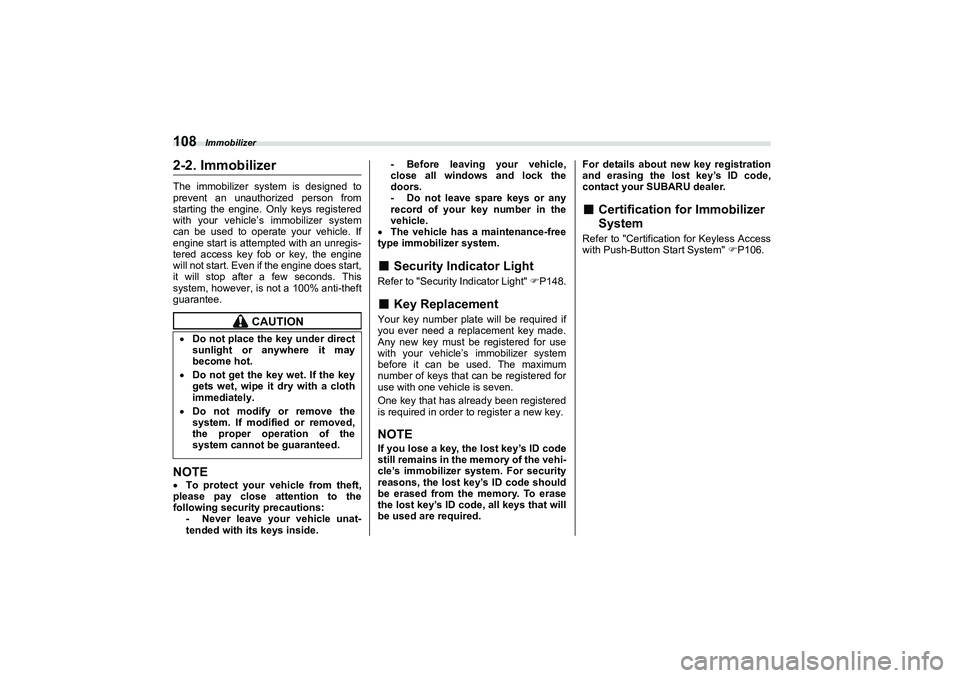

Immobilizer
1082-2. ImmobilizerThe immobilizer system is designed to
prevent an unauthorized person from
starting the engine. Only keys registered
with your vehicle’s immobilizer system
can be used to operate your vehicle. If
engine start is attempted with an unregis-
tered access key fob or key, the engine
will not start. Even if the engine does start,
it will stop after a few seconds. This
system, however, is not a 100% anti-theft
guarantee.NOTETo protect your ve hicle from theft,
please pay close attention to the
following security precautions: - Never leave your vehicle unat-
tended with its keys inside. - Before leaving your vehicle,
close all windows and lock the
doors.
- Do not leave spare keys or any
record of your key number in the
vehicle.
 The vehicle has a maintenance-free
type immobilizer system.
■
Security Indicator Light
Refer to "Security Indicator Light" P148.■
Key Replacement
Your key number plate will be required if
you ever need a replacement key made.
Any new key must be registered for use
with your vehicle’s immobilizer system
before it can be used. The maximum
number of keys that can be registered for
use with one vehicle is seven.
One key that has already been registered
is required in order to register a new key.NOTEIf you lose a key, the lost key’s ID code
still remains in the memory of the vehi-
cle’s immobilizer system. For security
reasons, the lost key’s ID code should
be erased from the memory. To erase
the lost key’s ID code, all keys that will
be used are required. For details about new key registration
and erasing the lost key’s ID code,
contact your SUBARU dealer.
■
Certification for Immobilizer
System
Refer to "Certificati
on for Keyless Access
with Push-Button Start System" P106.
CAUTION
 Do not place the key under direct
sunlight or anywhere it may
become hot.Do not get the key wet. If the key
gets wet, wipe it dry with a cloth
immediately.Do not modify or remove the
system. If modified or removed,
the proper operation of the
system cannot be guaranteed.
B5=B8.ERRN 10 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

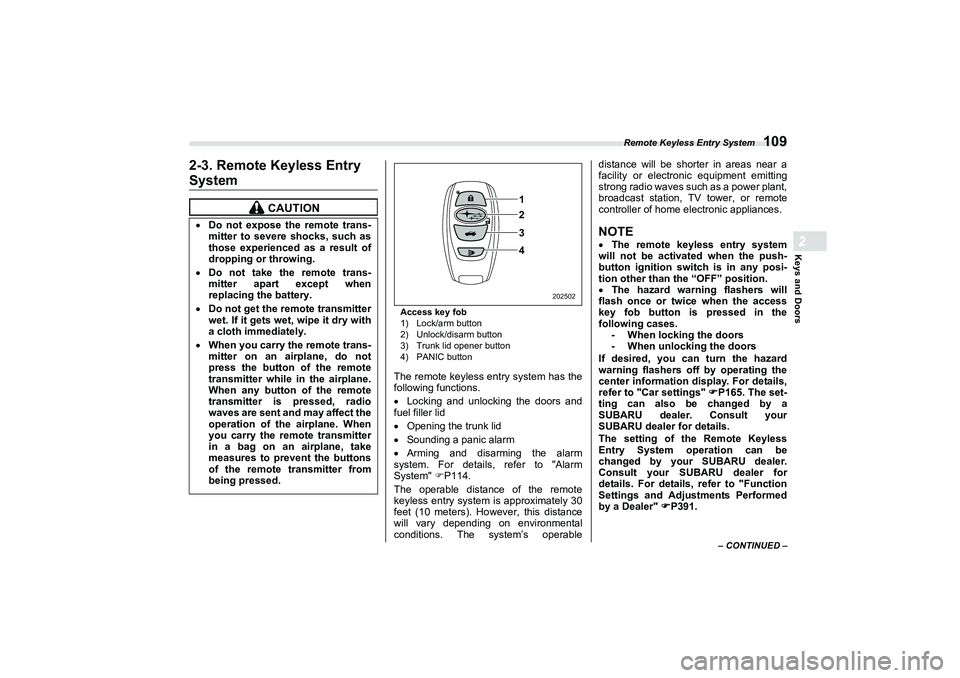

Remote Keyless Entry System
109
Keys and Doors2
– CONTINUED –
2-3. Remote Keyless Entry System
Access key fob
1) Lock/arm button
2) Unlock/disarm button
3) Trunk lid opener button
4) PANIC buttonThe remote keyless entry system has the
following functions.
Locking and unlocking the doors and
fuel filler lid
 Opening the trunk lid
 Sounding a panic alarm
 Arming and disarming the alarm
system. For details, refer to "Alarm
System" P114.
The operable distance of the remote
keyless entry system is approximately 30
feet (10 meters). Ho wever, this distance
will vary depending on environmental
conditions. The system’s operable distance will be shorter in areas near a
facility or electronic equipment emitting
strong radio waves such as a power plant,
broadcast station, TV tower, or remote
controller of home electronic appliances.
NOTE
The remote keyless entry system
will not be activa ted when the push-
button ignition switch is in any posi-
tion other than the “OFF” position.
 The hazard warning flashers will
flash once or twice when the access
key fob button is pressed in the
following cases. - When locking the doors
- When unlocking the doors
If desired, you can turn the hazard
warning flashers off by operating the
center information display. For details,
refer to "Car settings" 
P165. The set-
ting can also be changed by a
SUBARU dealer. Consult your
SUBARU dealer for details.
The setting of the Remote Keyless
Entry System operation can be
changed by your SUBARU dealer.
Consult your SUBARU dealer for
details. For details, refer to "Function
Settings and Adjustments Performed
by a Dealer" 
P391.
CAUTION
Do not expose the remote trans-
mitter to severe shocks, such as
those experienced as a result of
dropping or throwing.Do not take the remote trans-
mitter apart except when
replacing the battery.Do not get the remote transmitter
wet. If it gets we t, wipe it dry with
a cloth immediately. When you carry the remote trans-
mitter on an airplane, do not
press the button of the remote
transmitter while in the airplane.
When any button of the remote
transmitter is pressed, radio
waves are sent and may affect the
operation of the airplane. When
you carry the remote transmitter
in a bag on an airplane, take
measures to prevent the buttons
of the remote transmitter from
being pressed.
202502
1
2
3
4
B5=B8.ERRN 10 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

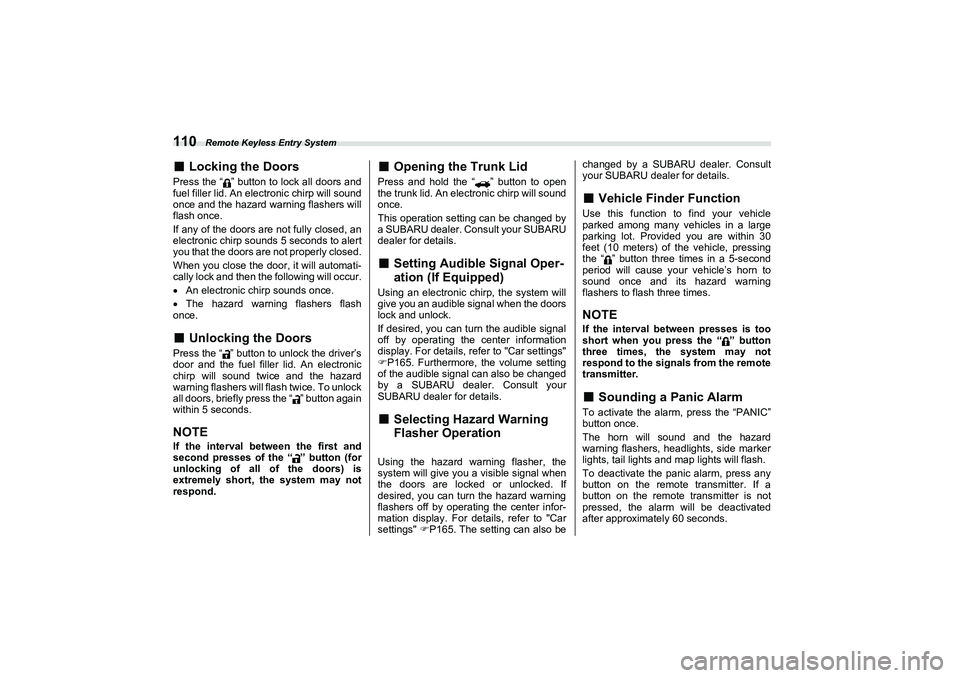

Remote Keyless Entry System
110■
Locking the Doors
Press the “ ” button to lock all doors and
fuel filler lid. An electronic chirp will sound
once and the hazard warning flashers will
flash once.
If any of the doors are not fully closed, an
electronic chirp sounds 5 seconds to alert
you that the doors are not properly closed.
When you close the door, it will automati-
cally lock and then the following will occur.
 An electronic chirp sounds once.
 The hazard warning flashers flash
once.■
Unlocking the Doors
Press the “ ” button to unlock the driver’s
door and the fuel filler lid. An electronic
chirp will sound twice and the hazard
warning flashers will flash twice. To unlock
all doors, briefly press the “ ” button again
within 5 seconds.NOTEIf the interval between the first and
second presses of the “ ” button (for
unlocking of all of the doors) is
extremely short, the system may not
respond.
■
Opening the Trunk Lid
Press and hold the “ ” button to open
the trunk lid. An electronic chirp will sound
once.
This operation setting can be changed by
a SUBARU dealer. Consult your SUBARU
dealer for details.■
Setting Audible Signal Oper -
ation (If Equipped)
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock.
If desired, you can turn the audible signal
off by operating the center information
display. For details, refer to "Car settings"
 P165. Furthermore, the volume setting
of the audible signal can also be changed
by a SUBARU dealer. Consult your
SUBARU dealer for details.■
Selecting Hazard Warning
Fl asher Operation
Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the center infor-
mation display. For details, refer to "Car
settings" P165. The setting can also be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.
■
Vehicle Finder Function
Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a 5-second
period will cause your vehicle’s horn to
sound once and its hazard warning
flashers to flash three times.NOTEIf the interval between presses is too
short when you press the “ ” button
three times, the system may not
respond to the signals from the remote
transmitter.■
Sounding a Panic Alarm
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the hazard
warning flashers, headlights, side marker
lights, tail lights and map lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. If a
button on the remote transmitter is not
pressed, the alarm will be deactivated
after approximately 60 seconds.
B5=B8.ERRN 110 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

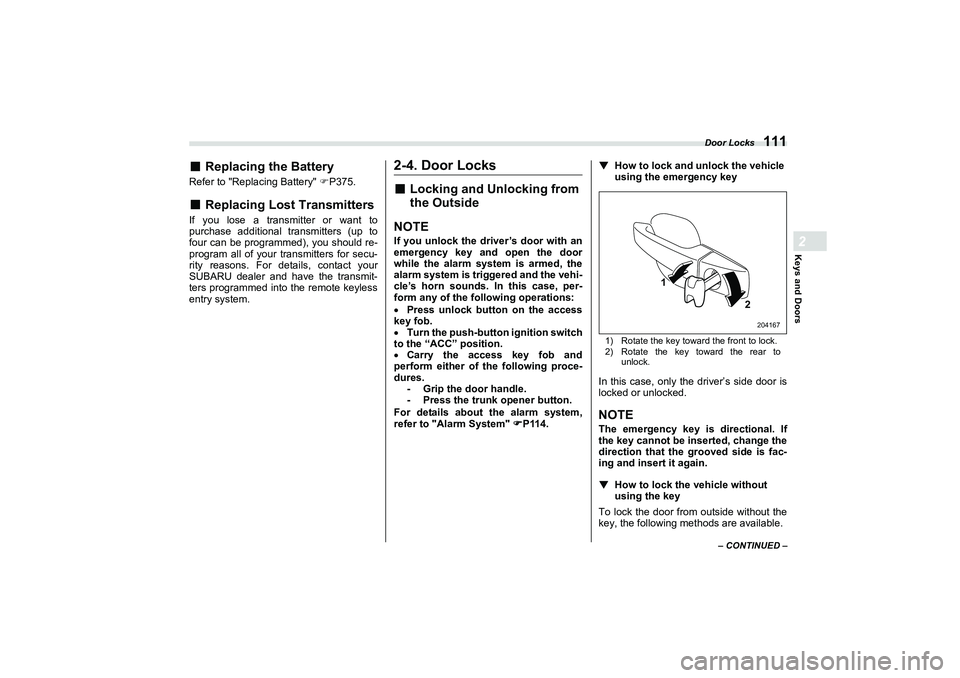

Door Locks
111
Keys and Doors2
– CONTINUED –
■
Replacing the Battery
Refer to "Replacing Battery" P375.■
Replacing Lost Transmitters
If you lose a transmitter or want to
purchase additional transmitters (up to
four can be programmed), you should re-
program all of your transmitters for secu-
rity reasons. For details, contact your
SUBARU dealer and have the transmit-
ters programmed into the remote keyless
entry system.
2-4. Door Locks■
Locking and Unlocking from
the Outside
NOTE
If you unlock the driver’s door with an
emergency key and open the door
while the alarm system is armed, the
alarm system is triggered and the vehi-
cle’s horn sounds. In this case, per-
form any of the following operations:
 Press unlock button on the access
key fob.
 Turn the push-button ignition switch
to the “ACC” position.
 Carry the access key fob and
perform either of the following proce-
dures. - Grip the door handle.
- Press the trunk opener button.
For details about the alarm system,
refer to "Alarm System" 
P114.▼
How to lock and unlock the vehicle
using the emergency key1) Rotate the key toward the front to lock.
2) Rotate the key toward the rear to
unlock.In this case, only the driver’s side door is
locked or unlocked.NOTEThe emergency key is directional. If
the key cannot be inserted, change the
direction that the grooved side is fac-
ing and insert it again.
▼
How to lock the vehicle without
using the key
To lock the door from outside without the
key, the following methods are available.
2
1
204167
B5=B8.ERRN 111 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

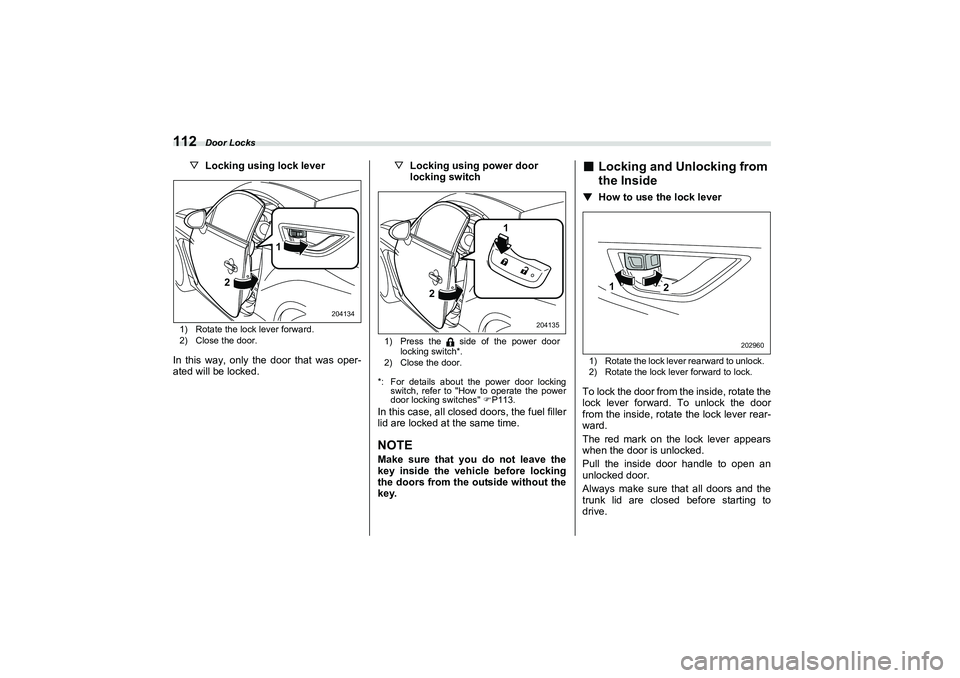

Door Locks
112
▽Locking using lock lever1) Rotate the lock lever forward.
2) Close the door.In this way, only the door that was oper-
ated will be locked. ▽
Locking using power door
locking switch
1) Press the side of the power door locking switch*.
2) Close the door.
*: For details about the power door locking switch, refer to "How to operate the power
door locking switches"  P113.In this case, all closed doors, the fuel filler
lid are locked at the same time.NOTEMake sure that you do not leave the
key inside the vehicle before locking
the doors from the outside without the
k e y.
■
Locking and Unlocking from
the Inside
▼
How to use the lock lever1) Rotate the lock lever rearward to unlock.
2) Rotate the lock lever forward to lock.To lock the door from the inside, rotate the
lock lever forward. To unlock the door
from the inside, rotate the lock lever rear-
ward.
The red mark on the lock lever appears
when the door is unlocked.
Pull the inside door handle to open an
unlocked door.
Always make sure that all doors and the
trunk lid are closed before starting to
drive.
2 1
204134
2
1
204135
202960
1
2
B5=B8.ERRN 112 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

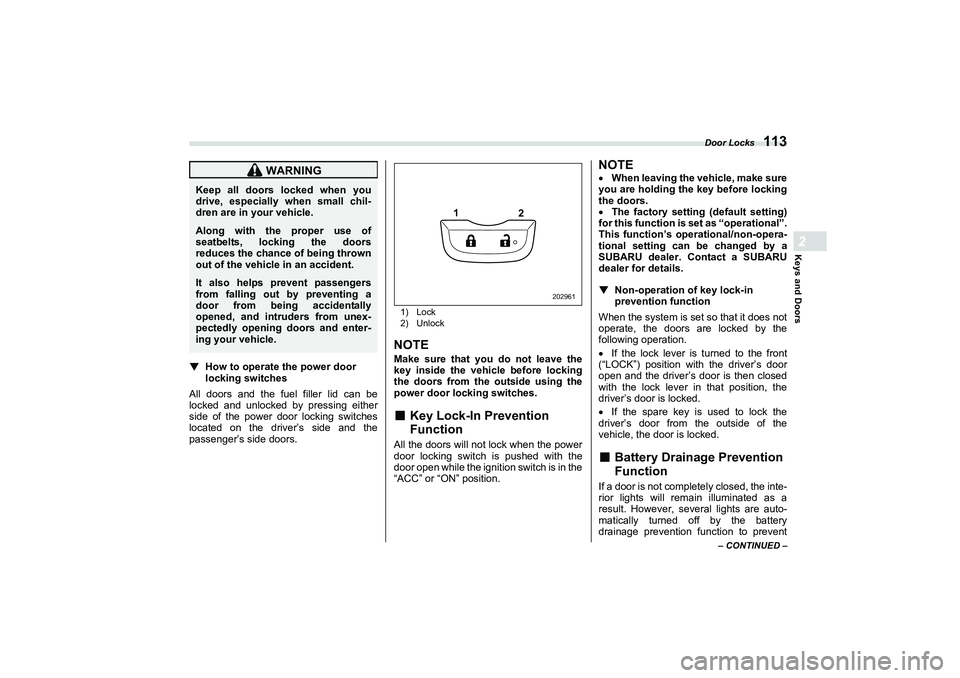

Door Locks
113
Keys and Doors2
– CONTINUED –
▼
How to operate the power door
locking switches
All doors and the fuel filler lid can be
locked and unlocked by pressing either
side of the power door locking switches
located on the driver’s side and the
passenger’s side doors.
1) Lock
2) UnlockNOTEMake sure that you do not leave the
key inside the vehicle before locking
the doors from the outside using the
power door locking switches.■
Key Lock-In Prevention
Function
All the doors will not lock when the power
door locking switch is pushed with the
door open while the ignition switch is in the
“ACC” or “ON” position.
NOTE When leaving the vehicle, make sure
you are holding the key before locking
the doors.
 The factory setting (default setting)
for this function is set as “operational”.
This function’s operational/non-opera-
tional setting can be changed by a
SUBARU dealer. Contact a SUBARU
dealer for details.
▼
Non-operation of key lock-in
prevention function
When the system is set so that it does not
operate, the doors are locked by the
following operation.
 If the lock lever is turned to the front
(“LOCK”) position with the driver’s door
open and the driver’s door is then closed
with the lock lever in that position, the
driver’s door is locked.
 If the spare key is used to lock the
driver’s door from the outside of the
vehicle, the door is locked.
■
Battery Drainage Prevention
Function
If a door is not completely closed, the inte-
rior lights will remain illuminated as a
result. However, several lights are auto-
matically turned off by the battery
drainage prevention function to prevent
WARNING
Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.Along with the proper use of
seatbelts, locking the doors
reduces the chance of being thrown
out of the vehicle in an accident.It also helps prevent passengers
from falling out by preventing a
door from being accidentally
opened, and intruders from unex-
pectedly opening doors and enter-
ing your vehicle.
202961
1 2
B5=B8.ERRN 113 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

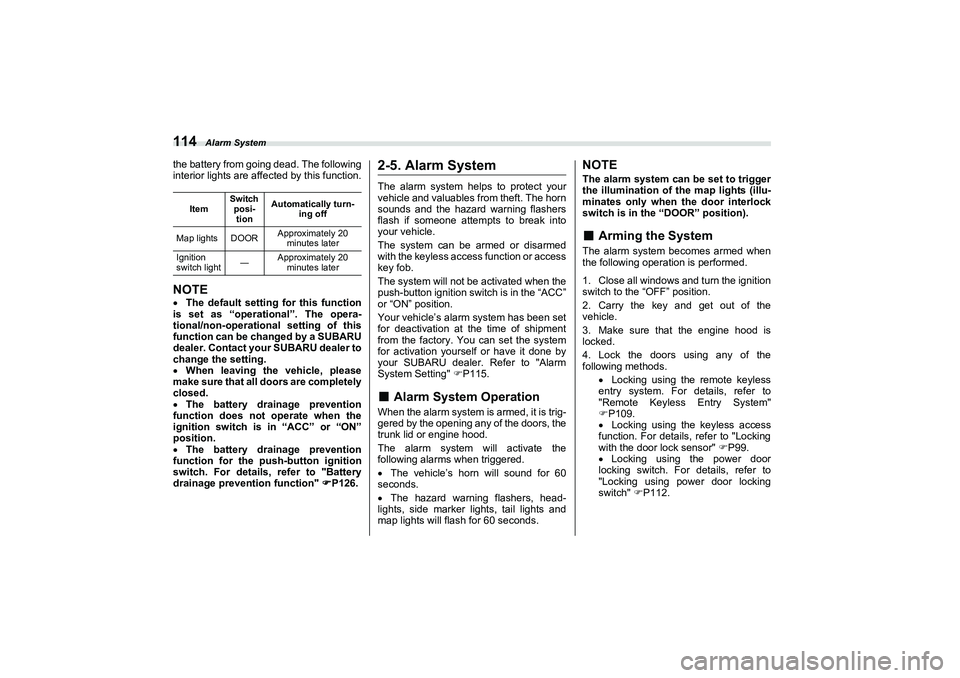

Alarm System
114the battery from going dead. The following
interior lights are affected by this function.NOTEThe default setting for this function
is set as “operational”. The opera-
tional/non-operation al setting of this
function can be changed by a SUBARU
dealer. Contact your SUBARU dealer to
change the setting.
 When leaving the vehicle, please
make sure that all doors are completely
closed.
 The battery drainage prevention
function does not operate when the
ignition switch is in “ACC” or “ON”
position.
 The battery drainage prevention
function for the pu sh-button ignition
switch. For details, refer to "Battery
drainage prevention function" 
P126.
2-5. Alarm SystemThe alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the hazard warning flashers
flash if someone attempts to break into
your vehicle.
The system can be armed or disarmed
with the keyless access function or access
key fob.
The system will not be activated when the
push-button ignition switch is in the “ACC”
or “ON” position.
Your vehicle’s alarm system has been set
for deactivation at the time of shipment
from the factory. You can set the system
for activation yourself or have it done by
your SUBARU dealer. Refer to "Alarm
System Setting" P115.■
Alarm System Operation
When the alarm system is armed, it is trig-
gered by the opening any of the doors, the
trunk lid or engine hood.
The alarm system will activate the
following alarms when triggered.
 The vehicle’s horn will sound for 60
seconds.
 The hazard warning flashers, head-
lights, side marker lights, tail lights and
map lights will flash for 60 seconds.
NOTEThe alarm system can be set to trigger
the illumination of the map lights (illu-
minates only when the door interlock
switch is in the “DOOR” position).■
Arming the System
The alarm system becomes armed when
the following operation is performed.
1. Close all windows and turn the ignition
switch to the “OFF” position.
2. Carry the key and get out of the
vehicle.
3. Make sure that the engine hood is
locked.
4. Lock the doors using any of the
following methods.
Locking using the remote keyless
entry system. For details, refer to
"Remote Keyless Entry System"
 P109.
 Locking using the keyless access
function. For details, refer to "Locking
with the door lock sensor"  P99.
 Locking using the power door
locking switch. For details, refer to
"Locking using power door locking
switch" P112.
Item Switch
posi-tion Automatically turn-
ing off
Map lights DOOR Approximately 20
minutes later
Ignition
switch light ―
Approximately 20
minutes later
B5=B8.ERRN 114 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
