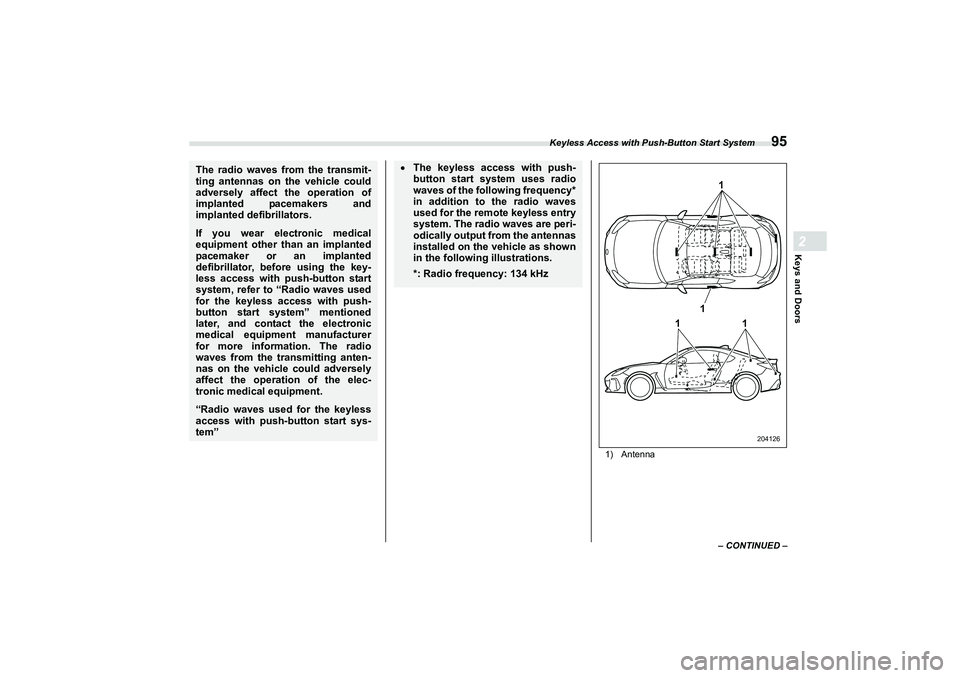

Keyless Access with Push-Button Start System
95
Keys and Doors2
– CONTINUED –
1) Antenna
The radio waves from the transmit-
ting antennas on the vehicle could
adversely affect the operation of
implanted pacemakers and
implanted defibrillators.If you wear electronic medical
equipment other than an implanted
pacemaker or an implanted
defibrillator, before using the key-
less access with push-button start
system, refer to “Radio waves used
for the keyless access with push-
button start system” mentioned
later, and contact the electronic
medical equipment manufacturer
for more information. The radio
waves from the transmitting anten-
nas on the vehicle could adversely
affect the operation of the elec-
tronic medical equipment.“Radio waves used for the keyless
access with push-button start sys-
tem”

The keyless access with push-
button start system uses radio
waves of the following frequency*
in addition to the radio waves
used for the remote keyless entry
system. The radio waves are peri-
odically output from the antennas
installed on the vehicle as shown
in the following illustrations.
*: Radio frequency: 134 kHz
1
1
1
1
204126
B5=B8.ERRN 5 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
96
NOTEThe operational/non-operational
setting for the keyless access function
can be changed. For the setting proce-

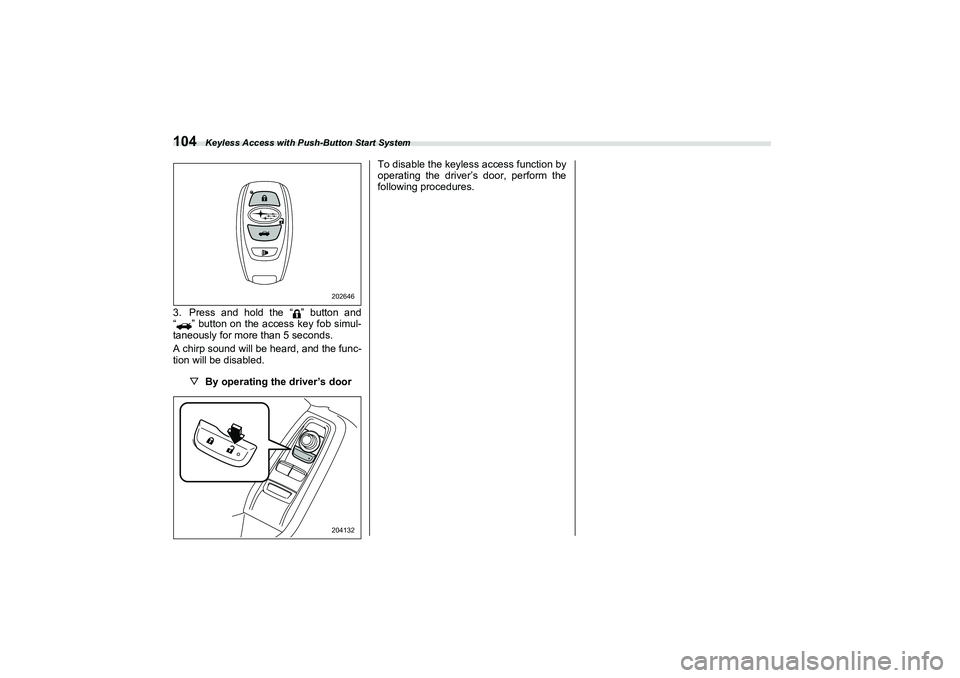

dure, refer to "Disabling Keyless
Access Function" 
P103.
 For detailed info rmation about the
operation method fo r the push-button
ignition switch while the keyless
access function is switched to the non-
operational mode, refer to "Access Key
Fob – If Access Key Fob Does Not
Operate Properly" P325.
 The keyless access with push-
button start system uses weak radio
waves. The status of the access key
fob and environmental conditions may
interfere with the communication
between the access key fob and the
vehicle under the following conditions,
and it may not be possible to lock or
unlock the doors or start the engine.
CAUTION
 Never leave or store the access
key fob inside the vehicle or
within 6.6 ft (2 m) around the
vehicle (e.g., in the garage). The
access key fob may be locked
inside the vehicle, or the battery
may discharge rapidly. Note that
the push-button ignition switch
may not turn on in some cases
depending on the location of the
access key fob.The access key fob contains elec-
tronic components. Observe the
following precautions to prevent
malfunctions.
- It is recommended to have the
access key fob battery
replaced at an authorized
SUBARU dealer to avoid the
risk of damage.- Do not get the access key fob wet. If the access key fob gets
wet, wipe it off immediately
and let it dry completely.- Do not apply strong impactsto the access key fob.
- Never leave the access key fob in direct sunlight or
anywhere that may become
hot, such as on the dash-
board. It may damage the
battery or cause circuit
malfunctions.- Do not wash the access keyfob in an ultrasonic washer.- Do not leave the access keyfob in humid or dusty loca-
tions. Doing so may cause
malfunctions.- Keep the access key fob awayfrom magnetic sources.- Do not leave the access keyfob near a personal computer
or home electrical appliance.- Do not leave the access keyfob near a battery charger or
any electrical accessories.- Do not apply metallic windowtint or attach metallic objects
to the windows.- Do not fit non genuine acces- sories or parts.
If the access key fob is dropped,
the integrated emergency key
inside may become loose. Be
careful not to lose the emergency
key.
When traveling in an airplane, do
not press the button of the access
key fob. If any button of the
access key fob is pressed, radio
waves are emitted and may affect
the operation of the airplane. In a
bag, take measures to prevent the
buttons from being pressed acci-
dentally.
B5=B8.ERRN 6 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

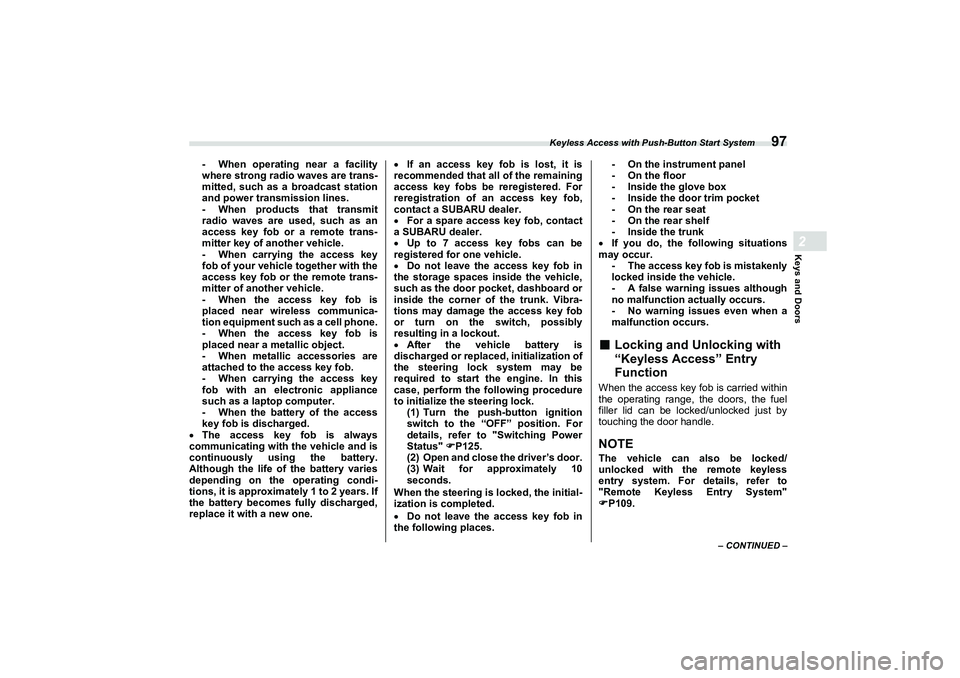

Keyless Access with Push-Button Start System
97
Keys and Doors2
– CONTINUED –
- When operating near a facility
where strong radio waves are trans-
mitted, such as a broadcast station
and power transmission lines.
- When products that transmit
radio waves are used, such as an
access key fob or a remote trans-
mitter key of another vehicle.
- When carrying the access key
fob of your vehicle together with the
access key fob or the remote trans-
mitter of another vehicle.
- When the access key fob is
placed near wireless communica-
tion equipment such as a cell phone.
- When the access key fob is
placed near a metallic object.
- When metallic accessories are
attached to the access key fob.
- When carrying the access key
fob with an elec tronic appliance
such as a laptop computer.
- When the battery of the access
key fob is discharged.
 The access key fob is always
communicating with the vehicle and is
continuously using the battery.
Although the life of the battery varies
depending on the operating condi-
tions, it is approximately 1 to 2 years. If
the battery becomes fully discharged,
replace it with a new one. 
If an access key fob is lost, it is
recommended that all of the remaining
access key fobs be reregistered. For
reregistration of an access key fob,
contact a SUBARU dealer.
 For a spare access key fob, contact
a SUBARU dealer.
 Up to 7 access key fobs can be
registered for one vehicle.
 Do not leave the access key fob in
the storage spaces inside the vehicle,
such as the door pocket, dashboard or
inside the corner of the trunk. Vibra-
tions may damage the access key fob
or turn on the switch, possibly
resulting in a lockout.
 After the vehicle battery is
discharged or replaced, initialization of
the steering lock system may be
required to start the engine. In this
case, perform the following procedure
to initialize the steering lock. (1) Turn the push -button ignition
switch to the “OFF” position. For
details, refer to "Switching Power
Status" 
P125.
(2) Open and close the driver’s door.
(3) Wait for approximately 10
seconds.
When the steering is locked, the initial-
ization is completed.
 Do not leave the access key fob in
the following places. - On the instrument panel
- On the floor
- Inside the glove box
- Inside the door trim pocket
- On the rear seat
- On the rear shelf
- Inside the trunk
 If you do, the following situations
may occur. - The access key fob is mistakenly
locked inside the vehicle.
- A false warning issues although
no malfunction actually occurs.
- No warning issues even when a
malfunction occurs.
■
Locking and Unlocking with
“Keyless Access” Entry
Function
When the access key fob is carried within
the operating range, the doors, the fuel
filler lid can be locked/unlocked just by
touching the door handle.NOTEThe vehicle can also be locked/
unlocked with the remote keyless
entry system. For details, refer to
"Remote Keyless Entry System"
P109.
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

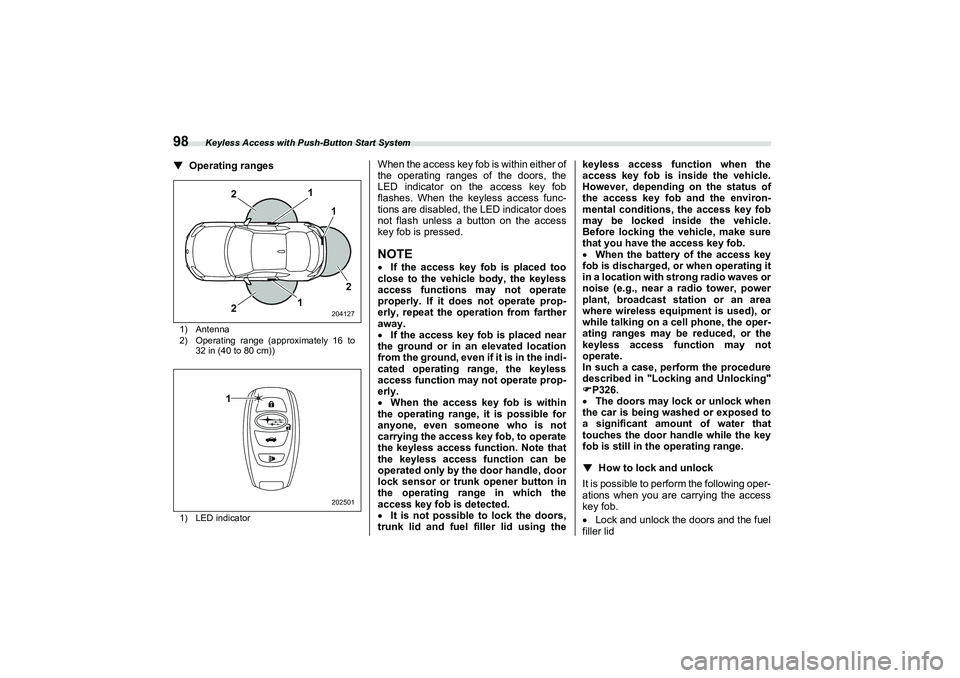

Keyless Access with Push-Button Start System
98▼
Operating ranges1) Antenna
2) Operating range (approximately 16 to32 in (40 to 80 cm))
1) LED indicator
When the access key fob is within either of
the operating ranges of the doors, the
LED indicator on the access key fob
flashes. When the keyless access func-
tions are disabled, the LED indicator does
not flash unless a button on the access
key fob is pressed.NOTE If the access key fob is placed too
close to the vehicle body, the keyless
access functions may not operate
properly. If it does not operate prop-
erly, repeat the operation from farther
away.
 If the access key fob is placed near
the ground or in an elevated location
from the ground, even if it is in the indi-
cated operating range, the keyless
access function may not operate prop-
erly.
 When the access key fob is within
the operating range, it is possible for
anyone, even someone who is not
carrying the access key fob, to operate
the keyless access function. Note that
the keyless access function can be
operated only by the door handle, door
lock sensor or trunk opener button in
the operating range in which the
access key fob is detected.
 It is not possible to lock the doors,
trunk lid and fuel filler lid using the keyless access function when the
access key fob is inside the vehicle.
However, depending on the status of
the access key fob and the environ-
mental conditions, the access key fob
may be locked inside the vehicle.
Before locking the vehicle, make sure
that you have the access key fob.

When the battery of the access key
fob is discharged, or when operating it
in a location with strong radio waves or
noise (e.g., near a radio tower, power
plant, broadcast station or an area
where wireless equipment is used), or
while talking on a cell phone, the oper-
ating ranges may be reduced, or the
keyless access function may not
operate.
In such a case, perform the procedure
described in "Locking and Unlocking"

P326.
 The doors may lock or unlock when
the car is being washed or exposed to
a significant amount of water that
touches the door handle while the key
fob is still in the operating range.
▼How to lock and unlock
It is possible to perform the following oper-
ations when you are carrying the access
key fob.
 Lock and unlock the doors and the fuel
filler lid
2
2
1
2
1
1204127202501
1
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

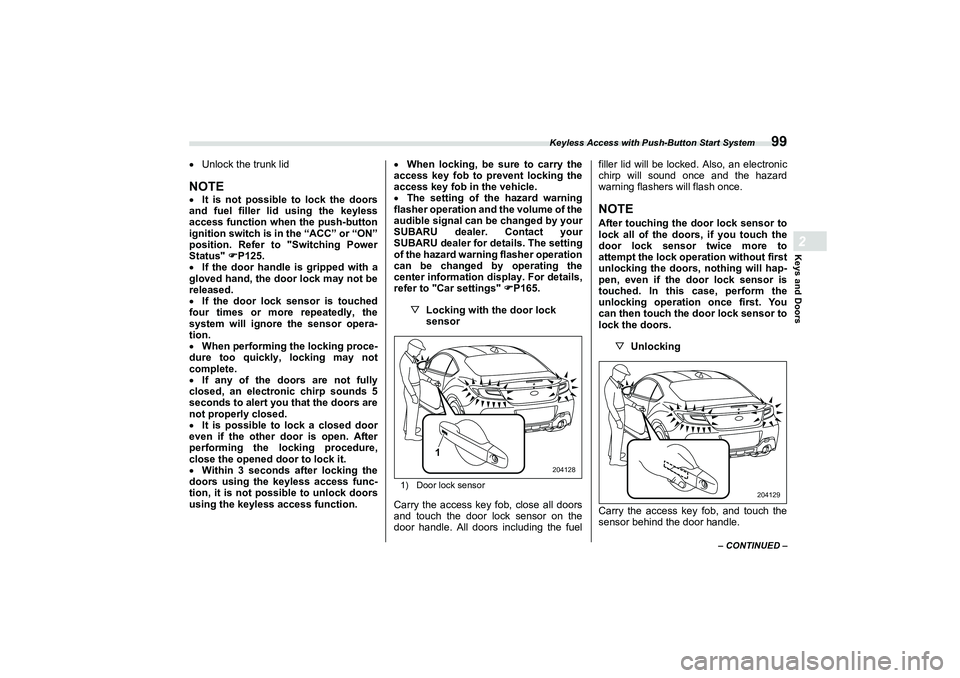

Keyless Access with Push-Button Start System
99
Keys and Doors2
– CONTINUED –
Unlock the trunk lidNOTEIt is not possible to lock the doors
and fuel filler lid using the keyless
access function when the push-button
ignition switch is in the “ACC” or “ON”
position. Refer to "Switching Power
Status" 
P125.
 If the door handle is gripped with a
gloved hand, the door lock may not be
released.
 If the door lock sensor is touched
four times or more repeatedly, the
system will ignore the sensor opera-
tion.
 When performing the locking proce-
dure too quickly, locking may not
complete.
 If any of the doors are not fully
closed, an electronic chirp sounds 5
seconds to alert you that the doors are
not properly closed.
 It is possible to lock a closed door
even if the other door is open. After
performing the locking procedure,
close the opened door to lock it.
 Within 3 seconds after locking the
doors using the keyless access func-
tion, it is not possible to unlock doors
using the keyless access function. 
When locking, be sure to carry the
access key fob to prevent locking the
access key fob in the vehicle.
 The setting of th e hazard warning
flasher operation and the volume of the
audible signal can be changed by your
SUBARU dealer. Contact your
SUBARU dealer for details. The setting
of the hazard warning flasher operation
can be changed by operating the
center information display. For details,
refer to "Car settings" 
P165.
▽ Locking with the door lock
sensor
1) Door lock sensorCarry the access key fob, close all doors
and touch the door lock sensor on the
door handle. All doors including the fuel filler lid will be locked. Also, an electronic
chirp will sound once and the hazard
warning flashers will flash once.
NOTEAfter touching the door lock sensor to
lock all of the doors, if you touch the
door lock sensor twice more to
attempt the lock oper
ation without first
unlocking the doors, nothing will hap-
pen, even if the door lock sensor is
touched. In this case, perform the
unlocking operation once first. You
can then touch the door lock sensor to
lock the doors.
▽Unlocking
Carry the access key fob, and touch the
sensor behind the door handle.
1
204128
204129
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

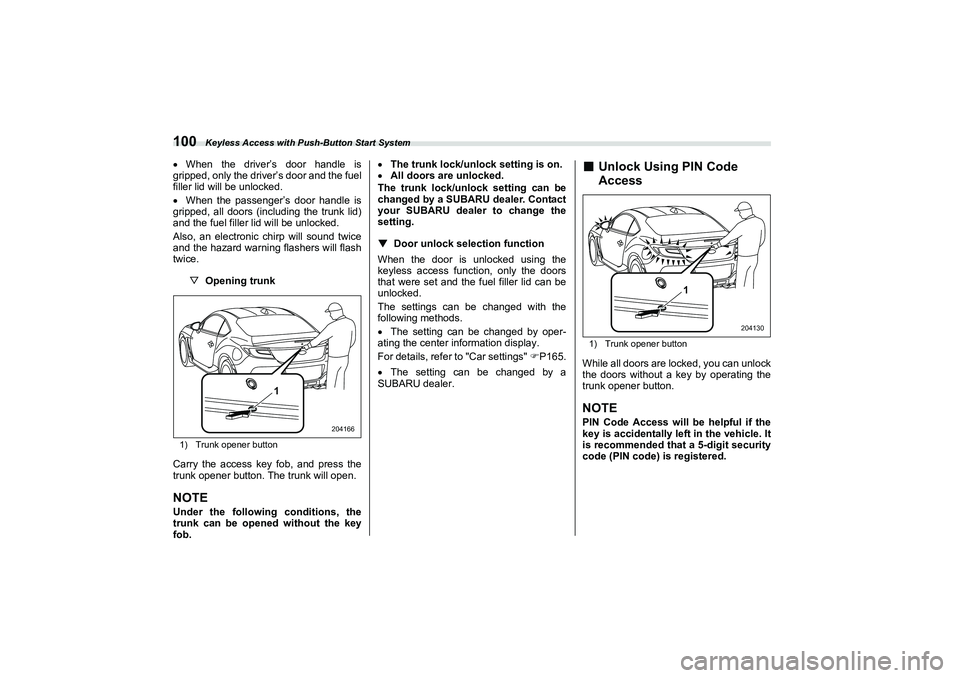

Keyless Access with Push-Button Start System
100When the driver’s door handle is
gripped, only the driver’s door and the fuel
filler lid will be unlocked.
 When the passenger’s door handle is
gripped, all doors (including the trunk lid)
and the fuel filler lid will be unlocked.
Also, an electronic chirp will sound twice
and the hazard warning flashers will flash
twice.
▽ Opening trunk1) Trunk opener buttonCarry the access key fob, and press the
trunk opener button. The trunk will open.NOTEUnder the following conditions, the
trunk can be opened without the key
fob. 
The trunk lock/unlock setting is on.
 All doors are unlocked.
The trunk lock/unlock setting can be
changed by a SUBARU dealer. Contact
your SUBARU dealer to change the
setting.
▼
Do or unlock selection function
When the door is unlocked using the
keyless acces s function, only the doors
that were set and the fuel filler lid can be
unlocked.
The settings can be changed with the
following methods.
 The setting can be changed by oper-
ating the center information display.
For details, refer to "Car settings" P165.
 The setting can be changed by a
SUBARU dealer.
■
Unlock Using PIN Code
Acces s1) Trunk opener buttonWhile all doors are locked, you can unlock
the doors without a key by operating the
trunk opener button.NOTEPIN Code Access will be helpful if the
key is accidentally left in the vehicle. It
is recommended that a 5-digit security
code (PIN code) is registered.
1
204166
1
204130
B5=B8.ERRN 100 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
101
Keys and Doors2
– CONTINUED –
▼

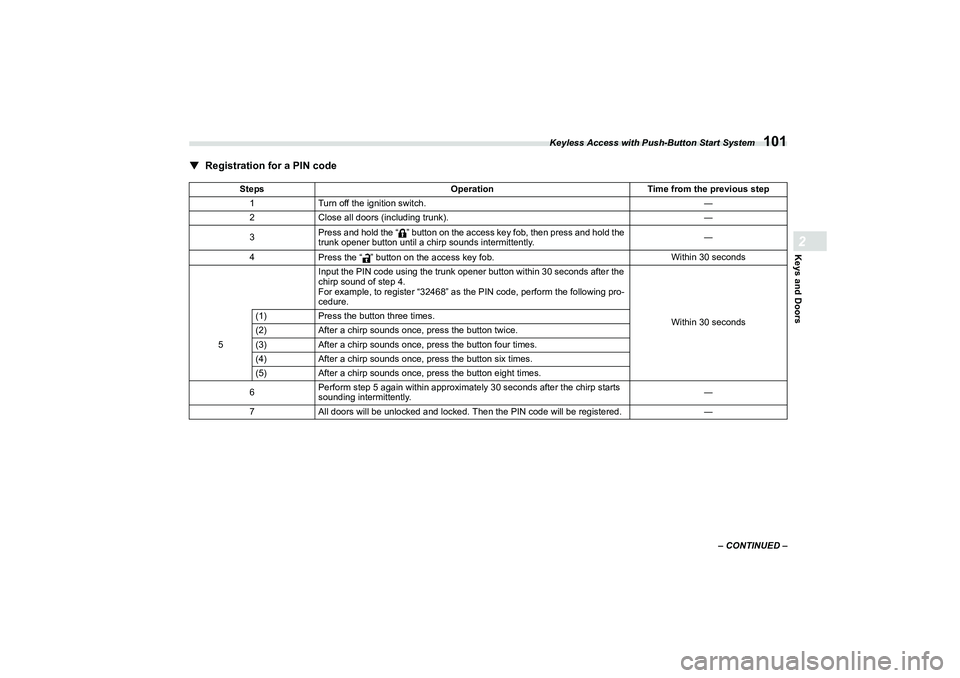

Registration for a PIN code
StepsOperationTime from the previous step
1 Turn off the ignition switch. ―
2 Close all doors (including trunk). ―
3 Press and hold the “ ” button on the access key fob, then press and hold the
trunk opener button until a chirp sounds intermittently. ―
4 Press the “ ” button on the access key fob. Within 30 seconds
Input the PIN code using the trunk opener button within 30 seconds after the
chirp sound of step 4.
For example, to register “32468” as the PIN code, perform the following pro-
cedure.
Within 30 seconds
5 (1)
Press the button three times.
(2) After a chirp sounds once, press the button twice.
(3) After a chirp sounds once, press the button four times.
(4) After a chirp sounds once, press the button six times.
(5) After a chirp sounds once, press the button eight times.
6 Perform step 5 again within approximately 30 seconds after the chirp starts
sounding intermittently. ―
7 All doors will be unlocked and locked. T hen the PIN code will be registered. ―
B5=B8.ERRN 101 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

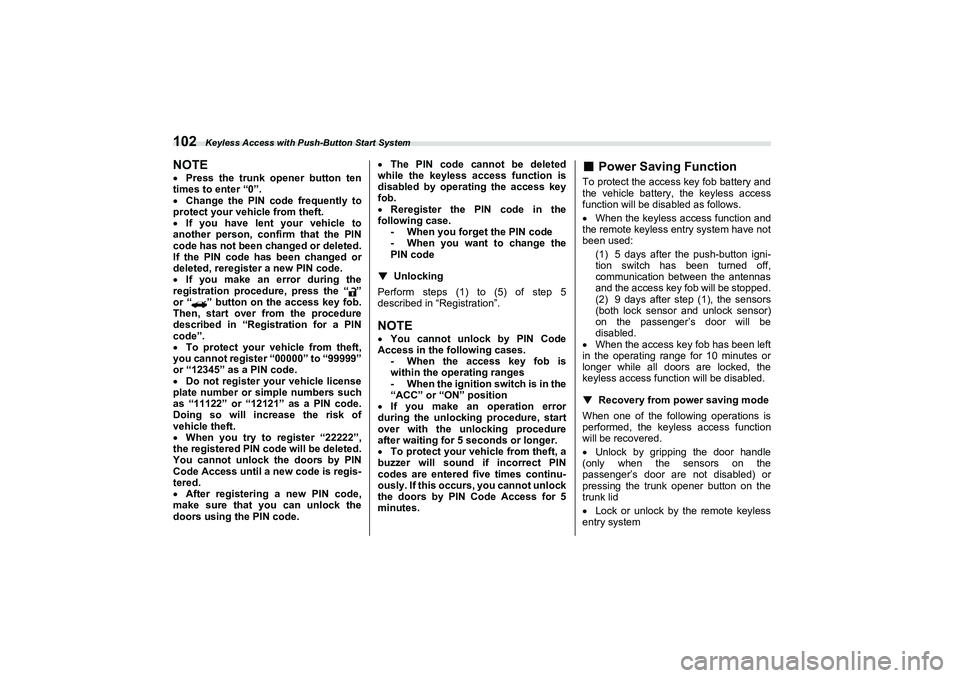

Keyless Access with Push-Button Start System
102NOTEPress the trunk opener button ten
times to enter “0”.
 Change the PIN code frequently to
protect your vehic le from theft.
 If you have lent your vehicle to
another person, confirm that the PIN
code has not been changed or deleted.
If the PIN code has been changed or
deleted, reregister a new PIN code.
 If you make an error during the
registration procedure, press the “ ”
or “ ” button on the access key fob.
Then, start over from the procedure
described in “Registration for a PIN
code”.
 To protect your ve hicle from theft,
you cannot register “00000” to “99999”
or “12345” as a PIN code.
 Do not register your vehicle license
plate number or simple numbers such
as “11122” or “12121” as a PIN code.
Doing so will increase the risk of
vehicle theft.
 When you try to register “22222”,
the registered PIN code will be deleted.
You cannot unlock the doors by PIN
Code Access until a new code is regis-
tered.
 After registering a new PIN code,
make sure that you can unlock the
doors using the PIN code. 
The PIN code cannot be deleted
while the keyless access function is
disabled by operating the access key
fob.
 Reregister the PIN code in the
following case. - When you forget the PIN code
- When you want to change the
PIN code
▼
Unlocking
Perform steps (1) to (5) of step 5
described in “Registration”.
NOTE You cannot unlock by PIN Code
Access in the following cases. - When the access key fob is
within the operating ranges
- When the ignition switch is in the
“ACC” or “ON” position
 If you make an operation error
during the unlocking procedure, start
over with the unlocking procedure
after waiting for 5 seconds or longer.
 To protect your vehicle from theft, a
buzzer will sound if incorrect PIN
codes are entered five times continu-
ously. If this occurs, you cannot unlock
the doors by PIN Code Access for 5
minutes.
■
Power Saving Function
To protect the access key fob battery and
the vehicle battery, the keyless access
function will be disabled as follows.
 When the keyless access function and
the remote keyless entry system have not
been used:
(1) 5 days after the push-button igni-
tion switch has been turned off,
communication between the antennas
and the access key fob will be stopped.
(2) 9 days after step (1), the sensors
(both lock sensor and unlock sensor)
on the passenger’s door will be
disabled.
 When the access key fob has been left
in the operating range for 10 minutes or
longer while all doors are locked, the
keyless access function will be disabled.
▼
Recovery from power saving mode
When one of the following operations is
performed, the keyless access function
will be recovered.
 Unlock by gripping the door handle
(only when the sensors on the
passenger’s door are not disabled) or
pressing the trunk opener button on the
trunk lid
 Lock or unlock by the remote keyless
entry system
B5=B8.ERRN 102 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

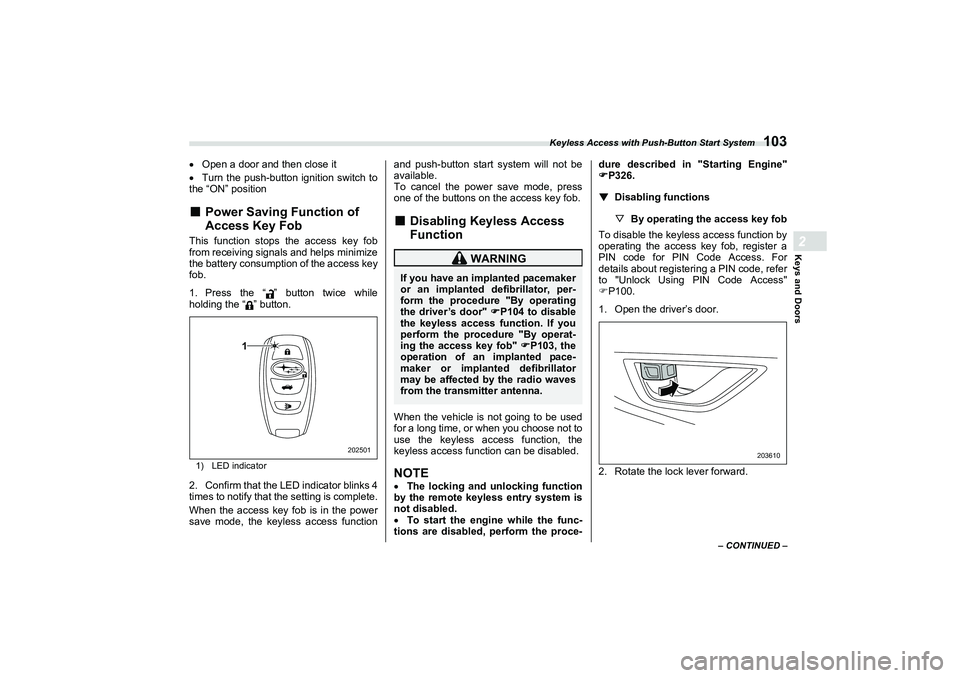

Keyless Access with Push-Button Start System
103
Keys and Doors2
– CONTINUED –
Open a door and then close it
 Turn the push-button ignition switch to
the “ON” position■
Power Saving Function of
Access Key Fob
This function stops the access key fob
from receiving signals and helps minimize
the battery consumption of the access key
fob.
1. Press the “ ” button twice while
holding the “ ” button.1) LED indicator2. Confirm that the LED indicator blinks 4
times to notify that the setting is complete.
When the access key fob is in the power
save mode, the keyless access function and push-button star
t system will not be
available.
To cancel the power save mode, press
one of the buttons on the access key fob.
■
Disabling Keyless Access
Function
When the vehicle is not going to be used
for a long time, or when you choose not to
use the keyless access function, the
keyless access function can be disabled.NOTE The locking and unlocking function
by the remote keyless entry system is
not disabled.
 To start the engine while the func-
tions are disabled, perform the proce- dure described in "Starting Engine"

P326.
▼Disabling functions
▽ By operating the access key fob
To disable the keyless access function by
operating the access key fob, register a
PIN code for PIN Code Access. For
details about registering a PIN code, refer
to "Unlock Using PIN Code Access"
 P100.
1. Open the driver’s door.
2. Rotate the lock lever forward.
202501
1
WARNING
If you have an implanted pacemaker
or an implanted defibrillator, per-
form the procedure "By operating
the driver’s door" 
P104 to disable
the keyless access function. If you
perform the procedure "By operat-
ing the access key fob" 
P103, the
operation of an implanted pace-
maker or implanted defibrillator
may be affected by the radio waves
from the transmitter antenna.
203610
B5=B8.ERRN 103 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keyless Access with Push-Button Start System
1043. Press and hold the “ ” button and
“ ” button on the access key fob simul-
taneously for more than 5 seconds.
A chirp sound will be heard, and the func-
tion will be disabled.▽ By operating the driver’s door To disable the keyless access function by
operating the driver’s door, perform the
following procedures.
202646204132
B5=B8.ERRN 104 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
