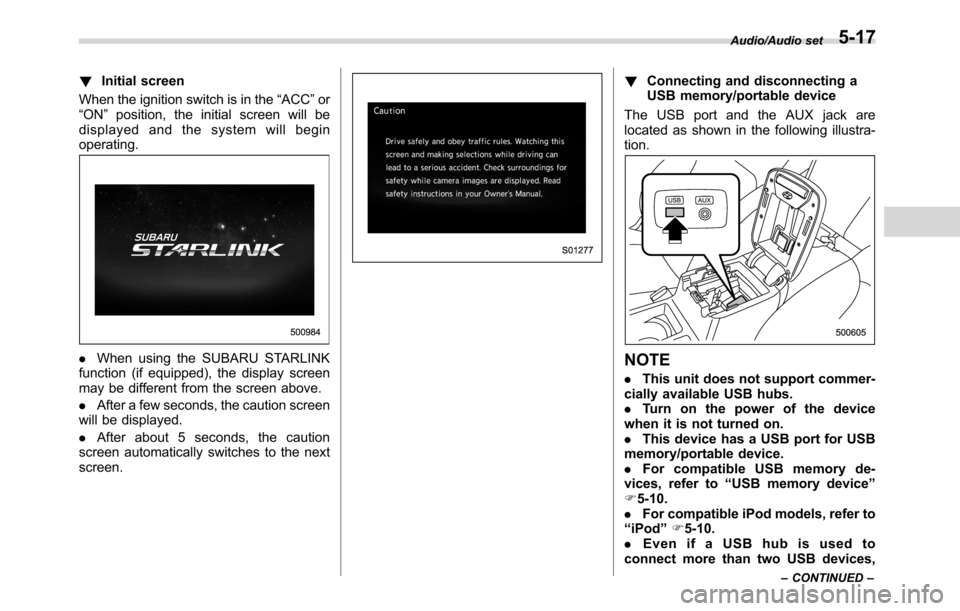

!Initial screen
When the ignition switch is in the“ACC”or
“ON”position, the initial screen will be
displayed and the system will begin
operating.
.When using the SUBARU STARLINK
function (if equipped), the display screen
may be different from the screen above.
.After a few seconds, the caution screen
will be displayed.
.After about 5 seconds, the caution
screen automatically switches to the next
screen.
!Connecting and disconnecting a
USB memory/portable device
The USB port and the AUX jack are
located as shown in the following illustra-
tion.
NOTE
.This unit does not support commer-
cially available USB hubs.
.Turn on the power of the device
when it is not turned on.
.This device has a USB port for USB
memory/portable device.
.For compatible USB memory de-
vices, refer to“USB memory device”
F5-10.
.For compatible iPod models, refer to
“iPod”F5-10.
.Even if a USB hub is used to
connect more than two USB devices,
Audio/Audio set
–CONTINUED–5-17
Page 272 of 572

Audio/Audio set
only the first two connected devices
will be recognized.

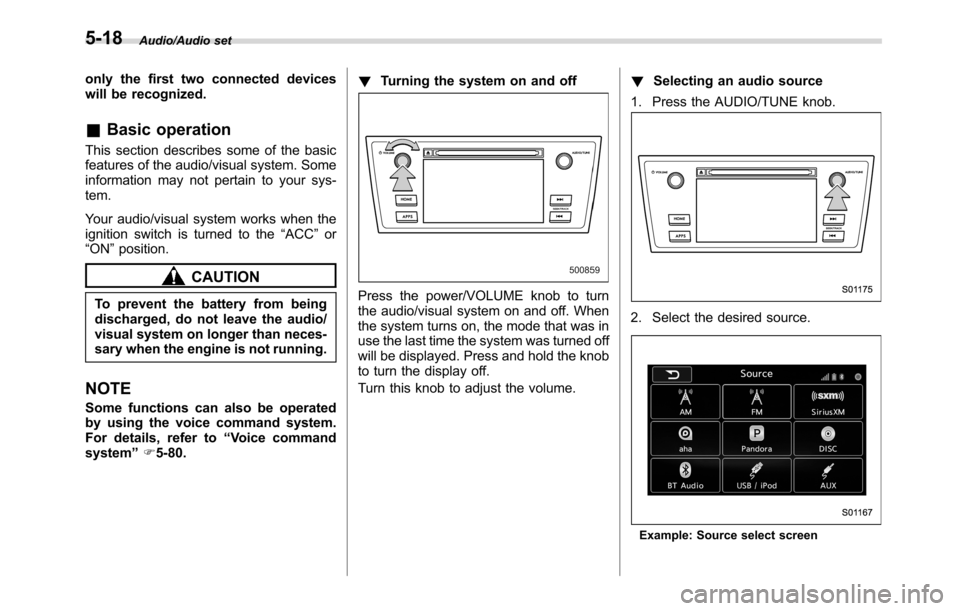

&Basic operation
This section describes some of the basic
features of the audio/visual system. Some
information may not pertain to your sys-
tem.
Your audio/visual system works when the
ignition switch is turned to the“ACC”or
“ON”position.
CAUTION
To prevent the battery from being
discharged, do not leave the audio/
visual system on longer than neces-
sary when the engine is not running.
NOTE
Some functions can also be operated
by using the voice command system.
For details, refer to“Voice command
system”F5-80.!Turning the system on and off
Press the power/VOLUME knob to turn
the audio/visual system on and off. When
the system turns on, the mode that was in
use the last time the system was turned off
will be displayed. Press and hold the knob
to turn the display off.
Turn this knob to adjust the volume.!Selecting an audio source
1. Press the AUDIO/TUNE knob.
2. Select the desired source.
Example: Source select screen
5-18
Page 273 of 572

NOTE
.If the audio control screen appears,
select the“Source”key on the audio
screen or press the AUDIO/TUNE knob
again.
.When you push the AUDIO/TUNE
knob while any screen other than the
audio control screen is displayed, the
display will return to the audio control
screen.
.When the AUDIO/TUNE knob is
pushed and held, the graphic equalizer
screen will be displayed. Refer to
““Graphic Equalizer””F5-23.
!Selecting a function menu
Press the HOME button to display home
screen.Item Function
AUDIOSelect to display the main
screen of the audio source that
was selected previously.
PHONESelect to display the hands-free
function using your cell phone.
Refer to“Hands-free phone
system”F5-70.
APPSSelect to display the functions
linked with a smartphone. Refer
to“SUBARU STARLINK”F5-
26.
SETTINGSSelect to display the functions
for performing various settings.
Refer to“Unit settings”F5-19.

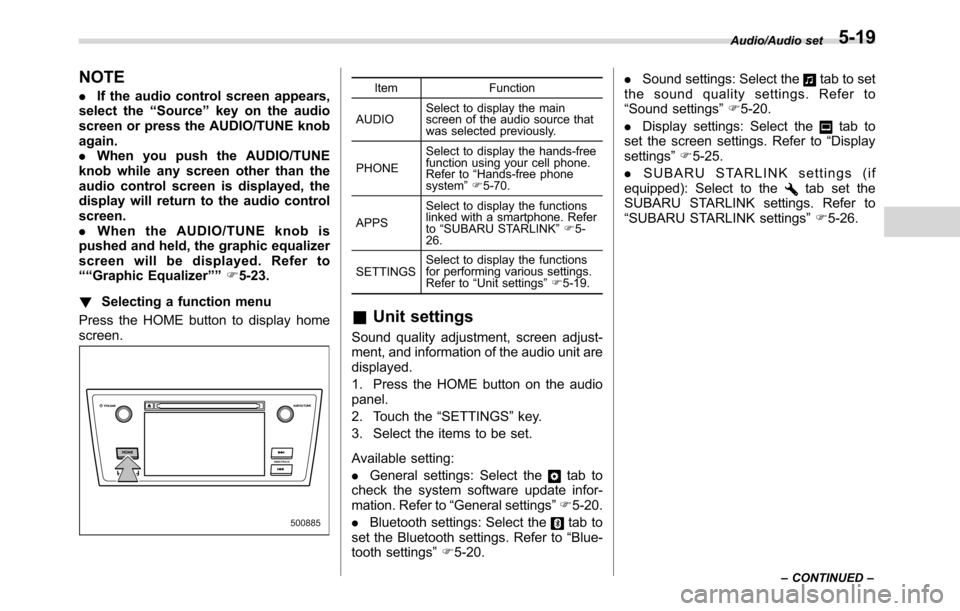

&Unit settings
Sound quality adjustment, screen adjust-
ment, and information of the audio unit are
displayed.
1. Press the HOME button on the audio
panel.
2. Touch the“SETTINGS”key.
3. Select the items to be set.
Available setting:
.General settings: Select the
tab to
check the system software update infor-
mation. Refer to“General settings”F5-20.
.Bluetooth settings: Select the
tab to
set the Bluetooth settings. Refer to“Blue-
tooth settings”F5-20..Sound settings: Select the
tab to set
the sound quality settings. Refer to
“Sound settings”F5-20.
.Display settings: Select the
tab to
set the screen settings. Refer to“Display
settings”F5-25.
.SUBARU STARLINK settings (if
equipped): Select to the
tab set the
SUBARU STARLINK settings. Refer to
“SUBARU STARLINK settings”F5-26.
Audio/Audio set
–CONTINUED–5-19
Page 274 of 572

Audio/Audio set

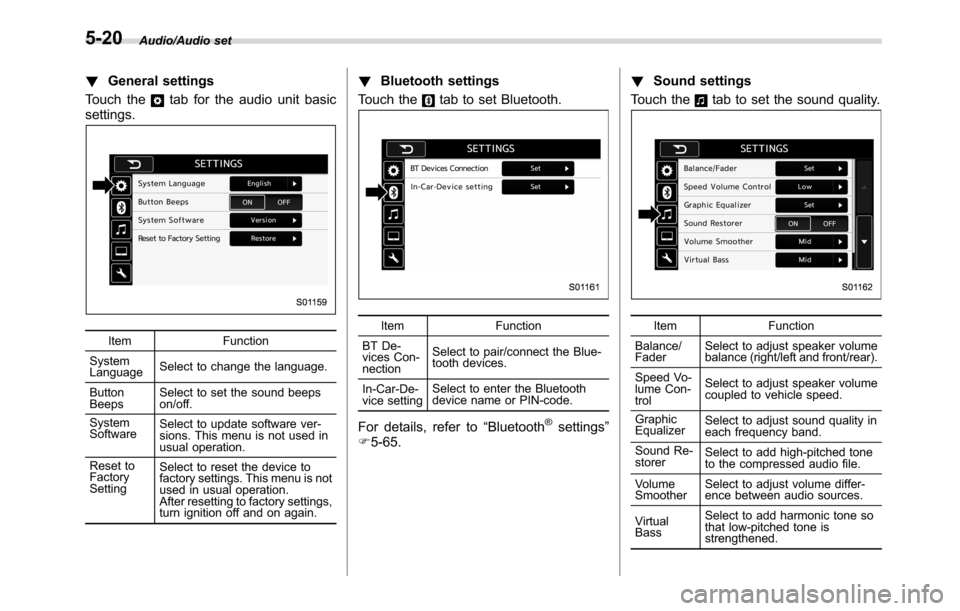

!General settings
Touch the
tab for the audio unit basic
settings.
Item Function
System
LanguageSelect to change the language.
Button
BeepsSelect to set the sound beeps
on/off.
System
SoftwareSelect to update software ver-
sions. This menu is not used in
usual operation.
Reset to
Factory
SettingSelect to reset the device to
factory settings. This menu is not
used in usual operation.
After resetting to factory settings,
turn ignition off and on again.
!Bluetooth settings
Touch the
tab to set Bluetooth.
Item Function
BT De-
vices Con-
nectionSelect to pair/connect the Blue-
tooth devices.
In-Car-De-
vice settingSelect to enter the Bluetooth
device name or PIN-code.
For details, refer to“Bluetooth®settings”
F5-65.!Sound settings
Touch the
tab to set the sound quality.
Item Function
Balance/
FaderSelect to adjust speaker volume
balance (right/left and front/rear).
Speed Vo-
lume Con-
trolSelect to adjust speaker volume
coupled to vehicle speed.
Graphic
EqualizerSelect to adjust sound quality in
each frequency band.
Sound Re-
storerSelect to add high-pitched tone
to the compressed audio file.
Volume
SmootherSelect to adjust volume differ-
ence between audio sources.
Virtual
BassSelect to add harmonic tone so
that low-pitched tone is
strengthened.
5-20
Page 275 of 572

Item Function
Vocal Im-
age Con-
trolSelect to pick-up vocal sound
signal from the sound data, and

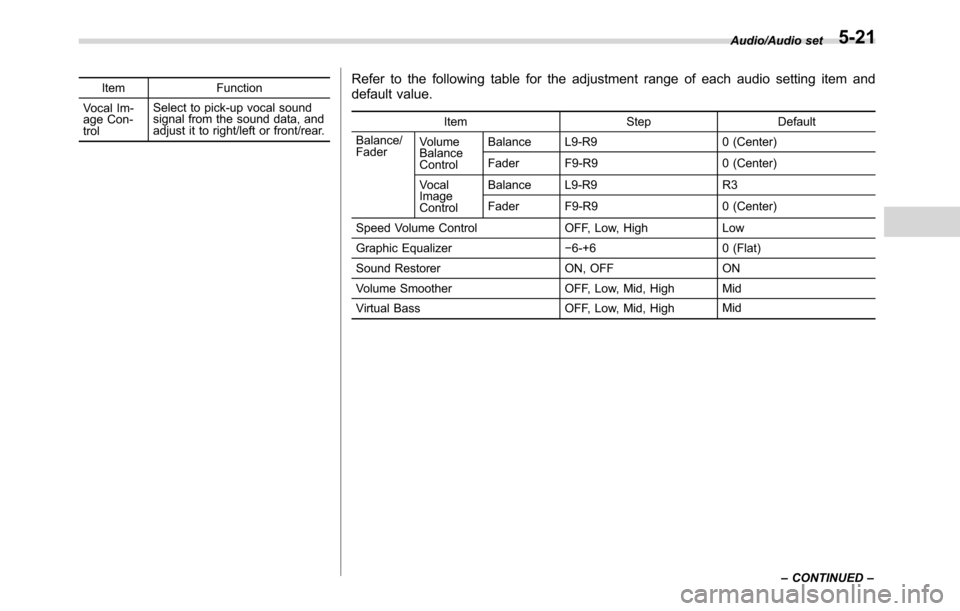

adjust it to right/left or front/rear.Refer to the following table for the adjustment range of each audio setting item and
default value.
Item Step Default
Balance/
FaderVolume
Balance
ControlBalance L9-R9 0 (Center)
Fader F9-R9 0 (Center)
Vocal
ControlBalance L9-R9 R3
Fader F9-R9 0 (Center)
Speed Volume Control OFF, Low, High Low
Graphic Equalizer−6-+6 0 (Flat)
Sound Restorer ON, OFF ON
Volume Smoother OFF, Low, Mid, High Mid
Virtual Bass OFF, Low, Mid, HighMidAudio/Audio set
–CONTINUED–
5-21
Page 276 of 572

Audio/Audio set

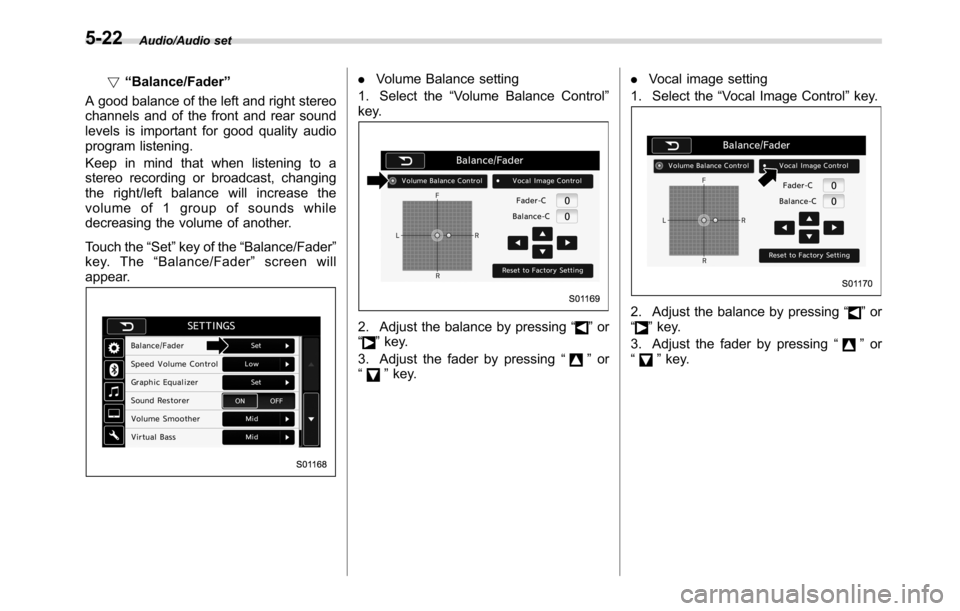

!“Balance/Fader”
A good balance of the left and right stereo
channels and of the front and rear sound
levels is important for good quality audio
program listening.
Keep in mind that when listening to a
stereo recording or broadcast, changing
the right/left balance will increase the
volume of 1 group of sounds while
decreasing the volume of another.
Touch the“Set”key of the“Balance/Fader”
key. The“Balance/Fader”screen will
appear..Volume Balance setting
1. Select the“Volume Balance Control”
key.
2. Adjust the balance by pressing“”or
“”key.
3. Adjust the fader by pressing“
”or
“”key..Vocal image setting
1. Select the“Vocal Image Control”key.
2. Adjust the balance by pressing“”or
“”key.
3. Adjust the fader by pressing“
”or
“”key.
5-22
Page 277 of 572

!“Speed Volume Control”
The system adjusts to the optimum
volume and tone quality according to
vehicle speed to compensate for in-
creased vehicle noise.
1. Touch the right side key of the“Speed
Volume Control”key.
2. Select the desired item. The“High”
key comes to have a bigger effect. When
the“OFF”key is selected, speed volume

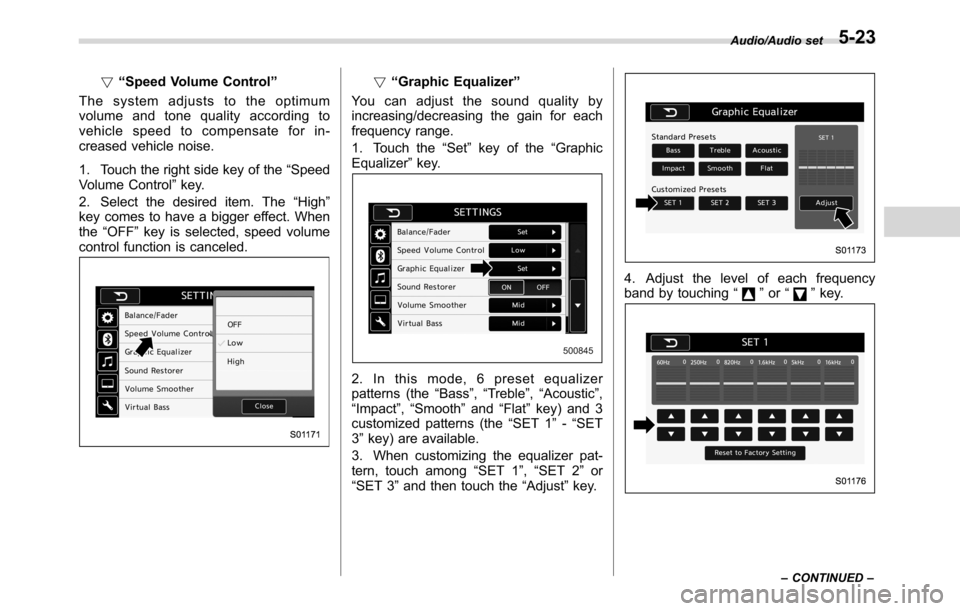

control function is canceled.!“Graphic Equalizer”
You can adjust the sound quality by
increasing/decreasing the gain for each
frequency range.
1. Touch the“Set”key of the“Graphic
Equalizer”key.
2. In this mode, 6 preset equalizer
patterns (the“Bass”,“Treble”,“Acoustic”,
“Impact”,“Smooth”and“Flat”key) and 3
customized patterns (the“SET 1”-“SET
3”key) are available.
3. When customizing the equalizer pat-
tern, touch among“SET 1”,“SET 2”or
“SET 3”and then touch the“Adjust”key.
4. Adjust the level of each frequency
band by touching“”or“”key.
Audio/Audio set
–CONTINUED–5-23
Page 278 of 572

Audio/Audio set

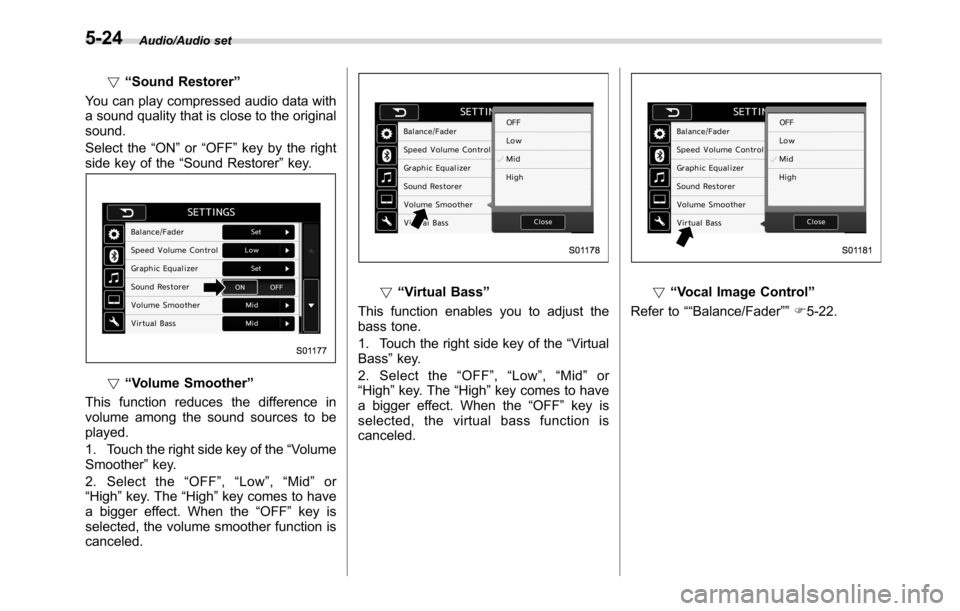

!“Sound Restorer”
You can play compressed audio data with
a sound quality that is close to the original
sound.
Select the“ON”or“OFF”key by the right
side key of the“Sound Restorer”key.
!“Volume Smoother”
This function reduces the difference in
volume among the sound sources to be
played.
1. Touch the right side key of the“Volume
Smoother”key.
2. Select the“OFF”,“Low”,“Mid”or
“High”key. The“High”key comes to have
a bigger effect. When the“OFF”key is
selected, the volume smoother function is
canceled.
!“Virtual Bass”
This function enables you to adjust the
bass tone.
1. Touch the right side key of the“Virtual
Bass”key.
2. Select the“OFF”,“Low”,“Mid”or
“High”key. The“High”key comes to have
a bigger effect. When the“OFF”key is
selected, the virtual bass function is
canceled.!“Vocal Image Control”
Refer to““Balance/Fader””F5-22.
5-24
Page 279 of 572

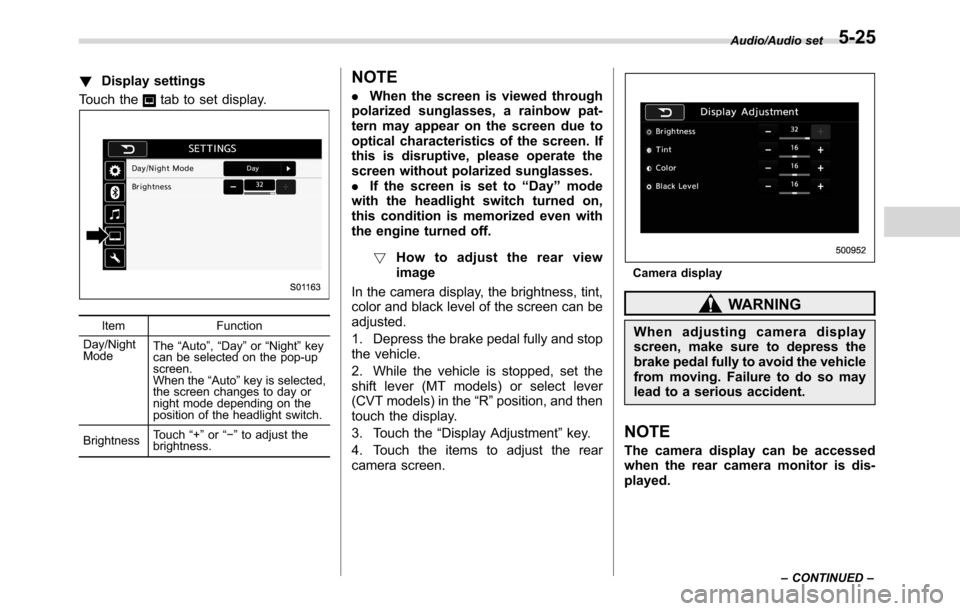

!Display settings
Touch the
tab to set display.
Item Function
Day/Night
ModeThe“Auto”,“Day”or“Night”key
can be selected on the pop-up
screen.
When the“Auto”key is selected,
the screen changes to day or
night mode depending on the
position of the headlight switch.
BrightnessTouch“+”or“−”to adjust the
brightness.
NOTE
.When the screen is viewed through
polarized sunglasses, a rainbow pat-
tern may appear on the screen due to
optical characteristics of the screen. If
this is disruptive, please operate the
screen without polarized sunglasses.
.If the screen is set to“Day”mode
with the headlight switch turned on,
this condition is memorized even with
the engine turned off.
!How to adjust the rear view
In the camera display, the brightness, tint,
color and black level of the screen can be
adjusted.
1. Depress the brake pedal fully and stop
the vehicle.
2. While the vehicle is stopped, set the
shift lever (MT models) or select lever
(CVT models) in the“R”position, and then
touch the display.
3. Touch the“Display Adjustment”key.
4. Touch the items to adjust the rear
camera screen.
Camera display
WARNING
When adjusting camera display
screen, make sure to depress the
brake pedal fully to avoid the vehicle
from moving. Failure to do so may
lead to a serious accident.
NOTE
The camera display can be accessed
when the rear camera monitor is dis-
played.
Audio/Audio set
–CONTINUED–5-25
Page 280 of 572

Audio/Audio set

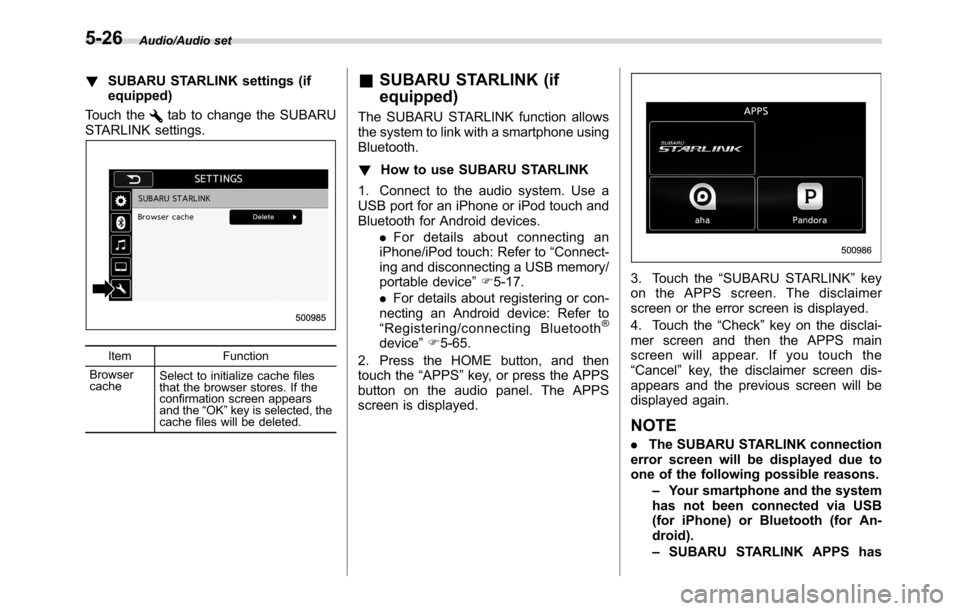

!SUBARU STARLINK settings (if
equipped)
Touch the
tab to change the SUBARU
STARLINK settings.
Item Function
Browser
cacheSelect to initialize cache files
that the browser stores. If the
confirmation screen appears
and the“OK”key is selected, the
cache files will be deleted.
&SUBARU STARLINK (if
equipped)
The SUBARU STARLINK function allows
the system to link with a smartphone using
Bluetooth.
!How to use SUBARU STARLINK
1. Connect to the audio system. Use a
USB port for an iPhone or iPod touch and
Bluetooth for Android devices.
.For details about connecting an
iPhone/iPod touch: Refer to“Connect-
ing and disconnecting a USB memory/
portable device”F5-17.
.For details about registering or con-
necting an Android device: Refer to
“Registering/connecting Bluetooth
®
device”F5-65.
2. Press the HOME button, and then
touch the“APPS”key, or press the APPS
button on the audio panel. The APPS
screen is displayed.
3. Touch the“SUBARU STARLINK”key
on the APPS screen. The disclaimer
screen or the error screen is displayed.
4. Touch the“Check”key on the disclai-
mer screen and then the APPS main
screen will appear. If you touch the
“Cancel”key, the disclaimer screen dis-
appears and the previous screen will be
displayed again.
NOTE
.The SUBARU STARLINK connection
error screen will be displayed due to
one of the following possible reasons.
–Your smartphone and the system
has not been connected via USB
(for iPhone) or Bluetooth (for An-
droid).
–SUBARU STARLINK APPS has
5-26
