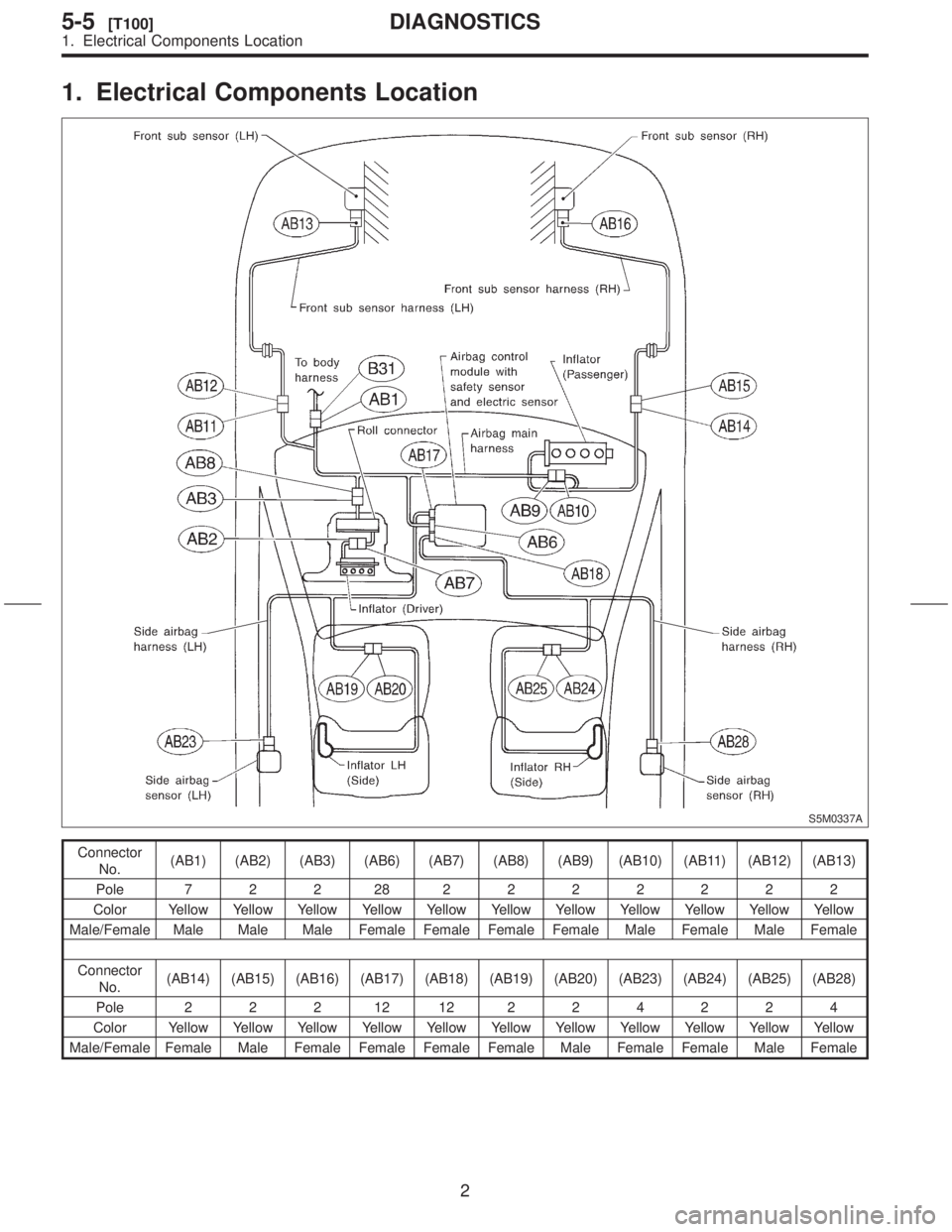

1. Electrical Components Location
S5M0337A
Connector
No.(AB1) (AB2) (AB3) (AB6) (AB7) (AB8) (AB9) (AB10) (AB11) (AB12) (AB13)
Pole 7 2 2 282222222
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Male Male Male Female Female Female Female Male Female Male Female
Connector
No.(AB14) (AB15) (AB16) (AB17) (AB18) (AB19) (AB20) (AB23) (AB24) (AB25) (AB28)
Pole 2 2 2 12 12224224
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Female Male Female Female Female Female Male Female Female Male Female
2
5-5[T100]DIAGNOSTICS
1. Electrical Components Location
Page 2 of 345
2. Schematic
S5M0368A
3
[T200]5-5DIAGNOSTICS
2. Schematic
Page 3 of 345

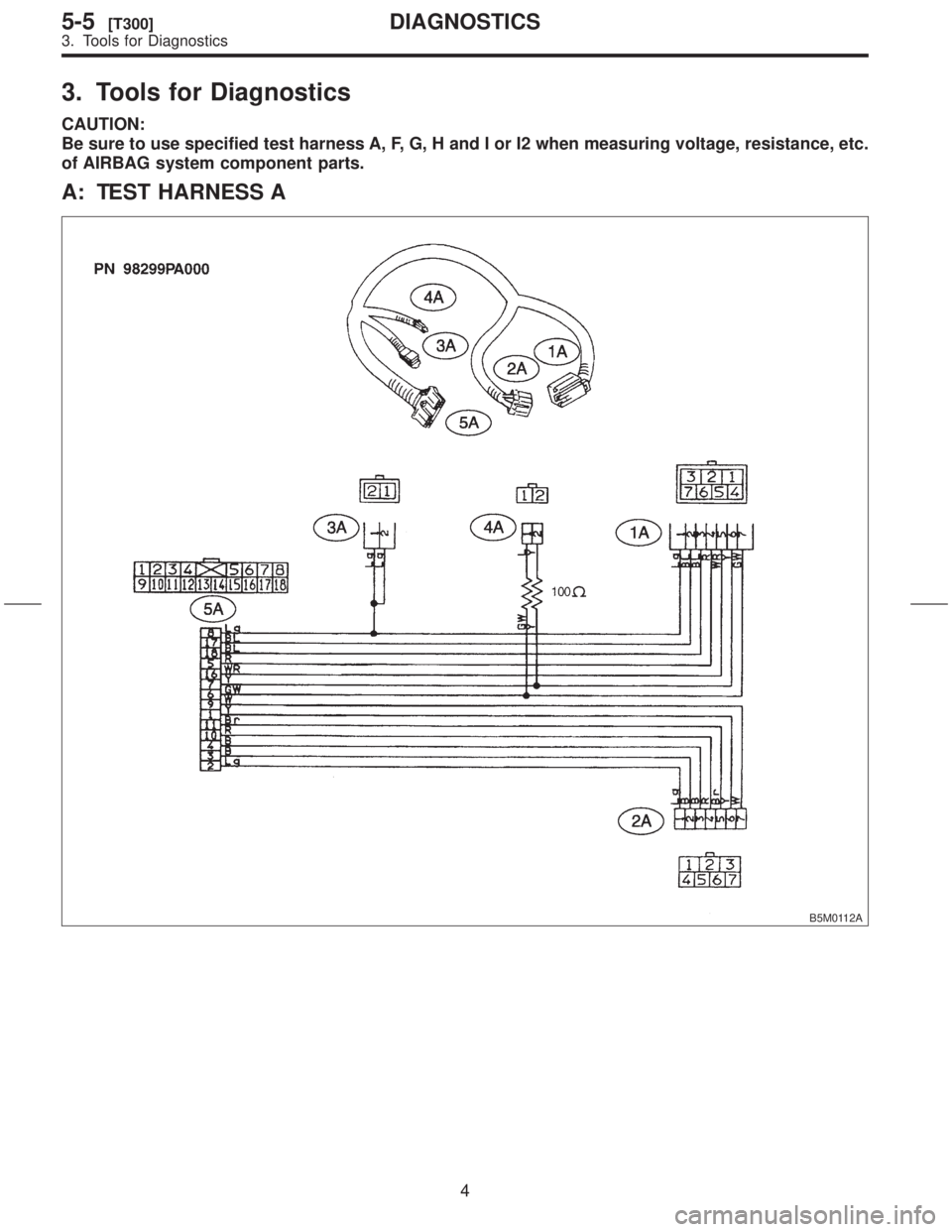

3. Tools for Diagnostics
CAUTION:
Be sure to use specified test harness A, F, G, H and I or I2 when measuring voltage, resistance, etc.
of AIRBAG system component parts.
A: TEST HARNESS A
B5M0112A
4
5-5[T300]DIAGNOSTICS
3. Tools for Diagnostics
Page 4 of 345

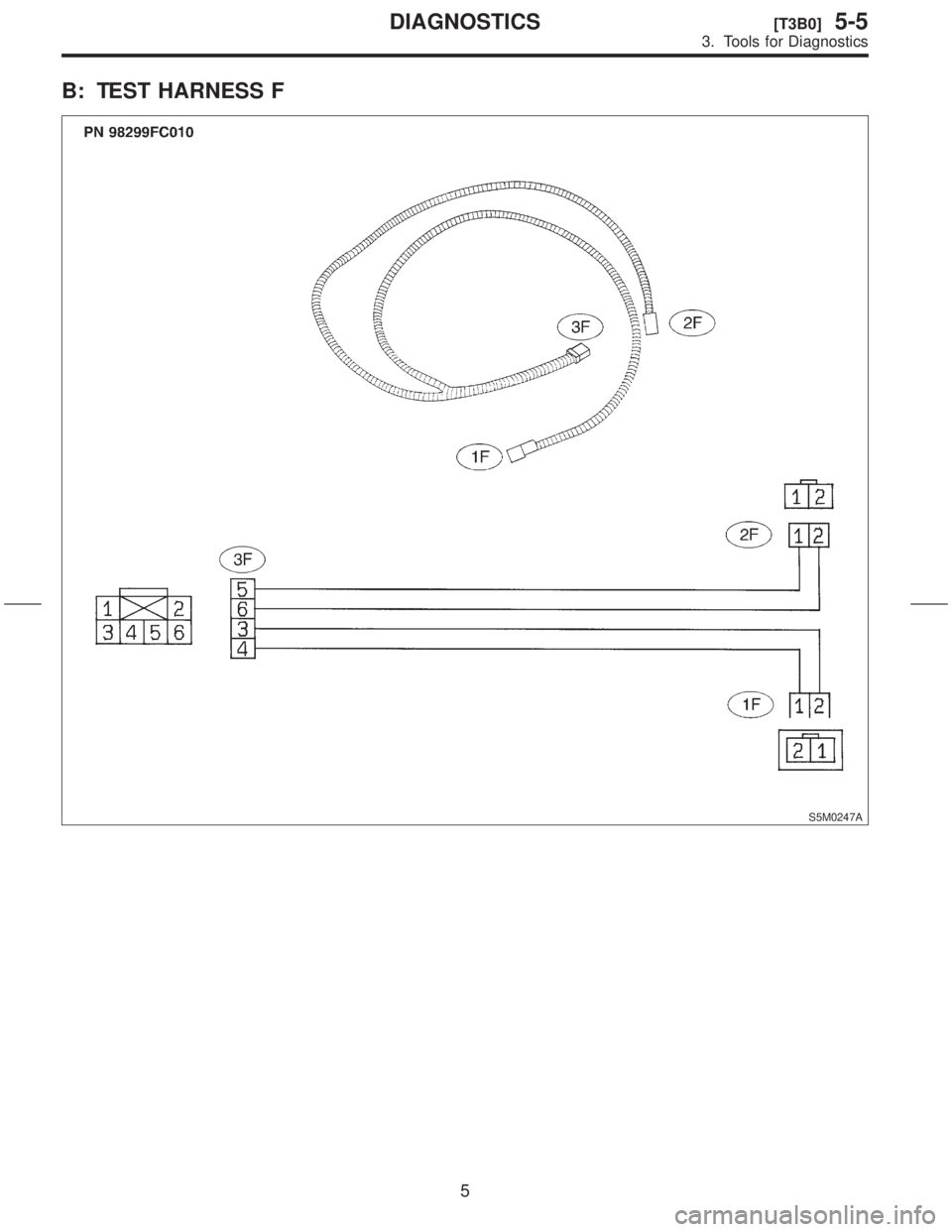

B: TEST HARNESS F
S5M0247A
5
[T3B0]5-5DIAGNOSTICS
3. Tools for Diagnostics
Page 5 of 345

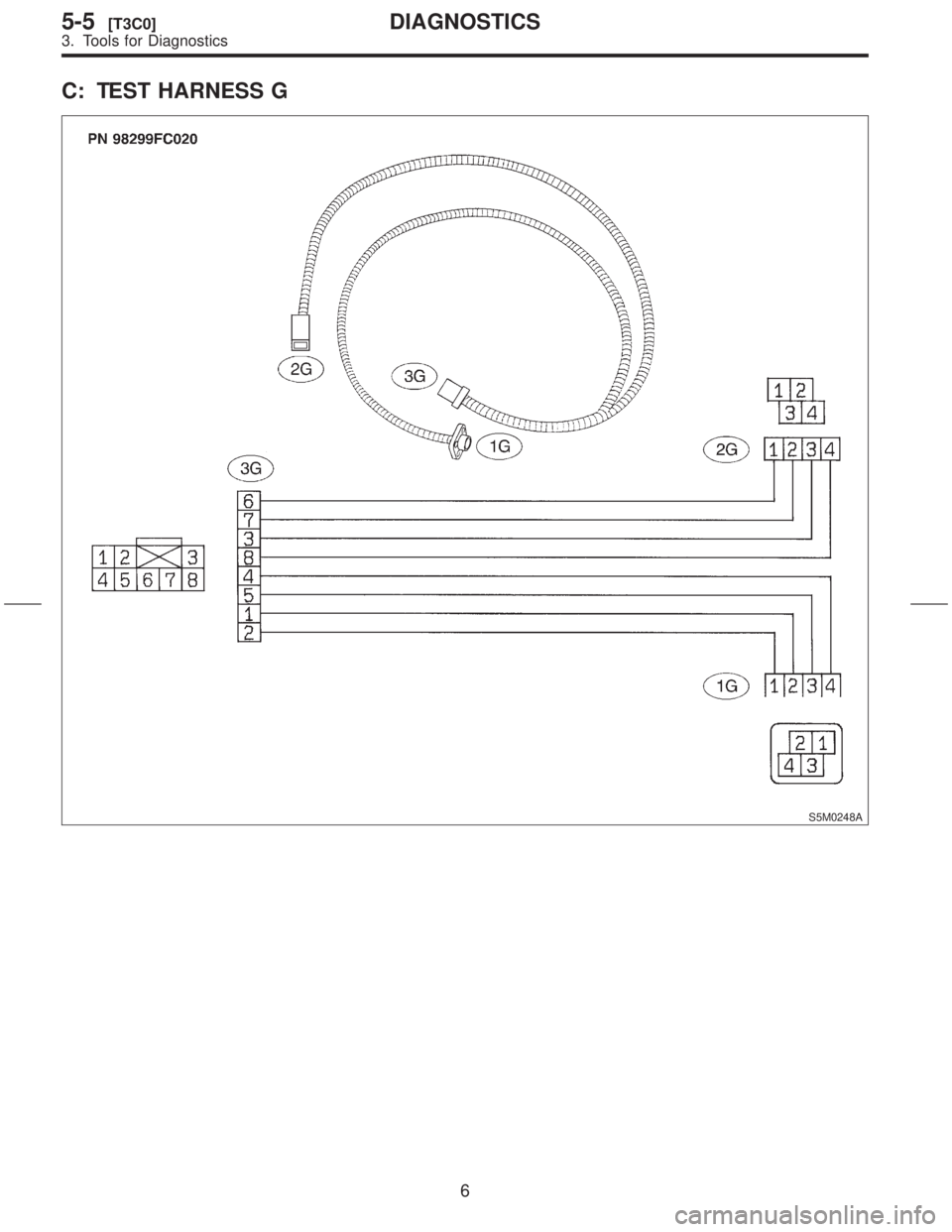

C: TEST HARNESS G
S5M0248A
6
5-5[T3C0]DIAGNOSTICS
3. Tools for Diagnostics
Page 6 of 345
D: TEST HARNESS H
B5M0553B
7
[T3D0]5-5DIAGNOSTICS
3. Tools for Diagnostics
Page 7 of 345

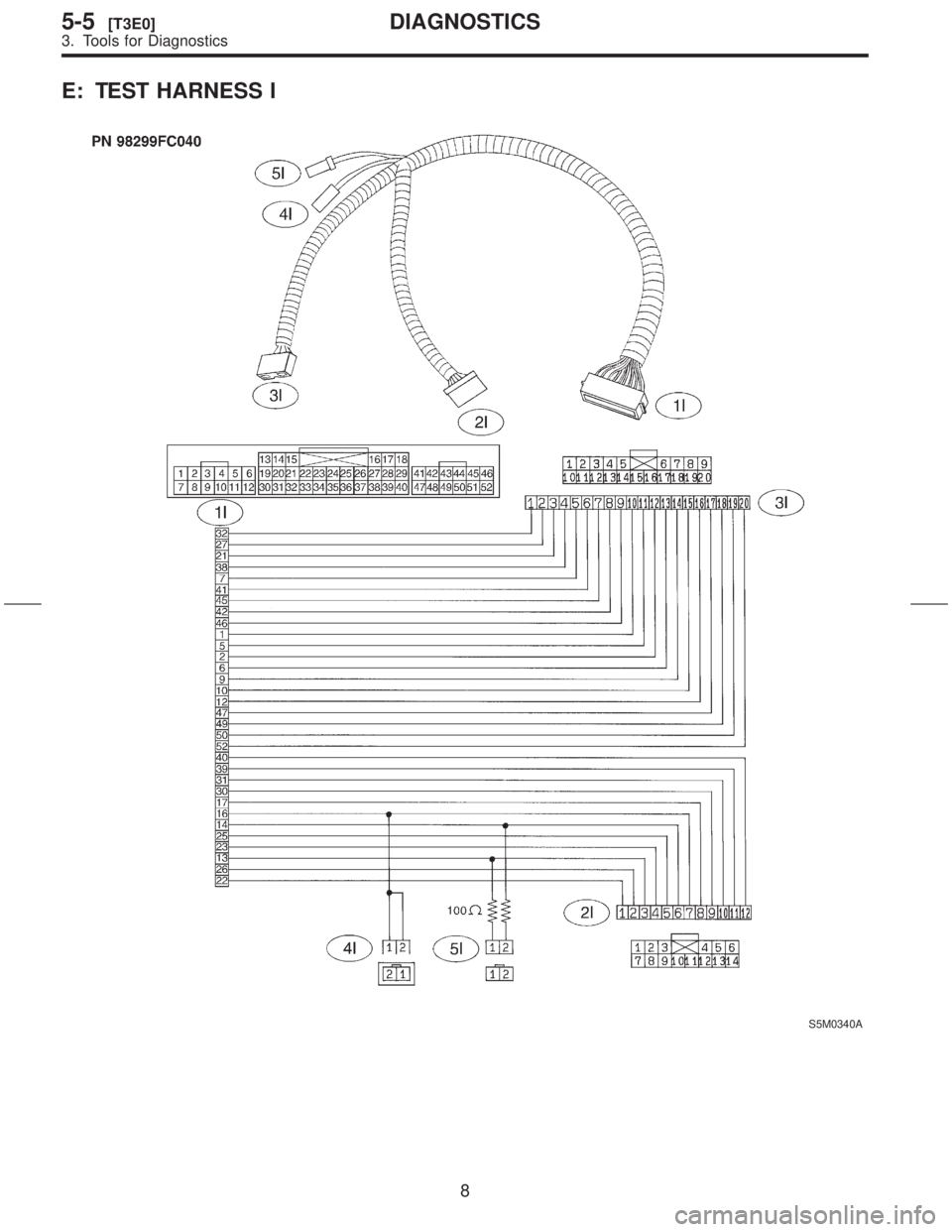

E: TEST HARNESS I
S5M0340A
8
5-5[T3E0]DIAGNOSTICS
3. Tools for Diagnostics
Page 8 of 345
F: TEST HARNESS I2
B5M0927A
9
[T3F0]5-5DIAGNOSTICS
3. Tools for Diagnostics
Page 9 of 345

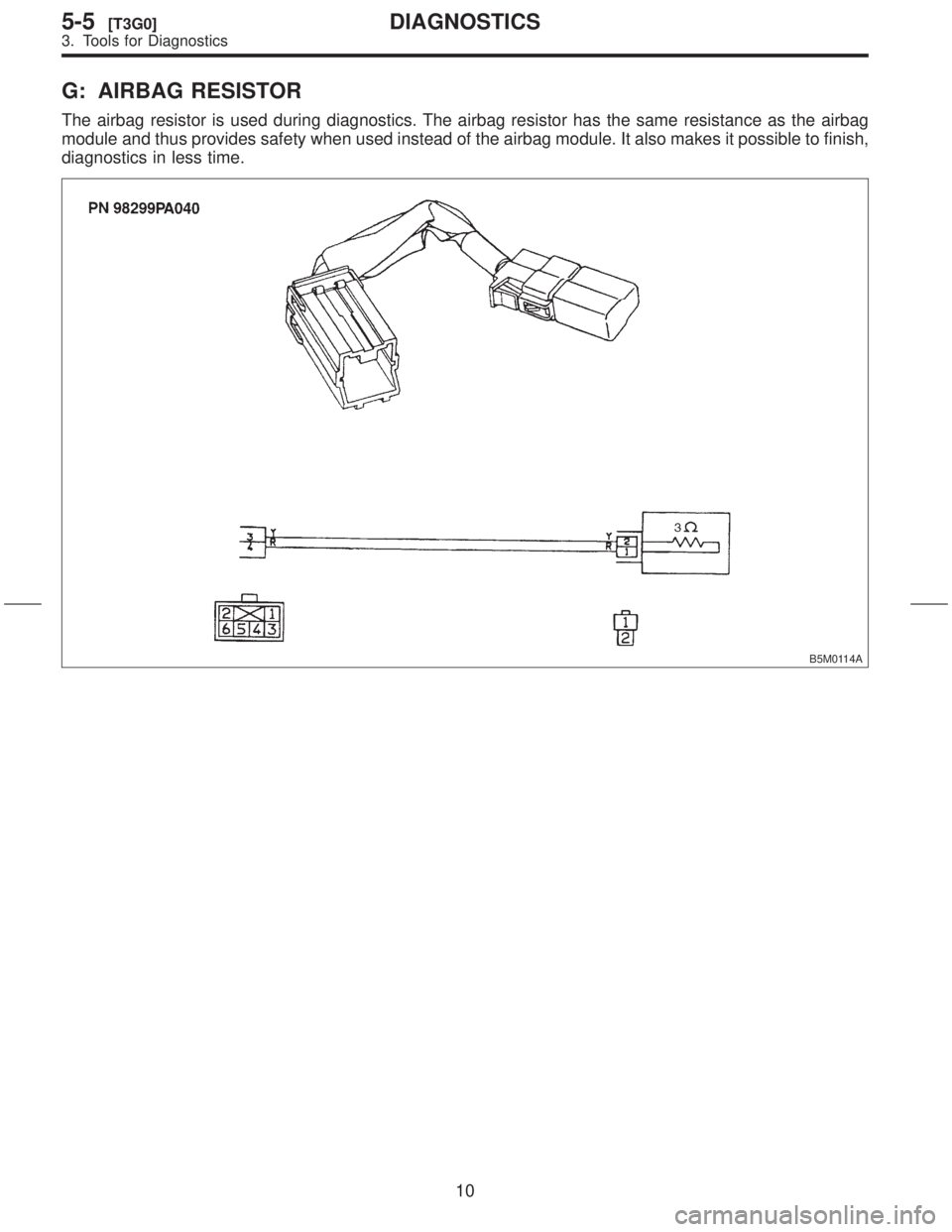

G: AIRBAG RESISTOR
The airbag resistor is used during diagnostics. The airbag resistor has the same resistance as the airbag
module and thus provides safety when used instead of the airbag module. It also makes it possible to finish,
diagnostics in less time.
B5M0114A
10
5-5[T3G0]DIAGNOSTICS
3. Tools for Diagnostics
Page 10 of 345

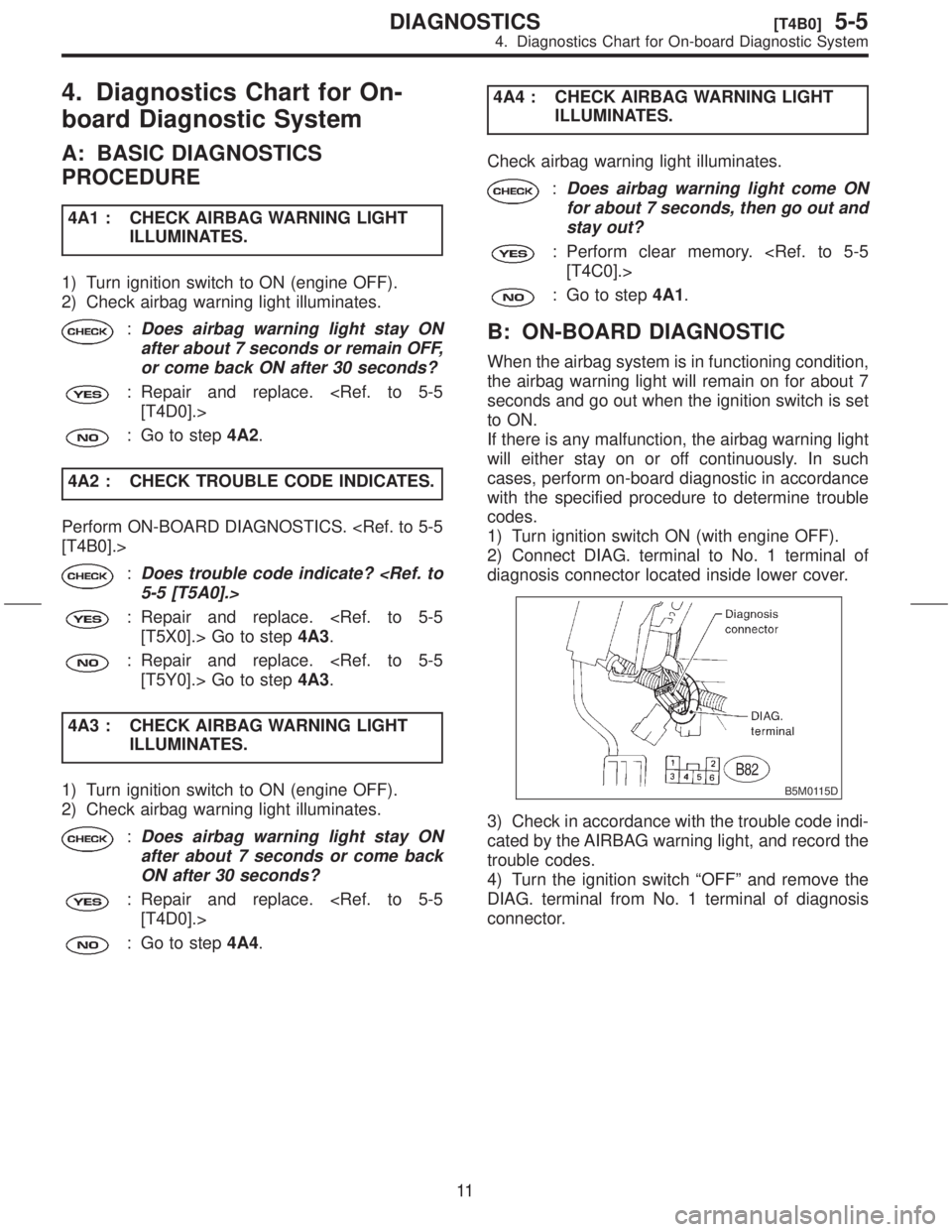

4. Diagnostics Chart for On-
board Diagnostic System
A: BASIC DIAGNOSTICS
PROCEDURE
4A1 : CHECK AIRBAG WARNING LIGHT
ILLUMINATES.
1) Turn ignition switch to ON (engine OFF).
2) Check airbag warning light illuminates.
:Does airbag warning light stay ON
after about 7 seconds or remain OFF,
or come back ON after 30 seconds?
: Repair and replace.
: Go to step4A2.
4A2 : CHECK TROUBLE CODE INDICATES.
Perform ON-BOARD DIAGNOSTICS.
:Does trouble code indicate?
: Repair and replace.
: Repair and replace.
4A3 : CHECK AIRBAG WARNING LIGHT
ILLUMINATES.
1) Turn ignition switch to ON (engine OFF).
2) Check airbag warning light illuminates.
:Does airbag warning light stay ON
after about 7 seconds or come back
ON after 30 seconds?
: Repair and replace.
: Go to step4A4.4A4 : CHECK AIRBAG WARNING LIGHT
ILLUMINATES.
Check airbag warning light illuminates.
:Does airbag warning light come ON
for about 7 seconds, then go out and
stay out?
: Perform clear memory.
: Go to step4A1.
B: ON-BOARD DIAGNOSTIC
When the airbag system is in functioning condition,
the airbag warning light will remain on for about 7
seconds and go out when the ignition switch is set
to ON.
If there is any malfunction, the airbag warning light
will either stay on or off continuously. In such
cases, perform on-board diagnostic in accordance
with the specified procedure to determine trouble
codes.
1) Turn ignition switch ON (with engine OFF).
2) Connect DIAG. terminal to No. 1 terminal of
diagnosis connector located inside lower cover.
B5M0115D
3) Check in accordance with the trouble code indi-
cated by the AIRBAG warning light, and record the
trouble codes.
4) Turn the ignition switch ÂȘOFFÂș and remove the
DIAG. terminal from No. 1 terminal of diagnosis
connector.
11
[T4B0]5-5DIAGNOSTICS
4. Diagnostics Chart for On-board Diagnostic System
