SUBARU LEGACY 2012 5.G Navigation Manual

Navigation 25
Voice Guidance Volume
Use this function if you want to change the voice guidance
volume setting from the default setting.
1Press the button.
2Select or to adjust the sound volume.
•Each time is selected, the sound volume decreases.Each time is selected, the sound volume increases.
•If you want to turn off the sound of the navigation sys-
tem, select to display "OFF".
• To make sure the volume level, select .

26 Navigation
Markers and Controls Displayed on Maps
Screens During Route Setting
Touch a point on the map. A crosshair (scroll mark) will appear
on the screen. Then touch a desired point on the map. The
map will scroll with the selected point at the center.(1) Time
Indicates the current time.
(2) Map orientation control
Allows you to select either a "north up" display or "heading
up" display of the map. (See Page 31.)
(3) GPS marker
Shows the status of the signal from GPS satellites. When this
marker appears, the navigation system is receiving GPS sig-
nals.
(4) Screen configuration control
Allows you to select a preferred display type for route guid-
ance. (See Page 51.)
(5) Map scale
Displays the map scale.
(6) Zooming control
Use or to zoom out or zoom in the map.
Select or to select the map scale. (See Page 32.)
(7) Vehicle position marker
Indicates the current vehicle position and direction.
(4)
Scroll the map


Press button to
return to the current map
screen.
(1)
(2)
(6)
(7)
(5)
(10)
(9) (8) (11)
(3)

Navigation 27
Markers and Controls Displayed on Maps
(8) "Store memory point" key
Stores the marked position on the map as a memory point.
(9) Point of interest (POI) key
Allows you to display the POI selection screen (See Page 87).
On the screen, you can program POIs to appear on a map as
markers.
(10) Distance from current position
Indicates the distance from the current vehicle position to
the position marked by .
(11) Destination/waypoint key
Programs a destination or waypoint at the position marked
by on a scroll screen.

28 Navigation
Markers and Controls Displayed on Maps
Screens During Route Guidance
(1) Distance and time to destination
Indicates the time (either approximate time required or esti-
mated time of arrival) and the distance to the destination or a
waypoint.
(2) Route
Indicates the route guide with blue line.
(3) Turn guidance arrow
Indicates the direction of your turn at the next intersection/
intersection as well as the distance to the intersection/inter-
section.
(4) "Repeat voice guidance" key
Repeats the last voice guidance.
(5) Current road name
Shows the name of the road you are currently driving on.
(6) "Display whole route" key
Displays a map containing the entire route. (See Page 64.)
(7) Detour
Calculates an alternative route that detours from the current
location.
(8) "Change route" key
Displays the route option menu. Selecting a new route
option causes the system to calculate the selected route.(3)(2)
(1)
(4)(5)
(6)
(7)
Select the screen
( Touch a point on the screen) (5 seconds)
(8)

Navigation 29
Menu Screen Keys and Functions
The table below shows the keys displayed on the NAVI MENU
screen, the functions accessible by selecting these keys, and the
pages of this manual that describe the instructions you should fol-
low when using these functions.
Press button to dis-
play the menu screen.


Select to return
to the current map screen.
Menu screen key Function Reference page
Stored LocationsMemory Points page 78
Avoid Area page 83
Previous Dest. page 85
Navigation Set UpUser Settings page 69
Quick POI Selection page 71
Language Selection page 72
Calibration page 73
Set Clocks page 74
Vehicle Signal page 75
Restore System Defaults page 75
Route OptionsSearch Condition page 58
Detour page 59
Route Pref. page 60
Dest. & Way Point page 60
Display Route page 64
Route Preview page 65

30 Navigation
Menu Screen Keys and Functions
Phone
Bluetooth Phone page 240
Redial List page 259
Received Calls page 259
Phone Book page 261
Memory Points page 250
Bluetooth Settings page 252
Version
Version page 96
VOL
Voice guidance volume page 25 Menu screen key Function Reference page

Navigation 31
Map Operations

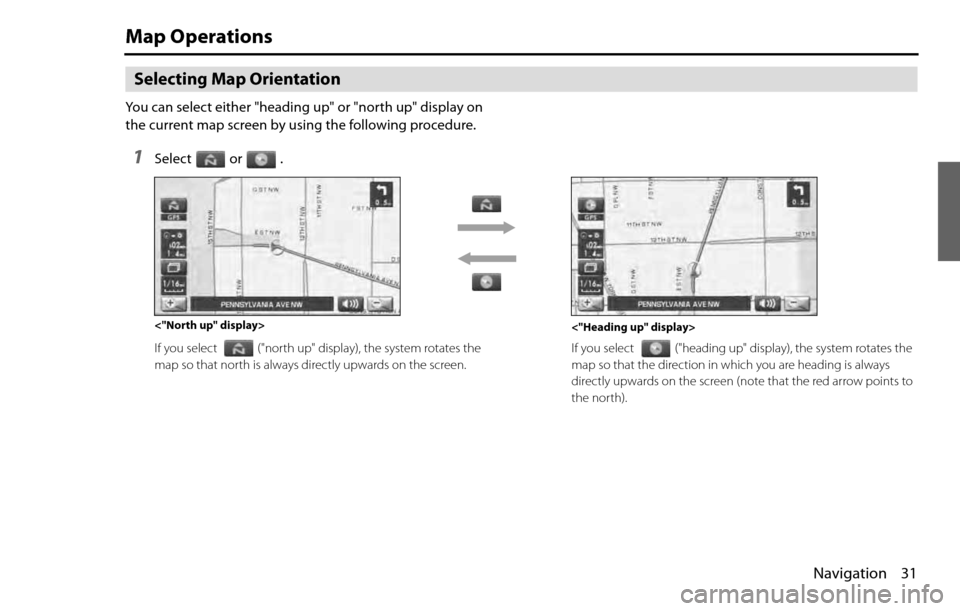

Selecting Map Orientation
You can select either "heading up" or "north up" display on
the current map screen by using the following procedure.
1Select or .
If you select ("north up" display), the system rotates the
map so that north is always directly upwards on the screen.If you select ("heading up" display), the system rotates the
map so that the direction in which you are heading is always
directly upwards on the screen (note that the red arrow points to
the north).
<"Heading up" display> <"North up" display>

32 Navigation
Map Operations

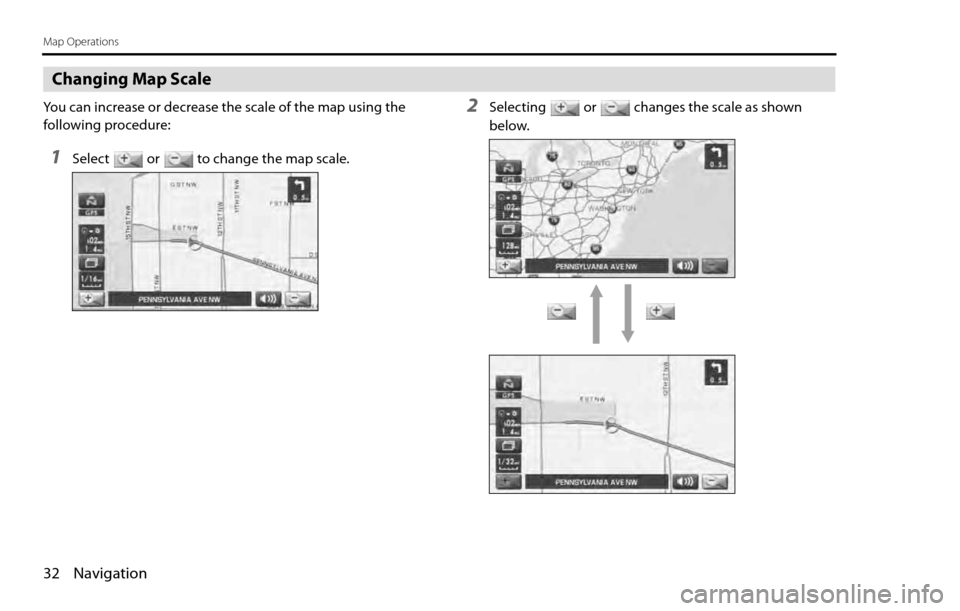

Changing Map Scale
You can increase or decrease the scale of the map using the
following procedure:
1Select or to change the map scale.
2Selecting or changes the scale as shown
below.

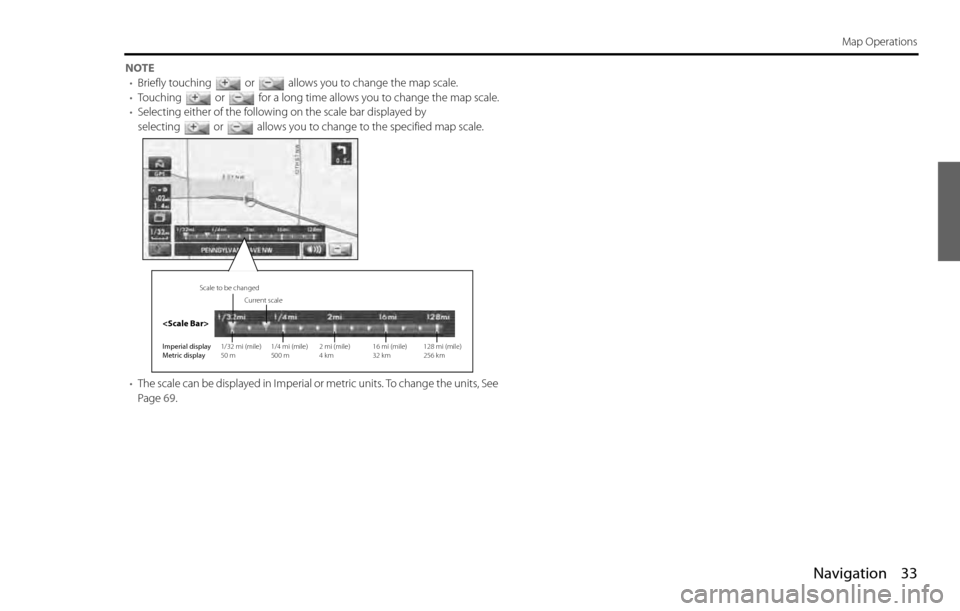

Navigation 33
Map Operations
NOTE
•Briefly touching or allows you to change the map scale.
•Touching or for a long time allows you to change the map scale.
•Selecting either of the following on the scale bar displayed by
selecting or allows you to change to the specified map scale.
•The scale can be displayed in Imperial or metric units. To change the units, See
Page 69
.
Imperial display
Metric display1/32 mi (mile)
50 m1/4 mi (mile)
500 m2 mi (mile)
4 km16 mi (mile)
32 km128 mi (mile)
256 km
Current scale

Scale to be changed

34 Navigation
Setting Route

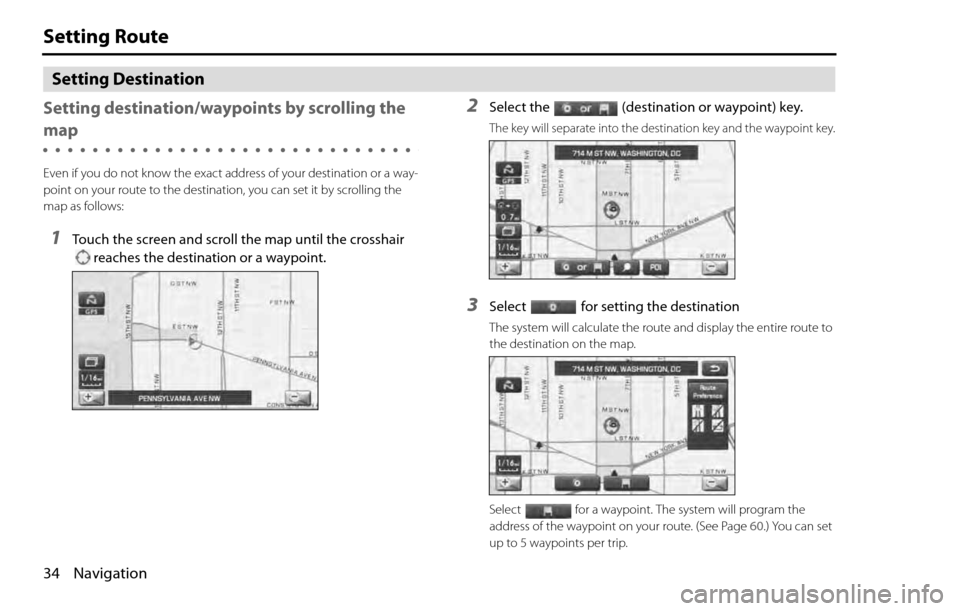

Setting Destination
Setting destination/waypoints by scrolling the
map
Even if you do not know the exact address of your destination or a way-
point on your route to the destination, you can set it by scrolling the
map as follows:
1Touch the screen and scroll the map until the crosshair
reaches the destination or a waypoint.
2Select the (destination or waypoint) key.
The key will separate into the destination key and the waypoint key.
3Select for setting the destination
The system will calculate the route and display the entire route to
the destination on the map.
Select for a waypoint. The system will program the
address of the waypoint on your route. (See Page 60.) You can set
up to 5 waypoints per trip.
