SUBARU TRIBECA 2009 1.G Service Workshop Manual

EX(H6DO)-7

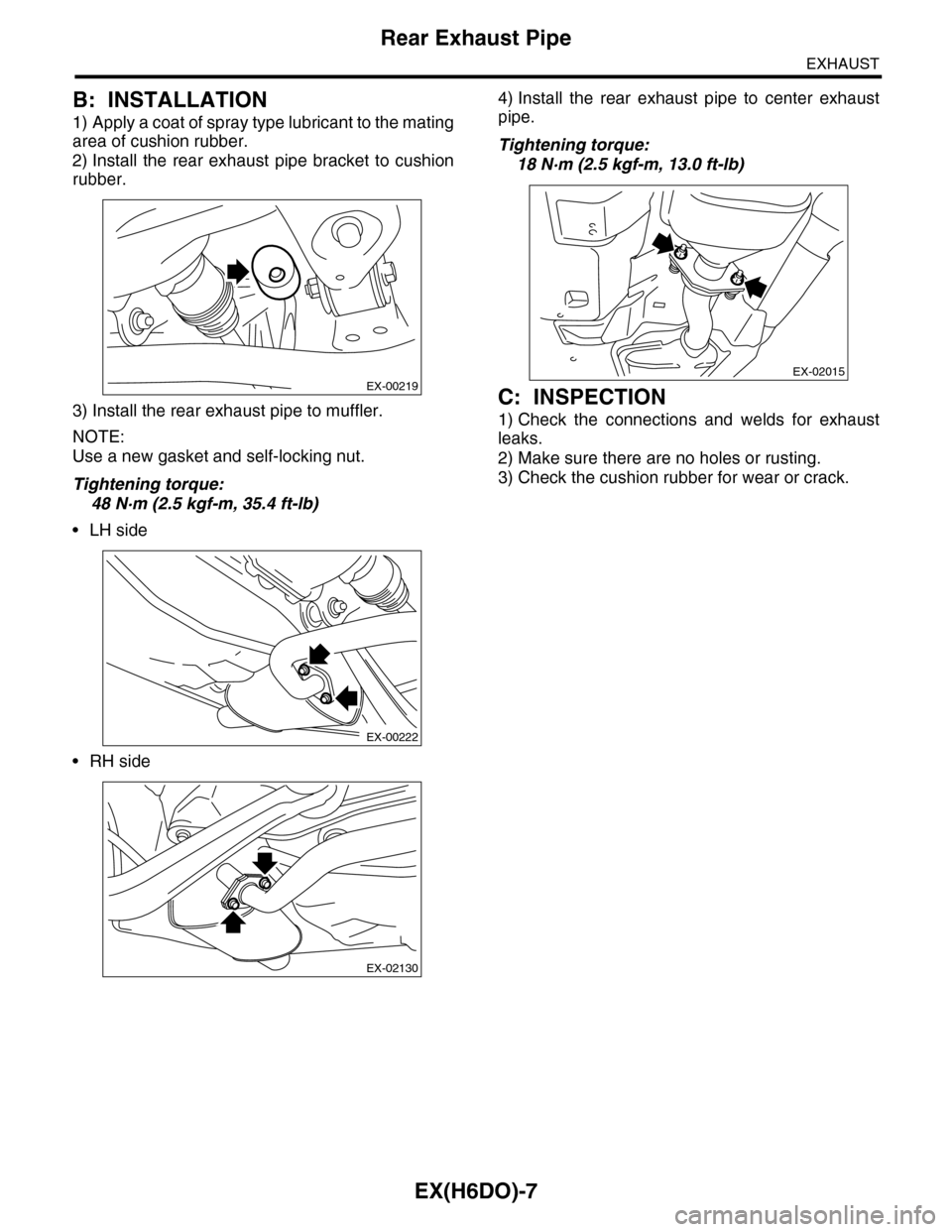

Rear Exhaust Pipe
EXHAUST
B: INSTALLATION
1) Apply a coat of spray type lubricant to the mating
area of cushion rubber.
2) Install the rear exhaust pipe bracket to cushion
rubber.
3) Install the rear exhaust pipe to muffler.
NOTE:
Use a new gasket and self-locking nut.
Tightening torque:
48 N·m (2.5 kgf-m, 35.4 ft-lb)
•LH side
•RH side
4) Install the rear exhaust pipe to center exhaust
pipe.
Tightening torque:
18 N·m (2.5 kgf-m, 13.0 ft-lb)
C: INSPECTION
1) Check the connections and welds for exhaust
leaks.
2) Make sure there are no holes or rusting.
3) Check the cushion rubber for wear or crack.
EX-00219
EX-00222
EX-02130
EX-02015

EX(H6DO)-8
Muffler
EXHAUST

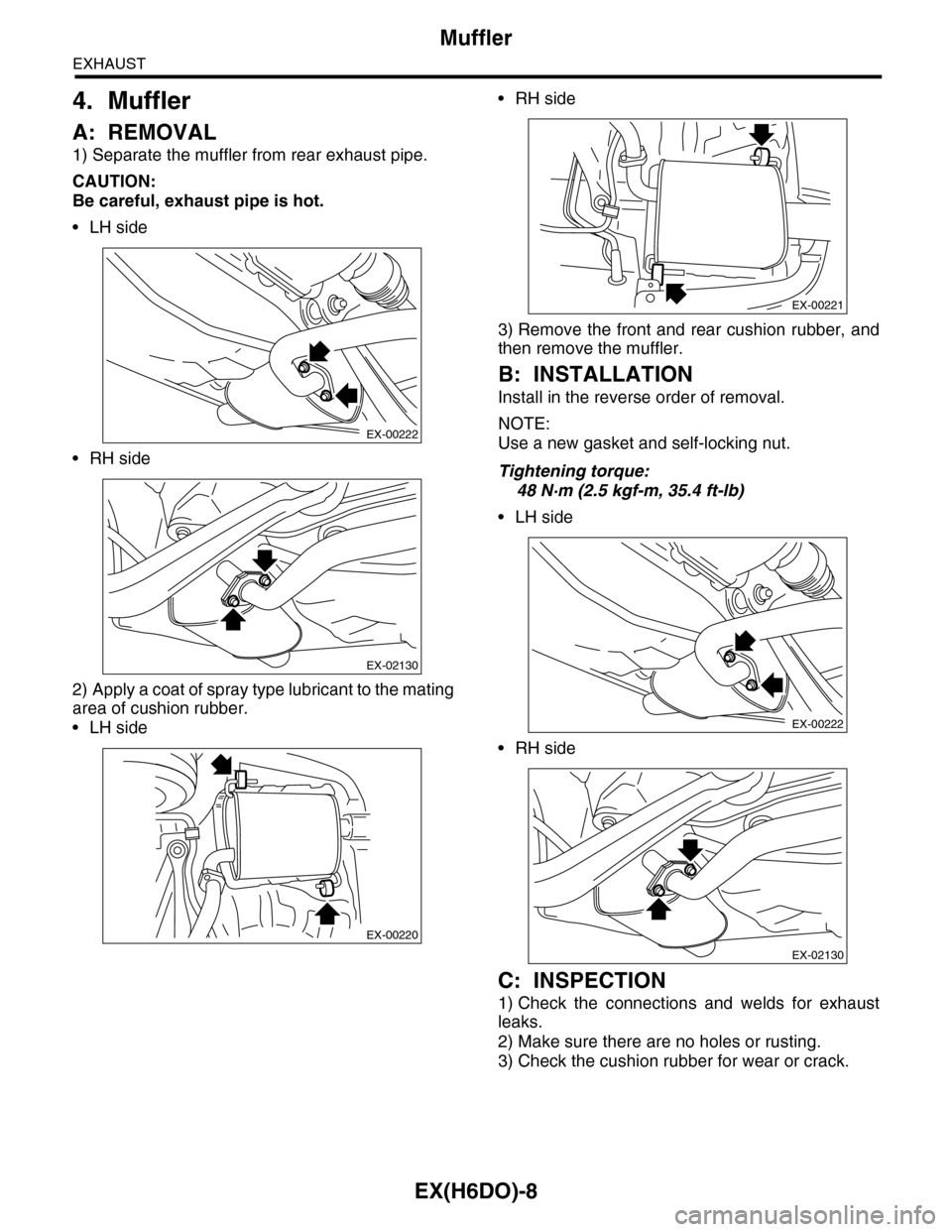

4. Muffler
A: REMOVAL
1) Separate the muffler from rear exhaust pipe.
CAUTION:
Be careful, exhaust pipe is hot.
•LH side
•RH side
2) Apply a coat of spray type lubricant to the mating
area of cushion rubber.
•LH side
•RH side
3) Remove the front and rear cushion rubber, and
then remove the muffler.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Use a new gasket and self-locking nut.
Tightening torque:
48 N·m (2.5 kgf-m, 35.4 ft-lb)
•LH side
•RH side
C: INSPECTION
1) Check the connections and welds for exhaust
leaks.
2) Make sure there are no holes or rusting.
3) Check the cushion rubber for wear or crack.
EX-00222
EX-02130
EX-00220
EX-00221
EX-00222
EX-02130

FU(H6DO)-2
General Description
FUEL INJECTION (FUEL SYSTEMS)
1. General Description

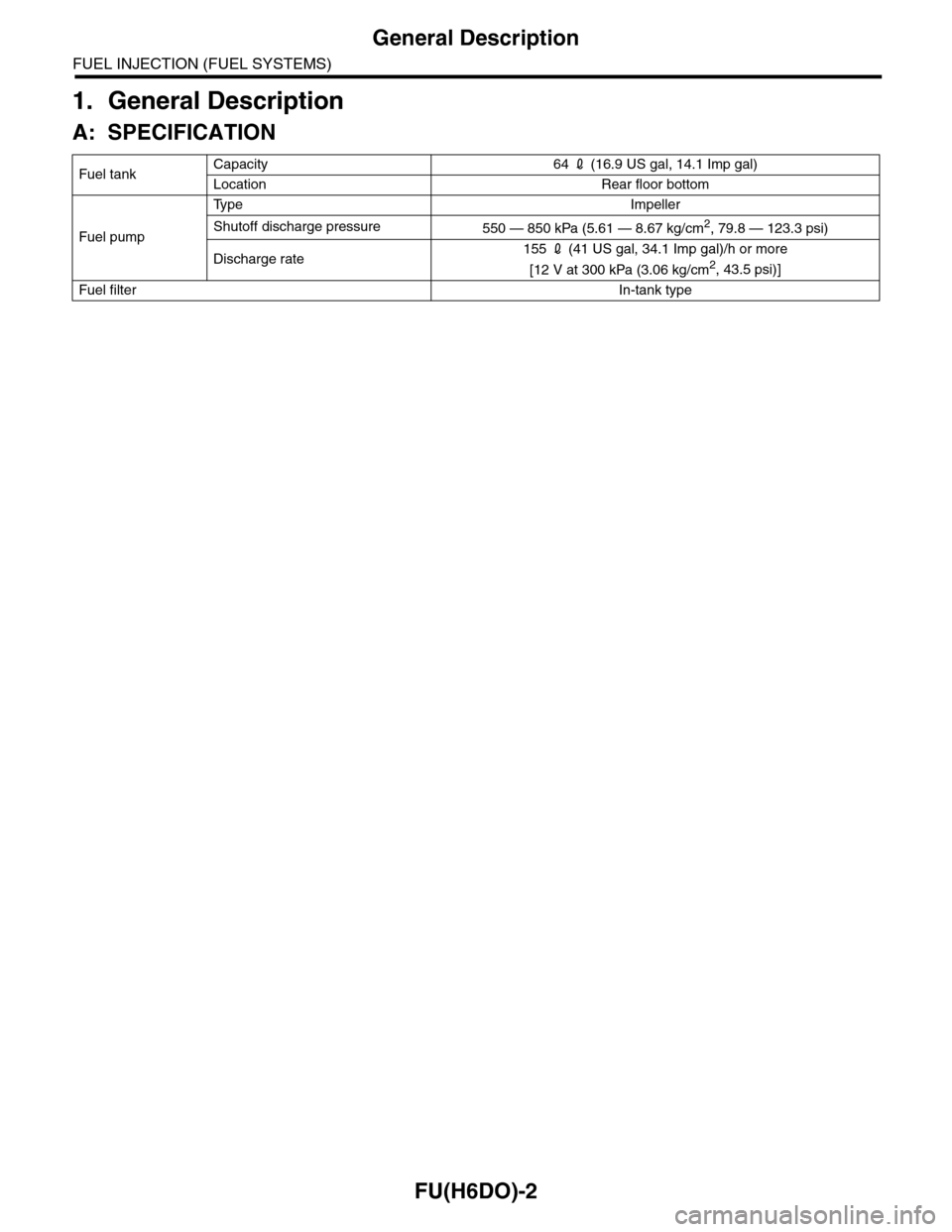

A: SPECIFICATION
Fuel tankCapacity 64 2 (16.9 US gal, 14.1 Imp gal)
Location Rear floor bottom
Fuel pump
Ty p e I m p e l l e r
Shutoff discharge pressure550 — 850 kPa (5.61 — 8.67 kg/cm2, 79.8 — 123.3 psi)
Discharge rate155 2 (41 US gal, 34.1 Imp gal)/h or more
[12 V at 300 kPa (3.06 kg/cm2, 43.5 psi)]
Fuel filterIn-tank type

FU(H6DO)-3
General Description
FUEL INJECTION (FUEL SYSTEMS)
B: COMPONENT

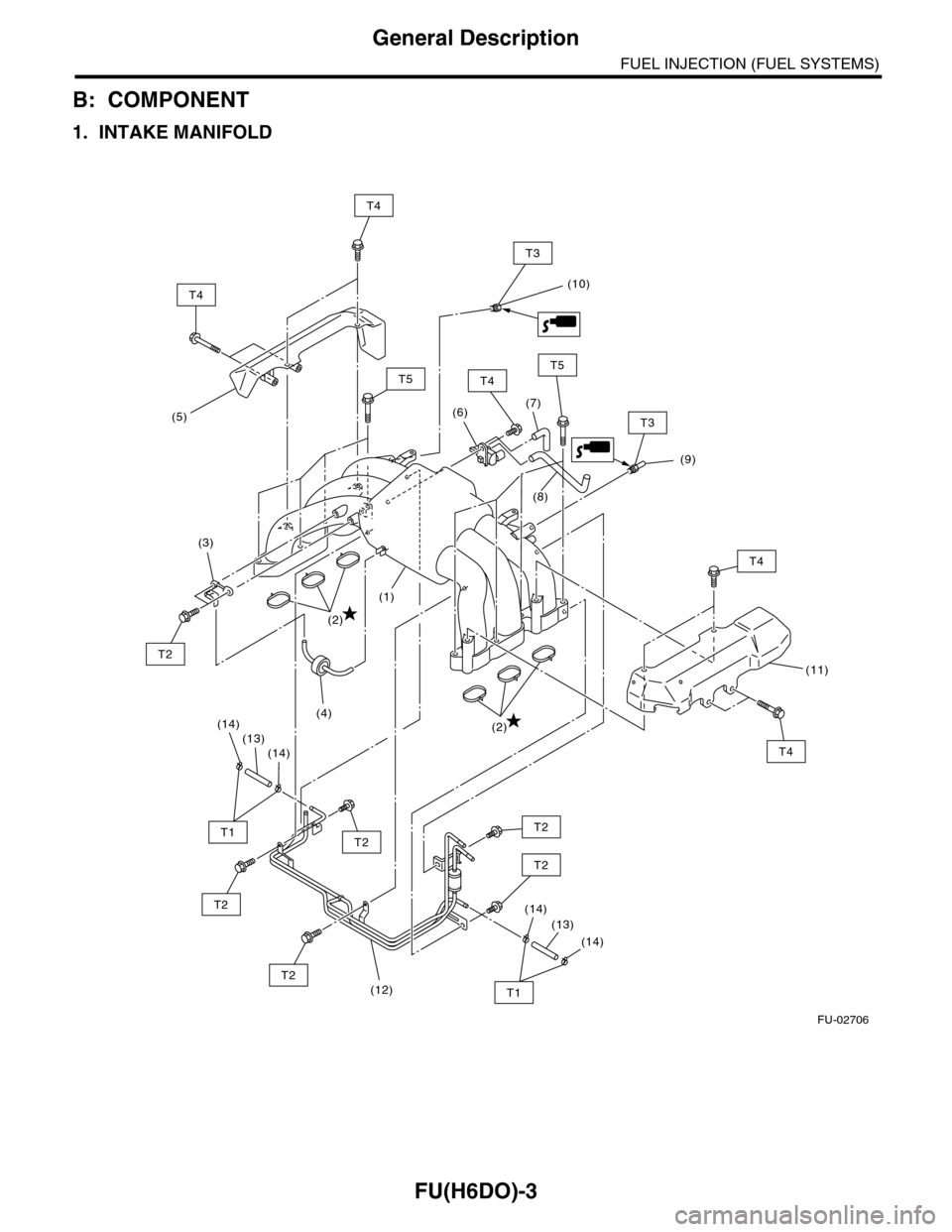

1. INTAKE MANIFOLD
FU-02706
T4
T5
T4
T4
T4
T5
(5)(6)
(2)
(12)
(2)
T2
T2
T2
T3
(10)
T3
(9)
(11)
T1
T2
T2
(14)(13)
(14)
(14)(13)(14)
T1
(4)
(3)
T2
T4
(7)
(8)
(1)

FU(H6DO)-4
General Description
FUEL INJECTION (FUEL SYSTEMS)
2. FUEL INJECTOR
(1) Intake manifold (8) HoseTightening torque: N·m (kgf-m, ft-lb)
(2) O-ring (9) NippleT1: 1.5 (0.15, 1.1)
(3) Manifold absolute pressure sensor (10) PlugT2: 6.4 (0.65, 4.7)
(4) Filter (11) Fuel pipe protector LHT3: 17 (1.7, 12.5)
(5) Fuel pipe protector RH (12) Fuel pipe ASSYT4: 19 (1.9, 14)
(6) Purge control solenoid valve (13) HoseT5: 25 (2.5, 18)
(7) Hose (14) Clamp
(1) Fuel injector pipe LH (4) Injection rubberTightening torque: N·m (kgf-m, ft-lb)
(2) Insulator (5) O-ringT: 19 (1.9, 14)
(3) Fuel injector (6) Fuel injector pipe RH
FU-02561
(6)
T
T
(5)
(4)
(3)
(2)
(2)(3)(4)(5)
(1)

FU(H6DO)-5
General Description
FUEL INJECTION (FUEL SYSTEMS)

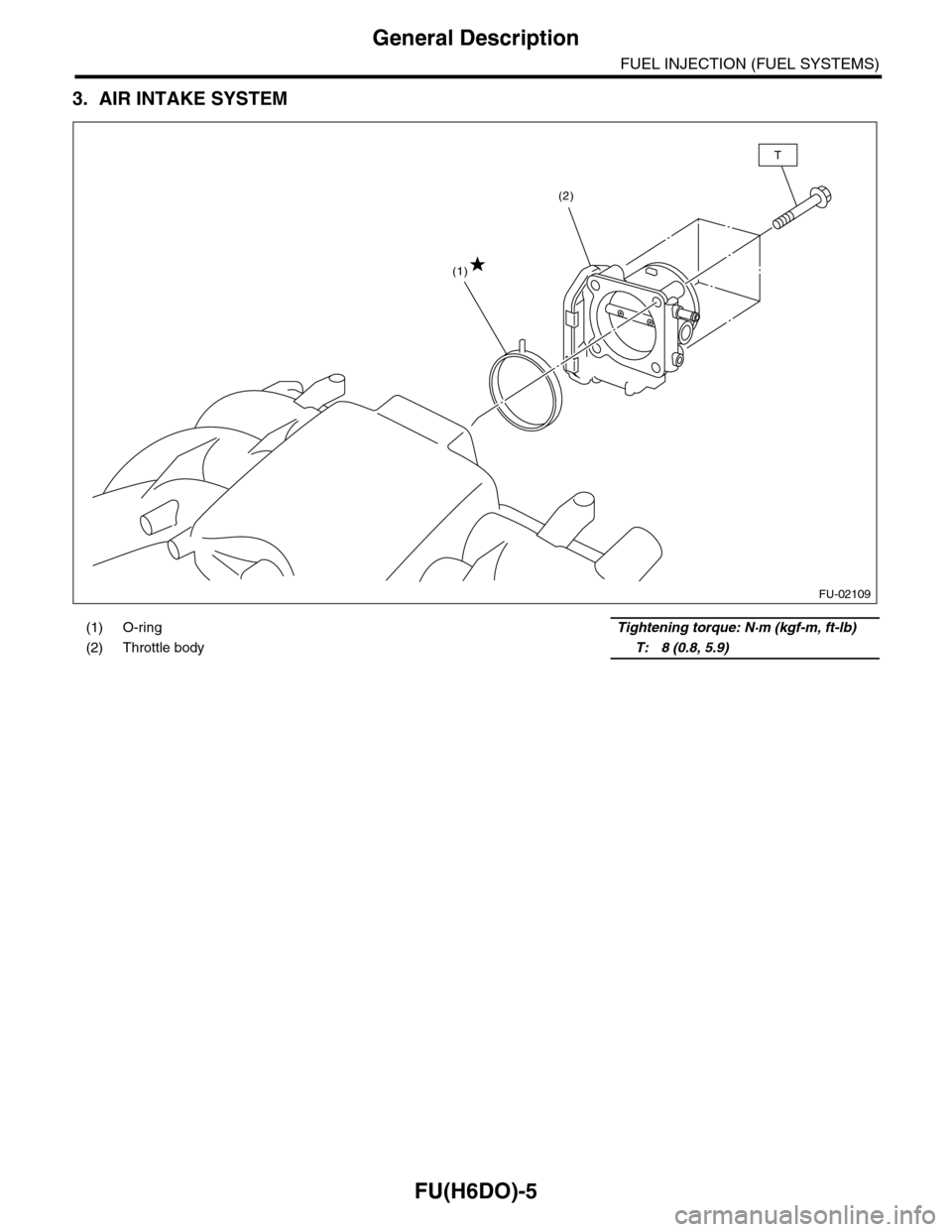

3. AIR INTAKE SYSTEM
(1) O-ring Tightening torque: N·m (kgf-m, ft-lb)
(2) Throttle body T: 8 (0.8, 5.9)
FU-02109
(1)
(2)
T

FU(H6DO)-6
General Description
FUEL INJECTION (FUEL SYSTEMS)
4. CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS
(1) Crankshaft position sensor (6) Variable valve lift diagnosis oil
pressure switch RH
Tightening torque: N·m (kgf-m, ft-lb)
(2) Knock sensor RHT1: 6.4 (0.65, 4.7)
(3) Knock sensor LH (7) Variable valve lift diagnosis oil
pressure switch LH
T2: 17 (1.7, 12.5)
(4) Camshaft position sensor RHT3: 18 (1.8, 13.3)
(5) Camshaft position sensor LH (8) Oil temperature sensorT4: 25 (2.5, 18)
FU-02110
(6)
(4)
T2
T1
(3)
T4
(1)
(8)
T1
T3
(5)
T1
(2)
T4
(7)
T2

FU(H6DO)-7
General Description
FUEL INJECTION (FUEL SYSTEMS)

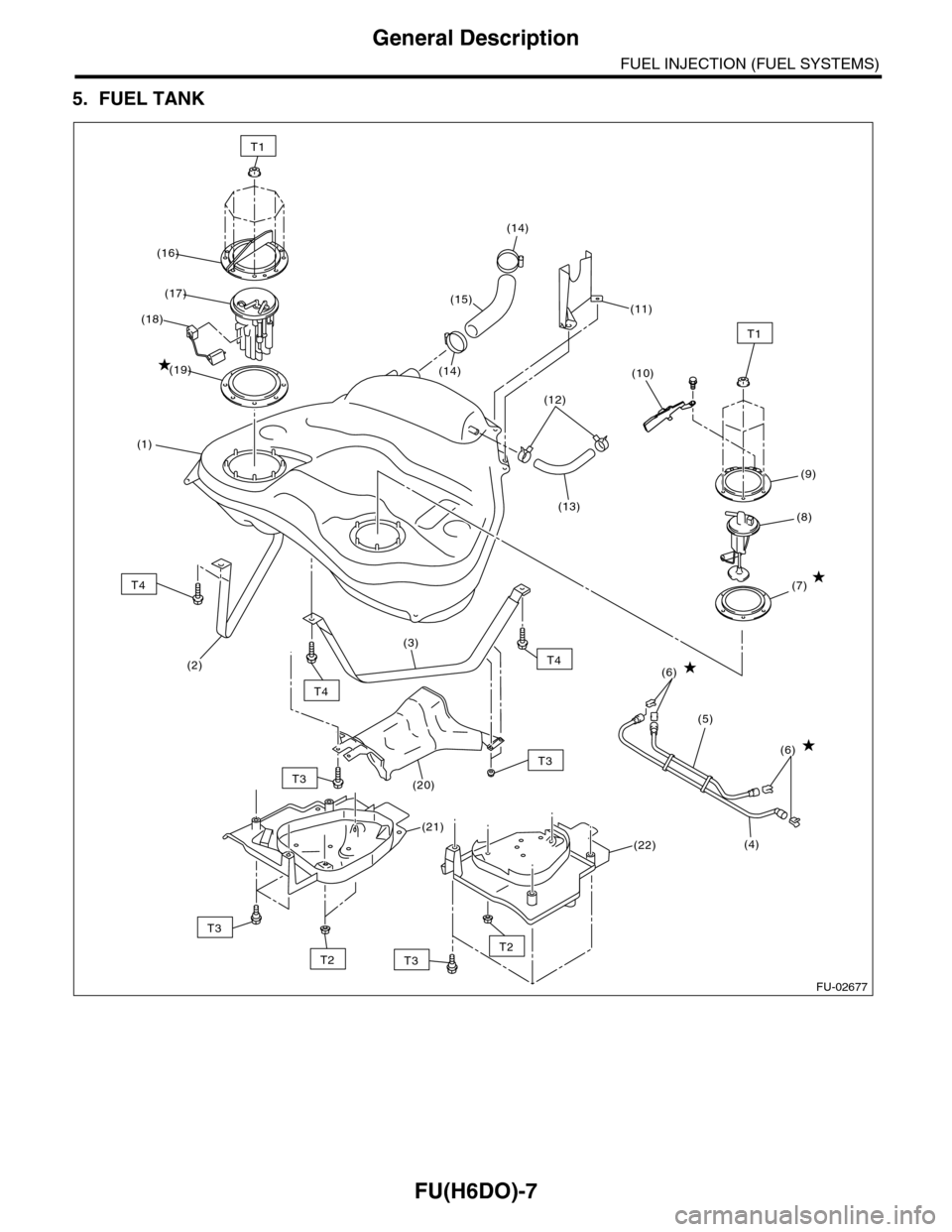

5. FUEL TANK
T4
T1
T4
T3
T2
T3
T3
T4
T1
(15)
(14)
(14)
(11)
(10)
(5)
(6)
(4)
(3)
(20)
(21)
(22)
(2)
(8)
(9)
(7)
(16)
(17)
(18)
(12)
(13)
(19)
(1)
T2T3
(6)
FU-02677

FU(H6DO)-8
General Description
FUEL INJECTION (FUEL SYSTEMS)
(1) Fuel tank (11) Fuel tank protector LH (Rear) (20) Heat shield cover
(2) Fuel tank band RH (12) Clip (21) Fuel tank protector RH (Front)
(3) Fuel tank band LH (13) Evaporation hose (22) Fuel tank protector LH (Front)
(4) Delivery tube (14) Clamp
(5) Jet pump tube (15) Fuel filler hoseTightening torque: N·m (kgf-m, ft-lb)
(6) Retainer (16) Fuel pump upper plateT1: 4.4 (0.45, 3.2)
(7) Fuel sub level sensor gasket (17) Fuel pump ASSYT2: 9 (0.9, 6.6)
(8) Fuel sub level sensor (18) Fuel level sensorT3: 17.5 (1.78, 12.9)
(9) Fuel sub level sensor upper plate (19) Fuel pump gasketT4: 33 (3.4, 25)
(10) Bracket

FU(H6DO)-9
General Description
FUEL INJECTION (FUEL SYSTEMS)
6. FUEL LINE
(1) Clamp (8) Fuel pipe ASSY (15) Ring
(2) Evaporation hose A (9) Grommet (16) Fuel filler cap
(3) Fuel delivery hose A (10) Drain valve (17) Fuel tank pressure sensor
(4) Fuel pipe ASSY (11) Canister
(5) Evaporation hose B (12) ClampTightening torque: N·m (kgf-m, ft-lb)
(6) Fuel delivery hose B (13) Fuel filler pipeT1: 7.5 (0.76, 5.5)
(7) Clamp (14) Packing
C
C
A
AB
B
(15)
(13)(17)
(16)
(14)
T1
T2
(5)
(6)
(4)
(7)(7)
(8)
(9)
(11)
(12)
(12)
(10)
(2)
(3)(1)
FU-02678
