AB-23

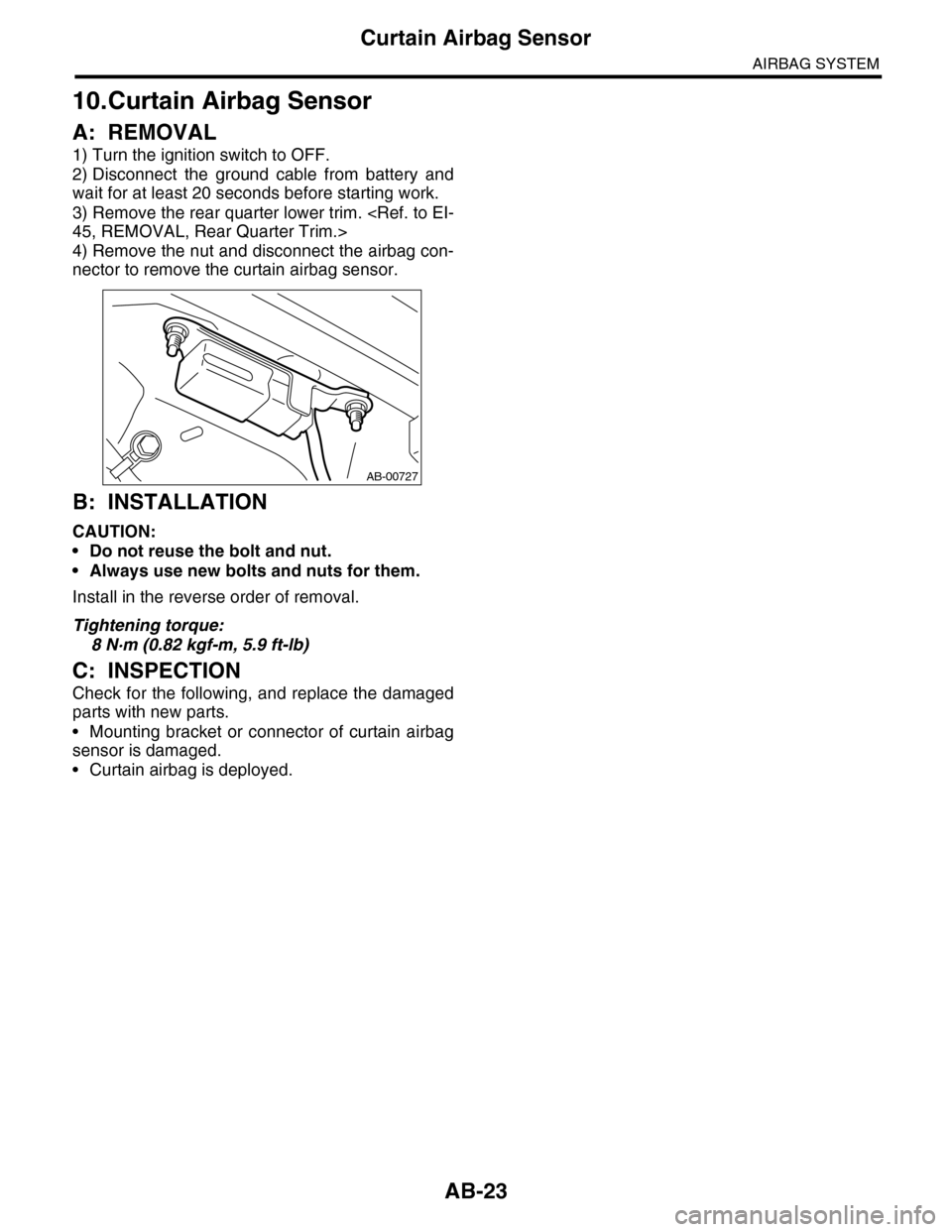

Curtain Airbag Sensor
AIRBAG SYSTEM
10.Curtain Airbag Sensor
A: REMOVAL
1) Turn the ignition switch to OFF.
2) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
3) Remove the rear quarter lower trim.
45, REMOVAL, Rear Quarter Trim.>
4) Remove the nut and disconnect the airbag con-
nector to remove the curtain airbag sensor.
B: INSTALLATION
CAUTION:
•Do not reuse the bolt and nut.
•Always use new bolts and nuts for them.
Install in the reverse order of removal.
Tightening torque:
8 N·m (0.82 kgf-m, 5.9 ft-lb)
C: INSPECTION
Check for the following, and replace the damaged
parts with new parts.
•Mounting bracket or connector of curtain airbag
sensor is damaged.
•Curtain airbag is deployed.
AB-00727
Page 24 of 2453
AB-25

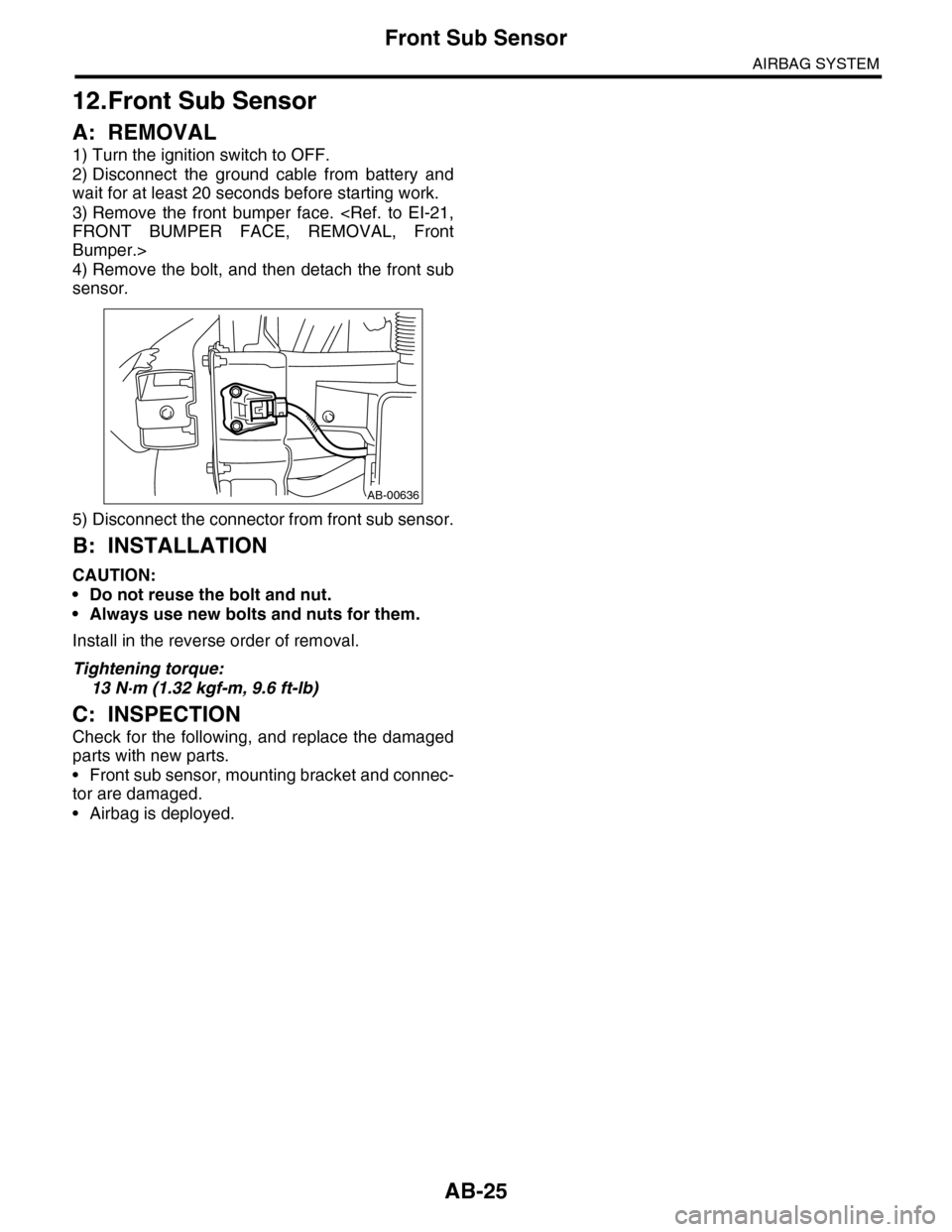

Front Sub Sensor
AIRBAG SYSTEM
12.Front Sub Sensor
A: REMOVAL
1) Turn the ignition switch to OFF.
2) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
3) Remove the front bumper face.
FRONT BUMPER FACE, REMOVAL, Front
Bumper.>
4) Remove the bolt, and then detach the front sub
sensor.
5) Disconnect the connector from front sub sensor.
B: INSTALLATION
CAUTION:
•Do not reuse the bolt and nut.
•Always use new bolts and nuts for them.
Install in the reverse order of removal.
Tightening torque:
13 N·m (1.32 kgf-m, 9.6 ft-lb)
C: INSPECTION
Check for the following, and replace the damaged
parts with new parts.
•Front sub sensor, mounting bracket and connec-
tor are damaged.
•Airbag is deployed.
AB-00636
Page 25 of 2453
AB-26
Front Sub Sensor
AIRBAG SYSTEM
Page 28 of 2453

AB(diag)-4
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

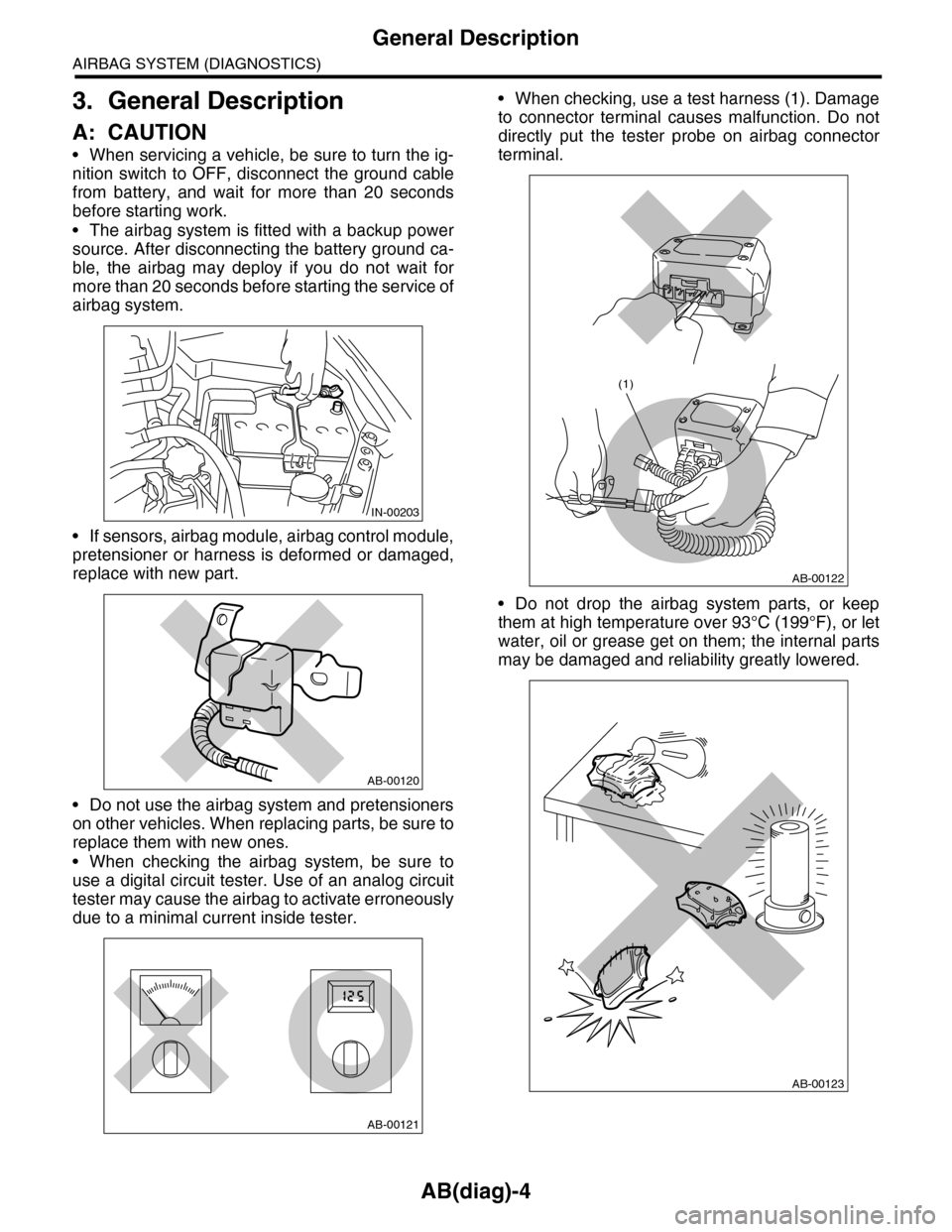

3. General Description
A: CAUTION
•When servicing a vehicle, be sure to turn the ig-
nition switch to OFF, disconnect the ground cable
from battery, and wait for more than 20 seconds
before starting work.
•The airbag system is fitted with a backup power
source. After disconnecting the battery ground ca-
ble, the airbag may deploy if you do not wait for
more than 20 seconds before starting the service of
airbag system.
•If sensors, airbag module, airbag control module,
pretensioner or harness is deformed or damaged,
replace with new part.
•Do not use the airbag system and pretensioners
on other vehicles. When replacing parts, be sure to
replace them with new ones.
•When checking the airbag system, be sure to
use a digital circuit tester. Use of an analog circuit
tester may cause the airbag to activate erroneously
due to a minimal current inside tester.
•When checking, use a test harness (1). Damage
to connector terminal causes malfunction. Do not
directly put the tester probe on airbag connector
terminal.
•Do not drop the airbag system parts, or keep
them at high temperature over 93°C (199°F), or let
water, oil or grease get on them; the internal parts
may be damaged and reliability greatly lowered.
IN-00203
AB-00120
AB-00121
AB-00122
(1)
AB-00123
Page 30 of 2453
AB(diag)-6
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

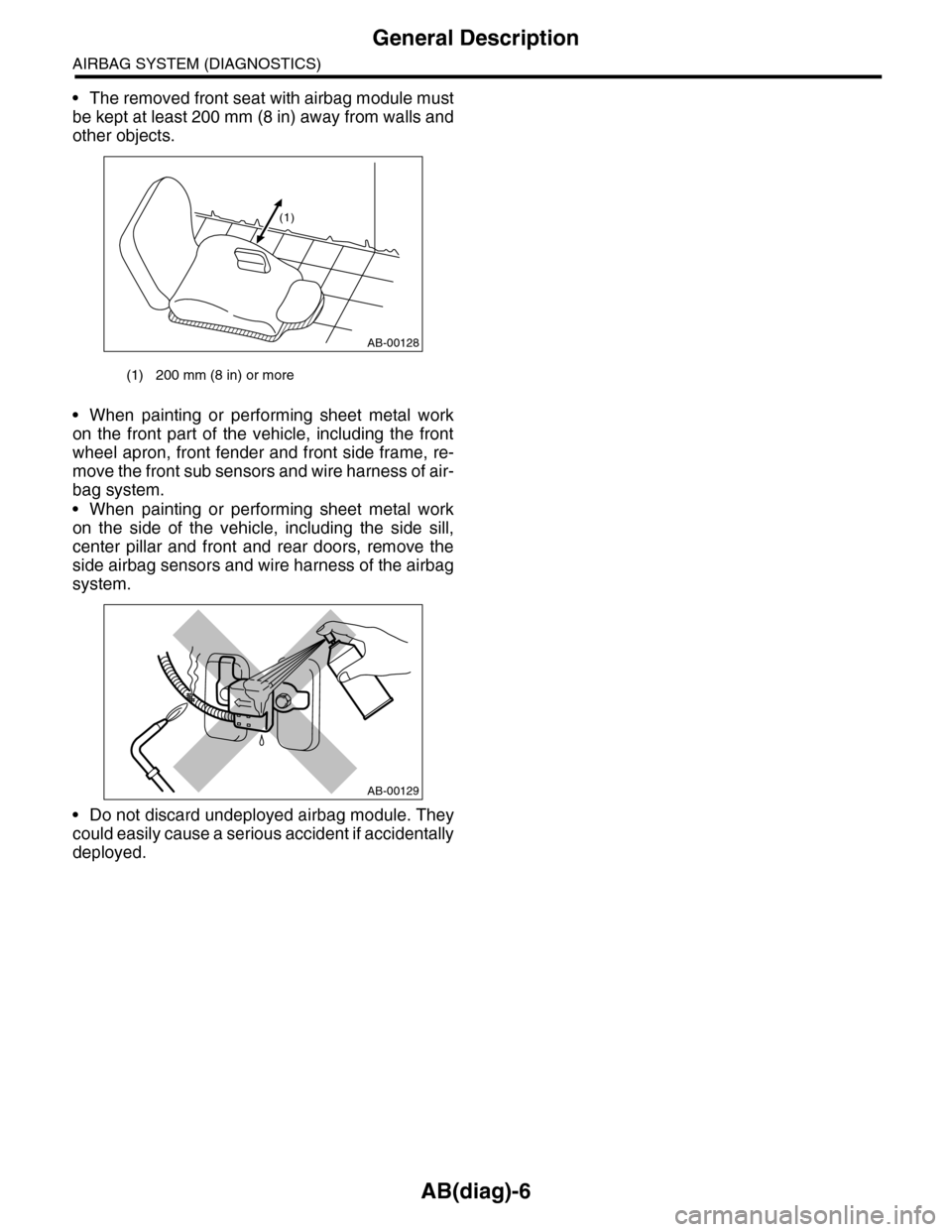

•The removed front seat with airbag module must
be kept at least 200 mm (8 in) away from walls and
other objects.
•When painting or performing sheet metal work
on the front part of the vehicle, including the front
wheel apron, front fender and front side frame, re-
move the front sub sensors and wire harness of air-
bag system.
•When painting or performing sheet metal work
on the side of the vehicle, including the side sill,
center pillar and front and rear doors, remove the
side airbag sensors and wire harness of the airbag
system.
•Do not discard undeployed airbag module. They
could easily cause a serious accident if accidentally
deployed.
(1) 200 mm (8 in) or more
AB-00128
(1)
AB-00129
Page 35 of 2453
AB(diag)-11
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

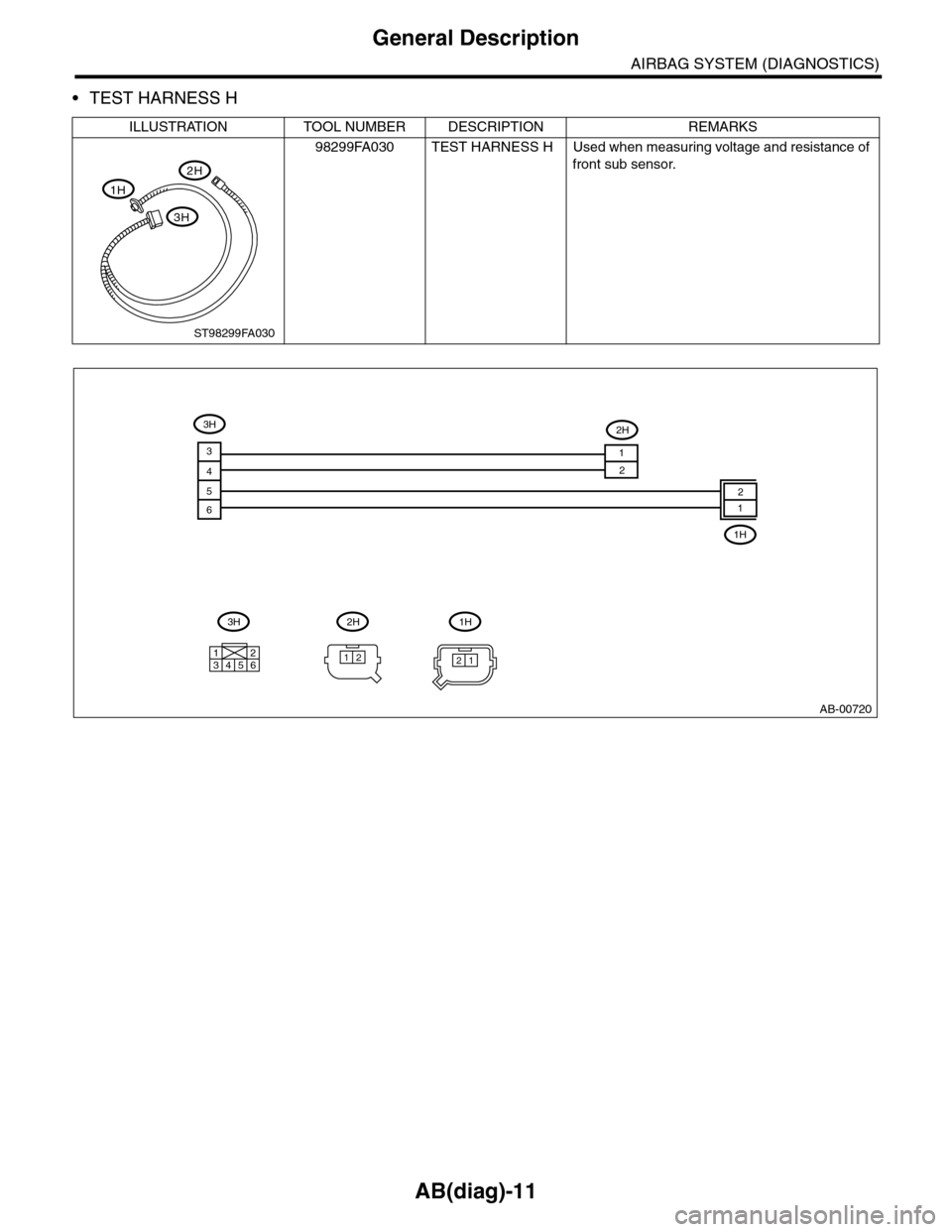

•TEST HARNESS H
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299FA030 TEST HARNESS H Used when measuring voltage and resistance of
front sub sensor.
3H
2H
1H
ST98299FA030
AB-00720
3H
3H 2H 1H
2H
1H
4
3
6
5
134562
1
1
2
2
2121
Page 41 of 2453
AB(diag)-17
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

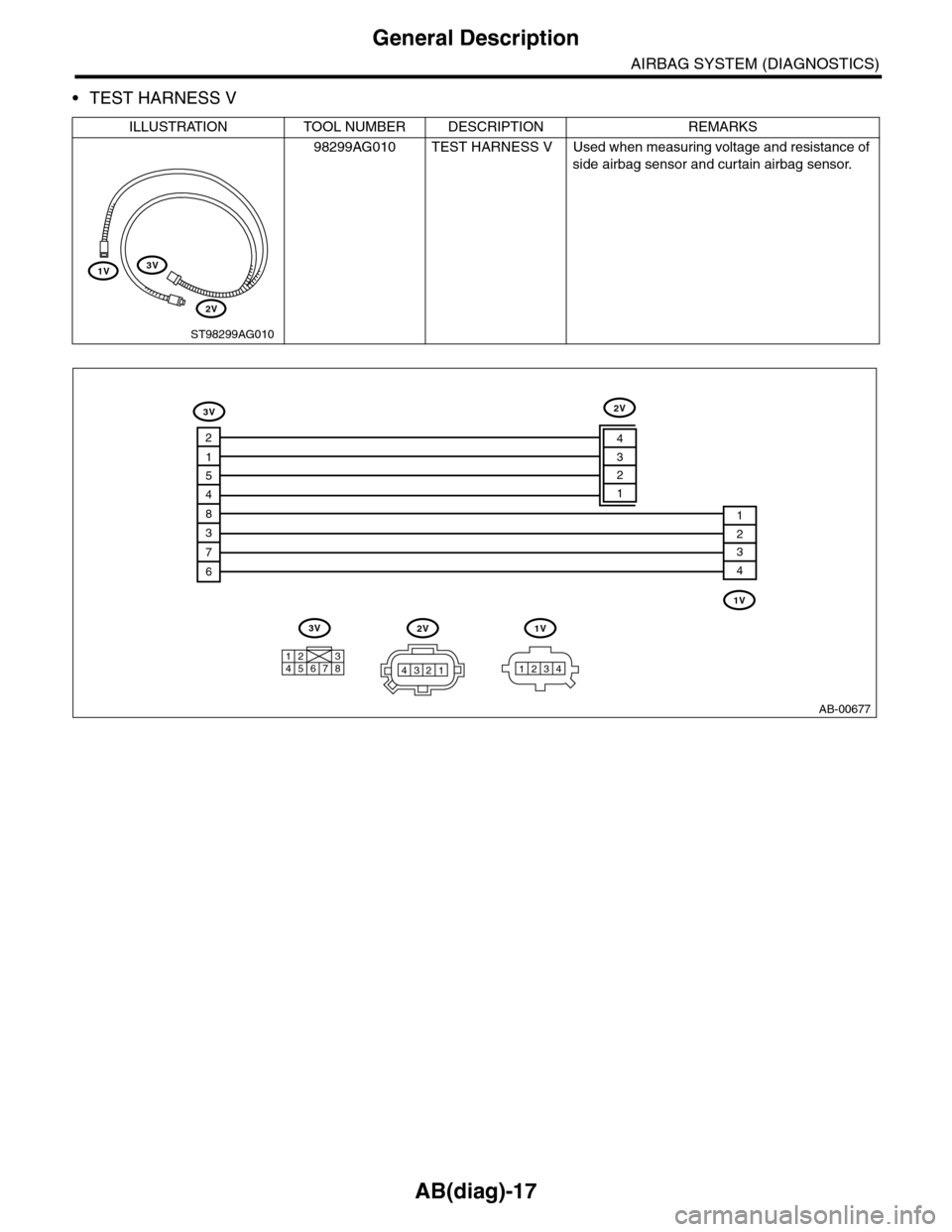

•TEST HARNESS V
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299AG010 TEST HARNESS V Used when measuring voltage and resistance of
side airbag sensor and curtain airbag sensor.
ST98299AG010
1V3V
2V
AB-00677
3V
2V
1V
3V
8
5
1
4
2
3
7
6
3
4
1
2
2
1
4
3
12 3456784321
2V
1234
1V
Page 44 of 2453
AB(diag)-20
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

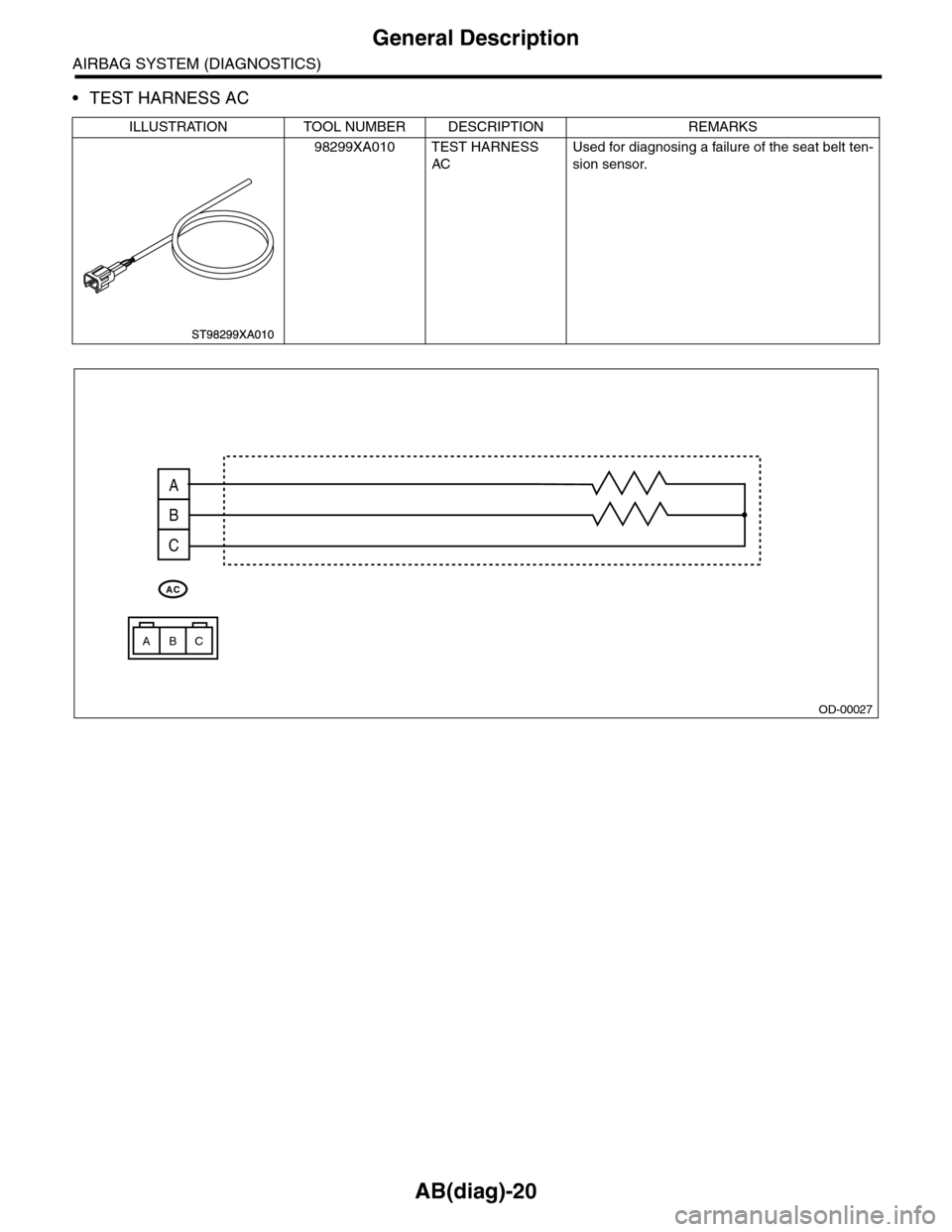

•TEST HARNESS AC
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299XA010 TEST HARNESS
AC
Used for diagnosing a failure of the seat belt ten-
sion sensor.
OD-00027
A
B
C
ACB
AC
Page 45 of 2453
AB(diag)-21
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

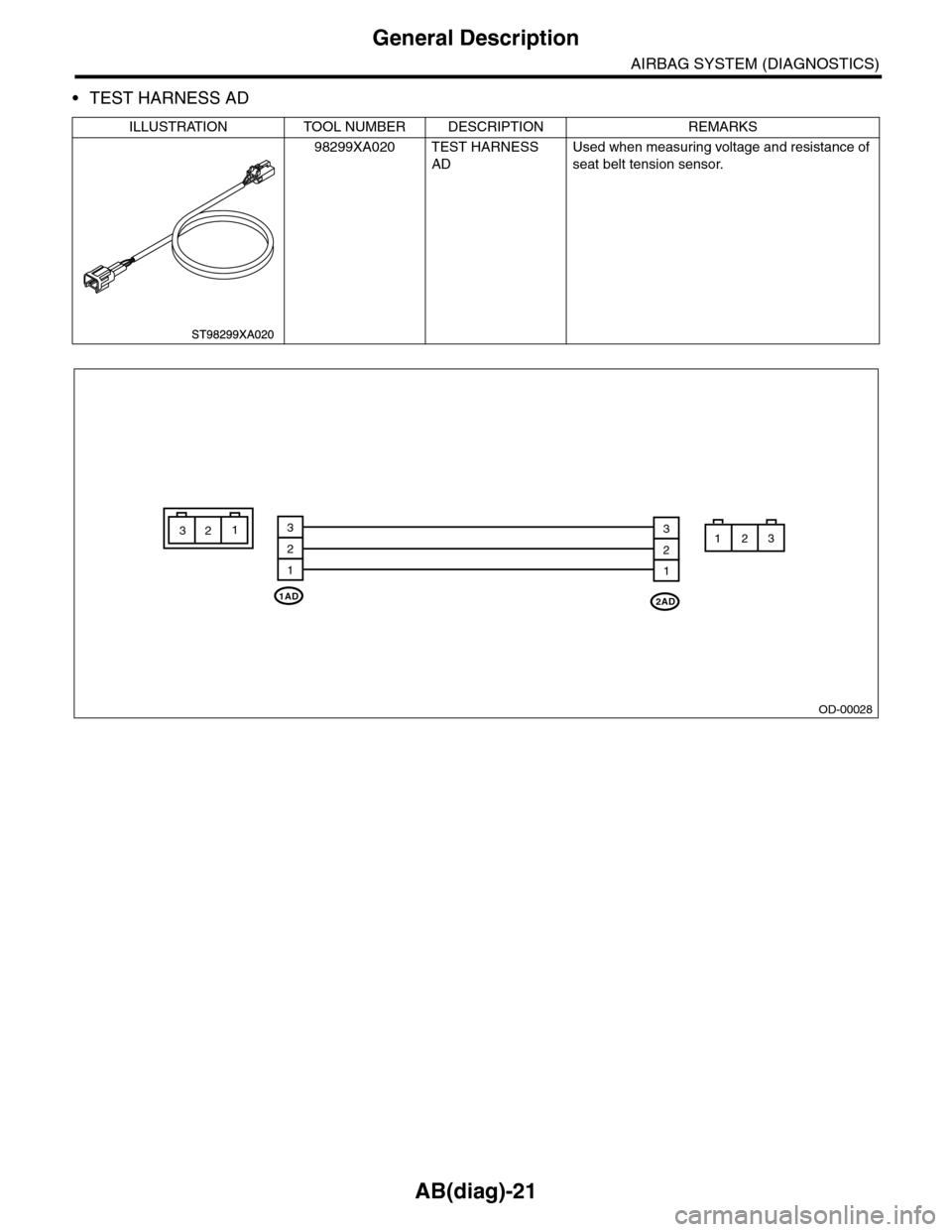

•TEST HARNESS AD
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299XA020 TEST HARNESS
AD
Used when measuring voltage and resistance of
seat belt tension sensor.
OD-00028
1AD2AD
3
2
1
3123
2
1
312
Page 47 of 2453
AB(diag)-23
General Description
AIRBAG SYSTEM (DIAGNOSTICS)

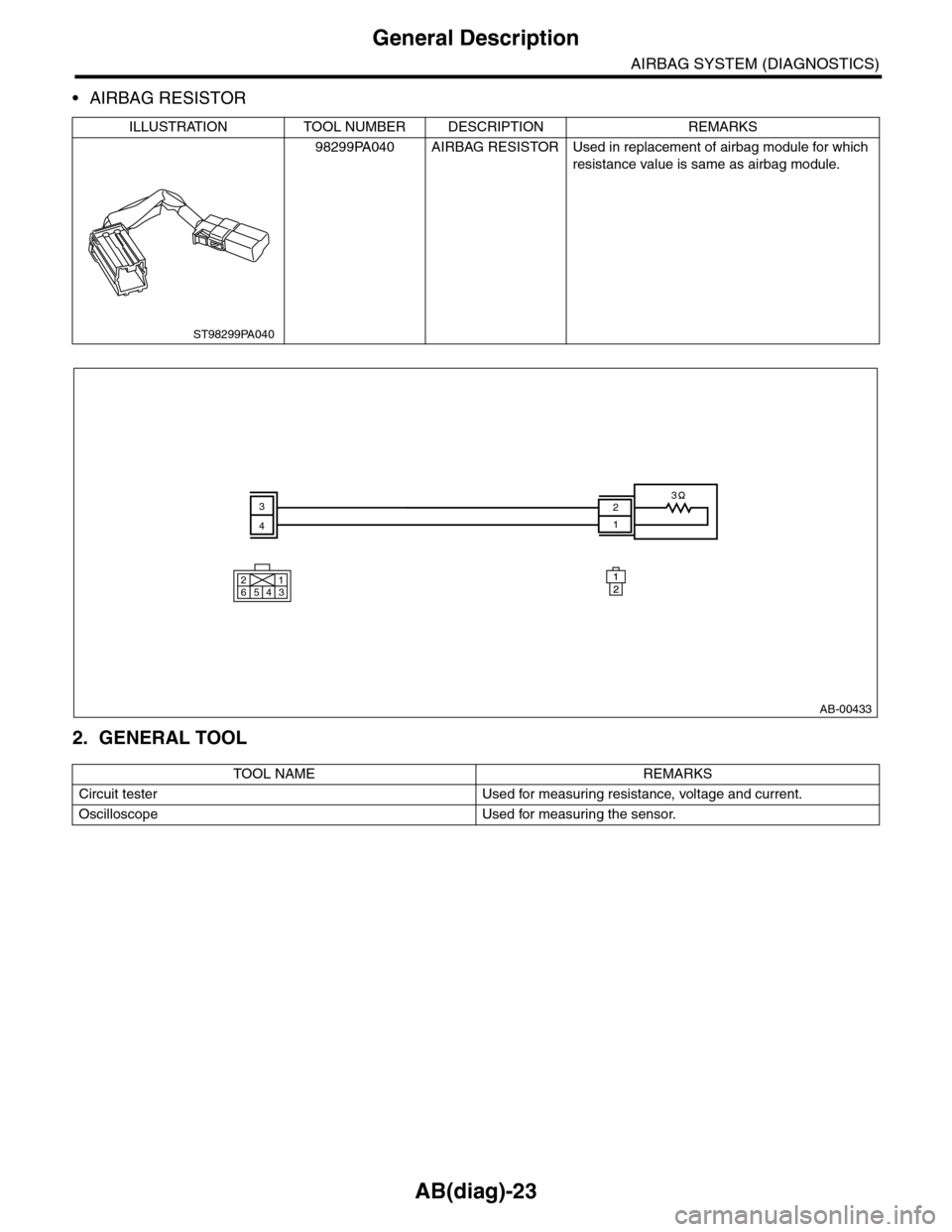

•AIRBAG RESISTOR
2. GENERAL TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
98299PA040 AIRBAG RESISTOR Used in replacement of airbag module for which
resistance value is same as airbag module.
TOOL NAME REMARKS
Circuit tester Used for measuring resistance, voltage and current.
Oscilloscope Used for measuring the sensor.
ST98299PA040
AB-00433
3
1
2
1212134562
4
3
