AB-2
General Description
AIRBAG SYSTEM
1. General Description
A: COMPONENT
1. DRIVER’S AIRBAG MODULE
Tightening torque:
10 N·m (1.0 kgf-m, 7.2 ft-lb)
2. PASSENGER’S AIRBAG MODULE
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.5 ft-lb)
3. SIDE AIRBAG MODULE
Tightening torque:
6 N·m (0.61 kgf-m, 4.4 ft-lb)
4. AIRBAG CONTROL MODULE
Tightening torque:
25 N·m (2.5 kgf-m, 18.1 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
5. FRONT SUB SENSOR
Tightening torque:
13 N·m (1.32 kgf-m, 9.6 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
AB-01269
TT
AB-01270
T
AB-00754
T
(A) Bolt
(A) Bolt
AB-01271
T
(A)
AB-01272
T
T
(A)
(A)

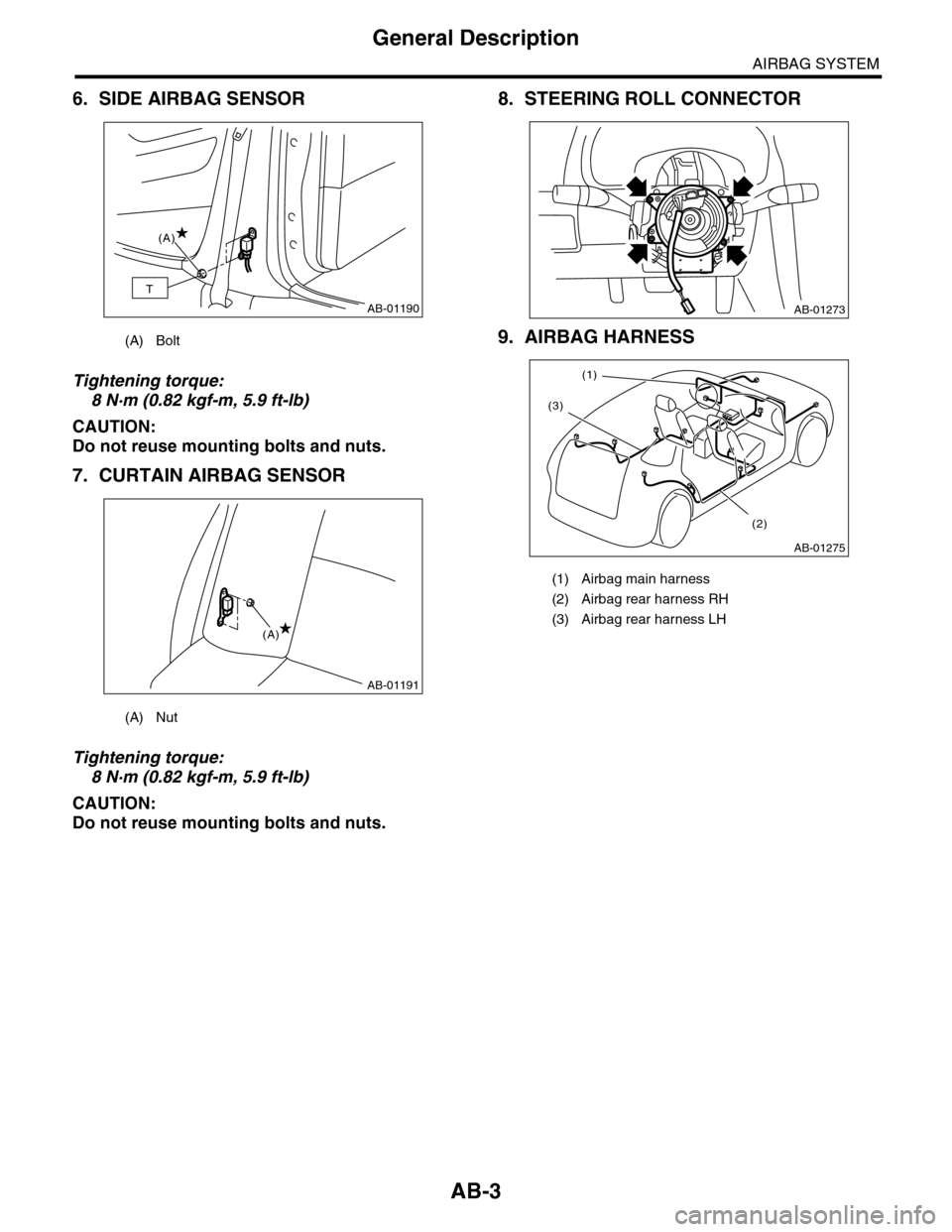

AB-3
General Description
AIRBAG SYSTEM
6. SIDE AIRBAG SENSOR
Tightening torque:
8 N·m (0.82 kgf-m, 5.9 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
7. CURTAIN AIRBAG SENSOR
Tightening torque:
8 N·m (0.82 kgf-m, 5.9 ft-lb)
CAUTION:
Do not reuse mounting bolts and nuts.
8. STEERING ROLL CONNECTOR
9. AIRBAG HARNESS(A) Bolt
(A) Nut
AB-01190
T
(A)
AB-01191
(A)
(1) Airbag main harness
(2) Airbag rear harness RH
(3) Airbag rear harness LH
AB-01273
AB-01275
(1)
(3)
(2)

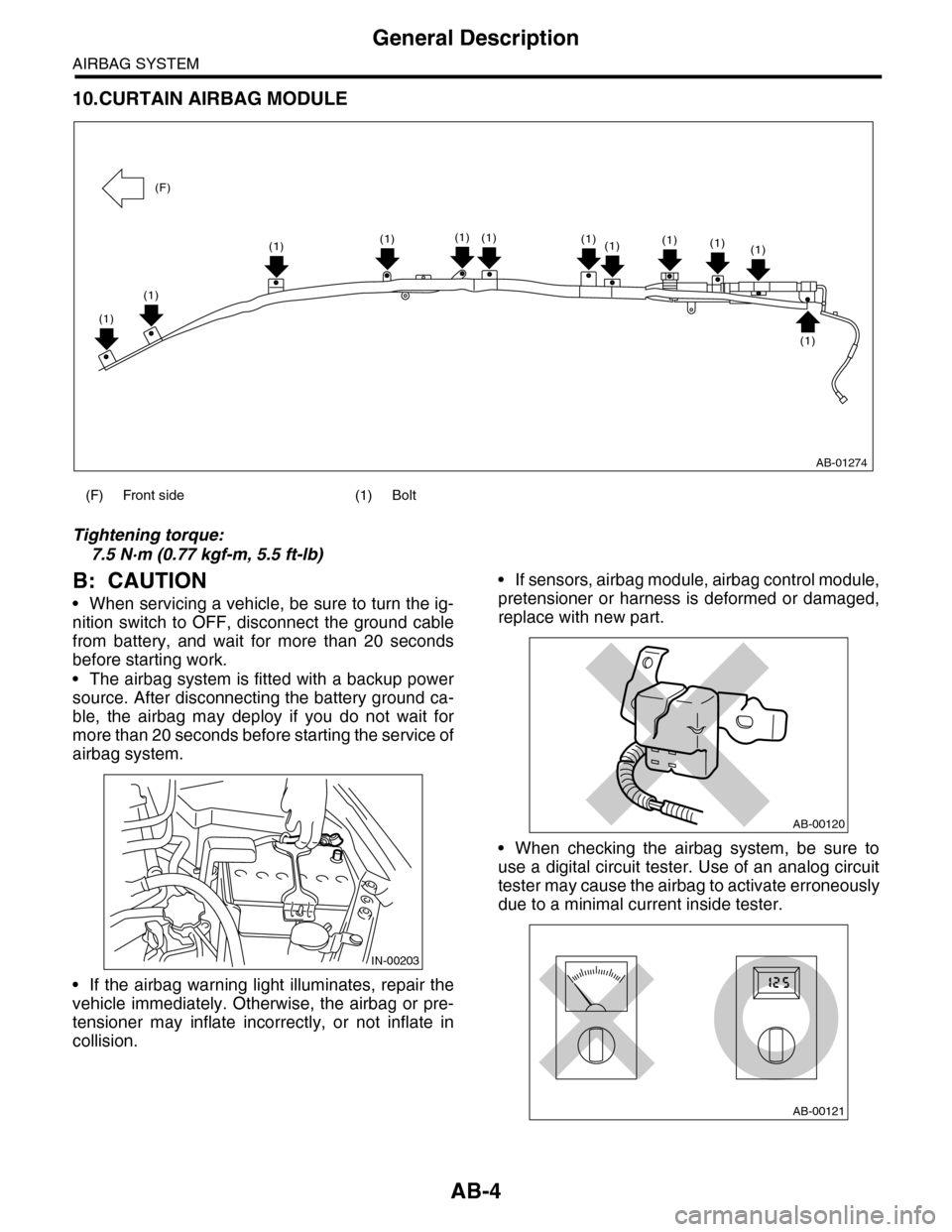

AB-4
General Description
AIRBAG SYSTEM
10.CURTAIN AIRBAG MODULE
Tightening torque:
7.5 N·m (0.77 kgf-m, 5.5 ft-lb)
B: CAUTION
•When servicing a vehicle, be sure to turn the ig-
nition switch to OFF, disconnect the ground cable
from battery, and wait for more than 20 seconds
before starting work.
•The airbag system is fitted with a backup power
source. After disconnecting the battery ground ca-
ble, the airbag may deploy if you do not wait for
more than 20 seconds before starting the service of
airbag system.
•If the airbag warning light illuminates, repair the
vehicle immediately. Otherwise, the airbag or pre-
tensioner may inflate incorrectly, or not inflate in
collision.
•If sensors, airbag module, airbag control module,
pretensioner or harness is deformed or damaged,
replace with new part.
•When checking the airbag system, be sure to
use a digital circuit tester. Use of an analog circuit
tester may cause the airbag to activate erroneously
due to a minimal current inside tester.
(F) Front side (1) Bolt
AB-01274
(1)(1)
(1)
(1)(1)(1)(1)(1)(1)(1)
(1)
(1)
(F)
IN-00203
AB-00120
AB-00121

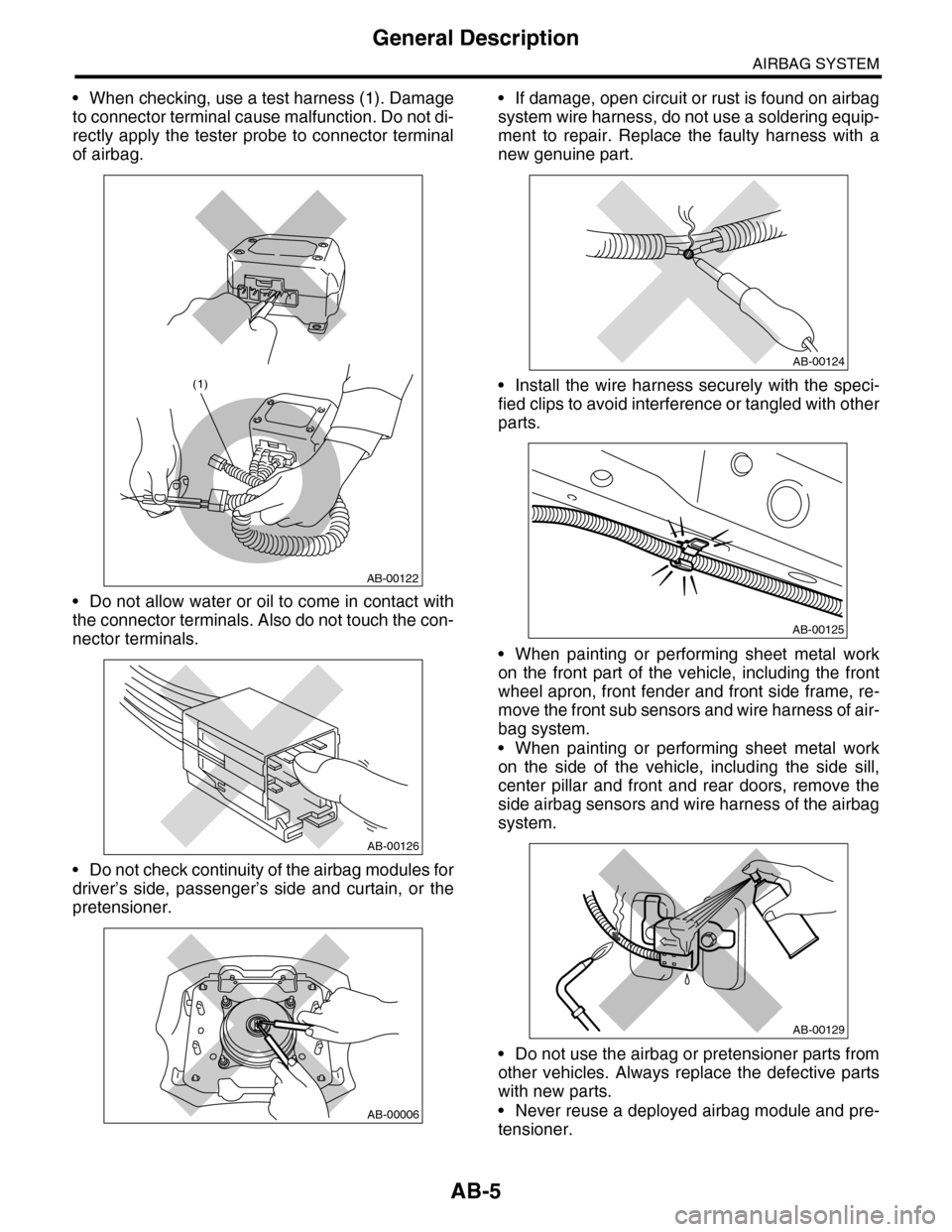

AB-5
General Description
AIRBAG SYSTEM
•When checking, use a test harness (1). Damage
to connector terminal cause malfunction. Do not di-
rectly apply the tester probe to connector terminal
of airbag.
•Do not allow water or oil to come in contact with
the connector terminals. Also do not touch the con-
nector terminals.
•Do not check continuity of the airbag modules for
driver’s side, passenger’s side and curtain, or the
pretensioner.
•If damage, open circuit or rust is found on airbag
system wire harness, do not use a soldering equip-
ment to repair. Replace the faulty harness with a
new genuine part.
•Install the wire harness securely with the speci-
fied clips to avoid interference or tangled with other
parts.
•When painting or performing sheet metal work
on the front part of the vehicle, including the front
wheel apron, front fender and front side frame, re-
move the front sub sensors and wire harness of air-
bag system.
•When painting or performing sheet metal work
on the side of the vehicle, including the side sill,
center pillar and front and rear doors, remove the
side airbag sensors and wire harness of the airbag
system.
•Do not use the airbag or pretensioner parts from
other vehicles. Always replace the defective parts
with new parts.
•Never reuse a deployed airbag module and pre-
tensioner.
AB-00122
(1)
AB-00126
AB-00006
AB-00124
AB-00125
AB-00129

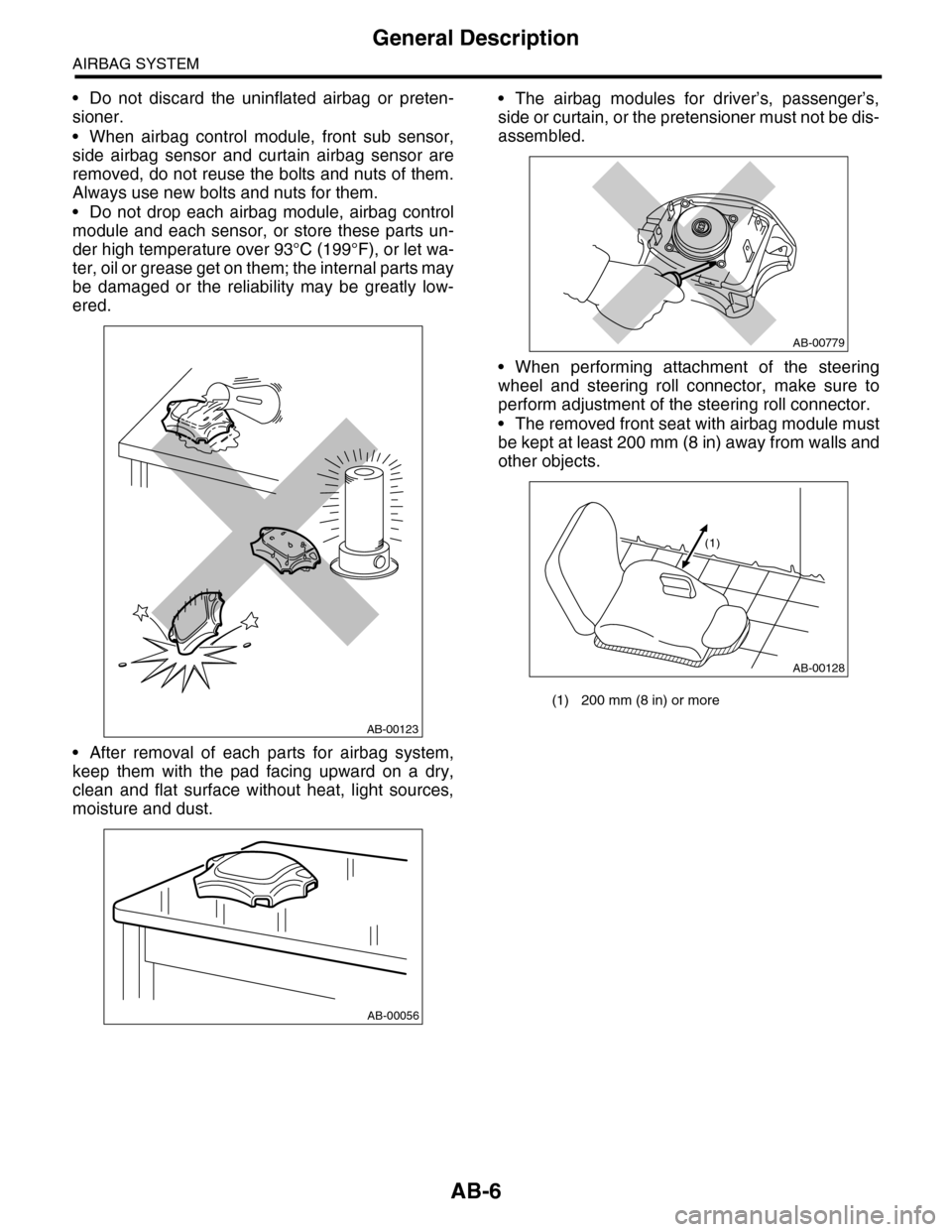

AB-6
General Description
AIRBAG SYSTEM
•Do not discard the uninflated airbag or preten-
sioner.
•When airbag control module, front sub sensor,
side airbag sensor and curtain airbag sensor are
removed, do not reuse the bolts and nuts of them.
Always use new bolts and nuts for them.
•Do not drop each airbag module, airbag control
module and each sensor, or store these parts un-
der high temperature over 93°C (199°F), or let wa-
ter, oil or grease get on them; the internal parts may
be damaged or the reliability may be greatly low-
ered.
•After removal of each parts for airbag system,
keep them with the pad facing upward on a dry,
clean and flat surface without heat, light sources,
moisture and dust.
•The airbag modules for driver’s, passenger’s,
side or curtain, or the pretensioner must not be dis-
assembled.
•When performing attachment of the steering
wheel and steering roll connector, make sure to
perform adjustment of the steering roll connector.
•The removed front seat with airbag module must
be kept at least 200 mm (8 in) away from walls and
other objects.
AB-00123
AB-00056
(1) 200 mm (8 in) or more
AB-00779
AB-00128
(1)

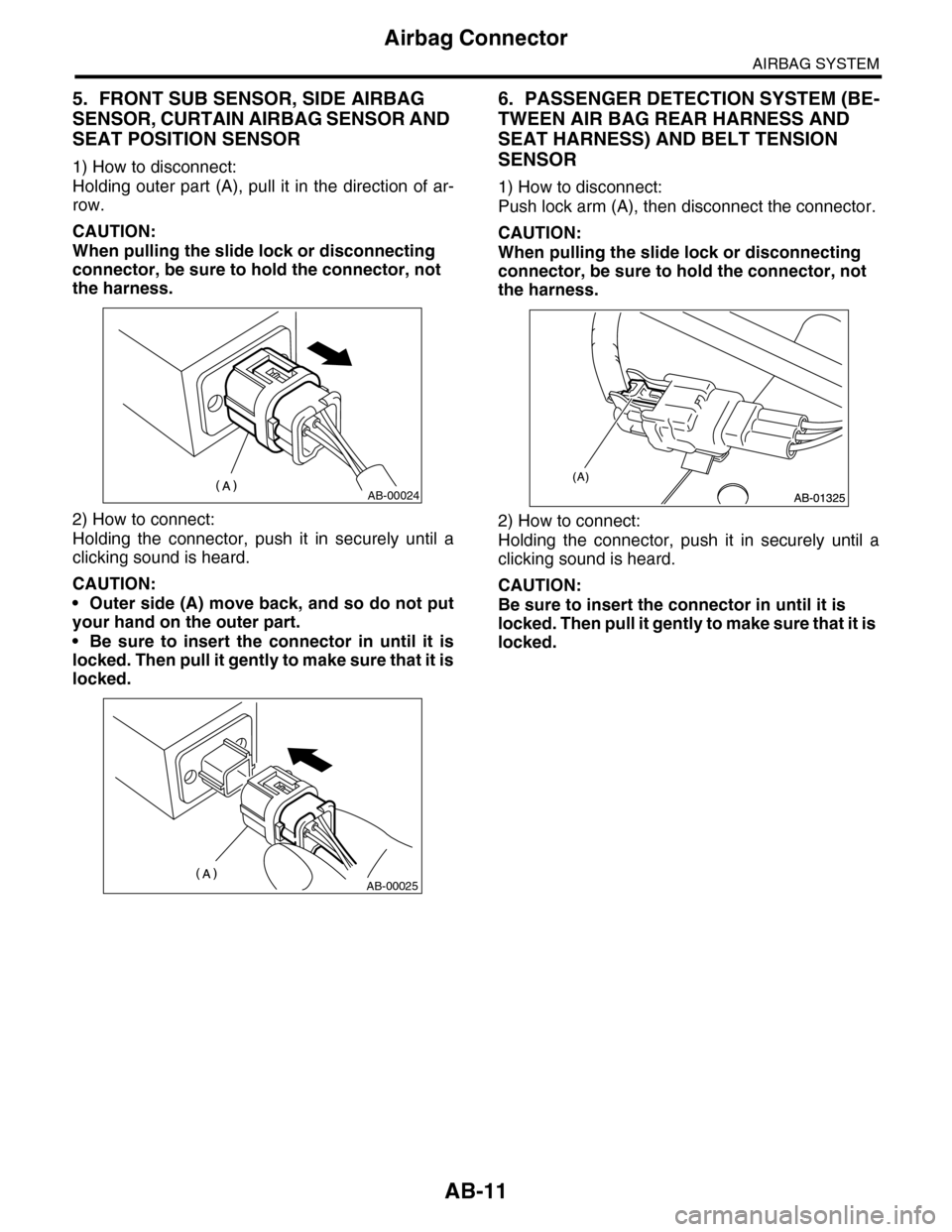

AB-11
Airbag Connector
AIRBAG SYSTEM
5. FRONT SUB SENSOR, SIDE AIRBAG
SENSOR, CURTAIN AIRBAG SENSOR AND
SEAT POSITION SENSOR
1) How to disconnect:
Holding outer part (A), pull it in the direction of ar-
row.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
•Outer side (A) move back, and so do not put
your hand on the outer part.
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
6. PASSENGER DETECTION SYSTEM (BE-
TWEEN AIR BAG REAR HARNESS AND
SEAT HARNESS) AND BELT TENSION
SENSOR
1) How to disconnect:
Push lock arm (A), then disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
AB-00024
AB-00025

AB-12
Inspection Locations After a Collision
AIRBAG SYSTEM
3. Inspection Locations After a
Collision
A: REPLACEMENT
Replace the following parts when the airbag is de-
ployed.
1. FRONT COLLISION
1) Driver’s airbag module
2) Passenger’s airbag module
3) Driver’s seat belt (Pretensioner)
4) Passenger’s seat belt (Pretensioner)
5) Airbag control module
6) Front sub sensor (L/R)
7) Roll connector
8) Instrument panel (for integrating with passen-
ger’s airbag module)
9) Passenger side seat cushion pad and frame as-
sembly
2. SIDE COLLISION
1) Airbag control module
2) Side airbag module (operating side seat back-
rest)
3) Side airbag sensor (operating side)
4) Curtain airbag module (operating side)
5) Curtain airbag sensor (operating side)
3. INSPECTION OF OTHER PARTS
Check for the following parts, and replace the dam-
aged parts with new parts.
1) Steering wheel and steering shaft
Check the steering shaft for mounting conditions
and deflection of front and rear, upward and down-
ward directions, and deflection of front and rear di-
rection with tilt lever released. (After a collision,
there is a good chance that the shock absorbing
part of steering shaft may have operated.)
2) Check the connectors of airbag module, preten-
sioner, etc. for damage, and also check each har-
ness for pinch and connector damage. Replace the
harness as a unit if damage is found.
3) Check the seat cushion frame, backrest, seat rail
and headrest for deformation, distortion, crack, and
installing condition and play.
4) For passengers seat, replace the seat cushion
frame assembly with new one if the seat cushion
frame is deformed or cracked.
5) If there are tears or loosening in the passenger
side seat cushion cover, it may interfere with the
proper operation of the passenger detection sys-
tem. Replace with a new cushion cover.
6) Be sure to perform the system calibration for the
occupant detection system after removing or re-
placing the passenger seat cushion cover. Failure
to do so may cause improper operation of the pas-
senger detection system. SYSTEM CALIBRATION (REZEROING), OPERA-
TION, Subaru Select Monitor.>
7) Use the Subaru Select Monitor to check whether
the drivers seat position sensor and the drivers and
the front left/right seat belt buckle switches are op-
erating normally.
B: INSPECTION
If the vehicle is involved in a collision, even if it is a
slight collision, be sure to check the following sys-
tems.
1. DRIVER’S AIRBAG MODULE
1) Check for the following, and replace the dam-
aged parts with new parts.
•Airbag module is cracked or deformed.
•Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
•The module surface is fouled with grease, oil,
water or cleaning solvent.
2) When installing a new driver’s airbag module,
check for the following, and replace the damaged
parts with new parts.
•The steering wheel is in the way, making it diffi-
cult to install the airbag module.
•The clearance between the driver’s airbag mod-
ule and steering wheel is not constant.
•When steering wheel deformation in axial and
vertical directions exceed limits.
Specification:
Axial deflection A
Less than 6 mm (0.24 in)
Vertical deflection L
Less than 7 mm (0.28 in)
AB-00028
L
A

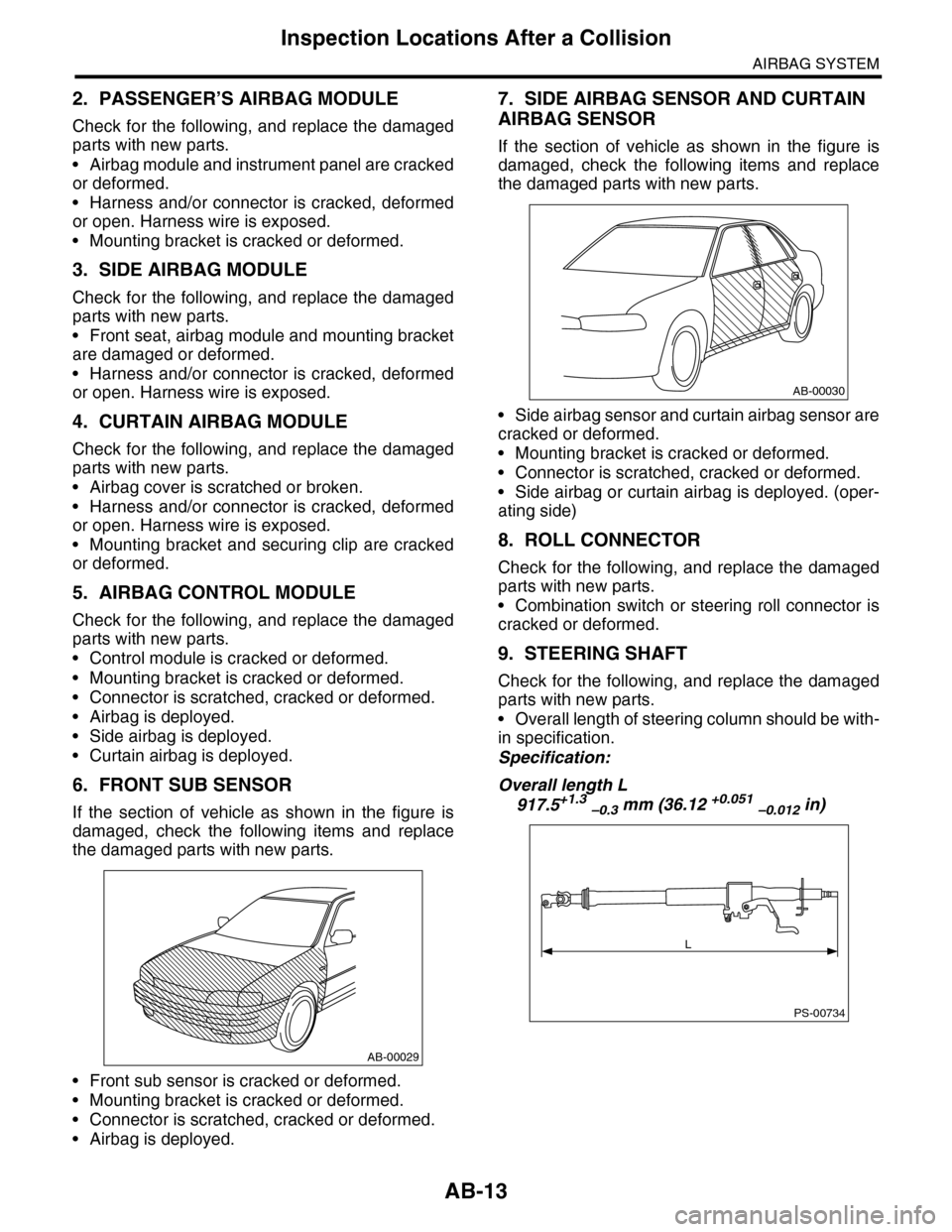

AB-13
Inspection Locations After a Collision
AIRBAG SYSTEM
2. PASSENGER’S AIRBAG MODULE
Check for the following, and replace the damaged
parts with new parts.
•Airbag module and instrument panel are cracked
or deformed.
•Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
•Mounting bracket is cracked or deformed.
3. SIDE AIRBAG MODULE
Check for the following, and replace the damaged
parts with new parts.
•Front seat, airbag module and mounting bracket
are damaged or deformed.
•Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
4. CURTAIN AIRBAG MODULE
Check for the following, and replace the damaged
parts with new parts.
•Airbag cover is scratched or broken.
•Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
•Mounting bracket and securing clip are cracked
or deformed.
5. AIRBAG CONTROL MODULE
Check for the following, and replace the damaged
parts with new parts.
•Control module is cracked or deformed.
•Mounting bracket is cracked or deformed.
•Connector is scratched, cracked or deformed.
•Airbag is deployed.
•Side airbag is deployed.
•Curtain airbag is deployed.
6. FRONT SUB SENSOR
If the section of vehicle as shown in the figure is
damaged, check the following items and replace
the damaged parts with new parts.
•Front sub sensor is cracked or deformed.
•Mounting bracket is cracked or deformed.
•Connector is scratched, cracked or deformed.
•Airbag is deployed.
7. SIDE AIRBAG SENSOR AND CURTAIN
AIRBAG SENSOR
If the section of vehicle as shown in the figure is
damaged, check the following items and replace
the damaged parts with new parts.
•Side airbag sensor and curtain airbag sensor are
cracked or deformed.
•Mounting bracket is cracked or deformed.
•Connector is scratched, cracked or deformed.
•Side airbag or curtain airbag is deployed. (oper-
ating side)
8. ROLL CONNECTOR
Check for the following, and replace the damaged
parts with new parts.
•Combination switch or steering roll connector is
cracked or deformed.
9. STEERING SHAFT
Check for the following, and replace the damaged
parts with new parts.
•Overall length of steering column should be with-
in specification.
Specification:
Overall length L
917.5+1.3 –0.3 mm (36.12 +0.051 –0.012 in)
AB-00029
AB-00030
PS-00734
L

AB-14
Inspection Locations After a Collision
AIRBAG SYSTEM
10.DRIVER’S SEAT
Check for the following, and replace the damaged
parts with new parts.
•Seat belt buckle or seat position sensor body/
bracket is cracked or deformed.
•Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.
11.PASSENGER’S SEAT
1) Check for the following, and replace the dam-
aged parts with new parts.
•Seat belt buckle body/bracket is scratched,
cracked or deformed.
•Backrest frame for crack or deformation
•Headrest for deformation or play
•If the seat cushion cover and seat back cover is
scratched or coming loose, replace with a new cov-
er and readjust the system. SYSTEM CALIBRATION (REZEROING), OPERA-
TION, Subaru Select Monitor.>
CAUTION:
If any of the following applies, replace the seat
cushion pad and frame assembly. Do not disas-
semble.
•Cracks or deformation found in the seat
cushion frame or seat cushion pad.
•Scratches, cracks, or deformation found on
the passenger detection system pressure sen-
sor hoses or passenger detection control mod-
ule, or attachment brackets of the control
module.
•Harness and/or connector is cracked, de-
formed or open. Harness wire is exposed.
2) After checking the installing condition of passen-
ger’s seat, perform the system calibration of occu-
pant detection system. SYSTEM CALIBRATION (REZEROING), OPERA-
TION, Subaru Select Monitor.>
12.BELT TENSION SENSOR
Check for the following, and replace the damaged
parts with new parts.
•Belt tension sensor is scratched, cracked, or de-
formed.
•Harness and/or connector is cracked, deformed
or open. Harness wire is exposed.

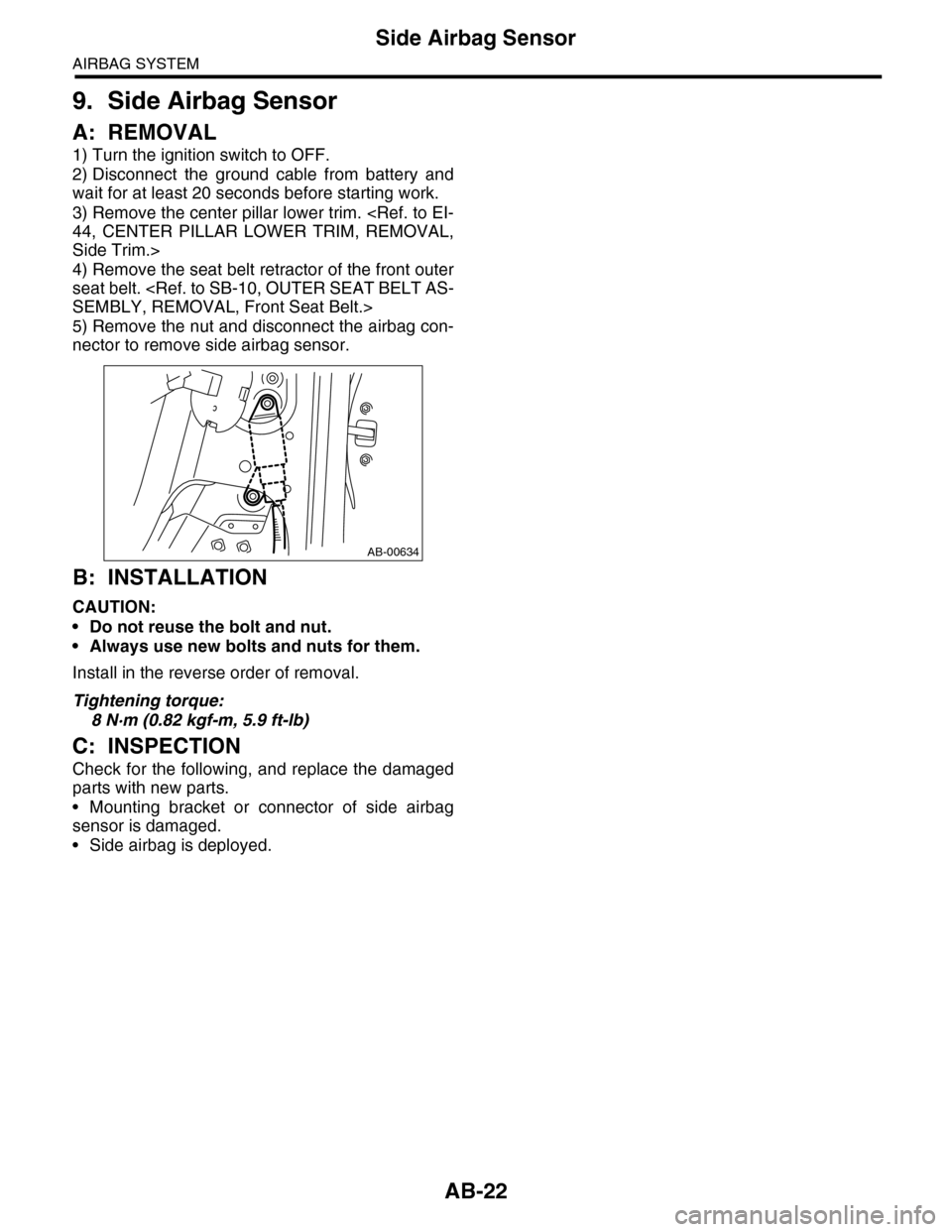

AB-22
Side Airbag Sensor
AIRBAG SYSTEM
9. Side Airbag Sensor
A: REMOVAL
1) Turn the ignition switch to OFF.
2) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
3) Remove the center pillar lower trim. 44, CENTER PILLAR LOWER TRIM, REMOVAL,
Side Trim.>
4) Remove the seat belt retractor of the front outer
seat belt. SEMBLY, REMOVAL, Front Seat Belt.>
5) Remove the nut and disconnect the airbag con-
nector to remove side airbag sensor.
B: INSTALLATION
CAUTION:
•Do not reuse the bolt and nut.
•Always use new bolts and nuts for them.
Install in the reverse order of removal.
Tightening torque:
8 N·m (0.82 kgf-m, 5.9 ft-lb)
C: INSPECTION
Check for the following, and replace the damaged
parts with new parts.
•Mounting bracket or connector of side airbag
sensor is damaged.
•Side airbag is deployed.
AB-00634
