Select Lever
CONTROL SYSTEMS

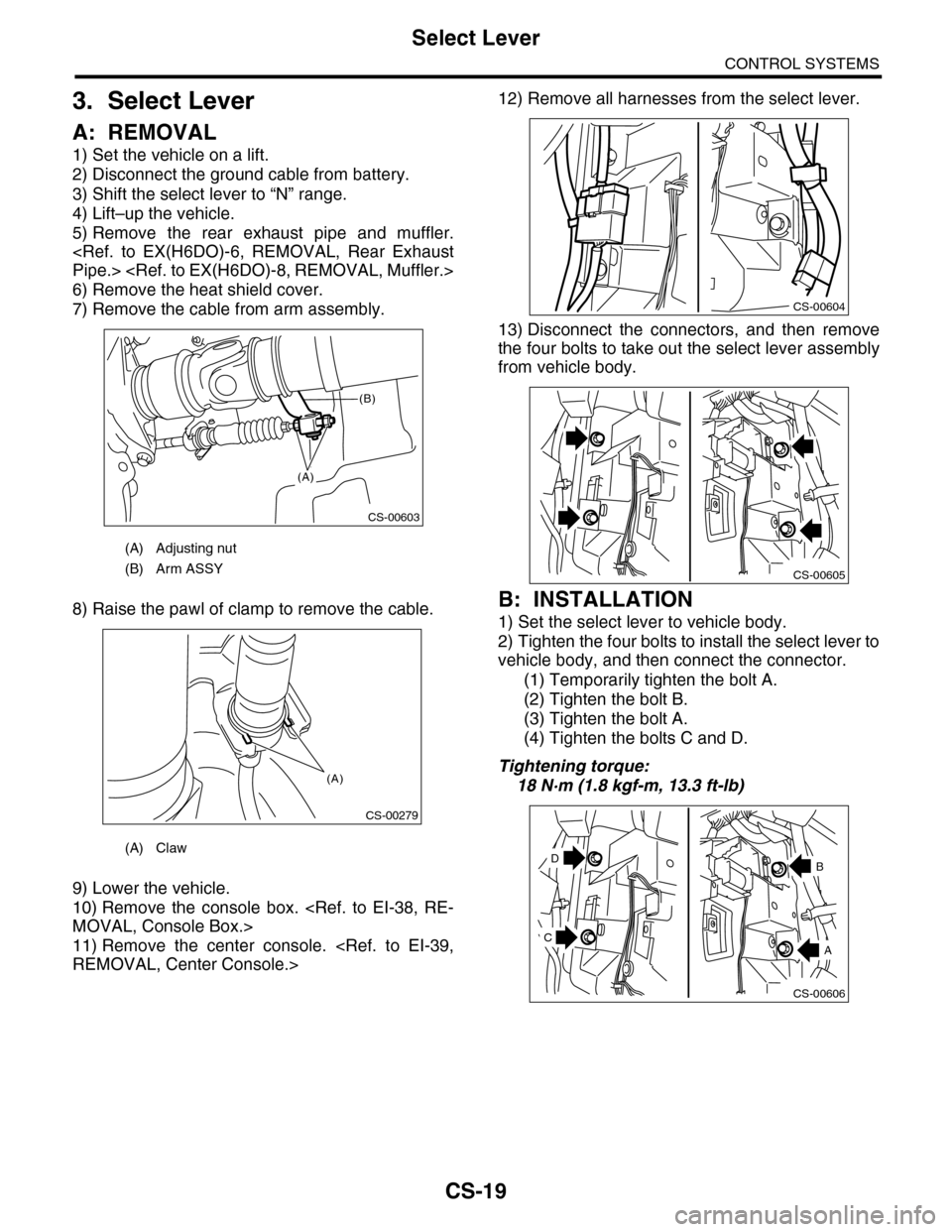

3. Select Lever
A: REMOVAL
1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Shift the select lever to “N” range.
4) Lift–up the vehicle.
5) Remove the rear exhaust pipe and muffler.
Pipe.>
6) Remove the heat shield cover.
7) Remove the cable from arm assembly.
8) Raise the pawl of clamp to remove the cable.
9) Lower the vehicle.
10) Remove the console box. MOVAL, Console Box.>
11) Remove the center console. REMOVAL, Center Console.>
12) Remove all harnesses from the select lever.
13) Disconnect the connectors, and then remove
the four bolts to take out the select lever assembly
from vehicle body.
B: INSTALLATION
1) Set the select lever to vehicle body.
2) Tighten the four bolts to install the select lever to
vehicle body, and then connect the connector.
(1) Temporarily tighten the bolt A.
(2) Tighten the bolt B.
(3) Tighten the bolt A.
(4) Tighten the bolts C and D.
Tightening torque:
18 N·m (1.8 kgf-m, 13.3 ft-lb)
(A) Adjusting nut
(B) Arm ASSY
(A) Claw
CS-00603
(A)
(B)
CS-00279
(A)
CS-00604
CS-00605
CS-00606
D
A
B
C

CS-20
Select Lever
CONTROL SYSTEMS

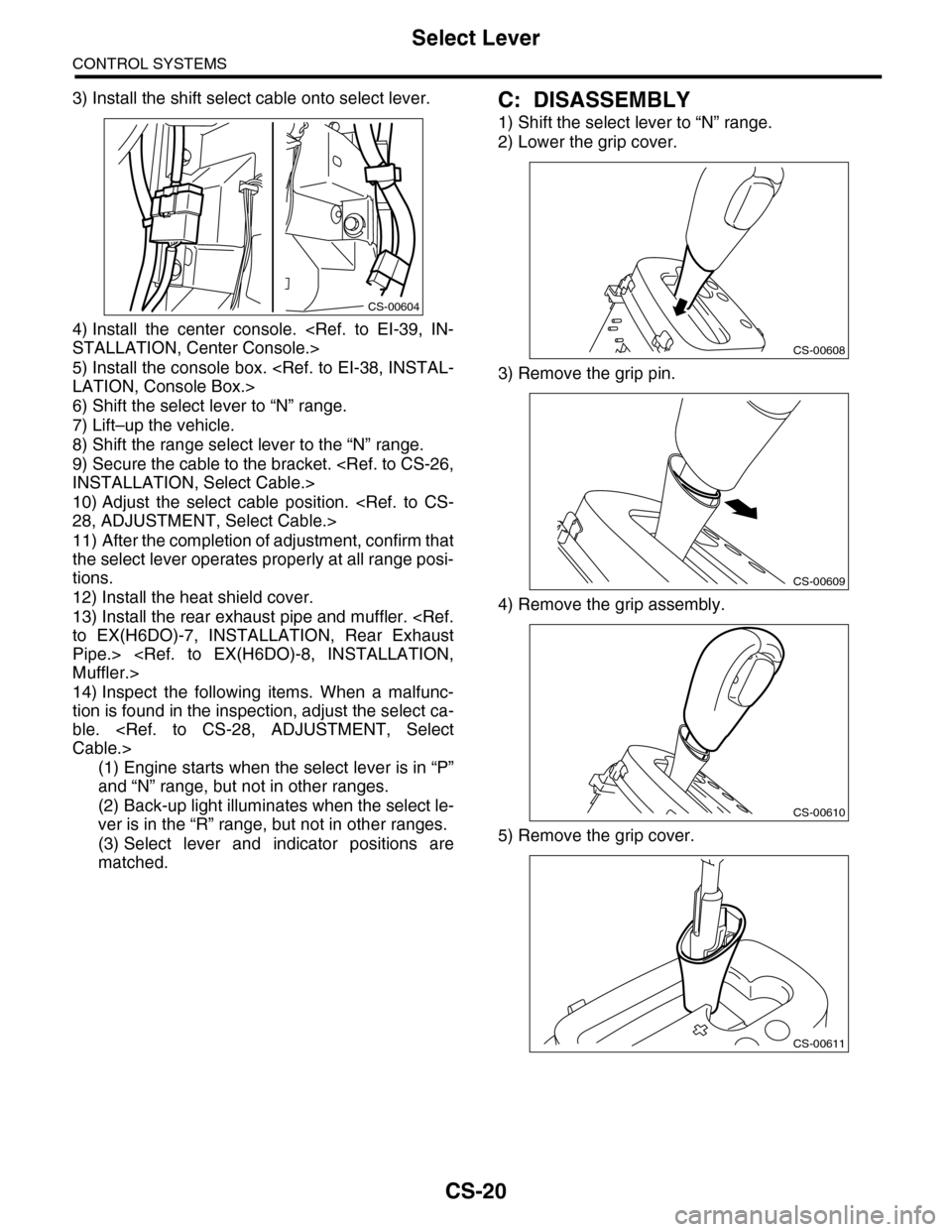

3) Install the shift select cable onto select lever.
4) Install the center console. STALLATION, Center Console.>
5) Install the console box. LATION, Console Box.>
6) Shift the select lever to “N” range.
7) Lift–up the vehicle.
8) Shift the range select lever to the “N” range.
9) Secure the cable to the bracket. INSTALLATION, Select Cable.>
10) Adjust the select cable position. 28, ADJUSTMENT, Select Cable.>
11) After the completion of adjustment, confirm that
the select lever operates properly at all range posi-
tions.
12) Install the heat shield cover.
13) Install the rear exhaust pipe and muffler. to EX(H6DO)-7, INSTALLATION, Rear Exhaust
Pipe.> Muffler.>
14) Inspect the following items. When a malfunc-
tion is found in the inspection, adjust the select ca-
ble. Cable.>
(1) Engine starts when the select lever is in “P”
and “N” range, but not in other ranges.
(2) Back-up light illuminates when the select le-
ver is in the “R” range, but not in other ranges.
(3) Select lever and indicator positions are
matched.
C: DISASSEMBLY
1) Shift the select lever to “N” range.
2) Lower the grip cover.
3) Remove the grip pin.
4) Remove the grip assembly.
5) Remove the grip cover.
CS-00604
CS-00608
CS-00609
CS-00610
CS-00611

CS-21
Select Lever
CONTROL SYSTEMS
6) Remove the indicator lamp and then remove the
bulb.
7) Remove the shift lock solenoid assembly.
8) Remove the indicator assembly.
9) Remove the bulb case.
10) Remove the plate lamp guide.
11) Remove the position plate.
12) Remove the blind assembly.
CS-00612
CS-00613
CS-00614
CS-00615
CS-00616
ST-00617
CS-00618

CS-22
Select Lever
CONTROL SYSTEMS
13) Remove blind A and B.
14) Remove the clip while being careful not to
break the pin, and remove all switches.
15) Remove the connector from the base assembly
using a flat-tip screwdriver.
16) Remove all terminals from the connectors us-
ing a flat-tip screwdriver.
17) Remove the shift lock solenoid from the lock le-
ver bracket.
18) Remove the bushing.
19) Remove the lock lever bushing.
(A) Blind A
(B) Blind B
(A) Shift-up switch
(B) Shift-down switch
(C) “P” range switch
CS-00619
(A)
(B)
CS-00620
(A)(B)
(C)
CS-00621
CS-00622
5432112 11 10 9876
CS-00623
CS-00624
CS-00645

CS-23
Select Lever
CONTROL SYSTEMS
20) Remove the lock lever.
21) Remove the release rod and spring.
22) Remove the cable bracket.
23) Remove the spacer.
24) Remove the dust cover and dust cover bracket.
25) Remove the spacer.
26) Using a press, remove the shift position pin.
27) Remove the clips, then remove the shaft.
28) Remove the arm assembly.
CS-00625
CS-00626
CS-00627
CS-00628
(A) Dust cover
(B) Dust cover bracket
CS-00629
(B)(A)
CS-00630
CS-00631
CS-00632

CS-24
Select Lever
CONTROL SYSTEMS

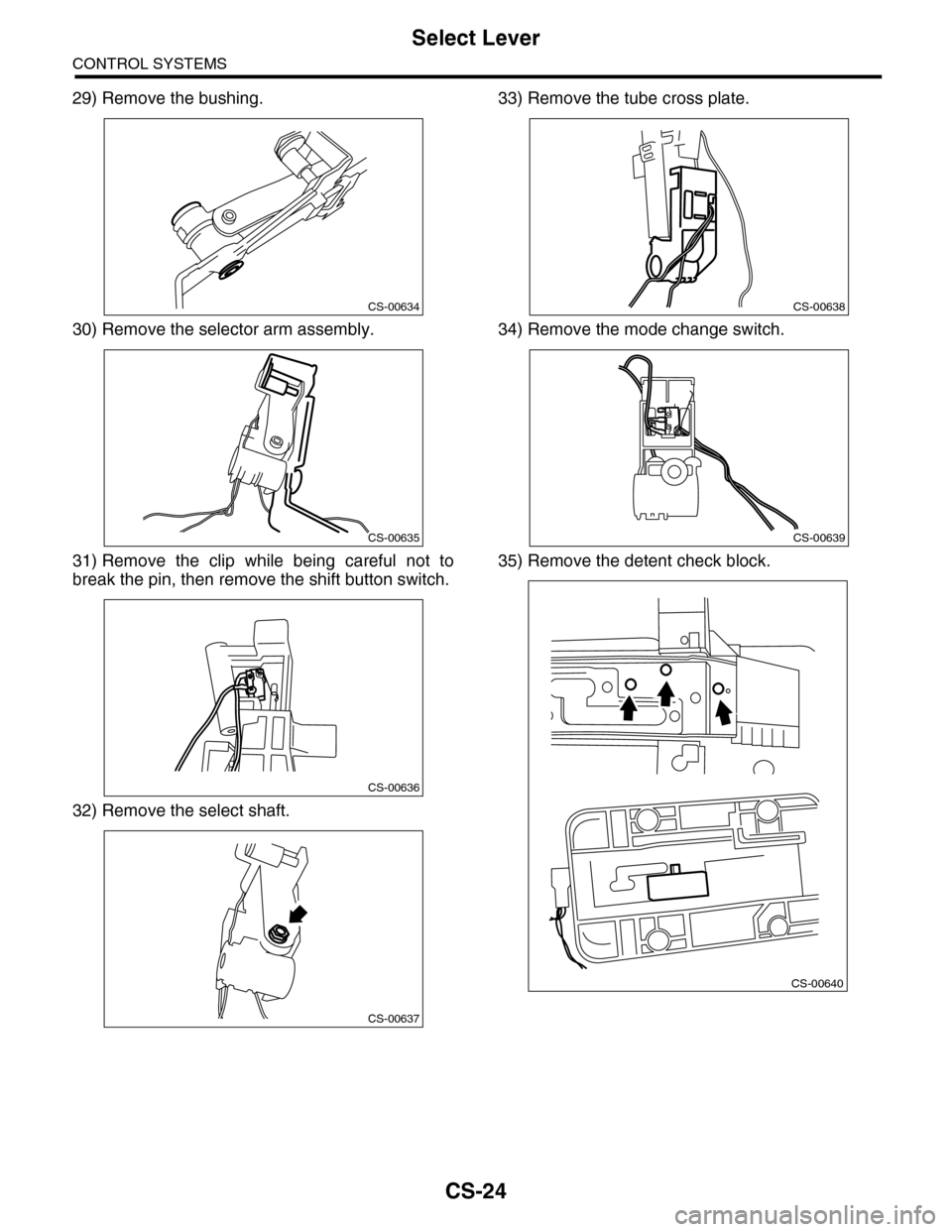

29) Remove the bushing.
30) Remove the selector arm assembly.
31) Remove the clip while being careful not to
break the pin, then remove the shift button switch.
32) Remove the select shaft.
33) Remove the tube cross plate.
34) Remove the mode change switch.
35) Remove the detent check block.
CS-00634
CS-00635
CS-00636
CS-00637
CS-00638
CS-00639
CS-00640

CS-25
Select Lever
CONTROL SYSTEMS
D: ASSEMBLY
1) Clean all the parts before assembly.
2) Apply grease [Multemp AC-D, and SH-W or
equivalent] to each part. LECT LEVER, COMPONENT, General Descrip-
tion.>
3) Assemble in the reverse order of disassembly.
NOTE:
•Refer to “COMPONENT” for each tightening
torque. PONENT, General Description.>
•When pressing in the shift position pin, insert
from the left side of the vehicle.
•Affix the harness of the shift button switch and
the mode change switch at the marked positions.
•Connect the terminals of all switches to the re-
spective connectors.
4) After completing installation, shift the select le-
ver from the “P” range to the “D” range, then check
whether or not the selection indicator in the combi-
nation meter and the select lever position matches.
Also check whether the pointer and position mark
matches, and what the operating force is.
E: INSPECTION
1) Inspect the removed parts by comparing with
new ones for deformation, damage and wear. Re-
pair or replace if defective.
2) Confirm the select lever operating condition be-
fore assembly. Normal if it operates smoothly. CS-00641
(A) Mode change switch (color code: Yellow)
(B) Shift button switch (color code: Brown)
(C) Mode change switch and shift button switch
ground (color code: White)
(D) Shift up switch (color code: Green)
(E) Shift up switch (color code: Gray)
(F) Shift up/down switch ground (color code: Blue)
(G) “P” range switch (wire color: Red)
(H) Shift lock solenoid (color code: Blue)
(I) Shift lock solenoid (color code: Black)
(J) Indicator lamp (color code: Blue)
CS-00642
5432112 11 10 9876
(J)
(J)(F)(E)(D)(A)(B)(C)
(H) (G)(I)

CS-26
Select Cable
CONTROL SYSTEMS

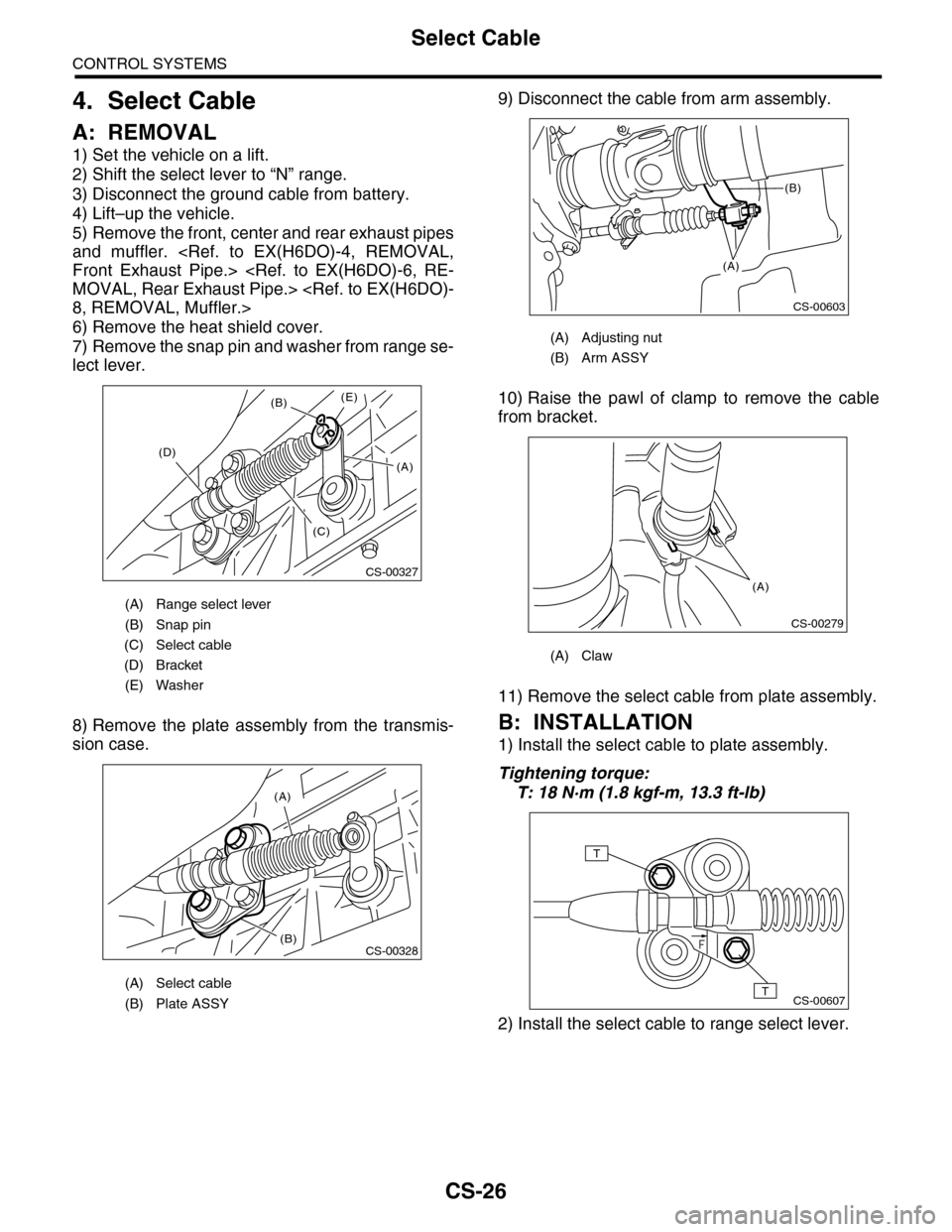

4. Select Cable
A: REMOVAL
1) Set the vehicle on a lift.
2) Shift the select lever to “N” range.
3) Disconnect the ground cable from battery.
4) Lift–up the vehicle.
5) Remove the front, center and rear exhaust pipes
and muffler. Front Exhaust Pipe.> MOVAL, Rear Exhaust Pipe.> 8, REMOVAL, Muffler.>
6) Remove the heat shield cover.
7) Remove the snap pin and washer from range se-
lect lever.
8) Remove the plate assembly from the transmis-
sion case.
9) Disconnect the cable from arm assembly.
10) Raise the pawl of clamp to remove the cable
from bracket.
11) Remove the select cable from plate assembly.
B: INSTALLATION
1) Install the select cable to plate assembly.
Tightening torque:
T: 18 N·m (1.8 kgf-m, 13.3 ft-lb)
2) Install the select cable to range select lever.
(A) Range select lever
(B) Snap pin
(C) Select cable
(D) Bracket
(E) Washer
(A) Select cable
(B) Plate ASSY
CS-00327
(B)
(D)
(C)
(E)
(A)
(A)
(B)CS-00328
(A) Adjusting nut
(B) Arm ASSY
(A) Claw
CS-00603
(A)
(B)
CS-00279
(A)
CS-00607
T
T

CS-27
Select Cable
CONTROL SYSTEMS
3) Install the plate assembly to transmission.
Tightening torque:
24.5 N·m (2.5 kgf-m, 18.1 ft-lb)
4) Install the washer and snap pin to range select
lever.
5) Install new clamp paying attention to the install-
ing direction.
6) Insert the tip of inner cable into connector hole of
select lever, and fix the cable to bracket.
7) Shift the select lever to the “N” range, and then
adjust the select cable position. ADJUSTMENT, Select Cable.>
8) Install the heat shield cover.
9) Install the front, center and rear exhaust pipe,
and the muffler. TION, Front Exhaust Pipe.> INSTALLATION, Rear Exhaust Pipe.> EX(H6DO)-8, INSTALLATION, Muffler.>
C: INSPECTION
Check the removed cable and replace or adjust if
damaged, rusty or malfunctioning.
1) Check the cable for smooth operation.
2) Check the inner cable for damage and rust.
3) Check the outer cable for damage, bends and
cracks.
4) Check the boot for damage, cracks and deterio-
ration.
5) Move the select lever from “P” to “D” range.
Check the existence of feel to contact the detents in
each range. If the detents cannot be felt or the po-
sition pointer is improperly aligned, adjust the ca-
ble.
6) Check if the starter motor rotates when the se-
lect lever is set to “P” range.
7) Check the back-up light illumination when the
select lever is in “R” range.
8) Check the parking lock operation when the se-
lect lever is in “P” range.
9) Check that the AT shift lock system operates
normally.
(A) Select cable
(B) Plate ASSY
(A) Range select lever
(B) Snap pin
(C) Select cable
(D) Bracket
(E) Washer
(A) Clamp
(B) Forward
(A)
(B)CS-00328
CS-00327
(B)
(D)
(C)
(E)
(A)
CS-00643
(A)
(B)
C
C
CS-00535

CS-28
Select Cable
CONTROL SYSTEMS
D: ADJUSTMENT
1) Shift the select lever to “N” range.
2) Remove the rear exhaust pipe and muffler.
Pipe.>
3) Remove the heat shield cover.
4) Loosen the adjusting nuts on both sides.
5) With the select lever pushed towards the rear of
the vehicle, turn the adjustment nut B until it just
contacts the connector. Then loosen the nut for a
half a turn.
6) Set a spanner wrench to adjusting nut B so that
it does not rotate, and then tighten the adjusting nut
A.
Tightening torque:
7.5 N·m (0.76 kgf-m, 5.5 ft-lb)
7) After the completion of adjustment, confirm that
the select lever operates normally at all ranges.
8) Install in the reverse order of removal.
(A) Adjusting nut A
(B) Adjusting nut B
(A) Forward side
(B) Select Lever
(C) Connector
(D) Adjusting nut B
(E) Contact point
(F) Adjusting nut A
CS-00040
( A )( B )
CS-00041
(A)
(B)
(C)
(D)
(E)
(F)
(A) Adjusting nut A
(B) Adjusting nut B
CS-00042
( A )( B )
