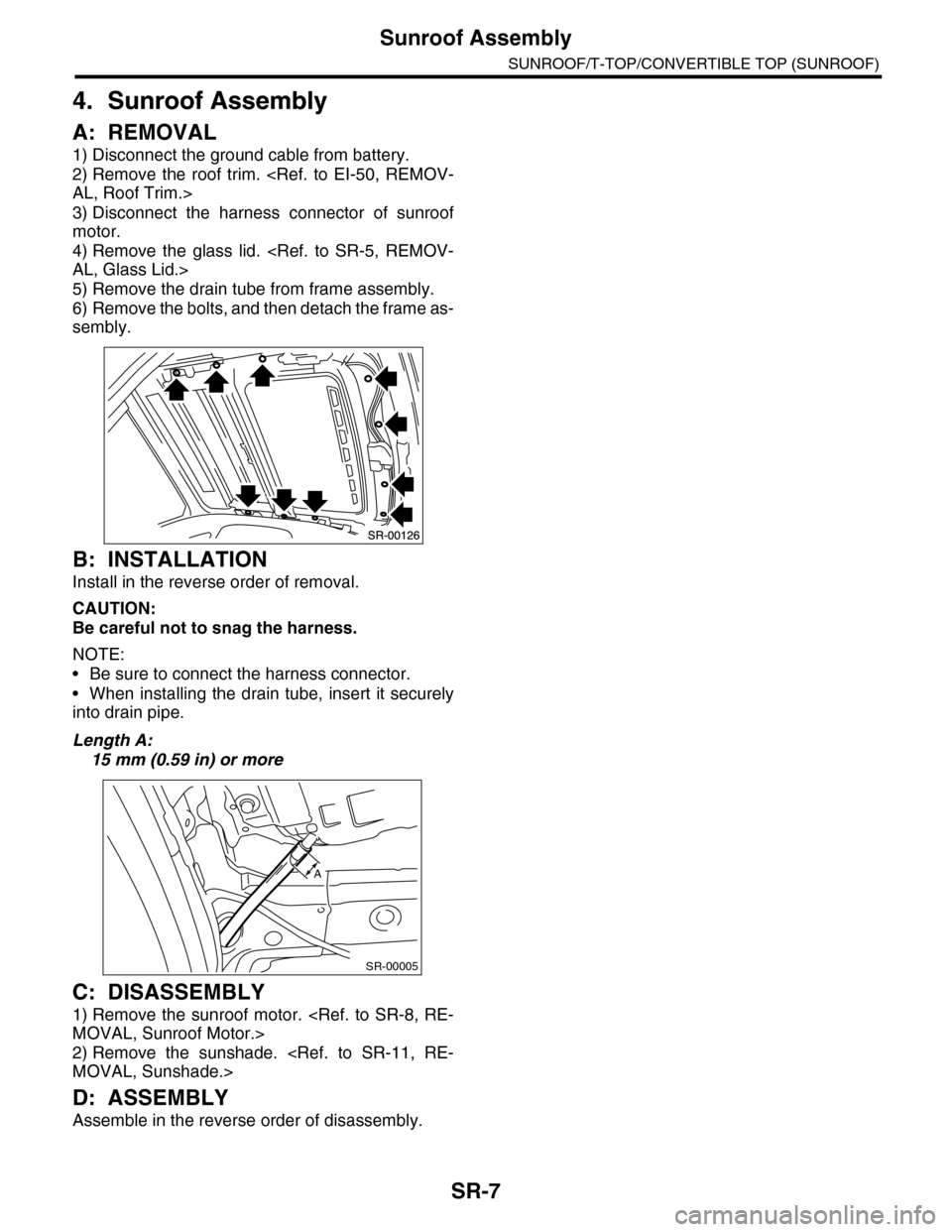

SR-7
Sunroof Assembly
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
4. Sunroof Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the roof trim. AL, Roof Trim.>
3) Disconnect the harness connector of sunroof
motor.
4) Remove the glass lid. AL, Glass Lid.>
5) Remove the drain tube from frame assembly.
6) Remove the bolts, and then detach the frame as-
sembly.
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to snag the harness.
NOTE:
•Be sure to connect the harness connector.
•When installing the drain tube, insert it securely
into drain pipe.
Length A:
15 mm (0.59 in) or more
C: DISASSEMBLY
1) Remove the sunroof motor. MOVAL, Sunroof Motor.>
2) Remove the sunshade. MOVAL, Sunshade.>
D: ASSEMBLY
Assemble in the reverse order of disassembly.
SR-00005
A

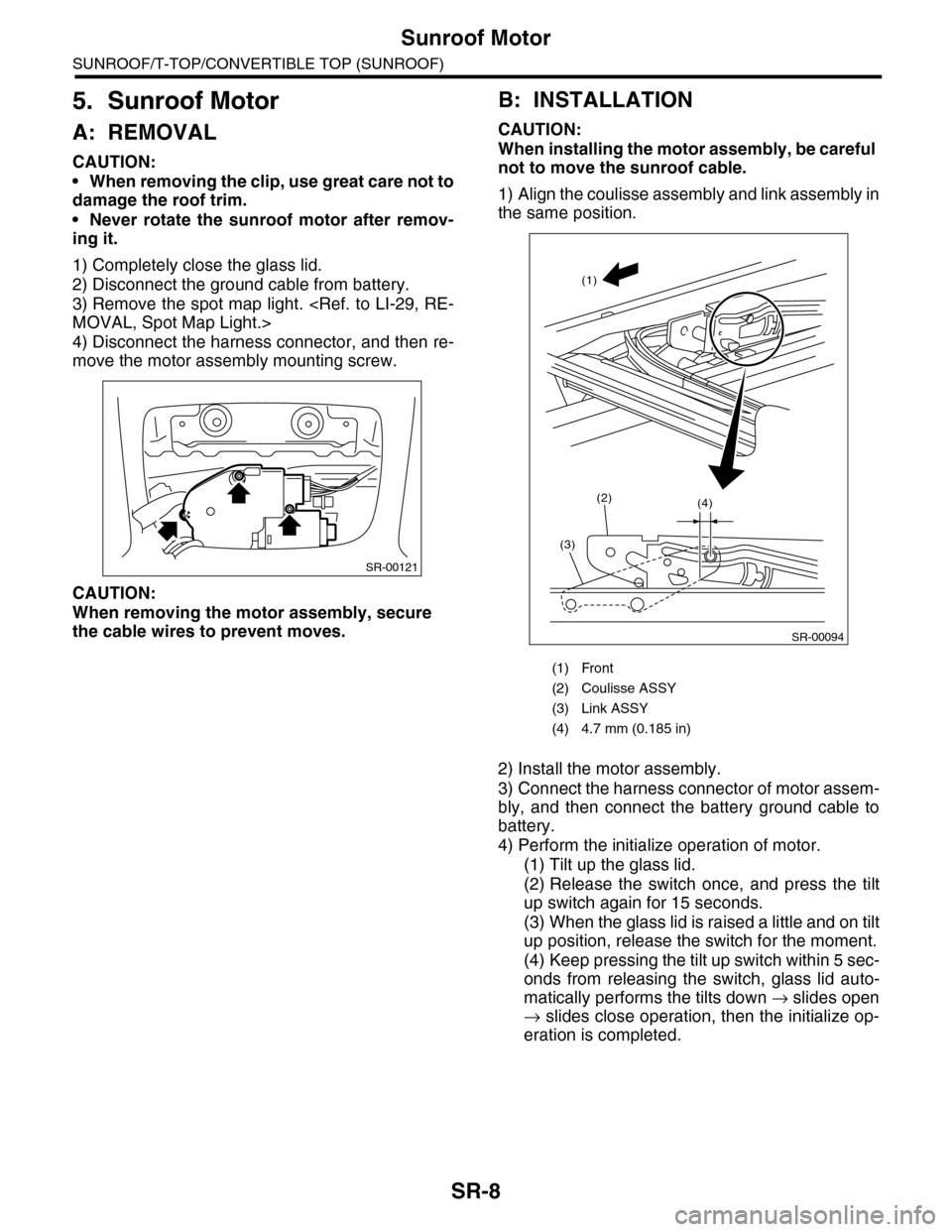

SR-8
Sunroof Motor
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
5. Sunroof Motor
A: REMOVAL
CAUTION:
•When removing the clip, use great care not to
damage the roof trim.
•Never rotate the sunroof motor after remov-
ing it.
1) Completely close the glass lid.
2) Disconnect the ground cable from battery.
3) Remove the spot map light. MOVAL, Spot Map Light.>
4) Disconnect the harness connector, and then re-
move the motor assembly mounting screw.
CAUTION:
When removing the motor assembly, secure
the cable wires to prevent moves.
B: INSTALLATION
CAUTION:
When installing the motor assembly, be careful
not to move the sunroof cable.
1) Align the coulisse assembly and link assembly in
the same position.
2) Install the motor assembly.
3) Connect the harness connector of motor assem-
bly, and then connect the battery ground cable to
battery.
4) Perform the initialize operation of motor.
(1) Tilt up the glass lid.
(2) Release the switch once, and press the tilt
up switch again for 15 seconds.
(3) When the glass lid is raised a little and on tilt
up position, release the switch for the moment.
(4) Keep pressing the tilt up switch within 5 sec-
onds from releasing the switch, glass lid auto-
matically performs the tilts down → slides open
→ slides close operation, then the initialize op-
eration is completed.
SR-00121
(1) Front
(2) Coulisse ASSY
(3) Link ASSY
(4) 4.7 mm (0.185 in)
SR-00094
(1)
(3)
(2)(4)

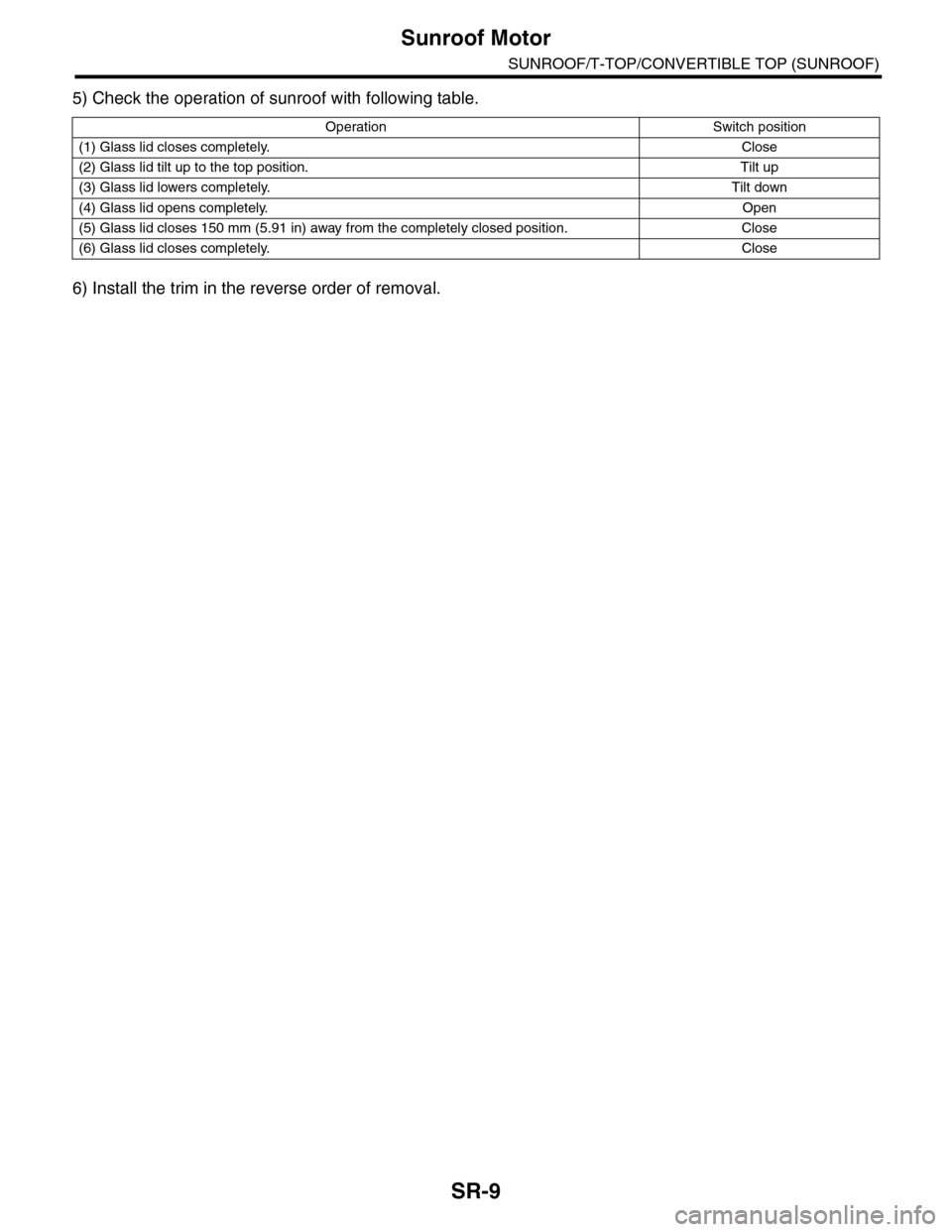

SR-9
Sunroof Motor
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
5) Check the operation of sunroof with following table.
6) Install the trim in the reverse order of removal.
Operation Switch position
(1) Glass lid closes completely.Close
(2) Glass lid tilt up to the top position. Tilt up
(3) Glass lid lowers completely.Tilt down
(4) Glass lid opens completely.Open
(5) Glass lid closes 150 mm (5.91 in) away from the completely closed position. Close
(6) Glass lid closes completely.Close

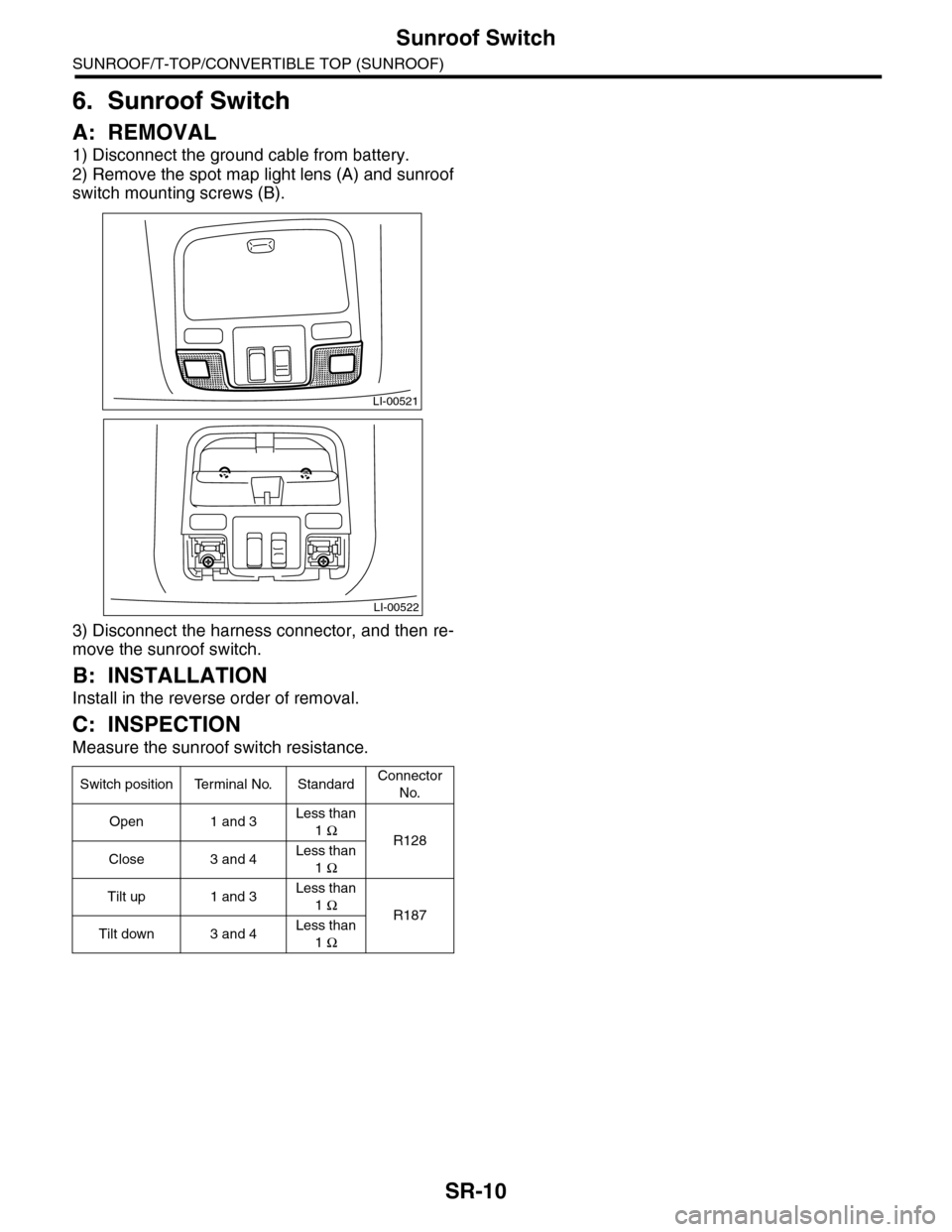

SR-10
Sunroof Switch
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
6. Sunroof Switch
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the spot map light lens (A) and sunroof
switch mounting screws (B).
3) Disconnect the harness connector, and then re-
move the sunroof switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the sunroof switch resistance.
Switch position Terminal No. StandardConnector
No.
Open 1 and 3Less than
1 ΩR128
Close 3 and 4Less than
1 Ω
Tilt up 1 and 3Less than
1 ΩR187
Tilt down 3 and 4Less than
1 Ω
LI-00521
LI-00522

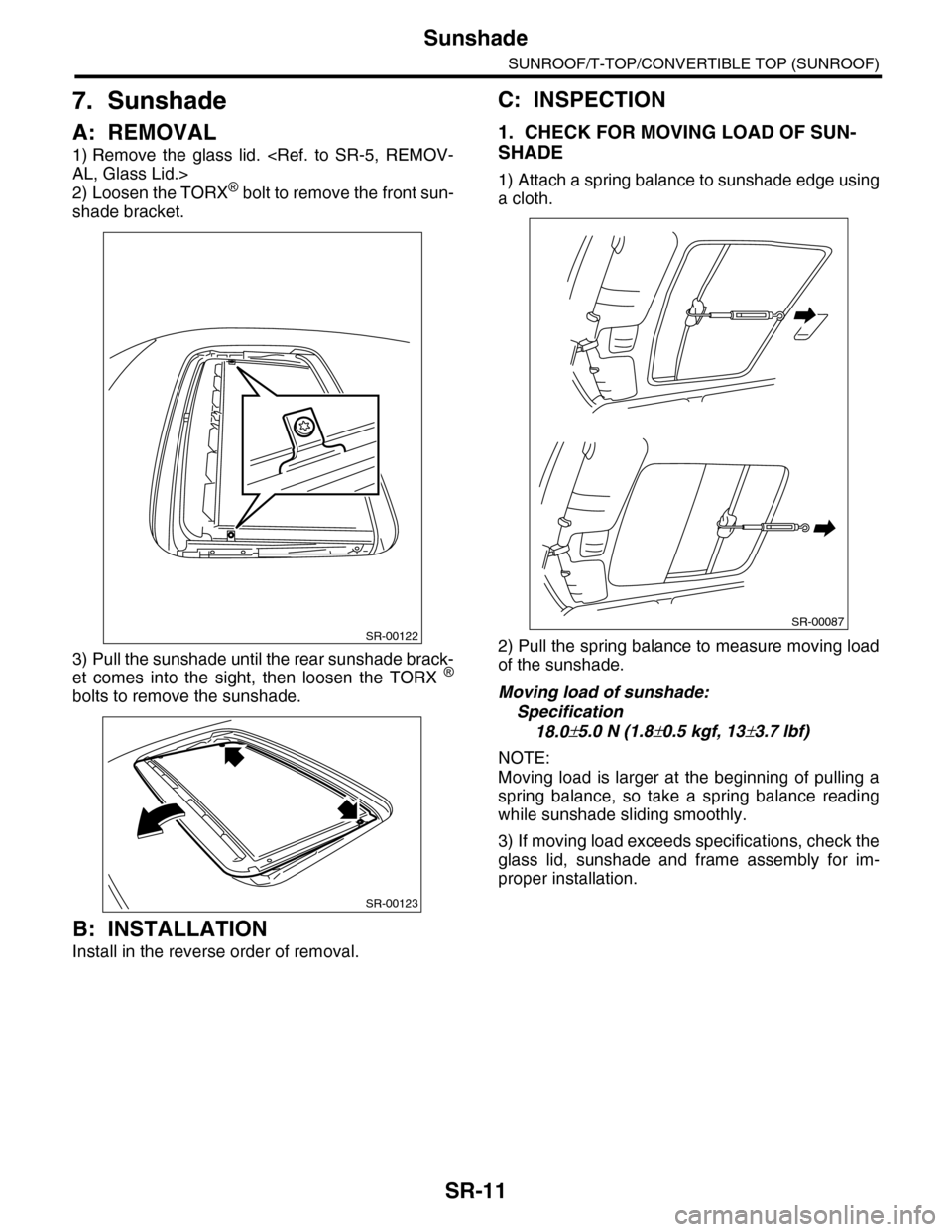

SR-11
Sunshade
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
7. Sunshade
A: REMOVAL
1) Remove the glass lid. AL, Glass Lid.>
2) Loosen the TORX® bolt to remove the front sun-
shade bracket.
3) Pull the sunshade until the rear sunshade brack-
et comes into the sight, then loosen the TORX ®
bolts to remove the sunshade.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. CHECK FOR MOVING LOAD OF SUN-
SHADE
1) Attach a spring balance to sunshade edge using
a cloth.
2) Pull the spring balance to measure moving load
of the sunshade.
Moving load of sunshade:
Specification
18.0±5.0 N (1.8±0.5 kgf, 13±3.7 lbf)
NOTE:
Moving load is larger at the beginning of pulling a
spring balance, so take a spring balance reading
while sunshade sliding smoothly.
3) If moving load exceeds specifications, check the
glass lid, sunshade and frame assembly for im-
proper installation.
SR-00122
SR-00123
SR-00087

SR-12
Sunshade
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

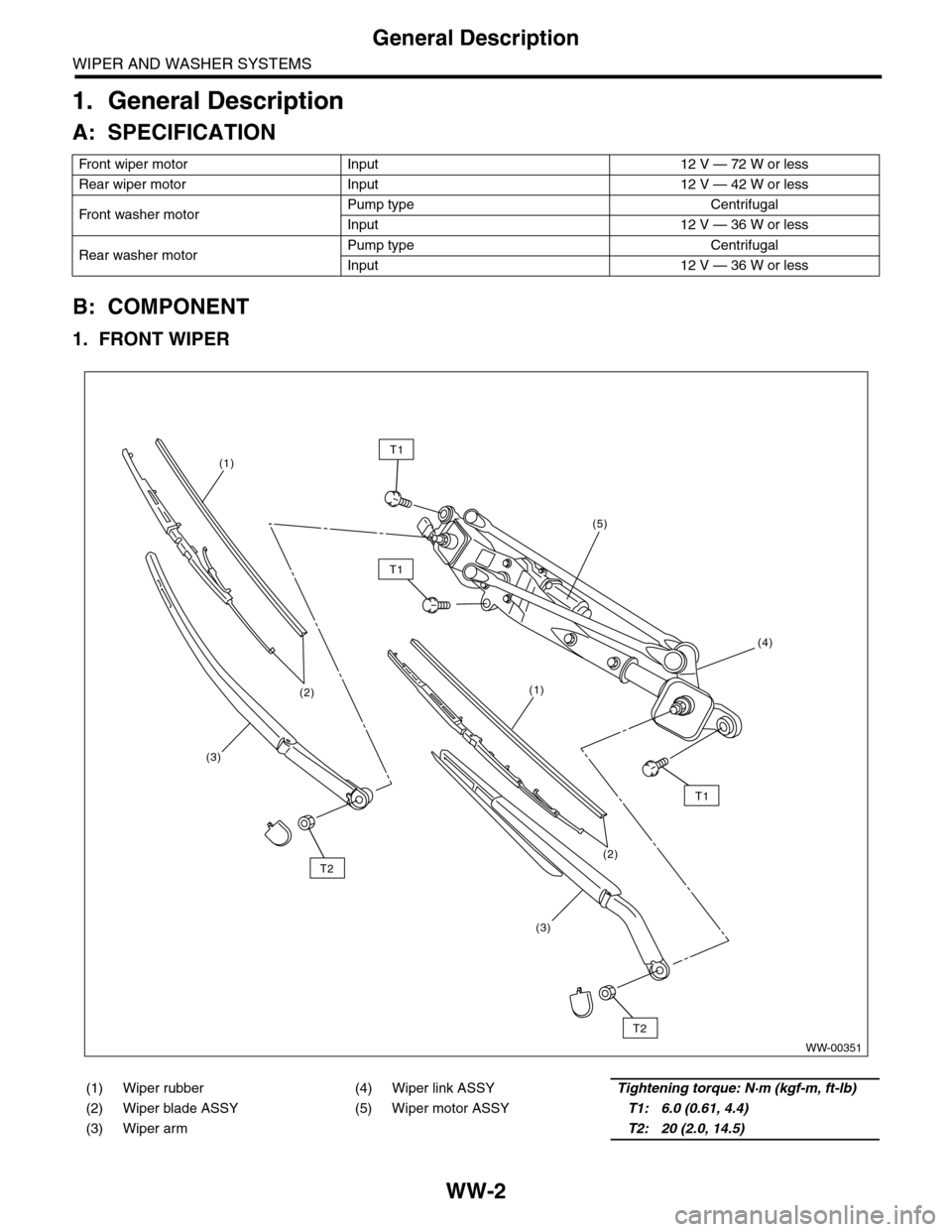

WW-2
General Description
WIPER AND WASHER SYSTEMS
1. General Description
A: SPECIFICATION
B: COMPONENT
1. FRONT WIPER
Fr o nt wi pe r mo t or In p ut 1 2 V — 72 W o r le ss
Rear wiper motor Input 12 V — 42 W or less
Fr o nt wa sh er mo t o rPump type Centrifugal
Input 12 V — 36 W or less
Rear washer motorPump type Centrifugal
Input 12 V — 36 W or less
(1) Wiper rubber (4) Wiper link ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Wiper blade ASSY (5) Wiper motor ASSYT1: 6.0 (0.61, 4.4)
(3) Wiper arm T2: 20 (2.0, 14.5)
WW-00351
T1
T1
T1
T2
T2
(3)
(3)
(2)
(2)(1)
(4)
(5)
(1)

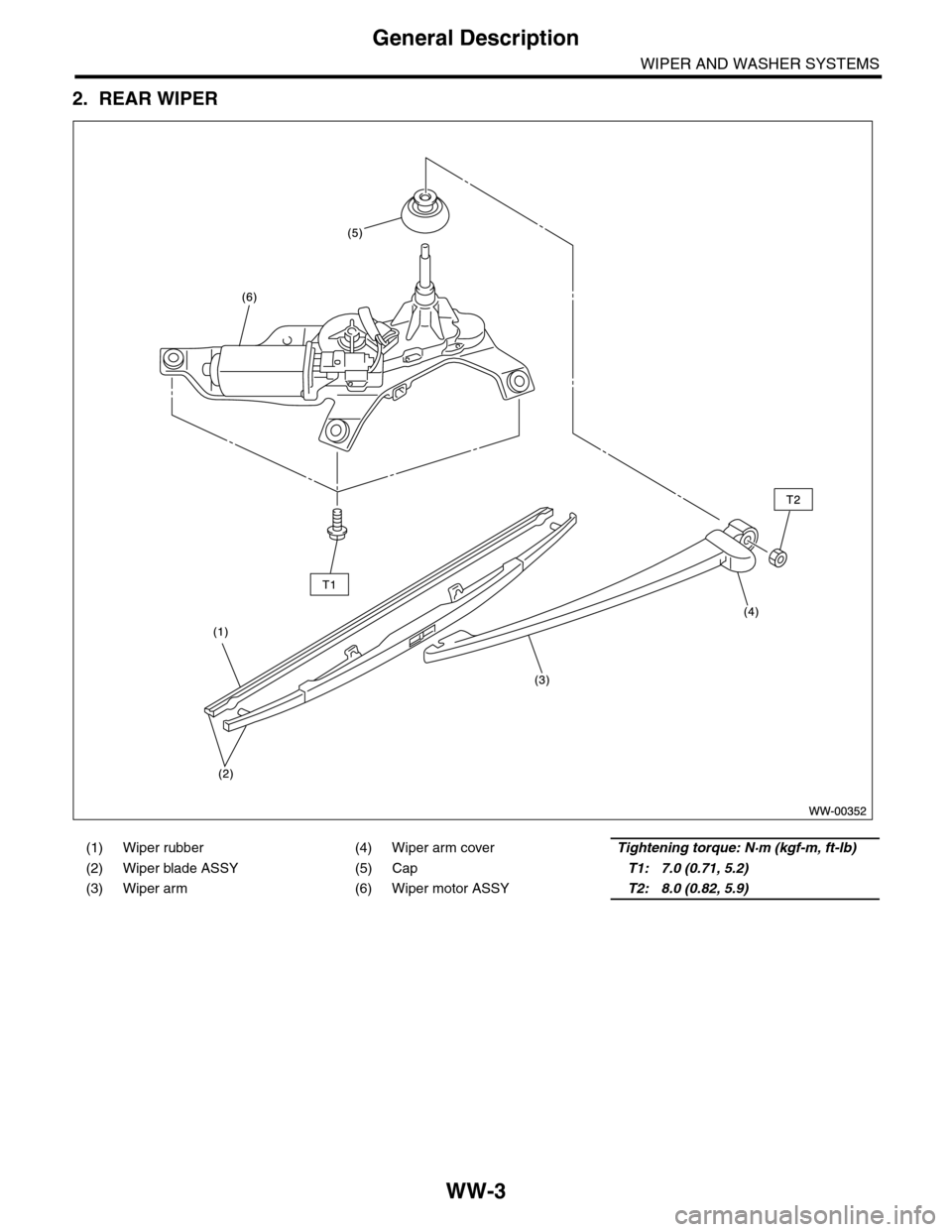

WW-3
General Description
WIPER AND WASHER SYSTEMS
2. REAR WIPER
(1) Wiper rubber (4) Wiper arm coverTightening torque: N·m (kgf-m, ft-lb)
(2) Wiper blade ASSY (5) CapT1: 7.0 (0.71, 5.2)
(3) Wiper arm (6) Wiper motor ASSYT2: 8.0 (0.82, 5.9)

WW-4
General Description
WIPER AND WASHER SYSTEMS
3. WASHER TANK
C: CAUTION
•Connect the connectors and hoses securely during reassembly.
•After reassembly, make sure functional parts operate smoothly.
•Be careful with the airbag system wire harness which passes near electrical parts and switches.
•All airbag system wiring harness and connectors are colored yellow. Do not use a tester equipment on
these circuits.
•Care must be taken when connecting the hoses to pipes so that there are no bends or blockage.
•If even a small amount of silicon oil or grease enters tank and washer fluid passages, an oil film will be
formed on the glass and will cause the wiper to chatter and judder. Make sure that no oil comes into contact
with the system.
(1) Washer nozzle (5) Front washer motorTightening torque: N·m (kgf-m, ft-lb)
(2) Washer hose (6) Rear washer motorT: 6.0 (0.61, 4.4)
(3) Washer tank (7) Grommet
(4) Washer tank cap (8) Washer motor cover

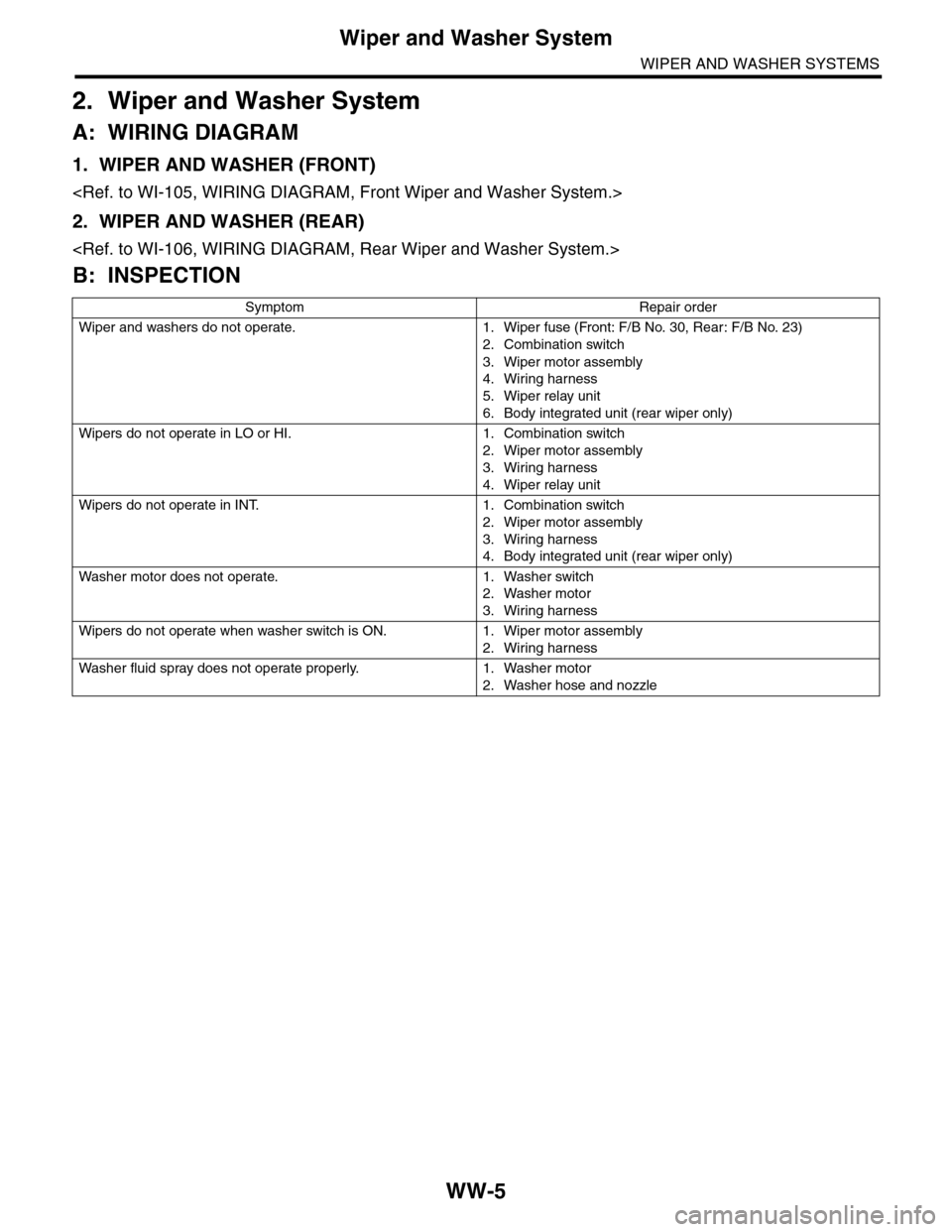

WW-5
Wiper and Washer System
WIPER AND WASHER SYSTEMS
2. Wiper and Washer System
A: WIRING DIAGRAM
1. WIPER AND WASHER (FRONT)

2. WIPER AND WASHER (REAR)

B: INSPECTION
Symptom Repair order
Wiper and washers do not operate. 1. Wiper fuse (Front: F/B No. 30, Rear : F/B No. 23)
2. Combination switch
3. Wiper motor assembly
4. Wiring harness
5. Wiper relay unit
6. Body integrated unit (rear wiper only)
Wipers do not operate in LO or HI. 1. Combination switch
2. Wiper motor assembly
3. Wiring harness
4. Wiper relay unit
Wipers do not operate in INT. 1. Combination switch
2. Wiper motor assembly
3. Wiring harness
4. Body integrated unit (rear wiper only)
Wa sh e r mo to r do e s n ot o pe ra t e. 1 . Wa sh e r swit c h
2. Washer motor
3. Wiring harness
Wipers do not operate when washer switch is ON. 1. Wiper motor assembly
2. Wiring harness
Wa sh e r fl u id sp ray do e s n ot op e ra te pr o p er l y. 1 . Wa sh e r m ot o r
2. Washer hose and nozzle
