SUBARU TRIBECA 2009 1.G Service Workshop Manual

BVC(diag)-6
Electrical Component Location
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
4. Electrical Component Location
A: LOCATION
(1) Brake vacuum pump relay (4) Test mode connector (6) Data link connector
(2) Brake vacuum pump (5) Engine control module (ECM) (7) Odo/trip meter
(3) Brake vacuum sensor
BR-00520
(1)
(2)(3)
(7)
(4)
(5)
(6)

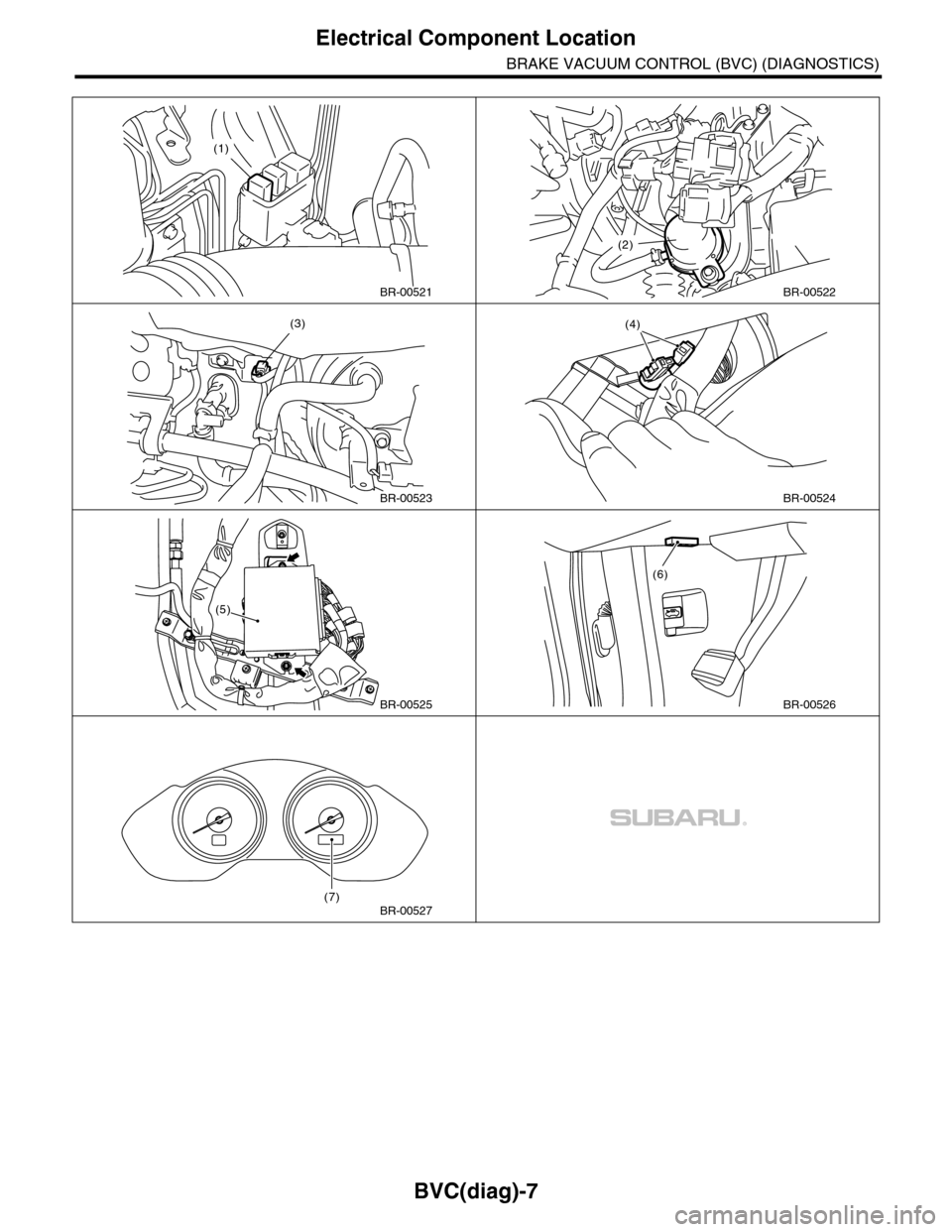

BVC(diag)-7
Electrical Component Location
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
BR-00521
(1)
BR-00522
(2)
BR-00523
(3)
BR-00524
(4)
BR-00525
(5)
BR-00526
(6)
BR-00527(7)

BVC(diag)-8
Engine Control Module (ECM) I/O Signal
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
5. Engine Control Module (ECM) I/O Signal
A: ELECTRICAL SPECIFICATION
DescriptionConnector
No.
Te r m i n a l
No.
Signal (V)
NOTEIgnition SW ON
(engine OFF)
Engine ON
(idling)
Brake vacuum
sensor
Signal B134 27 1 — 3.8 1 — 3.8 —
Pow er s up pl y B 1 35 2 2 5 5 —
Ground B135 30 0 0 —
Self-shutoff control B136 23 0 0 —
Brake vacuum
pump
Relay drive B136 8
10 — 13
(When the pump is OFF)
12 — 14
(When the pump is ON)—
0 (When the pump is ON) 0 (When the pump is ON)
Electric load B135 25
0 (When the pump is OFF) 0 (When the pump is OFF)
—10 — 13
(When the pump is ON)
12 — 14
(When the pump is ON)
SSM communication line B136 16 1 or less ←→ 4 or more 1 or less ←→ 4 or more —
EN-01812
B134
5678219431024 2223251112131415262728
1617181920213334 2932 3031
B136
5678219431024 2223251112131415262728
16171819202133342932303135
B135
5678219431024 2223251112131415262728
16171819202129303132333435
B137
5678219431022231112131415242526
1617181920212728293031
ToToToTo

BVC(diag)-9

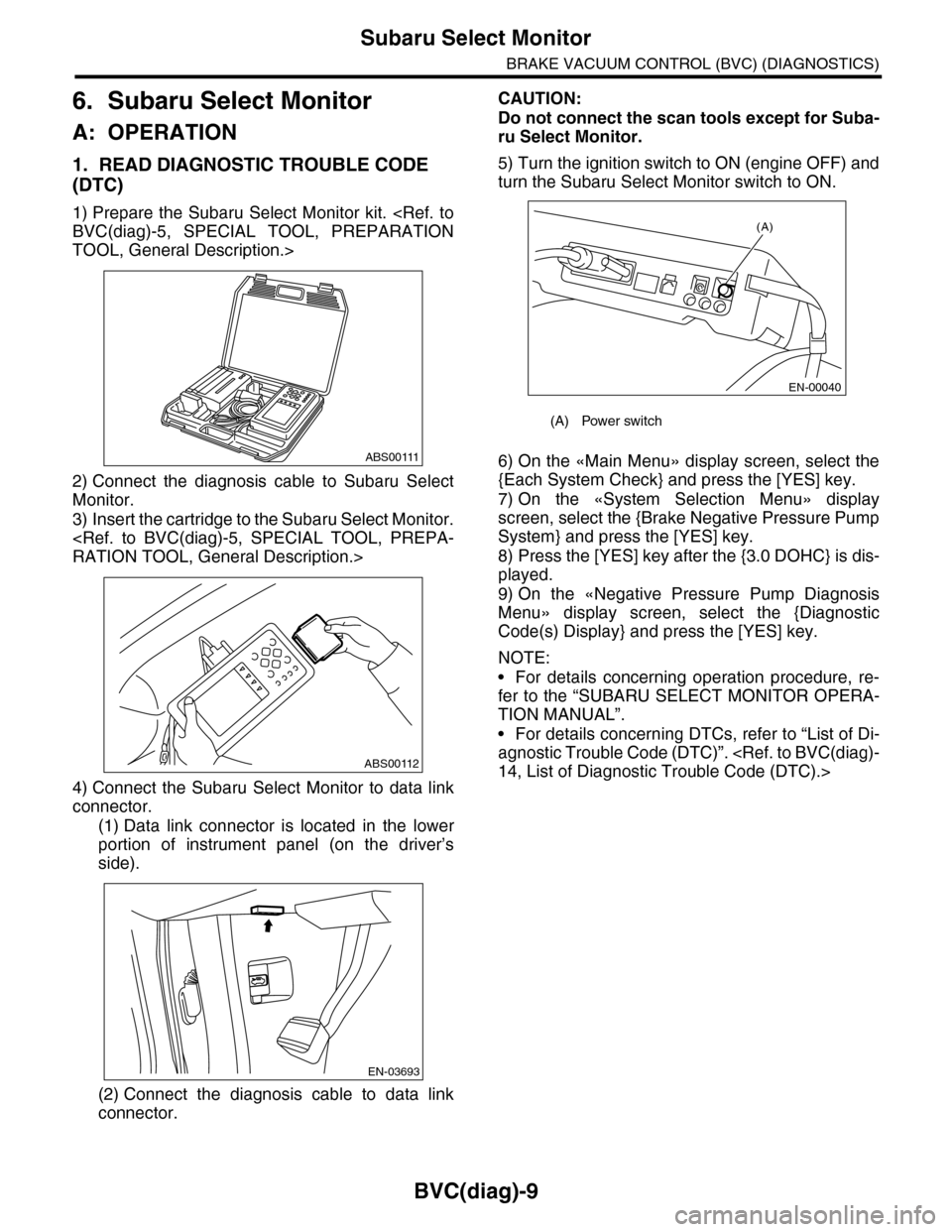

Subaru Select Monitor
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
6. Subaru Select Monitor
A: OPERATION
1. READ DIAGNOSTIC TROUBLE CODE
(DTC)
1) Prepare the Subaru Select Monitor kit. BVC(diag)-5, SPECIAL TOOL, PREPARATION
TOOL, General Description.>
2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge to the Subaru Select Monitor.
RATION TOOL, General Description.>
4) Connect the Subaru Select Monitor to data link
connector.
(1) Data link connector is located in the lower
portion of instrument panel (on the driver’s
side).
(2) Connect the diagnosis cable to data link
connector.
CAUTION:
Do not connect the scan tools except for Suba-
ru Select Monitor.
5) Turn the ignition switch to ON (engine OFF) and
turn the Subaru Select Monitor switch to ON.
6) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
7) On the «System Selection Menu» display
screen, select the {Brake Negative Pressure Pump
System} and press the [YES] key.
8) Press the [YES] key after the {3.0 DOHC} is dis-
played.
9) On the «Negative Pressure Pump Diagnosis
Menu» display screen, select the {Diagnostic
Code(s) Display} and press the [YES] key.
NOTE:
•For details concerning operation procedure, re-
fer to the “SUBARU SELECT MONITOR OPERA-
TION MANUAL”.
•For details concerning DTCs, refer to “List of Di-
agnostic Trouble Code (DTC)”. 14, List of Diagnostic Trouble Code (DTC).>
ABS00111
ABS00112
EN-03693
(A) Power switch
(A)
EN-00040

BVC(diag)-10
Subaru Select Monitor
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
2. READ CURRENT DATA
1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Brake Negative Pressure Pump System} and
press the [YES] key.
3) Press the [YES] key after the {3.0 DOHC} is displayed.
4) On the «Negative Pressure Diagnosis Menu» display screen, select the {Current Data Display/Save}, and
then press the [YES] key.
5) On the «Data Display Menu» screen, select the {Data Display} and press the [YES] key.
6) Using a scroll key, scroll the display screen up or down until necessary data is shown.
•A list of the support data is shown in the following table.
NOTE:
For details concerning operation procedure, refer to the “SUBARU SELECT MONITOR OPERATION MAN-
UAL”.
3. CLEAR MEMORY MODE
1) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display
screen, select the {Brake Negative Pressure Pump
System} and press the [YES] key.
3) Press the [YES] key after the {3.0 DOHC} is dis-
played.
4) On the «Negative Pressure Pump Diagnosis
Menu» display screen, select the {Clear Memory}
and press the [YES] key.
5) When “Done” and “Turn ignition switch OFF” are
shown on the display screen, turn the Subaru Se-
lect Monitor and ignition switch to OFF.
NOTE:
For details concerning operation procedure, refer
to the “SUBARU SELECT MONITOR OPERATION
MANUAL”.
4. FUNCTION CHECK MODE
1) Connect the test mode connector located under
the glove box.
2) Turn the ignition switch to ON (engine OFF) and
turn the Subaru Select Monitor switch to ON.
3) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
4) On the «System Selection Menu» display
screen, select the {Brake Negative Pressure Pump
System} and press the [YES] key.
5) Press the [YES] key after the {3.0 DOHC} is dis-
played.
6) On the «Negative Pressure Pump Diagnosis
Menu» display screen, select the {Function Check
Mode} and press the [YES] key.
7) When the “Start Function Check Mode” is shown
on the screen, press the [YES] key.
8) When the “Depress the Brake Pedal 5 Times” is
shown on the screen, depress the brake pedal 5
times, and press the [YES] key while brake pedal is
not depressed.
9) Press the [YES] key after the {OK} is displayed.
Display Contents to be monitored Unit of measure
Atmospheric pressure Atmospheric pressure is displayed. mmHg, kPa or psig
Brake booster pressure Brake booster pressure is displayed. mmHg, kPa or psig
Te s t m o d e t e r m i n a l Te s t m o d e t e r m i n a l c o n n e c t i o n s t a t u s i s d i s p l a y e d . D C h e c k o r U C h e c k
Negative pressure pump motor Negative pressure motor operating status is displayed. ON or OFF
Negative pressure pump motor relay Negative pressure pump motor relay operating status is displayed. ON or OFF
Display Contents to be monitored
Clear Memory? DTC deleting function
(A) Test mode connector
EN-03694
(4)

BVC(diag)-11

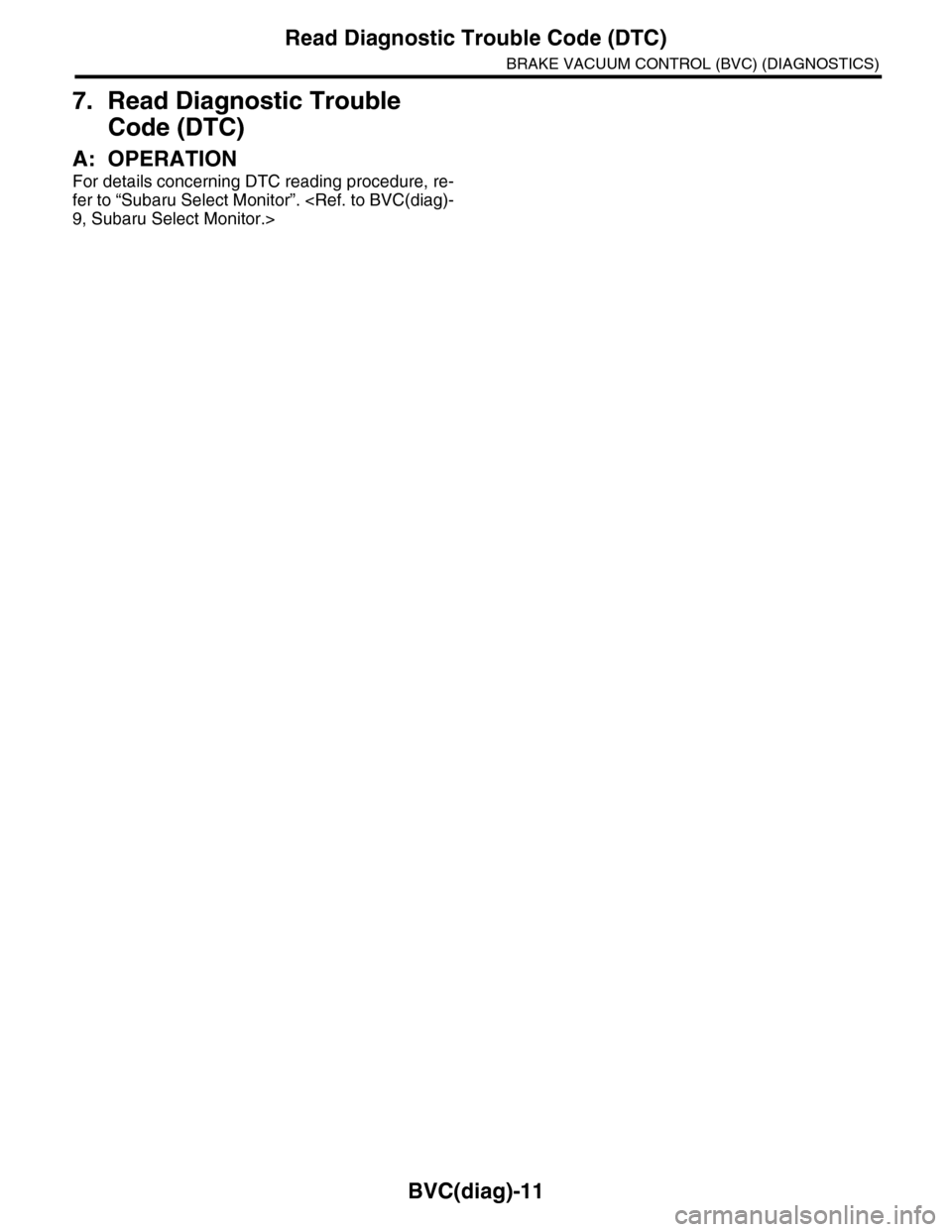

Read Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
7. Read Diagnostic Trouble
Code (DTC)
A: OPERATION
For details concerning DTC reading procedure, re-
fer to “Subaru Select Monitor”. 9, Subaru Select Monitor.>

BVC(diag)-12

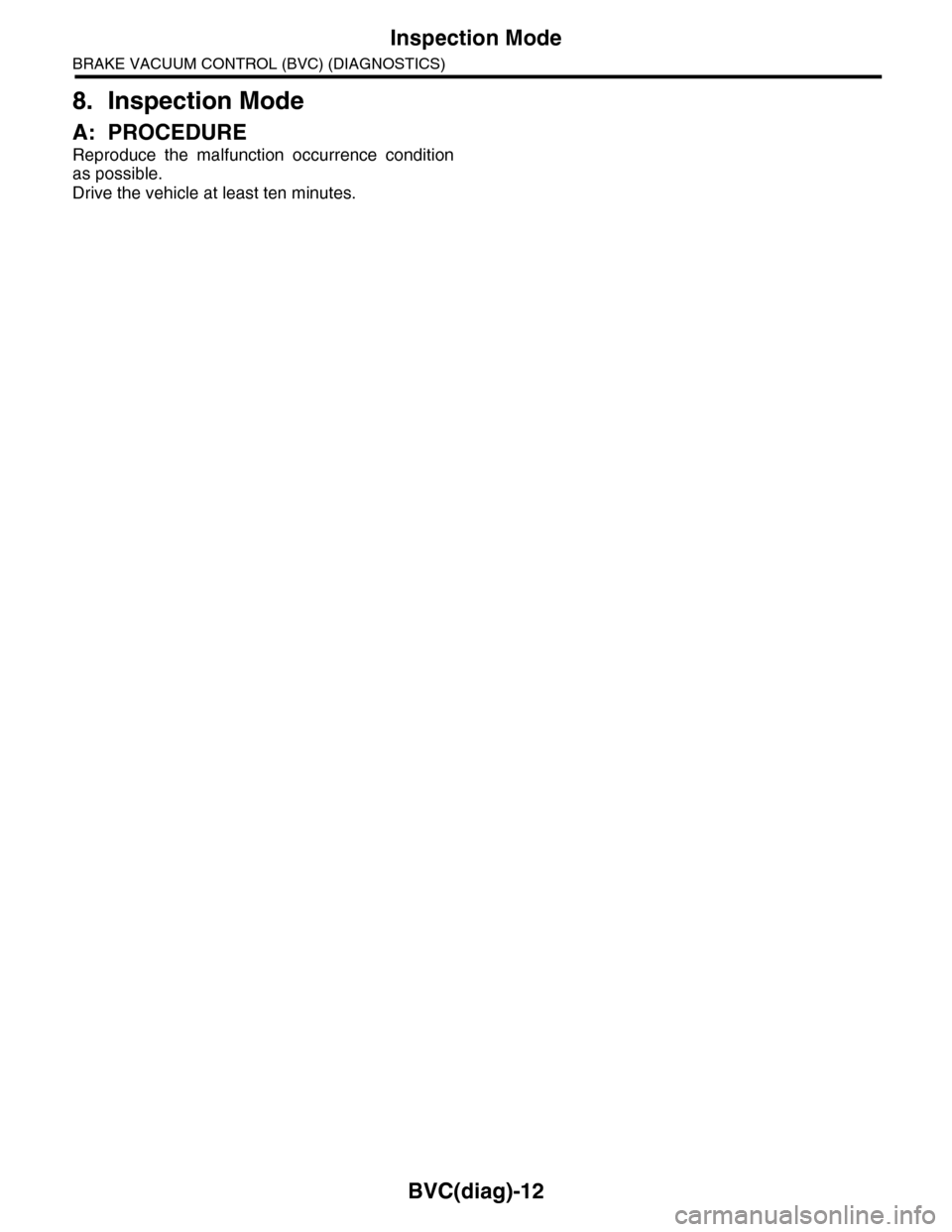

Inspection Mode
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
8. Inspection Mode
A: PROCEDURE
Reproduce the malfunction occurrence condition
as possible.
Drive the vehicle at least ten minutes.

BVC(diag)-13

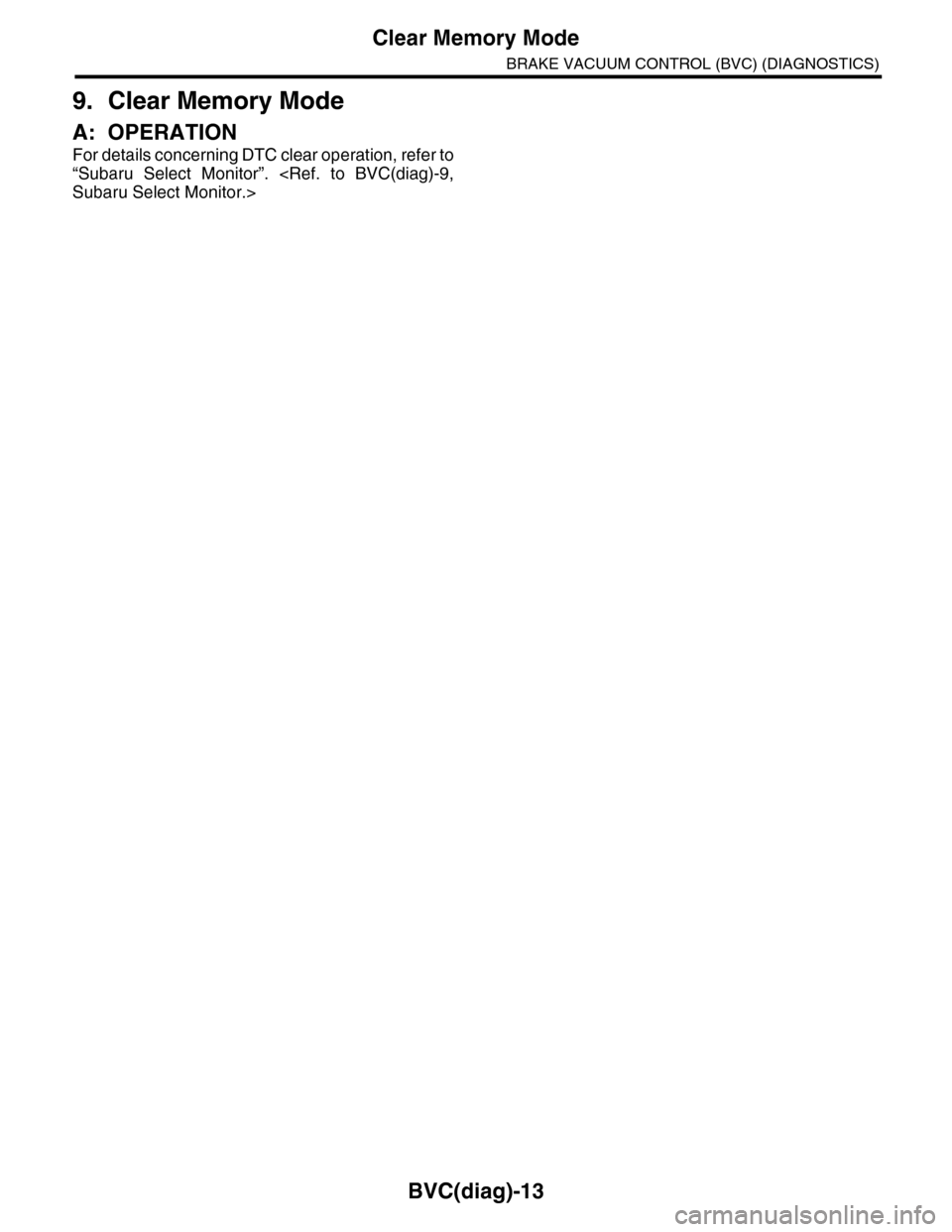

Clear Memory Mode
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
9. Clear Memory Mode
A: OPERATION
For details concerning DTC clear operation, refer to
“Subaru Select Monitor”. Subaru Select Monitor.>

BVC(diag)-14
List of Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
10.List of Diagnostic Trouble Code (DTC)
A: LIST
DTC Display Content of diagnosis Reference target
11 Sensor output out of rangeBrake vacuum sensor output
error
OUT OF RANGE, Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
12 Compare error in other sensor
Error in comparison with other
brake booster relative pres-
sure
IN OTHER SENSOR, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>
13 Pressure sensor outputBrake vacuum sensor seizure
malfunction
SOR OUTPUT, Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
21 Discrepancy in relays (ON)
Drive does not match
between the brake vacuum
pump relay and the brake vac-
uum pump.
RELAYS (ON), Diagnostic Procedure with Diagnos-
tic Trouble Code (DTC).>
22 Discrepancy in relays (OFF)
Drive does not match
between the brake vacuum
pump relay and the brake vac-
uum pump.
RELAYS (OFF), Diagnostic Procedure with Diag-
nostic Trouble Code (DTC).>
23 Pump continuous workMalfunction in brake vacuum
pump continuous operation
OUS OPERATION, Diagnostic Procedure with
Diagnostic Trouble Code (DTC).>

BVC(diag)-15
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
11.Diagnostic Procedure with Diagnostic Trouble Code (DTC)
A: DTC 11 SENSOR OUTPUT OUT OF RANGE
DTC DETECTING CONDITION:
Brake vacuum sensor malfunction
TROUBLE SYMPTOM:
Brake vacuum pump does not operate.
WIRING DIAGRAM:
BR-00528
2
1
B25B
B422
1234
B432
2
1
4
36
5
8
7
B432
SBF HOLDER
3
7
14
21
53
43
VC2
VC3
B422
B422
VC3
RELAY BOX(VACUUMPUMP RELAY)
B417
VAC U U MPUMP
26
41
B47
MAINRELAY
B411
VAC U U M S E N S O RECM
A: B134B: B135C: B136
C23B30B22A27C8312
JOINT CONNECTOR
B424
**
B417B411
213
B: C:B135
5672134
29
101112131415252416
30
98171819202821222332312627333435
B136
16101112131415252430
9871718192028212223293231
123456
2726333435
VC2
A:B134
85610 11 12 13 14 157213416
3019 20 2228 29
91718252123 24323126 2733 34
B424
34561278
(BROWN)
21
5436
B47
* : TERMINAL NO. OPTIONAL ARRANGEMENT
21
SBF-7BATTERY
30A
3412
5
8967
10131211
14
