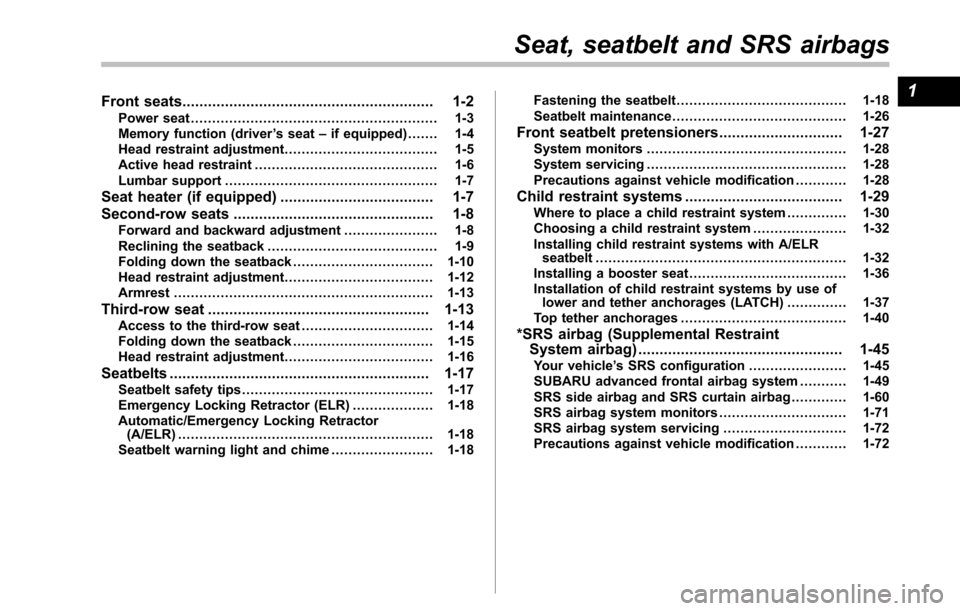

Front seats........................................................... 1-2Power seat.......................................................... 1-3Memory function (driver’s seat–if equipped)....... 1-4Head restraint adjustment.................................... 1-5Active head restraint........................................... 1-6Lumbar support.................................................. 1-7
Seat heater (if equipped).................................... 1-7
Second-row seats............................................... 1-8Forward andbackward adjustment...................... 1-8Reclining the seatback........................................ 1-9Folding down the seatback................................. 1-10Head restraint adjustment................................... 1-12Armrest............................................................. 1-13
Third-row seat.................................................... 1-13Access to the third-row seat............................... 1-14Folding down the seatback................................. 1-15Head restraint adjustment................................... 1-16
Seatbelts............................................................. 1-17Seatbelt safety tips............................................. 1-17Emergency Locking Retractor (ELR)................... 1-18Automatic/Emergency Locking Retractor(A/ELR)............................................................ 1-18Seatbelt warning light and chime........................ 1-18
Fastening the seatbelt........................................ 1-18Seatbelt maintenance......................................... 1-26
Front seatbelt pretensioners............................. 1-27System monitors............................................... 1-28System servicing............................................... 1-28Precautions against vehicle modification............ 1-28
Child restraint systems..................................... 1-29Where to place a child restraint system.............. 1-30Choosing a child restraint system...................... 1-32Installing child restraint systems with A/ELRseatbelt........................................................... 1-32Installing a booster seat..................................... 1-36Installation of child restraint systems by use oflower and tether anchorages (LATCH).............. 1-37Top tether anchorages....................................... 1-40
*SRS airbag (Supplemental RestraintSystem airbag)................................................ 1-45Your vehicle’s SRS configuration....................... 1-45SUBARU advanced frontal airbag system........... 1-49SRS side airbagand SRS curtain airbag............. 1-60SRS airbag system monitors.............................. 1-71SRS airbag system servicing ............................. 1-72Precautions against vehicle modification............ 1-72
Seat, seatbelt and SRS airbags
1
Page 33 of 426
1-2Seat, seatbelt and SRS airbags

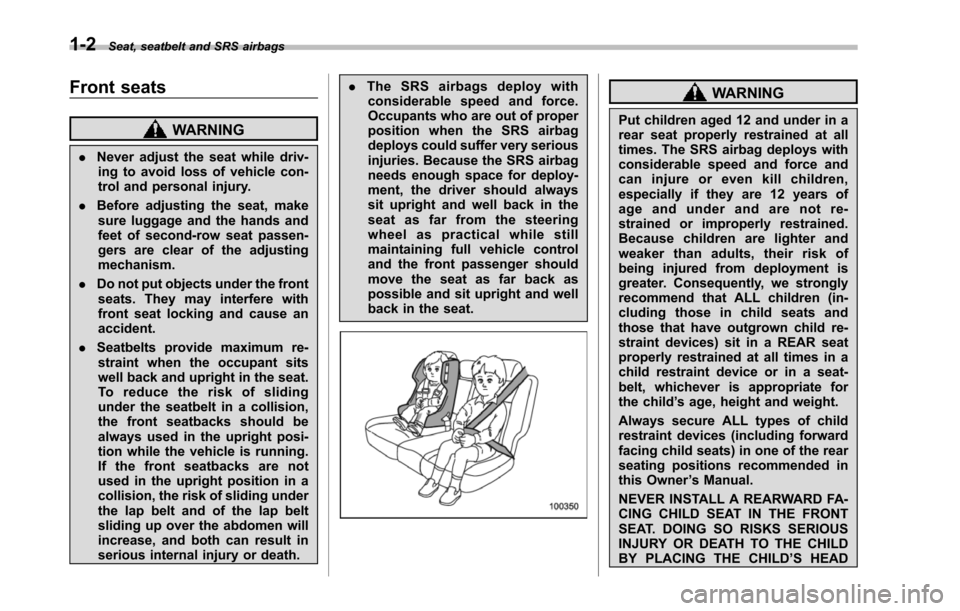

Front seats
WARNING
.Never adjust the seat while driv-ing to avoid loss of vehicle con-trol and personal injury.
.Before adjustingthe seat, makesure luggage and the hands andfeet of second-row seat passen-gers are clear of the adjustingmechanism.
.Do not put objects under the frontseats. They may interfere withfront seat locking and cause anaccident.
.Seatbelts provide maximum re-straint when the occupant sitswell back and upright in the seat.To r e d u c e t h e r i s k o f s l i d i n gunder the seatbelt in a collision,the front seatbacks should bealways used in the upright posi-tion while the vehicle is running.If the front seatbacks are notused in the upright position in acollision, the risk of sliding underthe lap belt and of the lap beltsliding up over the abdomen willincrease, and both can result inserious internalinjury or death.
.The SRS airbags deploy withconsiderable speed and force.Occupants who are out of properposition when the SRS airbagdeploys could suffer very seriousinjuries. Because the SRS airbagneeds enough space for deploy-ment, the driver should alwayssit upright and well back in theseat as far from the steeringwheel as practical while stillmaintaining full vehicle controland the frontpassenger shouldmove the seat as far back aspossible and sit upright and wellback in the seat.
WARNING
Put children aged 12 and under in arear seat properly restrained at alltimes. The SRS airbag deploys withconsiderable speed and force andcan injure or even kill children,especially if they are 12 years ofage and under and are not re-strained or improperly restrained.Because children are lighter andweaker than adults, their risk ofbeing injured from deployment isgreater. Consequently, we stronglyrecommend that ALL children (in-cluding those in child seats andthose that have outgrown child re-straint devices) sit in a REAR seatproperly restrained at all times in achild restraint device or in a seat-belt, whichever is appropriate forthe child’s age, height and weight.
Always secure ALL types of childrestraint devices (including forwardfacingchild seats) in one of the rearseating positions recommended inthis Owner’s Manual.
NEVER INSTALL A REARWARD FA-CING CHILD SEAT IN THE FRONTSEAT. DOING SO RISKS SERIOUSINJURY OR DEATH TO THE CHILDBY PLACING THE CHILD’S HEAD
Page 34 of 426
TOO CLOSE TO THE SRS AIRBAG.
According to accident statistics,children are safer when properlyrestrained in the rear seating posi-tions than in the front seating posi-tions. For instructions and precau-tions concerning child restraint sys-tems, refer to“Child restraint sys-tems”F1-29.
&Power seat

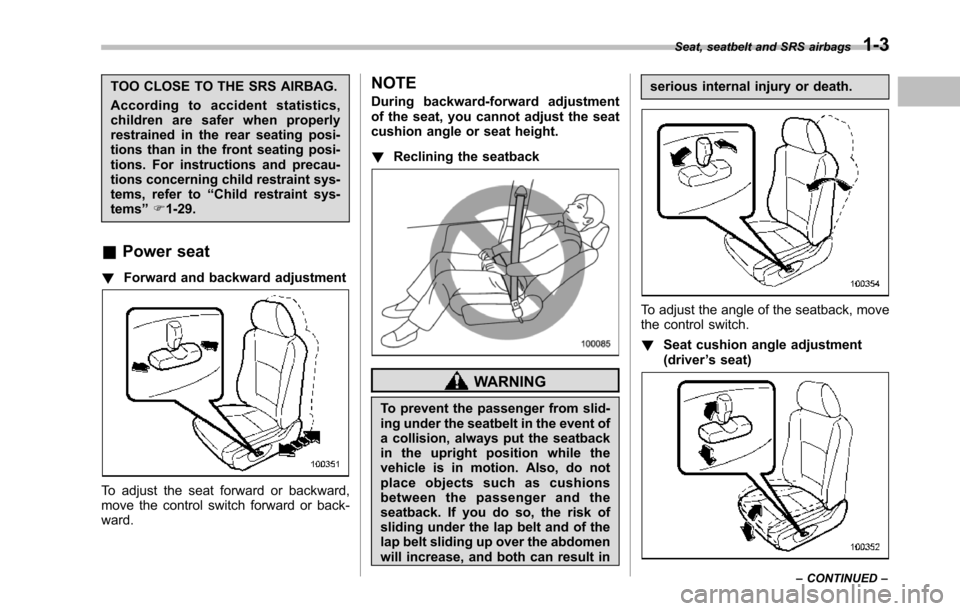

!Forward and backward adjustment
To adjust the seat forward or backward,move the control switch forward or back-ward.
NOTE
During backward-forward adjustmentof the seat, you cannot adjust the seatcushion angle or seat height.
!Reclining the seatback
WARNING
To prevent the passenger from slid-ing under the seatbelt in the event ofa collision, always put the seatbackin the upright position while thevehicle is in motion. Also, do notplace objects such as cushionsbetween the passenger and theseatback.If you do so, the risk ofsliding under the lap belt and of thelap belt sliding up over the abdomenwill increase, and both can result in
serious internal injury or death.
To adjust the angle of the seatback, movethe control switch.
!Seat cushion angle adjustment(driver’s seat)
Seat, seatbelt and SRS airbags1-3
–CONTINUED–
Page 35 of 426
1-4Seat, seatbelt and SRS airbags
To adjust the seat cushion angle, pull upor push down the front end of the controlswitch.

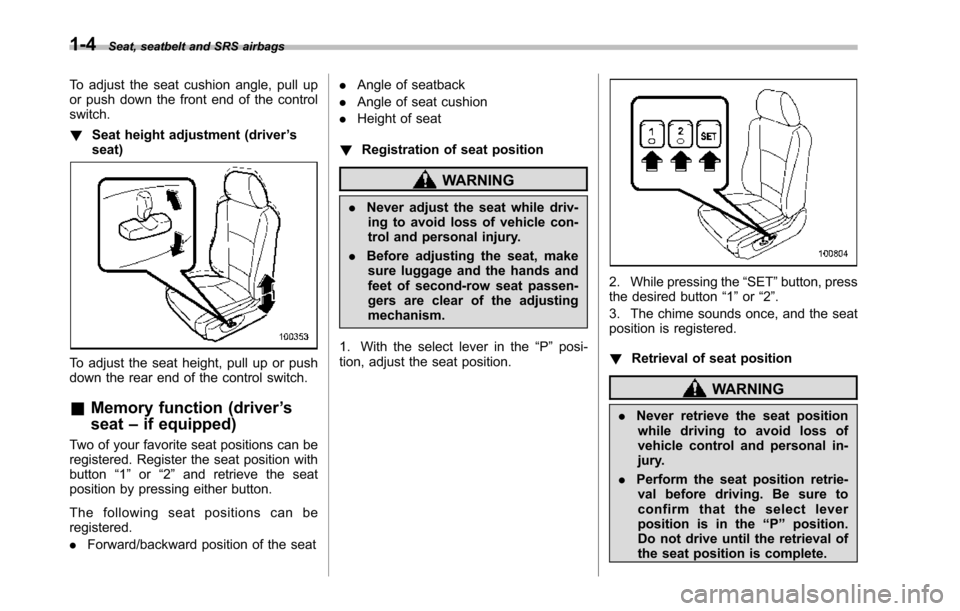

!Seat height adjustment (driver’sseat)
To adjust the seat height, pull up or pushdown the rear end of the control switch.
&Memory function (driver’s
seat–if equipped)
Two of your favorite seat positions can beregistered. Register the seat position withbutton“1”or“2”and retrieve the seatposition by pressing either button.
The following seat positions can beregistered.
.Forward/backward position of the seat
.Angle of seatback
.Angle of seat cushion
.Height of seat
!Registration of seat position
WARNING
.Never adjust the seat while driv-ing to avoid loss of vehicle con-troland personal injury.
.Before adjusting the seat, makesure luggage and the hands andfeet of second-row seat passen-gers are clear of the adjustingmechanism.
1. With the select lever in the“P”posi-tion, adjust the seat position.
2. While pressing the“SET”button, pressthe desired button“1”or“2”.
3. The chime sounds once, and the seatposition is registered.
!Retrieval of seat position
WARNING
.Never retrieve the seat positionwhile driving to avoid loss ofvehicle control and personal in-jury.
.Perform the seat position retrie-val before driving. Be sure toconfirm that the select leverposition is in the“P”position.Do not drive until the retrieval ofthe seat position is complete.
Page 36 of 426
.Be sure to press the correctbutton to retrieve your registeredseat position. If the seat positionis not optimum for you, it mayadversely affect your driving andmay reduce the effectiveness ofthe seatbelt. That could result inan accident involving seriousinjury or death.
.When retrieving a registered seatposition, make sure the hands,feet and possessions of second-row seat passengers are clear ofthe seat adjusting mechanism.
.When any trouble or a malfunc-tion occurs during the retrieval ofthe seat position, stop the retrie-val of the seat position using anyof the control switches for man-ual adjustment, seat memory setbutton, seat memory registeredbutton 1 or 2.

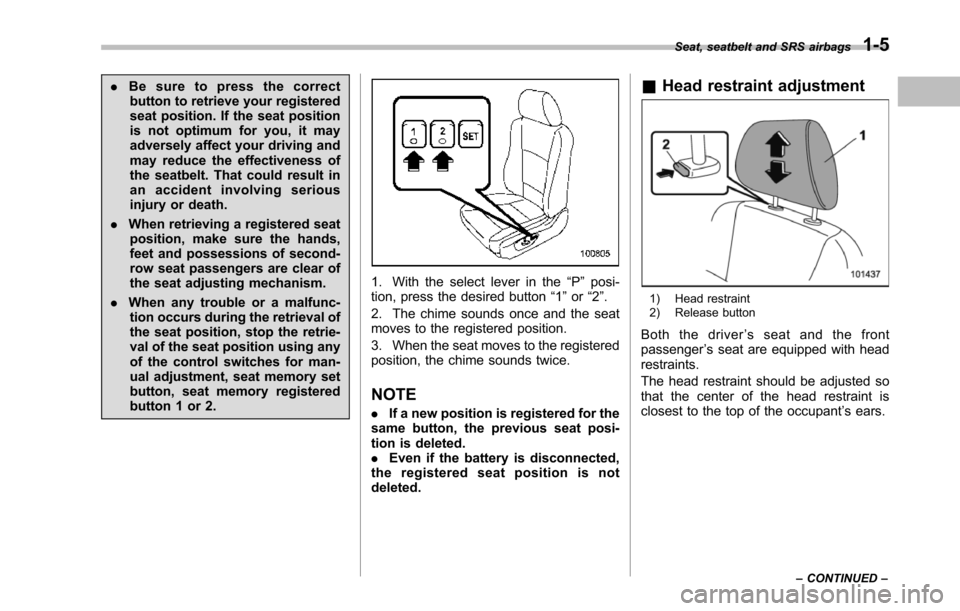

1. With the select lever in the“P”posi-tion, press the desired button“1”or“2”.
2. The chime sounds once and the seatmoves to the registered position.
3. When the seat moves to the registeredposition, the chime sounds twice.
NOTE
.If a new position is registered for thesame button, the previous seat posi-tion is deleted..Even if the battery is disconnected,the registered seat position is notdeleted.
&Head restraint adjustment
1) Head restraint2) Release button
Both the driver’sseatandthefrontpassenger’s seat are equipped with headrestraints.
The head restraintshould be adjusted sothat the center of the head restraint isclosest to the top of the occupant’s ears.
Seat, seatbelt and SRS airbags1-5
–CONTINUED–
Page 37 of 426
1-6Seat, seatbelt and SRS airbags
To raise:
Pull the head restraint up.
To lower:
Push the head restraint down whilepressing the release button on the top ofthe seatback.
To remove:
While pressing the release button, pull outthe head restraint.
To install:
Install the head restraint into the holes thatare located on the top of the seatback untilthehead restraint locks.
WARNING
.Never drive the vehicle with thehead restraints removed becausethey are designed to reduce therisk of serious neck injury in theevent that the vehicle is struckfrom the rear. Therefore, whenyou remove the head restraints,youmust reinstall all head re-straints to protect vehicle occu-pants.
.All occupants, including the dri-ver, should not operate a vehicleor sit in a vehicle’s seat until thehead restraints are placed in theirproper positions in order to mini-mize the risk of neck injury in the
event of a crash.

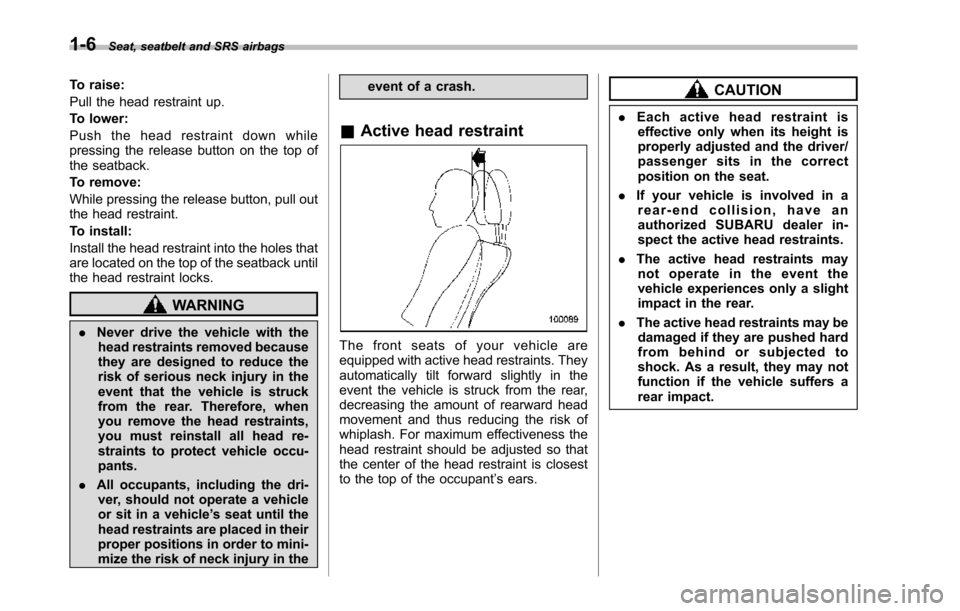

&Active head restraint
The front seats of your vehicle areequipped with active head restraints. Theyautomaticallytilt forward slightly in theevent the vehicle is struck from the rear,decreasing the amount of rearward headmovement and thus reducing the risk ofwhiplash. For maximum effectiveness thehead restraintshould be adjusted so thatthe center of the head restraint is closestto the top of the occupant’s ears.
CAUTION
.Each active head restraint iseffective only when its height isproperly adjusted and the driver/passenger sits in the correctposition on the seat.
.If your vehicle is involved in arear-end collision, have anauthorized SUBARU dealer in-spect the active head restraints.
.The active head restraints maynot operate in the event thevehicle experiences only a slightimpact in the rear.
.The activehead restraints may bedamaged if they are pushed hardfrom behind or subjected toshock. As a result, they may notfunction if the vehicle suffers arear impact.
Page 38 of 426

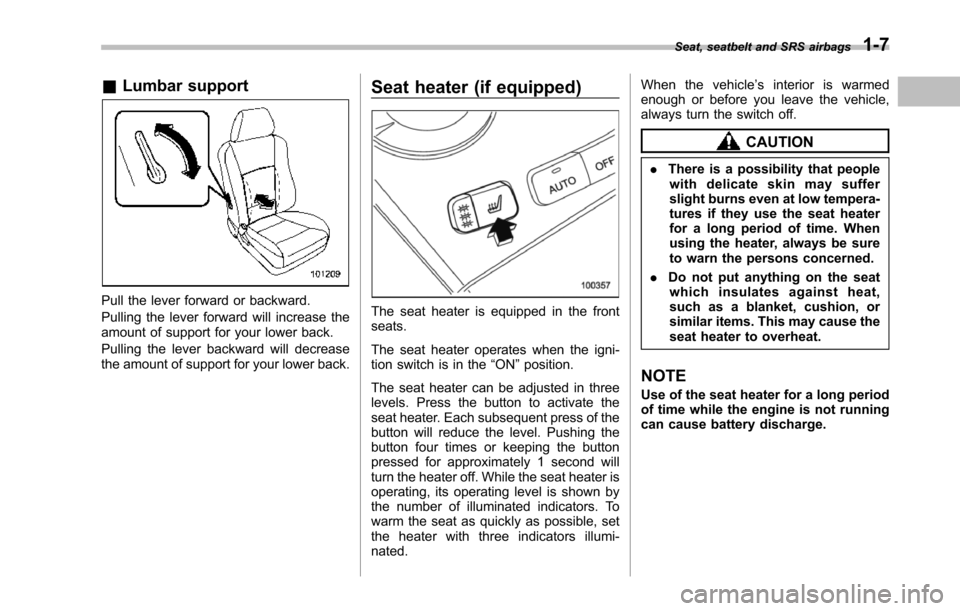

&Lumbar support
Pull the lever forward or backward.
Pulling the lever forward will increase theamountof support for your lower back.
Pulling the lever backward will decreasethe amount of support for your lower back.
Seat heater (if equipped)
Theseat heater is equipped in the frontseats.
Theseat heater operates when the igni-tion switch is in the“ON”position.
The seat heater can be adjusted in threelevels. Press the button to activate theseat heater. Each subsequent press of thebutton will reduce the level. Pushing thebutton four times or keeping the buttonpressed for approximately 1 second willturn the heater off. While the seat heater isoperating, its operating level is shown bythe number of illuminated indicators. Towarm the seat as quickly as possible, setthe heater with three indicators illumi-nated.
When the vehicle’s interior is warmedenough or before you leave the vehicle,always turn the switch off.
CAUTION
.There is a possibility that peoplewith delicate skin may sufferslightburns even at low tempera-tures if they use the seat heaterfor a long period of time. Whenusing the heater, always be sureto warn the persons concerned.
.Do not put anything on the seatwhich insulates against heat,such as a blanket, cushion, orsimilaritems. This may cause theseat heater to overheat.
NOTE
Use of the seat heater for a long periodof time while the engine is not runningcan cause battery discharge.
Seat, seatbelt and SRS airbags1-7
Page 39 of 426
1-8Seat, seatbelt and SRS airbags

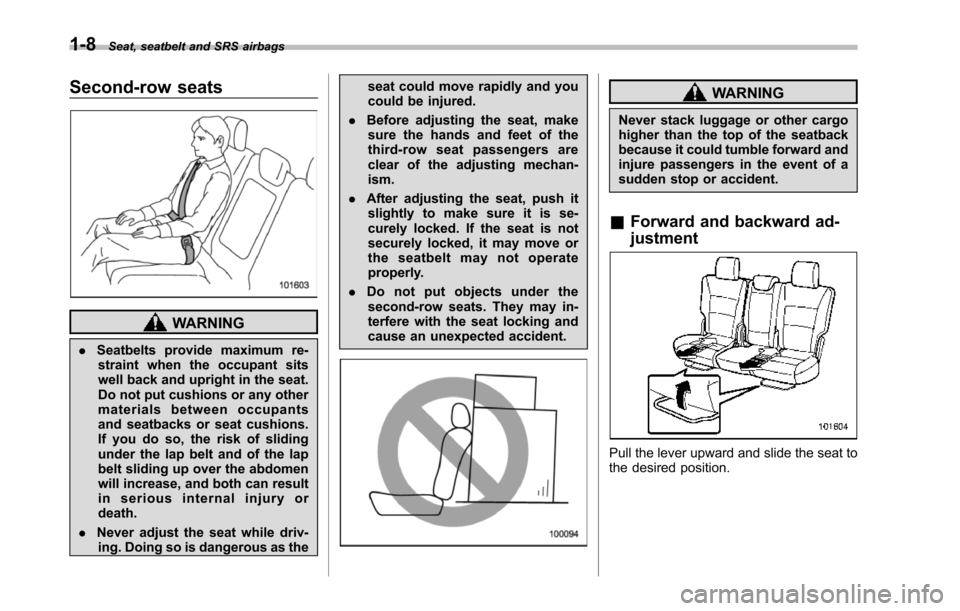

Second-row seats
WARNING
.Seatbelts provide maximum re-straint when the occupant sitswell back and upright in the seat.Do not put cushions or any othermaterials between occupantsand seatbacks or seat cushions.If you do so, the risk of slidingunder the lap belt and of the lapbelt sliding up over the abdomenwill increase, and both can resultin serious internal injury ordeath.
.Neveradjust the seat while driv-ing. Doing so is dangerous as the
seat could move rapidly and youcould be injured.
.Before adjusting the seat, makesure the hands and feet of thethird-row seat passengers areclear of the adjusting mechan-ism.
.Afteradjusting the seat, push itslightly to make sure it is se-curely locked. If the seat is notsecurely locked, it may move orthe seatbelt may not operateproperly.
.Do not put objects under thesecond-row seats. They may in-terfere with the seat locking andcause an unexpected accident.
WARNING
Never stack luggage or other cargohigher than the top of the seatbackbecause it could tumble forward andinjure passengers in the event of asudden stop or accident.
&Forward and backward ad-
justment
Pull the lever upward and slide the seat tothe desired position.
Page 40 of 426

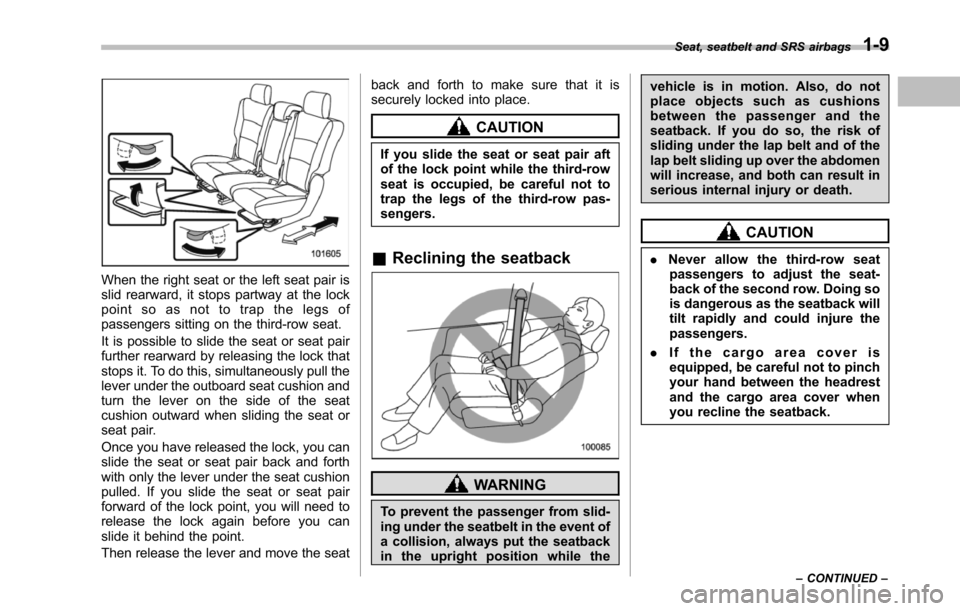

When the right seat or the left seat pair isslid rearward, it stops partway at the lockpoint so as not to trap the legs ofpassengers sitting on the third-row seat.
It is possible to slide the seat or seat pairfurther rearwardby releasing the lock thatstops it. To do this, simultaneously pull thelever under the outboard seat cushion andturn the lever on the side of the seatcushion outward when sliding the seat orseat pair.
Once you have released the lock, you canslide the seat or seat pair back and forthwith only the lever under the seat cushionpulled. If you slide the seat or seat pairforward of the lock point, you will need torelease the lock again before you canslide it behind the point.
Then release the lever and move the seat
back and forth to make sure that it issecurely locked into place.
CAUTION
If you slide the seat or seat pair aftof the lock point while the third-rowseat is occupied, be careful not totrap the legs of the third-row pas-sengers.
&Reclining the seatback
WARNING
To prevent the passenger from slid-ing under the seatbelt in the event ofa collision, always put the seatbackin the upright position while the
vehicle is in motion. Also, do notplace objects such as cushionsbetween the passenger and theseatback. If you do so, the risk ofsliding under the lap belt and of thelap belt sliding up over the abdomenwill increase, and both can result inserious internal injury or death.
CAUTION
.Never allow the third-row seatpassengers to adjust the seat-back of the second row. Doing sois dangerous as the seatback willtilt rapidly and could injure thepassengers.
.If the cargo area cover isequipped, be careful not to pinchyour hand between the headrestand the cargo area cover whenyou recline the seatback.
Seat, seatbelt and SRS airbags1-9
–CONTINUED–
