1-10Seat, seatbelt and SRS airbags
Pull the lever up and adjust the seatbackto the desired position.
Then release the lever and make sure theseatback is securely locked into place.

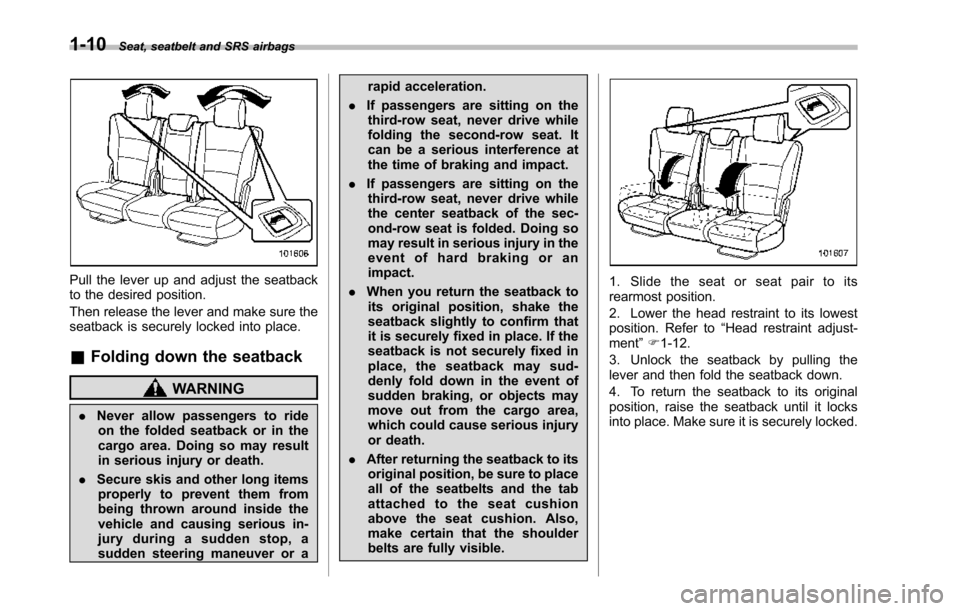

&Folding down the seatback
WARNING
.Never allow passengers to rideon the folded seatback or in thecargo area. Doing so may resultin serious injury or death.
.Secure skis and other long itemsproperly to prevent them frombeing thrown around inside thevehicle and causing serious in-jury during a sudden stop, asudden steering maneuver or a
rapid acceleration.
.If passengers are sitting on thethird-row seat, never drive whilefolding the second-row seat. Itcan be a serious interference atthe time of braking and impact.
.If passengers are sitting on thethird-row seat, never drive whilethe center seatback of the sec-ond-rowseat is folded. Doing somay result in serious injury in theevent of hard braking or animpact.
.When you return the seatback toits original position, shake theseatback slightly to confirm thatit is securely fixed in place. If theseatback is not securely fixed inplace, the seatback may sud-denly fold down in the event ofsudden braking, or objects maymove out from the cargo area,which could cause serious injuryor death.
.After returning the seatback to itsoriginal position, be sure to placeall of the seatbelts and the tabattached to the seat cushionabove the seat cushion. Also,make certain that the shoulderbelts are fully visible.
1. Slide the seat or seat pair to itsrearmost position.
2. Lower the head restraint to its lowestposition. Refer to“Head restraint adjust-ment”F1-12.
3. Unlock the seatback by pulling theleverand then fold the seatback down.
4. To return the seatback to its originalposition, raise the seatback until it locksinto place. Make sure it is securely locked.
Page 42 of 426

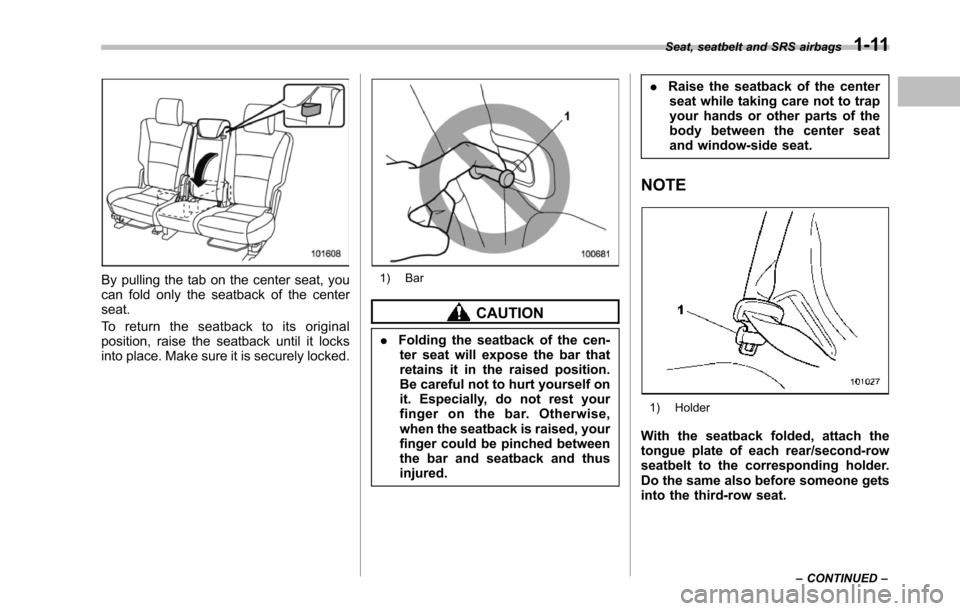

By pulling the tab on the center seat, youcan fold only the seatback of the centerseat.
To r e t u r n t h e s e a t b a c k t o i t s o r i g i n a lposition, raise the seatback until it locksinto place. Make sure it is securely locked.
1) Bar
CAUTION
.Folding the seatback of the cen-ter seat will expose the bar thatretains it in the raised position.Be careful not to hurt yourself onit. Especially, do not rest yourfinger on the bar. Otherwise,when the seatback is raised, yourfinger could be pinched betweenthe bar and seatback and thusinjured.
.Raise the seatback of the centerseat while taking care not to trapyour hands or other parts of thebody between the center seatand window-side seat.
NOTE
1) Holder
With the seatback folded, attach thetongue plate of each rear/second-rowseatbelt to the corresponding holder.Do the same also before someone getsinto thethird-row seat.
Seat, seatbelt and SRS airbags1-11
–CONTINUED–
Page 43 of 426
1-12Seat, seatbelt and SRS airbags

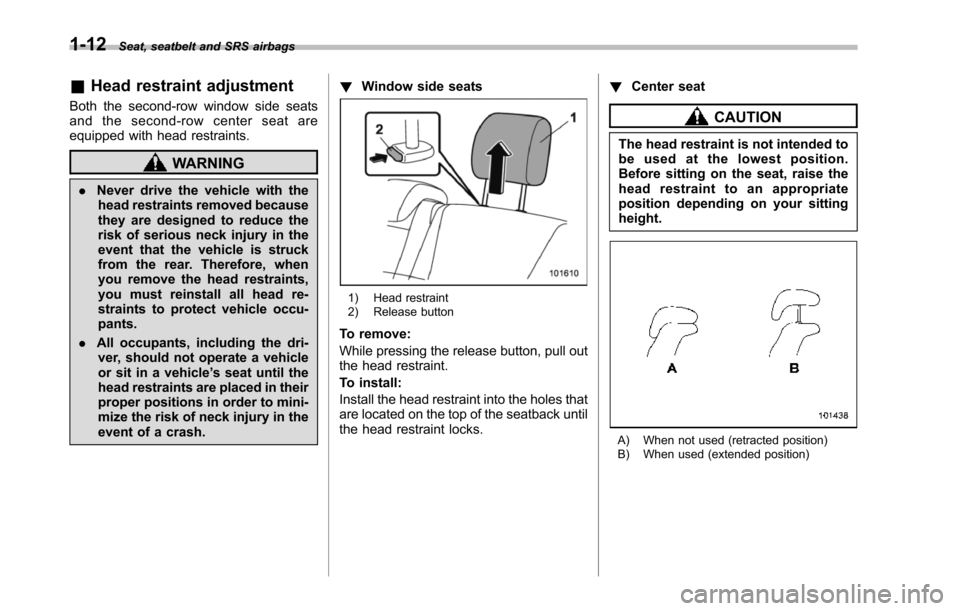

&Head restraint adjustment
Both the second-row window side seatsand the second-row center seat areequipped with head restraints.
WARNING
.Never drive the vehicle with thehead restraints removed becausethey are designed to reduce therisk of serious neck injury in theevent that the vehicle is struckfrom the rear. Therefore, whenyou remove the head restraints,you must reinstall all head re-straints to protect vehicle occu-pants.
.All occupants, including the dri-ver, should not operate a vehicleor sit in a vehicle’s seat until thehead restraintsare placed in theirproper positions in order to mini-mize the risk of neck injury in theevent of a crash.
!Window side seats
1) Head restraint2) Release button
To remove:
While pressing the release button, pull outthe head restraint.
To install:
Install the head restraint into the holes thatare located on the top of the seatback untilthe head restraint locks.
!Center seat
CAUTION
The head restraint is not intended tobe used at the lowest position.Before sitting on the seat, raise thehead restraint to an appropriateposition depending on your sittingheight.
A) When not used (retracted position)B) When used (extended position)
Page 44 of 426
1) Head restraint2) Release button

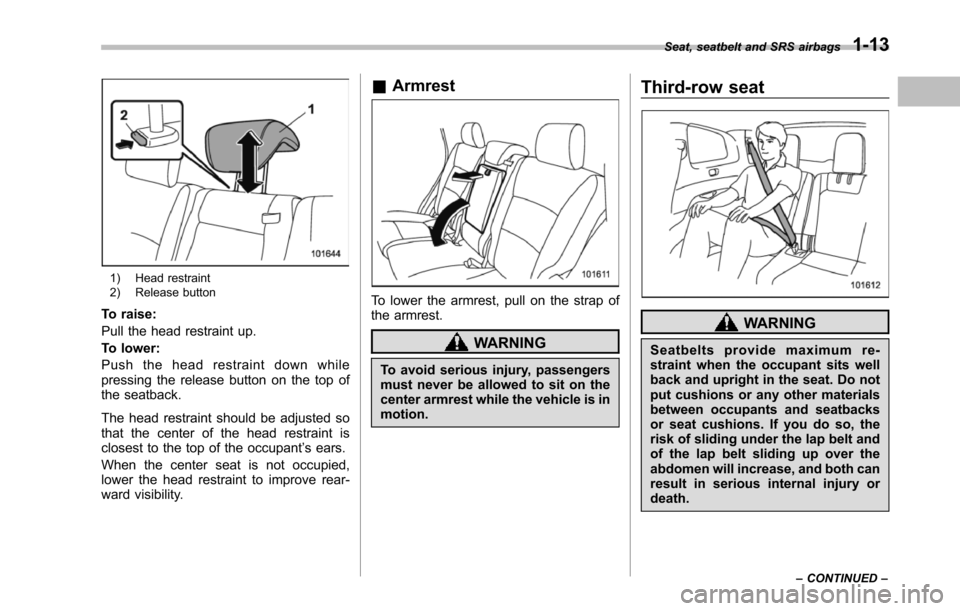

To raise:
Pull the head restraint up.
To lower:
Push the head restraint down whilepressing the release button on the top ofthe seatback.
The head restraint should be adjusted sothat the center of the head restraint isclosest to the top of the occupant’s ears.
When the center seat is not occupied,lower the head restraint to improve rear-ward visibility.
&Armrest
To lower the armrest, pull on the strap ofthe armrest.
WARNING
To avoid serious injury, passengersmust never be allowed to sit on thecenter armrest while the vehicle is inmotion.
Third-row seat
WARNING
Seatbelts provide maximum re-straint when the occupant sits wellback and upright in the seat. Do notput cushions or any other materialsbetween occupants and seatbacksor seat cushions. If you do so, therisk of sliding under the lap belt andof the lap belt sliding up over theabdomen will increase, and both canresult in serious internal injury ordeath.
Seat, seatbelt and SRS airbags1-13
–CONTINUED–
Page 45 of 426
1-14Seat, seatbelt and SRS airbags
WARNING
Never stack luggage or other cargohigher than the top of the seatbackbecause it could tumble forward andinjure passengers in the event of asudden stop or accident.

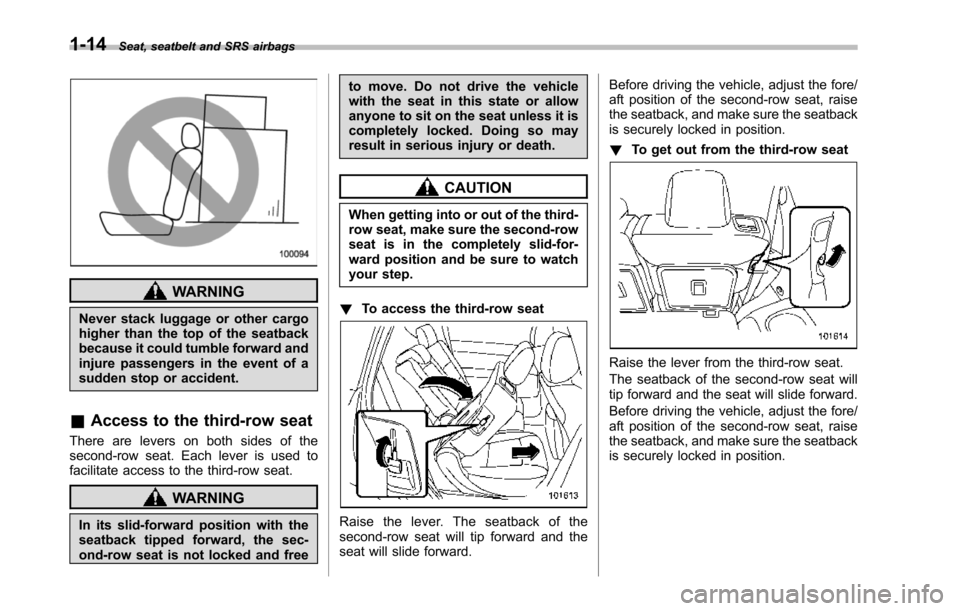

&Access to the third-row seat
There are levers on both sides of thesecond-row seat. Each lever is used tofacilitate access to the third-row seat.
WARNING
In its slid-forward position with theseatback tipped forward, the sec-ond-row seat is not locked and free
to move. Do not drive the vehiclewith the seat in this state or allowanyone to sit on the seat unless it iscompletely locked. Doing so mayresult in serious injury or death.
CAUTION
When getting into or out of the third-row seat, make sure the second-rowseat is in the completely slid-for-wardposition and be sure to watchyour step.
!To access the third-row seat
Raise the lever. The seatback of thesecond-row seat will tip forward and theseat will slide forward.
Before driving the vehicle, adjust the fore/aft position of the second-row seat, raisethe seatback, and make sure the seatbackis securely locked in position.
!To get out from the third-row seat
Raise the lever from the third-row seat.
The seatback of the second-row seat willtip forward and the seat will slide forward.
Beforedriving the vehicle, adjust the fore/aft position of the second-row seat, raisethe seatback, and make sure the seatbackis securely locked in position.
Page 46 of 426
&Folding down the seatback
WARNING
.Never allow passengers to rideon the folded seatback or in thecargo area. Doing so may resultin serious injury or death.
.Secure skis and other long itemsproperly to prevent them frombeing thrown around inside thevehicleand causing serious in-jury during a sudden stop, asudden steering maneuver or arapid acceleration.
.When you returnthe seatback toits original position, shake theseatback slightly to confirm thatit is securely fixed in place. If theseatback is not securely fixed inplace, the seatback may sud-denly fold down in the event ofsudden braking, or objects maymove out from the cargo area,which could cause serious injuryor death.
.Afterreturning the seatback to itsoriginal position, be sure to placeall of the seatbelts and the tabattached to the seat cushionabove the seat cushion. Also,make certain that the shoulder
belts are fully visible.

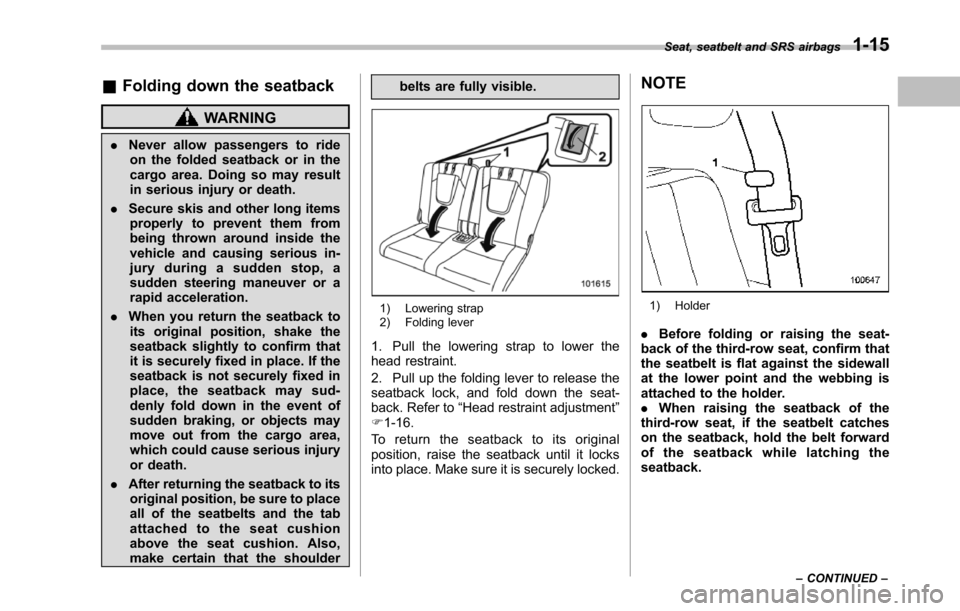

1) Lowering strap2) Folding lever
1. Pull the lowering strap to lower thehead restraint.
2. Pull up the folding lever to release theseatback lock, and fold down the seat-back. Refer to“Head restraint adjustment”F1-16.
To r e t u r n t h e s e a t b a c k t o i t s o r i g i n a lposition, raise the seatback until it locksinto place. Make sure it is securely locked.
NOTE
1) Holder
.Before folding or raising the seat-back of the third-row seat, confirm thatthe seatbelt is flat against the sidewallat the lower point and the webbing isattached to the holder..When raising the seatback of thethird-row seat, if the seatbelt catcheson the seatback, hold the belt forwardof the seatback while latching theseatback.
Seat, seatbelt and SRS airbags1-15
–CONTINUED–
Page 47 of 426
1-16Seat, seatbelt and SRS airbags

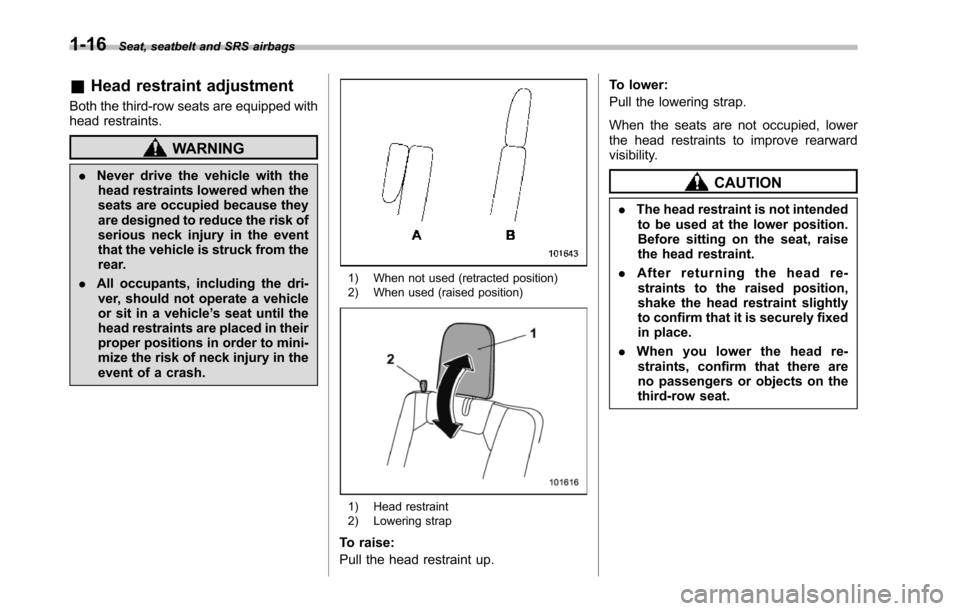

&Head restraint adjustment
Both the third-row seats are equipped withhead restraints.
WARNING
.Never drive the vehicle with thehead restraints lowered when theseats are occupied because theyare designed to reduce the risk ofserious neck injury in the eventthat the vehicle is struck from therear.
.All occupants, including the dri-ver, should not operate a vehicleor sit in a vehicle’s seat until thehead restraints are placed in theirproper positions in order to mini-mize the risk of neck injury in theevent of a crash.
1) When not used (retracted position)2) When used (raised position)
1) Head restraint2) Lowering strap
To raise:
Pull the headrestraint up.
To lower:
Pull the lowering strap.
When the seats are not occupied, lowerthe head restraints to improve rearwardvisibility.
CAUTION
.The head restraint is not intendedto be used at the lower position.Before sitting on the seat, raisethe head restraint.
.After returning the head re-straints to the raised position,shake the head restraint slightlyto confirm that it is securely fixedin place.
.When you lower the head re-straints, confirm that there areno passengers or objects on thethird-row seat.
Page 48 of 426
Seatbelts

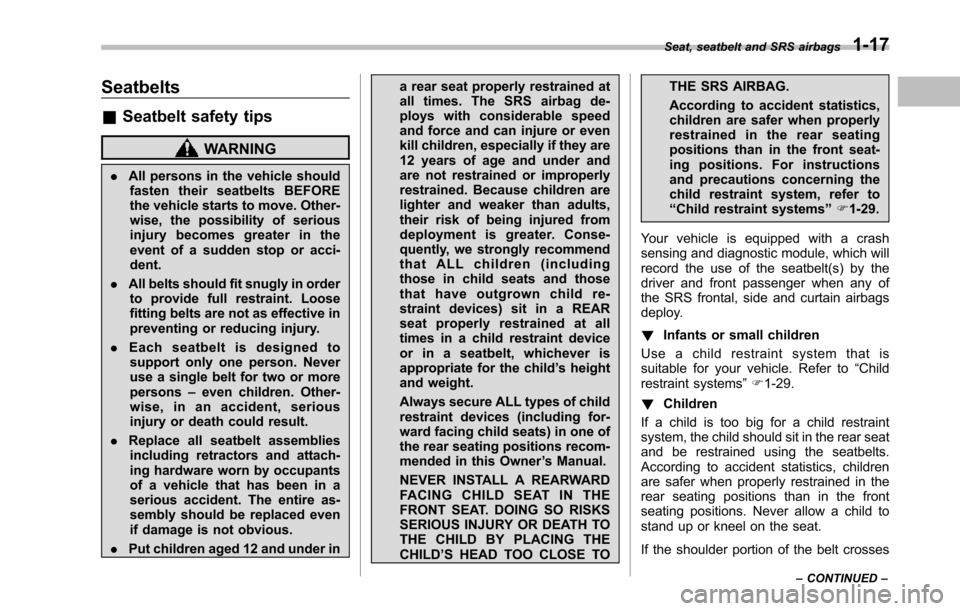

&Seatbelt safety tips
WARNING
.All persons in the vehicle shouldfasten their seatbelts BEFOREthe vehicle starts to move. Other-wise, the possibility of seriousinjury becomes greater in theevent of a sudden stop or acci-dent.
.All belts should fit snugly in orderto provide full restraint. Loosefitting belts are not as effective inpreventing or reducing injury.
.Each seatbelt is designed tosupport only one person. Neveruse a single belt for two or morepersons–even children.Other-wise, in an accident, seriousinjury or death could result.
.Replace all seatbelt assembliesincluding retractors and attach-ing hardware worn by occupantsof a vehicle that has been in aserious accident. The entire as-sembly should be replaced evenif damage is not obvious.
.Put children aged 12 and under in
a rear seat properly restrained atall times. The SRS airbag de-ploys with considerable speedand force and can injure or evenkill children, especially if they are12 years of age and under andare not restrained or improperlyrestrained. Because children arelighter and weaker than adults,their risk of being injured fromdeployment is greater. Conse-quently, we strongly recommendthat ALL children (includingthose in child seats and thosethat have outgrown child re-straint devices) sit in a REARseat properly restrained at alltimes in a child restraint deviceor in a seatbelt, whichever isappropriate for the child’s heightand weight.
Always secure ALL types of childrestraint devices (including for-ward facing child seats) in one ofthe rear seating positions recom-mended in this Owner’s Manual.
NEVERINSTALL A REARWARDFA C I N G C H I L D S E AT I N T H EFRONT SEAT. DOING SO RISKSSERIOUS INJURY OR DEATH TOTHE CHILD BY PLACING THECHILD’S HEAD TOO CLOSE TO
THE SRS AIRBAG.
According to accident statistics,children are safer when properlyrestrained in the rear seatingpositions than in the front seat-ing positions. For instructionsand precautions concerning thechild restraint system, refer to“Child restraint systems”F1-29.
Your vehicle is equipped with a crashsensing and diagnostic module, which willrecord the use of the seatbelt(s) by thedriver and front passenger when any ofthe SRS frontal, side and curtain airbagsdeploy.
!Infants or small children
Use a child restraint system that issuitable for your vehicle. Refer to“Childrestraint systems”F1-29.
!Children
If a child is too big for a child restraintsystem, the child should sit in the rear seatand be restrained using the seatbelts.According to accident statistics, childrenare safer when properly restrained in therear seating positions than in the frontseating positions.Never allow a child tostand up or kneel on the seat.
If the shoulder portion of the belt crosses
Seat, seatbelt and SRS airbags1-17
–CONTINUED–
Page 49 of 426
1-18Seat, seatbelt and SRS airbags
the face or neck, adjust the shoulder beltanchor height (window-side seating posi-tions only) and then if necessary move thechild closer to the belt buckle to helpprovide a good shoulder belt fit. Care mustbe taken to securely place the lap belt aslow as possible on the hips and not on thechild’s waist. If the shoulder portion of thebelt cannot be properly positioned, a childrestraint system should be used. Neverplacethe shoulder belt under the child’sarm or behind the child’s back.

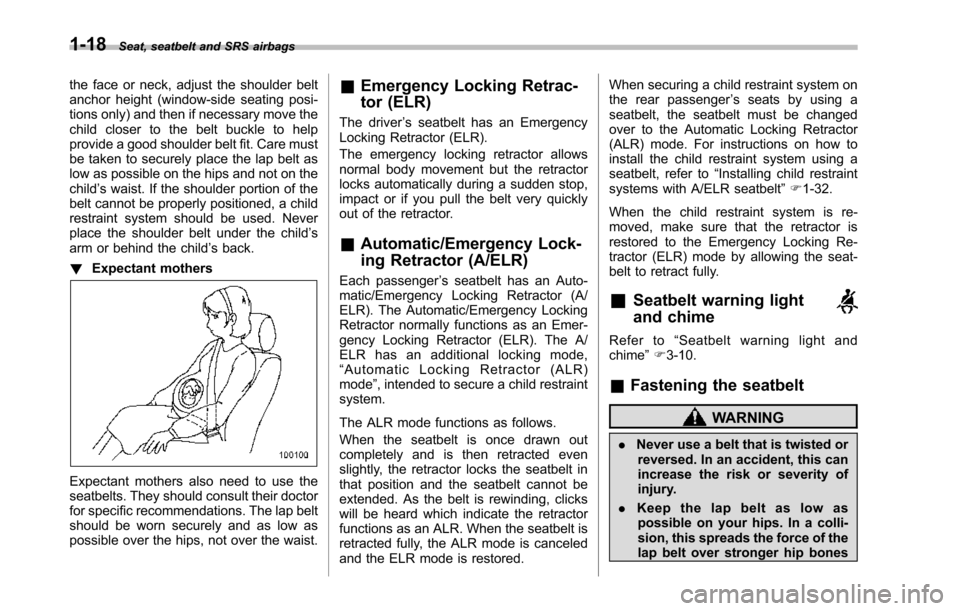

!Expectant mothers
Expectant mothers also need to use theseatbelts. They should consult their doctorfor specific recommendations. The lap beltshouldbe worn securely and as low aspossible over the hips, not over the waist.
&Emergency Locking Retrac-
tor (ELR)
The driver’s seatbelt has an EmergencyLocking Retractor (ELR).
The emergency locking retractor allowsnormal body movement but the retractorlocks automatically during a sudden stop,impact or if you pull the belt very quicklyout of the retractor.
&Automatic/Emergency Lock-
ing Retractor (A/ELR)
Each passenger’s seatbelt has an Auto-matic/Emergency Locking Retractor (A/ELR). The Automatic/Emergency LockingRetractor normally functions as an Emer-gency Locking Retractor (ELR). The A/ELR has an additional locking mode,“Automatic Locking Retractor (ALR)mode”, intended to secure a child restraintsystem.
The ALR mode functions as follows.
When the seatbelt is once drawn outcompletely and is then retracted evenslightly, the retractor locks the seatbelt inthat position and the seatbelt cannot beextended. As the belt is rewinding, clickswill be heard which indicate the retractorfunctions as an ALR. When the seatbelt isretracted fully, the ALR mode is canceledand the ELR mode is restored.
When securing a child restraint system onthe rear passenger’s seats by using aseatbelt, the seatbelt must be changedover to the Automatic Locking Retractor(ALR) mode. For instructions on how toinstall the child restraint system using aseatbelt, refer to“Installing child restraintsystems with A/ELR seatbelt”F1-32.
When the child restraint system is re-moved, make sure that the retractor isrestored to the Emergency Locking Re-tractor (ELR) mode by allowing the seat-belt to retract fully.
&Seatbelt warning light
and chime
Refer to“Seatbelt warning light andchime”F3-10.
&Fastening the seatbelt
WARNING
.Never use a belt that is twisted orreversed. In an accident, this canincrease therisk or severity ofinjury.
.Keep the lap belt as low aspossible on your hips. In a colli-sion, this spreads the force of thelap belt over stronger hip bones
Page 50 of 426
instead of across the weakerabdomen.
.Seatbelts provide maximum re-straint when the occupant sitswell back and upright in the seat.To r e d u c e t h e r i s k o f s l i d i n gunder the seatbelt in a collision,thefront seatbacks should bealways used in the upright posi-tion while the vehicle is running.If the front seatbacks are notused in the upright position in acollision, the risk of sliding underthe lap belt and of the lap beltsliding up over the abdomen willincrease, and both can result inserious internal injury or death.
.Do not put cushions or any othermaterials between occupantsand seatbacks or seat cushions.If you do so, the risk of slidingunder the lap belt and of the lapbelt sliding up over the abdomenwill increase, and both can resultin serious internal injury ordeath.
WARNING
Never place the shoulder belt underthe arm or behind the back. If anaccident occurs, this can increasethe risk or severity of injury.
CAUTION
Metallic parts of the seatbelt canbecome very hot in a vehicle thathas been closed up in sunny weath-er; they could burn an occupant. Donot touch such hot parts until theycool.

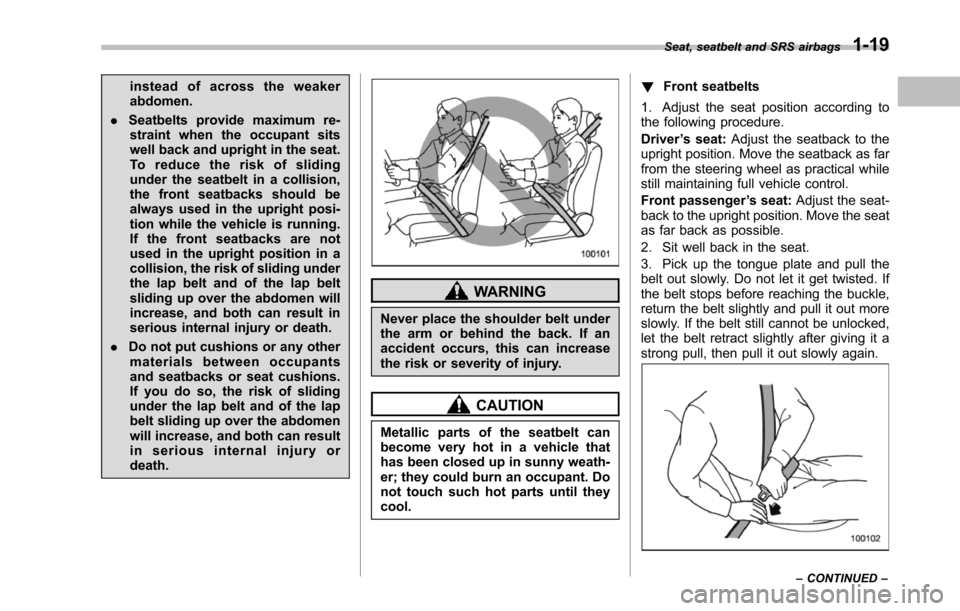

!Front seatbelts
1. Adjust the seat position according tothe following procedure.
Driver’s seat:Adjust the seatback to theupright position. Move the seatback as farfrom the steering wheel as practical whilestill maintaining full vehicle control.
Front passenger’s seat:Adjust the seat-back to the upright position. Move the seatas far back as possible.
2. Sit well back in the seat.
3. Pick up the tongue plate and pull thebelt out slowly. Do not let it get twisted. Ifthe belt stops before reaching the buckle,return the beltslightly and pull it out moreslowly. If the belt still cannot be unlocked,let the belt retract slightly after giving it astrong pull, then pull it out slowly again.
Seat, seatbelt and SRS airbags1-19
–CONTINUED–
