16

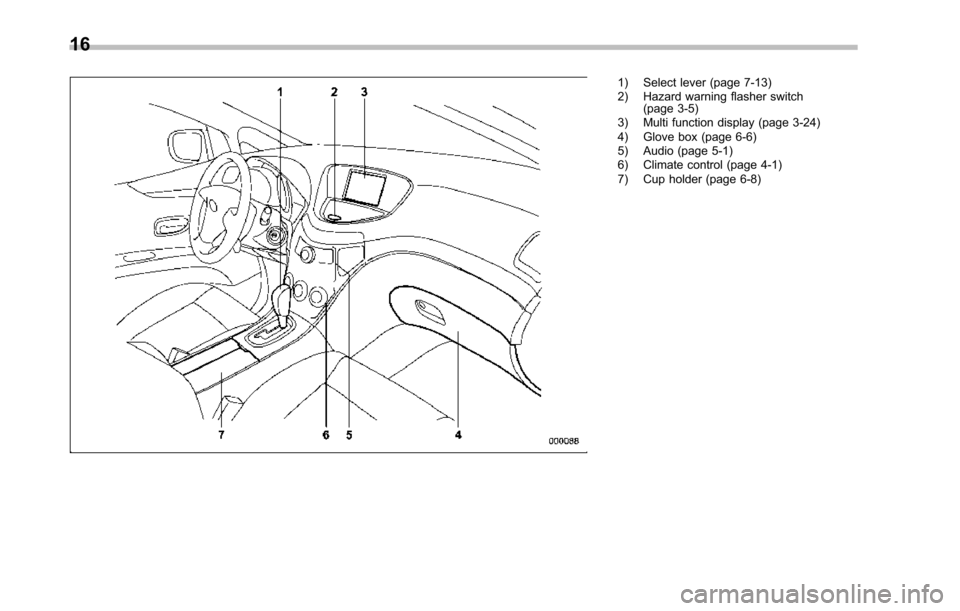

1) Select lever (page 7-13)2) Hazard warning flasher switch(page 3-5)3) Multi function display (page 3-24)4) Glove box (page 6-6)5) Audio (page 5-1)6) Climate control (page 4-1)7) Cup holder (page 6-8)
Page 22 of 426

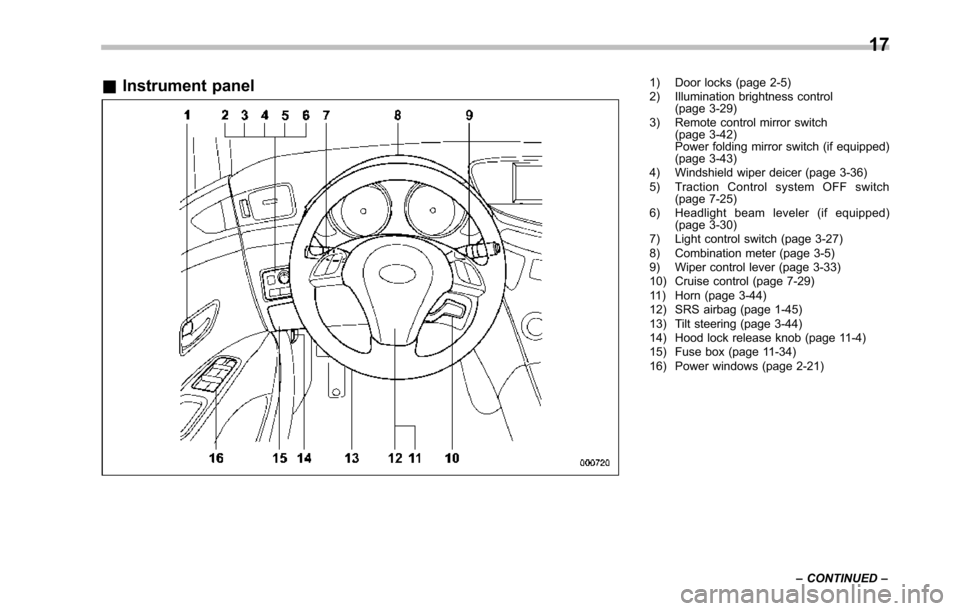

&Instrument panel1) Door locks (page 2-5)2) Illumination brightness control(page 3-29)3) Remote control mirror switch(page 3-42)Power folding mirror switch (if equipped)(page 3-43)4) Windshield wiper deicer (page 3-36)5) Traction Control system OFF switch(page 7-25)6) Headlight beam leveler (if equipped)(page 3-30)7) Light control switch (page 3-27)8) Combination meter (page 3-5)9) Wiper control lever (page 3-33)10) Cruise control (page 7-29)11) Horn (page 3-44)12) SRS airbag (page 1-45)13) Tilt steering (page 3-44)14) Hood lock release knob (page 11-4)15) Fusebox (page 11-34)16) Power windows (page 2-21)
17
–CONTINUED–
Page 23 of 426
18

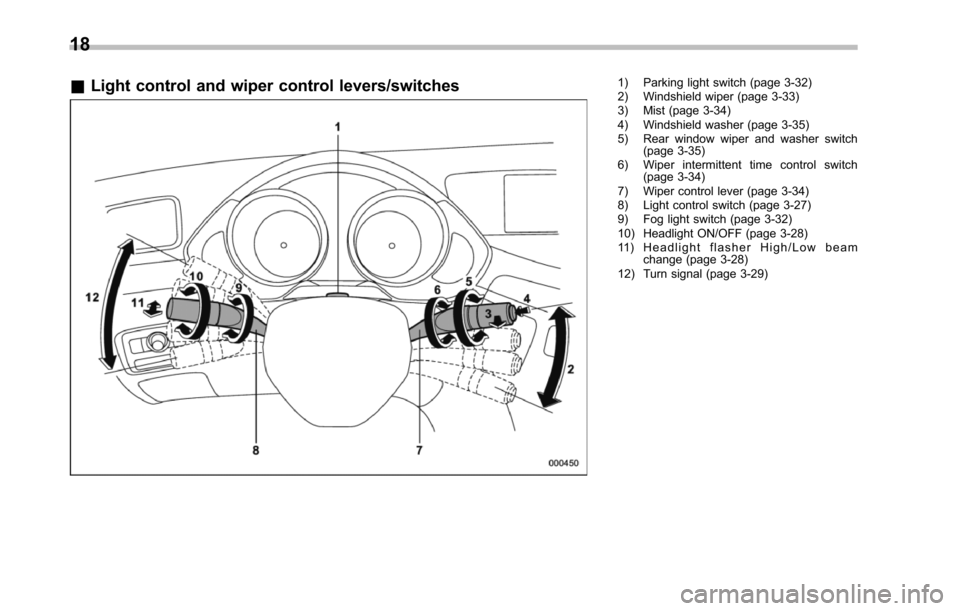

&Light control and wiper control levers/switches1) Parking light switch (page 3-32)2) Windshield wiper (page 3-33)3) Mist (page 3-34)4) Windshield washer (page 3-35)5) Rear window wiper and washer switch(page 3-35)6) Wiper intermittent time control switch(page 3-34)7) Wiper control lever (page 3-34)8) Light control switch (page 3-27)9) Fog light switch (page 3-32)10) Headlight ON/OFF (page 3-28)11 ) H e a d l i g h t f l a s h e r H i g h / L o w b e a mchange (page 3-28)12) Turn signal (page 3-29)
Page 24 of 426

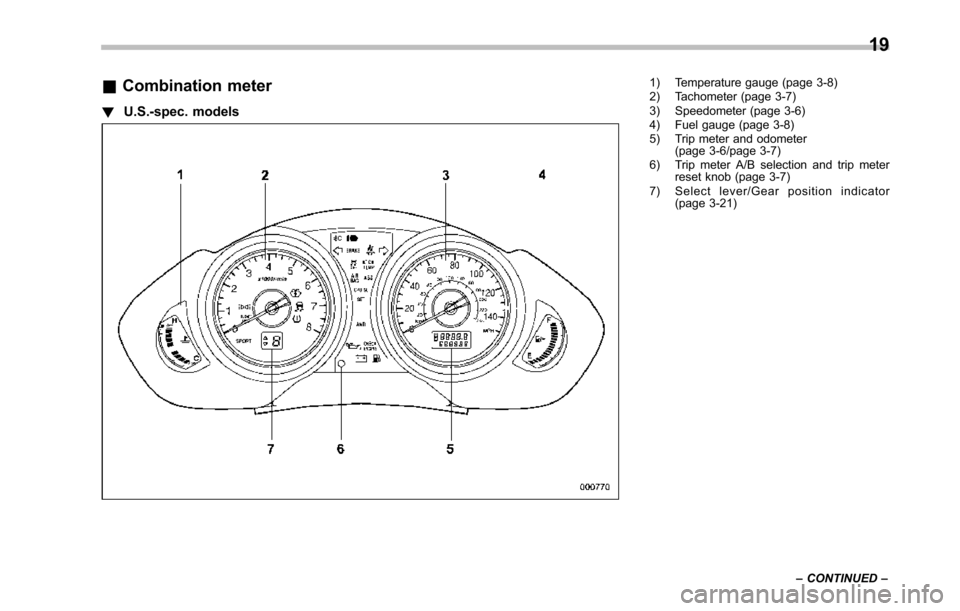

&Combination meter
!U.S.-spec. models
1) Temperature gauge (page 3-8)2) Tachometer (page 3-7)3) Speedometer (page 3-6)4) Fuel gauge (page 3-8)5) Trip meter and odometer(page 3-6/page 3-7)6) Trip meter A/B selection and trip meterreset knob (page 3-7)7) Select lever/Gear position indicator(page 3-21)
19
–CONTINUED–
Page 25 of 426
20

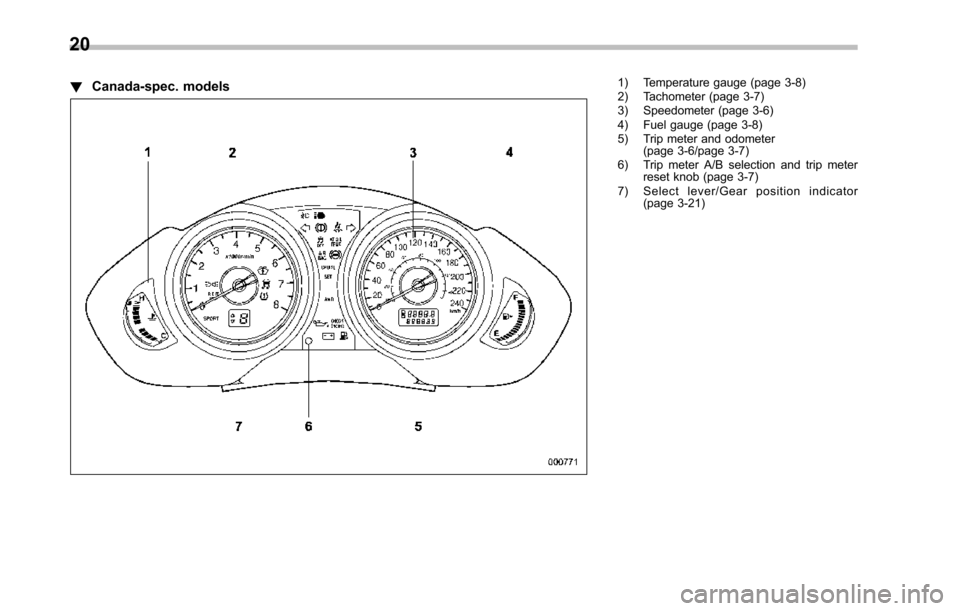

!Canada-spec. models1) Temperature gauge (page 3-8)2) Tachometer (page 3-7)3) Speedometer (page 3-6)4) Fuel gauge (page 3-8)5) Trip meter and odometer(page 3-6/page 3-7)6) Trip meter A/B selection and trip meterreset knob (page 3-7)7) Select lever/Gear position indicator(page 3-21)
Page 26 of 426

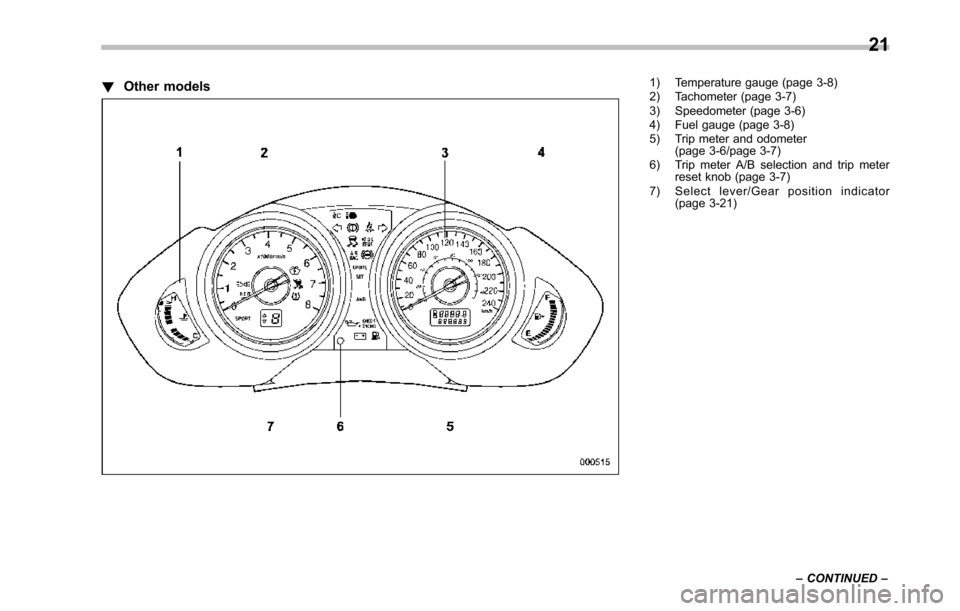

!Other models1) Temperature gauge (page 3-8)2) Tachometer (page 3-7)3) Speedometer (page 3-6)4) Fuel gauge (page 3-8)5) Trip meter and odometer(page 3-6/page 3-7)6) Trip meter A/B selection and trip meterreset knob (page 3-7)7) Select lever/Gear position indicator(page 3-21)
21
–CONTINUED–
Page 27 of 426
22

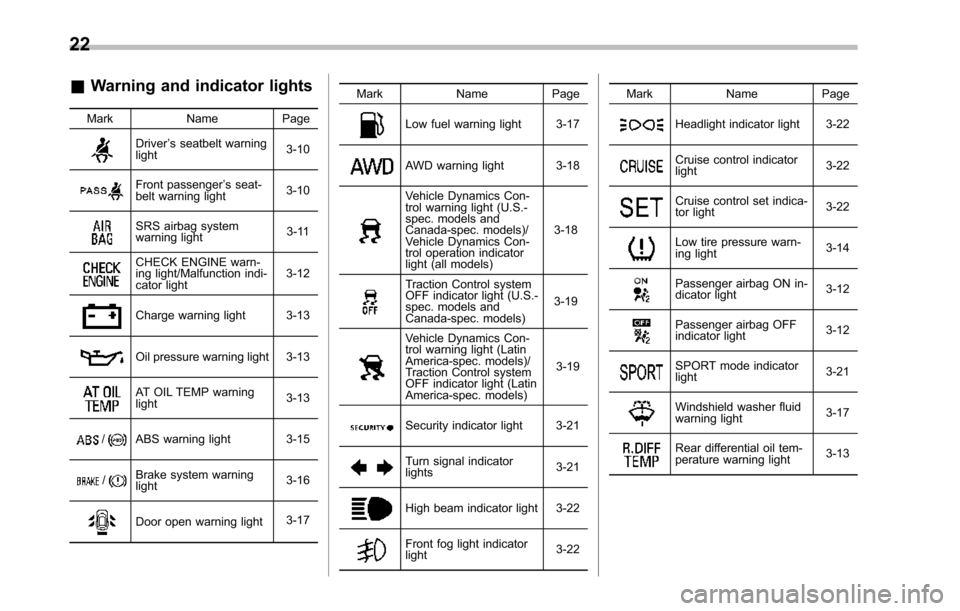

&Warning and indicator lights
Mark Name Page
Driver’s seatbelt warninglight3-10
Front passenger’s seat-belt warning light3-10
SRS airbag systemwarning light3-11
CHECK ENGINE warn-ing light/Malfunction indi-cator light3-12
Charge warning light 3-13
Oil pressure warning light3-13
AT OIL TEMP warninglight3-13
/ABS warning light 3-15
/Brake system warninglight3-16
Door open warning light3-17
Mark Name Page
Low fuel warning light 3-17
AWD warning light 3-18
Vehicle Dynamics Con-trol warning light (U.S.-spec. models andCanada-spec. models)/Vehicle Dynamics Con-trol operation indicatorlight (all models)
3-18
Traction Control systemOFF indicatorlight (U.S.-spec. models andCanada-spec. models)
3-19
Vehicle Dynamics Con-trol warning light (LatinAmerica-spec. models)/Traction Control systemOFF indicator light (LatinAmerica-spec. models)
3-19
Security indicator light 3-21
Turn signal indicatorlights3-21
High beam indicator light3-22
Front fog light indicatorlight3-22
Mark Name Page
Headlight indicator light 3-22
Cruise control indicatorlight3-22
Cruise control set indica-tor light3-22
Low tire pressure warn-ing light3-14
Passengerairbag ON in-dicator light3-12
Passenger airbag OFFindicator light3-12
SPORT mode indicatorlight3-21
Windshield washer fluidwarning light3-17
Rear differential oil tem-perature warning light3-13
Page 28 of 426

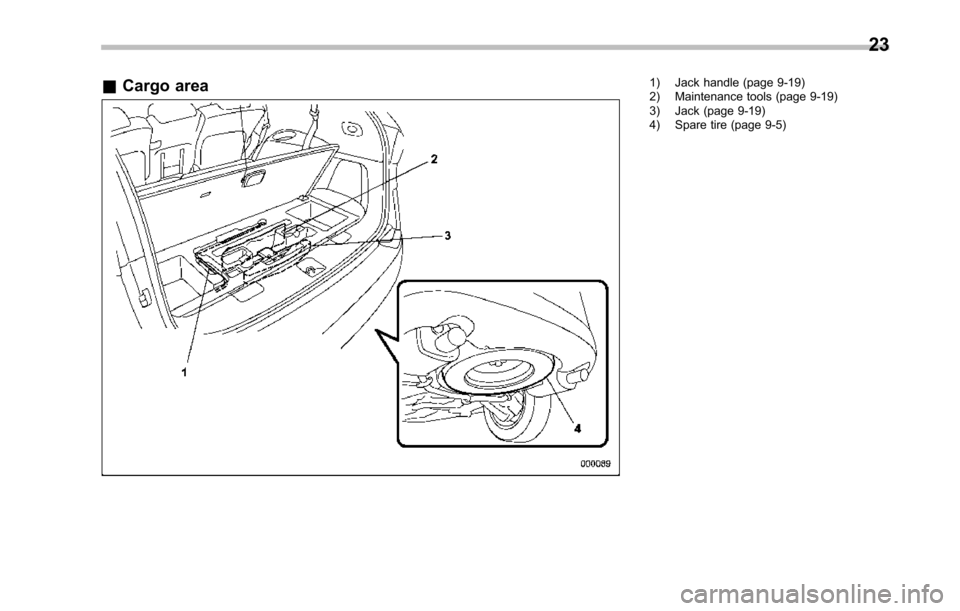

&Cargo area1) Jack handle (page 9-19)2) Maintenance tools (page 9-19)3) Jack (page 9-19)4) Spare tire (page 9-5)
23
Page 29 of 426
24

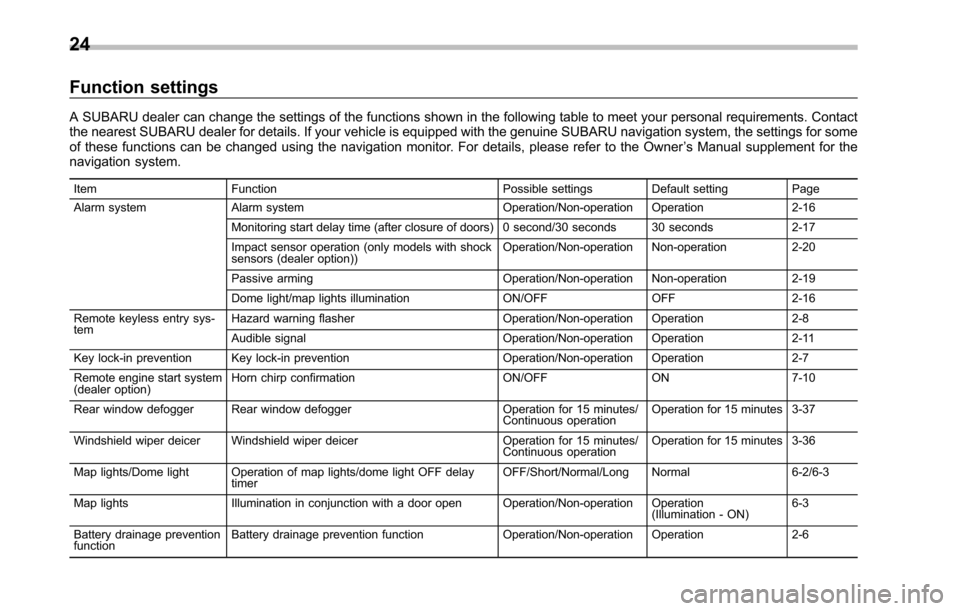

Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contactthe nearest SUBARU dealer for details. If your vehicle is equipped with the genuine SUBARU navigation system, the settings for someof these functions can be changed using the navigation monitor. For details, please refer to the Owner’s Manual supplement for thenavigation system.
Item Function Possible settings Default setting Page
Alarm system Alarm system Operation/Non-operation Operation 2-16
Monitoring start delay time (after closure of doors) 0 second/30 seconds 30 seconds 2-17
Impact sensor operation (only models with shocksensors (dealer option))Operation/Non-operation Non-operation 2-20
Passive arming Operation/Non-operation Non-operation 2-19
Dome light/map lights illuminationON/OFFOFF 2-16
Remote keyless entry sys-temHazard warning flasher Operation/Non-operation Operation 2-8
Audible signal Operation/Non-operation Operation 2-11
Key lock-in prevention Key lock-in preventionOperation/Non-operationOperation2-7
Remote engine start system(dealer option)Horn chirp confirmation ON/OFF ON 7-10
Rear window defogger Rear window defoggerOperation for 15 minutes/Continuous operationOperation for 15 minutes 3-37
Windshield wiper deicer Windshield wiper deicer Operation for 15 minutes/Continuous operationOperation for 15 minutes 3-36
Map lights/Dome light Operation of map lights/dome light OFF delaytimerOFF/Short/Normal/Long Normal 6-2/6-3
Map lights Illumination in conjunction with a door open Operation/Non-operation Operation(Illumination - ON)6-3
Battery drainage preventionfunctionBattery drainage prevention function Operation/Non-operation Operation 2-6
Page 30 of 426
Item Function Possible settings Default setting Page

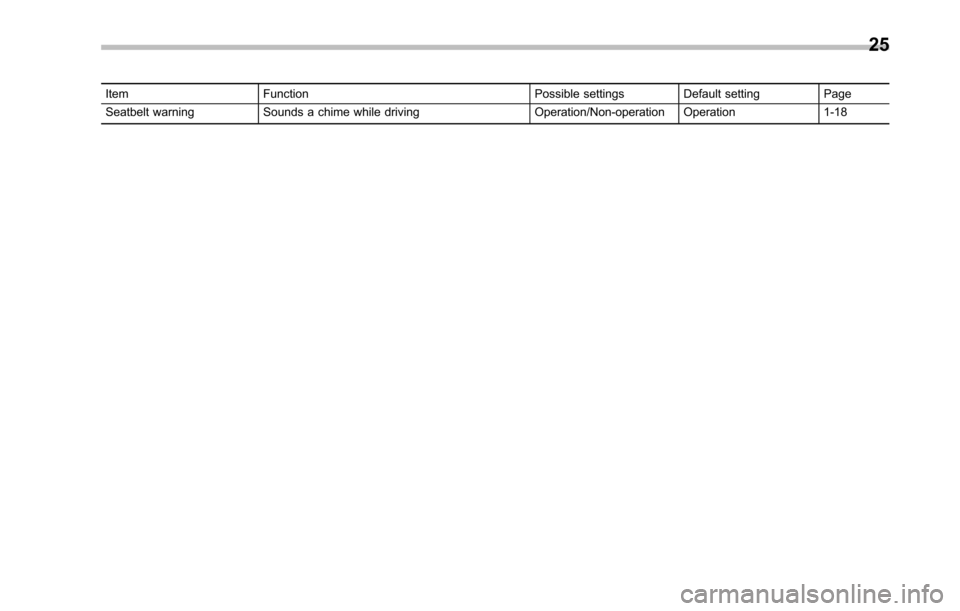

Seatbelt warning Sounds a chime while driving Operation/Non-operation Operation 1-18
25
