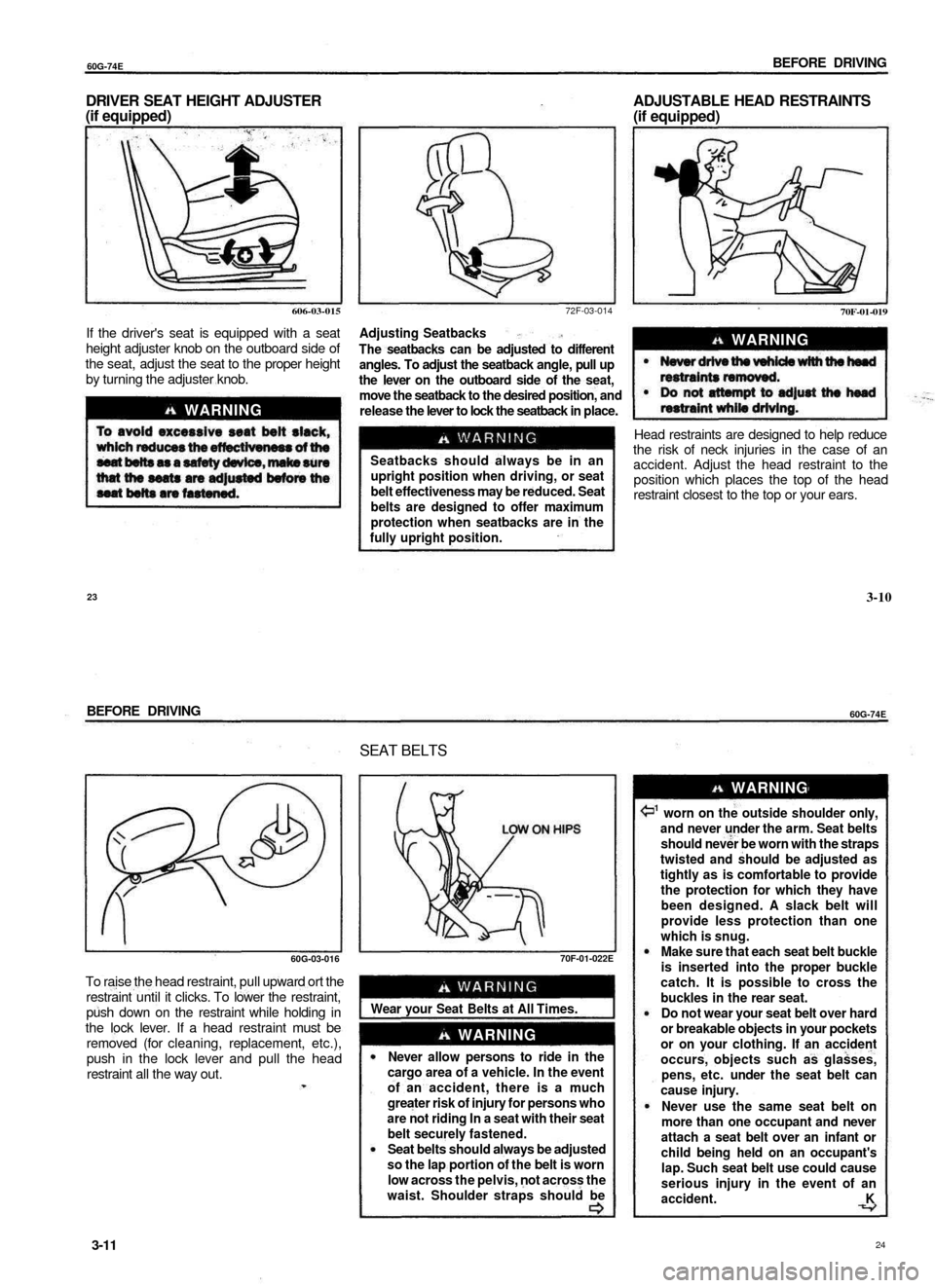

BEFORE DRIVING

DRIVER SEAT HEIGHT ADJUSTER

(if equipped)
ADJUSTABLE HEAD RESTRAINTS

(if equipped)

606-03-015

If the driver's seat is equipped with a seat

height adjuster knob on the outboard side of

the seat, adjust the seat to the proper height

by turning the adjuster knob.

WARNING
72F-03-014

Adjusting Seatbacks

The seatbacks can be adjusted to different

angles. To adjust the seatback angle, pull up

the lever on the outboard side of the seat,

move the seatback to the desired position, and

release the lever to lock the seatback in place.

Seatbacks should always be in an

upright position when driving, or seat

belt effectiveness may be reduced. Seat

belts are designed to offer maximum

protection when seatbacks are in the

fully upright position.
70F-01-019

WARNING

Head restraints are designed to help reduce

the risk of neck injuries in the case of an

accident. Adjust the head restraint to the

position which places the top of the head

restraint closest to the top or your ears.

23

3-10

BEFORE DRIVING

60G-74E

SEAT BELTS

60G-03-016

To raise the head restraint, pull upward ort the

restraint until it clicks. To lower the restraint,

push down on the restraint while holding in

the lock lever. If a head restraint must be

removed (for cleaning, replacement, etc.),

push in the lock lever and pull the head

restraint all the way out.
70F-01-022E

Wear your Seat Belts at All Times.

WARNING

Never allow persons to ride in the

cargo area of a vehicle. In the event

of an accident, there is a much

greater risk of injury for persons who

are not riding In a seat with their seat

belt securely fastened.

Seat belts should always be adjusted

so the lap portion of the belt is worn

low across the pelvis, not across the

waist. Shoulder straps should be
WARNING

1 worn on the outside shoulder only,

and never under the arm. Seat belts

should never be worn with the straps

twisted and should be adjusted as

tightly as is comfortable to provide

the protection for which they have

been designed. A slack belt will

provide less protection than one

which is snug.

Make sure that each seat belt buckle

is inserted into the proper buckle

catch. It is possible to cross the

buckles in the rear seat.

Do not wear your seat belt over hard

or breakable objects in your pockets

or on your clothing. If an accident

occurs, objects such as glasses,

pens, etc. under the seat belt can

cause injury.

Never use the same seat belt on

more than one occupant and never

attach a seat belt over an infant or

child being held on an occupant's

lap. Such seat belt use could cause

serious injury in the event of an

accident. _K

3-11
24

60G-74E

BEFORE DRIVING

Pregnant women should use seat

belts, although specific recommen-

dations about restraint use should

be made by the woman's medical

advisor.

Periodically inspect seat belt

assemblies for excessive wear and

damage. Seat belts should be replaced

if webbing becomes frayed,

contaminated, or damaged in any way.

It is essential to replace the entire seat

belt assembly after it has been

stressed in an impact, even if damage

to the assembly is not obvious.

Infants and small children should never

be transported unless they are properly

restrained. Restraint systems for

infants and small children can be

purchased locally and should be used.

Make sure that the system you

purchase meets applicable safety

standards. Read and follow all the

directions provided by the

manufacturer.
Avoid contamination of seat belt

webbing by polishes, oils, chemicals,

and particularly battery acid. Cleaning

may safely be carried out using mild

soap and water.

For children, if the shoulder belt

irritates the neck or face, move the child

closer to the center of the vehicle.

A WARNING

Be sure to inspect all seat belt

assemblies after any collision. Any seat

belt assembly which was in use during

a collision (other than a very minor one)

should be replaced, even if damage to

the assembly is not obvious. Any seat

belt assembly which was not in use

during a collision should be replaced

if it does not function properly or is

damaged in any way.
70F-01-021

There are two types of seat belt, "Lap-shoulder

belt" and "Lap belt".

To fasten the seat belt, sit up straight and well

back in the seat, pull the buckle tongue

attached to the seat belt across your body and

slide it into the buckle catch on the opposite

side until you hear a "click".

25

3-12

BEFORE DRIVING
60G-74E

70F-01-022E

To reduce the risk of sliding under the belt

during a collision, position the lap portion of

the belt across your lap as low on your hips

as possible and adjust the belt to a snug fit

using the proper method for each type of the

belt as described below. Make sure that the

belt is not twisted.
70F-01-023E

To unfasten the belt, press the release button

on the buckle catch.
70F-01-024E

To Adjust the Belt

• Lap-shoulder belt

Pull the shoulder portion of the belt

upwards through the tongue plate.

The length of the diagonal shoulder strap

adjusts itself to allow freedom of movement.

The seat belt has an emergency locking

retractor (ELR), which is designed to lock the

seat belt only during a sudden stop or impact.

3-13
26

60Q-74E
BEFORE DRIVING

70F-01-025

Your vehicle is equipped with the shoulder

anchor height adjusters for the front seat belts,

adjust the shoulder anchor height so that the

shoulder belt rides on the center of the

outboard shoulder. To adjust the shoulder

anchor height, slide the anchor up or down

while pulling the lock knob out. After

adjustment, make sure that the acnhor is

securely locked.

No modifications or additions of any

sort should be made to the seat belt or

its operating mechanism.
60G-03-017

Seat Belt Hanger (if equipped)

When you move a seatback, make sure

the belt webbing is hooked in the belt

hangers so the seat belts are not

caught by the seatback, seat hinge, or

seat latch. This helps prevent damage

to the belt system.
60G-03-018E

Lap belt

On this belt the adjuster is incorporated in

the tongue unit.

To tighten the belt, pull the free end of the

belt across alongside the lap strap until it

is adjusted to a snug comfortable position.

27

3-14

BEFORE DRIVING

60G-74E

60G-03-019E

To lengthen, release the tongue from the

buckle unit, pull the tongue (adjuster) in the

direction of the arrow, at right angles to the

belt. The tongue should then be refitted into

the buckle unit and the belt tightened as

previously described.
60G-03-020E

NOTE:

To identify the center seat belt buckle catch

and tongue in the rear seat, "CENTER" is

moulded on the buckle catch and tongue of

the center lap belt. The buckle catches are

designed so a buckle tongue can not be

inserted into the wrong buckle catch.
70F-01-030

Child Restraint Systems

MARUTI highly recommends that you use a

child restraint system to restrain infants and

small children. Many different types of child

restraint systems are available; make sure that

the restaint system you select meets

applicable safety standards.

All child restraint systems are designed to be

secured in vehicle seats by lap belts or the

lap portion of lap-shoulder belts. Whenever

possible, Maruti recommends that child

restraint systems be installed on the rear seat.

According to accident statistics children are

safer when properly restrained in rear seating

positions than in front seating positions.

3-15
28

60G-74E
BEFORE DRIVING

If you must use a front-facing child restraint in

the front passenger's seat, adjust the

passenger's seat as far back as possible.

Children could be endangered in a

crash if their child restraints are not

properly secured in the vehicle. When

installing a child restraint system, be

sure to follow the instructions below.

Be sure to secure the child in the

restraint system according to the

manufacturer's Instructions.
60G-03-021E

Installation with lap-shoulder seat belts

Note:

The lap-shoulder belts of your vehicle have

emergency locking retractors (ELRs) that can

not function as an automatic locking retractor

(ALR). Use the installation method described

in the instructions provided by the child

restraint system manufacturer that does not

require the ALR function.

Install your child restraint system according

to the instructions provided by the child

restraint system manufacturer. Make sure that

the seat belt is securely latched.
70F-01-031

Try moving the child restraint system in all

directions, to make sure it is securely installed.

Tighten the belt if necessary.

29

3-16

BEFORE DRIVING
60G-74E

70F-01-032E

Installation with a lap belt

Install your child restraint system according

to the instructions provided by the child

restraint system manufacturer.

To lengthen or tighten the belt, refer to the "Lap

belt" item in this "SEAT BELTS" section. After

making sure that the seat belt is securely

latched, try moving the child restraint system

in all directions, to make sure it is securely

installed. If you need to tighten the belt, pull

the free end of the webbing.

3-17
30

60G-74E

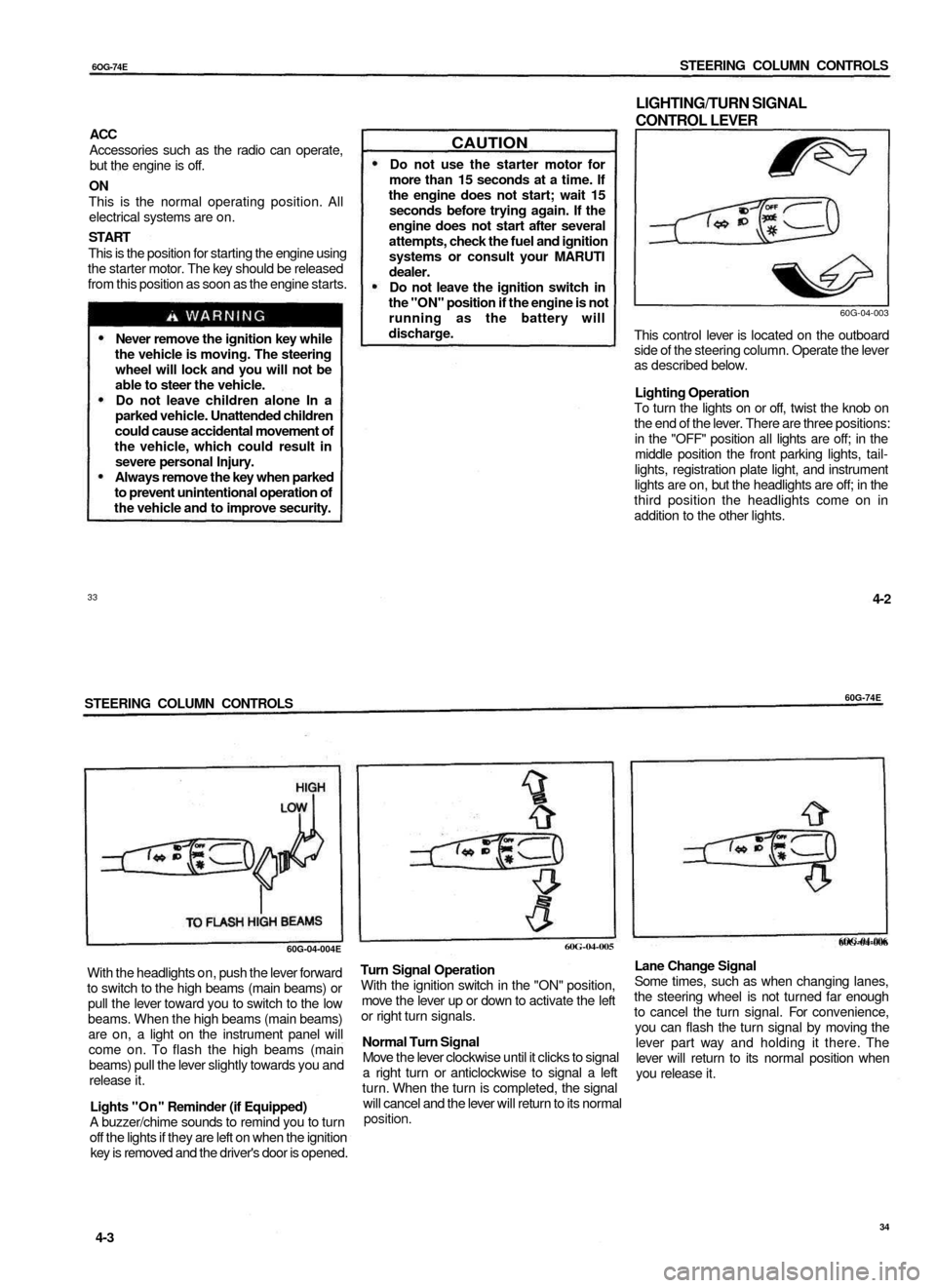

STEERING COLUMN CONTROLS

STEERING COLUMN CONTROLS

ignition Switch 4.1

Lighting/Tum Signal Control Lever 4-2

Windscreen Wiper and Washer Lever 4-4

Horn 4.5

Rear Wiper and Washer(lf equipped) 4-5

31

STEERING COLUMN CONTROLS
60G-74E

IGNITION SWITCH

60G-04-001E
70F-02-002

To avoid possible injury, do not operate

controls by reaching through the

steering wheel.
The ignition switch has the following four

positions:

Do not use any locally made key.

Should you require duplicate key,

place your order with MARUTI dealer

only.
60G-04-002E

LOCK

This is the normal parking position. It is the

only position in which the key can be removed.

You must push in the key to turn it to the

"LOCK" position. The "LOCK" position locks

the ignition, and prevents normal use of the

steering wheel after the key is removed.

To release the steering lock, fully insert the

key and turn it clockwise to one of the other

positions. If you have trouble turning the key

to unlock the steering, try turning the steering

wheel slightly to the right or left while turning

the key.

4-1
32

6OG-74E
STEERING COLUMN CONTROLS

ACC

Accessories such as the radio can operate,

but the engine is off.

ON

This is the normal operating position. All

electrical systems are on.

START

This is the position for starting the engine using

the starter motor. The key should be released

from this position as soon as the engine starts.

Never remove the ignition key while

the vehicle is moving. The steering

wheel will lock and you will not be

able to steer the vehicle.

Do not leave children alone In a

parked vehicle. Unattended children

could cause accidental movement of

the vehicle, which could result in

severe personal Injury.

Always remove the key when parked

to prevent unintentional operation of

the vehicle and to improve security.
LIGHTING/TURN SIGNAL

CONTROL LEVER

CAUTION

Do not use the starter motor for

more than 15 seconds at a time. If

the engine does not start; wait 15

seconds before trying again. If the

engine does not start after several

attempts, check the fuel and ignition

systems or consult your MARUTI

dealer.

Do not leave the ignition switch in

the "ON" position if the engine is not

running as the battery will

discharge.
60G-04-003

This control lever is located on the outboard

side of the steering column. Operate the lever

as described below.

Lighting Operation

To turn the lights on or off, twist the knob on

the end of the lever. There are three positions:

in the "OFF" position all lights are off; in the

middle position the front parking lights, tail-

lights, registration plate light, and instrument

lights are on, but the headlights are off; in the

third position the headlights come on in

addition to the other lights.

33

4-2

STEERING COLUMN CONTROLS
60G-74E

With the headlights on, push the lever forward

to switch to the high beams (main beams) or

pull the lever toward you to switch to the low

beams. When the high beams (main beams)

are on, a light on the instrument panel will

come on. To flash the high beams (main

beams) pull the lever slightly towards you and

release it.

Lights "On" Reminder (if Equipped)

A buzzer/chime sounds to remind you to turn

off the lights if they are left on when the ignition

key is removed and the driver's door is opened.
Turn Signal Operation

With the ignition switch in the "ON" position,

move the lever up or down to activate the left

or right turn signals.

Normal Turn Signal

Move the lever clockwise until it clicks to signal

a right turn or anticlockwise to signal a left

turn. When the turn is completed, the signal

will cancel and the lever will return to its normal

position.
6OG-04-006

Lane Change Signal

Some times, such as when changing lanes,

the steering wheel is not turned far enough

to cancel the turn signal. For convenience,

you can flash the turn signal by moving the

lever part way and holding it there. The

lever will return to its normal position when

you release it.

4-3
34
60G-04-006

60G-04-005

60G-04-004E

60G-74E

STEERING COLUMN CONTROLS

WINDSCREEN WIPER AND

WASHER LEVER

60G-04-007E

Windscreen Wipers

To turn the windscreen wipers on, move the

lever down to one of the three operating

positions. In the "INT position (if equipped),

the wipers operate intermittently. The "INT'

position is very convenient for driving in mist

or light rain. In the "LO" position, the wipers

operate at a steady low speed. In the "HI"

position, the wipers operate at a steady high

speed. To turn off the wipers, move the lever

back to the "OFF position.
60G-04-008E

If the lever is equipped with "INT TIME" control,

turn the control toward the "SLOW" or "FAST'

positions to adjust the intermittent wiper

operation to the desired interval.

60G-04-011E

The operation of windscreen wiper and washer

Type-2 is same as Type-1.
60G-04-009E

Windscreen Washer

To spray windscreen washer fluid, pull the

lever toward you. The windscreen wipers will

automatically turn on at low speed if

they are not already on and the "INT" position

is equipped.

To prevent windscreen icing in cold

weather, turn on the defroster to heat

the windscreen before and during

windscreen washer use.

Do not use radiator antifreeze in the

windscreen washer reservoir. It can

severely impair visibility when

sprayed on the windscreen, and can

also damage your vehicle's paint.

35

4-4

STEERING COLUMN CONTROLS
60G-74E

CAUTION

To help prevent damage to the

windscreen wiper and washer system

components, you should take the

following precautions:

• Do not continue to hold in the lever

when there is no windscreen washer

fluid being sprayed or the washer

motor can be damaged.

• Do not attempt to remove dirt from

a dry windscreen with the wipers or

you can damage the windscreen and

the wiper blades. Always wet the

windscreen with washer fluid before

operating the wipers.

• Clear ice or packed snow from the

wiper blades before using the

wipers.

• Check the washer fluid level

regularly. Check it often when the

weather is bad.

• Only fill the washer fluid reservoir

3/4 full during cold weather to allow

room for expansion if the

temperature falls low enough to

freeze the solution.
HORN
REAR WIPER AND WASHER

(if equipped)

60G-04-010

Press the horn button of the steering wheel to

sound the horn. The horn will sound with the

ignition switch in any position.
Press the button located at the end of the

windscreen wiper and washer lever to operate

the rear washer and turn the lever anti

clockwise to operate the rear washer.

4-5
36

60G-74E
INSTRUMENT PANEL

INSTRUMENT PANEL

Instrument Panel 5-1

Instrument Cluster 5-2

Warning and Indicator Lights 5-3

Speedometer/Odometer/Tripmeter (if equipped) 5-5

Tachometer (if equipped) 5-6

Fuel Gauge 5-6

Temperature Gauge 5-6

Hazard Warning Switch 5-7

Rear Window Defroster Switch (if equipped) 5-7

Cigarette Lighter (if equipped) 5-7

Ashtray 5-8

Glove Box 5-8

Heating System (if equipped) 5-9

System Operating Instructions 5-10

Air Conditioning System (if equipped) 5-13

System Operating Instructions 5-13

37

INSTRUMENT PANEL
60G-74E

INSTRUMENT PANEL

1. Instrument cluster

2. Ignition switch

3. Lighting switch/Turn signal and

dimmer switch

4. Windscreen wiper and washer

switch

5. Hazard warning switch

6. Rear window defroster switch

(if equipped)

7. Other switches (if equipped)

8. Heater control panel

9. Audio system (if equipped)

10. Cigarette lighter (if equipped)

11. Ashtray

12. Bonnet release

13. Center ventilator

14. Side ventilator

15. Side defroster

16. Glove box

17. Fuse box

18. Cup holder (if equipped)

5-1
38

60G-74E
INSTRUMENT PANEL

INSTRUMENT CLUSTER

© Speedometer

® Odometer

© Trip meter (if equipped)

© Trip meter reset knob

© Tachometer (if equipped)

© Fuel gauge

® Temperature gauge

© Warning and indicator lights

60G-05-002

39

5-2

INSTRUMENT PANEL
60G-74E

WARNING AND INDICATOR LIGHTS

70F-07-070

Brake fluid level warning/Parking Brake

Indicator light

This light operates under three conditions:

1) when the ignition switch is turned to the

"START' position, 2) when the fluid in the brake

fluid reservoir falls below the specified level

or 3) when the parking brake is not fully

released and the ignition switch is in the "ON"

position. The light should go out after starting

the engine and fully releasing the parking

brake, if the fluid in the brake fluid reservoir is

adequate. If the light does not go off or comes

on whilst you are driving, it may mean that

there is something wrong with the vehicle's

braking system. If this happens, you should:

1) Pull off the road and stop carefully.

Remember that stopping distance may

be longer, you may have to push

harder on the pedal, and the pedal

may go down farther than normal.
2) Test the brakes by carefully starting and

stopping at the side of the road.

3) If you determine that it is safe, drive

carefully at low speed to the nearest dealer

for repairs.

Have the vehicle towed to the nearest

dealer for repairs.
or

4)

If any of the following conditions occur,

you should Immediately ask your

MARUTI dealer to inspect the brake

system.

• If the brake fluid level warning light

does not go out after the engine has

been started and the parking brake

has been fully released.

• If the brake fluid level warning light

does not come on when the ignition

switch is turned to the "START"

position.

• If the brake fluid level warning light

comes on at any time during vehicle

operation.

NOTE:

Because the disc brake system is self

adjusting, the fluid level will drop as the brake

pads become worn.

Replenishing the brake fluid reservoir is

considered normal periodic maintenance.
70F-03-039

Oil Pressure Light

This light comes on when the ignition switch

is turned on, and goes out when the engine

is started. The light will come on and remain

on if there is insufficient oil pressure. If the

light comes on when driving, pull off the

road as soon as you can and stop the

engine. Check the oil level and add oil if

necessary (see pages 9-8 and 9-9). If there

is enough oil, the lubrication system should

be inspected by your MARUTI dealer before

you drive the vehicle again.

5-3
40

60G-74E
INSTRUMENT PANEL

60G-09-002

CAUTION

If you operate the engine with this

light on, severe engine damage can

result.

Do not rely on the Oil Pressure Light

to indicate the need to add oil. Be

sure to periodically check the engine

oil level (see pages 9-8 and 9-9).
70F-03-009

Charging Light

This light comes on when the ignition switch

is turned on, and goes out when the engine is

started. The light will come on and remain on

if there is something wrong with the battery

charging system. If the light comes on when

the engine is running, the charging system

should be inspected immediately by your

MARUTI dealer.

CAUTION

Do not continue driving long with the

charging light ON as this will drain the

battery 'dead'.
72F-05-027

"Malfunction Indicator" Light

Your vehicle has a computer-controlled

emission control system. A "Malfunction

Indicator" light is provided on the instrument

panel to indicate when it is necessary to have

the emission control system serviced. The

"Malfunction Indicator" light comes on when

the ignition switch is turned to "ON" and goes

out when the engine is started.

If the "Malfunction Indicator" light comes on

when the engine is running, there is a problem

with the emission control system. Take the

vehicle to your MARUTI dealer to have the

problem corrected.

CAUTION

Continuing to drive the vehicle when

the "Malfunction Indicator" light is on

can cause permanent damage to the

vehicle's emission control system, and

can affect fuel economy and

driveability.

5-4

INSTRUMENT PANEL
60G-74E

70F-03-042

Turn Signal Indicators

When you turn on the left or right turn signals,

the corresponding green arrow on the

instrument panel will flash along with the

respective turn signal lights. When you turn

on the hazard warning switch, both arrows will

flash along with all of the turn signal lights.

70F-03-043

Main Beam (High Beam) Indicator Light

This indicator comes on when headlight main

beams (high beams) are turned on.
SPEEDOMETER/ODOMETER/

TRIPMETER (if equipped)

60G-05-003

© Speedometer

© Odometer

(D Trip meter

© Trip meter reset knob

The speedometer indicates vehicle speed in

km/h.The odometer records the total distance

the vehicle has been driven. The tripmeter can

be used to measure the distance travelled on

short trips or between fuel stops. You can reset

the tripmeter to zero by pushing the reset

knob.
CAUTION

Keep track of your odometer reading

and check the maintenance schedule

regularly for required services.

Increased wear or damage to certain

parts can result from failure to perform

required services at the proper mileage

intervals and your warranty rights may

be affected.

5-5

42
41
