INSPECTION AND MAINTENANCE

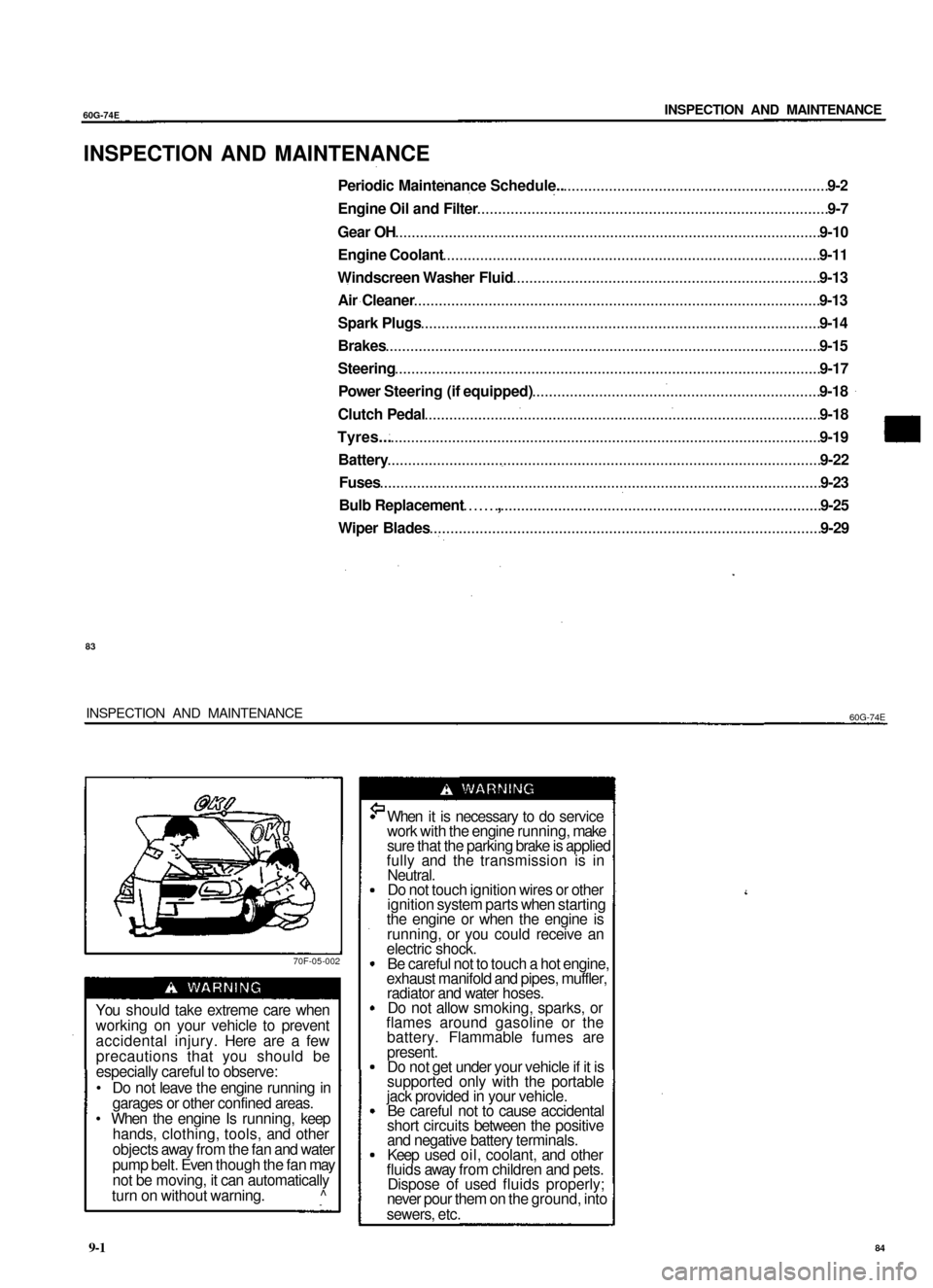

INSPECTION AND MAINTENANCE

Periodic Maintenance Schedule.. 9-2

Engine Oil and Filter 9-7

Gear OH 9-10

Engine Coolant 9-11

Windscreen Washer Fluid 9-13

Air Cleaner 9-13

Spark Plugs 9-14

Brakes 9-15

Steering 9-17

Power Steering (if equipped) 9-18

Clutch Pedal 9-18

Tyres... 9-19

Battery 9-22

Fuses 9-23

Bulb Replacement , 9-25

Wiper Blades 9-29

83

INSPECTION AND MAINTENANCE

60G-74E

70F-05-002

You should take extreme care when

working on your vehicle to prevent

accidental injury. Here are a few

precautions that you should be

especially careful to observe:

• Do not leave the engine running in

garages or other confined areas.

• When the engine Is running, keep

hands, clothing, tools, and other

objects away from the fan and water

pump belt. Even though the fan may

not be moving, it can automatically

turn on without warning. ^
When it is necessary to do service

work with the engine running, make

sure that the parking brake is applied

fully and the transmission is in

Neutral.

Do not touch ignition wires or other

ignition system parts when starting

the engine or when the engine is

running, or you could receive an

electric shock.

Be careful not to touch a hot engine,

exhaust manifold and pipes, muffler,

radiator and water hoses.

Do not allow smoking, sparks, or

flames around gasoline or the

battery. Flammable fumes are

present.

Do not get under your vehicle if it is

supported only with the portable

jack provided in your vehicle.

Be careful not to cause accidental

short circuits between the positive

and negative battery terminals.

Keep used oil, coolant, and other

fluids away from children and pets.

Dispose of used fluids properly;

never pour them on the ground, into

sewers, etc.

9-1
84

60G-74E
INSPECTION AND MAINTENANCE

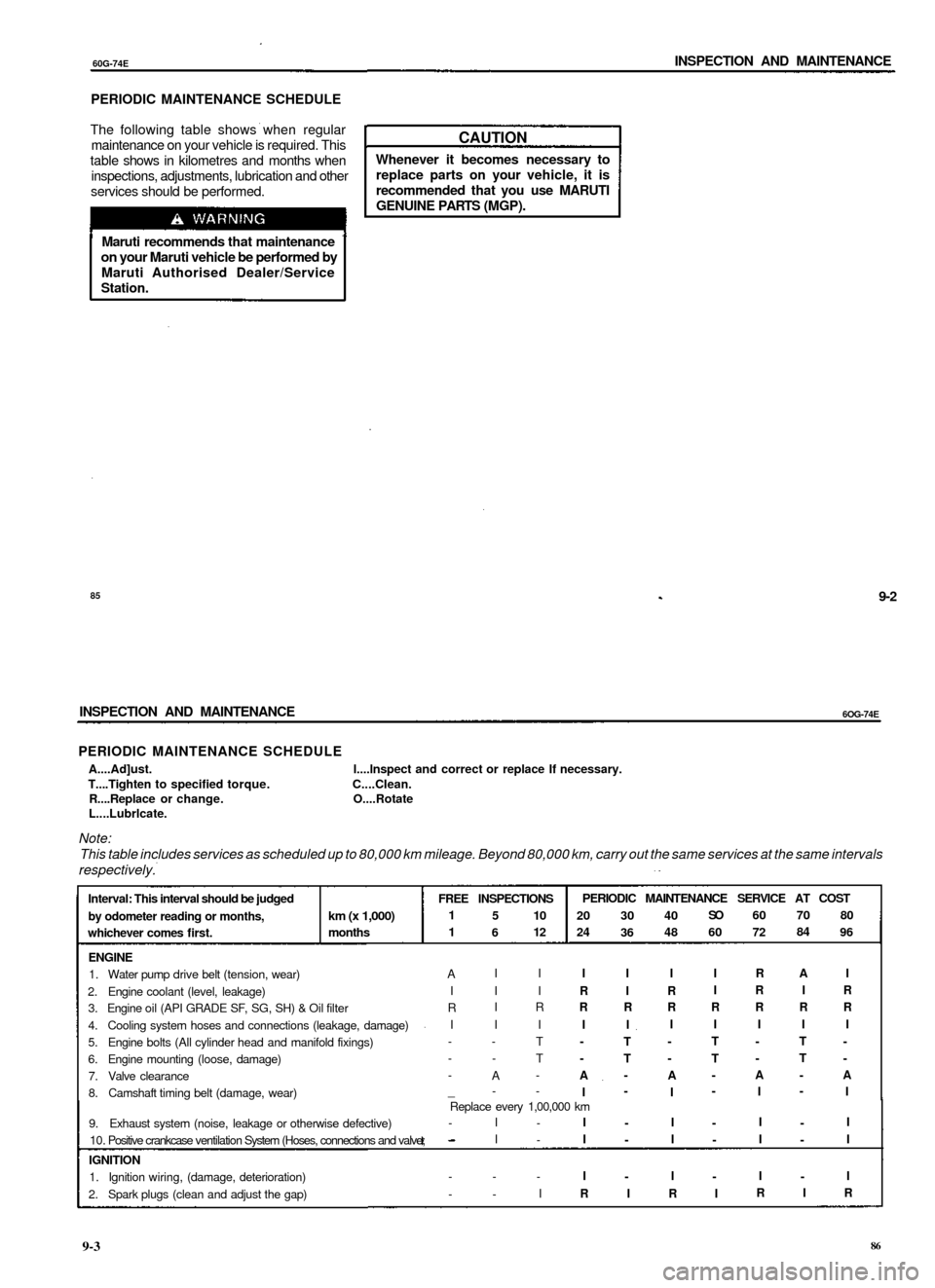

PERIODIC MAINTENANCE SCHEDULE

The following table shows when regular

maintenance on your vehicle is required. This

table shows in kilometres and months when

inspections, adjustments, lubrication and other

services should be performed.

Maruti recommends that maintenance

on your Maruti vehicle be performed by

Maruti Authorised Dealer/Service

Station.
CAUTION

Whenever it becomes necessary to

replace parts on your vehicle, it is

recommended that you use MARUTI

GENUINE PARTS (MGP).

85

9-2

INSPECTION AND MAINTENANCE

6OG-74E

PERIODIC MAINTENANCE SCHEDULE

A....Ad]ust. l....lnspect and correct or replace If necessary.

T....Tighten to specified torque. C....CIean.

R....Replace or change. O....Rotate

L....Lubrlcate.

Note:

This table includes services as scheduled up to 80,000 km mileage. Beyond 80,000 km, carry out the same services at the same intervals

respectively.

Interval: This interval should be judged

by odometer reading or months,

whichever comes first.
km (x 1,000)

months

ENGINE

1. Water pump drive belt (tension, wear)

2. Engine coolant (level, leakage)

3. Engine oil (API GRADE SF, SG, SH) & Oil filter

4. Cooling system hoses and connections (leakage, damage)

5. Engine bolts (All cylinder head and manifold fixings)

6. Engine mounting (loose, damage)

7. Valve clearance

8. Camshaft timing belt (damage, wear)

9. Exhaust system (noise, leakage or otherwise defective)

10. Positive crankcase ventilation System (Hoses, connections and valve;

IGNITION

1. Ignition wiring, (damage, deterioration)

2. Spark plugs (clean and adjust the gap)
FREE INSPECTIONS

1

1

A

I

R

I

-

-

-

_
5

6

I

I

I

I

-

-

A

-
10

12

I

I

R

I

T

T

-

-
PERIODIC MAINTENANCE SERVICE AT COST

20

24

I

R

R

I

-

-

A

I

Replace every 1,00,000 km

-

-

-
I

I

-

-
-

-

-

I
I

I

I

R
30

36

I

I

R

I

T

T

-

-

-

-

-

I
40

48

I

R

R

I

-

-

A

I

I

I

I

R
SO

60

I

I

R

I

T

T

-

-

-

-

-

I
60

72

R

R

R

I

-

-

A

I

I

I

I

R
70

84

A

I

R

I

T

T

-

-

-

-

-

I
80

96

I

R

R

I

-

-

A

I

I

I

I

R

9-3
86

60G-74E
INSPECTION AND MAINTENANCE

Interval: This interval should be Judged

by odometer reading or months,

whichever comes first.
km (x 1,000)

months

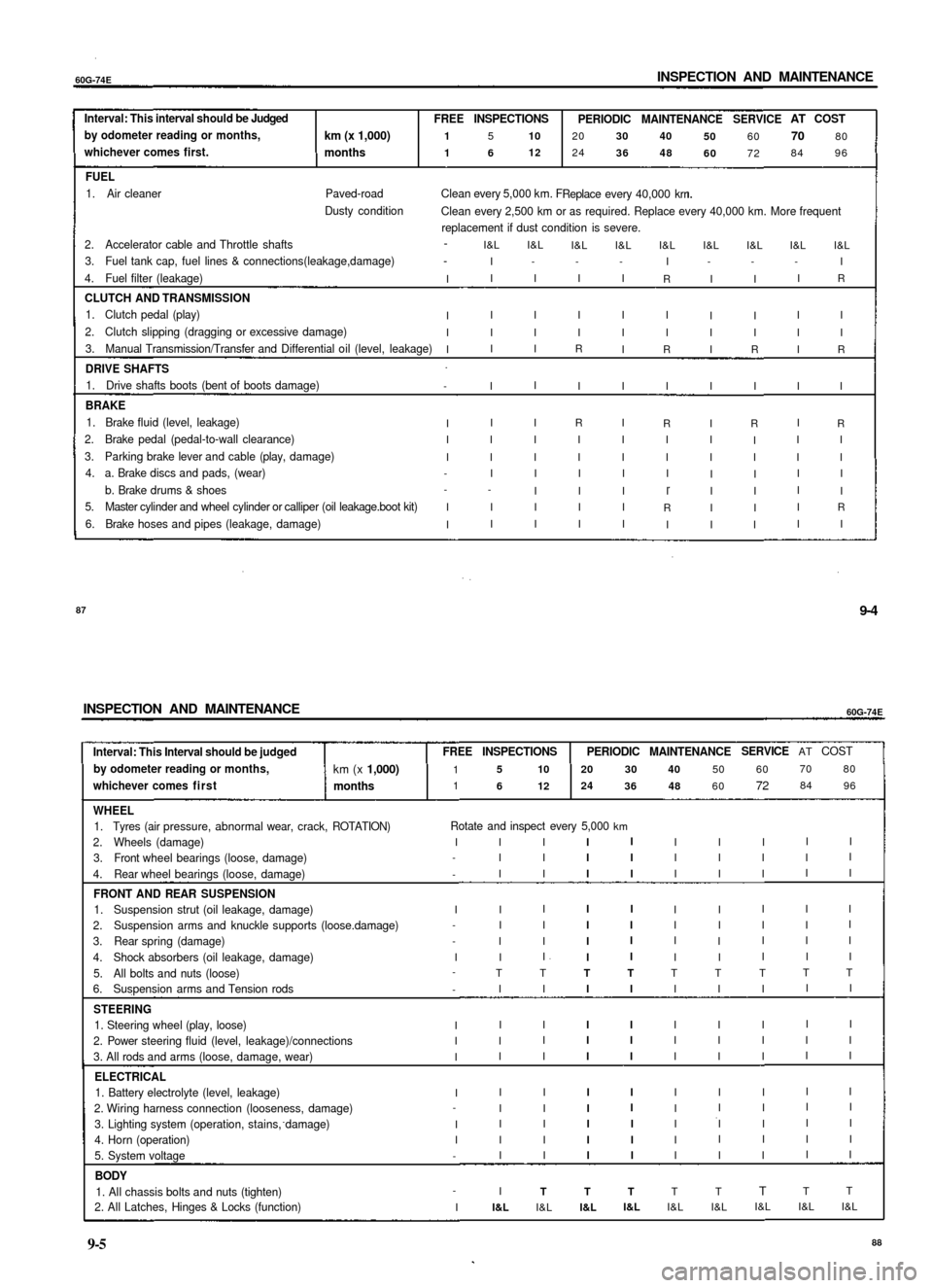

FUEL

1. Air cleaner Paved-road

Dusty condition

2. Accelerator cable and Throttle shafts

3. Fuel tank cap, fuel lines & connections(leakage,damage)

4. Fuel filter (leakage)

CLUTCH AND TRANSMISSION

1. Clutch pedal (play)

2. Clutch slipping (dragging or excessive damage)

3. Manual Transmission/Transfer and Differential oil (level, leakage)

DRIVE SHAFTS

1. Drive shafts boots (bent of boots damage)

BRAKE

1. Brake fluid (level, leakage)

2. Brake pedal (pedal-to-wall clearance)

3. Parking brake lever and cable (play, damage)

4. a. Brake discs and pads, (wear)

b. Brake drums & shoes

5. Master cylinder and wheel cylinder or calliper (oil leakage.boot kit)

6. Brake hoses and pipes (leakage, damage)
FREE

1

1
INSPECTIONS

5

6
10

12

Clean every 5,000 km. F
PERIODIC MAINTENANCE

20

24
30

36
40

48

Replace every 40,000 krr
50

60
SERVICE

60

72
AT

70

84
COST

80

96

Clean every 2,500 km or as required. Replace every 40,000 km. More frequent

replacement if dust condition is severe.

-

-

I

I

I

I

-

I

I

I

-

-

I

I
I&L

I

I

I

I

I

I

I

I

I

I

-

I

I
I&L

-

I

I

I

I

I

I

I

I

I

I

I

I
I&L

-

I

I

I

R

I

R

I

I

I

I

I

I
I&L

-

I

I

I

I

I

I

I

I

I

I

I

I
I&L

I

R

I

I

R

I

R

I

I

I

I

R

I
I&L

-

I

I

I

I

I

I

I

I

I

I

I

I
I&L

-

I

I

I

R

I

R

I

I

I

I

I

I
I&L

-

I

I

I

I

I

I

I

I

I

I

I

I
I&L

I

R

I

I

R

I

R

I

I

I

I

R

I

87

9-4

INSPECTION AND MAINTENANCE

60G-74E

Interval: This Interval should be judged

by odometer reading or months,

whichever comes first
km (x 1,000)

months

WHEEL

1. Tyres (air pressure, abnormal wear, crack, ROTATION)

2. Wheels (damage)

3. Front wheel bearings (loose, damage)

4. Rear wheel bearings (loose, damage)

FRONT AND REAR SUSPENSION

1. Suspension strut (oil leakage, damage)

2. Suspension arms and knuckle supports (loose.damage)

3. Rear spring (damage)

4. Shock absorbers (oil leakage, damage)

5. All bolts and nuts (loose)

6. Suspension arms and Tension rods

STEERING

1. Steering wheel (play, loose)

2. Power steering fluid (level, leakage)/connections

3. All rods and arms (loose, damage, wear)

ELECTRICAL

1. Battery electrolyte (level, leakage)

2. Wiring harness connection (looseness, damage)

3. Lighting system (operation, stains, damage)

4. Horn (operation)

5. System voltage

BODY

1. All chassis bolts and nuts (tighten)

2. All Latches, Hinges & Locks (function)
FREE

1

1
INSPECTIONS

5

6

Rotate and

I

-

-

I

-

-

I

-

-

I

I

I

I

-

I

I

-

-

I
I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

I

I&L
10

12
PERIODIC

20

24

inspect every 5,000

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
30

36

km

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
MAINTENANCE

40

48

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
50

60

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
SERVICE

60

72

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
AT

70

84

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L
COST

80

96

I

I

I

I

I

I

I

T

I

I

I

I

I

I

I

I

I

T

I&L

9-5
88

60G-74E
INSPECTION AND MAINTENANCE

Interval: This Interval should be judged

by odometer reading or months,

whichever comes first.
km (x 1,000)

months

ROAD TEST

1. Operation of Brakes, Gear shifting & speedometer

2. Body and Chassis noise

AIR CONDITIONER (if equipped)

1. Check belt tension

2. Check Receiver Drier bubbles.

3. Tighten compressor mounting bolts

4. Check all hose joints, tighten if necessary

5. Check functioning of Recirc flap .*

6. Clean condenser with low pressure water

7. Check belt for frayed edges, change if necessary

8. Check all mounting bolts
FREE

1

1

I

I

I

I

—

I

I

_

-

-
INSPECTIONS

5

6

I

I

I

I

T

I

I

C

I

I
10

12

I

I

I

I

T

I

I

C

I

I
PERIODIC

20

24

I

I

I

I

T

I

I

C

I

I
30

36

I

I

I

I

T

I

I

C

I

I
MAINTENANCE

40

48

I

I

I

I

T

I

I

C

I

I
50

60

I

I

I

I

T

I

I

C

I

I
SERVICE

60

72

I

I

I

I

T

I

I

C

I

I
AT,

70

84

I

I

I

I

T

I

I

C

I

I
COST

80

96

I

I

I

I

T

I

I

C

I

I

The rear shock absorbers are filled with

high pressure gas. Never attempt to

disassemble it or throw it into a fire.

Avoid storing it near a heater or heating

device. When scrapping the absorber,

the gas must be released from the

absorber safely. Ask your dealer for

assistance.

89

9-6

INSPECTION AND MAINTENANCE
60G-74E

All maintenance should be carried

out with the Ignition switch in the

"OFF" position and the car parked

securely on the level ground unless

otherwise specified.

If you are In any way unsure of your

ability to undertake a task, then do

not start it but contact your Maruti

dealer to perform the work for you.
ENGINE OIL AND FILTER

Specified oil

Be sure that the engine oil you use comes

under the API classification of SF, SG or SH.

Select the appropriate oil viscosity according

to the above chart.

9-7
90
70F-07-004E

60G-74E
INSPECTION AND MAINTENANCE

60G-09-002E

Oil Level Cheek

It is important to keep the engine oil at the

correct level for proper lubrication of your

vehicle's engine. Check the oil level with the

vehicle on a level surface. The oil level

indication may be inaccurate if the vehicle is

on a slope. The oil level should be checked

either before starting the engine or at least 5

minutes after stopping the engine.

Pull out the oil dipstick, wipe oil off with a clean

cloth, insert the dipstick all the way into the

engine, then remove it again. The oil on the

stick should be between the upper and lower

limits shown on the stick. If the oil level

indication is near the lower limit, add enough

oil to raise the level to the upper limit.

91
60G-09-003E

Refilling

Remove the oil filler cap and pour oil slowly

through the filler hole to bring the oil level to the

upper limit on the dipstick. Be careful not to

overfill. Too much oil is almost as bad as too

little oil. After refilling, start the engine and allow

it to idle for about a minute. Stop the engine,

wait for five minutes and check the oil level again.

Changing Engine Oil and Fitter

Drain the engine oil while the engine is still

warm.

1) Remove the oil filler cap.

2) Place a drain pan under the drain plug.

3) Using the correct spanner remove the

drain plug and drain out the engine oil.
60G-09-004

The engine oil temperature may be high

enough to burn your fingers when the

drain plug Is loosened. Watt until the

drain plug is cool enough to touch with

your bare hands.

9-8

INSPECTION AND MAINTENANCE
60G-74E

New and used oil can be hazardous.

Children and pets may be harmed by

swallowing new or used oil. Keep new

and used oil and used oil fitters away

from children and pets.

Continuous contact with used engine

oil has been found to cause (skin)

cancer in laboratory animals. Brief

contact with used oil may irritate skin.

To minimize your exposure to used oil,

wear a long-sleeve shirt and

moistureproof gloves (such 'as

dishwashing gloves) when changing

oil. If oil contacts your skin, wash

thoroughly with soap and water.

Launder any clothing or rags if wet with

oil.

Recycle or properly dispose of used oil

and filters.

4) Reinstall the drain plug and gasket.

Tighten the plug to a torque of

5.0 kg-m (36.5 Ib-ft).
70F-07-010

Replace the oil filter

1) Using an oil filter wrench, turn the oil filter

counterclockwise and remove it.

2) Using a clean rag, wipe off the mounting

surface on the engine where the new filter

will be seated.

3) Smear a little engine oil around the rubber

gasket of the new oil filter.

4) Screw on the new filter by hand until the

filter gasket contacts the mounting

surface.
60G-09-005

CAUTION

To tighten the oil filter properly, it is

important to accurately identify the

position at which the filter gasket first

contacts the mounting surface.

5) Tighten the filter 3/4 turn from the point of

contact with the mounting surface, [or to

1.4 kg-m (10.5 Ib-ft)] using an oil filter

wrench.

9-9
92

60G-74E
INSPECTION AND MAINTENANCE

GEAR OIL

CAUTION

To prevent oil leakage, make sure that

the oil filter is tight, but do not

overtighten it.

Refill with oil and check for leaks.

1) Pour 3.1 litres of oil through the filler hole

and install the filler cap.

2) Start the engine and look carefully for

leaks at the oil filter and drain plug. Run

the engine at various speeds for at least 5

minutes.

3) Stop the engine and wait for 5 minutes.

Check the oil level again and add oil if

necessary. Check for leaks again.

CAUTION

When replacing the oil filter, it is

recommended that you use a genuine

MARUTI replacement filter.
60G-09-006

CAUTION

Oil leaks from around the oil filter or

drain plug indicate incorrect

installation or gasket damage. If you

find any leaks or are not sure that the

fitter has been properly tightened, have

the vehicle inspected by your MARUTI

dealer.
70F-07-012E

Oil filler and level plug ©

Tightening torque: 2.1 kg-m (15.5 Ib-ft)

Specified Manual Transmission oil

When adding gear oil, use the appropriate

viscosity and grade as shown in the chart

below. We highly recommend you use API

GL-4 SAE 75W-90 gear oil.

Type of oil
Gear oil, API GL-4

93

9-10

INSPECTION AND MAINTENANCE

60G-74E

ENGINE COOLANT

70F-07-013E

Gear oil level check

To check the gear oil level, use the following

procedure:

1) Park the vehicle on a level surface with

the parking brake applied.

2) Clean casing around oil filler plug to

remove risk of any loose dirt or debris

entering oil filler plug hole. Remove the oil

filler plug ©.

3) Feel the inside of the hole with your finger.

If the oil level comes up to the bottom of

the plug hole, the oil level is correct. If so,

reinstall the plug.

4) If the oil level is low, add gear oil through

the filler plug hole © until the oil level

reaches the bottom of the filler hole, then

reinstall the plug.
After driving the vehicle, the

transmission oil temperature may be

high enough to burn you. Wait until the

oil filler plug is cool enough to touch

with your bare hands before inspecting

transmission oil.

CAUTION

When tightening the plug, apply sealing

compound to the plug threads to

prevent oil leakage.

Gear oil change

Since special procedures, materials and tools

are required, it is recommended that you trust

this job to your authorized MARUTI dealer.
60G-09-007

Coolant Level Check

Check the coolant level at the reservoir tank,

not at the radiator. With the engine cool, the

coolant level should be between the "FULL"

and "LOW" marks.

Adding Coolant

If the Coolant level is below the "LOW" mark,

more coolant should be added. Remove the

reservoir tank cap and add coolant until the

reservoir tank level reaches the "FULL" mark.

Never fill the reservoir tank above the "FULL"

mark.

9-11
94

60G-74E
INSPECTION AND MAINTENANCE

CAUTION

When adding or replacing coolant,

use a high quality ethylene glycol

antifreeze and anticorrosion (Non-

Amine type) diluted with distilled

water. If the lowest ambient

temperature in your area is expected

to be -15°C (5°F) or above, make the

antifreeze concentration of the

mixture you use at least 30% but no

more than 50%. If -16°C (3°F) or

below, make the concentration at

least 50%. If the 50% concentration

does not provide adequate

protection against freezing, follow

the instructions on the antifreeze

container to obtain the desired

freezing point.

When putting the cap on the

reservoir tank, line up the arrow on

the cap and the arrow on the tank,

or coolant can leak out.
70F-07-019E

Coolant Replacement

1) When the engine is cool, remove the

radiator cap by turning it slowly to the left

until a "stop" is felt. Do not press down

while turning the cap. Wait until any

pressure is released, then press down on

the cap and continue turning it

anticlockwise.
60G-09-039E

It is dangerous to remove the radiator

cap when the water temperature is

high, because scalding fluid and steam

may be blown out under pressure. Watt

until the coolant temperature has

lowered before removing the cap.

2) Remove the reservoir tank cap. Remove

the reservoir by lifting it up, and drain the

reservoir completely by pouring the

coolant in to a suitable container.

95
9-12

INSPECTION AND MAINTENANCE

60G-74E

WINDSCREEN WASHER FLUID

AIR CLEANER

60G-09-008

3) Loosen the drain plug attached to the

lower part of the radiator and drain the

coolant into a suitable container.

4) Tighten the drain plug on the radiator, fill

the radiator with coolant and install the

radiator cap.

5) Refit the reservoir and fill it with the correct

coolant to the "FULL" line. Refit the

reservoir tank cap, ensuring the arrows are

correctly aligned.

CAUTION

The coolant must be replaced with the

vehicle on level ground.
63B-09-001

Check that there is washer fluid in the tank.

Refill it if necessary. Use a good quality

windscreen washer fluid, diluted with water as

necessary.

Do not use "antifreeze" solution in the

windscreen washer reservoir.This can

severely impair visibility when sprayed

on the windscreen, and can also

damage your vehicle's paint.

CAUTION

Damage may result if the washer motor

is operated whilst the fluid or fluid

nozzles are frozen or with no fluid in

the washer tank.
6OG-09-009

If the air cleaner is clogged with dust, there

will be greater intake resistance, resulting in

decreased power output and increased fuel

consumption.

Take out the air cleaner element after

unhooking the clamps shown in the illustration.

Blow off dust on air cleaner element by

compressed air. If the air cleaner element

appears to be dirty, replace it with a new one.

9-13
96

60G-74E
INSPECTION AND MAINTENANCE

SPARK PLUGS

60G-09-010E

CAUTION

The air cleaner element should be

replaced every 40,000 km. More

frequent replacement is necessary

when you drive under dusty conditions.
60G-09-011E

You should inspect spark plugs periodically

for carbon deposits. When carbon

accumulates on a spark plug, a strong spark

may not be produced. Remove carbon

deposits with a wire or pin and adjust the spark

plug gap.
60G-09-012E

CAUTION

When disconnecting the spark plug

cables, pull on the boot, not on the

cable itself. Pulling on the cable can

damage it.

When installing the spark plugs,

screw them in with your fingers to

avoid stripping the threads.Tighten

with a torque wrench to 2.0-3.0 kgm

(20.0-30.0 N-m, 15.0-22.0 Ib-ft). Do

not allow contaminants to enter the

engine through the spark plug holes

when the plugs are removed.

Never use spark plugs with the

wrong thread size or length.

97

9-14

INSPECTION AND MAINTENANCE

60G-74E

BRAKES

70F-07-026E

CAUTION

When replacing spark plugs, you

should use the brand and type

specified for your vehicle. For the

specified plugs, refer to the

"SPECIFICATIONS" section at the end

of this book.
60G-09-013E

NOTE:

If you experience some firing problem of spark

plugs, such as, hard engine-starting, misfire

etc., the cause may be located not only on

spark plugs but also on deteriorated ignition

wiring (generally, used for more than 80,000

km or five years). If spark plug replacement

does not solve the problem, have the ignition

wiring and other ignition system inspected by

your MARUTI dealer.
60Q-09-014E

Brake Fluid

Check the brake fluid level by looking at the

reservoir in the engine compartment. Check

that the fluid level is between the "MAX" and

"MIN" lines. If the brake fluid level is near the

"MIN" line, fill it up to the "MAX" line with SAE

J1703 or DOT-3 brake fluid.

Failure to follow the guidelines below

can result in personal injury or serious

damage to the brake system.

• If the brake fluid in the reservoir

drops below a certain level, the brake

warning light on the instrument

9-15
98

60G-74E
INSPECTION AND MAINTENANCE

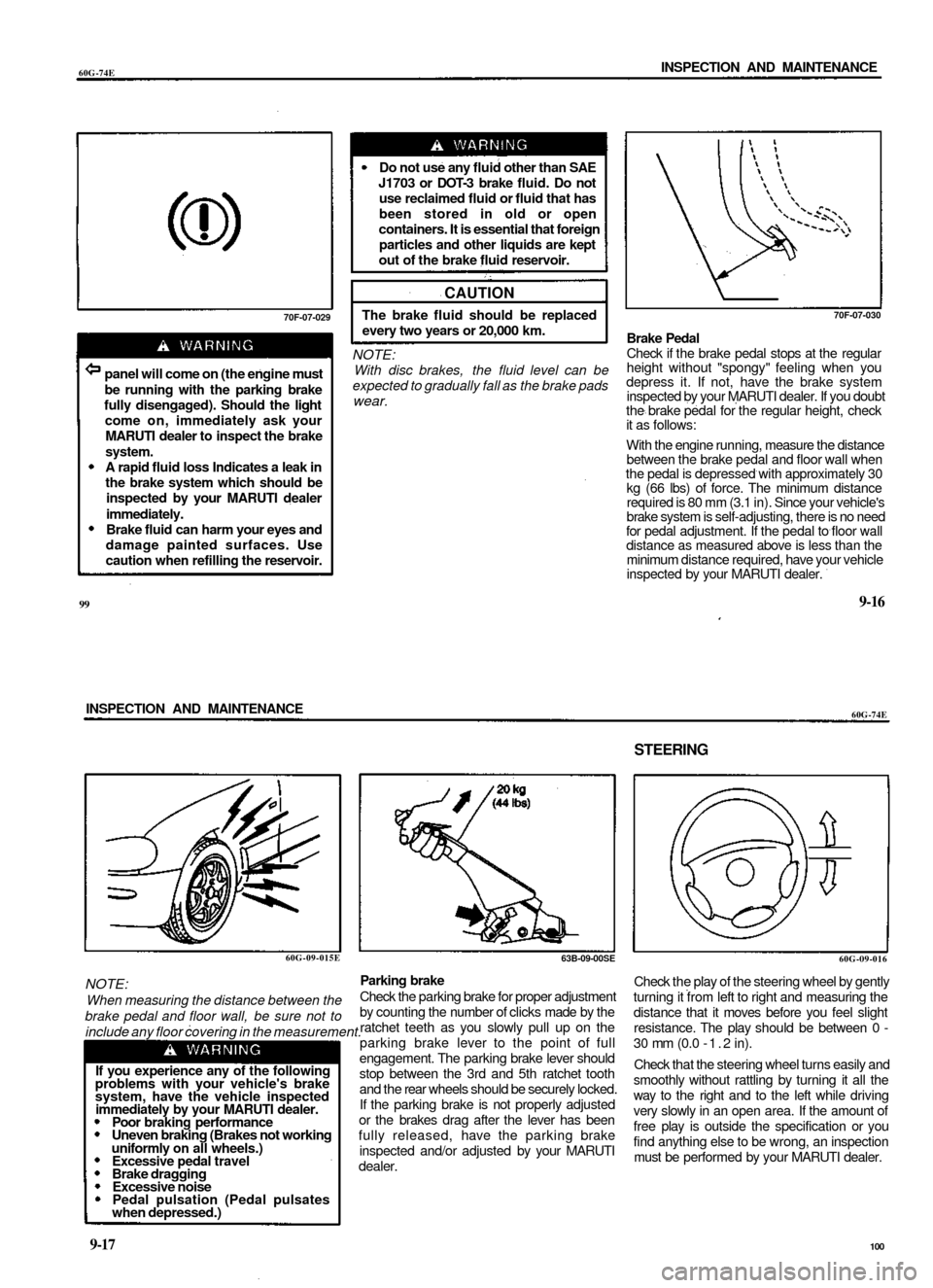

70F-07-029
Do not use any fluid other than SAE

J1703 or DOT-3 brake fluid. Do not

use reclaimed fluid or fluid that has

been stored in old or open

containers. It is essential that foreign

particles and other liquids are kept

out of the brake fluid reservoir.

CAUTION

The brake fluid should be replaced

every two years or 20,000 km.

panel will come on (the engine must

be running with the parking brake

fully disengaged). Should the light

come on, immediately ask your

MARUTI dealer to inspect the brake

system.

A rapid fluid loss Indicates a leak in

the brake system which should be

inspected by your MARUTI dealer

immediately.

Brake fluid can harm your eyes and

damage painted surfaces. Use

caution when refilling the reservoir.
NOTE:

With disc brakes, the fluid level can be

expected to gradually fall as the brake pads

wear.

99
70F-07-030

Brake Pedal

Check if the brake pedal stops at the regular

height without "spongy" feeling when you

depress it. If not, have the brake system

inspected by your MARUTI dealer. If you doubt

the brake pedal for the regular height, check

it as follows:

With the engine running, measure the distance

between the brake pedal and floor wall when

the pedal is depressed with approximately 30

kg (66 lbs) of force. The minimum distance

required is 80 mm (3.1 in). Since your vehicle's

brake system is self-adjusting, there is no need

for pedal adjustment. If the pedal to floor wall

distance as measured above is less than the

minimum distance required, have your vehicle

inspected by your MARUTI dealer.

9-16

INSPECTION AND MAINTENANCE

60G-74E

STEERING

60G-09-015E

NOTE:

When measuring the distance between the

brake pedal and floor wall, be sure not to

include any floor covering in the measurement.

If you experience any of the following

problems with your vehicle's brake

system, have the vehicle inspected

immediately by your MARUTI dealer.

Poor braking performance

Uneven braking (Brakes not working

uniformly on all wheels.)

Excessive pedal travel

Brake dragging

Excessive noise

Pedal pulsation (Pedal pulsates

when depressed.)
63B-09-00SE

Parking brake

Check the parking brake for proper adjustment

by counting the number of clicks made by the

ratchet teeth as you slowly pull up on the

parking brake lever to the point of full

engagement. The parking brake lever should

stop between the 3rd and 5th ratchet tooth

and the rear wheels should be securely locked.

If the parking brake is not properly adjusted

or the brakes drag after the lever has been

fully released, have the parking brake

inspected and/or adjusted by your MARUTI

dealer.
60G-09-016

Check the play of the steering wheel by gently

turning it from left to right and measuring the

distance that it moves before you feel slight

resistance. The play should be between 0 -

30
mm
(0.0 -1.2 in).

Check that the steering wheel turns easily and

smoothly without rattling by turning it all the

way to the right and to the left while driving

very slowly in an open area. If the amount of

free play is outside the specification or you

find anything else to be wrong, an inspection

must be performed by your MARUTI dealer.

9-17

100

60G-74E
INSPECTION AND MAINTENANCE

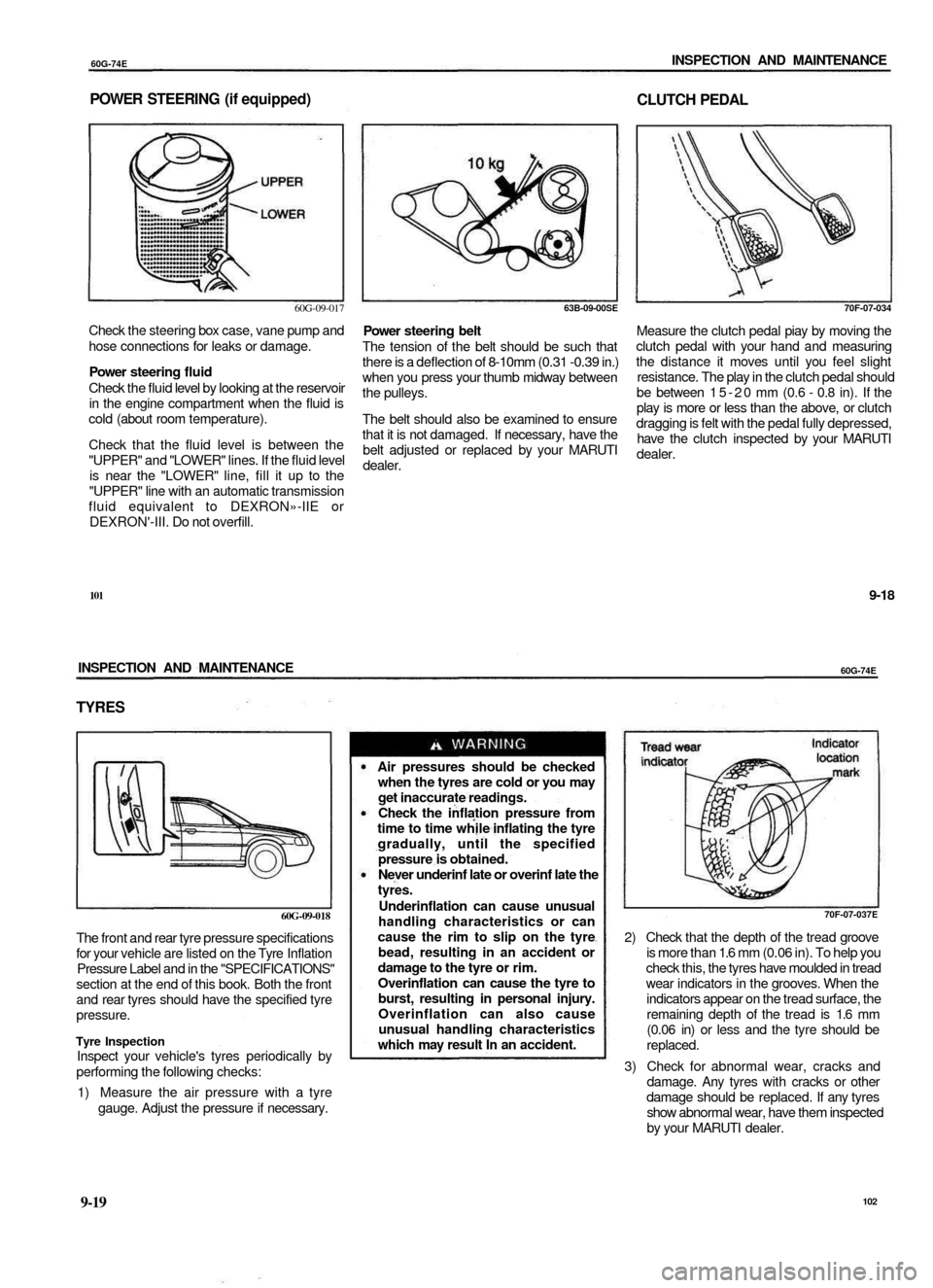

POWER STEERING (if equipped)

CLUTCH PEDAL

60G-09-017

Check the steering box case, vane pump and

hose connections for leaks or damage.

Power steering fluid

Check the fluid level by looking at the reservoir

in the engine compartment when the fluid is

cold (about room temperature).

Check that the fluid level is between the

"UPPER" and "LOWER" lines. If the fluid level

is near the "LOWER" line, fill it up to the

"UPPER" line with an automatic transmission

fluid equivalent to DEXRON»-IIE or

DEXRON'-III. Do not overfill.
63B-09-00SE

Power steering belt

The tension of the belt should be such that

there is a deflection of 8-10mm (0.31 -0.39 in.)

when you press your thumb midway between

the pulleys.

The belt should also be examined to ensure

that it is not damaged. If necessary, have the

belt adjusted or replaced by your MARUTI

dealer.
70F-07-034

Measure the clutch pedal piay by moving the

clutch pedal with your hand and measuring

the distance it moves until you feel slight

resistance. The play in the clutch pedal should

be between 15-20 mm (0.6 - 0.8 in). If the

play is more or less than the above, or clutch

dragging is felt with the pedal fully depressed,

have the clutch inspected by your MARUTI

dealer.

101

9-18

INSPECTION AND MAINTENANCE

60G-74E

TYRES

60G-09-018

The front and rear tyre pressure specifications

for your vehicle are listed on the Tyre Inflation

Pressure Label and in the "SPECIFICATIONS"

section at the end of this book. Both the front

and rear tyres should have the specified tyre

pressure.

Tyre Inspection

Inspect your vehicle's tyres periodically by

performing the following checks:

1) Measure the air pressure with a tyre

gauge. Adjust the pressure if necessary.
Air pressures should be checked

when the tyres are cold or you may

get inaccurate readings.

Check the inflation pressure from

time to time while inflating the tyre

gradually, until the specified

pressure is obtained.

Never underinf late or overinf late the

tyres.

Underinflation can cause unusual

handling characteristics or can

cause the rim to slip on the tyre

bead, resulting in an accident or

damage to the tyre or rim.

Overinflation can cause the tyre to

burst, resulting in personal injury.

Overinflation can also cause

unusual handling characteristics

which may result In an accident.
70F-07-037E

2) Check that the depth of the tread groove

is more than 1.6 mm (0.06 in). To help you

check this, the tyres have moulded in tread

wear indicators in the grooves. When the

indicators appear on the tread surface, the

remaining depth of the tread is 1.6 mm

(0.06 in) or less and the tyre should be

replaced.

3) Check for abnormal wear, cracks and

damage. Any tyres with cracks or other

damage should be replaced. If any tyres

show abnormal wear, have them inspected

by your MARUTI dealer.

9-19
102
