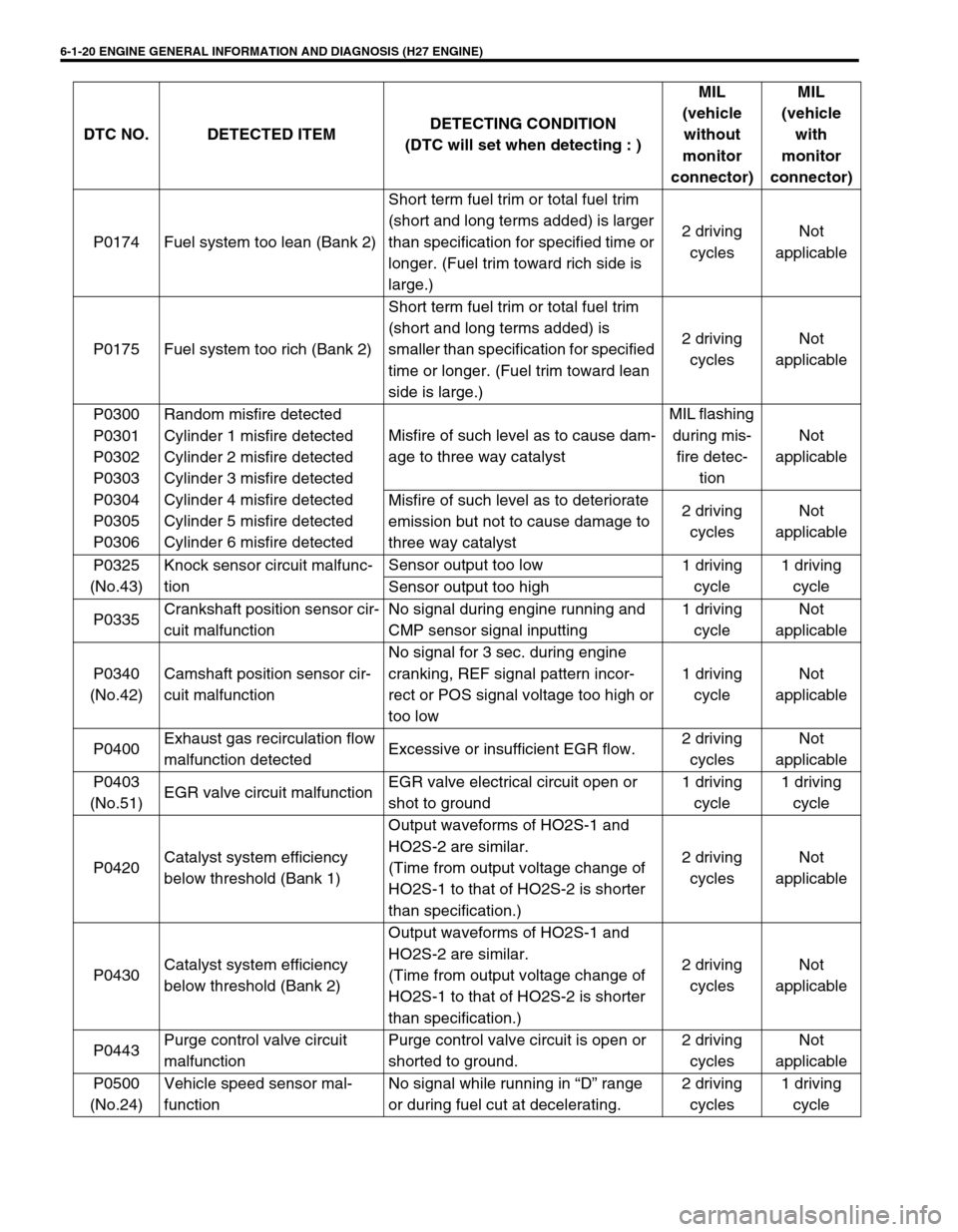

6-1-20 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
P0174 Fuel system too lean (Bank 2)Short term fuel trim or total fuel trim
(short and long terms added) is larger
than specification for specified time or
longer. (Fuel trim toward rich side is
large.)2 driving
cyclesNot
applicable
P0175 Fuel system too rich (Bank 2)Short term fuel trim or total fuel trim
(short and long terms added) is
smaller than specification for specified
time or longer. (Fuel trim toward lean
side is large.)2 driving
cyclesNot
applicable
P0300
P0301
P0302
P0303
P0304
P0305
P0306Random misfire detected
Cylinder 1 misfire detected
Cylinder 2 misfire detected
Cylinder 3 misfire detected
Cylinder 4 misfire detected
Cylinder 5 misfire detected
Cylinder 6 misfire detectedMisfire of such level as to cause dam-
age to three way catalystMIL flashing
during mis-
fire detec-
tionNot
applicable
Misfire of such level as to deteriorate
emission but not to cause damage to
three way catalyst2 driving
cyclesNot
applicable
P0325
(No.43)Knock sensor circuit malfunc-
tionSensor output too low
1 driving
cycle1 driving
cycle
Sensor output too high
P0335Crankshaft position sensor cir-
cuit malfunctionNo signal during engine running and
CMP sensor signal inputting1 driving
cycleNot
applicable
P0340
(No.42)Camshaft position sensor cir-
cuit malfunctionNo signal for 3 sec. during engine
cranking, REF signal pattern incor-
rect or POS signal voltage too high or
too low1 driving
cycleNot
applicable
P0400Exhaust gas recirculation flow
malfunction detectedExcessive or insufficient EGR flow.2 driving
cyclesNot
applicable
P0403
(No.51)EGR valve circuit malfunctionEGR valve electrical circuit open or
shot to ground1 driving
cycle1 driving
cycle
P0420Catalyst system efficiency
below threshold (Bank 1)Output waveforms of HO2S-1 and
HO2S-2 are similar.
(Time from output voltage change of
HO2S-1 to that of HO2S-2 is shorter
than specification.)2 driving
cyclesNot
applicable
P0430Catalyst system efficiency
below threshold (Bank 2)Output waveforms of HO2S-1 and
HO2S-2 are similar.
(Time from output voltage change of
HO2S-1 to that of HO2S-2 is shorter
than specification.)2 driving
cyclesNot
applicable
P0443Purge control valve circuit
malfunctionPurge control valve circuit is open or
shorted to ground.2 driving
cyclesNot
applicable
P0500
(No.24)Vehicle speed sensor mal-
functionNo signal while running in “D” range
or during fuel cut at decelerating.2 driving
cycles1 driving
cycle DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)

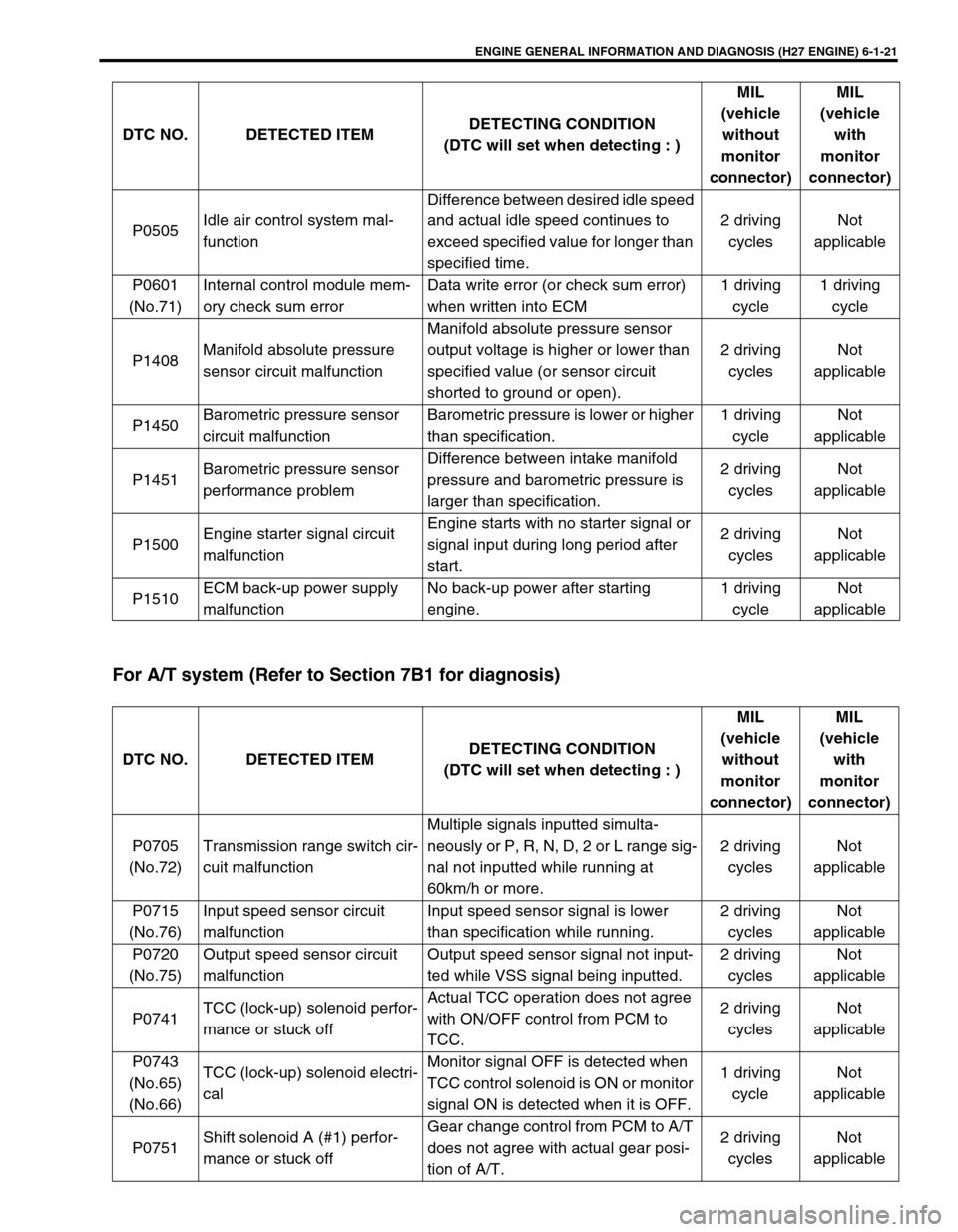

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-21
For A/T system (Refer to Section 7B1 for diagnosis)
P0505Idle air control system mal-
functionDifference between desired idle speed
and actual idle speed continues to
exceed specified value for longer than
specified time.2 driving
cyclesNot
applicable
P0601
(No.71)Internal control module mem-
ory check sum errorData write error (or check sum error)
when written into ECM1 driving
cycle1 driving
cycle
P1408Manifold absolute pressure
sensor circuit malfunctionManifold absolute pressure sensor
output voltage is higher or lower than
specified value (or sensor circuit
shorted to ground or open).2 driving
cyclesNot
applicable
P1450Barometric pressure sensor
circuit malfunctionBarometric pressure is lower or higher
than specification.1 driving
cycleNot
applicable
P1451Barometric pressure sensor
performance problemDifference between intake manifold
pressure and barometric pressure is
larger than specification.2 driving
cyclesNot
applicable
P1500Engine starter signal circuit
malfunctionEngine starts with no starter signal or
signal input during long period after
start.2 driving
cyclesNot
applicable
P1510ECM back-up power supply
malfunctionNo back-up power after starting
engine.1 driving
cycleNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P0705
(No.72)Transmission range switch cir-
cuit malfunctionMultiple signals inputted simulta-
neously or P, R, N, D, 2 or L range sig-
nal not inputted while running at
60km/h or more.2 driving
cyclesNot
applicable
P0715
(No.76)Input speed sensor circuit
malfunctionInput speed sensor signal is lower
than specification while running.2 driving
cyclesNot
applicable
P0720
(No.75)Output speed sensor circuit
malfunctionOutput speed sensor signal not input-
ted while VSS signal being inputted.2 driving
cyclesNot
applicable
P0741TCC (lock-up) solenoid perfor-
mance or stuck offActual TCC operation does not agree
with ON/OFF control from PCM to
TCC.2 driving
cyclesNot
applicable
P0743
(No.65)
(No.66)TCC (lock-up) solenoid electri-
calMonitor signal OFF is detected when
TCC control solenoid is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P0751Shift solenoid A (#1) perfor-
mance or stuck offGear change control from PCM to A/T
does not agree with actual gear posi-
tion of A/T.2 driving
cyclesNot
applicable

6-1-22 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
For immobilizer control system (Refer to Section 8G for diagnosis)
P0753
(No.61)
(No.62)Shift solenoid A (#1) electricalMonitor signal OFF is detected when
shift solenoid A (#1) is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P0756Shift solenoid B (#2) perfor-
mance or stuck offGear change control from PCM to A/T
does not agree with actual gear posi-
tion of A/T.2 driving
cyclesNot
applicable
P0758
(No.63)
(No.64)Shift solenoid B (#2) electricalMonitor signal OFF is detected when
shift solenoid B (#2) is ON or monitor
signal ON is detected when it is OFF.1 driving
cycleNot
applicable
P18754WD low switch circuit mal-
functionDifference between vehicle speed
detected by VSS and vehicle speed
detected by output speed sensor and
compensated by 4WD low switch is
larger than specification.2 driving
cyclesNot
applicable DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
DTC NO. DETECTED ITEMDETECTING CONDITION
(DTC will set when detecting : )MIL
(vehicle
without
monitor
connector)MIL
(vehicle
with
monitor
connector)
P1620
(No.84)ECU code not registered
Refer to Section 8G P1621
(No.83)NO ECU code transmitted
from Immobilizer Control Mod-
ule
P1622
(No.82)Fault ECM
P1623
(No.81)ECU code not matched
NOTE:
DTC NO. with (*) is detected only vehicle without monitor connector.
DTC No. with (**) is detected only vehicle with monitor connector.
For ( ) marked No. in DTC column, it is used for vehicle with monitor connector.
DTC No.12 appears when none of the other codes is identified.

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-23
Fail-Safe Table
When any of the following DTCs is detected, ECM (PCM) enters fail-safe mode as long as malfunction continues
to exist but that mode is canceled when ECM (PCM) detects normal condition after that.
DTC NO. TROUBLE AREA FAIL SAFE OPERATION
P0100
(No.33, 34)MAF SENSOR• Injector drive time (fuel injection volume) is determined according to
throttle valve opening and engine speed.
• EGR valve stops.
• Air flow of IAC valve is limited.
P0110
(No.23, 25)IAT SENSOR Each control is performed on the basis of 22.1°C intake air temp.
P0115
(No.14, 15)ECT SENSOR• Each control except 4-A/T is performed on the basis of 29.9°C engine
coolant temp.
• 4-A/T control is performed assuming 31°C (engine warmed up) or
higher after 15 min. from engine start.
P0120
(No.21, 22)TP SENSOR• Each control except 4-A/T is performed on the basis of 124.5° throttle
valve opening.
• 4-A/T control is performed on the basis of 0° throttle valve opening.
P0460 FUEL LEVEL SENSOR Each control is performed in the basis of full fuel level.
P0500VEHICLE SPEED
SENSORAir flow of IAC valve is limited.
P1450BAROMETRIC
PRESSURE SENSOREach control is performed based on 760 mmHg barometric pressure.
P0705 TR SWITCH A/T control is performed in priority order of L, 2, N, D, R and P.
P0720OUTPUT SPEED
SENSOR CIRCUIT
MALFUNCTIONA/T control is performed by using signal from VSS.
P0753SHIFT SOLENOID
A (#1)• A/T control using 3rd gear is performed when D range, 1st, or 2nd
gear is used.
• TCC solenoid OFF
P0758SHIFT SOLENOID
B (#2)• A/T control using 4th gear is performed when D range, 2nd or 3rd
gear is used.
• When both shift solenoids A (#1) and B (#2) failed simultaneously,
A/T control using 4th gear is always performed in D range.
• TCC solenoid OFF
P0743TCC (Lock-up)
SOLENOIDTCC (Lock-up) solenoid OFF

6-1-24 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)

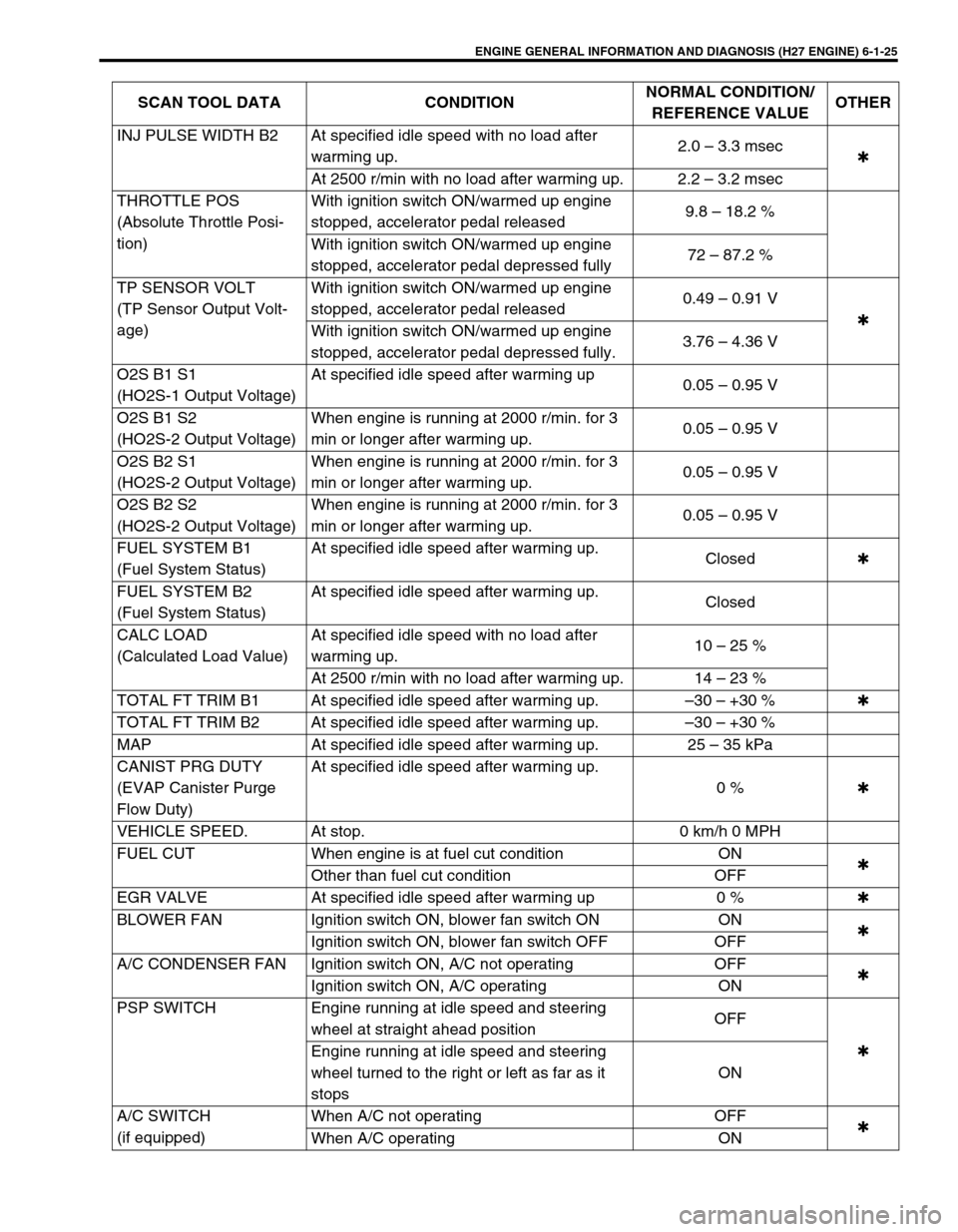

Scan Tool Data
As the data values given below are standard values estimated on the basis of values obtained from the normally
operating vehicles by using a scan tool, use them as reference values. Even when the vehicle is in good condi-
tion, there may be cases where the checked value does not fall within each specified data range. Therefore,
judgment as abnormal should not be made by checking with these data alone.
Also, conditions in the below table that can be checked by the scan tool are those output from ECM (PCM) as
Commands and there may be cases where the engine or actuator is not operating (in the condition) as indicated
by the scan tool. Be sure to use the timing light to check the ignition timing referring to Section 6F2.
NOTE:
For asterisk (
✱) marked item in “OTHER” column, item can be read only SUZUKI scan tool.
When checking the data with the engine running at idle or racing, be sure to shift M/T gear to the
neutral gear position and A/T gear to the “Park” position and pull the parking brake fully. Also, if
nothing or “no load” is indicated, turn OFF A/C, all electric loads, P/S and all the other necessary
switches.
SCAN TOOL DATA CONDITIONNORMAL CONDITION/
REFERENCE VALUEOTHER
COOLANT TEMP.
(Engine Coolant Temp.)At specified idle speed after warming up 80 – 100 °C
(176 – 212 °F)
INTAKE AIR TEMP. At specified idle speed after warming up Environmental temp.
+20 °C (+36 °F)
–5 °C (–9 °F)
DESIRE IDLE
(Desired idle speed)At idling with no load after warming up
700 rpm✱
CLOSED THROT POS
(Closed Throttle Position)With ignition switch ON, accelerator pedal
releasedON
✱
With ignition switch ON, accelerator pedal
depressedOFF
IAC FLOW DUTY At specified idle speed after warming up 5 – 40 %✱
ENGINE SPEED At idling with no load after warming up Desired idle speed
± 50 rpm
SHORT FT B1
(Short term fuel trim)At specified idle speed after warming up
–15 ~ +15 %
SHORT FT B2
(Short term fuel trim)At specified idle speed after warming up
–15 ~ +15 %
LONG FT B1
(Long term fuel trim)At specified idle speed after warming up
–15 ~ +15 %
LONG FT B2
(Long term full trim)At specified idle speed after warning up
–15 ~ +15 %
IGNITION ADVANCE At specified idle speed with no load after
warming up6 – 17°
BATTERY VOLTAGE Ignition switch ON/engine stopped 10 – 14 V✱
MAF (Mass Air Flow
Rate)At specified idle speed with no load after
warming up.2.6 – 4.5 g/s
0.34 – 0.59 lb/min
At 2500 r/min with no load after warming up. 10 – 16 g/s
1.32 – 2.11 lb/min
INJ PULSE WIDTH B1
(Fuel Injection Pulse
Width)At specified idle speed with no load after
warming up.2.0 – 3.3 msec
✱
At 2500 r/min with no load after warming up. 2.2 – 3.2 msec

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-25
INJ PULSE WIDTH B2 At specified idle speed with no load after
warming up.2.0 – 3.3 msec
✱
At 2500 r/min with no load after warming up. 2.2 – 3.2 msec
THROTTLE POS
(Absolute Throttle Posi-
tion)With ignition switch ON/warmed up engine
stopped, accelerator pedal released9.8 – 18.2 %
With ignition switch ON/warmed up engine
stopped, accelerator pedal depressed fully72 – 87.2 %
TP SENSOR VOLT
(TP Sensor Output Volt-
age)With ignition switch ON/warmed up engine
stopped, accelerator pedal released0.49 – 0.91 V
✱
With ignition switch ON/warmed up engine
stopped, accelerator pedal depressed fully.3.76 – 4.36 V
O2S B1 S1
(HO2S-1 Output Voltage)At specified idle speed after warming up
0.05 – 0.95 V
O2S B1 S2
(HO2S-2 Output Voltage)When engine is running at 2000 r/min. for 3
min or longer after warming up.0.05 – 0.95 V
O2S B2 S1
(HO2S-2 Output Voltage)When engine is running at 2000 r/min. for 3
min or longer after warming up.0.05 – 0.95 V
O2S B2 S2
(HO2S-2 Output Voltage)When engine is running at 2000 r/min. for 3
min or longer after warming up.0.05 – 0.95 V
FUEL SYSTEM B1
(Fuel System Status)At specified idle speed after warming up.
Closed✱
FUEL SYSTEM B2
(Fuel System Status)At specified idle speed after warming up.
Closed
CALC LOAD
(Calculated Load Value)At specified idle speed with no load after
warming up.10 – 25 %
At 2500 r/min with no load after warming up. 14 – 23 %
TOTAL FT TRIM B1 At specified idle speed after warming up. –30 – +30 %✱
TOTAL FT TRIM B2 At specified idle speed after warming up. –30 – +30 %
MAP At specified idle speed after warming up. 25 – 35 kPa
CANIST PRG DUTY
(EVAP Canister Purge
Flow Duty)At specified idle speed after warming up.
0 %✱
VEHICLE SPEED. At stop. 0 km/h 0 MPH
FUEL CUT When engine is at fuel cut condition ON
✱
Other than fuel cut condition OFF
EGR VALVE At specified idle speed after warming up 0 %✱
BLOWER FAN Ignition switch ON, blower fan switch ON ON
✱
Ignition switch ON, blower fan switch OFF OFF
A/C CONDENSER FAN Ignition switch ON, A/C not operating OFF
✱
Ignition switch ON, A/C operating ON
PSP SWITCH Engine running at idle speed and steering
wheel at straight ahead positionOFF
✱
Engine running at idle speed and steering
wheel turned to the right or left as far as it
stopsON
A/C SWITCH
(if equipped)When A/C not operating OFF
✱
When A/C operating ON SCAN TOOL DATA CONDITIONNORMAL CONDITION/
REFERENCE VALUEOTHER

6-1-26 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
PNP SIGNAL (Transmis-
sion Range Switch) (for 4-
A/T)With ignition switch ON, selector lever in “P”
or “N” positionP/N Range
✱
With ignition switch ON, selector lever in “R”,
“D”, “2” or “L” positionD Range
FUEL TANK LEVEL Ignition switch ON 0 – 100 %✱
ELECTRIC LOAD Ignition ON, small light OFF OFF✱
Ignition switch ON, small light ON ON✱
VSS (Vehicle speed sen-
sor) (for 4-A/T)At stop.
0 km/h 0 MPH✱
GEAR POSITION (for 4-
A/T)Ignition switch ON, selector lever is shifted at
“R”, “D”, “2” or “L” range and vehicle stops.1st✱
THROT POS LEVEL
(Throttle position level for
4-A/T)“0” (about idle position), “1”,“2”,“3”,“4”,“5”,“6” or “7” (about full open)
appears according to throttle valve opening.✱
SHIFT SOL #1 (A)
CON (Shift solenoid #1
command signal)
MON (Shift solenoid #1
monitor) (for 4-A/T)Ignition switch ON
Selector lever is shifted at “P”, “R”, “N”, “D”,
“2” or “L” range.
Vehicle stops.ON✱
SHIFT SOL #2 (B)
CON (Shift solenoid #2
command signal)
MON (Shift solenoid #2
monitor) (for 4-A/T)Ignition switch ON
Selector lever is shifted at “P”, “R”, “N”, “D”,
“2” or “L” range.
Vehicle stops.OFF✱
TCC SOL (for 4-A/T)
CON (Torque converter
clutch solenoid command
signal)
MON (Torque converter
clutch solenoid monitor)Ignition switch ON
Selector lever is shifted at “P”, “R”, “N”, “D”,
“2” or “L” range.
Vehicle stops.OFF✱
TRANS RANGE
(for 4-A/T)Ignition switch ON, selector lever is at “P”,
“R”, “N”, “D”, “2” or “L” range.P, R, N, D, 2 or L✱
BRAKE SW
(Brake, stop lamp, switch)
(for 4-A/T)Ignition switch ON, Brake pedal is released. OFF
✱
Ignition switch ON, Brake pedal is
depressed.ON
O/D OFF SW
(Overdrive cut switch)Ignition switch ON, Overdrive cut switch OFF OFF
✱
Ignition switch ON, Overdrive cut switch ON ON
MODE SELECT SW
(Power/Normal change
switch) (for 4-A/T)Ignition switch ON, P/N change switch is at
normal position.NORMAL
✱
Ignition switch ON, P/N change switch is at
power position.POWER
4WD-L SW
(4WD low switch)Ignition switch ON, Transfer lever is shifted
at “4H” or “2H” position.OFF
✱
Ignition switch ON, Transfer lever is shifted
at “4L” position.ON SCAN TOOL DATA CONDITIONNORMAL CONDITION/
REFERENCE VALUEOTHER

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-27
Scan tool data definitions
COOLANT TEMP (Engine Coolant Temp., °C/°F)
It is detected by engine coolant temp. sensor.
INTAKE AIR TEMP (°C/°F)
It is detected by intake air temp. sensor.
DESIRE IDLE (Desired Idle Speed RPM)
The desired idle speed is an ECM (PCM) internal parameter which indicates the ECM (PCM) requested idle. If
the engine is not running, the number is not valid.
CLOSED THROT POS (Closed Throttle Position ON/OFF)
This parameter will read ON when the throttle valve is fully closed. Or OFF when the throttle is not fully closed.
IAC FLOW DUTY (%)
This parameter indicates IAC valve opening rate which controls bypass air flow.
ENGINE SPEED (RPM)
It is computed by reference pulses from the Camshaft Position Sensor.
SHORT FT B1 (Short Term Fuel Trim Bank 1, %) / SHORT FT B2 (Short Term Fuel Trim Bank 2, %)
Short term fuel trim value represents short term corrections to the air/fuel mixture computation. A value of 0 indi-
cates no correction, a value greater than 0 means an enrichment correction, and a value less than 0 implies an
enleanment correction.
LONG FT B1 (Long Term Fuel Trim Bank 1, %) / LONG FT B2 (Long Term Fuel Trim Bank 2, %)
Long term fuel trim value represents long term corrections to the air/fuel mixture computation. A value of 0 indi-
cates no correction, a value greater than 0 means an enrichment correction, and a value less than 0 implies an
enleanment correction.
IGNITION ADVANCE (Ignition Timing Advance For No.1 Cylinder, °)
Ignition timing of No.1 cylinder is commanded by ECM (PCM). The actual ignition timing should be checked by
using the timing light.
BATTERY VOLTAGE (V)
This parameter indicates battery positive voltage inputted from main relay to ECM (PCM).
MAF (Mass Air Flow Rate, g/s, lb/min)
It represents total mass of air entering intake manifold which is measured by mass air flow sensor.
INJ PULSE WIDTH B1 (Fuel Injection Pulse Width Bank 1, msec) / INJ PULSE WIDTH B2 (Fuel Injec-
tion Pulse Width Bank 2, msec)
This parameter indicates time of the injector drive (valve opening) pulse which is output from ECM (PCM).
THROTTLE POS (Absolute Throttle Position, %)
When throttle position sensor is fully closed position, throttle opening is indicated as 0 % and 100 % for full open
position.

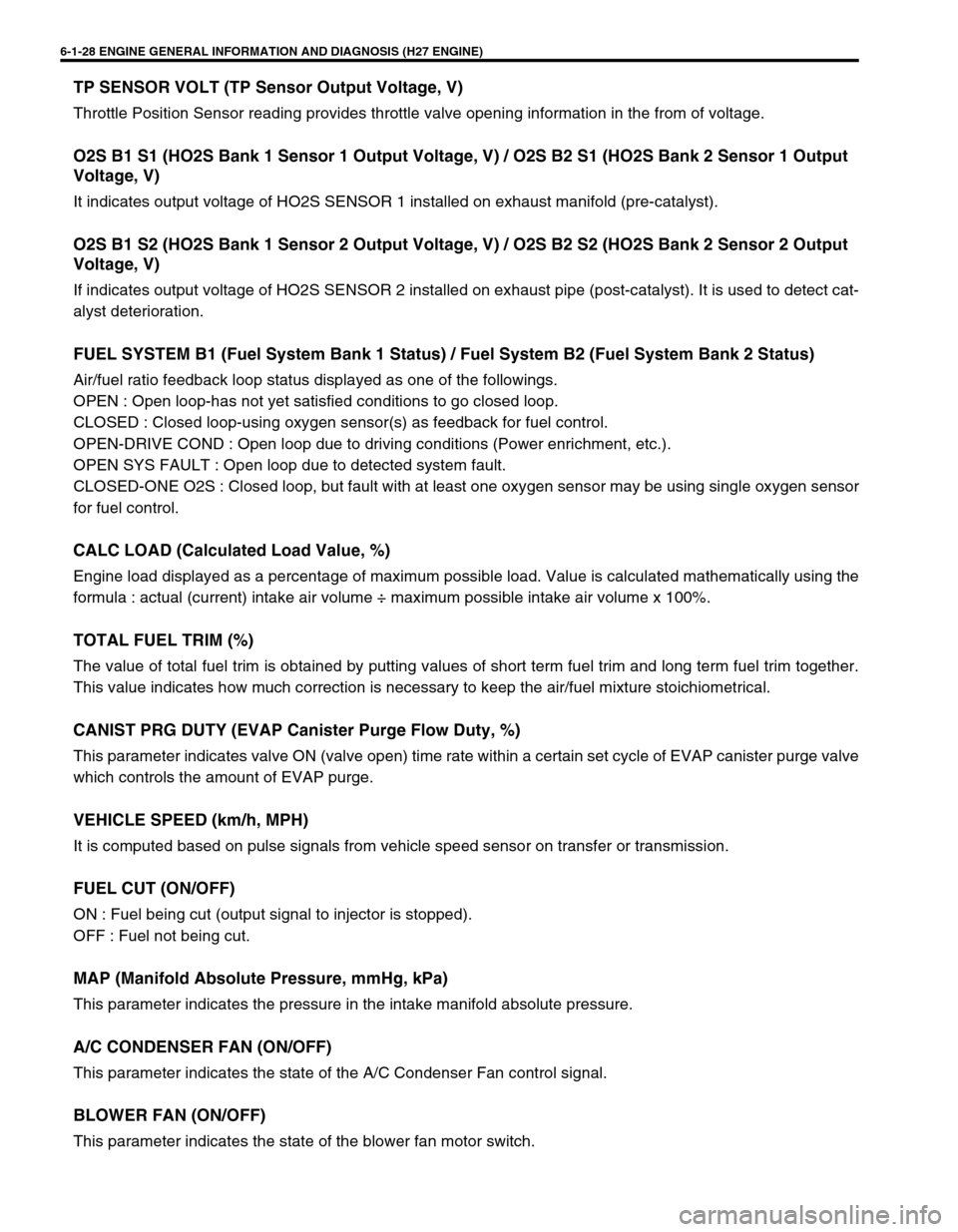

6-1-28 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
TP SENSOR VOLT (TP Sensor Output Voltage, V)
Throttle Position Sensor reading provides throttle valve opening information in the from of voltage.
O2S B1 S1 (HO2S Bank 1 Sensor 1 Output Voltage, V) / O2S B2 S1 (HO2S Bank 2 Sensor 1 Output
Voltage, V)
It indicates output voltage of HO2S SENSOR 1 installed on exhaust manifold (pre-catalyst).
O2S B1 S2 (HO2S Bank 1 Sensor 2 Output Voltage, V) / O2S B2 S2 (HO2S Bank 2 Sensor 2 Output
Voltage, V)
If indicates output voltage of HO2S SENSOR 2 installed on exhaust pipe (post-catalyst). It is used to detect cat-
alyst deterioration.
FUEL SYSTEM B1 (Fuel System Bank 1 Status) / Fuel System B2 (Fuel System Bank 2 Status)
Air/fuel ratio feedback loop status displayed as one of the followings.
OPEN : Open loop-has not yet satisfied conditions to go closed loop.
CLOSED : Closed loop-using oxygen sensor(s) as feedback for fuel control.
OPEN-DRIVE COND : Open loop due to driving conditions (Power enrichment, etc.).
OPEN SYS FAULT : Open loop due to detected system fault.
CLOSED-ONE O2S : Closed loop, but fault with at least one oxygen sensor may be using single oxygen sensor
for fuel control.
CALC LOAD (Calculated Load Value, %)
Engine load displayed as a percentage of maximum possible load. Value is calculated mathematically using the
formula : actual (current) intake air volume ÷ maximum possible intake air volume x 100%.
TOTAL FUEL TRIM (%)
The value of total fuel trim is obtained by putting values of short term fuel trim and long term fuel trim together.
This value indicates how much correction is necessary to keep the air/fuel mixture stoichiometrical.
CANIST PRG DUTY (EVAP Canister Purge Flow Duty, %)
This parameter indicates valve ON (valve open) time rate within a certain set cycle of EVAP canister purge valve
which controls the amount of EVAP purge.
VEHICLE SPEED (km/h, MPH)
It is computed based on pulse signals from vehicle speed sensor on transfer or transmission.
FUEL CUT (ON/OFF)
ON : Fuel being cut (output signal to injector is stopped).
OFF : Fuel not being cut.
MAP (Manifold Absolute Pressure, mmHg, kPa)
This parameter indicates the pressure in the intake manifold absolute pressure.
A/C CONDENSER FAN (ON/OFF)
This parameter indicates the state of the A/C Condenser Fan control signal.
BLOWER FAN (ON/OFF)
This parameter indicates the state of the blower fan motor switch.

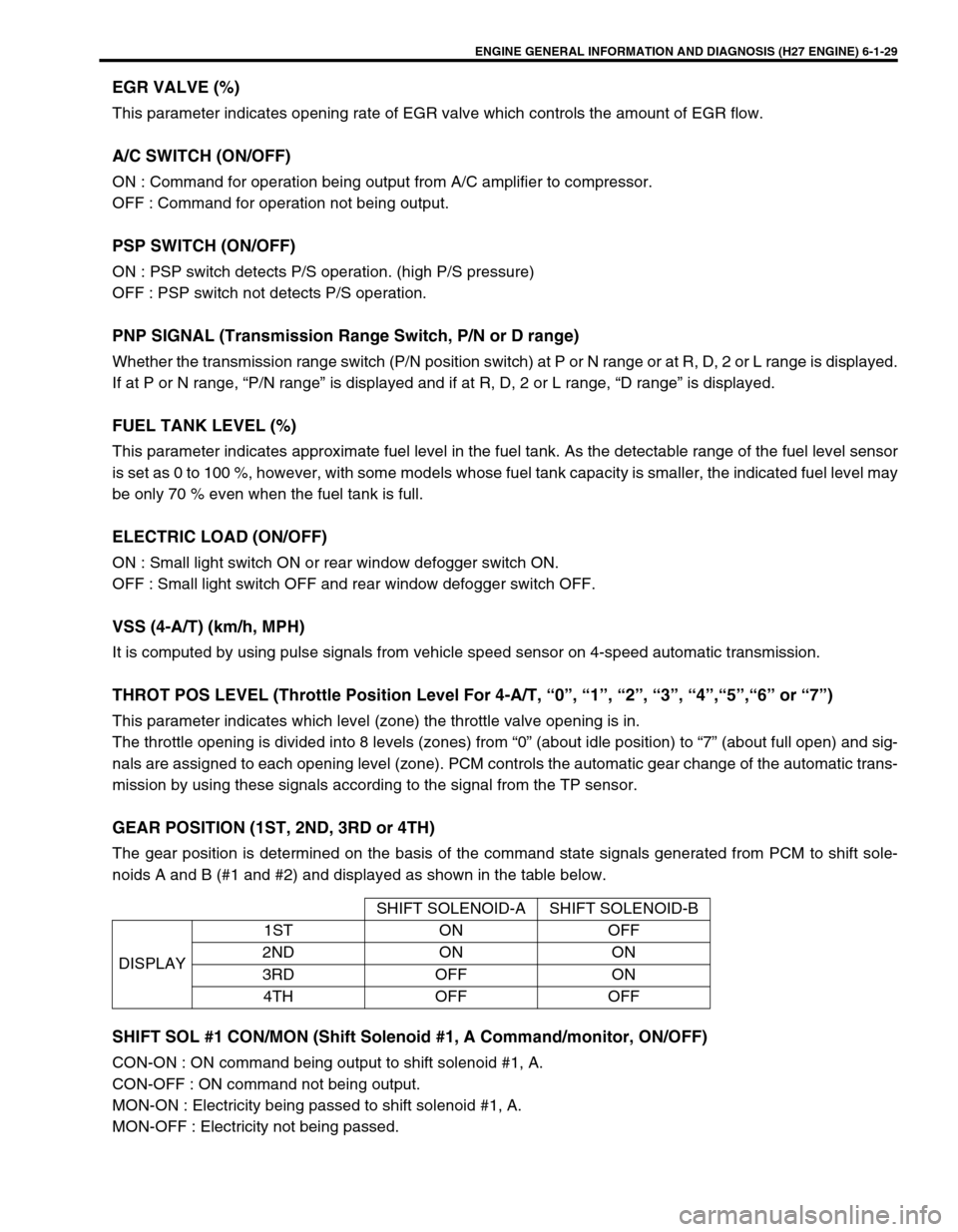

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-29
EGR VALVE (%)
This parameter indicates opening rate of EGR valve which controls the amount of EGR flow.
A/C SWITCH (ON/OFF)
ON : Command for operation being output from A/C amplifier to compressor.
OFF : Command for operation not being output.
PSP SWITCH (ON/OFF)
ON : PSP switch detects P/S operation. (high P/S pressure)
OFF : PSP switch not detects P/S operation.
PNP SIGNAL (Transmission Range Switch, P/N or D range)
Whether the transmission range switch (P/N position switch) at P or N range or at R, D, 2 or L range is displayed.
If at P or N range, “P/N range” is displayed and if at R, D, 2 or L range, “D range” is displayed.
FUEL TANK LEVEL (%)
This parameter indicates approximate fuel level in the fuel tank. As the detectable range of the fuel level sensor
is set as 0 to 100 %, however, with some models whose fuel tank capacity is smaller, the indicated fuel level may
be only 70 % even when the fuel tank is full.
ELECTRIC LOAD (ON/OFF)
ON : Small light switch ON or rear window defogger switch ON.
OFF : Small light switch OFF and rear window defogger switch OFF.
VSS (4-A/T) (km/h, MPH)
It is computed by using pulse signals from vehicle speed sensor on 4-speed automatic transmission.
THROT POS LEVEL (Throttle Position Level For 4-A/T, “0”, “1”, “2”, “3”, “4”,“5”,“6” or “7”)
This parameter indicates which level (zone) the throttle valve opening is in.
The throttle opening is divided into 8 levels (zones) from “0” (about idle position) to “7” (about full open) and sig-
nals are assigned to each opening level (zone). PCM controls the automatic gear change of the automatic trans-
mission by using these signals according to the signal from the TP sensor.
GEAR POSITION (1ST, 2ND, 3RD or 4TH)
The gear position is determined on the basis of the command state signals generated from PCM to shift sole-
noids A and B (#1 and #2) and displayed as shown in the table below.
SHIFT SOL #1 CON/MON (Shift Solenoid #1, A Command/monitor, ON/OFF)
CON-ON : ON command being output to shift solenoid #1, A.
CON-OFF : ON command not being output.
MON-ON : Electricity being passed to shift solenoid #1, A.
MON-OFF : Electricity not being passed.SHIFT SOLENOID-A SHIFT SOLENOID-B
DISPLAY1ST ON OFF
2ND ON ON
3RD OFF ON
4TH OFF OFF
