Page 471 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7B1-62 AUTOMATIC TRANSMISSION (4 A/T)

Page 472 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual CLUTCH 7C1-1
7C1

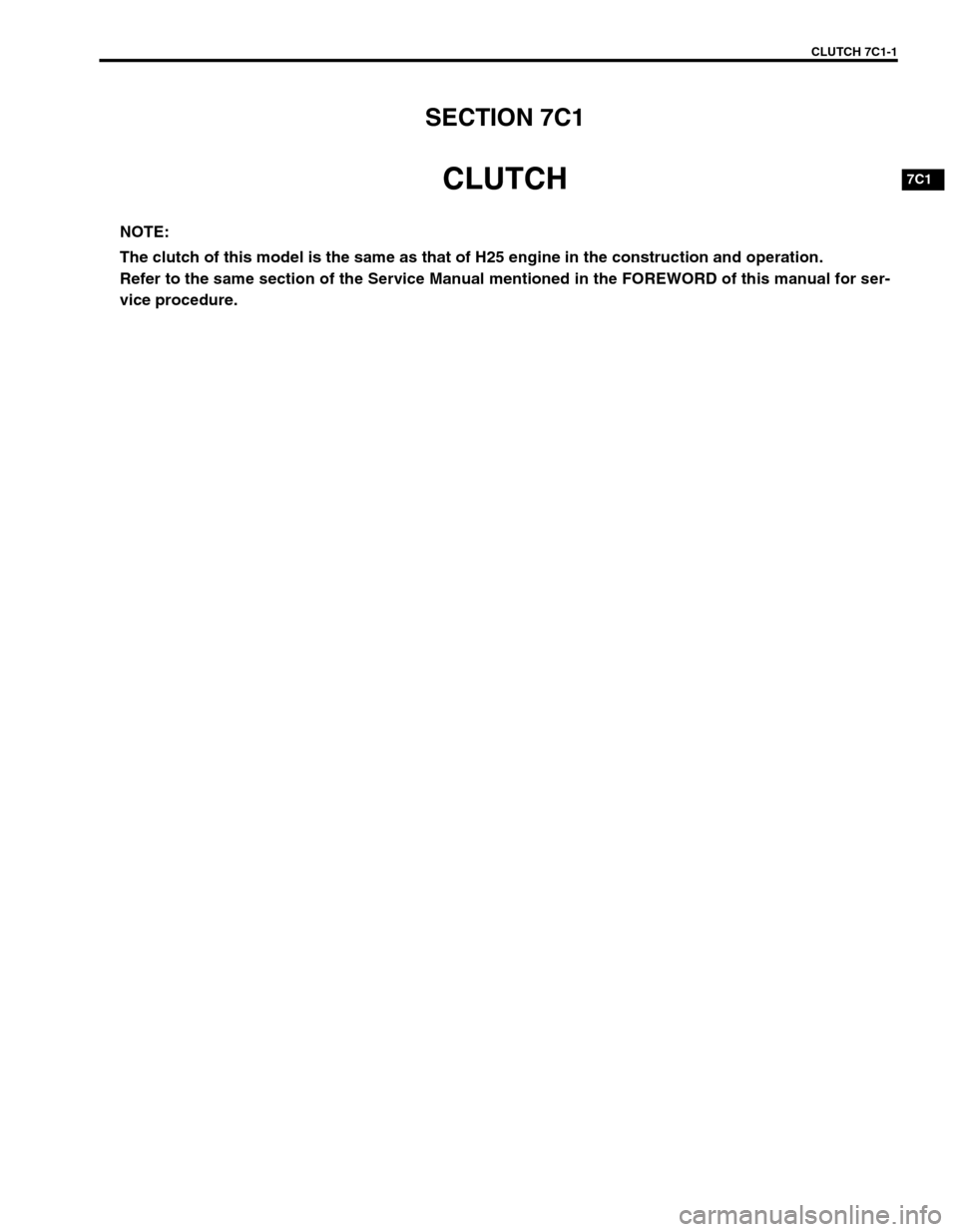

SECTION 7C1
CLUTCH
NOTE:
The clutch of this model is the same as that of H25 engine in the construction and operation.
Refer to the same section of the Service Manual mentioned in the

Page 473 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7C1-2 CLUTCH

Page 474 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (FRONT) 7E-1
7E

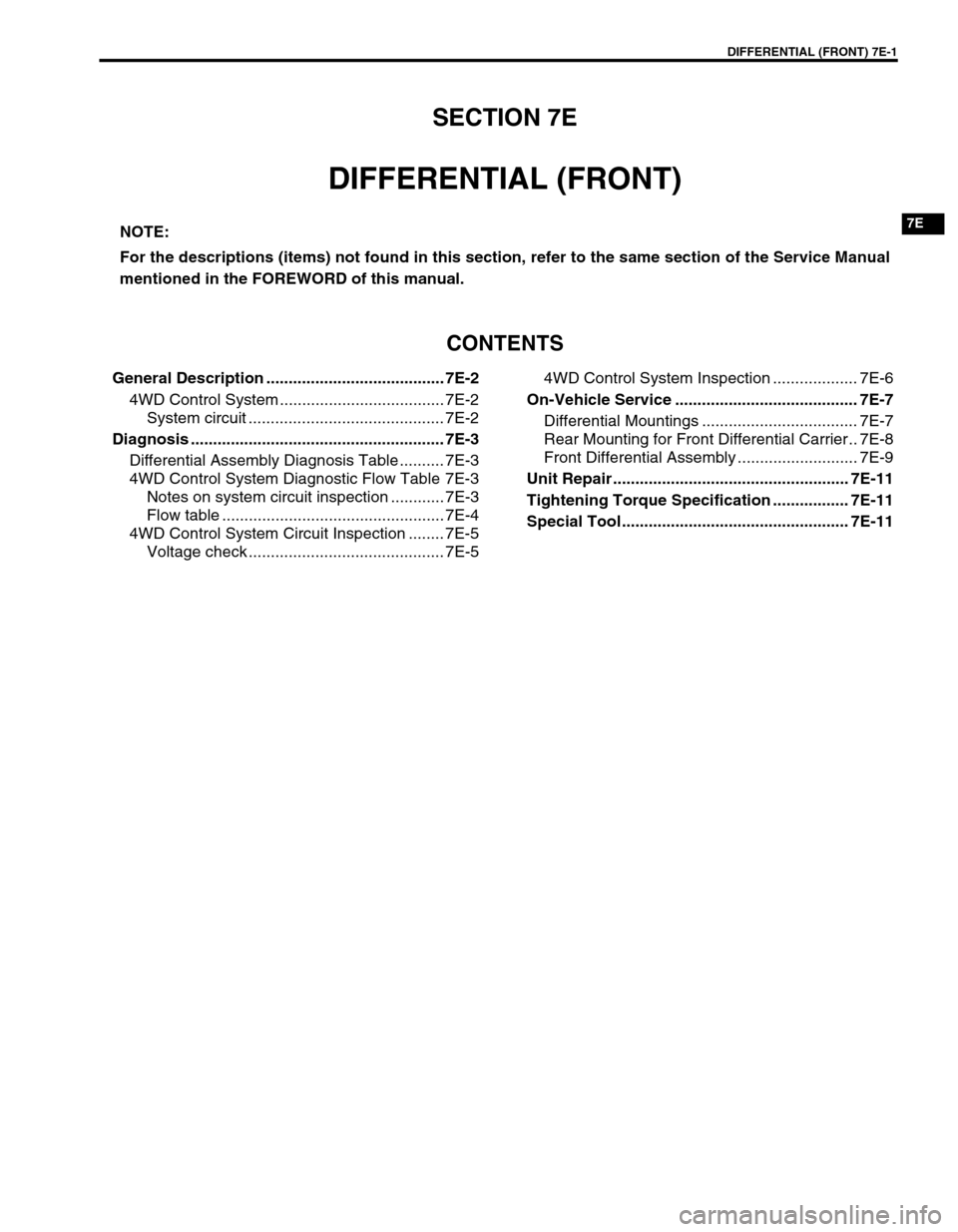

SECTION 7E
DIFFERENTIAL (FRONT)
CONTENTS
General Description ........................................ 7E-2
4WD Control System ..................................... 7E-2
Sy

Page 475 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7E-2 DIFFERENTIAL (FRONT)
General Description
4WD Control System
System circuit
1. 4WD switch 4. Release valve 7. Front differential 10. To ignition switch
2. Air pump assembly 5. Pressure switch 8. A

Page 476 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (FRONT) 7E-3

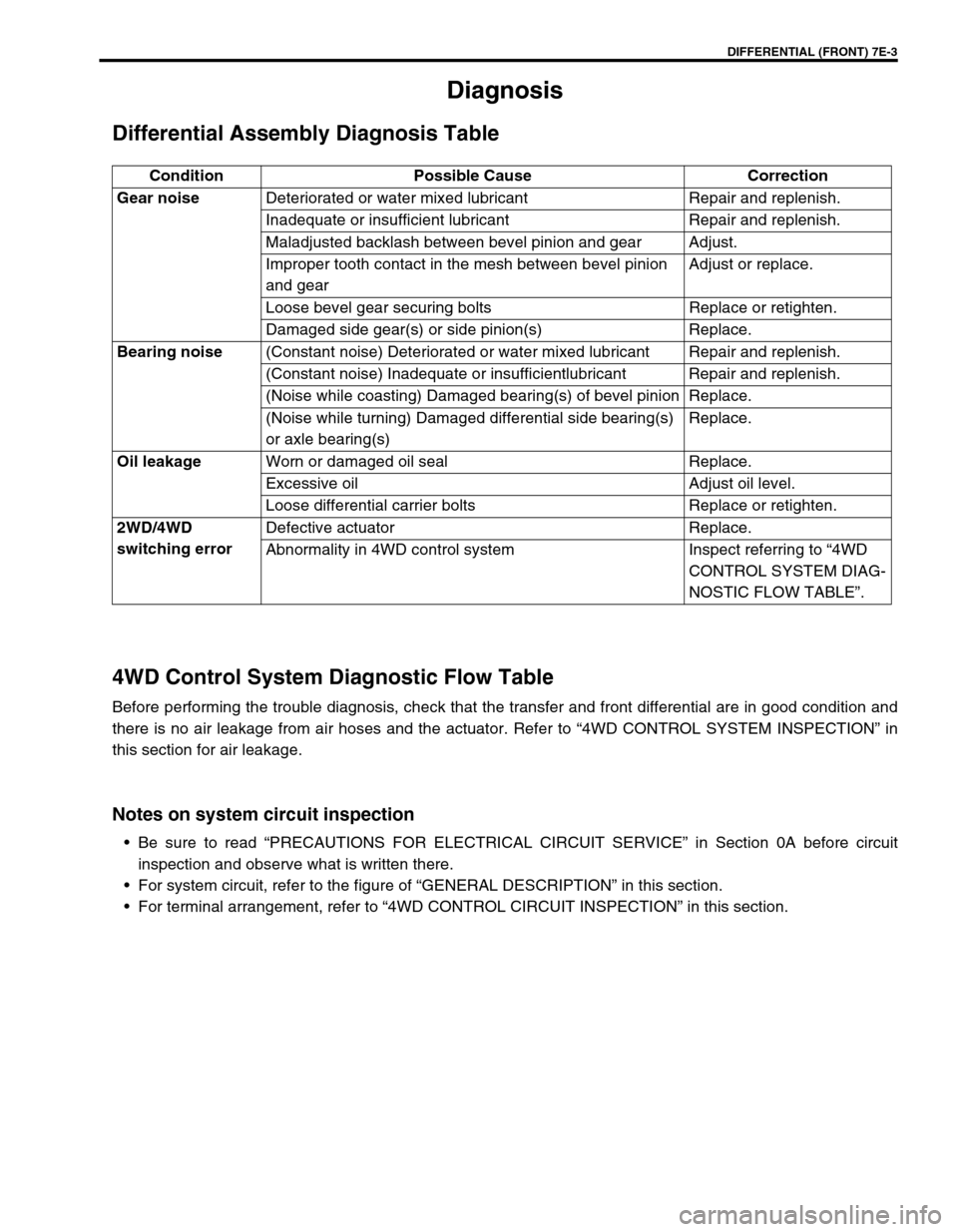

Diagnosis
Differential Assembly Diagnosis Table
4WD Control System Diagnostic Flow Table
Before performing the trouble diagnosis, check that the transfer and front differenti

Page 477 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7E-4 DIFFERENTIAL (FRONT)

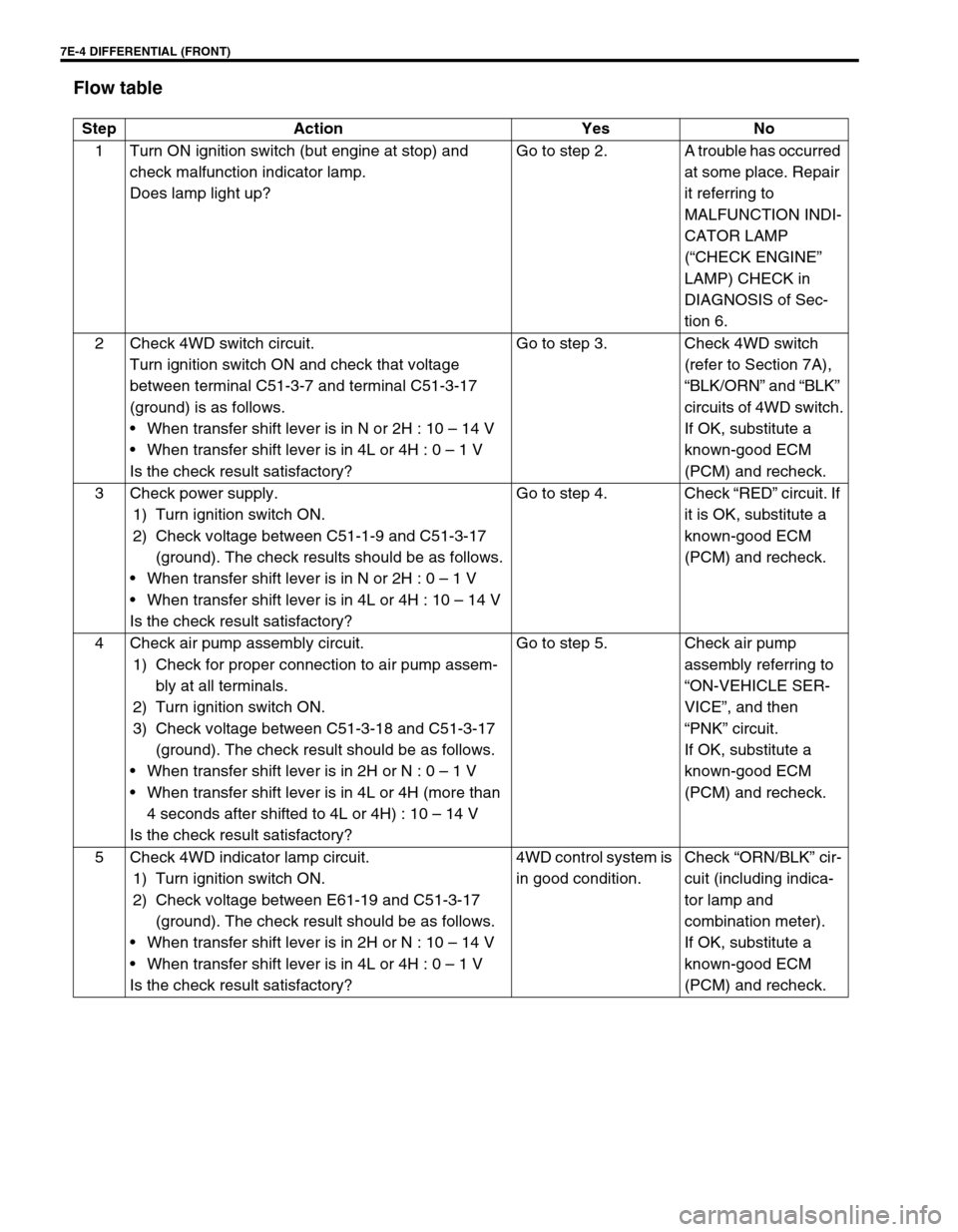

Flow table
Step Action Yes No
1 Turn ON ignition switch (but engine at stop) and
check malfunction indicator lamp.
Does lamp light up?Go  to  step  2. A trouble has occurred

Page 478 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (FRONT) 7E-5

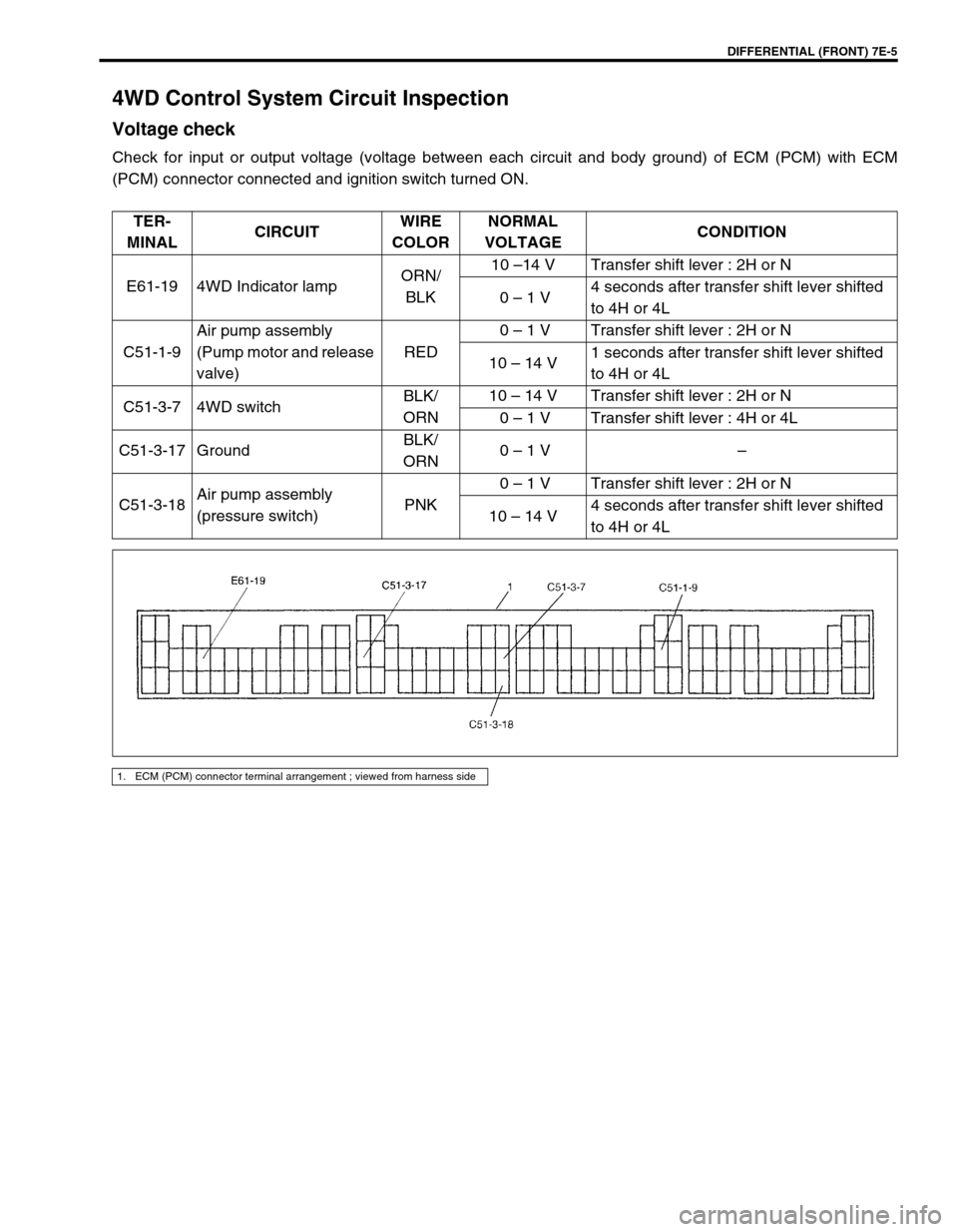

4WD Control System Circuit Inspection
Voltage check
Check for input or output voltage (voltage between each circuit and body ground) of ECM (PCM) with ECM
(PCM) connector con

Page 479 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7E-6 DIFFERENTIAL (FRONT)

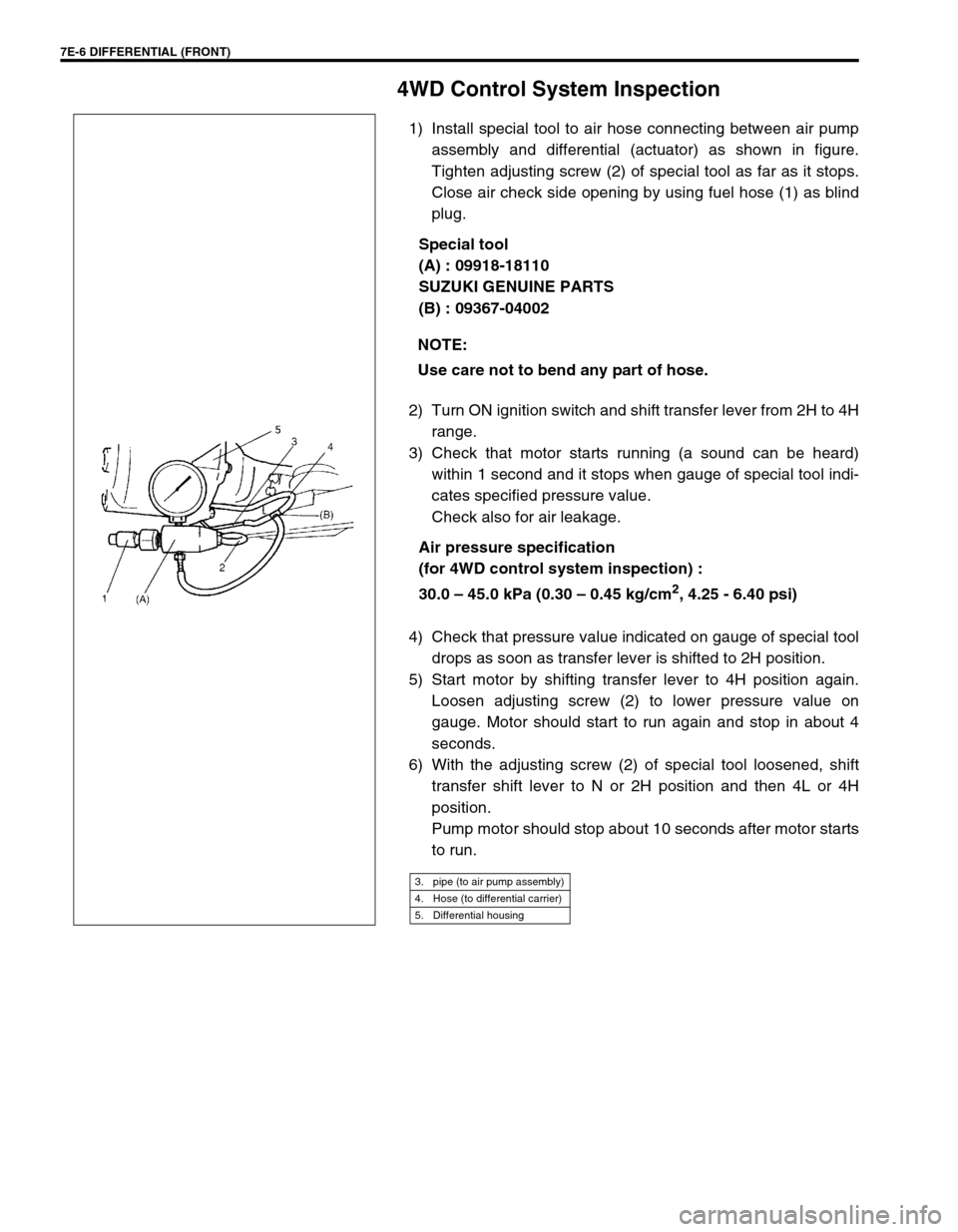

4WD Control System Inspection
1) Install special tool to air hose connecting between air pump
assembly and differential (actuator) as shown in figure.
Tighten adjusting screw

Page 480 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (FRONT) 7E-7

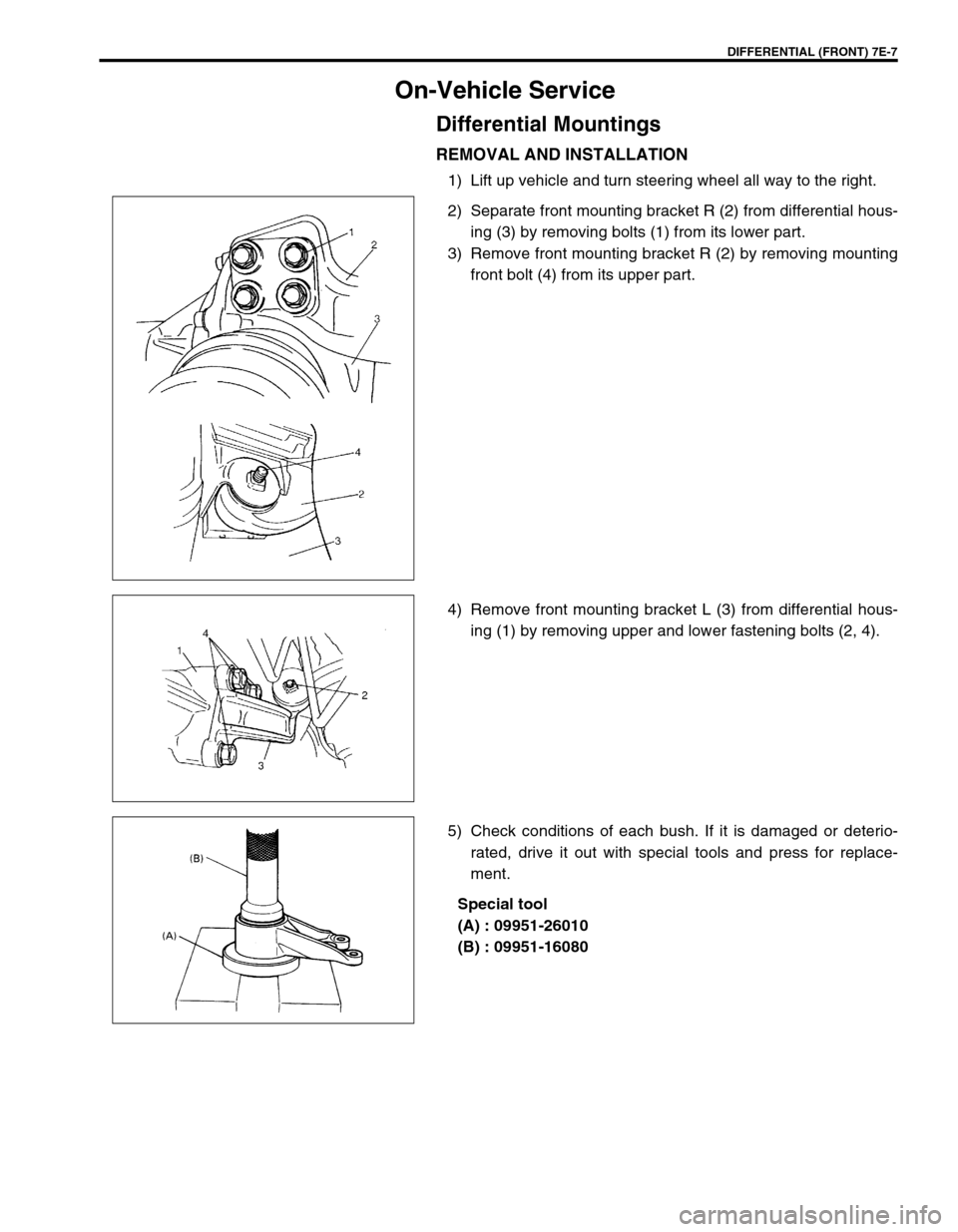

On-Vehicle Service
Differential Mountings
REMOVAL AND INSTALLATION
1) Lift up vehicle and turn steering wheel all way to the right.
2) Separate front mounting bracket R (2) f
