Page 481 of 656

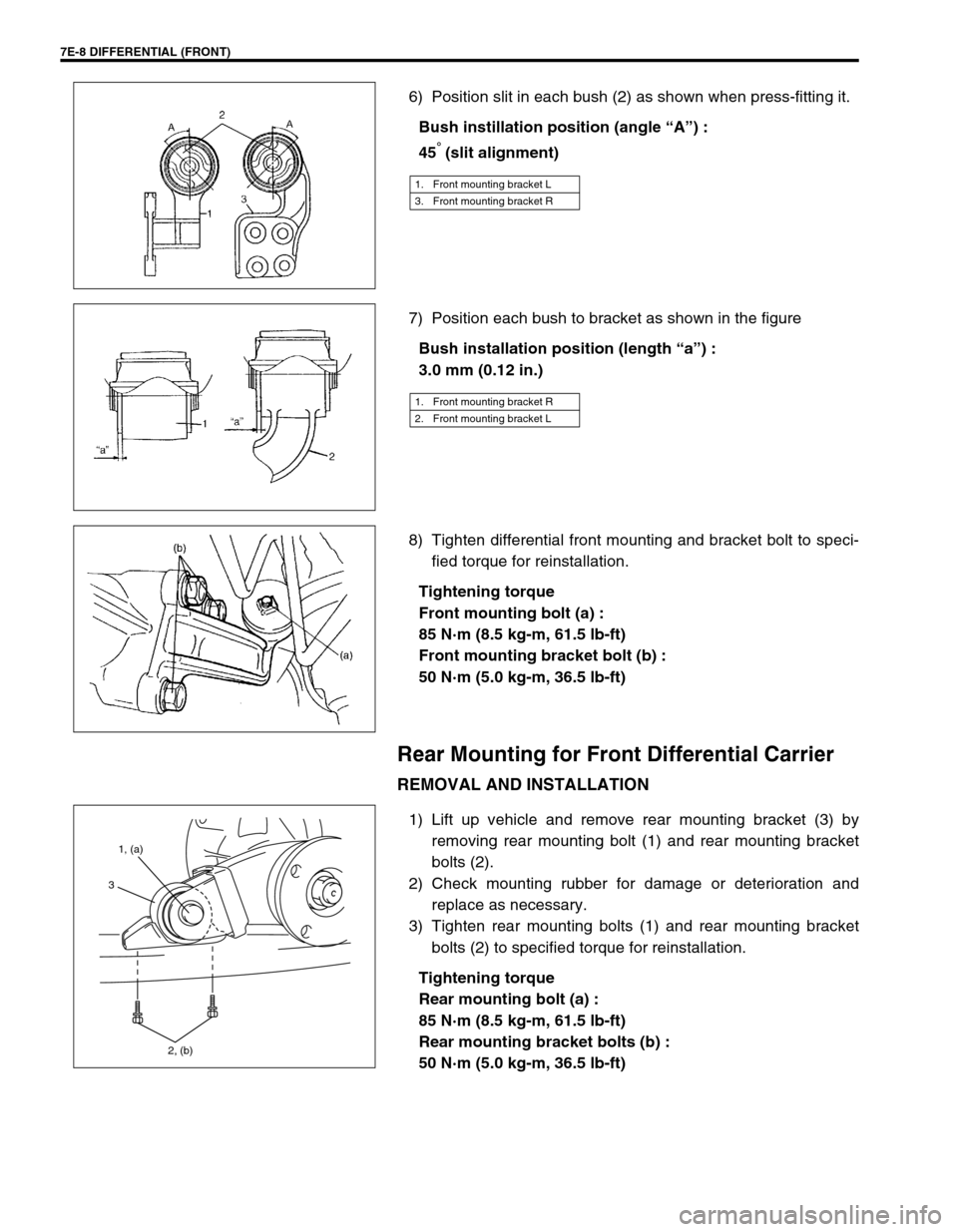

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7E-8 DIFFERENTIAL (FRONT)
6) Position slit in each bush (2) as shown when press-fitting it.
Bush instillation position (angle “A”) :
45
° (slit alignment)
7) Position each bush to bracket as show

Page 482 of 656

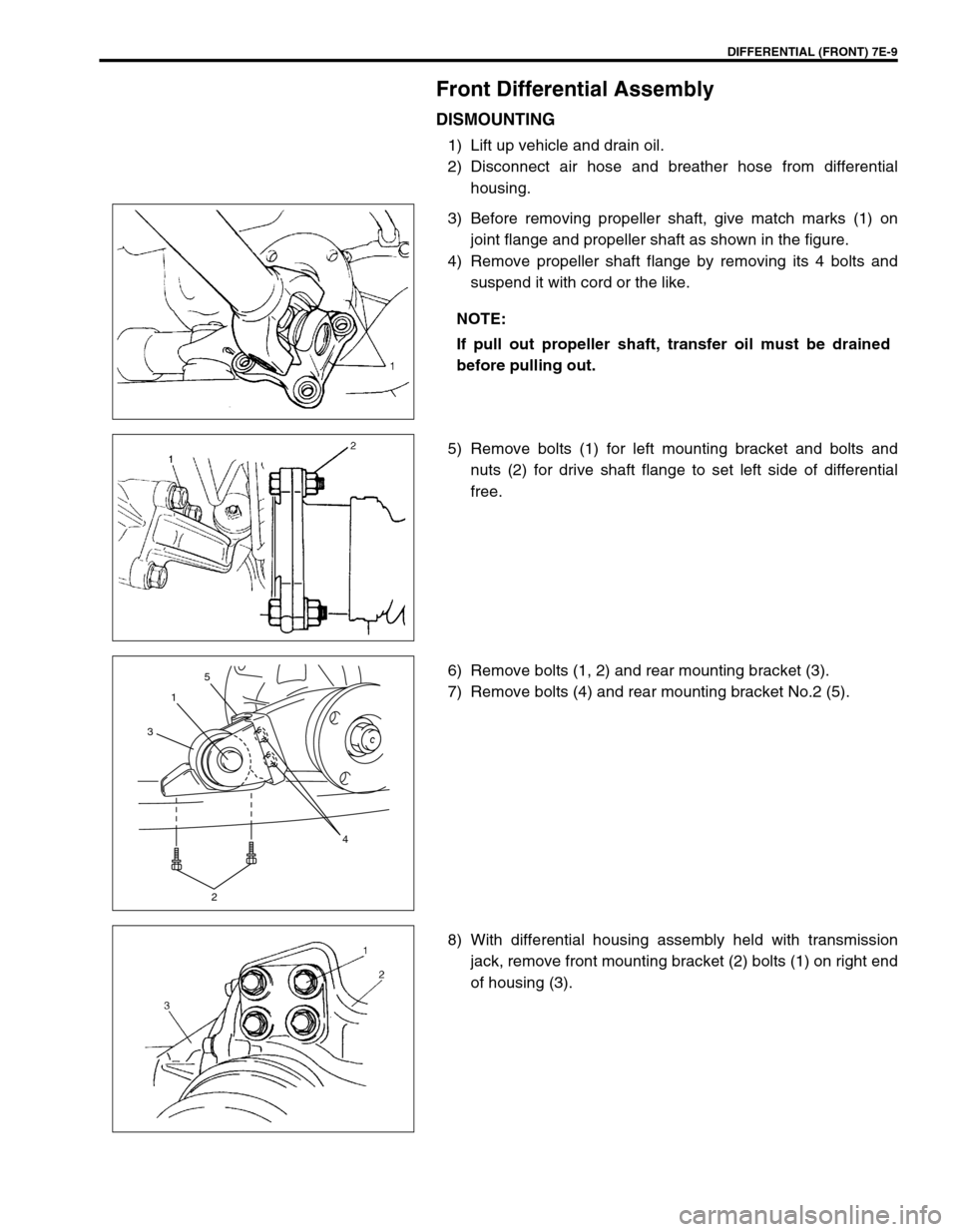

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (FRONT) 7E-9
Front Differential Assembly
DISMOUNTING
1) Lift up vehicle and drain oil.
2) Disconnect air hose and breather hose from differential
housing.
3) Before removing propeller sha

Page 483 of 656

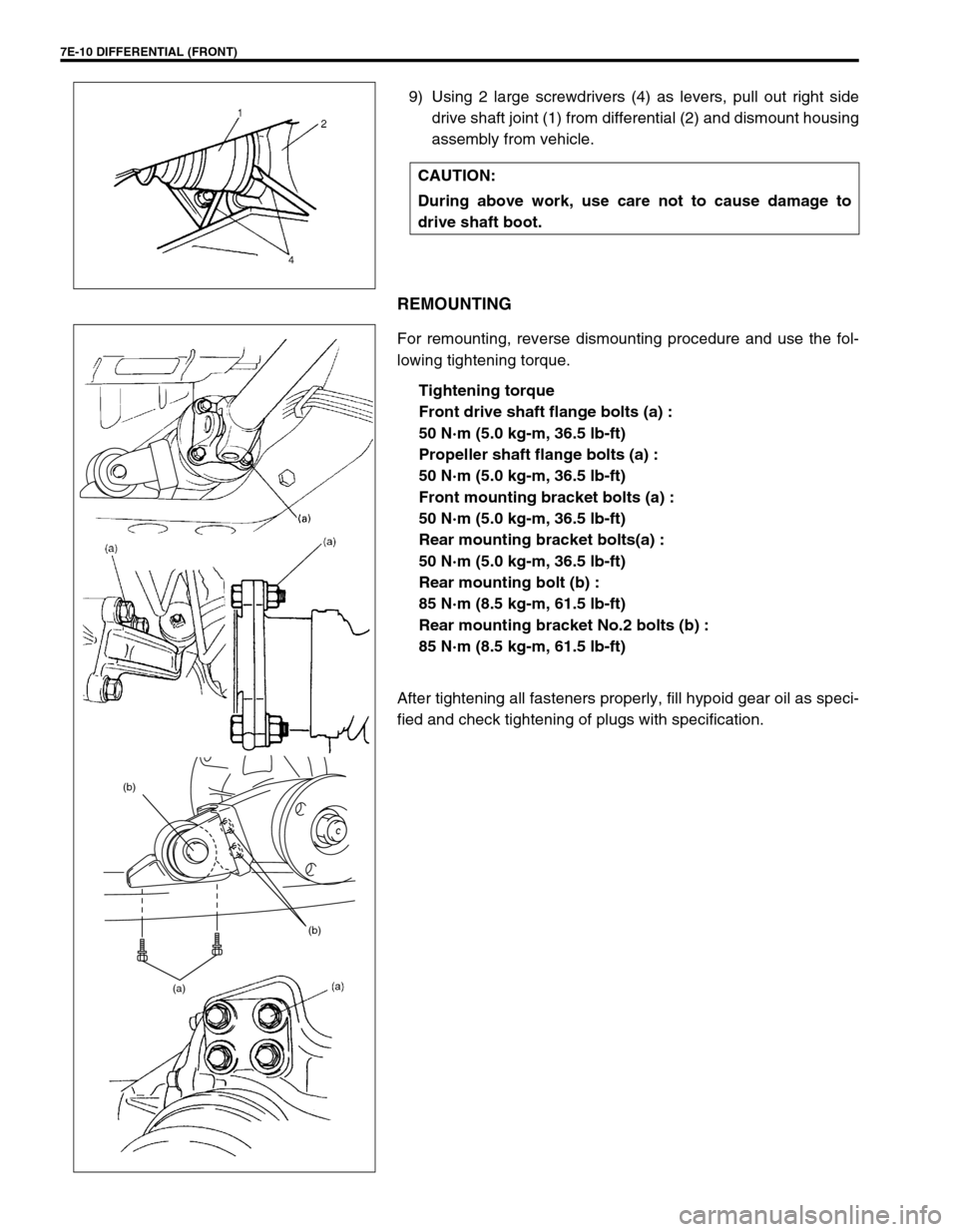

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7E-10 DIFFERENTIAL (FRONT)
9) Using 2 large screwdrivers (4) as levers, pull out right side
drive shaft joint (1) from differential (2) and dismount housing
assembly from vehicle.
REMOUNTING
For remou

Page 484 of 656

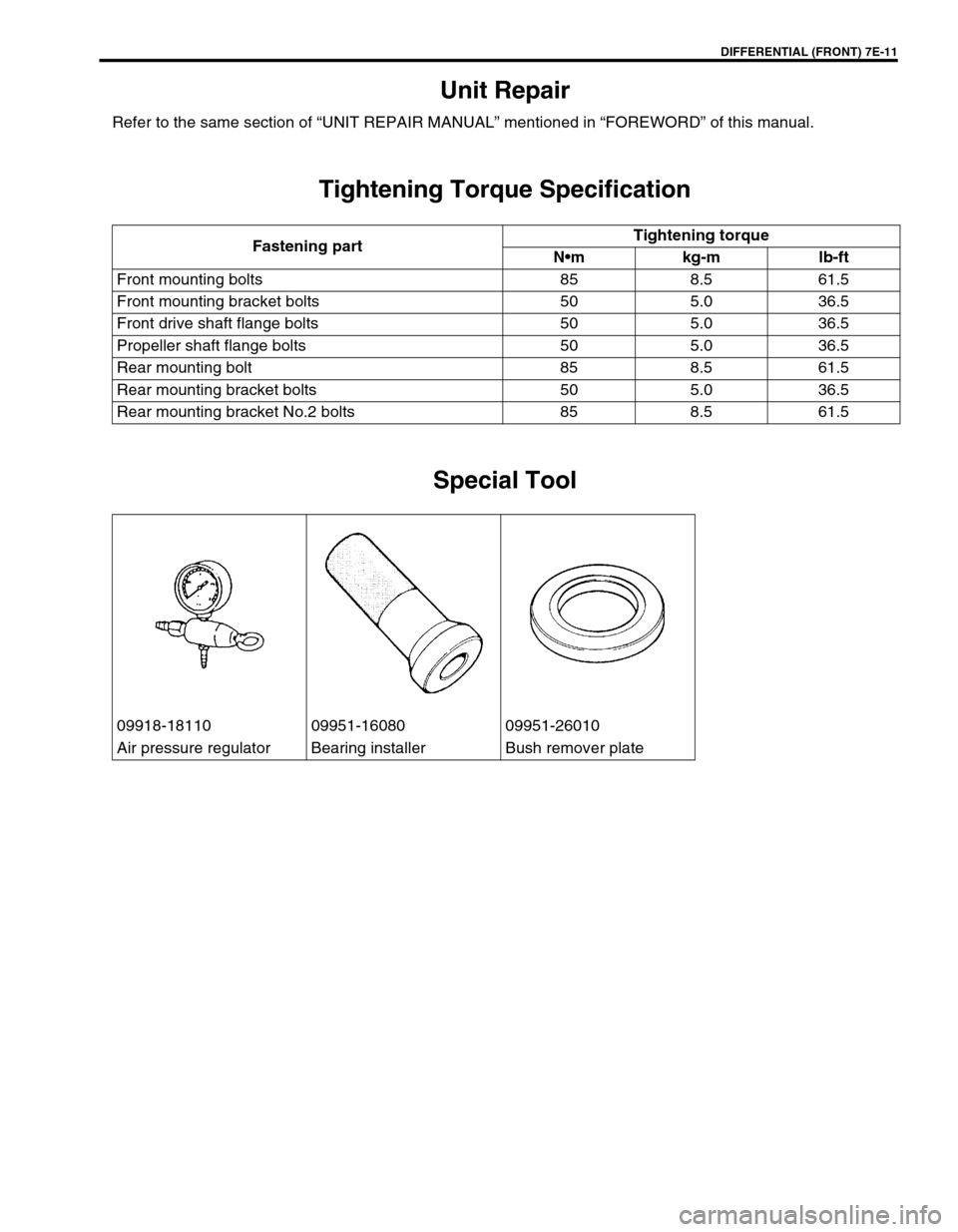

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (FRONT) 7E-11
Unit Repair
Refer to the same section of “UNIT REPAIR MANUAL” mentioned in “FOREWORD” of this manual.
Tightening Torque Specification
Special Tool
Fastening partTigh

Page 485 of 656

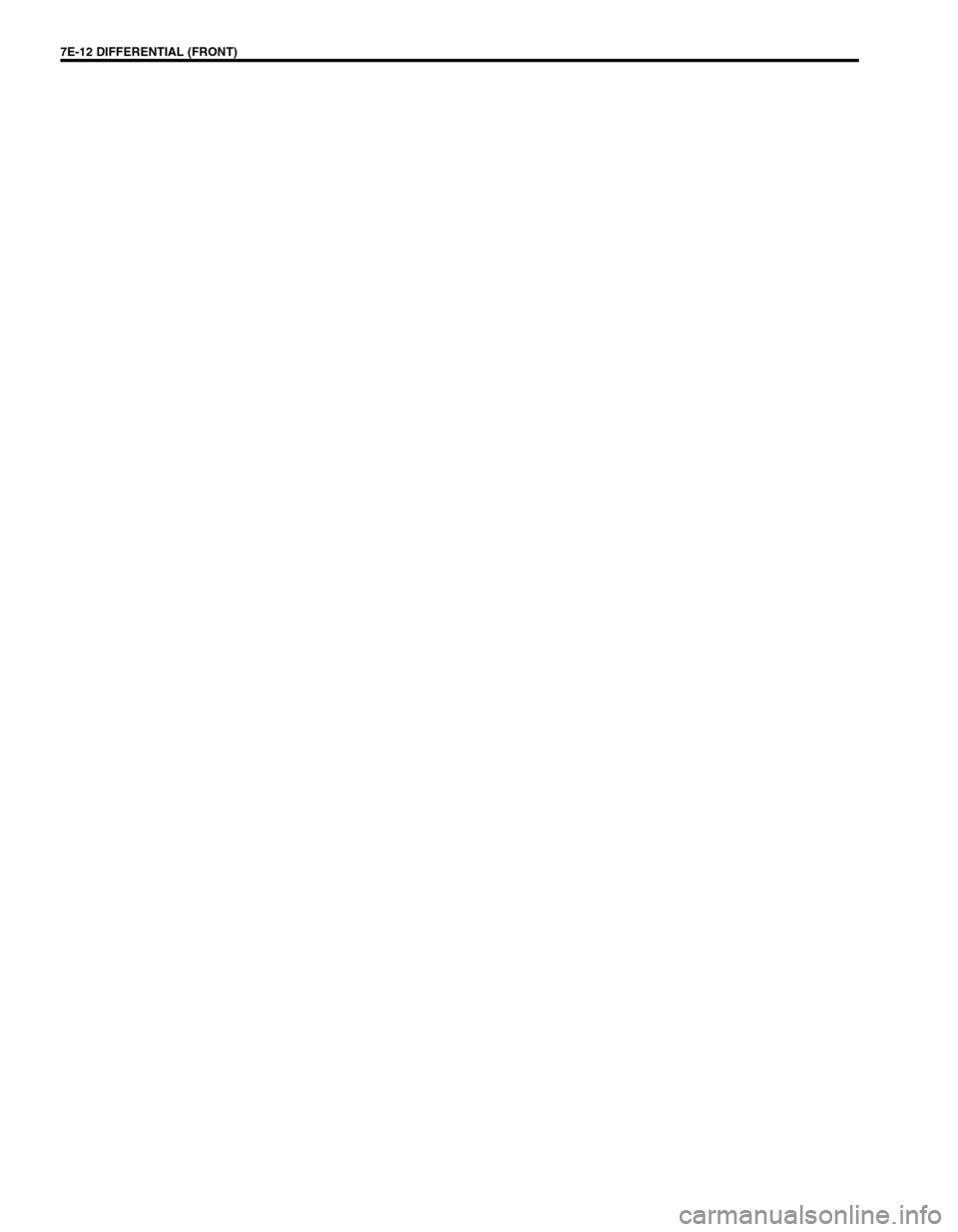

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7E-12 DIFFERENTIAL (FRONT)

Page 486 of 656

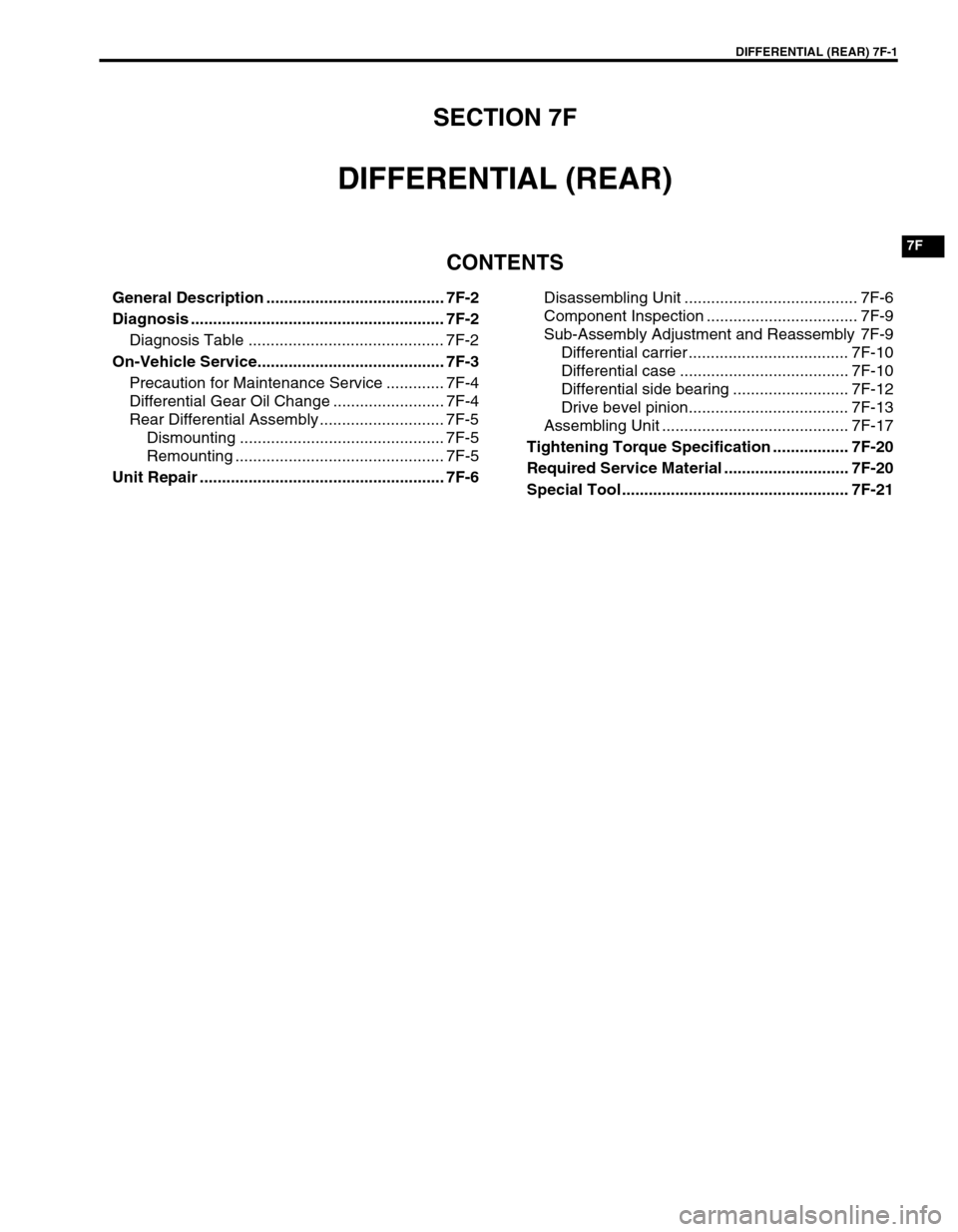

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-1
7F
SECTION 7F
DIFFERENTIAL (REAR)
CONTENTS
General Description ........................................ 7F-2
Diagnosis ........................................................

Page 487 of 656

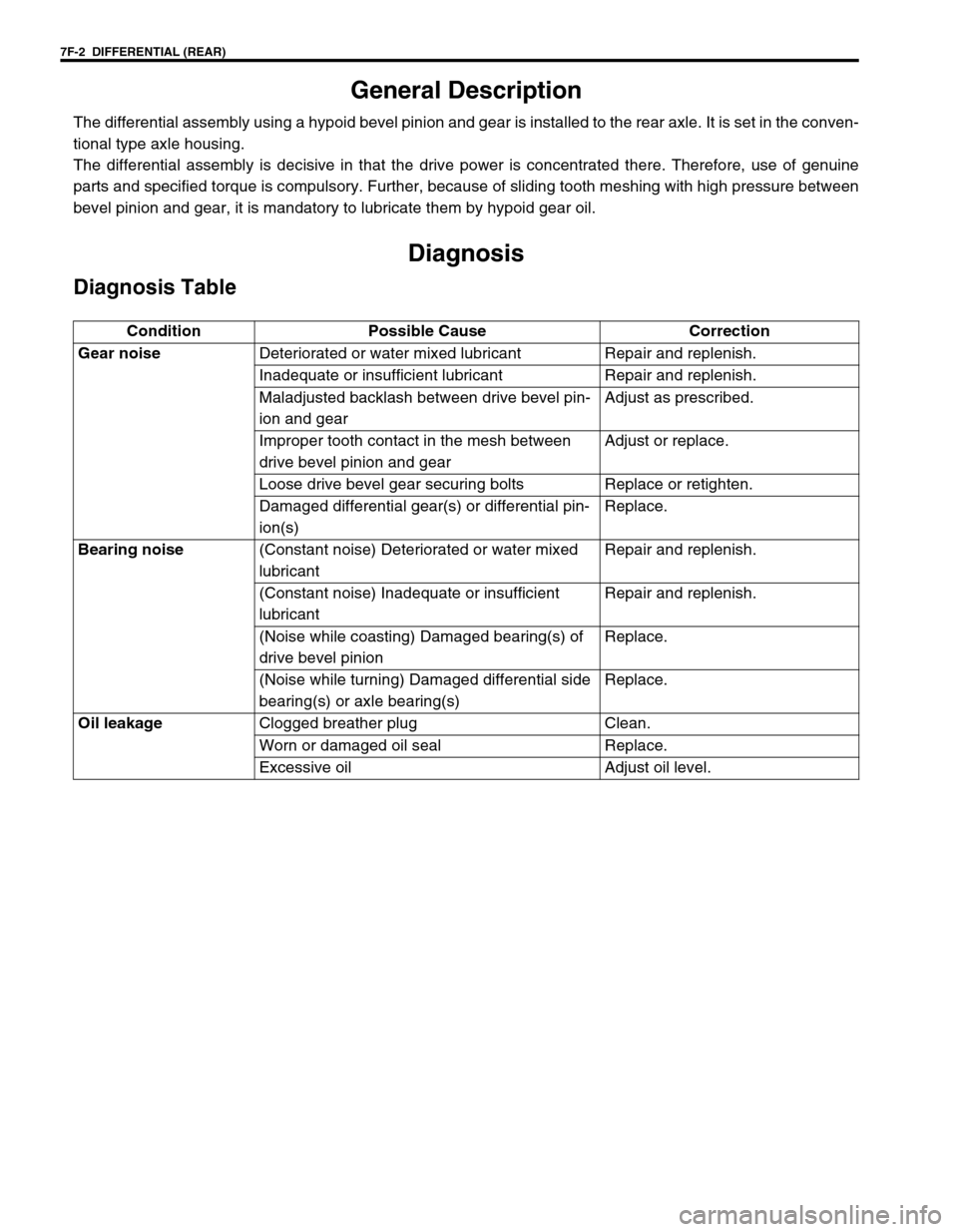

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-2  DIFFERENTIAL (REAR)
General Description
The differential assembly using a hypoid bevel pinion and gear is installed to the rear axle. It is set in the conven-
tional type axle housing.
The diffe

Page 488 of 656

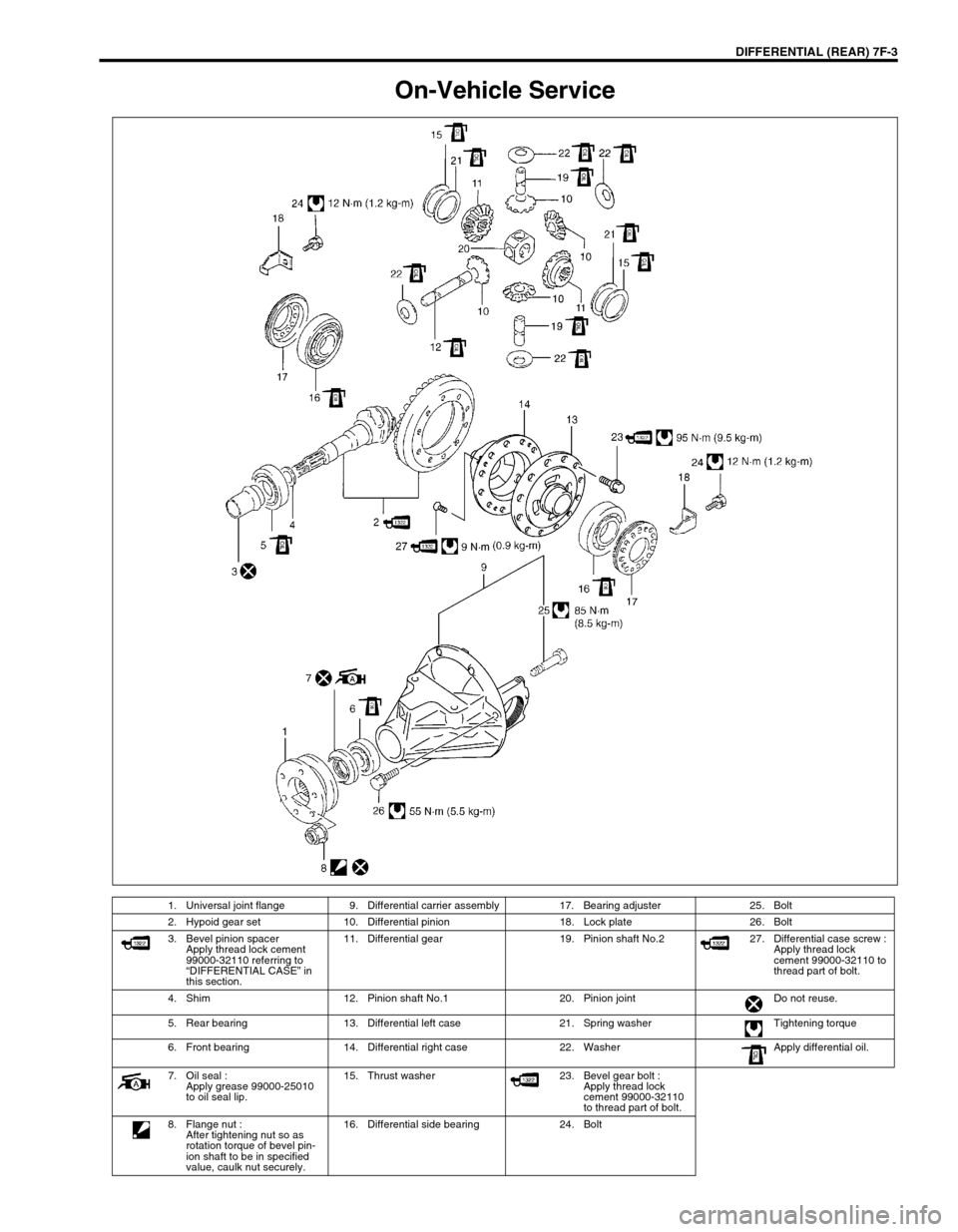

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-3
On-Vehicle Service
1. Universal joint flange 9. Differential carrier assembly 17. Bearing adjuster 25. Bolt
2. Hypoid gear set 10. Differential pinion 18. Lock plate 26. Bolt

Page 489 of 656

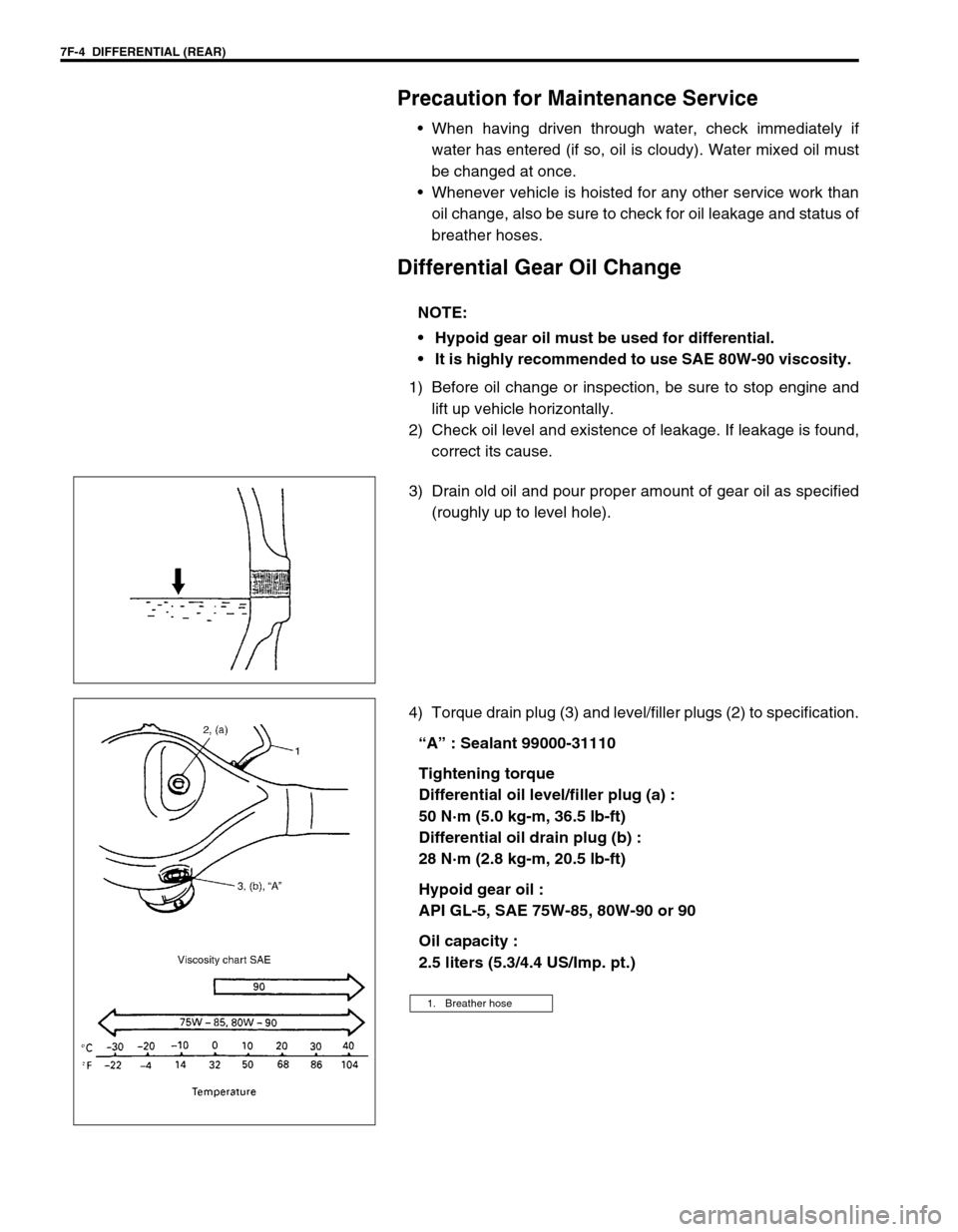

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-4  DIFFERENTIAL (REAR)
Precaution for Maintenance Service
•When having driven through water, check immediately if
water has entered (if so, oil is cloudy). Water mixed oil must
be changed at once

Page 490 of 656

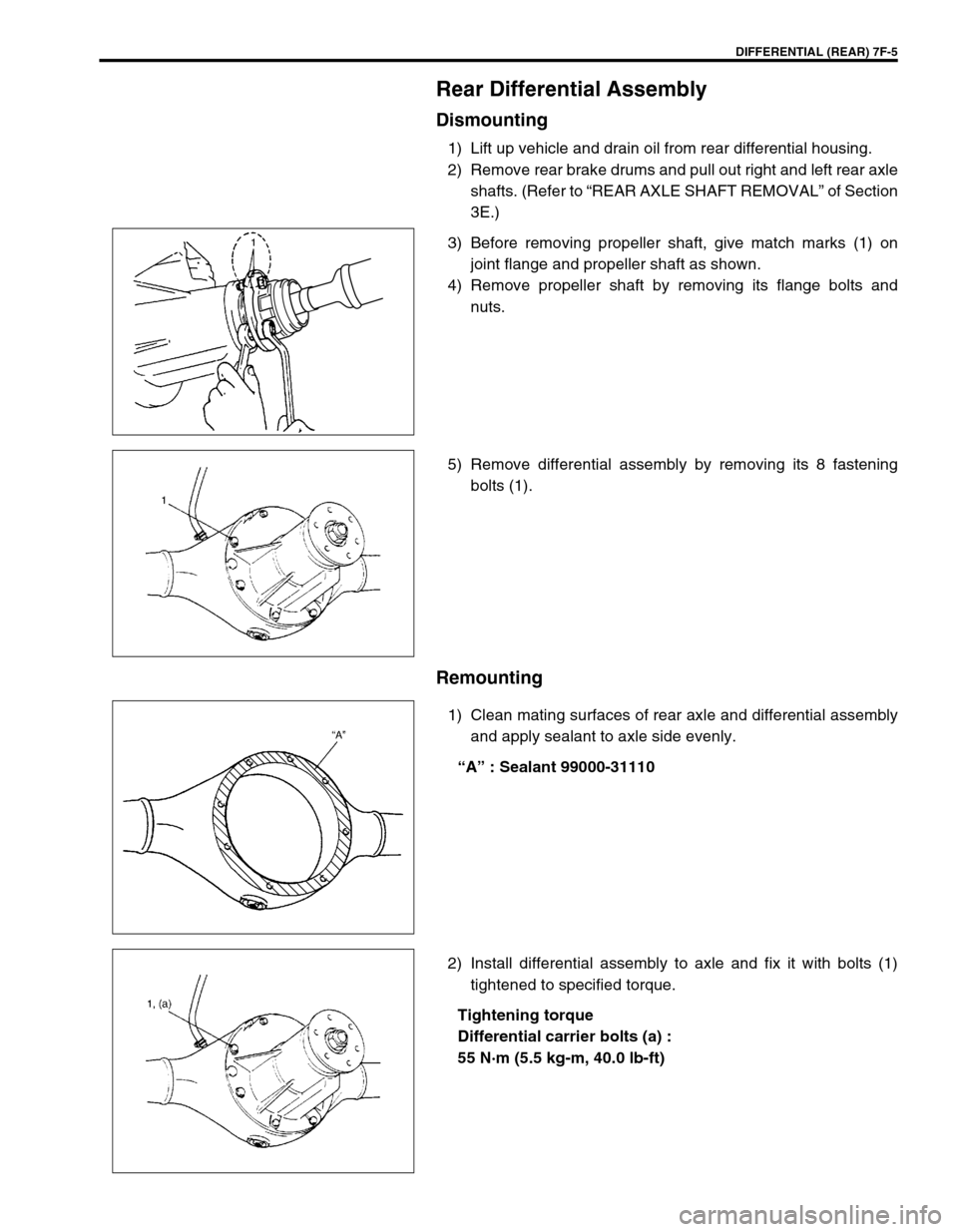

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-5
Rear Differential Assembly
Dismounting
1) Lift up vehicle and drain oil from rear differential housing.
2) Remove rear brake drums and pull out right and left rear axle
shafts
