Page 491 of 656

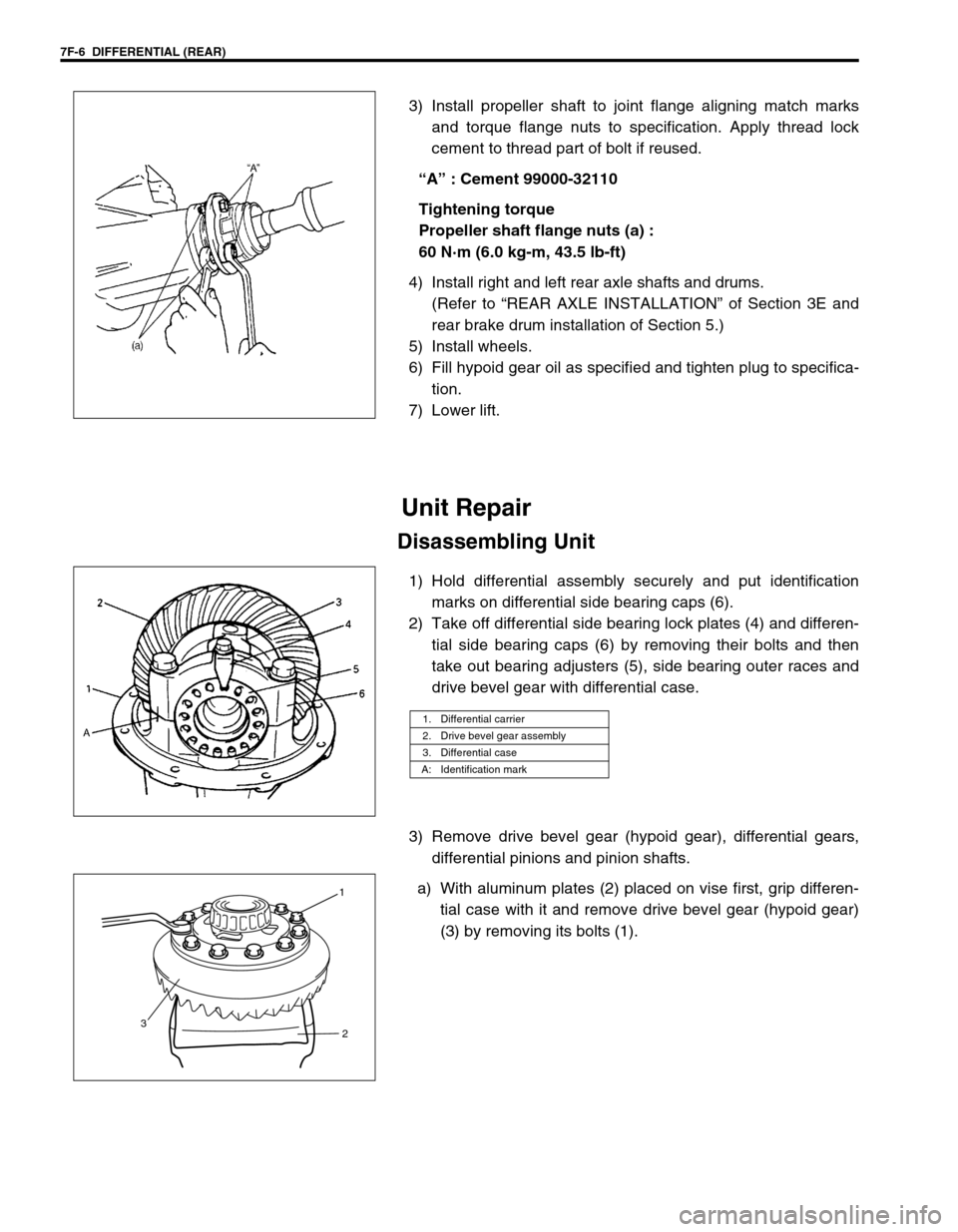

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-6  DIFFERENTIAL (REAR)
3) Install propeller shaft to joint flange aligning match marks
and torque flange nuts to specification. Apply thread lock
cement to thread part of bolt if reused.
“A” :

Page 492 of 656

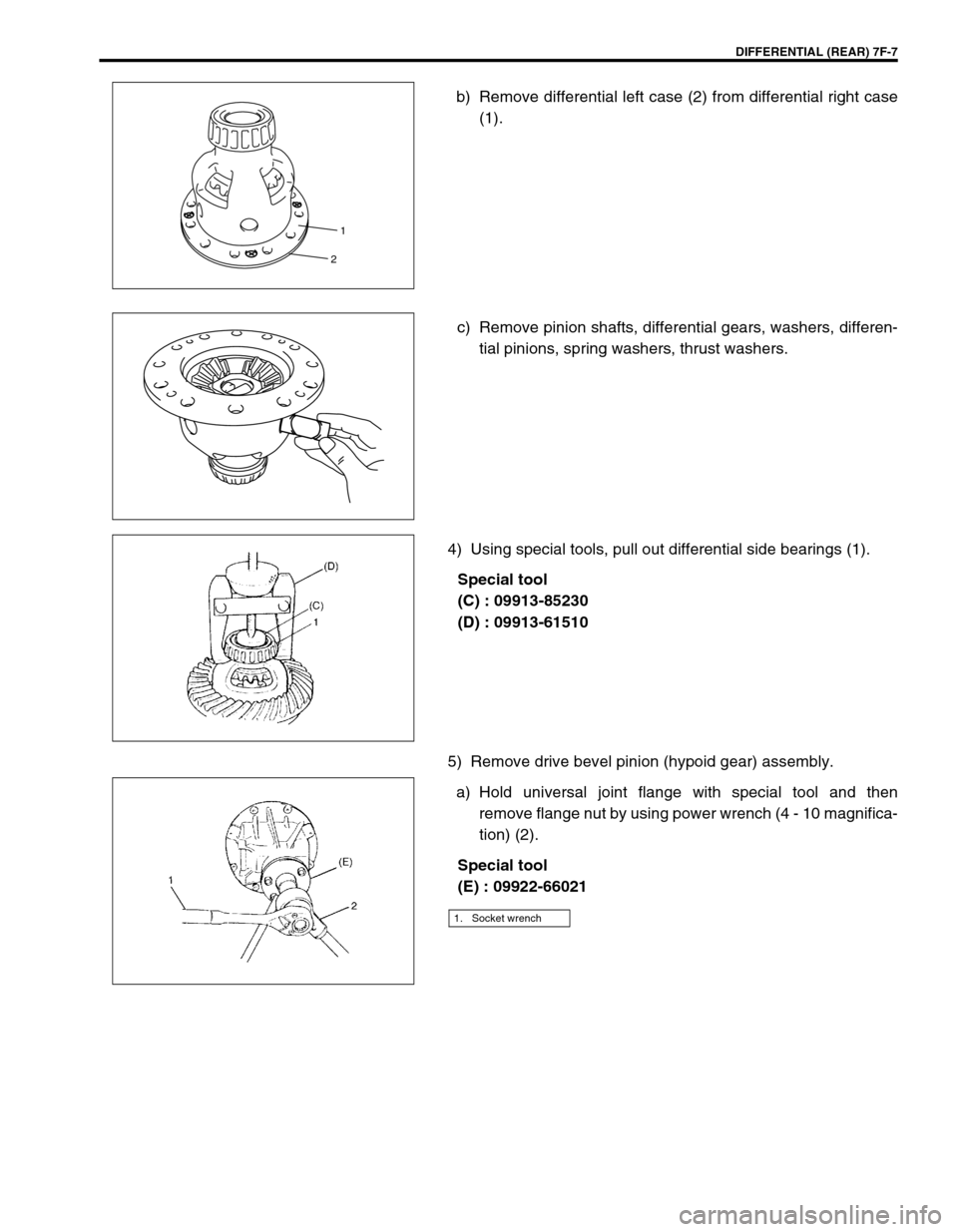

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-7
b) Remove differential left case (2) from differential right case
(1).
c) Remove pinion shafts, differential gears, washers, differen-
tial pinions, spring washers, thrust was

Page 493 of 656

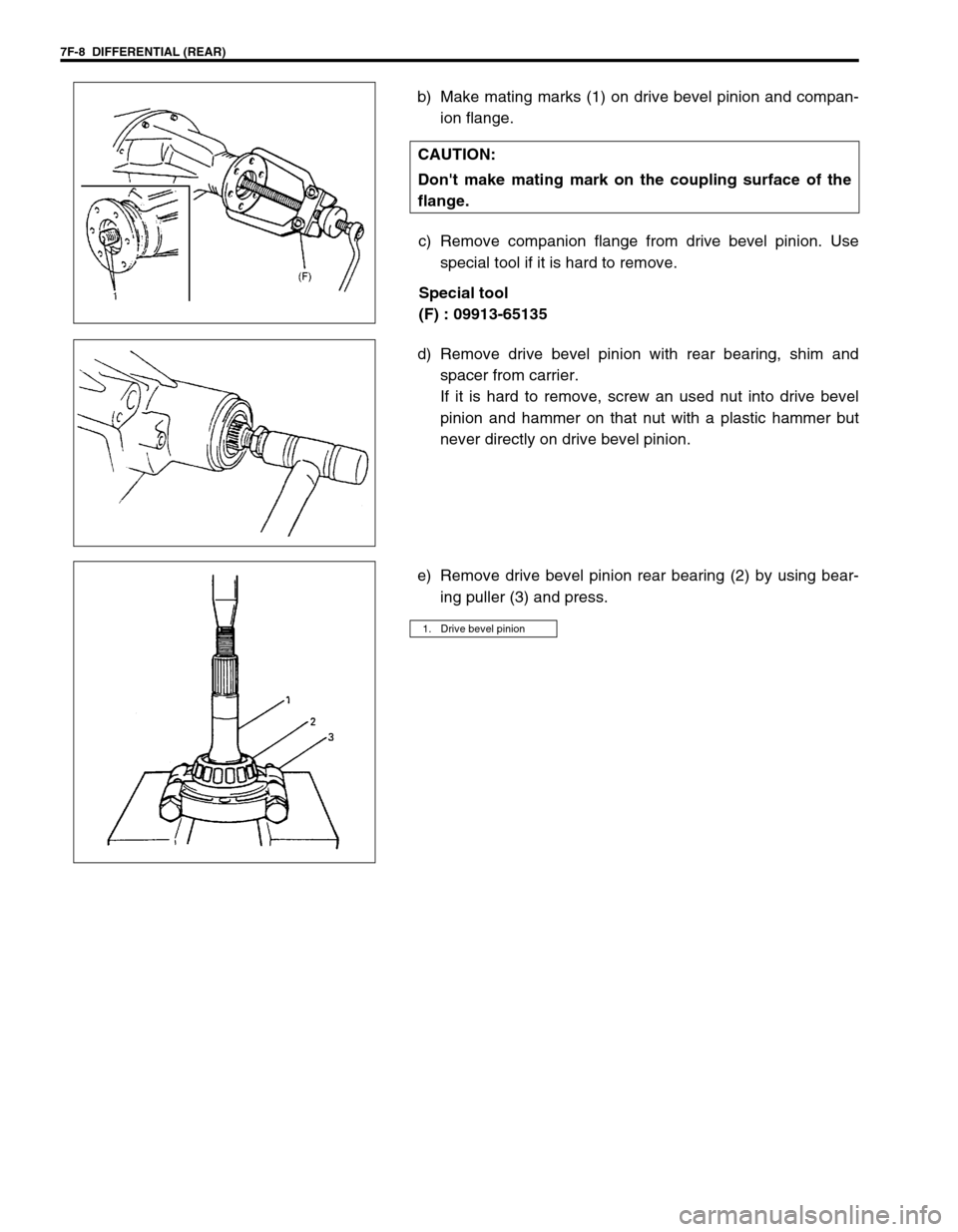

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-8  DIFFERENTIAL (REAR)
b) Make mating marks (1) on drive bevel pinion and compan-
ion flange.
c) Remove companion flange from drive bevel pinion. Use
special tool if it is hard to remove.
Special t

Page 494 of 656

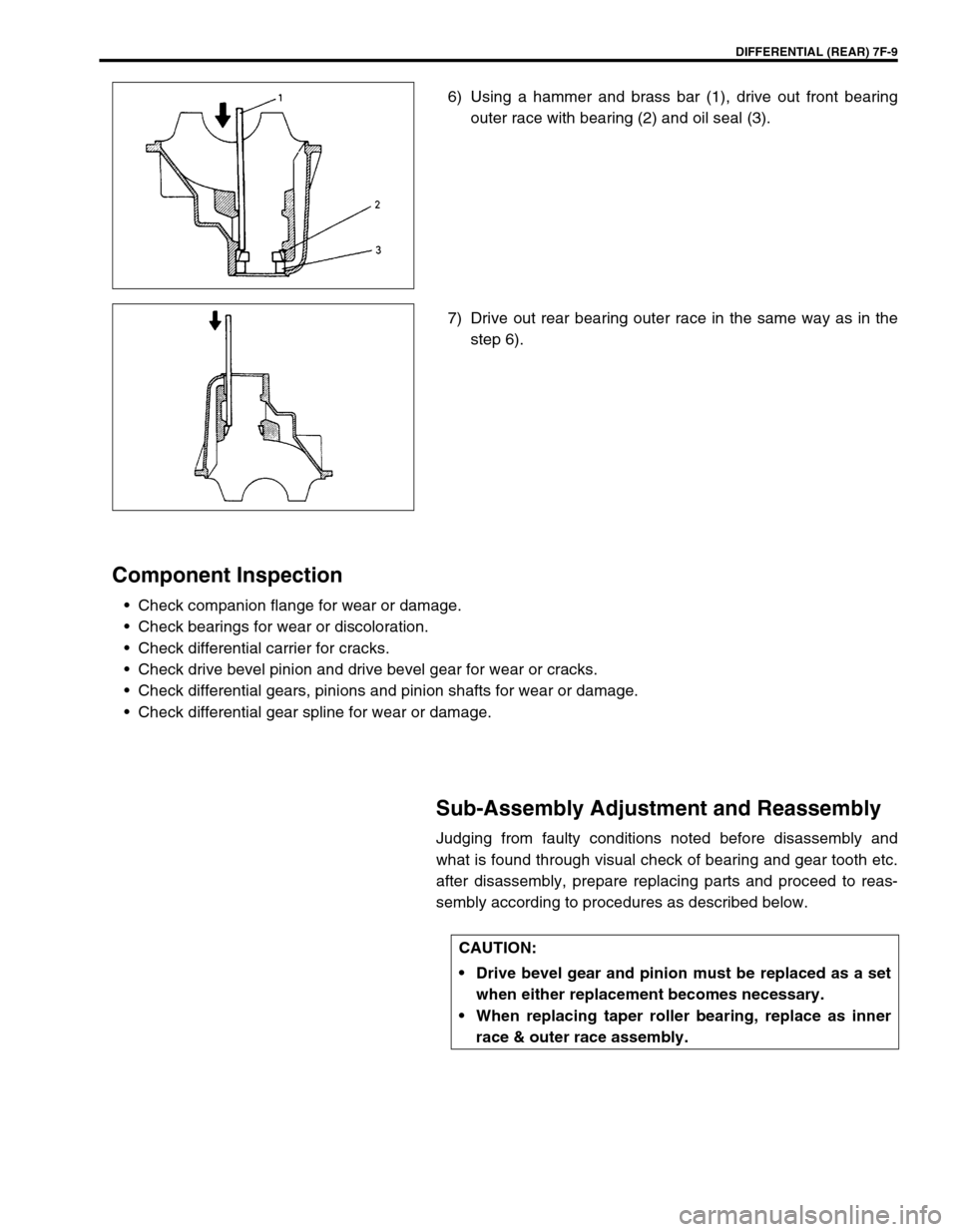

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-9
6) Using a hammer and brass bar (1), drive out front bearing
outer race with bearing (2) and oil seal (3).
7) Drive out rear bearing outer race in the same way as in the
step

Page 495 of 656

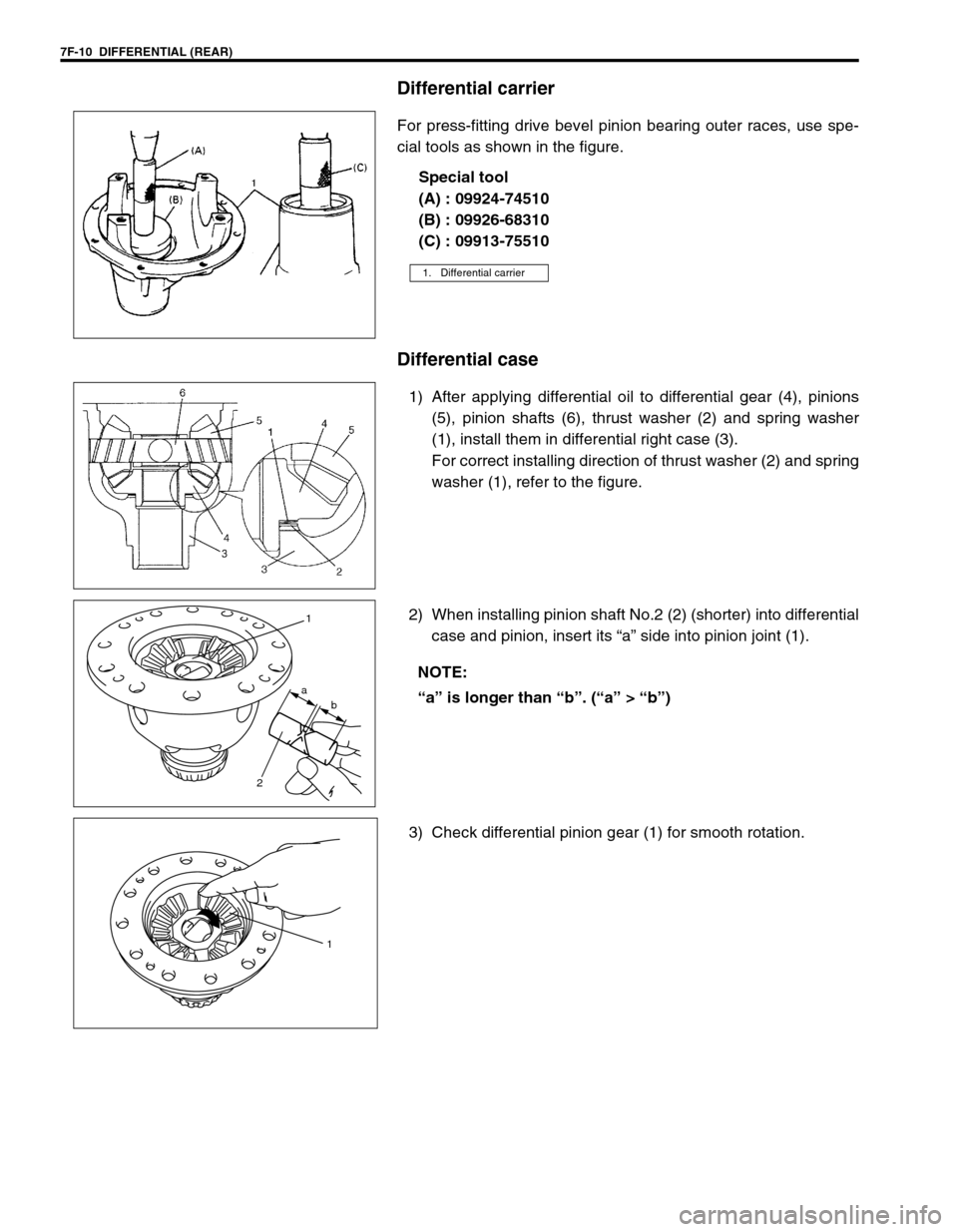

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-10  DIFFERENTIAL (REAR)
Differential carrier
For press-fitting drive bevel pinion bearing outer races, use spe-
cial tools as shown in the figure.
Special tool
(A) : 09924-74510
(B) : 09926-68310
(

Page 496 of 656

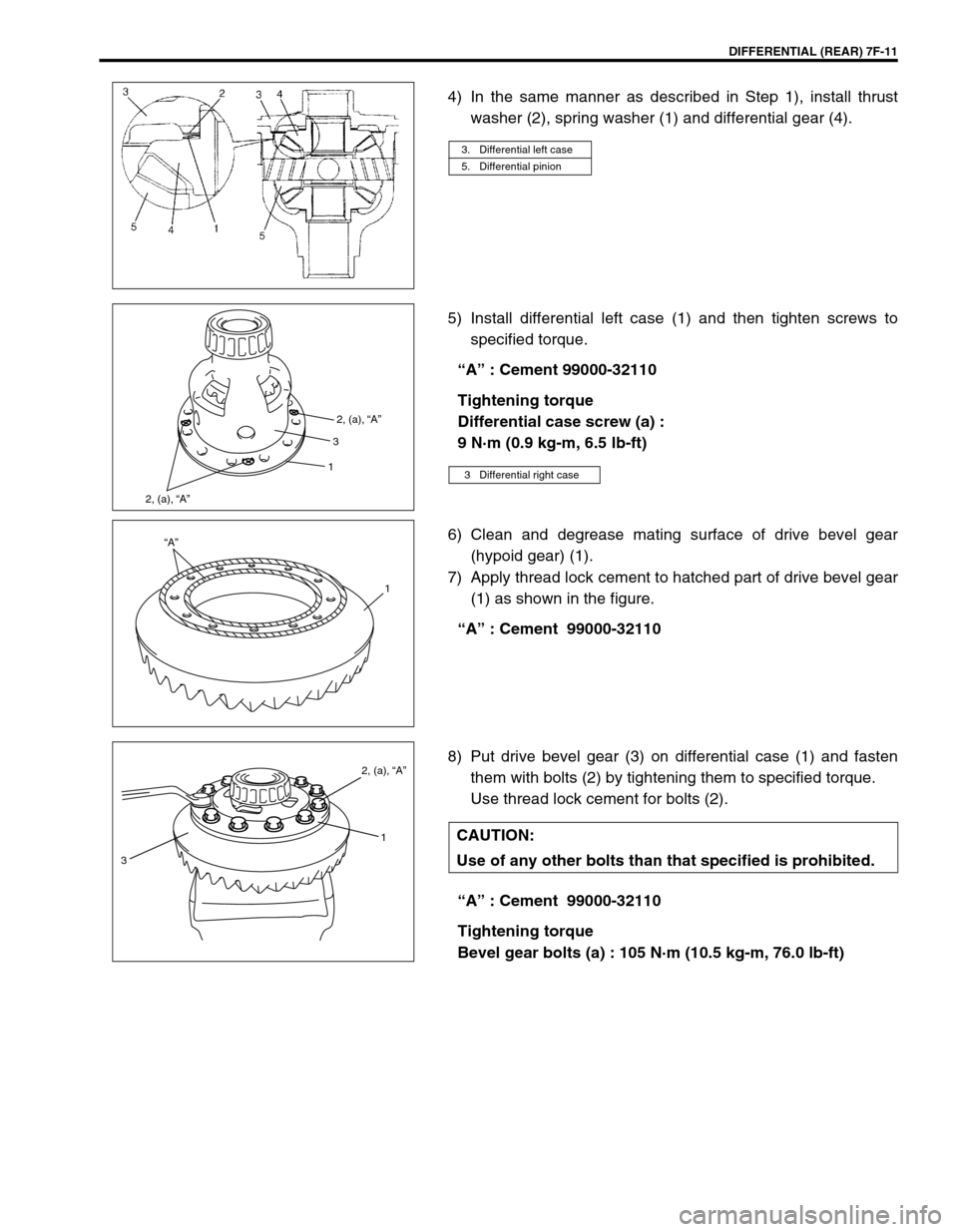

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-11
4) In the same manner as described in Step 1), install thrust
washer (2), spring washer (1) and differential gear (4).
5) Install differential left case (1) and then tighten

Page 497 of 656

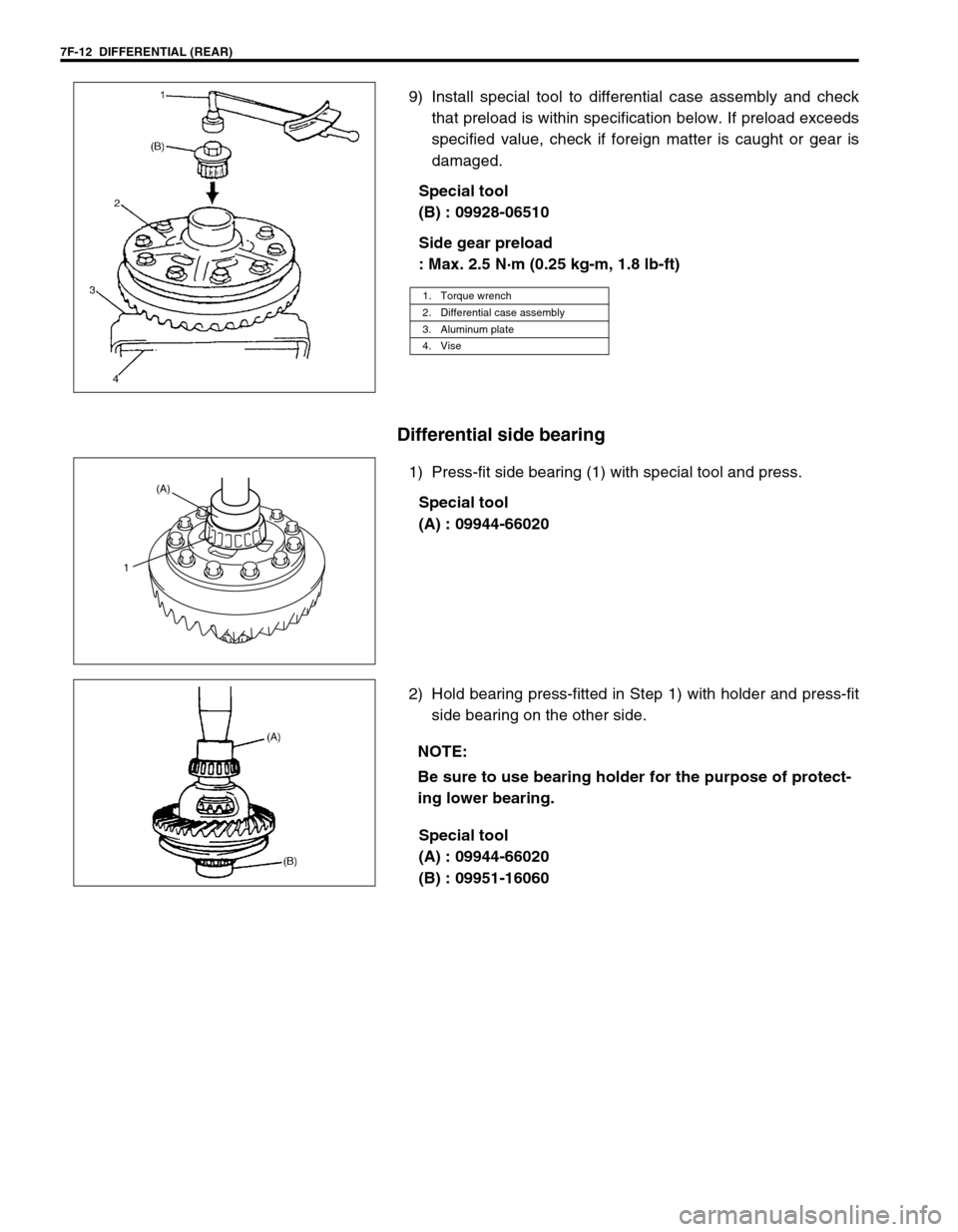

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-12  DIFFERENTIAL (REAR)
9) Install special tool to differential case assembly and check
that preload is within specification below. If preload exceeds
specified value, check if foreign matter is ca

Page 498 of 656

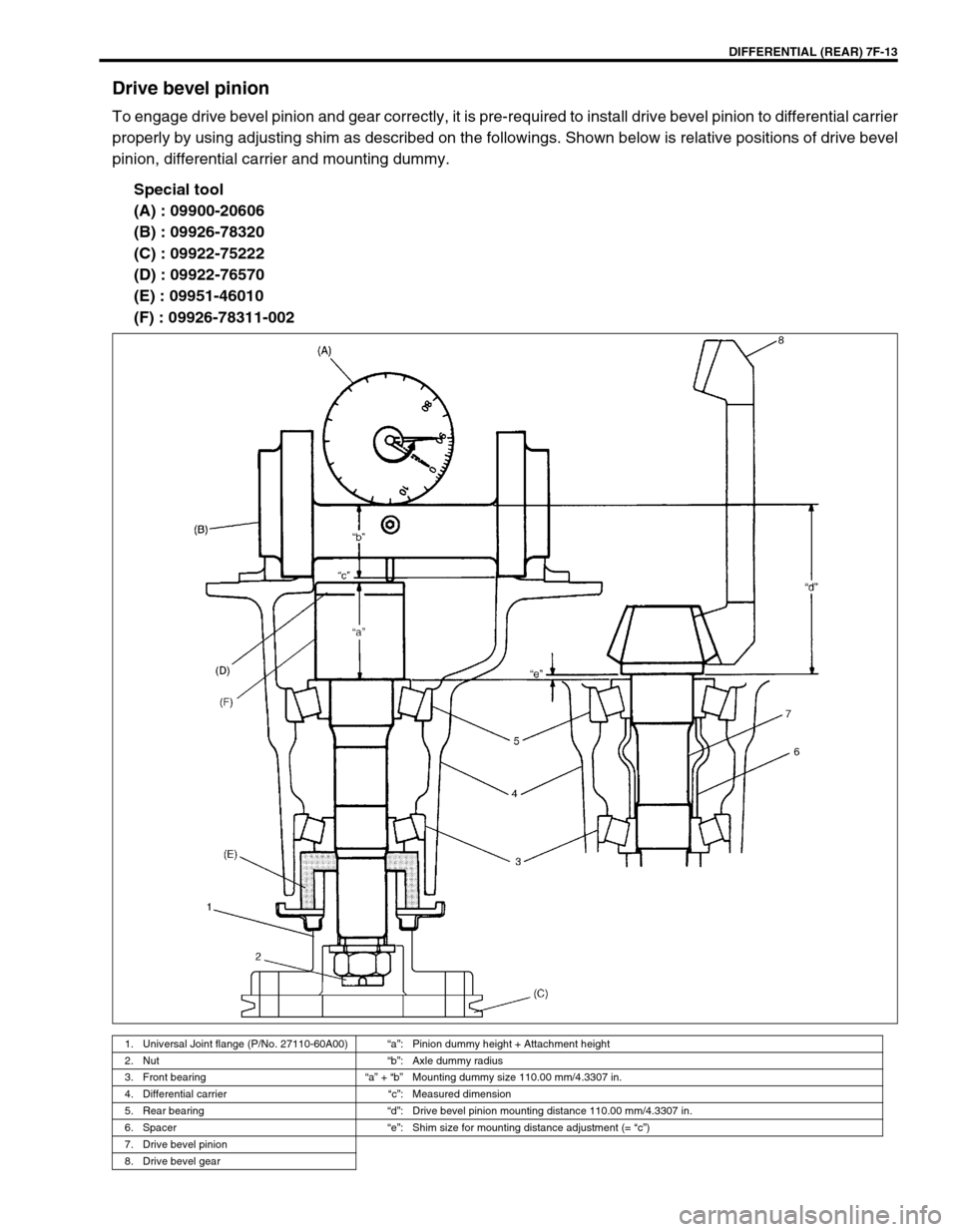

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-13
Drive bevel pinion
To engage drive bevel pinion and gear correctly, it is pre-required to install drive bevel pinion to differential carrier
properly by using adjusting shim

Page 499 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 7F-14  DIFFERENTIAL (REAR)
1) Install special tools with bearings and universal joint flange
(2) to differential carrier (1).
Special tool
(E) : 09951-46010
(F) : 09926-78311-002
2) Tighten flange nut

Page 500 of 656

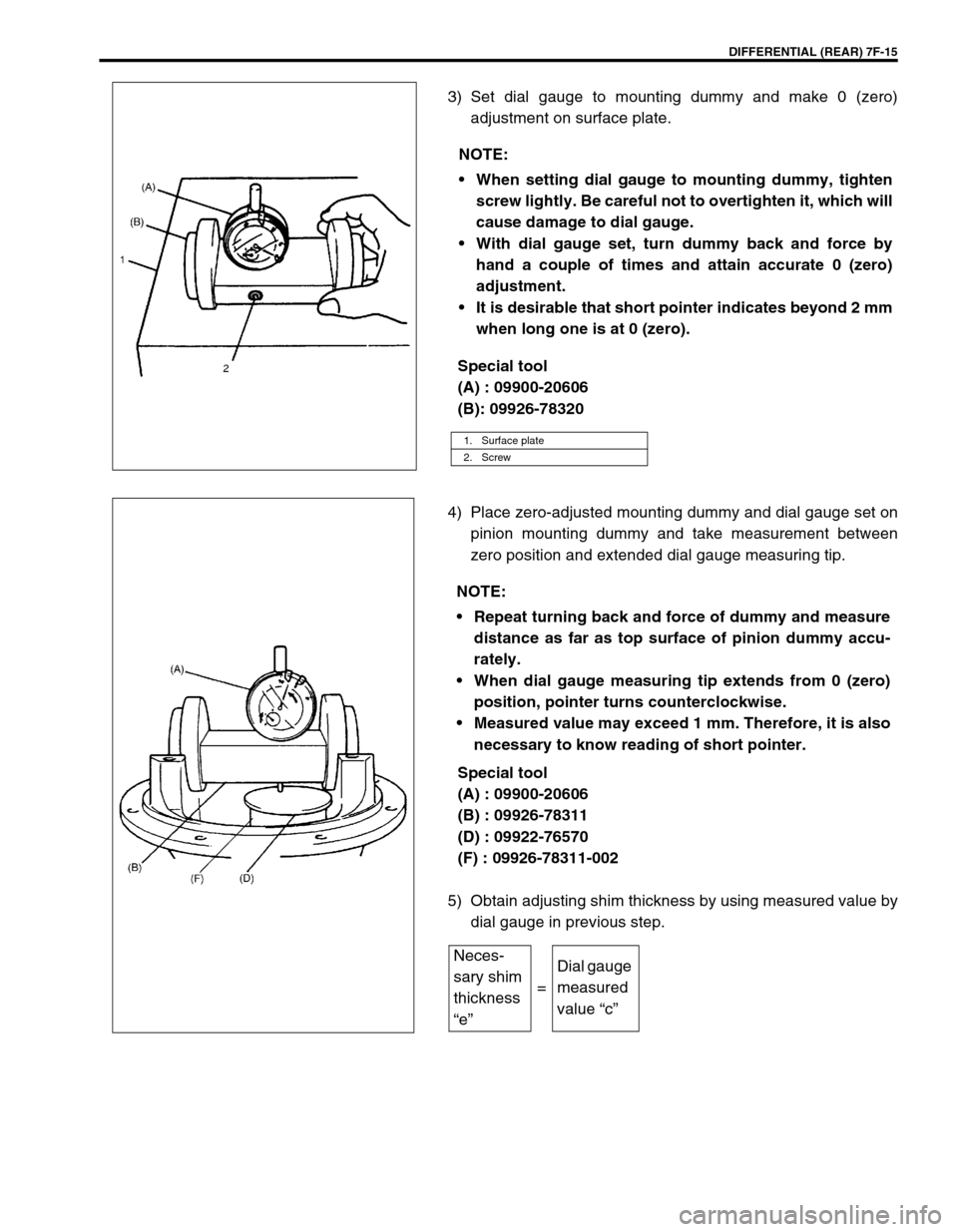

SUZUKI GRAND VITARA 1999 2.G Owners Manual DIFFERENTIAL (REAR) 7F-15
3) Set dial gauge to mounting dummy and make 0 (zero)
adjustment on surface plate.
Special tool
(A) : 09900-20606
(B): 09926-78320
4) Place zero-adjusted mounting dummy and d
