SUZUKI GRAND VITARA 2022 Owners Manual

10-1
GENERAL INFORMATION
54P00-01E

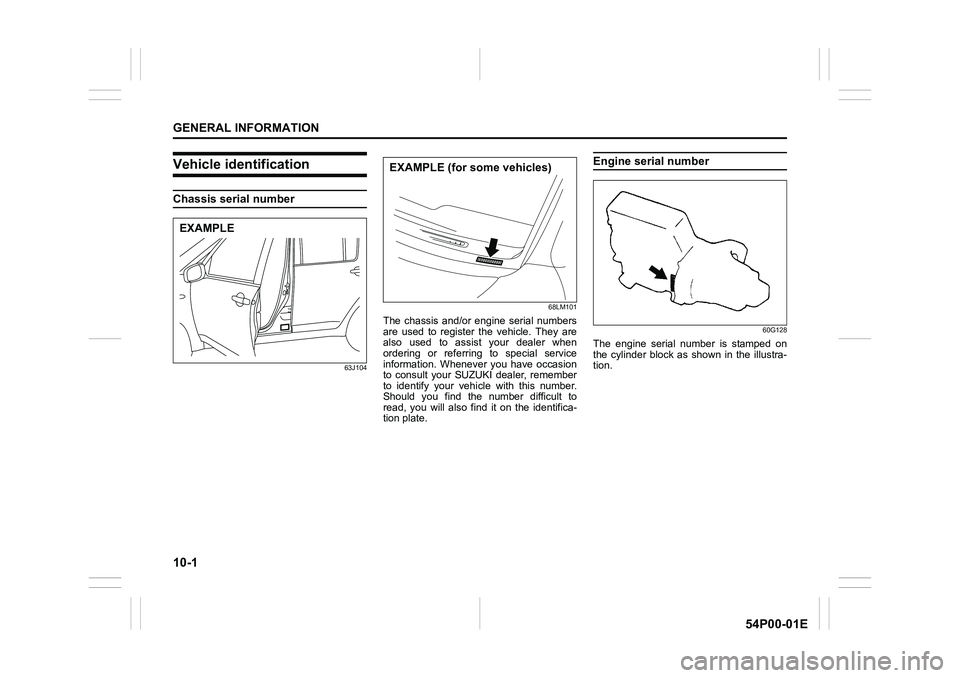

Vehicle identification
Chassis serial number
63J10468LM101
The chassis and/or engine serial numbers
are used to register the vehicle. They are
also used to assist your dealer when
ordering or referring to special service
information. Whenever you have occasion
to consult your SUZUKI dealer, remember
to identify your vehicle with this number.
Should you find the number difficult to
read, you will also find it on the identifica-
tion plate.
Engine serial number
60G128
The engine serial number is stamped on
the cylinder block as shown in the illustra-
tion.
EXAMPLE
EXAMPLE (for some vehicles)

10-2
GENERAL INFORMATION
54P00-01E

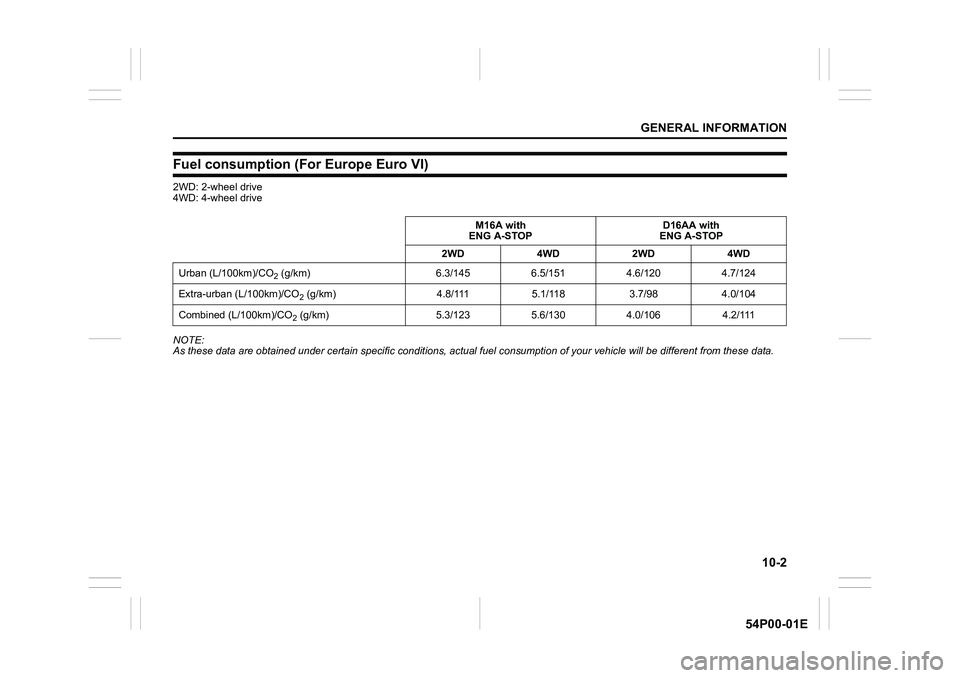

Fuel consumption (For Europe Euro VI)
2WD: 2-wheel drive
4WD: 4-wheel drive
NOTE:
As these data are obtained under certain specific conditions, actual fuel consumption of your vehicle will be different from these data. M16A with
ENG A-STOPD16AA with
ENG A-STOP
2WD4WD2WD4WD
Urban (L/100km)/CO
2 (g/km) 6.3/145 6.5/151 4.6/120 4.7/124
Extra-urban (L/100km)/CO
2 (g/km) 4.8/111 5.1/118 3.7/98 4.0/104
Combined (L/100km)/CO
2 (g/km) 5.3/123 5.6/130 4.0/106 4.2/111

10-3
GENERAL INFORMATION
54P00-01E

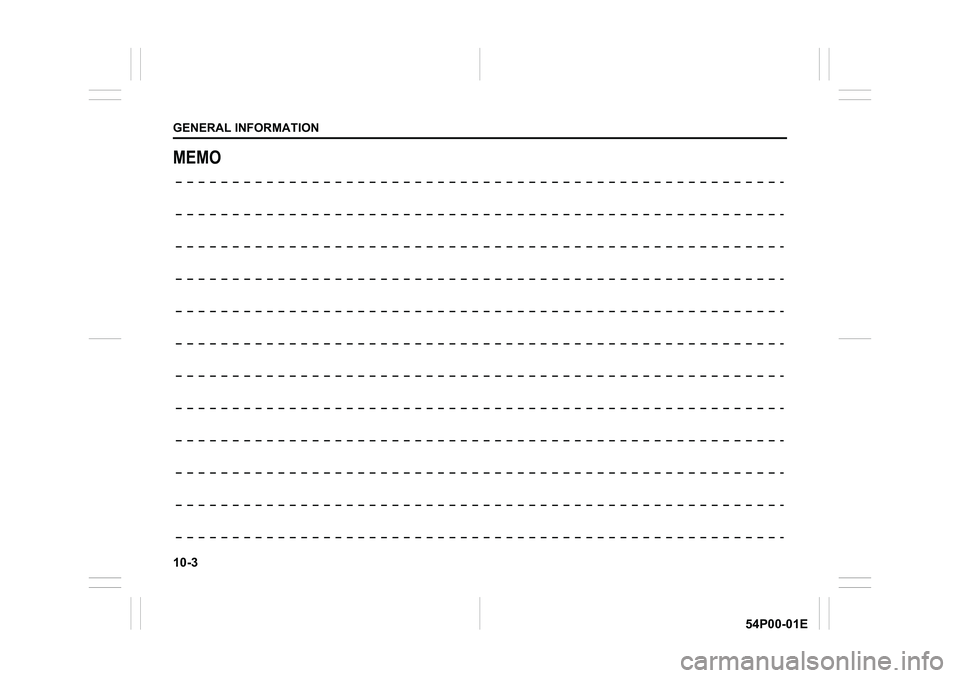

MEMO

11-1
SPECIFICATIONS
54P00-01E
11

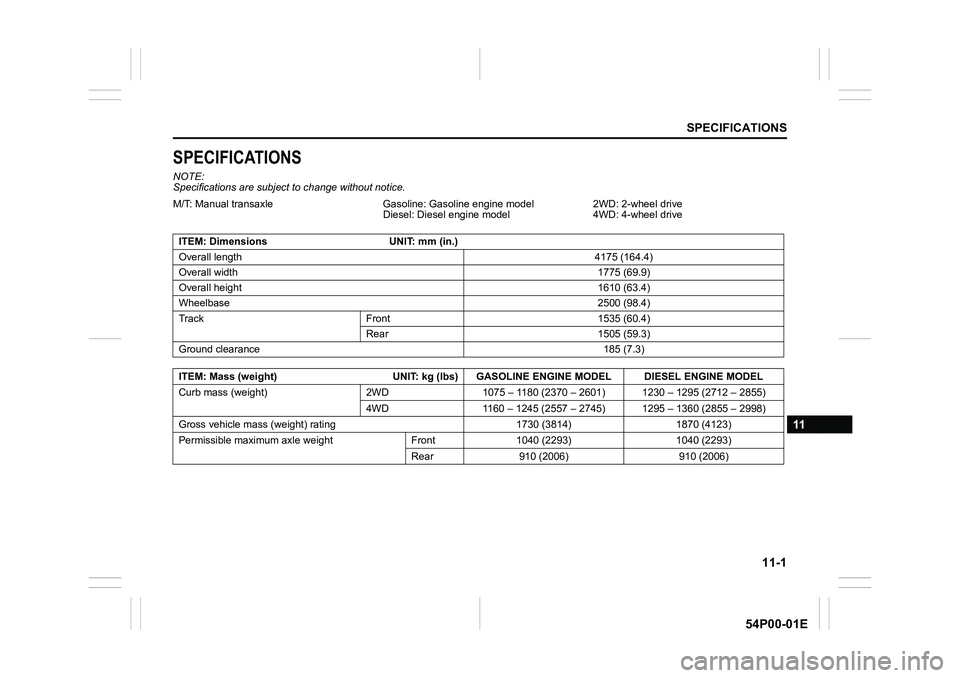

SPECIFICATIONS
NOTE:
Specifications are subject to change without notice.
M/T: Manual transaxle Gasoline: Gasoline engine model
Diesel: Diesel engine model2WD: 2-wheel drive
4WD: 4-wheel drive
ITEM: Dimensions UNIT: mm (in.)
Overall length4175 (164.4)
Overall width1775 (69.9)
Overall height1610 (63.4)
Wheelbase2500 (98.4)
Track Front 1535 (60.4)
Rear 1505 (59.3)
Ground clearance185 (7.3)
ITEM: Mass (weight) UNIT: kg (lbs) GASOLINE ENGINE MODEL DIESEL ENGINE MODEL
Curb mass (weight) 2WD 1075 – 1180 (2370 – 2601) 1230 – 1295 (2712 – 2855)
4WD 1160 – 1245 (2557 – 2745) 1295 – 1360 (2855 – 2998)
Gross vehicle mass (weight) rating 1730 (3814) 1870 (4123)
Permissible maximum axle weight Front 1040 (2293) 1040 (2293)
Rear 910 (2006) 910 (2006)

11-2
SPECIFICATIONS
54P00-01E
ITEM: Engine
Type M16A (DOHC) D16AA (DOHC)
Number of cylinders 4
Bore 78.0 mm (3.07 in.) 79.5 mm (3.12 in.)
Stroke 83.0 mm (3.27 in.) 80.5 mm (3.16 in.)
Piston displacement 1586 cm
3
(1586 cc, 96.8 cu.in)1598 cm3
(1598 cc, 97.5 cu.in)
Compression ratio 11.0 : 1 16.5 : 1
ITEM: Electrical
Standard spark plug
Gasolinewithout ENG A-STOP system DENSO K16HPR-U11
with ENG A-STOP system NGK SILFR6A11
Battery
Gasolinewithout ENG A-STOP system 12V 36Ah 300A(EN)
with ENG A-STOP system 12V 60Ah 540A(EN)
Dieselwithout ENG A-STOP system 12V 60Ah 620A(EN)
with ENG A-STOP system 12V 72Ah 630A(EN)
Fuses See “INSPECTION AND MAINTENANCE” section.

11-3
SPECIFICATIONS
54P00-01E
ITEM: Lights WATTAGE BULB No.
Headlight Low beam Without automatic lights 12V 55W H11
With automatic lights LED –
High beam 12V 60W HB3
Front fog light (if equipped) 12V 55W H11
12V 35W H8
Position light 12V 5W W5W
Daytime running light (if equipped) 12V 13W P13W
LED –
Turn signal light Front 12V 21W PY21W
Rear 12V 21W P21W
Side turn signal light 12V 5W WY5W
LED –
Tail/brake light 12V 21/5W P21/5W
High mount stop light LED –
Reversing light 12V 16W W16W
License plate light 12V 5W W5W
Rear fog light (if equipped) 12V 21W P21W
Interior light
Glove box light (if equipped)12V 1.4W –
Footwell light (if equipped) LED –
Center (without sunroof) 12V 10W –
Other lights 12V 5W W5W
Vanity mirror light 12V 3W –

11-4
SPECIFICATIONS
54P00-01E
NOTE:
1) If loading over 4 people, follow the specified tire pressure listed on the tire information label.
*1 If you cannot prepare tires with the specified load index rate and speed symbol, prepare tires with higher load index rate and speed
symbol.
*2 If you prepare snow tires;
• Check that they are tires of the same size, structure and load capacity as the originally installed tires.
• Mount the snow tires on all four wheels.
• Understand that the maximum permissible speed of snow tires is generally less than the originally installed tires.
Consult your SUZUKI dealer or supplier for further information. ITEM: Wheels and tires
Tire size, front and rear
215/60R16 95H*1, 215/55R17 94V*1
Rim size 215/60R16 tire: 16X6 1/2J
215/55R17 tire: 17X6 1/2J
Tire pressures For the specified tire pressure, see the tire information label located
on the driver’s door lock pillar.
When loading 4 people or less, eco tire pressure as listed below is
recommended to achieve the smallest amount of fuel consumption.
1)
Front 280 kPa (2.80 kg/cm2, 41 psi)
Rear 260 kPa (2.60 kg/cm2, 38 psi)
Recommended snow chain (for Europe) Radial thickness: 10 mm, axial thickness: 10 mm
Recommended snow tire 215/60R16
*2 or 215/55R17*2

11-5
SPECIFICATIONS
54P00-01E

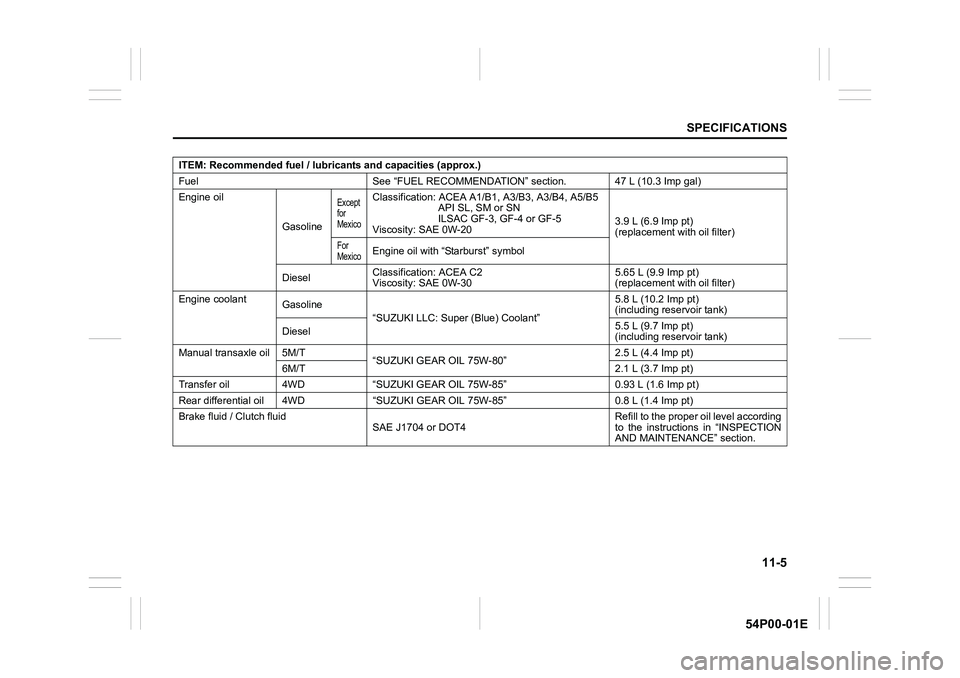

ITEM: Recommended fuel / lubricants and capacities (approx.)
Fuel See “FUEL RECOMMENDATION” section. 47 L (10.3 Imp gal)
Engine oil
Gasoline
Except
for
MexicoClassification: ACEA A1/B1, A3/B3, A3/B4, A5/B5
API SL, SM or SN
ILSAC GF-3, GF-4 or GF-5
Viscosity: SAE 0W-203.9 L (6.9 Imp pt)
(replacement with oil filter)
For
MexicoEngine oil with “Starburst” symbol
DieselClassification: ACEA C2
Viscosity: SAE 0W-305.65 L (9.9 Imp pt)
(replacement with oil filter)
Engine coolant
Gasoline
“SUZUKI LLC: Super (Blue) Coolant”5.8 L (10.2 Imp pt)
(including reservoir tank)
Diesel5.5 L (9.7 Imp pt)
(including reservoir tank)
Manual transaxle oil 5M/T
“SUZUKI GEAR OIL 75W-80”2.5 L (4.4 Imp pt)
6M/T 2.1 L (3.7 Imp pt)
Transfer oil 4WD “SUZUKI GEAR OIL 75W-85” 0.93 L (1.6 Imp pt)
Rear differential oil 4WD “SUZUKI GEAR OIL 75W-85” 0.8 L (1.4 Imp pt)
Brake fluid / Clutch fluid
SAE J1704 or DOT4Refill to the proper oil level according
to the instructions in “INSPECTION
AND MAINTENANCE” section.

11-6
SPECIFICATIONS
54P00-01E

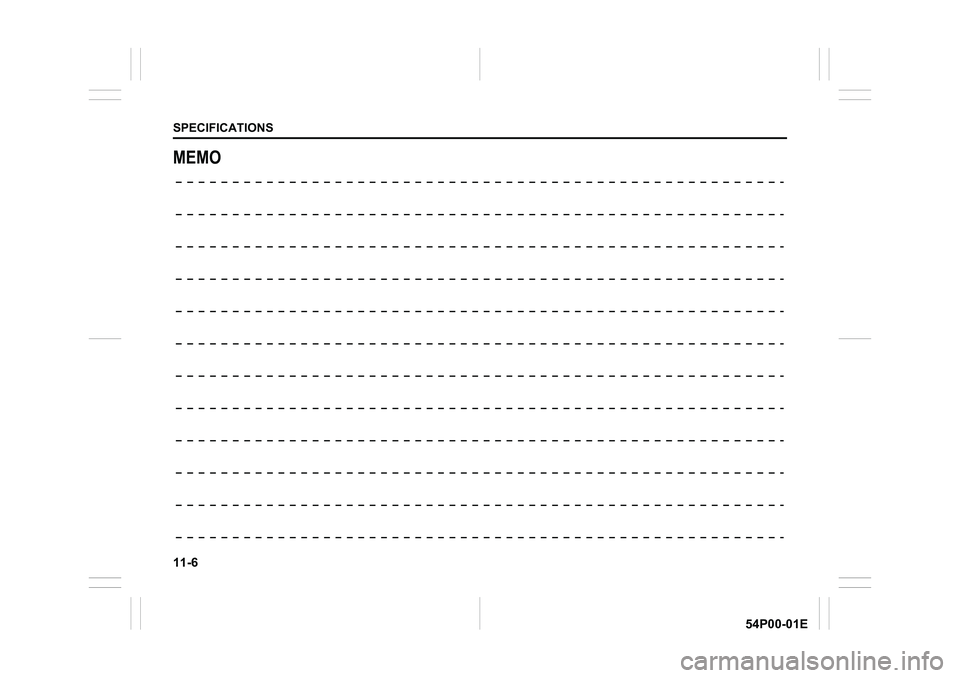

MEMO

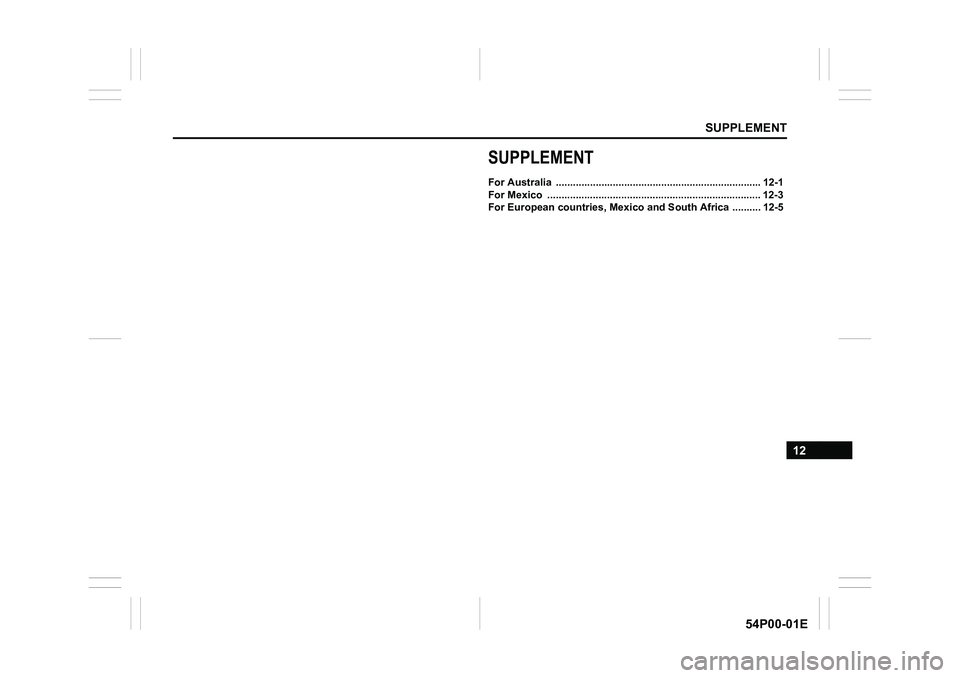

SUPPLEMENT
12
54P00-01E
SUPPLEMENT
For Australia ........................................................................ 12-1
For Mexico ........................................................................... 12-3
For European countries, Mexico and South Africa .......... 12-5
