INSPECTION AND MAINTENANCE
9-22
83K-07-043
83K-07-044
Fuses in the Engine Compartment(For Petrol Engine Model)
Replacement of the battery
83K-07-42A
EXAMPLETo remove the battery:
1) Disconnect the negative cable (1).
2) Disconnect the positive cable (2).
3) Remove the retainer bolts (3) and
remove the retainer (4).
4) Remove the battery along with cover
assembly (5) (if equipped).
To install the battery:
1) Install the battery in the reverse order
of removal.
2) Tighten the retainer bolt and battery
cables securely.NOTE:
When the battery is disconnected, some of
the vehicle’s function will be initialized and/
or deactivated.
These function are required to reset after
the battery is reconnected.
FusesYour vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the battery.
Primary fuses
These fuses are between the main fuse and
individual fuses, and are for electrical load
groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
(1) 80A All electric load
(2) 50A Power window, Ignition,
Wiper, Starter
(3) 50A Tail light, Rear defogger,
Door lock, Hazard/Horn,
Dome
(4) – Radiator fan relay #1
(5) – Radiator fan relay #2
(6) – Radiator fan relay #3
(7) – Starting motor relay
(8) – Main relay
(9) – Blank
(10) – Front fog light relay
(11) – Fuel pump relayMAIN FUSE/PRIMARY FUSE(For Petrol Engine Model)

Downloaded from www.Manualslib.com manuals search engine 11283K
INSPECTION AND MAINTENANCE
9-23(12) – Air compressor relay
(13) – A/T Relay
(14) 30A Heater fuse
(15) 15A Fuel injection fuse
(16) 10A Air compressor fuse
(17) 15A A/T controller supply
(18) 15A Brake light switch fuse
(19) 30A ABS control module fuse
(20) 30A Starting motor fuse
(21) – Blank
(22) 50A P o w e r steering control
module fuse
(23) 30A Ignition switch fuse
(24) 30A Radiator fan fuse
(25) – Blank
(26) 30AABS control module (fuse)
(27) – Blank
(28) – Blank
(29) 15A Front fog light fuse
(30) 15A Headlight (Left) fuse
(31) 15A Headlight (Right) fuse
(32) 80AHeater, Air compressor,
Power steering
(33) 80ARadiator fan, Front fog
light, Head light
83K-07-046
Fuse in the Engine Compartment(For Diesel Engine Model)
83K-07-045
(For Diesel Engine Model)(1) 30A Starting motor fuse
(2) 10A Air compressor fuse
(3) 15A Fuel pump fuse
(4) 30A FI fuse
(5) 30A Heater fuse
(6) 30A Radiator fan fuse
(7) 50A Power steering control
module fuse
(8) – Radiator fan relay #1
(9) – Radiator fan relay #2
(10) – Radiator fan relay #3
(11) – Air compressor relay
(12) – Starting motor relay
(13) 30A ABS control module fuse
(14) 30A ABS control module fuse
(15) 15A Brake light switch fuse
(16) 15A Headlight (Right) fuse
(17) 15A Headlight (Left) fuseMAIN FUSE/PRIMARY FUSE
83K-07-047

Downloaded from www.Manualslib.com manuals search engine 11383K
INSPECTION AND MAINTENANCE
9-24
(18) 15A Front fog light fuse
(19) 30A Ignition switch fuse
(20) 50APower window, Ignition,
Wiper, Starter
(21)100A All Electrical Load
(22)100A ABS, MIL, Front fog
(23)100AEPS, Radiator Fan,
Heater, Starter Motor
(24) 50ALamp
(25)100A Glow
(26) 30A Blank
(27) 30A Blank
(28) – Blank
(29) 20A FI fuse
(30) – Blank
(31) 10A FI3 fuseThe main fuse, primary fuses and some of
the individual fuses are located in the
engine compartment. If the main fuse blows,
no electrical component will function. If a
primary fuse blows, no electrical component
in the corresponding load group will
function. When replacing the main fuse, a
primary fuse or an individual fuse, use a
MARUTI genuine replacement.
To remove a fuse, use the fuse puller pro-
vided in the fuse box. The amperage of
each fuse is shown in the back of the fuse
box cover.
w ww w
w WARNING
If the main fuse or a primary fuse
blows, be sure to have your vehicle
inspected by a MARUTI SUZUKI
authorized dealer. Always use a Maruti
Genuine replacement. Never use a
substitute such as a wire even for a
temporary repair, or extensive
electrical damage and a fire can result.NOTE:
Make sure that the fuse box always carries
spare fuses and fuse puller.EXAMPLEFuses under the Dash Board
83K-07-04983K-07-050
EXAMPLE
83K-07-048

Downloaded from www.Manualslib.com manuals search engine 11483K
INSPECTION AND MAINTENANCE
9-25(1) – Blank
(2) 15A Ignition coil
(3) 10A Back-up light
(4) 10A Meter
(5) 15A Accessory 1
(6) 15A Accessory 2
(7) 30A Power window
(8) 15A Wiper / Washer
(9) 10A IG1 SIG
(10) 15A Air bag
(11) 10A Anti-lock brake system
(12) 10ATail light
(13) – Blank
(14) 20A Door lock
(15) – Blank
(16) 10A ST SIG
(17) 10A Immobilizer
(18) 10A IG2 SIG
(19) 15A Rear fog light
(20) 15ARadio
(21) 20A Rear defogger
(22) 15A Horn / Hazard
(23) – Blank
(24) – BlankMAIN FUSE/PRIMARY FUSE
83K-07-051
The fuse box is located under the driver’s
side of the dashboard.
Remove the fuse box cover by pushing in
at both ends and pulling off the cover.
To remove a fuse, use the fuse puller pro-
vided in the fuse box.
83K-07-052
w ww w
w WARNING
Always be sure to replace a blown
fuse with a fuse of the correct amper-
age. Never use a substitute such as
V VV V
V
w ww w
w WARNING
aluminum foil or wire to replace a
blown fuse. If you replace a fuse and
the new one blows in a short period
of time, you may have a major electri-
cal problem. Have your vehicle
inspected immediately by your
MARUTI SUZUKI authorized dealer.V VV V
V
Bulb Replacement Light bulbs can be hot enough to
burn your finger right after being
turned off. This is true especially for
halogen headlight bulbs. Replace the
bulbs after they become cool
enough.
The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit
or dropped. Handle them carefully.
w ww w
w WARNING
The oils from your skin may cause a
halogen bulb to overheat and burst
when the lights are on. Grasp a new
bulb with a clean cloth.
CAUTION

Downloaded from www.Manualslib.com manuals search engine 11583K
INSPECTION AND MAINTENANCE
9-26
Frequent replacement of a bulb indi-
cates the need for an inspection of
the electrical system. This should be
carried out by your MARUTI SUZUKI
dealer.
CAUTION

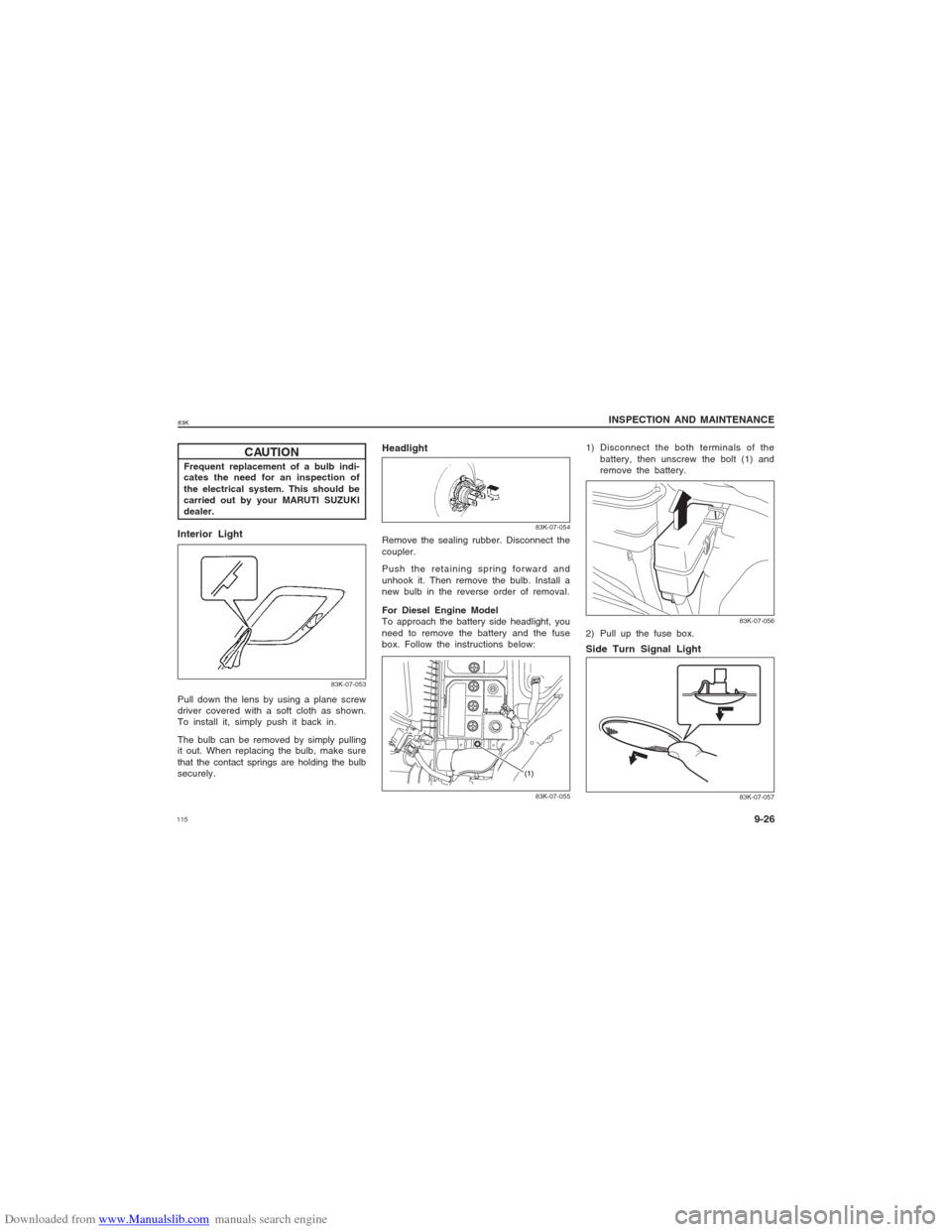

Interior LightPull down the lens by using a plane screw
driver covered with a soft cloth as shown.
To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the bulb
securely.
HeadlightRemove the sealing rubber. Disconnect the
coupler.
Push the retaining spring forward and
unhook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.
83K-07-053
83K-07-054
For Diesel Engine Model
To approach the battery side headlight, you
need to remove the battery and the fuse
box. Follow the instructions below:
83K-07-055
83K-07-056
1) Disconnect the both terminals of the
battery, then unscrew the bolt (1) and
remove the battery.
2) Pull up the fuse box.Side Turn Signal Light
83K-07-057

Downloaded from www.Manualslib.com manuals search engine 11683K
INSPECTION AND MAINTENANCE

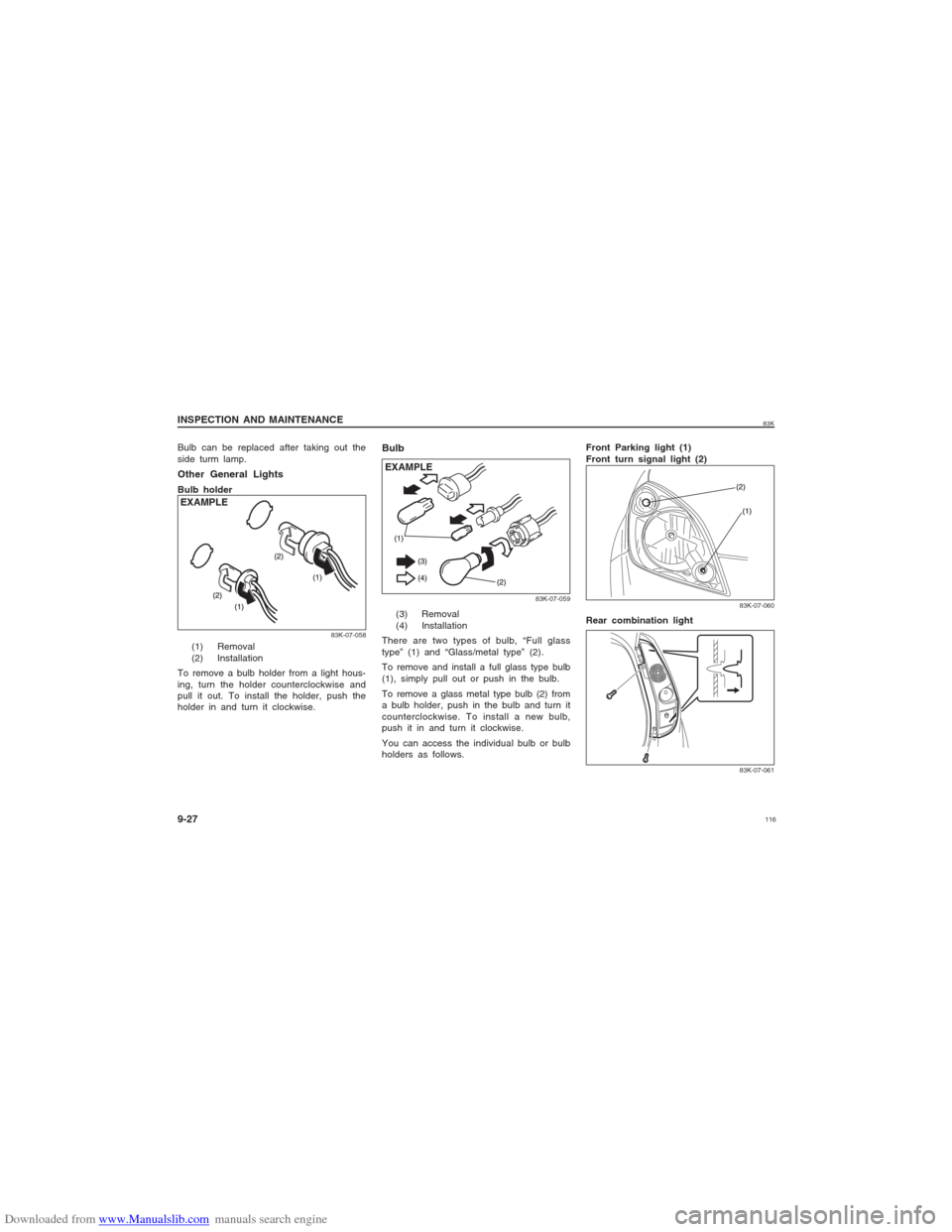

9-27 Other General LightsBulb holder
(1) Removal
(2) Installation
To remove a bulb holder from a light hous-
ing, turn the holder counterclockwise and
pull it out. To install the holder, push the
holder in and turn it clockwise.
Bulb
(3) Removal
(4) Installation
There are two types of bulb, “Full glass
type” (1) and “Glass/metal type” (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb.
To remove a glass metal type bulb (2) from
a bulb holder, push in the bulb and turn it
counterclockwise. To install a new bulb,
push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.Front Parking light (1)
Front turn signal light (2)
Rear combination light
83K-07-058
83K-07-059
83K-07-06083K-07-061
EXAMPLEEXAMPLEBulb can be replaced after taking out the
side turm lamp.

Downloaded from www.Manualslib.com manuals search engine 11783K
INSPECTION AND MAINTENANCE
9-28

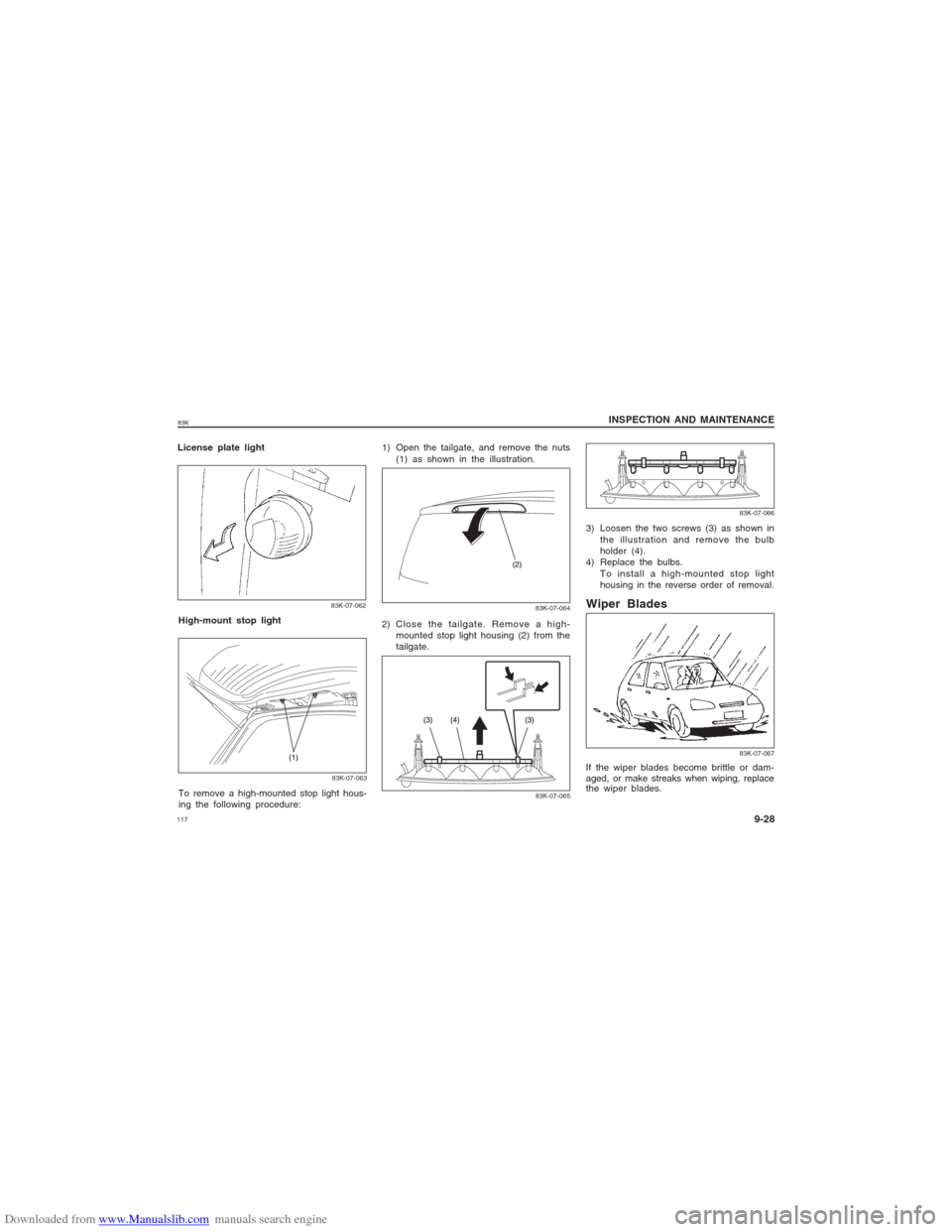

License plate light
High-mount stop light
To remove a high-mounted stop light hous-
ing the following procedure:
83K-07-06283K-07-063
83K-07-06483K-07-065
1) Open the tailgate, and remove the nuts
(1) as shown in the illustration.
2) Close the tailgate. Remove a high-
mounted stop light housing (2) from the
tailgate.3) Loosen the two screws (3) as shown in
the illustration and remove the bulb
holder (4).
4) Replace the bulbs.
To install a high-mounted stop light
housing in the reverse order of removal.
Wiper Blades
83K-07-06783K-07-066
If the wiper blades become brittle or dam-
aged, or make streaks when wiping, replace
the wiper blades.

Downloaded from www.Manualslib.com manuals search engine 11883K
INSPECTION AND MAINTENANCE
9-29

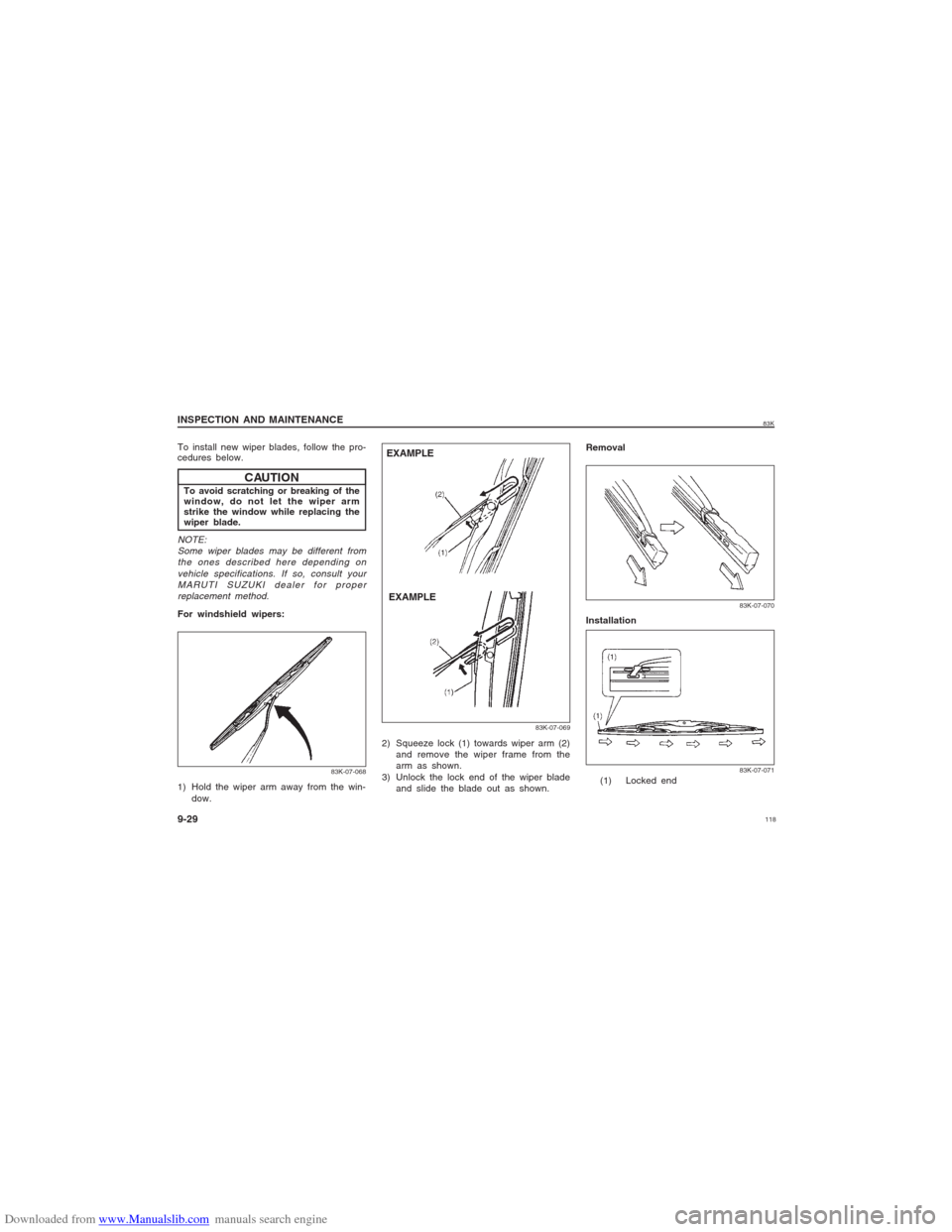

CAUTION
To avoid scratching or breaking of the
window, do not let the wiper arm
strike the window while replacing the
wiper blade.
For windshield wipers:NOTE:
Some wiper blades may be different from
the ones described here depending on
vehicle specifications. If so, consult your
MARUTI SUZUKI dealer for proper
replacement method.1) Hold the wiper arm away from the win-
dow.
83K-07-068
To install new wiper blades, follow the pro-
cedures below.
2) Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
3) Unlock the lock end of the wiper blade
and slide the blade out as shown.
83K-07-069
83K-07-07083K-07-071
EXAMPLE
EXAMPLE
Removal
Installation
(1) Locked end

Downloaded from www.Manualslib.com manuals search engine 11983K
INSPECTION AND MAINTENANCE
9-30

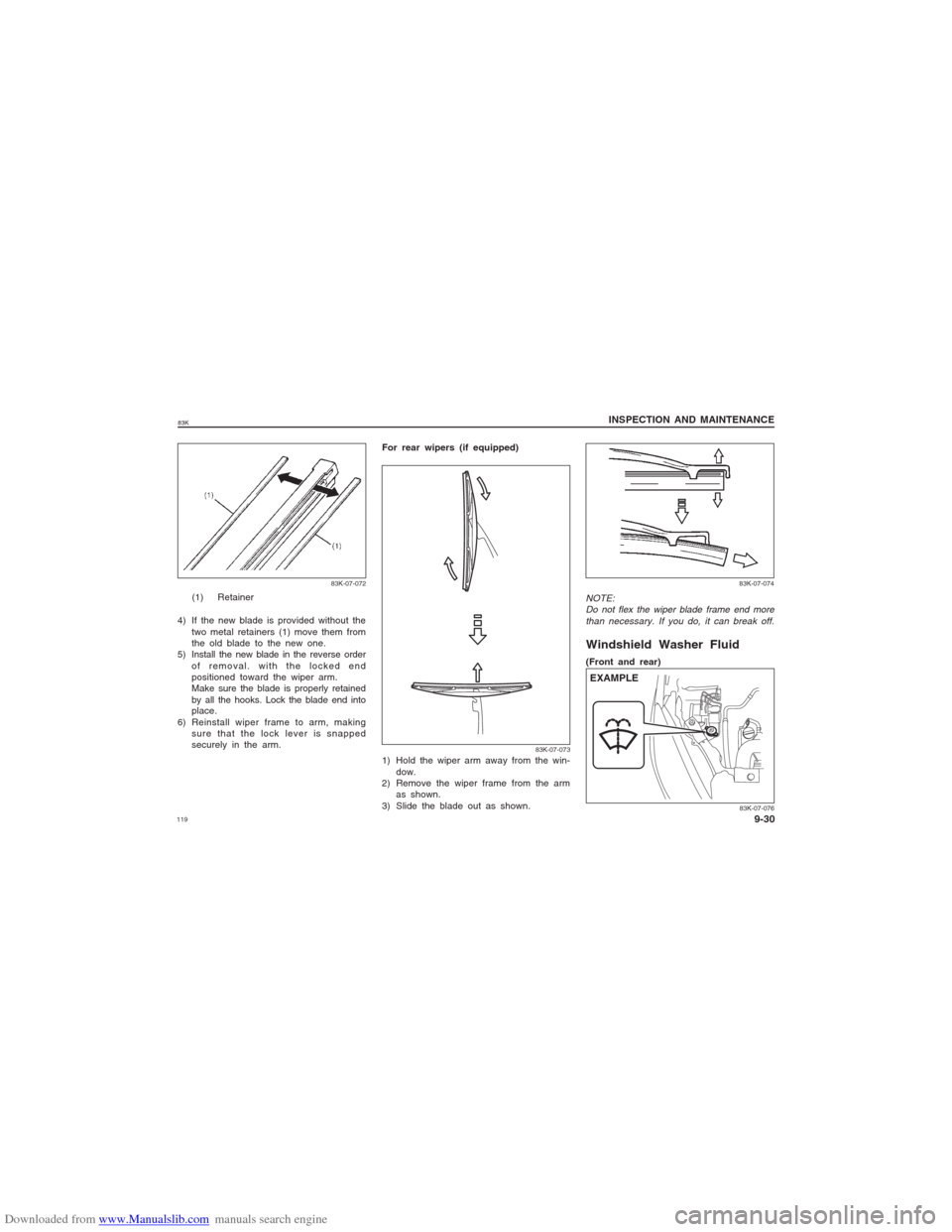

For rear wipers (if equipped)
1) Hold the wiper arm away from the win-
dow.
2) Remove the wiper frame from the arm
as shown.
3) Slide the blade out as shown.
NOTE:
Do not flex the wiper blade frame end more
than necessary. If you do, it can break off.
83K-07-073
83K-07-074
4) If the new blade is provided without the
two metal retainers (1) move them from
the old blade to the new one.
5) Install the new blade in the reverse order
of removal. with the locked end
positioned toward the wiper arm.
Make sure the blade is properly retained
by all the hooks. Lock the blade end into
place.
6) Reinstall wiper frame to arm, making
sure that the lock lever is snapped
securely in the arm.
Windshield Washer Fluid(Front and rear)
83K-07-076
EXAMPLE
83K-07-072
(1) Retainer

Downloaded from www.Manualslib.com manuals search engine 12083K
INSPECTION AND MAINTENANCE
9-31

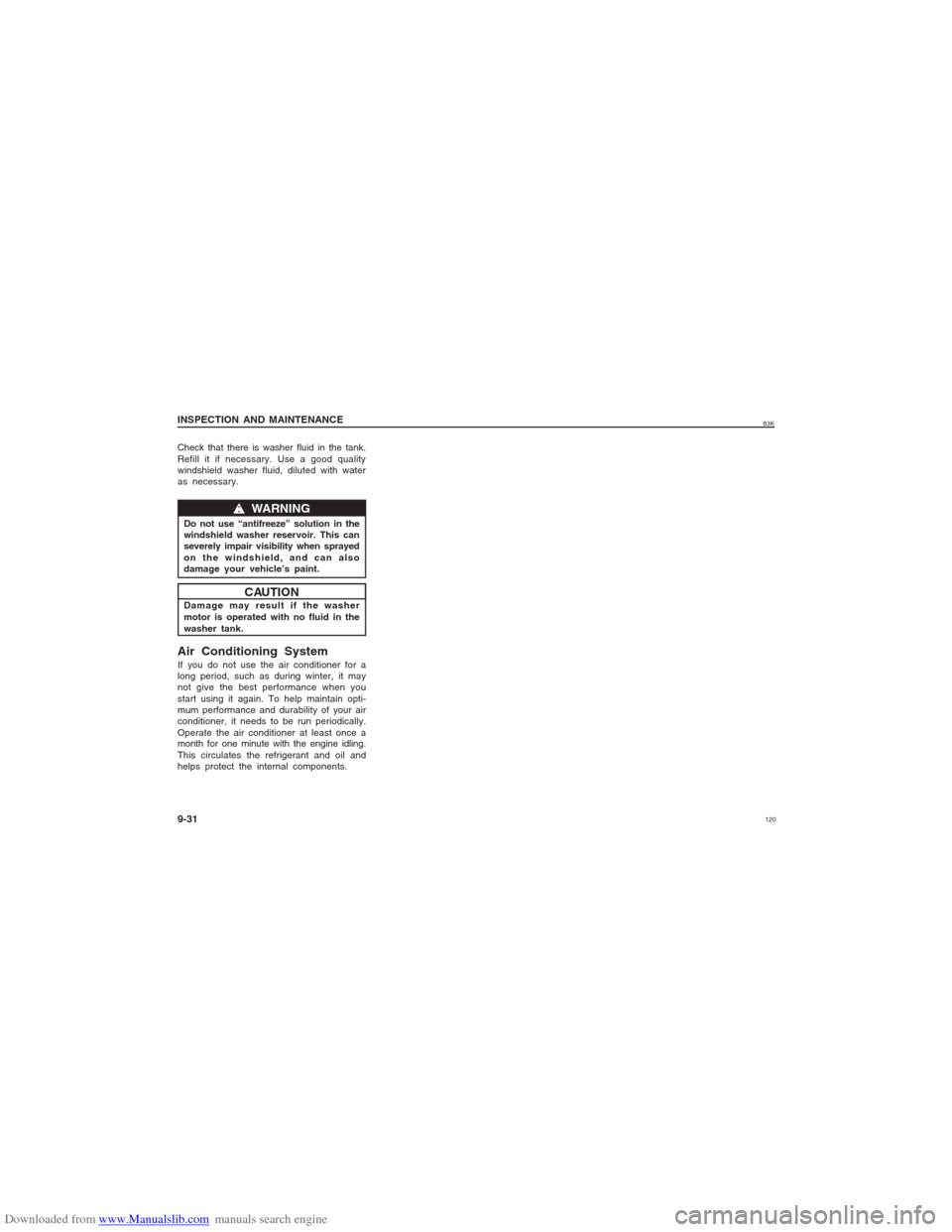

w ww w
w WARNING
Do not use “antifreeze” solution in the
windshield washer reservoir. This can
severely impair visibility when sprayed
on the windshield, and can also
damage your vehicle’s paint.
CAUTION
Damage may result if the washer
motor is operated with no fluid in the
washer tank.Air Conditioning SystemIf you do not use the air conditioner for a
long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain opti-
mum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engine idling.
This circulates the refrigerant and oil and
helps protect the internal components. Check that there is washer fluid in the tank.
Refill it if necessary. Use a good quality
windshield washer fluid, diluted with water
as necessary.
