OTHER CONTROLS AND EQUIPMENT
7-7
CAUTION
When unhooking and hooking a sun
visor, be sure to handle it by the hard
plastic parts or the sun visor can be
damaged.
83K-05-022

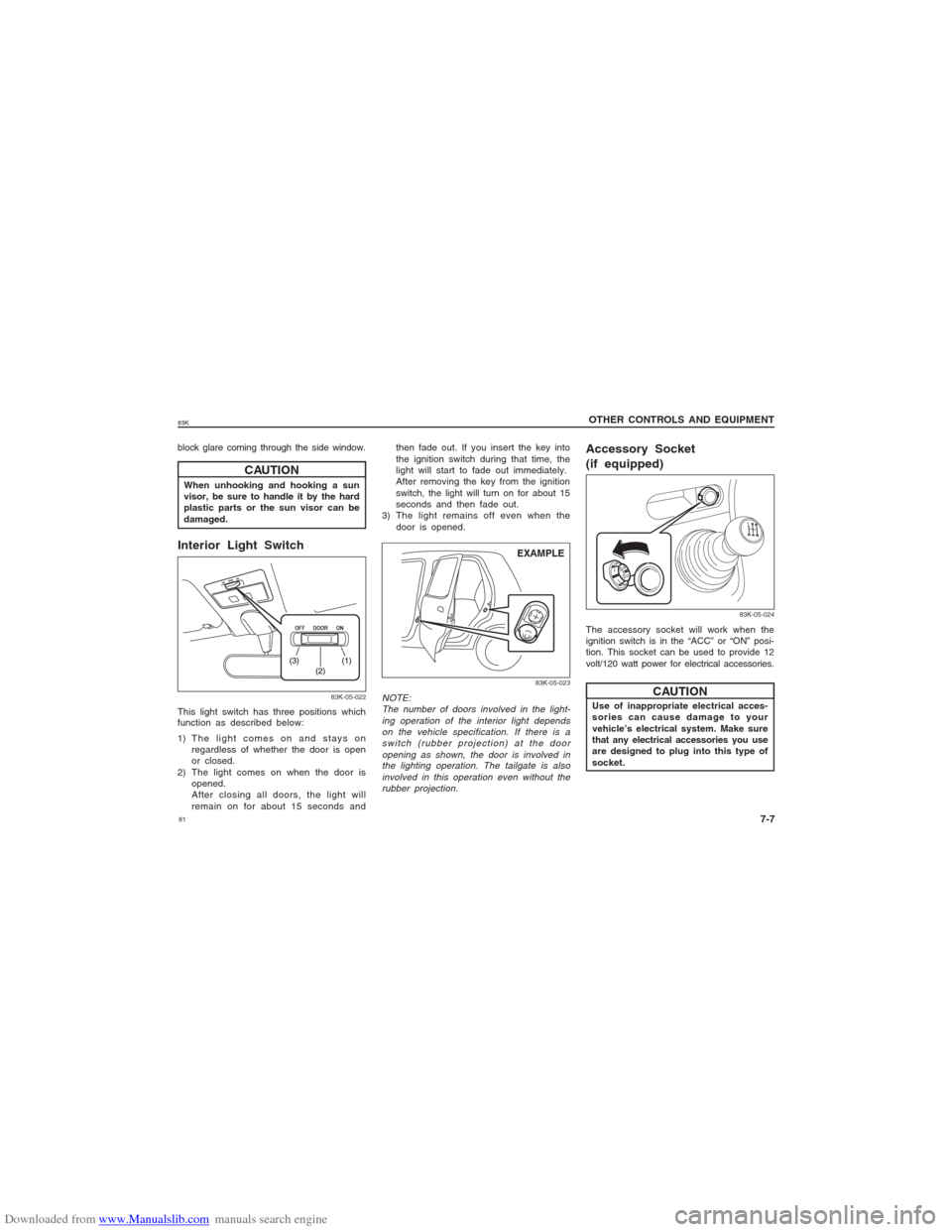

Interior Light Switch
then fade out. If you insert the key into
the ignition switch during that time, the
light will start to fade out immediately.
After removing the key from the ignition
switch, the light will turn on for about 15
seconds and then fade out.
3) The light remains off even when the
door is opened.
83K-05-023
EXAMPLE
NOTE:
The number of doors involved in the light-
ing operation of the interior light depends
on the vehicle specification. If there is a
switch (rubber projection) at the door
opening as shown, the door is involved in
the lighting operation. The tailgate is also
involved in this operation even without the
rubber projection.
block glare coming through the side window.
This light switch has three positions which
function as described below:
1) The light comes on and stays on
regardless of whether the door is open
or closed.
2) The light comes on when the door is
opened.
After closing all doors, the light will
remain on for about 15 seconds and
Accessory Socket
(if equipped)
83K-05-024
CAUTION
Use of inappropriate electrical acces-
sories can cause damage to your
vehicle’s electrical system. Make sure
that any electrical accessories you use
are designed to plug into this type of
socket. The accessory socket will work when the
ignition switch is in the “ACC” or “ON” posi-
tion. This socket can be used to provide 12
volt/120 watt power for electrical accessories.

Downloaded from www.Manualslib.com manuals search engine 8283K
OTHER CONTROLS AND EQUIPMENT

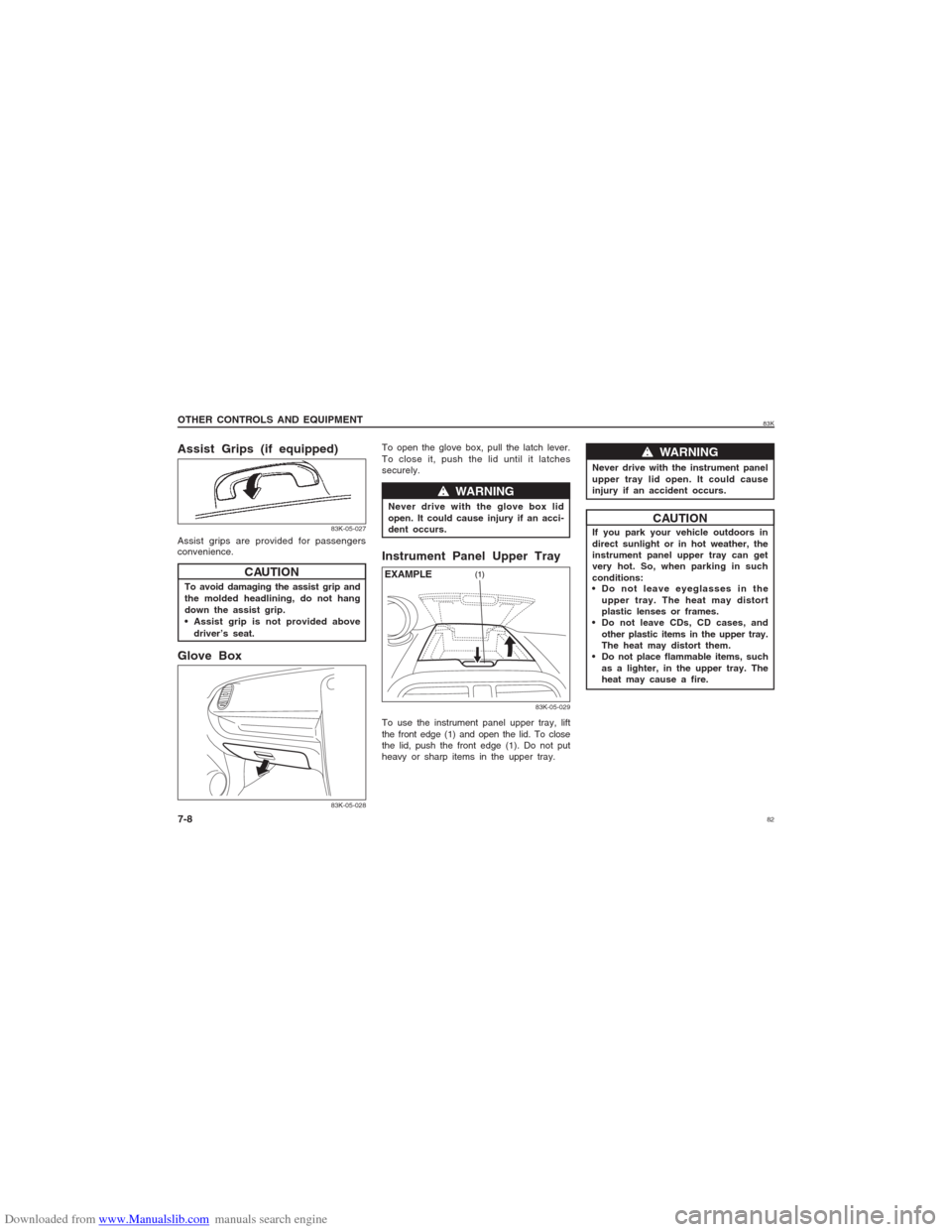

7-8Assist Grips (if equipped)
83K-05-027
Assist grips are provided for passengers
convenience.
CAUTION
To avoid damaging the assist grip and
the molded headlining, do not hang
down the assist grip.
Assist grip is not provided above
driver’s seat.Glove Box
83K-05-028
w ww w
w WARNING
Never drive with the glove box lid
open. It could cause injury if an acci-
dent occurs.To open the glove box, pull the latch lever.
To close it, push the lid until it latches
securely.Instrument Panel Upper Tray
83K-05-029
EXAMPLETo use the instrument panel upper tray, lift
the front edge (1) and open the lid. To close
the lid, push the front edge (1). Do not put
heavy or sharp items in the upper tray.
w ww w
w WARNING
Never drive with the instrument panel
upper tray lid open. It could cause
injury if an accident occurs.
CAUTION
If you park your vehicle outdoors in
direct sunlight or in hot weather, the
instrument panel upper tray can get
very hot. So, when parking in such
conditions:
Do not leave eyeglasses in the
upper tray. The heat may distort
plastic lenses or frames.
Do not leave CDs, CD cases, and
other plastic items in the upper tray.
The heat may distort them.
Do not place flammable items, such
as a lighter, in the upper tray. The
heat may cause a fire.

Downloaded from www.Manualslib.com manuals search engine 8383K
OTHER CONTROLS AND EQUIPMENT
7-9

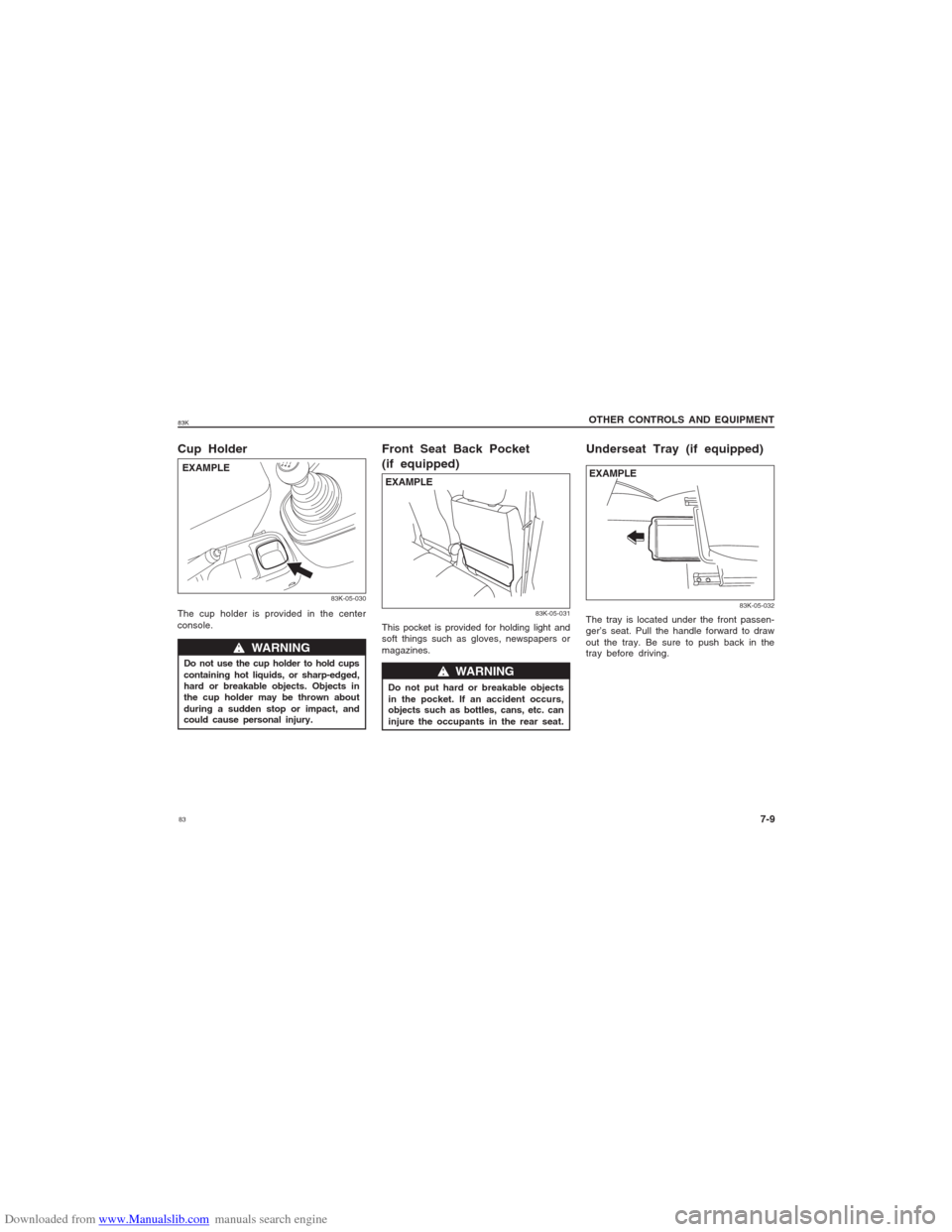

Cup HolderThe cup holder is provided in the center
console.
83K-05-030
EXAMPLE
w ww w
w WARNING
Do not use the cup holder to hold cups
containing hot liquids, or sharp-edged,
hard or breakable objects. Objects in
the cup holder may be thrown about
during a sudden stop or impact, and
could cause personal injury.
Front Seat Back Pocket
(if equipped)This pocket is provided for holding light and
soft things such as gloves, newspapers or
magazines.
83K-05-031
EXAMPLE
w ww w
w WARNING
Do not put hard or breakable objects
in the pocket. If an accident occurs,
objects such as bottles, cans, etc. can
injure the occupants in the rear seat.The tray is located under the front passen-
ger’s seat. Pull the handle forward to draw
out the tray. Be sure to push back in the
tray before driving.
Underseat Tray (if equipped)
83K-05-032
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine 8483K
OTHER CONTROLS AND EQUIPMENT
7-10

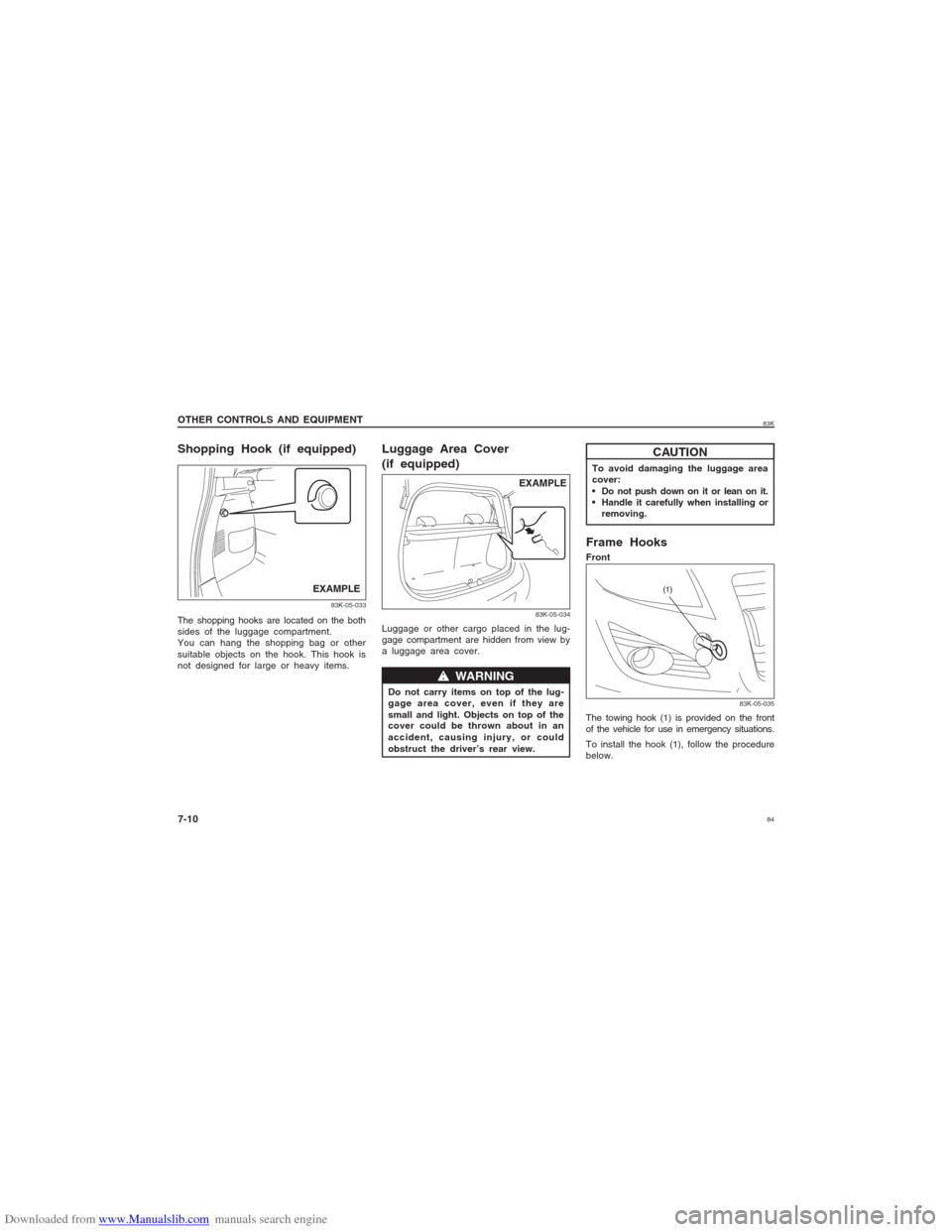

Luggage Area Cover
(if equipped)Luggage or other cargo placed in the lug-
gage compartment are hidden from view by
a luggage area cover.
83K-05-034
EXAMPLE
w ww w
w WARNING
Do not carry items on top of the lug-
gage area cover, even if they are
small and light. Objects on top of the
cover could be thrown about in an
accident, causing injury, or could
obstruct the driver’s rear view.
Shopping Hook (if equipped)
83K-05-033
EXAMPLE
The shopping hooks are located on the both
sides of the luggage compartment.
You can hang the shopping bag or other
suitable objects on the hook. This hook is
not designed for large or heavy items.
Frame HooksFront
The towing hook (1) is provided on the front
of the vehicle for use in emergency situations.
To install the hook (1), follow the procedure
below.
CAUTION
To avoid damaging the luggage area
cover:
Do not push down on it or lean on it.
Handle it carefully when installing or
removing.
83K-05-035

Downloaded from www.Manualslib.com manuals search engine 8583K
OTHER CONTROLS AND EQUIPMENT
7-11
(with spare tyre)
83K-05-03683K-05-037

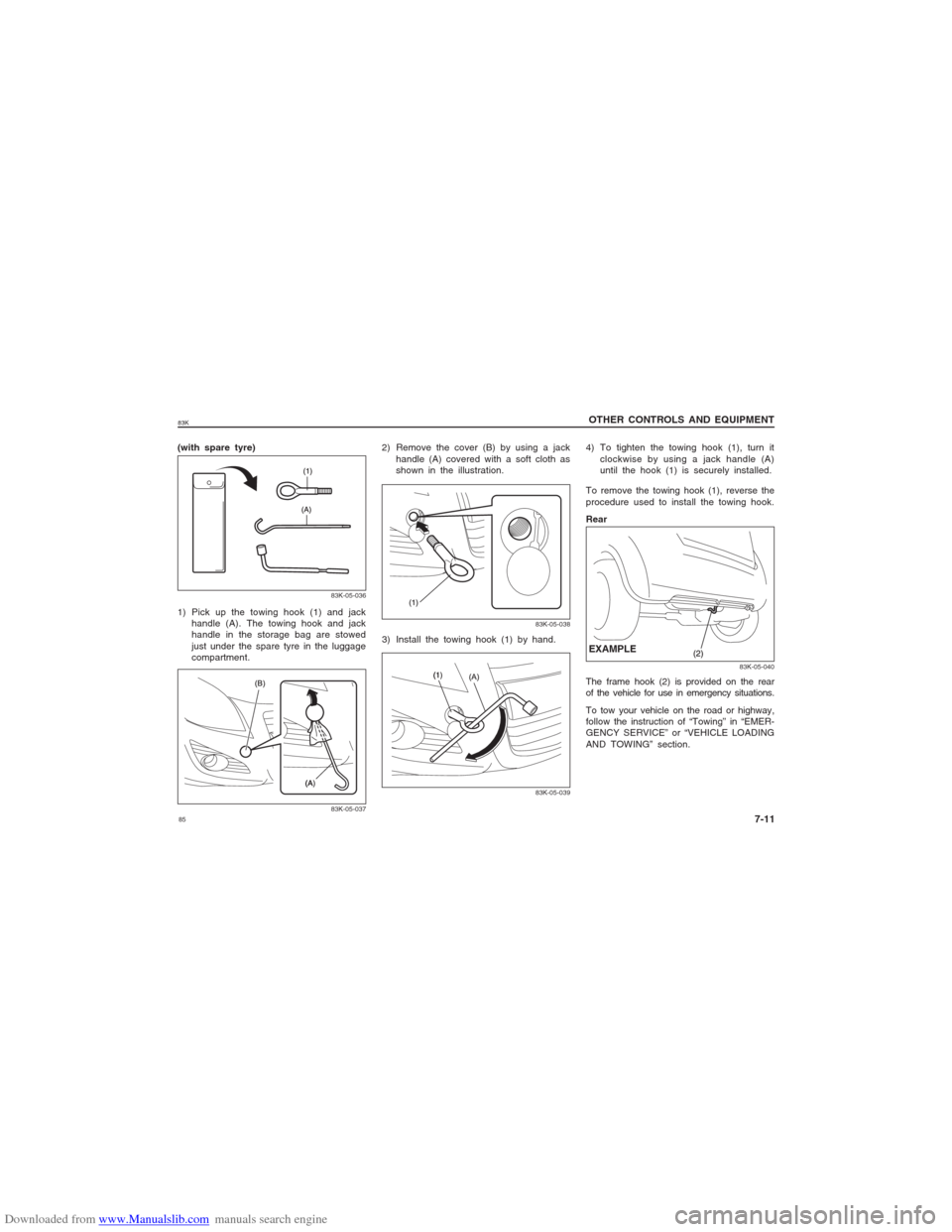

1) Pick up the towing hook (1) and jack
handle (A). The towing hook and jack
handle in the storage bag are stowed
just under the spare tyre in the luggage
compartment.2) Remove the cover (B) by using a jack
handle (A) covered with a soft cloth as
shown in the illustration.
83K-05-038
3) Install the towing hook (1) by hand.
83K-05-039
To remove the towing hook (1), reverse the
procedure used to install the towing hook.
Rear
83K-05-040
The frame hook (2) is provided on the rear
of the vehicle for use in emergency situations.
To tow your vehicle on the road or highway,
follow the instruction of “Towing” in “EMER-
GENCY SERVICE” or “VEHICLE LOADING
AND TOWING” section.EXAMPLE4) To tighten the towing hook (1), turn it
clockwise by using a jack handle (A)
until the hook (1) is securely installed.

Downloaded from www.Manualslib.com manuals search engine 8683K
OTHER CONTROLS AND EQUIPMENT
7-12Do not use the hooks (1) and (2) to
tow (or be towed by) another vehicle
on the road or highway. These hooks
are designed for use in emergency
situations and sea shipping purposes
only.
w ww w
w WARNING
83K-05-041
EXAMPLE
The hooks (3) and frame holes (4) (if
equipped) are provided for shipping pur-
poses only.EXAMPLE
83K-05-042

Downloaded from www.Manualslib.com manuals search engine 8783KVEHICLE LOADING AND TOWING
VEHICLE LOADING AND TOWING

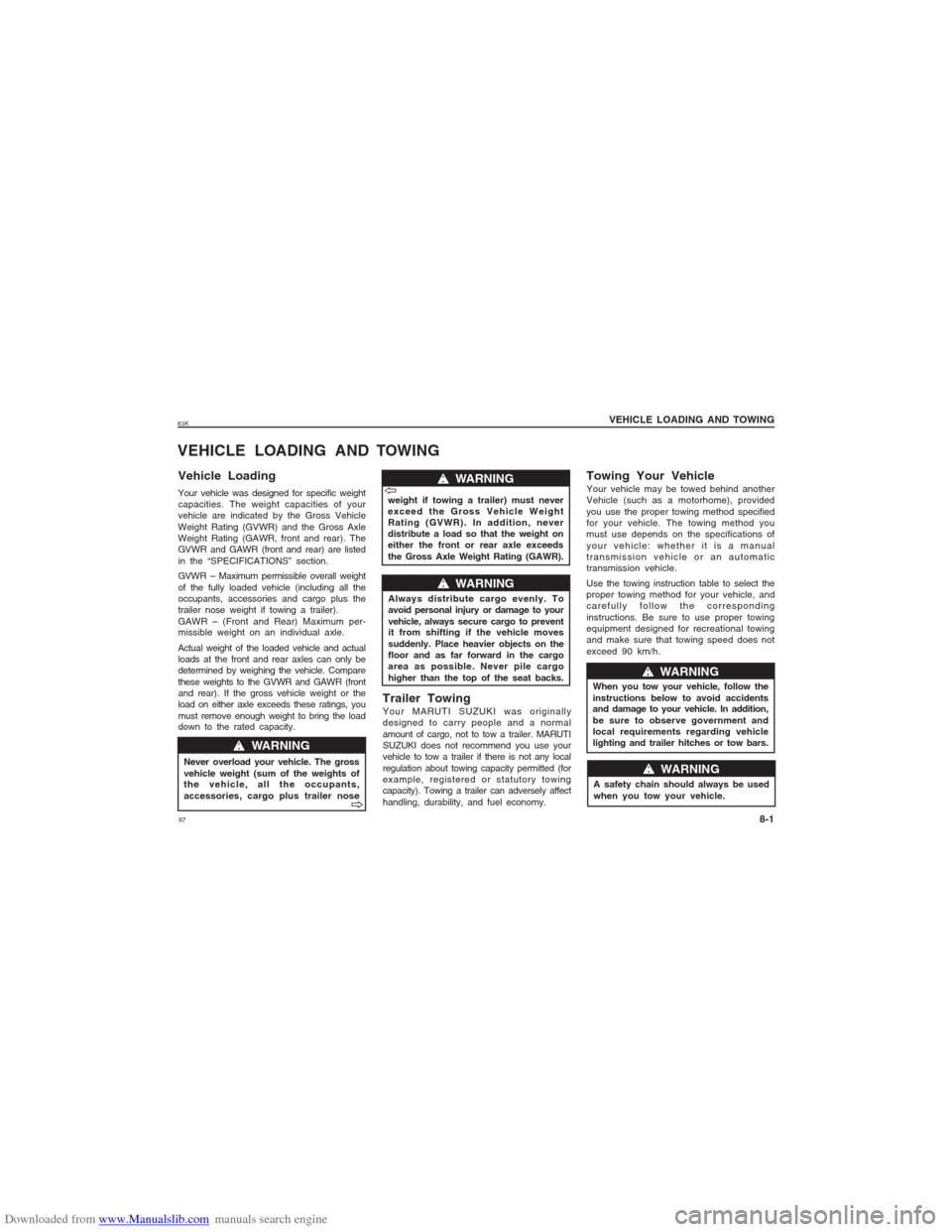

Vehicle LoadingYour vehicle was designed for specific weight
capacities. The weight capacities of your
vehicle are indicated by the Gross Vehicle
Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR, front and rear). The
GVWR and GAWR (front and rear) are listed
in the “SPECIFICATIONS” section.
GVWR – Maximum permissible overall weight
of the fully loaded vehicle (including all the
occupants, accessories and cargo plus the
trailer nose weight if towing a trailer).
GAWR – (Front and Rear) Maximum per-
missible weight on an individual axle.
Actual weight of the loaded vehicle and actual
loads at the front and rear axles can only be
determined by weighing the vehicle. Compare
these weights to the GVWR and GAWR (front
and rear). If the gross vehicle weight or the
load on either axle exceeds these ratings, you
must remove enough weight to bring the load
down to the rated capacity.
w ww w
w WARNING
Always distribute cargo evenly. To
avoid personal injury or damage to your
vehicle, always secure cargo to prevent
it from shifting if the vehicle moves
suddenly. Place heavier objects on the
floor and as far forward in the cargo
area as possible. Never pile cargo
higher than the top of the seat backs.
w ww w
w WARNING
Never overload your vehicle. The gross
vehicle weight (sum of the weights of
the vehicle, all the occupants,
accessories, cargo plus trailer nose
V VV V
V
w ww w
w WARNING
V VV V
Vweight if towing a trailer) must never
exceed the Gross Vehicle Weight
Rating (GVWR). In addition, never
distribute a load so that the weight on
either the front or rear axle exceeds
the Gross Axle Weight Rating (GAWR).Trailer TowingYour MARUTI SUZUKI was originally
designed to carry people and a normal
amount of cargo, not to tow a trailer. MARUTI
SUZUKI does not recommend you use your
vehicle to tow a trailer if there is not any local
regulation about towing capacity permitted (for
example, registered or statutory towing
capacity). Towing a trailer can adversely affect
handling, durability, and fuel economy.When you tow your vehicle, follow the
instructions below to avoid accidents
and damage to your vehicle. In addition,
be sure to observe government and
local requirements regarding vehicle
lighting and trailer hitches or tow bars.
w ww w
w WARNING
Towing Your VehicleYour vehicle may be towed behind another
Vehicle (such as a motorhome), provided
you use the proper towing method specified
for your vehicle. The towing method you
must use depends on the specifications of
your vehicle: whether it is a manual
transmission vehicle or an automatic
transmission vehicle.
Use the towing instruction table to select the
proper towing method for your vehicle, and
carefully follow the corresponding
instructions. Be sure to use proper towing
equipment designed for recreational towing
and make sure that towing speed does not
exceed 90 km/h.
w ww w
w WARNING
A safety chain should always be used
when you tow your vehicle.
8-1

Downloaded from www.Manualslib.com manuals search engine 8883K
VEHICLE LOADING AND TOWING

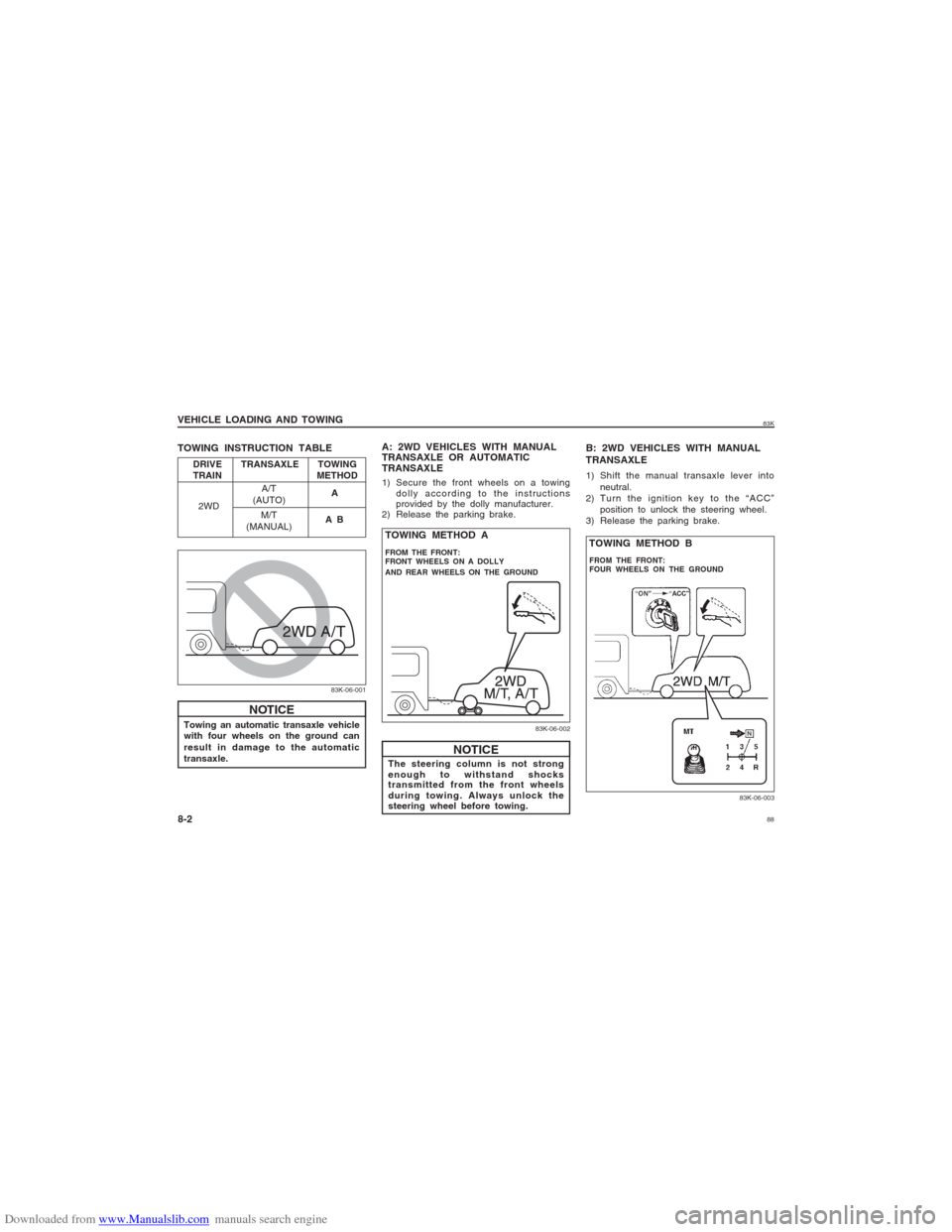

TOWING INSTRUCTION TABLE
DRIVE TRANSAXLE TOWING
TRAIN METHOD2WDA/T
(AUTO)
M/T
(MANUAL)A
A B
Towing an automatic transaxle vehicle
with four wheels on the ground can
result in damage to the automatic
transaxle.
83K-06-001
NOTICE
A: 2WD VEHICLES WITH MANUAL
TRANSAXLE OR AUTOMATIC
TRANSAXLE1) Secure the front wheels on a towing
dolly according to the instructions
provided by the dolly manufacturer.
2) Release the parking brake.
83K-06-002
TOWING METHOD AFROM THE FRONT:
FRONT WHEELS ON A DOLLY
AND REAR WHEELS ON THE GROUND
B: 2WD VEHICLES WITH MANUAL
TRANSAXLE1) Shift the manual transaxle lever into
neutral.
2) Turn the ignition key to the “ACC”
position to unlock the steering wheel.
3) Release the parking brake.
83K-06-003
TOWING METHOD BFROM THE FRONT:
FOUR WHEELS ON THE GROUND
NOTICE
The steering column is not strong
enough to withstand shocks
transmitted from the front wheels
during towing. Always unlock the
steering wheel before towing.
8-2

Downloaded from www.Manualslib.com manuals search engine 8983KINSPECTION AND MAINTENANCE
Maintenance Schedule ....................................................................................................... 9-1
Drive Belt ............................................................................................................................. 9-6
Engine Oil and Filter......................................................................................................... 9-6
Engine Coolant.................................................................................................................... 9-9
Air Cleaner ......................................................................................................................... 9-11
Spark Plugs....................................................................................................................... 9-11
Gear Oil.............................................................................................................................. 9-13
Clutch Pedal...................................................................................................................... 9-14
Fuel Filter (Diesel engine) .............................................................................................. 9-14
Brakes ................................................................................................................................. 9-15
Steering.............................................................................................................................. 9-16
Tyres ................................................................................................................................... 9-17
Battery................................................................................................................................ 9-19
Fuses ................................................................................................................................... 9-20
Bulb Replacement............................................................................................................. 9-23
Wiper Blades..................................................................................................................... 9-26
Windshield Washer Fluid................................................................................................9-28
Air Conditioning System.................................................................................................9-29
INSPECTION AND MAINTENANCE

Downloaded from www.Manualslib.com manuals search engine 9083K
You should take extreme care when
working on your vehicle to prevent
accidental injury. Here are a few pre-
cautions that you should be especially
careful to observe:
To prevent damage or unintended
activation of the air bag system be
sure the battery is disconnected and
the ignition switch has been in the
“LOCK” position for at least 90
seconds before performing any
electrical service work on your
vehicle. Do not touch air bag sys-
tem components and wires. The
wires are wrapped with yellow tape
or yellow tubing, and the couplers
are yellow for easy identification.
w ww w
w WARNING
83K-07-001
w ww w
w WARNING
w ww w
w WARNING
INSPECTION AND MAINTENANCE
9-1
V VV V
V
Do not leave the engine running in
garages or other confined areas.
When the engine is running, keep
hands, clothing, tools, and other
objects away from the fan and drive
belt. Even though the fan may not
be moving, it can automatically turn
on without warning.
When it is necessary to do service
work with the engine running, make
sure that the parking brake is
applied fully and the transmission is
in Neutral.
Do not touch ignition wires or other
ignition system parts when starting
the engine or when the engine is
running, or you could receive an
electric shock.
Be careful not to touch a hot
engine, exhaust manifold and pipes,
muffler, radiator and water hoses.
Do not allow smoking, sparks, or
flames around petrol or the battery.
Flammable fumes are present.
Do not get under your vehicle if it
is supported only with the portable
jack provided in your vehicle.V VV V
V
V VV V
V
Be careful not to cause accidental
short circuits between the positive
and negative battery terminals.
Keep used oil, coolant, and other
fluids away from children and pets.
Dispose of used fluids properly;
never pour them on the ground, into
sewers, etc.V VV V
V
83K-07-002
Maintenance ScheduleThe following table shows the times when
you should perform regular maintenance on
your vehicle. This table shows in kilometers
and months when you should perform
inspections, adjustments, lubrication and
other services.EXAMPLE
