2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
2 E V W D F O H , Q G L F D W L R Q E \ 3 D U N L Q J 6 H Q
V R U
64MS008
(1) Obstacle detected by rear center sen-
sors
(2) Obstacle detected by rear corner sen-
sors
(1) (2) (2)
( ; $ 0 3 / (
Upon detecting an obstacle, the parking sensor causes an interior buzzer to sound and a
symbol representing the obstacle appears on the information display in the instrument
cluster.
• A different symbol is displayed depending on the direction and distance of the obstacle.
• A buzzer located behind the rear seat sounds when a sensor at the rear detects an
obstacle.
• Warnings when obstacles are detected by corner sensors
• Warnings when obstacles are detected by center sensors
NOTE:
• Symbols are displayed with a short delay after the detection of obstacles.
• If the system detects multiple obstacles simultaneously, the display shows all of their
positions using the corresponding symbols. However, the buzzers will sound only for
the nearest obstacles. ' L V W D Q F H D S S U R [ % X ] ] H U 6 \ P E R O
45 – 60 cm
(18 – 24 in)Short beeps at short intervals Three lines
35 – 45 cm
(14 – 18 in)Short beeps at very short intervals Two lines
Less than 35 cm
(14 in)Continuous beep One line
' L V W D Q F H D S S U R [ % X ] ] H U 6 \ P E R O
60 – 150 cm
(24 – 59 in)Short beeps at long intervals
Three lines
45 – 60 cm
(18 – 24 in)Short beeps at short intervals
35 – 45 cm
(14 – 18 in)Short beeps at very short intervals Two lines
Less than 35 cm
(14 in)Continuous beep One line
Page 122 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
6 H W 6 H Q V R U VYou can select either the normal or trailer
mode of the parking sensor via the informa-
tion display. Refer to “Information Display”
in the “BEFORE DRIVING” section.
1 R U P D O P R G H
All sensors operate. Use this mode under
normal conditions.
7 U D L O H U P R G H
The rear corner and rear center sensors are
inhibited from operating. Use this mode
when towing a trailer.
NOTICE
0 D N H V X U H W K H Q R U P D O P R G H L V
V H O H F W H G Z L W K W K H S D U N L Q J V H Q V R U
Z K H Q V W H H U L Q J W K H Y H K L F O H L Q W R D
J D U D J H , I W K H S D U N L Q J V H Q V R U L V O H I W L Q
W K H W U D L O H U P R G H W K H U H D U F R U Q H U D Q G
U H D U F H Q W H U V H Q V R U V D U H Q R W I X Q F W L R Q
L Q J
: D U Q L Q J D Q G , Q G L F D W R U 0 H V V D J H VIf there is a problem or warning regarding the parking sensor system, a message is dis-
played on the information display in the instrument cluster, and a symbol blinks and the
buzzer sounds. If a message is displayed, follow its instruction.
0 H V V D J H 6 \ P E R O % X ] ] H U 3 U R E D E O H F D X V H D Q G U H P H G \
Two blinking
lines in a sen-
sor location.Series of
double
beepsThere may be problem with the
parking sensor system.
Have your vehicle inspected by
an D X W K R U L V H G 0 D U X W L 6 X ] X N L
Z R U N V K R S.
One blinking
line in a sensor
location.Series of
single
beepsThe indicated sensor is contami-
nated.
Wipe it clean with a soft cloth.
Page 123 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
5 H D U Y L H Z & D P H U D
L I H T X L S S H G When the gearshift lever is shifted to the
“R” position while the ignition switch is in
the “ON” position or the ignition mode is
ON, the rearview camera system automati-
cally shows the view behind the vehicle on
the display.
5 H D U Y L H Z & D P H U D / R F D W L R Q
64MS144
(1) Rearview camera
The rearview camera is installed beside
the license plate light.
: $ 5 1 , 1 *
7 K H G L V W D Q F H Y L H Z H G L Q W K H U H D U Y L H Z
F D P H U D P D \ G L I I H U I U R P W K H D F W X D O
G L V W D Q F H D F F R U G L Q J W R W K H F R Q G L W L R Q
R I U R D G R U W K H O R D G W K H Y H K L F O H L V F D U
U \ L Q J 6 L Q F H W K H F D P H U D G L V S O D \ D U H D
L V D O V R O L P L W H G E D F N L Q J X S E \ R Q O \
O R R N L Q J D W W K H G L V S O D \ P D \ F D X V H D Q
D F F L G H Q W R U D F R O O L V L R Q Z L W K D Q R E M H F W
7 K H U H D U Y L H Z F D P H U D F D Q Q R W U H S O D F H
W K H G U L Y H U
Page 124 of 288
Downloaded from www.Manualslib.com manuals search engine (1)
(1)
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
NOTE:
If body wax does get on the camera lens,
wipe off the wax with a clean cloth damp-
ened with mild detergent diluted with
water, then wipe with a dry cloth.
+ R Z W R 8 V H 5 H D U Y L H Z & D P H U D1) Turn the ignition switch to the “ON”
position or press the engine switch to
change the ignition mode to ON.
2) Shift the gearshift lever in the “R” posi-
tion.
• The display automatically shows the
view behind the vehicle.
• When the gearshift lever is shifted
from “R” to another gearshift lever
position, the display returns to the
previous display.
NOTE:
• Images shown on the display from the
rearview camera are reversed images
(mirror images).
• The colors of objects on the rearview
camera may differ from the actual object
colors.
• The rearview camera display has first
priority in any display mode. However,
the rearview camera display does not
show the rear view while the system is
initializing. ' L V S O D \ 5 D Q J H R I 5 H D U Y L H Z & D P H U DThe rearview camera display shows the
area behind the rear end of the tailgate.
The display cannot show objects which are
close to the bumper or under the bumper.
The rearview camera display cannot show
obstacles which are higher than the cam-
era. Upper parts of tall objects such as
road signs cannot be viewed on the dis-
play. ( [ D P S O H R I G L V S O D \ U D Q J H R I U H D U Y L H Z
F D P H U D
61MM0A015
61MM0B012
(1) Display range
NOTE:
• Images shown on the display from the
rearview camera are reversed images
(mirror images).
NOTICE
, I Z D W H U H Q W H U V W K H U H D U Y L H Z F D P H U D L W
P D \ F D X V H D P D O I X Q F W L R Q R U F D W F K
I L U H
' R Q R W X V H K L J K S U H V V X U H Z D W H U
D U R X Q G W K H F D P H U D
NOTICE
7 K H F D P H U D O H Q V L V K D U G F R D W H G W R
S U H Y H Q W G D P D J H R U G L V F R O R U D W L R Q
' D P D J H R U G L V F R O R U D W L R Q R I O H Q V P D \
R E V F X U H W K H L P D J H
Page 125 of 288
Downloaded from www.Manualslib.com manuals search engine (1)
(1)
(3)
(2)
(3)
(2)
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
• The colors of objects on the rearview
camera may differ from the actual object
colors.
• The rearview camera display may be dif-
ficult to see under the following condi-
tions, but this is not a system
malfunction.
– In dark areas, on a rainy day or at
night.
– When the temperature around the lens
is too high/low, or the camera is wet
such as on a rainy day or during peri-
ods of high humidity (dew condensa-
tion may occur on the camera lens).
– When a foreign object such as mud or
a drop of water is stuck around the
camera lens.
– When strong light directly enters the
camera (vertical lines may be seen on
the display).
– Under fluorescent light. (The display
may flicker.)
– When the outside temperature is low
(the image on the display may be
darkened).
( [ D P S O H R I U H D U Y L H Z F D P H U D V F U H H Q
L Q G L F D W L R Q
The distance viewed in the rearview cam-
era may differ from the actual distance
according to the condition of the road or
the load the vehicle is carrying. 8 S K L O O , Q F O L Q H E H K L Q G W K H 9 H K L F O H
61MM0A016
(1) Object
(2) Actual distance
(3) Distance on the display
When there is an uphill incline behind the
vehicle, the object shown on the display
appears farther away than the actual dis-
tance.
' R Z Q K L O O , Q F O L Q H E H K L Q G W K H Y H K L F O H
61MM0A017
(1) Object
(2) Actual distance
(3) Distance on the display
When there is a downhill incline behind the
vehicle, the object shown on the display
appears closer than the actual distance.
( ; $ 0 3 / (
( ; $ 0 3 / (
Page 126 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
, I W K H U H D U Y L H Z I U R P W K H U H D U Y L H Z F D P
H U D L V Q R W V K R Z Q R U W K H U H L V D S R R U
L P D J H• If the rear view from the rearview camera
is not shown.
– Check to make sure that the ignition
switch is in the “ON” position or the
ignition mode is “ON”.
– Check to make sure that the gearshift
lever is shifted to the “R” position.• If the image from the rearview camera is
poor.– Check to make sure that the camera
lens is not dirty.
– Check to make sure that light from the
sun or the beam of the headlights from
the vehicle behind is not shining
directly into the lens.
If the rearview camera system is still not
working properly after checking the above,
have the system inspected by an
D X W K R U L V H G
0 D U X W L 6 X ] X N L Z R U N V K R S
as soon as
possible.
% U D N L Q J
60G165S
The distance needed to bring any vehicle to
a halt increases with the speed of the vehi-
cle. The braking distance needed, for exam-
ple, at 60 km/h (37 mph) will be
approximately 4 times greater than the
braking distance needed at 30 km/h (19
mph). Start to brake the vehicle when there
is plenty of distance between your vehicle
and the stopping point, and slow down
gradually.
3 R Z H U $ V V L V W H G % U D N H V L I
H T X L S S H G Your vehicle has power-assisted brakes. If
power assistance is lost due to a stalled
engine or other failures, the system is still
fully operational on reserve power and you
can bring the vehicle to a complete stop by
pressing the brake pedal once and holding
it down. The reserve power is partly used
up when you depress the brake pedal and
reduces each time the pedal is pressed.
Apply smooth and even pressure to the
pedal. Do not pump the pedal.
: $ 5 1 , 1 *
, I Z D W H U J H W V L Q W R W K H E U D N H G H Y L F H V
E U D N H S H U I R U P D Q F H P D \ E H F R P H S R R U
D Q G X Q S U H G L F W D E O H $ I W H U G U L Y L Q J
W K U R X J K Z D W H U R U Z D V K L Q J W K H X Q G H U
V L G H R I W K H Y H K L F O H W H V W W K H E U D N H V
Z K L O H G U L Y L Q J D W D V O R Z V S H H G W R V H H L I
W K H \ K D Y H P D L Q W D L Q H G W K H L U Q R U P D O
H I I H F W L Y H Q H V V , I W K H E U D N H V D U H O H V V
H I I H F W L Y H W K D Q Q R U P D O G U \ W K H P E \
G U L Y L Q J V O R Z O \ X Q W L O W K H E U D N H V K D Y H
U H J D L Q H G W K H L U Q R U P D O H I I H F W L Y H Q H V V
: $ 5 1 , 1 *
( Y H Q Z L W K R X W U H V H U Y H S R Z H U L Q W K H
E U D N H V \ V W H P \ R X F D Q V W L O O V W R S W K H
Y H K L F O H E \ S U H V V L Q J W K H E U D N H S H G D O
K D U G H U W K D Q Q R U P D O O \ U H T X L U H G + R Z
H Y H U W K H V W R S S L Q J G L V W D Q F H P D \ E H
O R Q J H U
Page 127 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
% U D N H $ V V L V W 6 \ V W H P L I H T X L S S H G When you slam the brakes on, the brake
assist system judges as an emergency
stop and provides more powerful braking
for a driver who cannot hold down the
brake pedal firmly.
NOTE:
If you quickly and forcefully depress the
brakes, you may hear a clicking sound in
the brake pedal. This is normal and indi-
cates that the brake assist system is acti-
vated properly. $ Q W L / R F N % U D N H 6 \ V W H P $ % 6
L I H T X L S S H G ABS will help in avoiding locking of the
wheel by electronically controlling braking
pressure. It will also help you maintain
steering control when braking on slippery
surfaces or when braking hard”
The ABS works automatically, so you do
not need any special braking technique.
Just push the brake pedal down without
pumping. The ABS will operate whenever
it senses that the wheels are locking up.
You may feel the brake pedal moves a little
while the ABS is operating.
NOTE:
The ABS will not work if vehicle speed is
under about 10 km/h (6 mph).

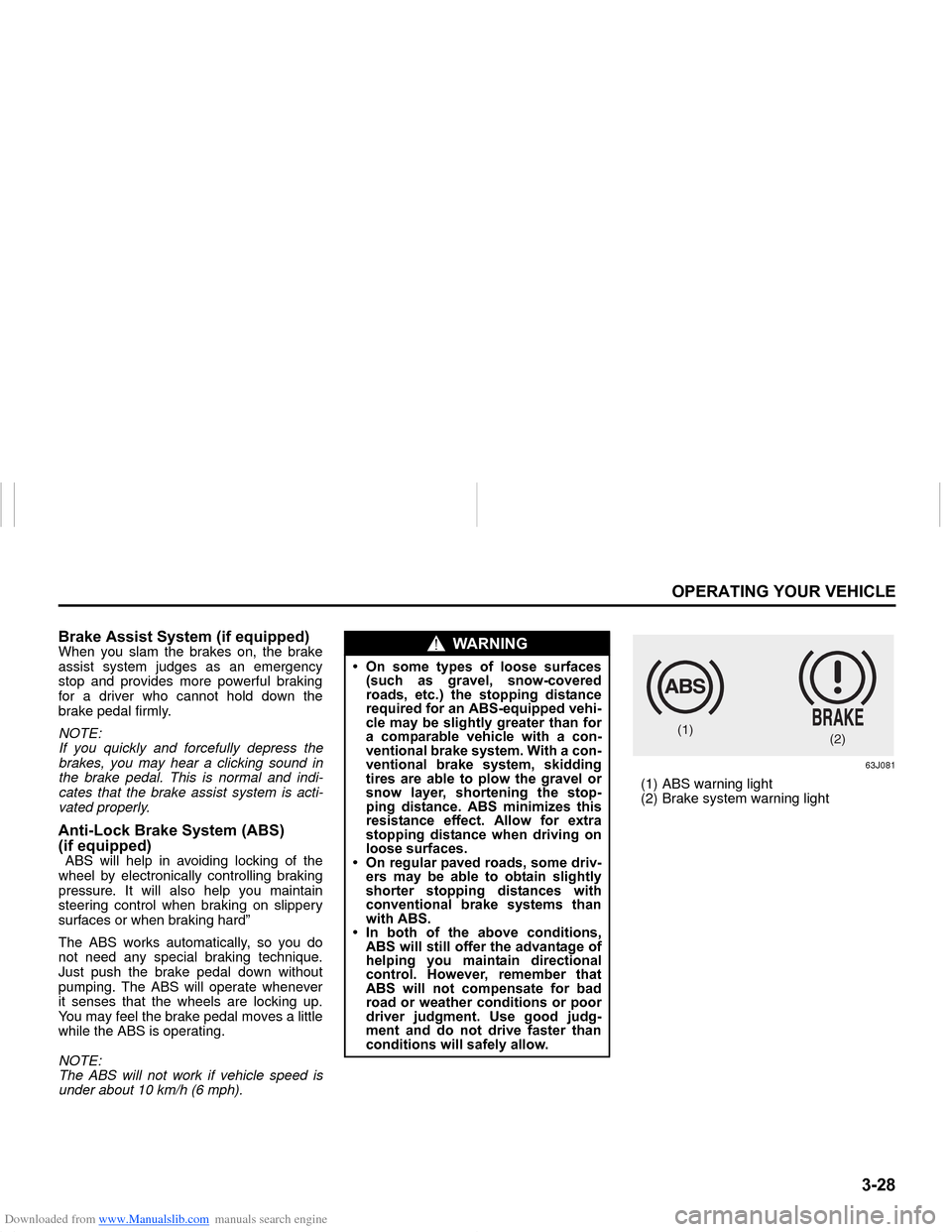

63J081
(1) ABS warning light
(2) Brake system warning light
: $ 5 1 , 1 *
Page 128 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
+ R Z W K H $ % 6 : R U N VA computer continuously monitors wheel
speed. The computer compares the
changes in wheel speed when braking. If
the wheels slow suddenly, indicating a
skidding situation, the computer will
change braking pressure several times
each second to prevent the wheels from
locking. When you start your vehicle or
when you accelerate after a hard stop, you
may hear a momentary motor or clicking
noise as the system resets or checks
itself." This is absolutely normal and indi-
cates that ABS is functioning properly"
: $ 5 1 , 1 *
Page 129 of 288
Downloaded from www.Manualslib.com manuals search engine ' 5 , 9 , 1 * 7 , 3 6
0 6 (
' 5 , 9 , 1 * 7 , 3 6 5 X Q Q L Q J L Q
& D W D O \ W L F & R Q Y H U W H U
, P S U R Y L Q J ) X H O ( F R Q R P \
+ L J K Z D \ ' U L Y L Q J
' U L Y L Q J R Q + L O O V
' U L Y L Q J R Q 6 O L S S H U \ 5 R D G V
' R
Page 130 of 288
Downloaded from www.Manualslib.com manuals search engine ' 5 , 9 , 1 * 7 , 3 6
0 6 (
52D078
5 X Q Q L Q J L Q & D W D O \ W L F & R Q Y H U W H U
80G106
The purpose of the catalytic converter is to
minimize the amount of harmful pollutants
in your vehicle’s exhaust. Use of leaded
fuel in vehicles equipped with catalytic
converters is prohibited, because lead
deactivates the pollutant-reducing compo-
nents of the catalyst system.
The converter is designed to last the life of
the vehicle under normal usage and when
unleaded fuel is used. No special mainte-
nance is required on the converter. How-
ever, it is very important to keep the engine
properly tuned. Engine misfiring, which can
result from an improperly tuned engine,
may cause overheating of the catalyst.
This may result in permanent heat damage
to the catalyst and other vehicle compo-
nents.
: $ 5 1 , 1 *
