SUZUKI NEXA 2015 1.G Repair Manual
Manufacturer: SUZUKI, Model Year: 2015, Model line: NEXA, Model: SUZUKI NEXA 2015 1.GPages: 288, PDF Size: 8.02 MB
Page 61 of 288
Downloaded from www.Manualslib.com manuals search engine 2-42

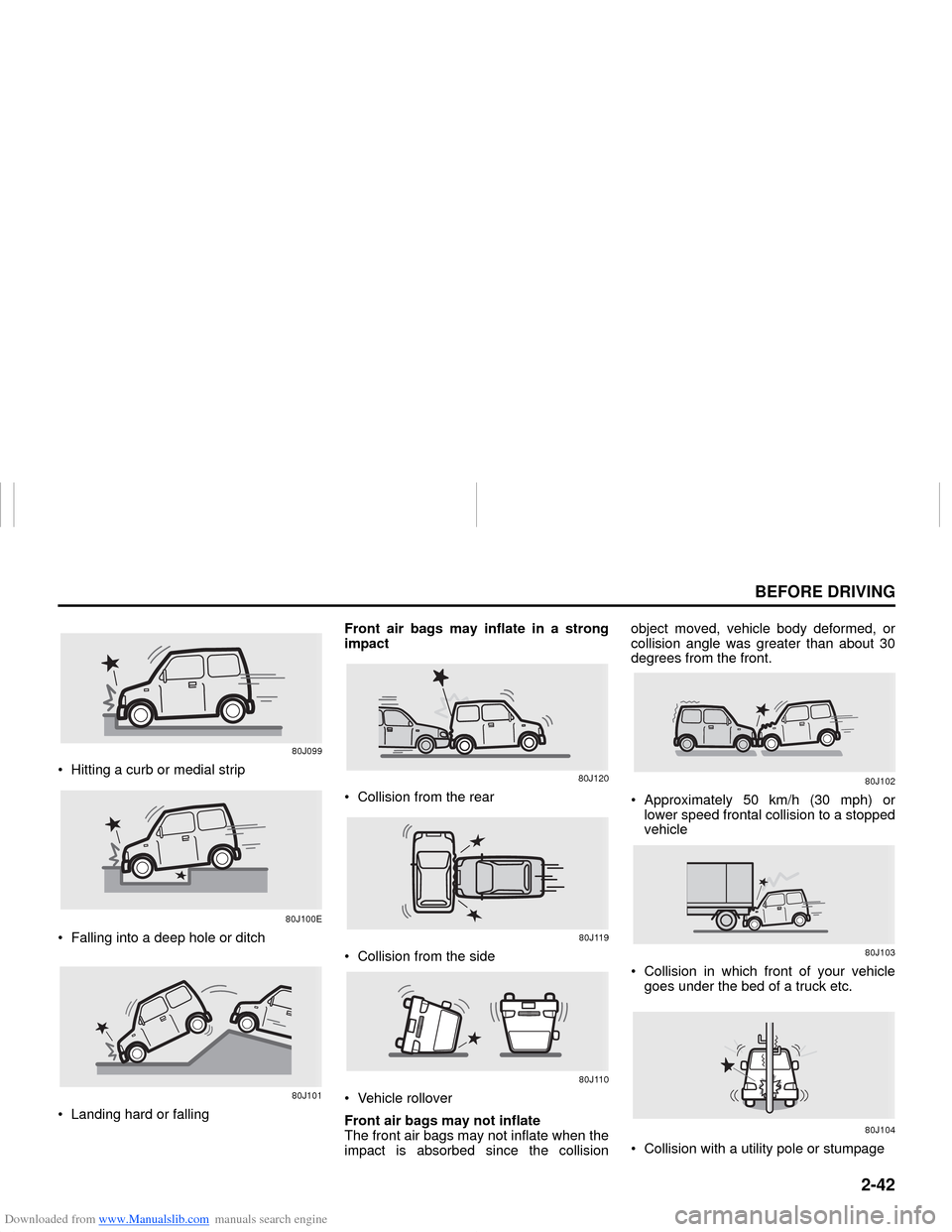

BEFORE DRIVING
64MS0-74E
80J099
• Hitting a curb or medial strip
80J100E
• Falling into a deep hole or ditch
80J101
• Landing hard or fallingFront air bags may inflate in a strong
impact
80J120
• Collision from the rear
80J119
• Collision from the side
80J110
• Vehicle rollover
Front air bags may not inflate
The front air bags may not inflate when the
impact is absorbed since the collisionobject moved, vehicle body deformed, or
collision angle was greater than about 30
degrees from the front.
80J102
• Approximately 50 km/h (30 mph) or
lower speed frontal collision to a stopped
vehicle
80J103
• Collision in which front of your vehicle
goes under the bed of a truck etc.
80J104
• Collision with a utility pole or stumpage
Page 62 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
80J105E
• Collision with a fixed wall or guardrail at
an angle of greater than about 30
degrees (1) from the front
80J106
• In frontal collisions with a fixed wall that
does not move or deform at vehicle
speed of less than about 25 km/h (15
mph)
80J107
• Offset collision between two vehicles.
+ R Z W K H 6 \ V W H P : R U N VIn a frontal collision, the crash sensors will
detect rapid deceleration, and if the control-
ler judges that the deceleration represents a
severe frontal crash, the controller will trig-
ger the inflators. The inflators inflate the
appropriate air bags with nitrogen or argon
gas. The inflated air bags provide a cushion
for your head and upper body. The air bag
inflates and deflates so quickly that you may
not even realize that it has activated. The air
bag will neither hinder your view nor make it
harder to exit the vehicle.
Air bags must inflate quickly and forcefully
in order to reduce the chance of serious or
fatal injuries. However, an unavoidable con-
sequence of the quick inflation is that the air
bag may irritate bare skin, such as the facial
area against a front air bag. Also, upon
inflation, a loud noise will occur and some
powder and smoke will be released. These
conditions are not harmful and do not indi-
cate a fire in the vehicle. Be aware, how-
ever, that some air bag components may be
hot for a while after inflation.
A seat belt helps keep you in the proper
position for maximum protection when an air
bag inflates. Adjust your seat as far back as
possible while still maintaining control of the
vehicle. Sit fully back in your seat; sit up
straight; do not lean over the steering wheel
or dashboard. Front occupants should not
lean on or sleep against the door. Please
refer to the “Front Seat” section and the
“Seat Belts and Child Restraint Systems”
section in this section for details on proper
seat and seat belt adjustments.
65D610
(1)
: $ 5 1 , 1 *
Page 63 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

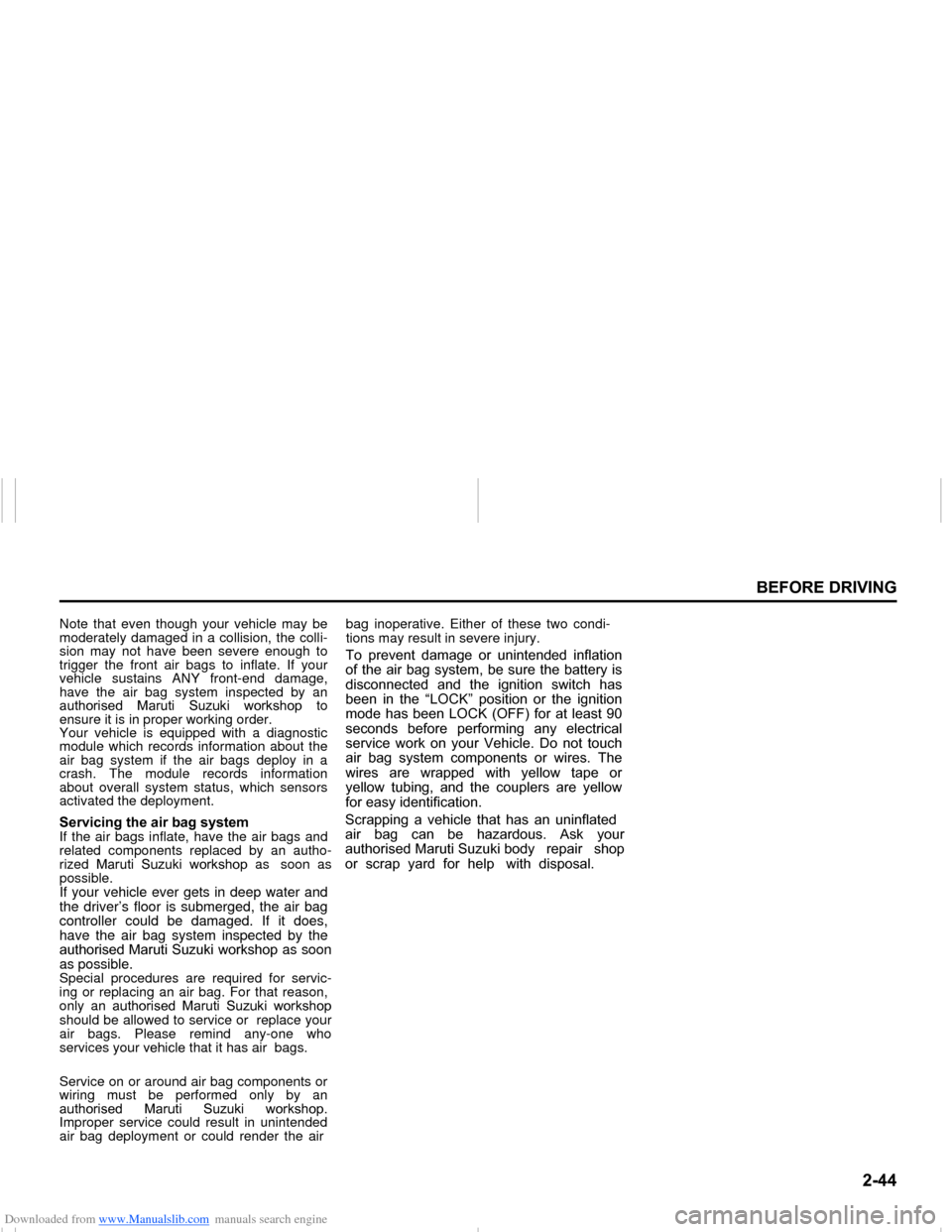

Note that even though your vehicle may be
moderately damaged in a collision, the colli-
sion may not have been severe enough to
trigger the front air bags to inflate. If your
vehicle sustains ANY front-end damage,
have the air bag system inspected by an
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S to
ensure it is in proper working order.
Your vehicle is equipped with a diagnostic
module which records information about the
air bag system if the air bags deploy in a
crash. The module records information
about overall system status, which sensors
activated the deployment. 6 H U Y L F L Q J W K H D L U E D J V \ V W H PIf the air bags inflate, have the air bags and
related components replaced by an autho-
rized 0 D U X W L 6 X ] X N L Z R U N V K R S as soon as
possible.If your vehicle ever gets in deep water and
the driver’s floor is submerged, the air bag
controller could be damaged. If it does,
have the air bag system inspected by the
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S as soon
as possible.Special procedures are required for servic-
ing or replacing an air bag. For that reason,
only an D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
should be allowed to service or replace your
air bags. Please remind any-one who
services your Y H K L F O H that it has air bags.
Service on or around air bag components or
wiring must be performed only by an
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
Improper service could result in unintended
air bag deployment or could render the airbag inoperative. Either of these two condi-
tions may result in severe injury.
6 F U D S S L Q J D Y H K L F O H W K D W K D V D Q X Q L Q I O D W H G
D L U E D J F D Q E H K D ] D U G R X V $ V N \ R X U
D X W K R U L V H G 0 D U X W L 6 X ] X N L E R G \ U H S D L U V K R S
R U V F U D S \ D U G I R U K H O S Z L W K G L V S R V D O 7 R S U H Y H Q W G D P D J H R U X Q L Q W H Q G H G L Q I O D W L R Q
R I W K H D L U E D J V \ V W H P E H V X U H W K H E D W W H U \ L V
G L V F R Q Q H F W H G D Q G W K H L J Q L W L R Q V Z L W F K K D V
E H H Q L Q W K H
Page 64 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
, Q V W U X P H Q W & O X V W H U1. Speedometer
2. Tachometer
3. Fuel gauge
4. Temperature gauge
5. Information display
6. Warning and indicator lights
64MS166
53 6426 1
6
Page 65 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
6 S H H G R P H W H UThe speedometer indicates vehicle speed. 7 D F K R P H W H UThe tachometer indicates engine speed in
revolutions per minute.
) X H O * D X J H
61MM0A154
When the ignition switch is in the “ON”
position or the ignition mode is “ON”, this
gauge gives an approximate indication of
the amount of fuel in the fuel tank. “F”
stands for full and “E” stands for empty.
If the indicator gets off the graduation of
“E” (not character “E”), refill the tank as
soon as possible.
NOTE:
The indicator moves a little depending on
road conditions (for example, slope or
curve) and driving conditions because of
fuel moving in the tank.
If the low fuel warning light (1) comes on,
fill the fuel tank immediately.
Refer to “Low Fuel Warning Light” in
Page 66 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

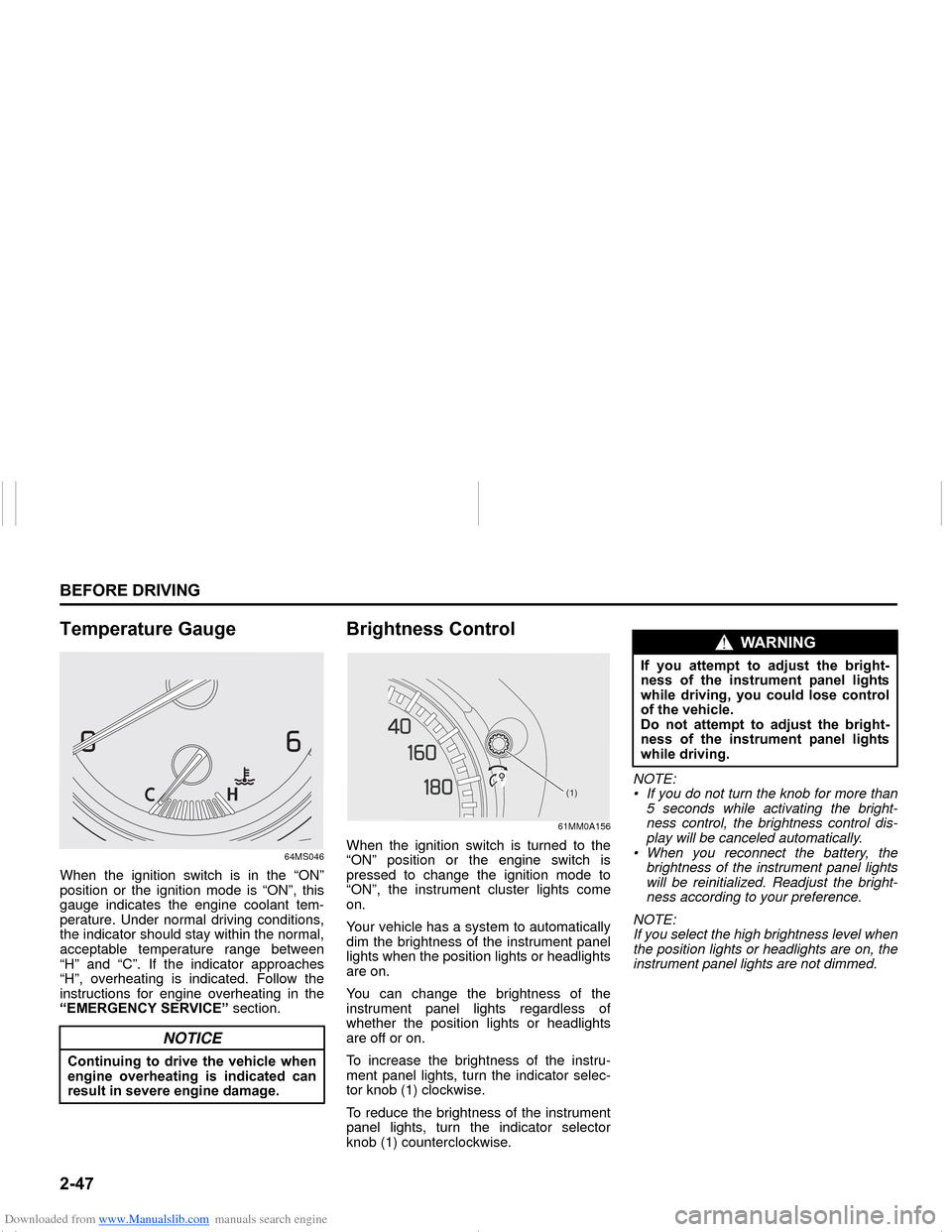

7 H P S H U D W X U H * D X J H
64MS046
When the ignition switch is in the “ON”
position or the ignition mode is “ON”, this
gauge indicates the engine coolant tem-
perature. Under normal driving conditions,
the indicator should stay within the normal,
acceptable temperature range between
“H” and “C”. If the indicator approaches
“H”, overheating is indicated. Follow the
instructions for engine overheating in the
³ ( 0 ( 5 * ( 1 & < 6 ( 5 9 , & ( ´ section.
% U L J K W Q H V V & R Q W U R O
61MM0A156
When the ignition switch is turned to the
“ON” position or the engine switch is
pressed to change the ignition mode to
“ON”, the instrument cluster lights come
on.
Your vehicle has a system to automatically
dim the brightness of the instrument panel
lights when the position lights or headlights
are on.
You can change the brightness of the
instrument panel lights regardless of
whether the position lights or headlights
are off or on.
To increase the brightness of the instru-
ment panel lights, turn the indicator selec-
tor knob (1) clockwise.
To reduce the brightness of the instrument
panel lights, turn the indicator selector
knob (1) counterclockwise.NOTE:
•If you do no
t turn the knob for more than
5 seconds while activating the bright-
ness control, the brightness control dis-
play will be canceled automatically.
• When you reconnect the battery, the
brightness of the instrument panel lights
will be reinitialized. Readjust the bright-
ness according to your preference.
NOTE:
If you select the high brightness level when
the position lights or headlights are on, the
instrument panel lights are not dimmed.
NOTICE
& R Q W L Q X L Q J W R G U L Y H W K H Y H K L F O H Z K H Q
H Q J L Q H R Y H U K H D W L Q J L V L Q G L F D W H G F D Q
U H V X O W L Q V H Y H U H H Q J L Q H G D P D J H ( ; $ 0 3 / (
( ; $ 0 3 / (
: $ 5 1 , 1 *
, I \ R X D W W H P S W W R D G M X V W W K H E U L J K W
Q H V V R I W K H L Q V W U X P H Q W S D Q H O O L J K W V
Z K L O H G U L Y L Q J \ R X F R X O G O R V H F R Q W U R O
R I W K H Y H K L F O H
' R Q R W D W W H P S W W R D G M X V W W K H E U L J K W
Q H V V R I W K H L Q V W U X P H Q W S D Q H O O L J K W V
Z K L O H G U L Y L Q J
(1)
Page 67 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

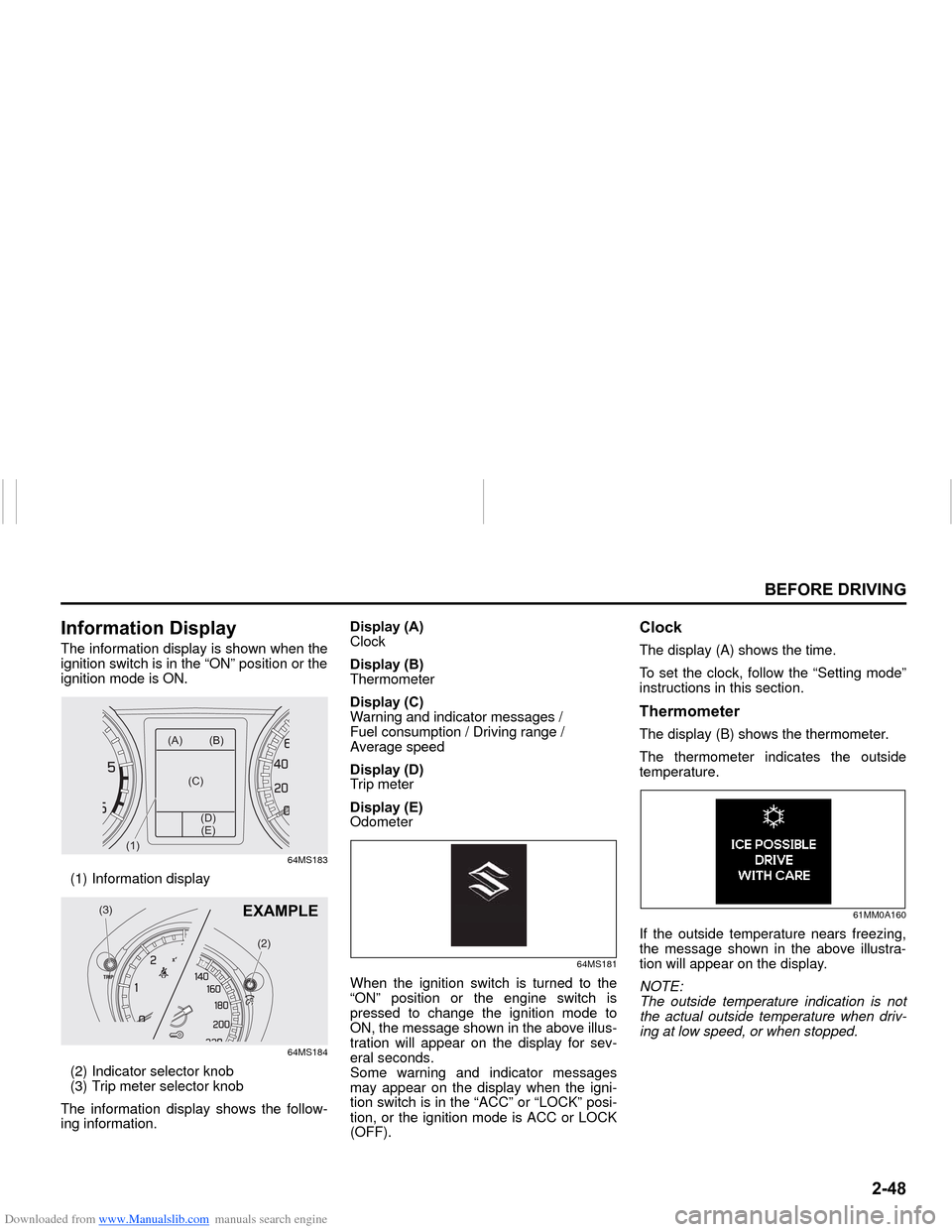

, Q I R U P D W L R Q ' L V S O D \The information display is shown when the
ignition switch is in the “ON” position or the
ignition mode is ON.
64MS183
(1) Information display
64MS184
(2) Indicator selector knob
(3) Trip meter selector knob
The information display shows the follow-
ing information. ' L V S O D \ $
Clock
' L V S O D \ %
Thermometer
' L V S O D \ &
Warning and indicator messages /
Fuel consumption / Driving range /
Average speed
' L V S O D \ '
Trip meter
' L V S O D \ (
Odometer
64MS181
When the ignition switch is turned to the
“ON” position or the engine switch is
pressed to change the ignition mode to
ON, the message shown in the above illus-
tration will appear on the display for sev-
eral seconds.
Some warning and indicator messages
may appear on the display when the igni-
tion switch is in the “ACC” or “LOCK” posi-
tion, or the ignition mode is ACC or LOCK
(OFF).
& O R F NThe display (A) shows the time.
To set the clock, follow the “Setting mode”
instructions in this section. 7 K H U P R P H W H UThe display (B) shows the thermometer.
The thermometer indicates the outside
temperature.
61MM0A160
If the outside temperature nears freezing,
the message shown in the above illustra-
tion will appear on the display.
NOTE:
The outside temperature indication is not
the actual outside temperature when driv-
ing at low speed, or when stopped.
(1)(B)
(C) (A)
(D)
(E)
(3)
(2)
( ; $ 0 3 / (
Page 68 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

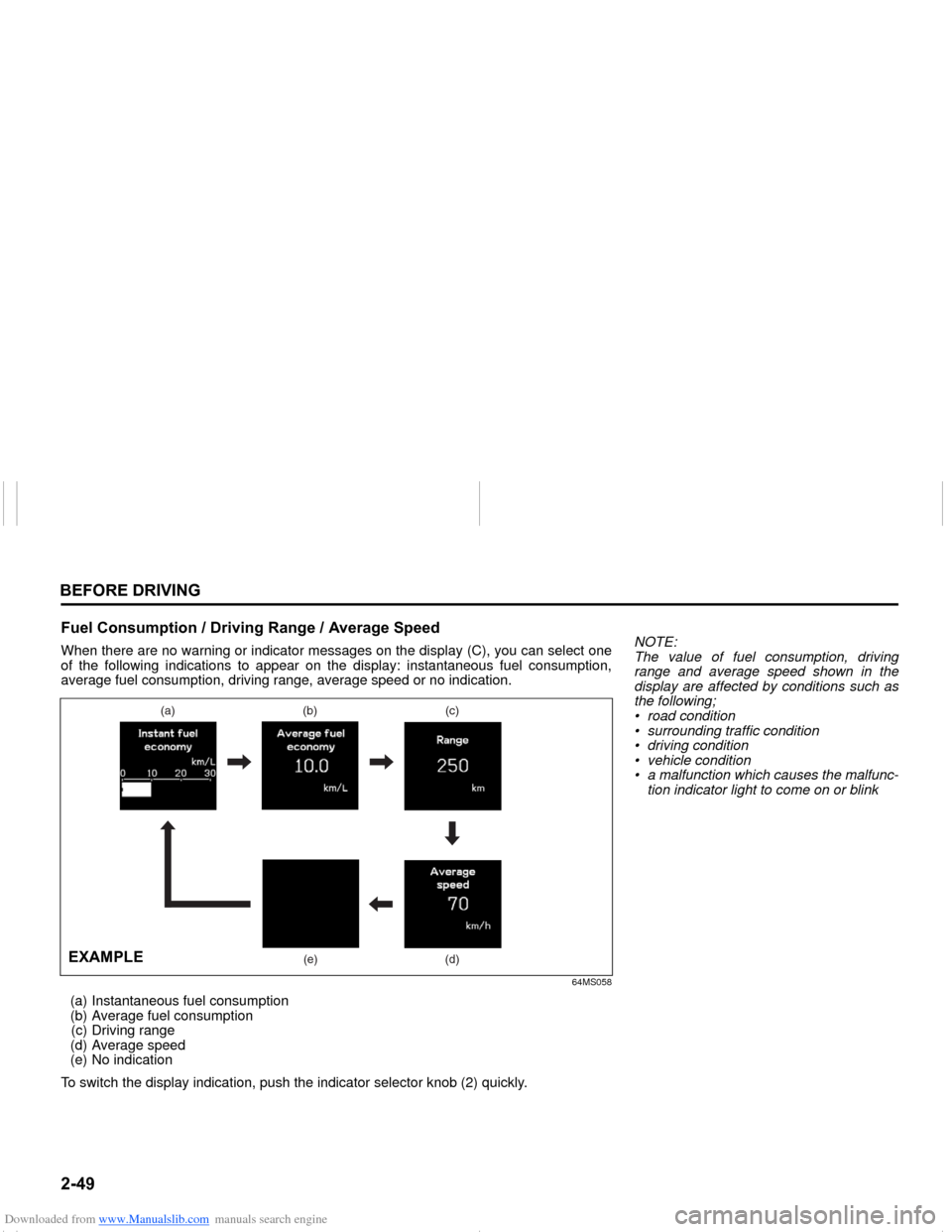

) X H O & R Q V X P S W L R Q ' U L Y L Q J 5 D Q J H $ Y H U D J H 6 S H H GWhen there are no warning or indicator messages on the display (C), you can select one
of the following indications to appear on the display: instantaneous fuel consumption,
average fuel consumption, driving range, average speed or no indication.
64MS058
(a) Instantaneous fuel consumption
(b) Average fuel consumption
(c) Driving range
(d) Average speed
(e) No indication
To switch the display indication, push the indicator selector knob (2) quickly.
(a) (b) (c)
(d) (e)
( ; $ 0 3 / (
NOTE:
The value of fuel consumption, driving
range and average speed shown in the
display are affected by conditions such as
the following;
• road condition
• surrounding traffic condition
• driving condition
• vehicle condition
• a malfunction which causes the malfunc-
tion indicator light to come on or blink
Page 69 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

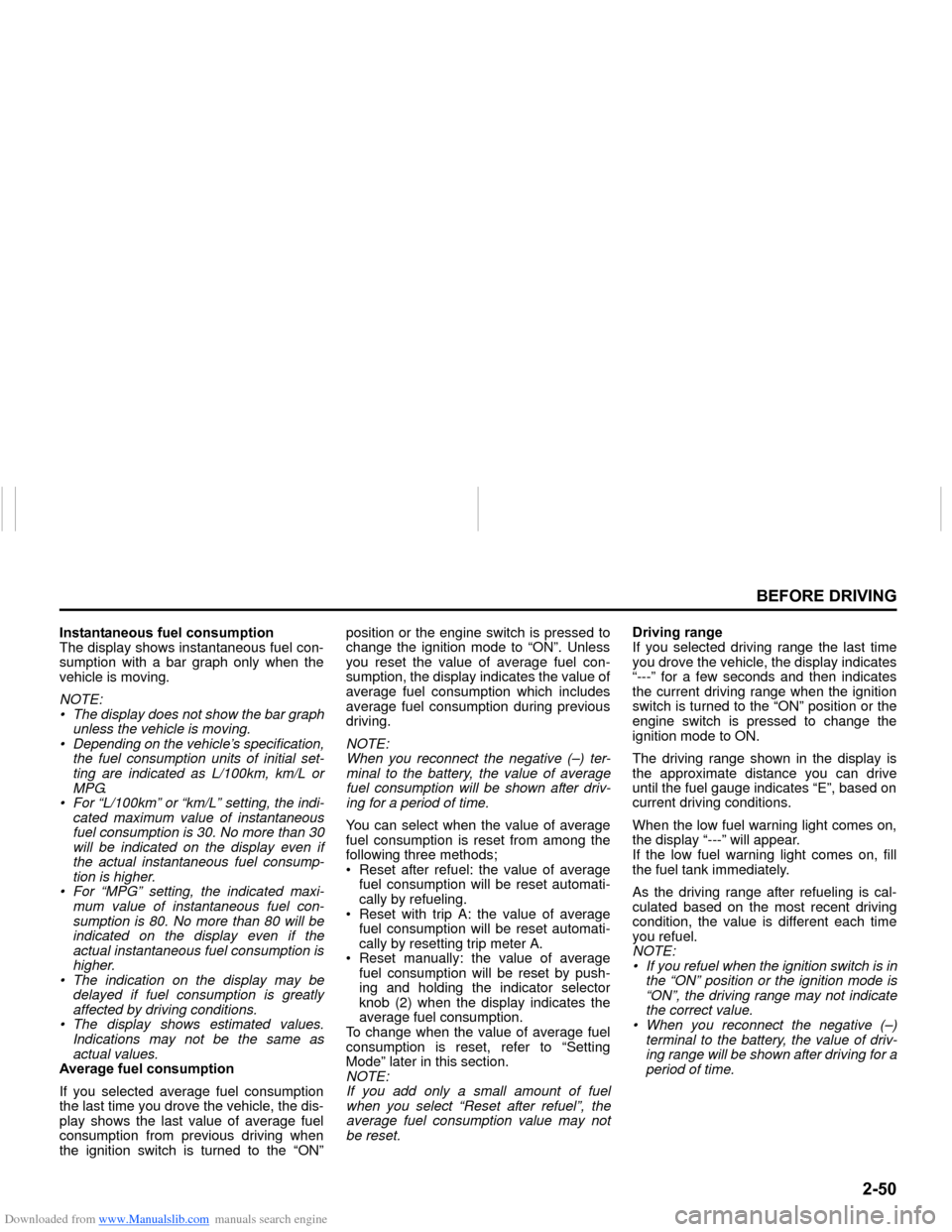

, Q V W D Q W D Q H R X V I X H O F R Q V X P S W L R Q
The display shows instantaneous fuel con-
sumption with a bar graph only when the
vehicle is moving.
NOTE:
• The display does not show the bar graph
unless the vehicle is moving.
• Depending on the vehicle’s specification,
the fuel consumption units of initial set-
ting are indicated as L/100km, km/L or
MPG.
• For “L/100km” or “km/L” setting, the indi-
cated maximum value of instantaneous
fuel consumption is 30. No more than 30
will be indicated on the display even if
the actual instantaneous fuel consump-
tion is higher.
• For “MPG” setting, the indicated maxi-
mum value of instantaneous fuel con-
sumption is 80. No more than 80 will be
indicated on the display even if the
actual instantaneous fuel consumption is
higher.
• The indication on the display may be
delayed if fuel consumption is greatly
affected by driving conditions.
• The display shows estimated values.
Indications may not be the same as
actual values.
$ Y H U D J H I X H O F R Q V X P S W L R Q
If you selected average fuel consumption
the last time you drove the vehicle, the dis-
play shows the last value of average fuel
consumption from previous driving when
the ignition switch is turned to the “ON”position or the engine switch is pressed to
change the ignition mode to “ON”. Unless
you reset the value of average fuel con-
sumption, the display indicates the value of
average fuel consumption which includes
average fuel consumption during previous
driving.
NOTE:
When you reconnect the negative (–) ter-
minal to the battery, the value of average
fuel consumption will be shown after driv-
ing for a period of time.
You can select when the value of average
fuel consumption is reset from among the
following three methods;
• Reset after refuel: the value of average
fuel consumption will be reset automati-
cally by refueling.
• Reset with trip A: the value of average
fuel consumption will be reset automati-
cally by resetting trip meter A.
• Reset manually: the value of average
fuel consumption will be reset by push-
ing and holding the indicator selector
knob (2) when the display indicates the
average fuel consumption.
To change when the value of average fuel
consumption is reset, refer to “Setting
Mode” later in this section.
NOTE:
If you add only a small amount of fuel
when you select “Reset after refuel”, the
average fuel consumption value may not
be reset. ' U L Y L Q J U D Q J H
If you selected driving range the last time
you drove the vehicle, the display indicates
“---” for a few seconds and then indicates
the current driving range when the ignition
switch is turned to the “ON” position or the
engine switch is pressed to change the
ignition mode to ON.
The driving range shown in the display is
the approximate distance you can drive
until the fuel gauge indicates “E”, based on
current driving conditions.
When the low fuel warning light comes on,
the display “---” will appear.
If the low fuel warning light comes on, fill
the fuel tank immediately.
As the driving range after refueling is cal-
culated based on the most recent driving
condition, the value is different each time
you refuel.
NOTE:
• If you refuel when the ignition switch is in
the “ON” position or the ignition mode is
“ON”, the driving range may not indicate
the correct value.
• When you reconnect the negative (–)
terminal to the battery, the value of driv-
ing range will be shown after driving for a
period of time.
Page 70 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

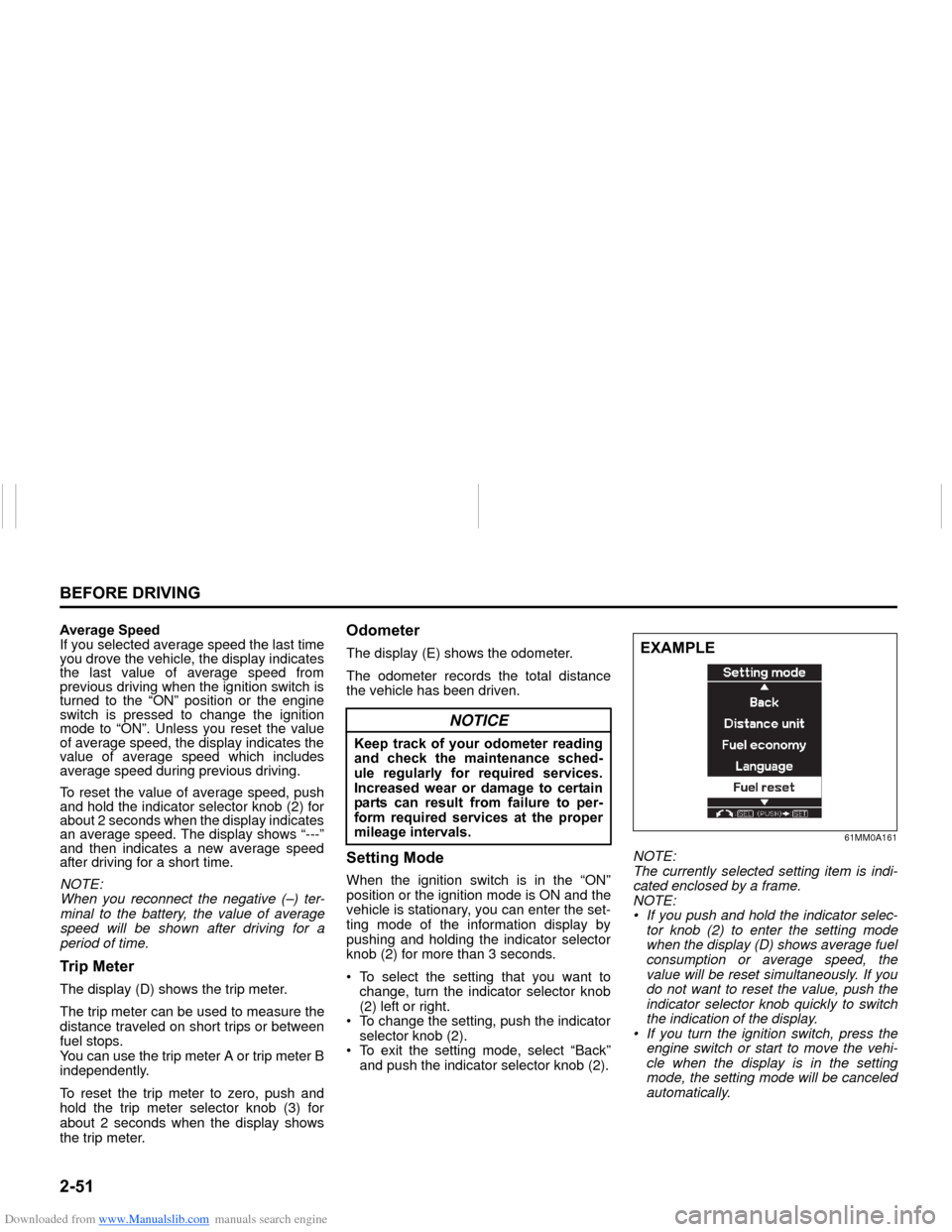

$ Y H U D J H 6 S H H G
If you selected average speed the last time
you drove the vehicle, the display indicates
the last value of average speed from
previous driving when the ignition switch is
turned to the “ON” position or the engine
switch is pressed to change the ignition
mode to “ON”. Unless you reset the value
of average speed, the display indicates the
value of average speed which includes
average speed during previous driving.
To reset the value of average speed, push
and hold the indicator selector knob (2) for
about 2 seconds when the display indicates
an average speed. The display shows “---”
and then indicates a new average speed
after driving for a short time.
NOTE:
When you reconnect the negative (–) ter-
minal to the battery, the value of average
speed will be shown after driving for a
period of time. 7 U L S 0 H W H UThe display (D) shows the trip meter.
The trip meter can be used to measure the
distance traveled on short trips or between
fuel stops.
You can use the trip meter A or trip meter B
independently.
To reset the trip meter to zero, push and
hold the trip meter selector knob (3) for
about 2 seconds when the display shows
the trip meter.
2 G R P H W H UThe display (E) shows the odometer.
The odometer records the total distance
the vehicle has been driven. 6 H W W L Q J 0 R G HWhen the ignition switch is in the “ON”
position or the ignition mode is ON and the
vehicle is stationary, you can enter the set-
ting mode of the information display by
pushing and holding the indicator selector
knob (2) for more than 3 seconds.
• To select the setting that you want to
change, turn the indicator selector knob
(2) left or right.
• To change the setting, push the indicator
selector knob (2).
• To exit the setting mode, select “Back”
and push the indicator selector knob (2).
61MM0A161
NOTE:
The currently selected setting item is indi-
cated enclosed by a frame.
NOTE:
• If you push and hold the indicator selec-
tor knob (2) to enter the setting mode
when the display (D) shows average fuel
consumption or average speed, the
value will be reset simultaneously. If you
do not want to reset the value, push the
indicator selector knob quickly to switch
the indication of the display.
• If you turn the ignition switch, press the
engine switch or start to move the vehi-
cle when the display is in the setting
mode, the setting mode will be canceled
automatically.
NOTICE
. H H S W U D F N R I \ R X U R G R P H W H U U H D G L Q J
D Q G F K H F N W K H P D L Q W H Q D Q F H V F K H G
X O H U H J X O D U O \ I R U U H T X L U H G V H U Y L F H V
, Q F U H D V H G Z H D U R U G D P D J H W R F H U W D L Q
S D U W V F D Q U H V X O W I U R P I D L O X U H W R S H U
I R U P U H T X L U H G V H U Y L F H V D W W K H S U R S H U
P L O H D J H L Q W H U Y D O V
( ; $ 0 3 / (
