2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (

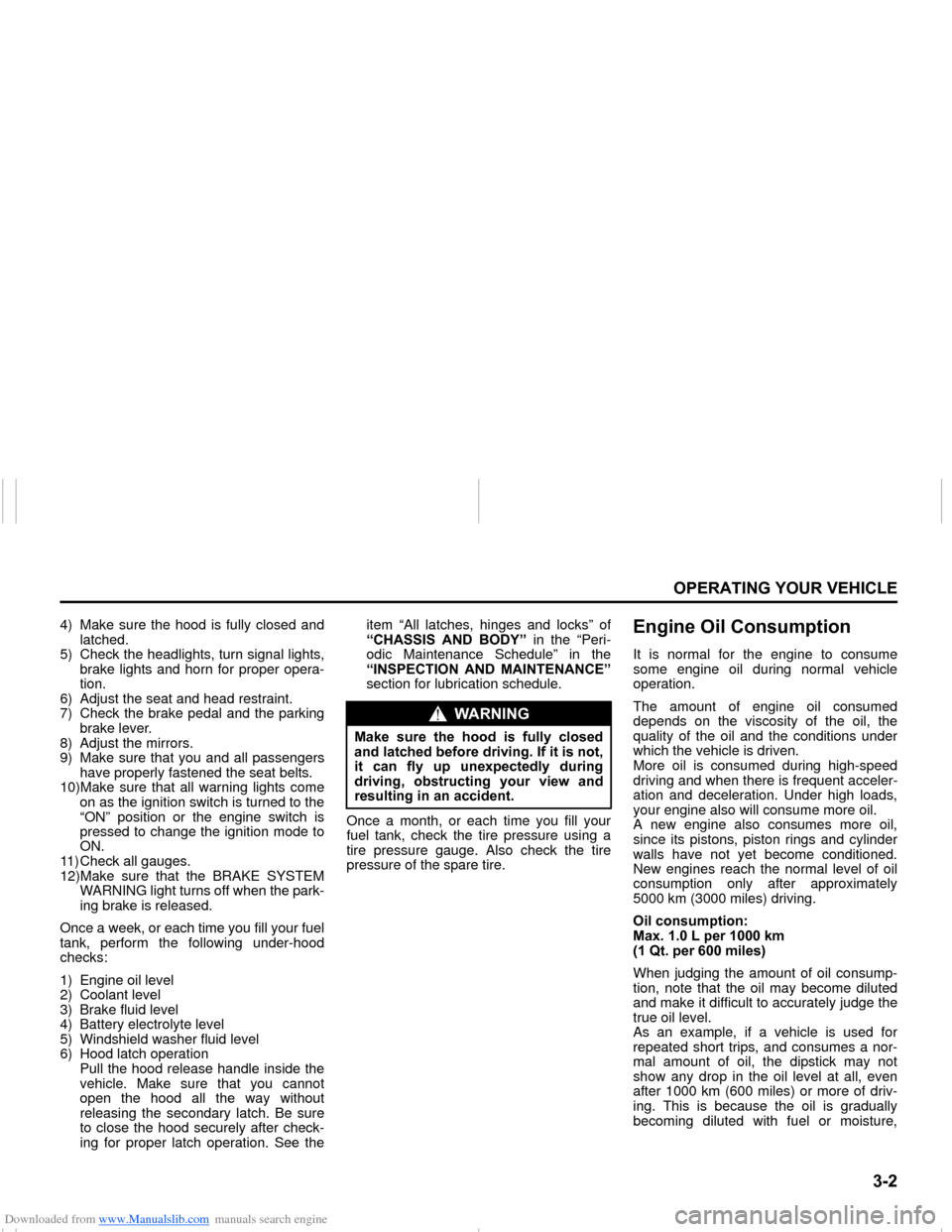

4) Make sure the hood is fully closed and
latched.
5) Check the headlights, turn signal lights,
brake lights and horn for proper opera-
tion.
6) Adjust the seat and head restraint.
7) Check the brake pedal and the parking
brake lever.
8) Adjust the mirrors.
9) Make sure that you and all passengers
have properly fastened the seat belts.
10)Make sure that all warning lights come
on as the ignition switch is turned to the
“ON” position or the engine switch is
pressed to change the ignition mode to
ON.
11)Check all gauges.
12)Make sure that the BRAKE SYSTEM
WARNING light turns off when the park-
ing brake is released.
Once a week, or each time you fill your fuel
tank, perform the following under-hood
checks:
1) Engine oil level
2) Coolant level
3) Brake fluid level
4) Battery electrolyte level
5) Windshield washer fluid level
6) Hood latch operation
Pull the hood release handle inside the
vehicle. Make sure that you cannot
open the hood all the way without
releasing the secondary latch. Be sure
to close the hood securely after check-
ing for proper latch operation. See theitem “All latches, hinges and locks” of
Page 102 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
making it appear that the oil level has not
changed.
You should also be aware that the diluting
ingredients evaporate out when the vehicle
is subsequently driven at high speeds,
such as on an expressway, making it
appear that oil is excessively consumed
after high-speed driving.
, J Q L W L R Q 6 Z L W F K
9 H K L F O H Z L W K R X W . H \ O H V V
3 X V K 6 W D U W 6 \ V W H P
65D61152KM052
The ignition switch has the following four
positions:
/ 2 & .
This is the normal parking position. It is the
only position in which the key can be
removed.
60G033
: $ 5 1 , 1 *
7 R D Y R L G S R V V L E O H L Q M X U \ G R Q R W R S H U
D W H F R Q W U R O V E \ U H D F K L Q J W K U R X J K W K H
V W H H U L Q J Z K H H O
( ; $ 0 3 / (
Turn to “LOCK Push
( ; $ 0 3 / (
Page 103 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
You must push in the key to turn it to the
“LOCK” position. It locks the ignition, and
prevents normal use of the steering wheel
after the key is removed.
To release the steering lock, insert the key
and turn it clockwise to one of the other
positions. If you have trouble turning the
key to unlock the steering, try turning the
steering wheel slightly to the right or left
while turning the key.
$ & &
Accessories such as the radio can oper-
ate, but the engine is off.
2 1
This is the normal operating position. All
electrical systems are on.
6 7 $ 5 7
This is the position for starting the engine
using the starter motor. The key should be
released from this position as soon as the
engine starts.
, J Q L W L R Q N H \ U H P L Q G H U L I H T X L S S H G
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in the
ignition switch when the driver’s door is
opened.
81A297S
: $ 5 1 , 1 *
Page 104 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (

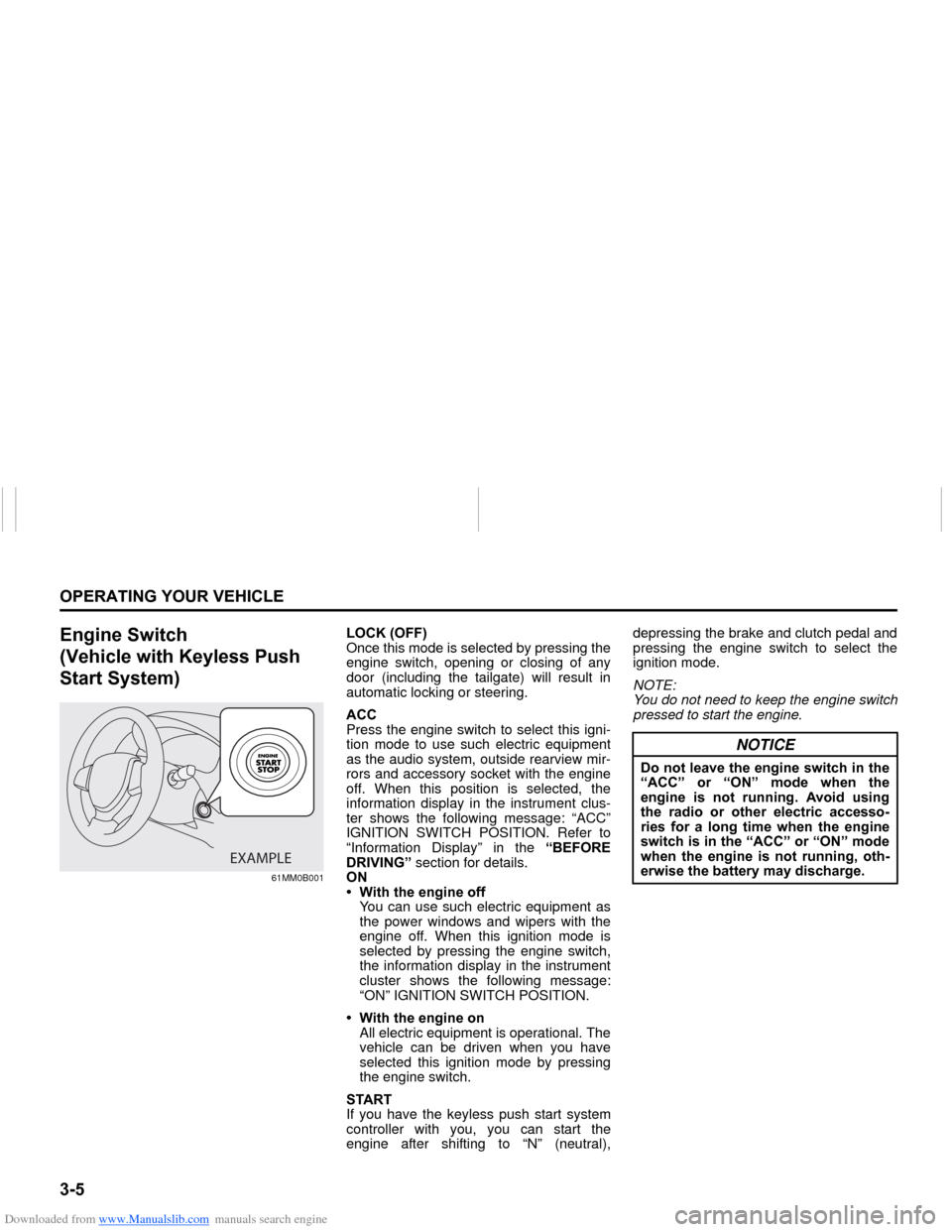

( Q J L Q H 6 Z L W F K
9 H K L F O H Z L W K . H \ O H V V 3 X V K
6 W D U W 6 \ V W H P
61MM0B001
/ 2 & . 2 ) )
Once this mode is selected by pressing the
engine switch, opening or closing of any
door (including the tailgate) will result in
automatic locking or steering.
$ & &
Press the engine switch to select this igni-
tion mode to use such electric equipment
as the audio system, outside rearview mir-
rors and accessory socket with the engine
off. When this position is selected, the
information display in the instrument clus-
ter shows the following message: “ACC”
IGNITION SWITCH POSITION. Refer to
“Information Display” in the ³ % ( ) 2 5 (
' 5 , 9 , 1 * ´ section for details.
2 1
Page 105 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
NOTE:
In the presence of strong radio signals or
noise, you may not be able to change the
ignition mode to ACC or ON or to start the
engine using the engine switch. In this
case, the information display on the instru-
ment cluster will show the following mes-
sage: KEY FOB NOT DETECTED. 8 Q U H O H D V H G 6 W H H U L Q J / R F N : D U Q L Q JIf the steering lock remains engaged when
you press the engine switch to change the
ignition mode to “ON”, the information dis-
play in the instrument cluster shows the
message: “TRN. STEERING WHEEL TO
RELEASE LOCK”. Refer to “Information
Display” in the ³ % ( ) 2 5 ( ' 5 , 9 , 1 * ´ sec-
tion for details.
NOTE:
The steering lock may not be released if
some load is acting on the steering wheel.
If this happens, turn the steering wheel to
the right or left to relieve it from the load
before you press the engine switch again
to change to the desired ignition mode.
. H \ O H V V 3 X V K 6 W D U W 6 \ V W H P
L I H T X L S S H G Provided the keyless push start system
remote controller is within the “interior
workable area” (refer to the related expla-
nation in this section), you can use the
engine switch for starting the engine and
selecting an ignition mode (ACC or ON). In
addition, the following functions can be
used:
• Keyless entry function. Refer to “Keyless
Push Start System Remote Controller” in
the “BEFORE DRIVING” section for
details.
• Locking and unlocking doors (including
the tailgate) using a request switch.
Refer to “Keyless Push Start System
Remote Controller” in the “BEFORE
DRIVING” section for details.
• Immobilizer (anti-theft) function. Refer to
“Immobilizer System” in the “BEFORE
DRIVING” section for details. ( Q J L Q H 6 Z L W F K , O O X P L Q D W L R QThe engine switch is illuminated (lit) in the
following situations:
• When the engine is off and the driver’s
door is open or for 15 seconds after the
drivers door is closed.
• When the engine is off and the position
lights are on. The illumination will go out
when the position lights are turned off.
• When the engine is on and the position
lights and/or the headlights are on. Theillumination will go out when the head-
lights are turned off.
82K253
NOTE:
To save the battery, the illumination will be
automatically turned off when both of the
following conditions are simultaneously
met:
• The headlights and position lights are
turned off.
• A period of 15 minutes has elapsed after
opening the driver’s door. 6 H O H F W L R Q R I , J Q L W L R Q 0 R G H VPress the engine switch to select the
“ACC” or “ON” mode as follows when you
use an electric accessory or check the
operation of instruments without running
the engine.
1) Bring the keyless push start system
remote controller with you and sit in the
driver’s seat.
Page 106 of 288
Downloaded from www.Manualslib.com manuals search engine (1)
(2)
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
2) Without depressing the clutch pedal,
press the engine switch (1).
82K254
Every time you press the engine switch,
the ignition mode changes as follows.
57L31033
NOTE:
When selecting the ignition modes, the
information display in the instrument clus-
ter shows certain messages. Refer to
“Information Display” in the “BEFORE
DRIVING” section for details. , I W K H 0 $ 6 7 ( 5 : $ 5 1 , 1 * L Q G L F D W R U O L J K W
E O L Q N V D Q G W K H L J Q L W L R Q P R G H V F D Q Q R W
E H V H O H F W H G
Your keyless push start system remote con-
troller may not be sensed as being within the
“interior workable area” (refer to the related
explanation in this section). Try again after
making sure you have the remote controller
with you. If the ignition modes still cannot be
selected, the battery of the remote controller
may be discharged. To be able to select an
ignition mode, you must then use the follow-
ing method:
58MST0302
1) Without depressing the brake pedal
and the clutch pedal, push the engine
switch (1).
2) Within about 10 seconds during which
the master warning indicator light in the
instrument cluster is blinking and the
“PLACE KEY FOB ON START
SWITCH” message appears on the
information display, touch the engineswitch with the lock button end of the
remote controller (2) for about 2 sec-
onds.
NOTE:
•
If you still cannot select the ignition
modes, there may be some problem with
the keyless push start system. Contact
an D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
for an inspection of the system.
• The immobilizer/keyless push start sys-
tem warning light will come on for about
5 seconds while the master warning indi-
cator light is blinking. In addition, the
information display in the instrument
cluster will show a message during this
time. Refer to “Information Display” in
the “BEFORE DRIVING” section for
details.
•
You may customize the system to cause
the interior buzzer to sound once for the
remote controller out of sensing range
warning. To incorporate this customiza-
tion, please contact an D X W K R U L V H G 0 D U X W L
6 X ] X N L Z R U N V K R S
• If the battery of the remote controller is
about to become completely discharged,
the corresponding message will appear
on the information display when you
press the engine switch to change the
ignition mode to ON. Refer to “Informa-
tion Display” in the “BEFORE DRIVING”
section for details. For details on replac-
ing the battery, refer to the “Keyless
Push Start System Remote Controller” in
the “BEFORE DRIVING” section.
(OFF)
ON ACC LOCK
(Audio equipment)
( ; $ 0 3 / (
(1)
Page 107 of 288
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
5 H P R W H & R Q W U R O O H U 2 X W V L G H : D U Q L Q JWhen either of the conditions described
below is met, the system issues the remote
controller outside warning by sounding the
interior and exterior buzzers. At the same
time, the immobilizer/keyless push start
system warning light comes on and the
master warning indicator light blinks.
• Any door is opened and then closed
while the remote controller is not inside
the vehicle and the engine is running or
the ignition mode has been changed to
“ACC” or “ON” by pressing the engine
switch.
• The remote controller is not inside the
vehicle when you attempt to start the
engine after changing the ignition mode
to “ACC” or “ON” by pressing the engine
switch.
61MM0A182
(1) Immobilizer/keyless push start sys-
tem warning light (blinks)
(2) Master warning indicator light (blinks)
NOTE:
• If the warning is given, locate the remote
controller as soon as possible.
• Any attempt to start the engine will fail
while the warning is active. The mes-
sage appearing on the information dis-
play in the instrument cluster will also
indicate this condition. Refer to “Informa-
tion display” in the “BEFORE DRIVING”
section for details.
• Normally, the immobilizer/keyless push
start system warning light should go out
and the master warning indicator light
should stop blinking shortly after the
remote controller is brought back inside
the vehicle. If they remain lit and blink-
ing, change the ignition mode to “LOCK”
(OFF) by pressing the engine switch and
then perform the engine starting opera-
tion. Refer to “Starting the Engine” in this
section.
• Always keep the remote controller with
you as the driver.
, Q W H U L R U : R U N D E O H $ U H D I R U ( Q J L Q H
6 W D U W L Q J , J Q L W L R Q 0 R G H 6 H O H F W L R Q
D Q G 5 H P R W H & R Q W U R O O H U 2 X W V L G H
: D U Q L Q J
61MM0B002
(1) Interior workable area
The interior workable area for these func-
tions is defined as all the interior spaces
except for the space above the instrument
panel.
NOTE:
• Even when the remote controller is in the
“interior workable area”, if it is in any of
the following conditions, you may not be
able to start the engine or select the igni-
tion modes, and the remote controller
outside warning may be given.
– The remote controller’s battery is low.
– The remote controller is affected by
strong radio signals or noise.
– The remote controller is in contact with
or covered by a metallic object.
(1)
(2)
(1)
Page 108 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
– The remote controller is in stowage
like the glove box or a door pocket.
– The remote controller is in the sun
visor pocket or on the floor.
• Even when the remote controller is out-
side the “interior workable” area, if it is in
any of the following conditions, you may
be able to start the engine or select the
ignition mode. The “remote controller
outside” warning may not be given at
that time.
– The remote controller is outside the
vehicle but very close to a door.
– The remote controller is on the instru-
ment panel.
3 D U N L Q J % U D N H / H Y H U
64MS185
(1) To set
(2) To release
(3) To release
The parking brake lever is located between
the seats. To set the parking brake, hold
the brake pedal down and pull the parking
brake lever all the way up. To release the
parking brake, hold the brake pedal down,
pull up slightly on the parking brake lever,
push the button on the end of the lever
with your thumb, and lower the lever to its
original position.
(2)
(3) (1)
( ; $ 0 3 / (
: $ 5 1 , 1 *
Page 109 of 288
![SUZUKI NEXA 2015 1.G Owners Manual Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
3 D U N L Q J % U D N H 5 H P L Q G H U % X ] ] H UA buzzer sou](/img/20/7598/w960_7598-108.png "SUZUKI NEXA 2015 1.G Owners Manual Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
3 D U N L Q J % U D N H 5 H P L Q G H U % X ] ] H UA buzzer sou")
Downloaded from www.Manualslib.com manuals search engine
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
3 D U N L Q J % U D N H 5 H P L Q G H U % X ] ] H UA buzzer sounds intermittently to remind
you to release the parking brake if you start
the vehicle without releasing the parking
brake. Make sure that the parking brake is
fully released and the brake system warning
light turns off.
3 H G D O
80J2121
& O X W F K 3 H G D O The clutch pedal is used to disengage the
drive to the wheels when starting the
engine, stopping, or shifting the gearshift
lever. Depressing the pedal disengages the
clutch. % U D N H 3 H G D O Your vehicle is equipped with either front
and rear disc brakes or front disc brakes
and rear drum brakes. Depressing the
brake pedal applies both sets of brakes.
You may hear occasional brake squeal
when you apply the brakes. This is a nor-mal condition caused by environmental
factors such as cold, wet, snow, etc.
$ F F H O H U D W R U 3 H G D O This pedal controls the speed of the
engine. Depressing the accelerator pedal
increases power output and speed.
: $ 5 1 , 1 *
' R Q R W G U L Y H Z L W K \ R X U I R R W U H V W L Q J R Q
W K H F O X W F K S H G D O , W F R X O G U H V X O W L Q
H [ F H V V L Y H F O X W F K Z H D U F O X W F K G D P D J H
R U X Q H [ S H F W H G O R V V R I H Q J L Q H E U D N L Q J
(2)
(1)
(3) ( ; $ 0 3 / (
: $ 5 1 , 1 *
, I E U D N H V T X H D O L V H [ F H V V L Y H D Q G
R F F X U V H D F K W L P H W K H E U D N H V D U H
D S S O L H G \ R X V K R X O G K D Y H W K H E U D N H V
F K H F N H G E \ \ R X U D X W K R U L V H G 0 D U X W L
6 X ] X N L Z R U N V K R S
: $ 5 1 , 1 *
' R Q R W U L G H W K H E U D N H V E \ D S S O \ L Q J
W K H P F R Q W L Q X R X V O \ R U U H V W L Q J \ R X U
I R R W R Q W K H S H G D O 7 K L V Z L O O U H V X O W L Q
R Y H U K H D W L Q J R I W K H E U D N H V Z K L F K
F R X O G F D X V H X Q S U H G L F W D E O H E U D N L Q J
D F W L R Q O R Q J H U V W R S S L Q J G L V W D Q F H V R U
S H U P D Q H Q W E U D N H G D P D J H
Page 110 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 ( 6 W D U W L Q J W K H ( Q J L Q H
9 H K L F O H Z L W K R X W . H \ O H V V 3 X V K
6 W D U W 6 \ V W H P
% H I R U H 6 W D U W L Q J W K H ( Q J L Q H
64MS146
1) Make sure the parking brake is set fully.
2) Shift into “N” (Neutral) and depress the
clutch pedal all the way to the floor. Hold
the clutch pedal while starting the
engine.
6 W D U W L Q J D & R O G D Q G : D U P ( Q J L Q H & R O G H Q J L Q H
Turn the ignition switch to the “ON” posi-
tion and wait until the glow plug indicator
goes out if it comes on. Crank the engine
by turning the ignition key to “START”.
Release the key when the engine starts.
: D U P H Q J L Q H
Crank the engine by turning the ignition
key to “START”. Release the key when the
engine starts.
& D X W L R Q Z K H Q V W R S S L Q J W K H H Q J L Q H Z L W K
W X U E R F K D U J H U
When stopping the engine after climbing or
high speed driving, let the engine idle for
about one minute or more (if it is not pro-
hibited) to cool down the turbocharger and
engine oil. This is to prevent the engine oil
from over-deteriorating. Deteriorated
engine oil will damage the bearings of the
turbocharger.
5 H V W D U W L Q J G L H V H O H Q J L Q H D I W H U I X H O
H P S W \ V W R S
If the engine stops and the low fuel warning
light and the malfunction indicator light
come on, use the following procedure:
1) Fill the fuel tank.
2) Hold the ignition key in “ON” position for
5-10 seconds to feed fuel.
3) Perform above engine starting proce-
dure to start the engine.
If the malfunction indicator light still comes
on after the engine started, there may be
some problem with the engine. Ask your
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
to have
the
engine inspected.
: $ 5 1 , 1 *
