% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
This system is operated by a signal from the
light sensor (5) on the front windshield. Do
not cover the sensor (5). If you do, the sys-
tem will not work correctly.NOTE:
The light sensor is sensitive to infrared
rays, so it may operate incorrectly in the
region of strong infrared rays.
5 H S U R J U D P P L Q J W K H D X W R P D W L F O L J K W
I X Q F W L R Q
The following settings of the automatic
light function can be customized to your
preference. Please contact an D X W K R U L V H G
0 D U X W L 6 X ] X N L Z R U N V K R S if you want the
function reprogrammed.
6 H Q V L W L Y L W \ R I W K H O L J K W V H Q V R U
The amount of outside light needed to turn
the lights on and off is pre-set at the fac-
tory. The sensitivity of the light sensor can
be adjusted so that the lights are turned on
and off when it is:
• lighter outside than the pre-set condition,
or
• darker outside than the pre-set condition 5 D L Q W U L J J H U H G D X W R P D W L F O L J K W L Q J R S H U
D W L R Q
The setting of the auto-on headlight sys-
tem can be changed to make it turn on the
headlights:
• when the rain sensor senses heavy rain-
fall
• when the rain sensor senses light and
heavy rainfall (in coordination with rain-
sensing wiper operation), or
• independently from rain-sensing wiper
operation. / L J K W 5 H P L Q G H U % X ] ] H UThe interior buzzer continuously beeps if
you open the driver’s door without turning
off the headlights and position lights. This
function is triggered under the following
condition:
The headlights and/or position lights are on
even after the ignition switch is turned off, or
the engine switch is pressed to change the
ignition mode to LOCK (OFF).
The buzzer stops sounding when you turn
off the headlights and position lights.NOTE:A message is indicated on the information
display in the instrument cluster while the
buzzer is sounding.
) U R Q W ) R J / L J K W 6 Z L W F K
L I H T X L S S H G
64J058
The front fog light comes on when the fog
light switch is pushed in with the position
lights, tail lights and/or the headlights are
on. An indicator light above the switch will
be lit when the front fog light is on.
NOTE:
In some countries the lighting operation
may be different from the above descrip-
tion according to local regulations.
: $ 5 1 , 1 *
, W W D N H V D E R X W V H F R Q G V I R U W K H O L J K W
V H Q V R U W R U H D F W W R D F K D Q J H L Q O L J K W L Q J
F R Q G L W L R Q V 7 R K H O S D Y R L G D Q D F F L G H Q W
G X H W R U H G X F H G Y L V L E L O L W \ W X U Q R Q \ R X U
K H D G O L J K W V E H I R U H G U L Y L Q J L Q W R D W X Q Q H O
S D U N L Q J V W U X F W X U H R U W K H O L N H
Page 92 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
+ H D G O L J K W / H Y H O L Q J 6 Z L W F K
80JM040
Level the headlight beam according to the
load condition of your vehicle by turning this
switch. The chart below shows the appropri-
ate switch position for different vehicle-load
conditions.
7 X U Q 6 L J Q D O & R Q W U R O / H Y H U
65D611
7 X U Q 6 L J Q D O 2 S H U D W L R QWith the ignition switch in the “ON” position
or the ignition mode ON, move the lever up
or down to activate the right or left turn sig-
nals.
1 R U P D O W X U Q V L J Q D O
60MK013
Move the lever all the way upward or
downward to signal. When the turn is com-
pleted, the signal will cancel and the lever
will return to its normal position.
/ D Q H F K D Q J H V L J Q D O
60MK014
Move the lever part-way in the direction to
turn and hold it there.
Vehicle Load
Condition
Switch PositionD13A
EngineD16AA
Engine
Driver only 0 0Driver +
1 passenger
(in front seat)
00
Driver +
4 passengers,
no cargo
11
Driver +
4 passengers,
cargo added
22
Driver +
full cargo
33
: $ 5 1 , 1 *
7 R D Y R L G S R V V L E O H L Q M X U \ G R Q R W R S H U
D W H F R Q W U R O V E \ U H D F K L Q J W K U R X J K W K H
V W H H U L Q J Z K H H O
( ; $ 0 3 / ( ( ; $ 0 3 / (
Page 93 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
• The turn signal and its indicator flash
while the lever is held at the moved posi-
tion.
The turn signal and its indicator flash three
times even if you return the lever immedi-
ately after moving it.
NOTE:
The turn signal and its indicator can be set
whether they flash three times after the
turn signal lever is returned via the infor-
mation display. Refer to “Information Dis-
play” in this section.
NOTE:
You can customize the setting for the num-
ber of times of flashing of the turn signal
and its indicator (1 to 4 times). Please ask
an D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S for
the customization.
+ D ] D U G : D U Q L Q J 6 Z L W F K
61M0163
Push in the hazard warning switch to acti-
vate the hazard warning lights. All turn sig-
nal lights and both turn signal indicators
will flash simultaneously. To turn off the
lights, push the switch again.
Use the hazard warning lights to warn
other traffic during emergency parking or
when your vehicle could otherwise become
a traffic hazard.
: L Q G V K L H O G : L S H U D Q G : D V K H U
/ H Y H U
57L21128
( ; $ 0 3 / (
: $ 5 1 , 1 *
7 R D Y R L G S R V V L E O H L Q M X U \ G R Q R W R S H U
D W H F R Q W U R O V E \ U H D F K L Q J W K U R X J K W K H
V W H H U L Q J Z K H H O
Page 94 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (

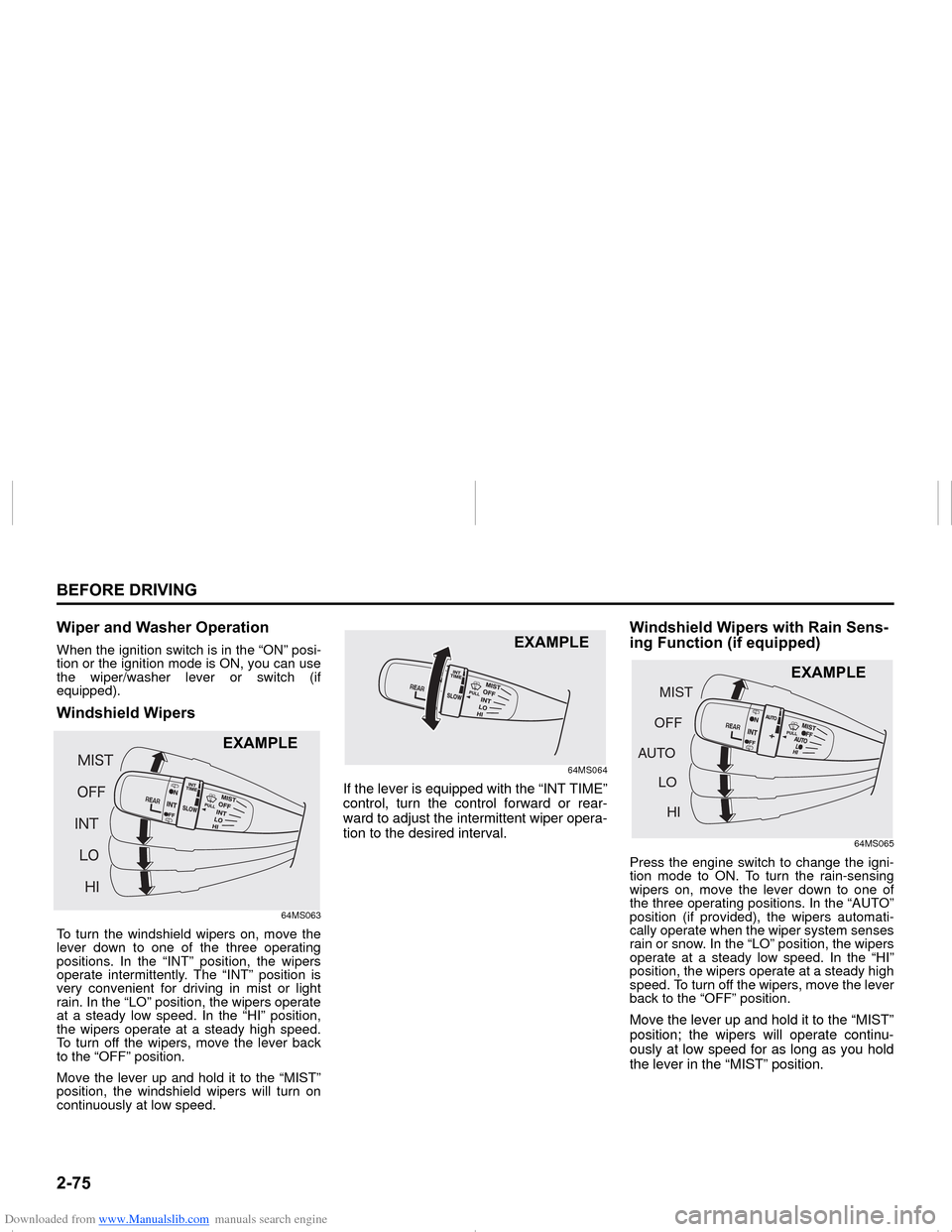

: L S H U D Q G : D V K H U 2 S H U D W L R QWhen the ignition switch is in the “ON” posi-
tion or the ignition mode is ON, you can use
the wiper/washer lever or switch (if
equipped). : L Q G V K L H O G : L S H U V
64MS063
To turn the windshield wipers on, move the
lever down to one of the three operating
positions. In the “INT” position, the wipers
operate intermittently. The “INT” position is
very convenient for driving in mist or light
rain. In the “LO” position, the wipers operate
at a steady low speed. In the “HI” position,
the wipers operate at a steady high speed.
To turn off the wipers, move the lever back
to the “OFF” position.
Move the lever up and hold it to the “MIST”
position, the windshield wipers will turn on
continuously at low speed.
64MS064
If the lever is equipped with the “INT TIME”
control, turn the control forward or rear-
ward to adjust the intermittent wiper opera-
tion to the desired interval.
: L Q G V K L H O G : L S H U V Z L W K 5 D L Q 6 H Q V
L Q J ) X Q F W L R Q L I H T X L S S H G
64MS065
Press the engine switch to change the igni-
tion mode to ON. To turn the rain-sensing
wipers on, move the lever down to one of
the three operating positions. In the “AUTO”
position (if provided), the wipers automati-
cally operate when the wiper system senses
rain or snow. In the “LO” position, the wipers
operate at a steady low speed. In the “HI”
position, the wipers operate at a steady high
speed. To turn off the wipers, move the lever
back to the “OFF” position.Move the lever up and hold it to the “MIST”
position; the wipers will operate continu-
ously at low speed for as long as you hold
the lever in the “MIST” position.
( ; $ 0 3 / (
( ; $ 0 3 / (
MIST
HI OFF
LO AUTO
( ; $ 0 3 / (
Page 95 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
64MS066
If the control lever has on “AUTO” position,
you can change the system’s sensitivity to
rain/snow by turning the knob of the control
lever forward for increased sensitivity or
rearward for decreased sensitivity.
61M0219
(1) Rain sensorNOTE:
• Under the following conditions, the rain
sensor may not be able to sense rain or
snow correctly, and thus the rain-sensing
wiper function may not work or may work
incorrectly. (Use a position other than
“AUTO” under these conditions.)
– Rain or snow does not hit the rain sen-
sor area of the windshield, or the snow
is not of a type that is able to be
detected by the sensor.
– The rain sensor area is covered with
mud, ice or other similar substance.
You should remove any foreign sub-
stance.– There were already raindrops on the
windshield before starting rain-sensing
wiper operation. You should remove
the raindrops by operating the wipers
under manual control.
– The rain sensor is hotter than 80°C
(176°F) in the sun or lower than –10°C
(14°F) in freezing weather. (The wip-
ers do not operate under this condi-
tion.)
– The windshield is coated with a water-
repellent substance, which causes
raindrops to run down quickly. This will
give a clearer view and the wipers
may seem to operate too frequently. In
this case, decrease the system’s sen-
sitivity.
– The sensor area is covered with a
sticker.
– The wiper blades are damaged. You
should replace them.
•
The following conditions may indicate
problems with the rain-sensing wiper
system. If your system exhibits any of
the following conditions, have it
inspected by an D X W K R U L V H G 0 D U X W L
6 X ] X N L Z R U N V K R S.
– Rainfall/snowfall rate varies but the
wiping interval remains constant.
– Rain/snow is falling but the wipers do
not operate. ( ; $ 0 3 / (
(1)
& $ 8 7 , 2 1
Page 96 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
5 H S U R J U D P P L Q J W K H U D L Q V H Q V L Q J Z L S H U
I X Q F W L R QThe “AUTO” position operation of the rain-
sensing wiper function can be customized
to your preference by reprogramming its
setting as follows. Please contact an D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S
for
this customization. ) X O O D X W R P D W L F Z L S L Q J I D F W R U \ V H W W L Q J
The system automatically selects the most
appropriate of the following wiping modes:
no wiping, intermittent wiping, low-speed
wiping, and high-speed wiping.
6 H P L D X W R P D W L F Z L S L Q J
The system automatically selects the most
appropriate of the following wiping modes:
intermittent wiping, low-speed wiping, or
high-speed wiping. (The wipers do not stop
automatically.)
, Q W H U P L W W H Q W Z L S L Q J
The wipers operate only in the intermittent
wiping mode. The wiping interval can be
changed with the knob on the control lever.

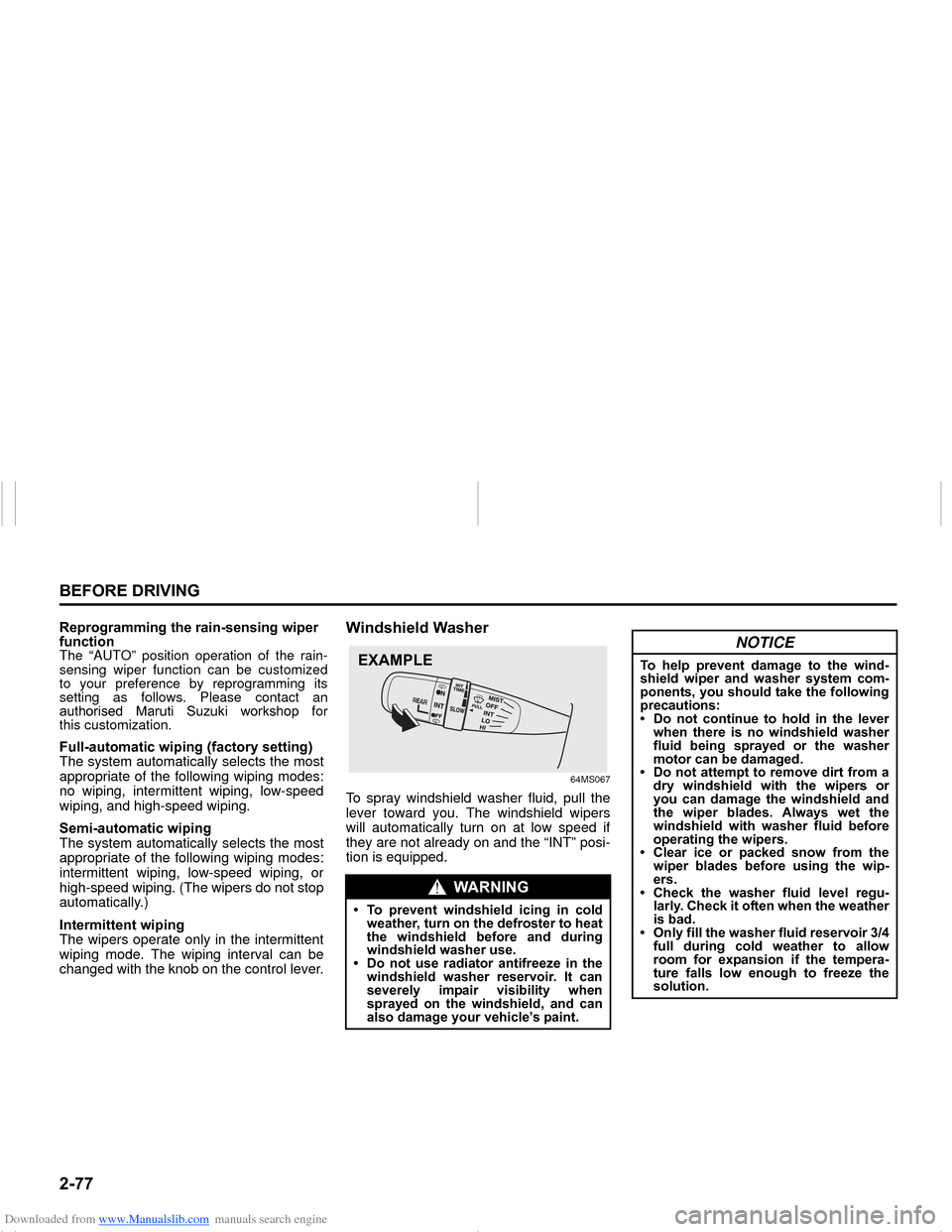

: L Q G V K L H O G : D V K H U
64MS067
To spray windshield washer fluid, pull the
lever toward you. The windshield wipers
will automatically turn on at low speed if
they are not already on and the “INT” posi-
tion is equipped.
: $ 5 1 , 1 *
Page 97 of 288
Downloaded from www.Manualslib.com manuals search engine
% ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
5 H D U : L Q G R Z : L S H U : D V K H U 6 Z L W F K
L I H T X L S S H G
64MS068
To turn the rear wiper on, twist the rear
wiper switch on the end of the lever forward
to the “ON” position. If your vehicle is
equipped the “INT” position, the rear wiper
operates intermittently when you twist the
switch forward to the “INT” position. To turn
the rear wiper off, twist the switch rearward
to the “OFF” position.With the rear wiper in the “OFF” position,
twist the switch rearward and hold it there
to spray window washer fluid.
With the rear wiper in the “ON” position,
turn the switch forward and hold it there to
spray window washer fluid.
7 L O W 7 H O H V F R S L Q J L I H T X L S S H G 6 W H H U
L Q J / R F N / H Y H U
61MM0A085
(1) LOCK
(2) UNLOCK
The lock lever is located under the steering
column. To adjust the steering wheel
height and fore-aft position:
1) Push down the lock lever to unlock the
steering column.
2) Adjust the steering wheel to the desired
height and fore-aft position and lock the
steering column by pulling up the lock
lever.
3) Try moving the steering wheel up and
down and back and forth to make sure
it is securely locked in position.
( ; $ 0 3 / (
Intermittent wiper WasherWiper
NOTICE
& O H D U L F H R U V Q R Z I U R P W K H U H D U Z L Q
G R Z D Q G U H D U Z L S H U E O D G H E H I R U H
X V L Q J W K H U H D U Z L S H U $ F F X P X O D W H G
L F H R U V Q R Z F R X O G S U H Y H Q W W K H Z L S H U
E O D G H I U R P P R Y L Q J F D X V L Q J G D P D J H
W R W K H Z L S H U P R W R U
: $ 5 1 , 1 *
1 H Y H U D W W H P S W W R D G M X V W W K H V W H H U L Q J
Z K H H O Z K L O H W K H Y H K L F O H L V P R Y L Q J R U
\ R X F R X O G O R V H F R Q W U R O R I W K H Y H K L F O H
(2) ( ; $ 0 3 / (
( )
Page 98 of 288
Downloaded from www.Manualslib.com manuals search engine % ( ) 2 5 ( ' 5 , 9 , 1 *
0 6 (
+ R U Q
68LM240
Press the horn button of the steering wheel
to sound the horn. The horn will sound with
the ignition switch in any position or any
ignition mode.
+ H D W H G 5 H D U : L Q G R Z 6 Z L W F K L I
H T X L S S H G 7 \ S H
64MS167
7 \ S H
64MS168
When the rear window is misted, push this
switch (1) to clear the mist from the win-
dow.An indicator light will be lit when the defog-
ger is on. The defogger will work only
when the engine is running. To turn off the
defogger, push the switch (1) again.
NOTE:
• The defogger will work only when the
engine is running.
• The defogger will automatically turn off
after the defogger remains on for 15 min-
utes to prevent discharging of the bat-
tery.
REAR
12
3
04A/C
( ; $ 0 3 / (
(1)
( ; $ 0 3 / ( ( ; $ 0 3 / (
NOTICE
7 K H K H D W H G U H D U Z L Q G R Z X V H V D O D U J H
D P R X Q W R I H O H F W U L F L W \ % H V X U H W R W X U Q
R I I D I W H U W K H Z L Q G R Z D Q G P L U U R U V K D Y H
E H F R P H F O H D U
(1)
Page 99 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / ( ( [ K D X V W * D V : D U Q L Q J
' D L O \ , Q V S H F W L R Q & K H F N O L V W
( Q J L Q H 2 L O & R Q V X P S W L R Q
, J Q L W L R Q 6 Z L W F K
9 H K L F O H Z L W K R X W . H \ O H V V 3 X V K 6 W D U W 6 \ V W H P
( Q J L Q H 6 Z L W F K
9 H K L F O H Z L W K . H \ O H V V 3 X V K 6 W D U W 6 \ V W H P
. H \ O H V V 3 X V K 6 W D U W 6 \ V W H P L I H T X L S S H G
3 D U N L Q J % U D N H / H Y H U
3 H G D O
6 W D U W L Q J W K H ( Q J L Q H
9 H K L F O H Z L W K R X W . H \ O H V V 3 X V K 6 W D U W 6 \ V W H P
6 W D U W L Q J W K H ( Q J L Q H
9 H K L F O H Z L W K . H \ O H V V 3 X V K 6 W D U W 6 \ V W H P
8 V L Q J W K H 7 U D Q V D [ O H
& U X L V H & R Q W U R O L I H T X L S S H G
3 D U N L Q J 6 H Q V R U V L I H T X L S S H G
5 H D U Y L H Z & D P H U D L I H T X L S S H G
% U D N L Q J
Page 100 of 288
Downloaded from www.Manualslib.com manuals search engine 2 3 ( 5 $ 7 , 1 * < 2 8 5 9 ( + , & / (
0 6 (
( [ K D X V W * D V : D U Q L Q J
52D334
' D L O \ , Q V S H F W L R Q & K H F N O L V W % H I R U H ' U L Y L Q J
60A187
1) Make sure that windows, mirrors, lights
and reflectors are clean and unob-
structed.
2) Visually check the tires for the following
points:
– the depth of the tread groove
– abnormal wear, cracks and damage
– loose wheel nuts
– existence of foreign material such as
nails, stones, etc.
Refer to “Tires” in
