SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Engine General Information and Diagnosis:  1A-51
Excessive hydrocarbon
(HC) emission or carbon
monoxide (CO)Faulty spark plug“Spark Plug In

Page 102 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1A-52 Engine General Information and Diagnosis:
Malfunction Indicator Lamp Does Not Come ON with Ignition Switch ON and Engine Stop (but
Engi

Page 103 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Engine General Information and Diagnosis:  1A-53
Troubleshooting
NOTE
• Before performed trouble shooting, be sure to read the “Precautions

Page 104 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1A-54 Engine General Information and Diagnosis:
Malfunction Indicator Lamp Remains ON after Engine StartsS6RW0D1104012
Wiring Diagram
Refer to

Page 105 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Engine General Information and Diagnosis:  1A-55
DTC P0010: Camshaft Position Actuator Circuit (for engine with VVT system)S6RW0D1104013
System

Page 106 of 1556

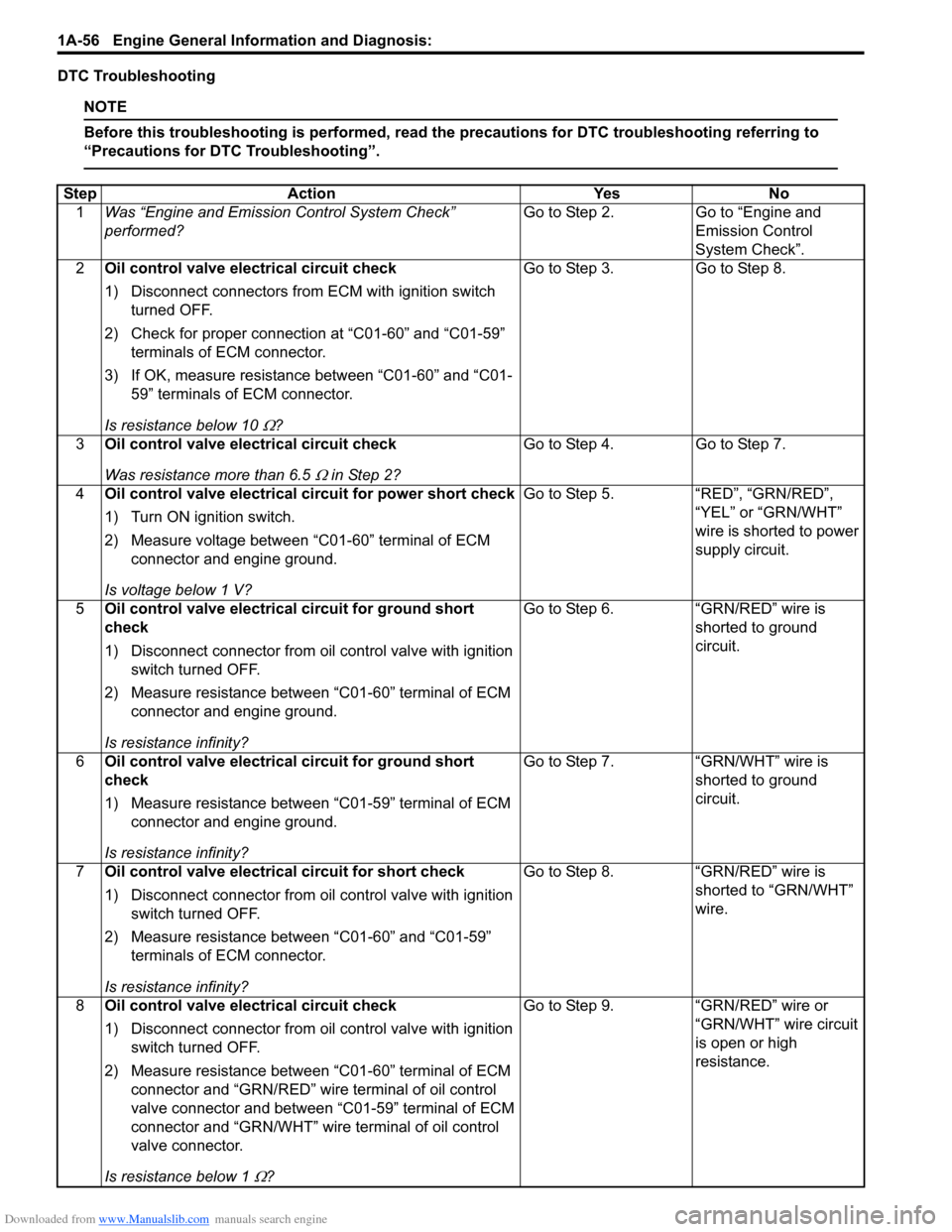

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1A-56 Engine General Information and Diagnosis:
DTC Troubleshooting
NOTE
Before this troubleshooting is performed, read the precautions for DT

Page 107 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Engine General Information and Diagnosis:  1A-57
DTC P0011 / P0012: Camshaft Position - Timing Over-Advanced or System Performance / Retarded

Page 108 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1A-58 Engine General Information and Diagnosis:
DTC Troubleshooting
NOTE
Before this troubleshooting is performed, read the precautions for DT

Page 109 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Engine General Information and Diagnosis:  1A-59
DTC P0031 / P0032: HO2S Heater Control Circuit Low / High (Sensor-1)S6RW0D1104015
Wiring Diagr

Page 110 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1A-60 Engine General Information and Diagnosis:
2HO2S-1 heater power circuit check
1) Disconnect connector from HO2S-1 with ignition switch
t
