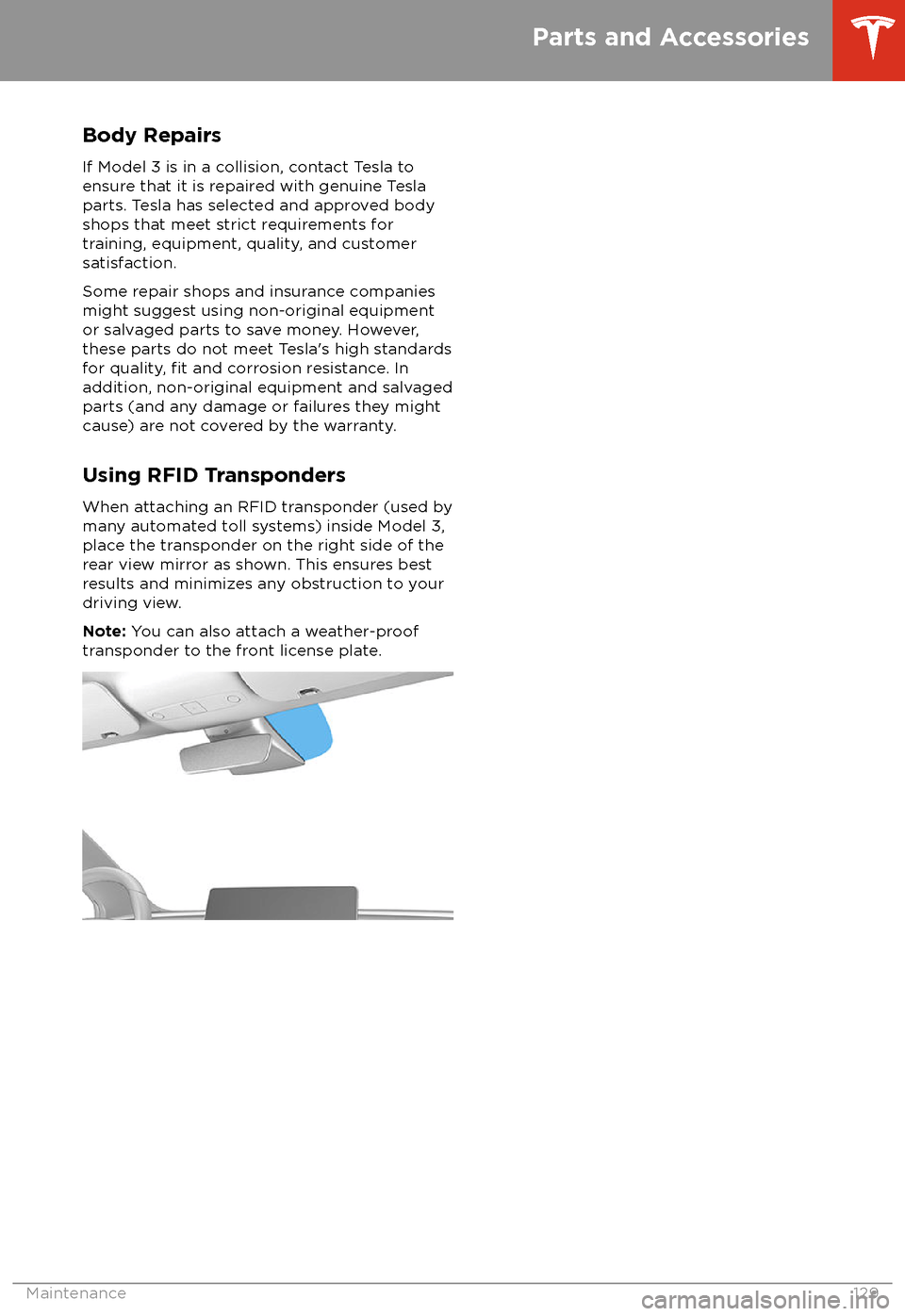

Body Repairs
If Model 3 is in a collision, contact Tesla to
ensure that it is repaired with genuine Tesla
parts. Tesla has selected and approved body
shops that meet strict requirements for
training, equipment, quality, and customer satisfaction.
Some repair shops and insurance companies
might suggest using non-original equipment
or salvaged parts to save money. However,
these parts do not meet Tesla

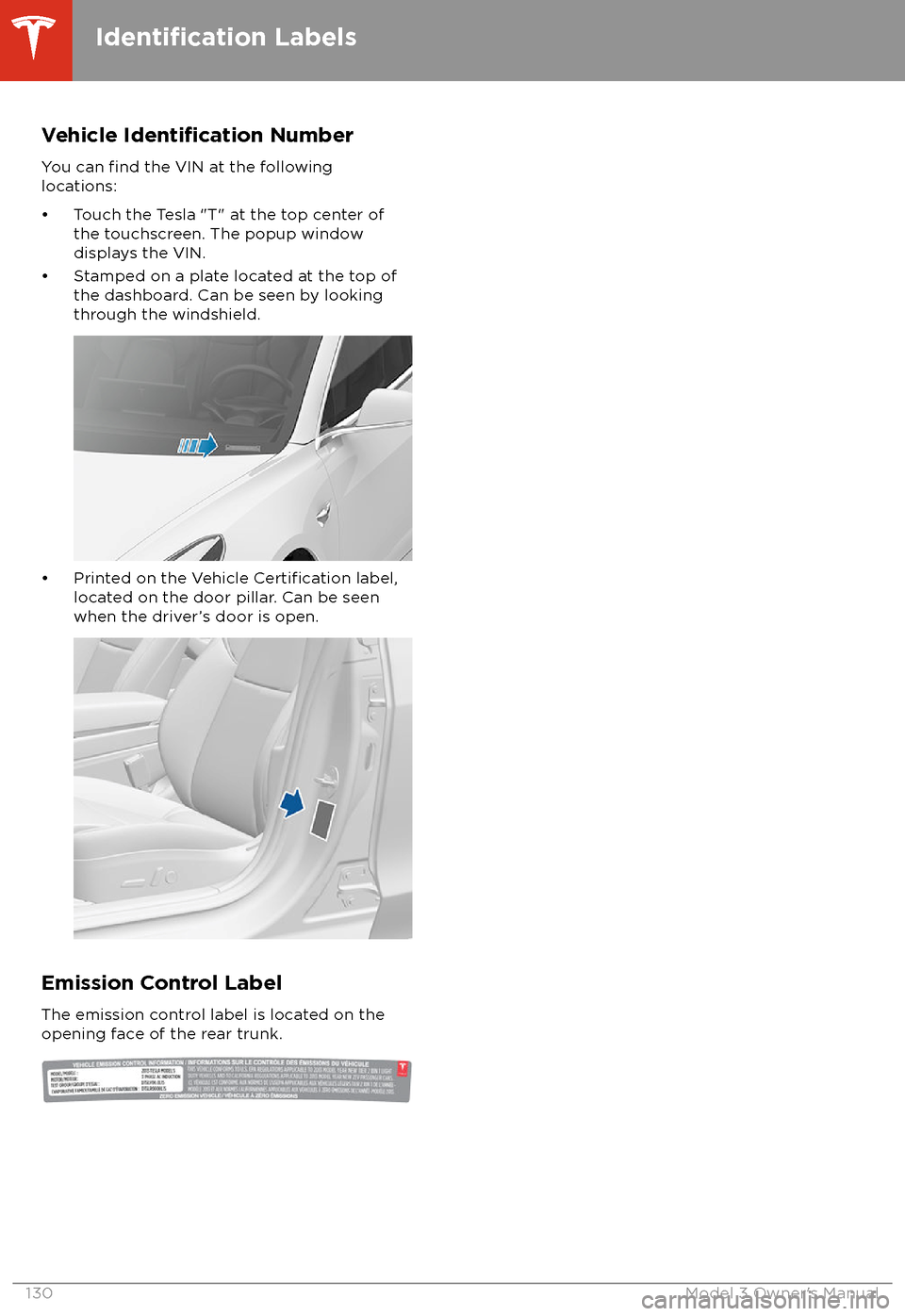

Vehicle Identification Number
You can
find the VIN at the following
locations:

Load Capacity Labeling
It is important to understand how much weight your Model 3 can safely carry. Thisweight is called the vehicle capacity weight
and includes the weight of all occupants, cargo and any additional equipment added toyour Model 3 since it was manufactured.
Two labels attached to the center door pillar
indicate how much weight Model 3 can safely
carry. Labels are visible when the front door is
open.
Note: If your Model 3 is
fitted with Tesla
accessory wheels or tires, some information
may be
different from the labels on the
vehicle. See Accessory Wheels and Tires on
page 127.
1. Tire and Loading Information Label
2. Vehicle Certification Label
Warning:
Overloading Model 3 has an
adverse effect on braking and handling,
which can compromise your safety or cause damage.Caution: Never load more than 55 lbs
(25 kg) in the front trunk. Doing so can
cause damage.Caution: Never load more than 130 lbs
(60 kg) on the rear load floor (above the
lower trunk compartment) or more than
130 lbs (60 kg) in the lower trunk
compartment. Doing so can cause
damage.Caution: Never store large amounts of
liquid in Model 3. A significant spill can
cause electrical components to
malfunction.Tire and Loading Information Label
The Tire and Loading Information label
provides:

Caution: To prevent damage, never load
Model 3 so that it is heavier than GVWR
or exceeds the individual GAWR weights.
Calculating Load Limits
1. Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on the
“Tire and Loading Information” label.
2. Determine the combined weight of all
occupants that will ride in the vehicle.
3. Subtract the combined weight of the
occupants from XXX kg or XXX lbs (see
Step 1).
4. The resulting
figure equals the available
cargo load capacity. For example, if the
“XXX” amount equals 1400 lbs (635 kg)
and there will be
five 150 lb (68 kg)
passengers in the vehicle, the amount of
available cargo capacity is 650 lbs
(1400

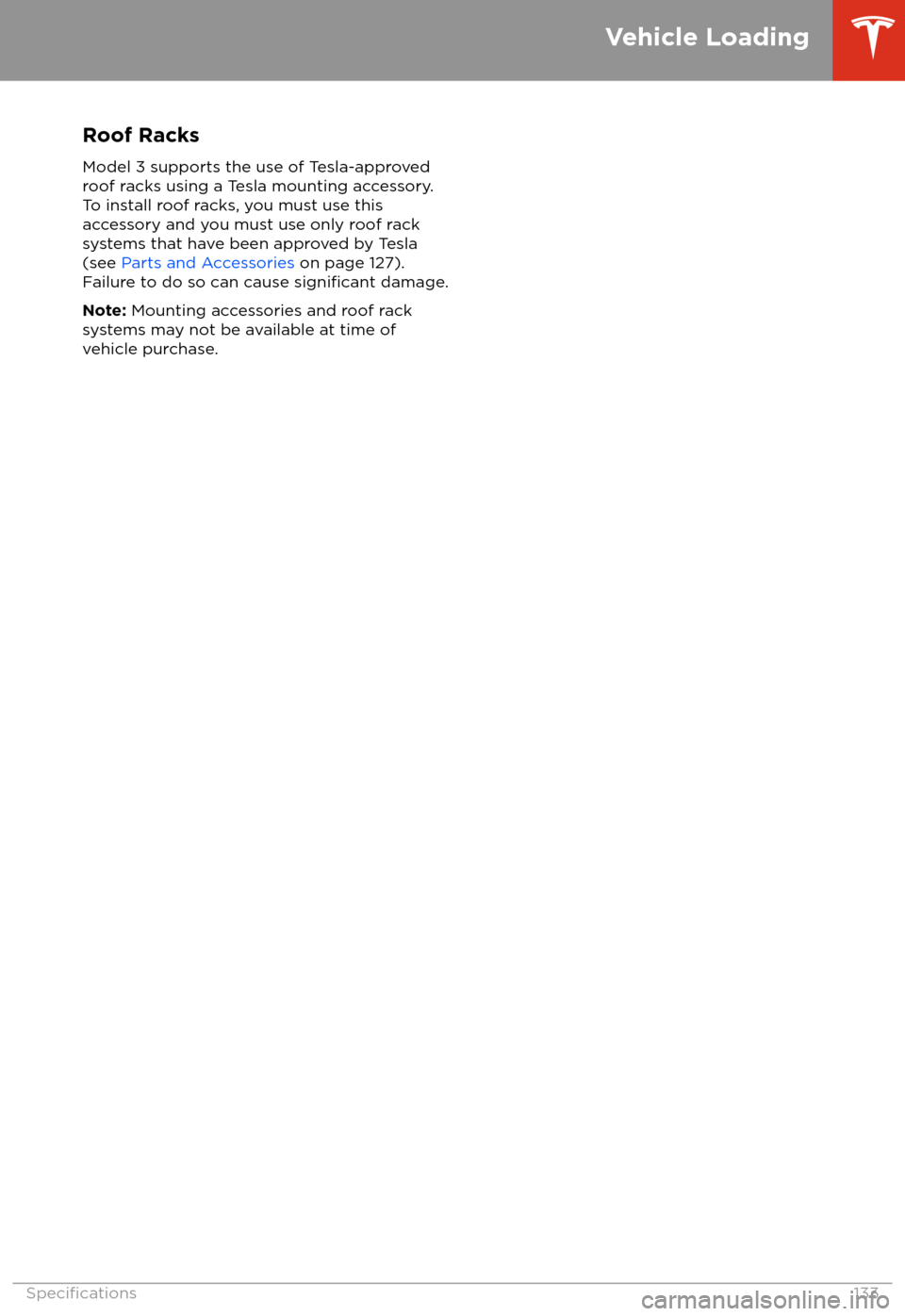

Roof RacksModel 3 supports the use of Tesla-approved
roof racks using a Tesla mounting accessory.
To install roof racks, you must use this
accessory and you must use only roof rack
systems that have been approved by Tesla
(see Parts and Accessories on page 127).
Failure to do so can cause
significant damage.
Note: Mounting accessories and roof rack
systems may not be available at time of
vehicle purchase.
Vehicle Loading
Specifications133

Exterior DimensionsAOverall Length184.8 in4,694 mm
B
Overall Width (including mirrors)Overall Width (including folded
mirrors)
Overall Width (excluding mirrors)82.2 in 76.1 in
72.8 in2,088 mm 1,933 mm
1,849 mmCOverall Height - coil suspension57 in1,443 mmDWheel Base113.2 in2,875 mmEOverhang - Front33 in841 mmFOverhang - Rear39 in978 mmGGround Clearance - coil
suspension5.5 in140 mmHTrack - Front
Track - Rear62 in
62 in1,580 mm
1,580 mmNote: Values are approximate. The dimensions can vary depending on vehicle configuration and
various other factors.
Interior Dimensions
Head Room (Premium
Package)Front Rear40.3 in37.7 in1,024 mm 958 mmLeg RoomFrontRear42.7 in35.2 in1,085 mm 894 mmShoulder RoomFrontRear56.3 in 54 in1,430 mm1,372 mmHip RoomFront Rear53.4 in52.4 in1,356 mm 1,331 mm
Dimensions and Weights
134Model 3 Owner

Cargo VolumeTotal enclosed cargo volume15 cu ft
Weights
Curb Weight* - Long Range Battery3,838 lbs1,741 kgGVWR** - Long Range Battery4,801 lbs2,178 kgGross Vehicle Weight Distribution -Long Range BatteryFront: 44.5%Rear: 55.5%Gross Axle Weight Rating - Front2,447 lbs1,110 kgGross Axle Weight Rating - Rear: 18"
wheels2,840 lbs1,288 kgGross Axle Weight Rating - Rear: 19"
wheels2,767 lbs1,255 kgTrailer TowingNot permissible*Curb Weight = weight of the vehicle with correct fluid levels, no occupants and no cargo
**GVWR = Gross Vehicle Weight Rating
Dimensions and Weights
Specifications135

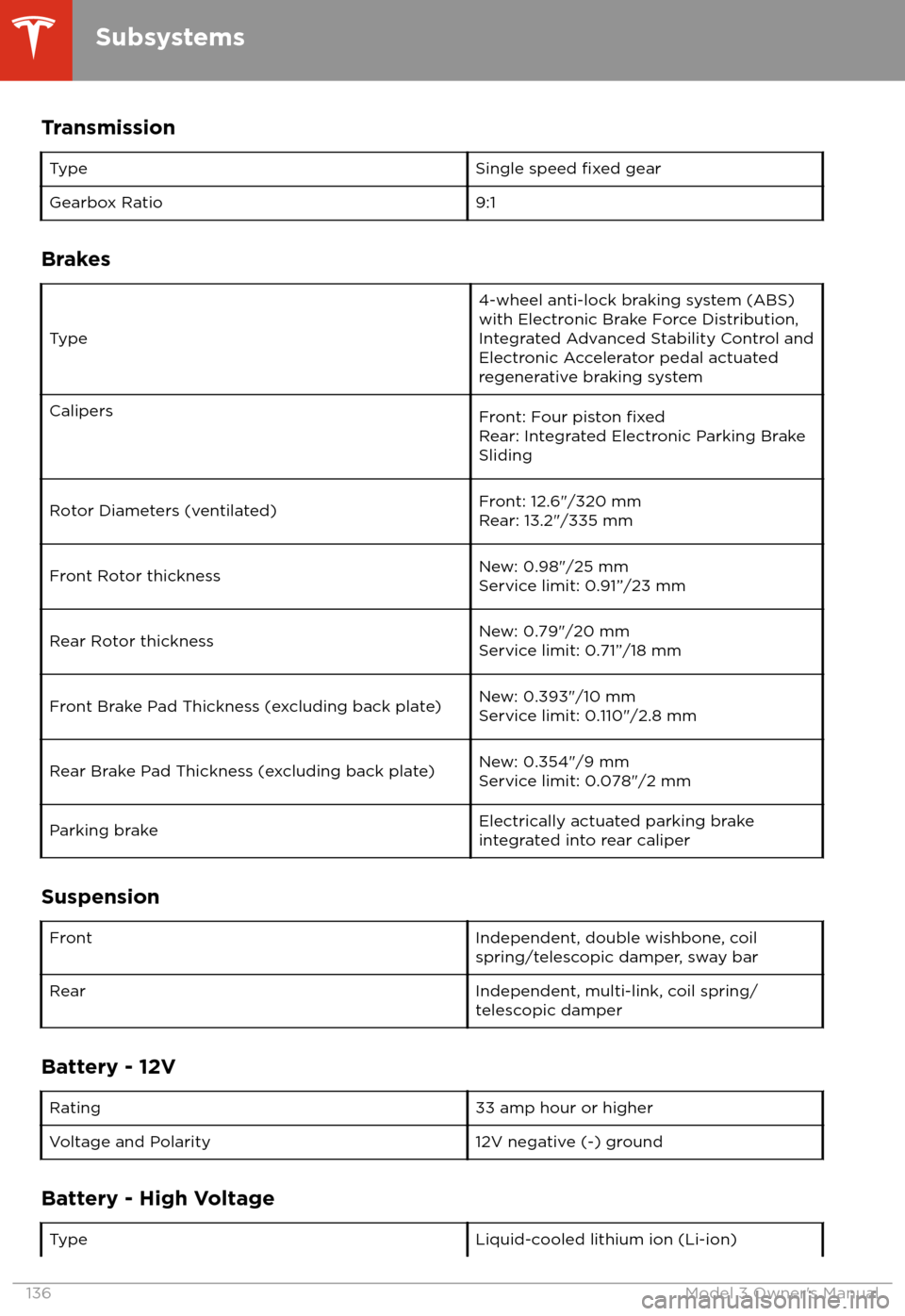

TransmissionTypeSingle speed fixed gearGearbox Ratio9:1
Brakes
Type
4-wheel anti-lock braking system (ABS)
with Electronic Brake Force Distribution,
Integrated Advanced Stability Control and
Electronic Accelerator pedal actuated
regenerative braking systemCalipersFront: Four piston fixedRear: Integrated Electronic Parking Brake
SlidingRotor Diameters (ventilated)Front: 12.6"/320 mm
Rear: 13.2"/335 mmFront Rotor thicknessNew: 0.98"/25 mm
Service limit: 0.91”/23 mmRear Rotor thicknessNew: 0.79"/20 mm
Service limit: 0.71”/18 mmFront Brake Pad Thickness (excluding back plate)New: 0.393"/10 mm
Service limit: 0.110"/2.8 mmRear Brake Pad Thickness (excluding back plate)New: 0.354"/9 mm
Service limit: 0.078"/2 mmParking brakeElectrically actuated parking brake
integrated into rear caliper
Suspension
FrontIndependent, double wishbone, coil
spring/telescopic damper, sway barRearIndependent, multi-link, coil spring/
telescopic damper
Battery - 12V
Rating33 amp hour or higherVoltage and Polarity12V negative (-) ground
Battery - High Voltage
TypeLiquid-cooled lithium ion (Li-ion)
Subsystems
136Model 3 Owner

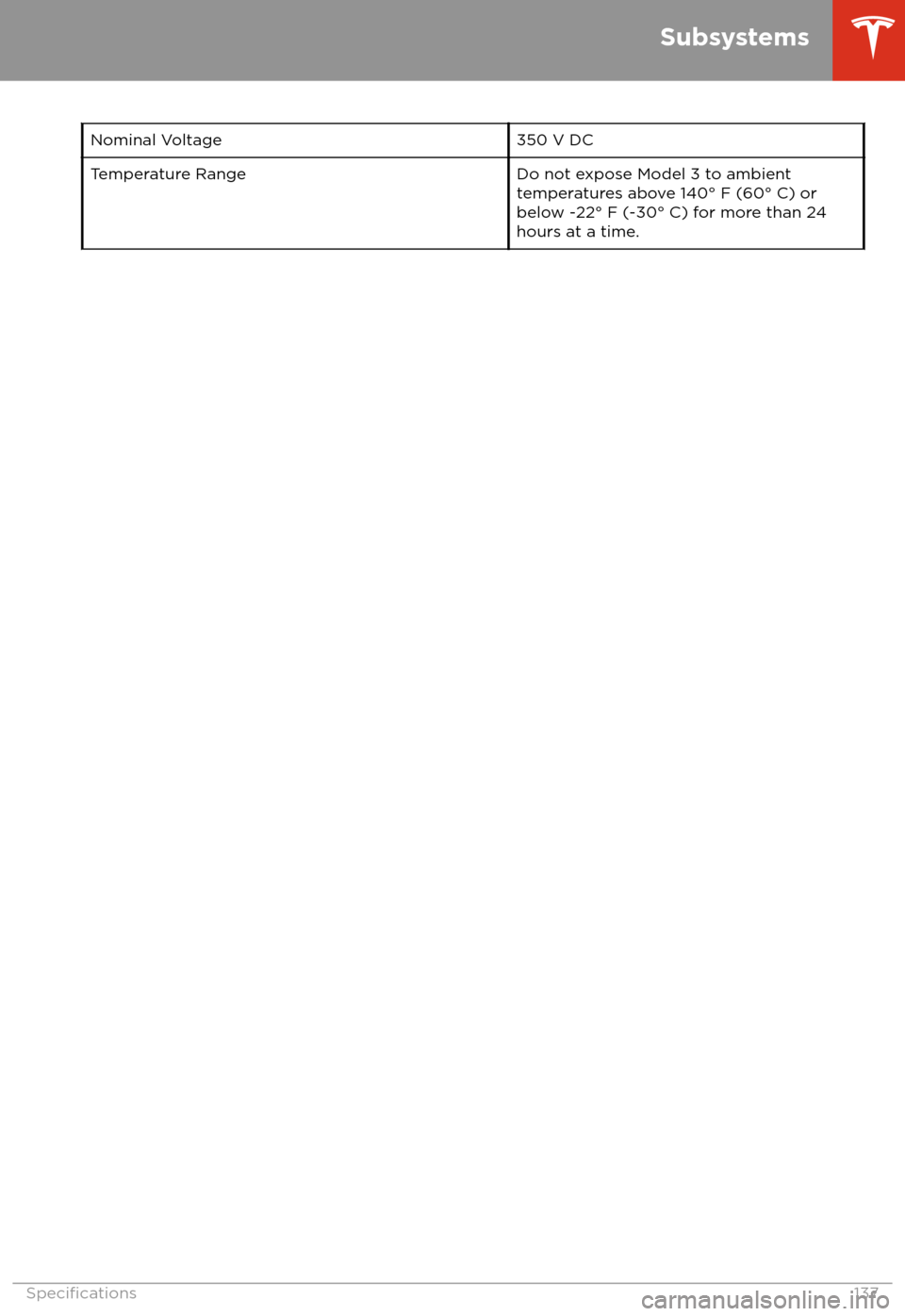

Nominal Voltage350 V DCTemperature RangeDo not expose Model 3 to ambient
temperatures above 140

Wheel SpecificationsWheel DiameterLocationWidth (in)O
