Cleaning
MAINTENANCE7.13
Cleaning the Interior
Frequently inspect and clean the interior to
maintain its appearance and to prevent
premature wear. If possible, immediately wipe
up spills and remove marks. For general
cleaning, wipe interior surfaces using a soft
cloth (such as micro fiber) dampened with a
mixture of warm water and mild non-detergent
cleaner (test all cleaners on a concealed area
before use). To avoid streaks, dry immediately
with a soft lint-free cloth.
Interior Glass
Do not scrape, or use any abrasive cleaning
fluid on glass or mirrored surfaces. This can
damage the reflective surface of the mirror and
the heating elements in the rear window.
Airbags
Do not allow any substance to enter an airbag
cover. This could affect correct operation.
Dashboard and Plastic Surfaces
Do not polish the upper surfaces of the
dashboard. Polished surfaces are reflective and
could interfere with your driving view.
Leather Seats
Leather is prone to dye-transfer which can
cause discoloration, particularly on light
colored leather. White and tan leather is coated
with an anti-soiling treatment. Wipe spills as
soon as possible using a soft cloth moistened
with warm water and non-detergent soap.
Wipe gently in a circular motion. Then wipe dry
using a soft, lint-free cloth. Using detergents or
commercially available leather cleaners and
conditioners is not recommended because they
can discolor or dry out the leather.
Cloth Seats
Wipe spills as soon as possible using a soft
cloth moistened with warm water and
non-detergent soap. Wipe gently in a circular
motion. Then wipe dry using a soft, lint-free
cloth. Vacuum the seats as needed to remove
any loose dirt.
Carpets
Avoid over-wetting carpets. For heavily soiled
areas, use a diluted upholstery cleaner.
Seat Belts
Extend the belts to wipe. Do not use any type
of detergent or chemical cleaning agent. Allow
the belts to dry naturally while extended,
preferably away from direct sunlight.
Tesla Built In Rear Facing Child Seats
Vacuum the seats to remove any loose dirt.
Wipe the seats with a soft cloth dampened with
warm water. You can also use an upholstery
cleaner designer for automotive use. Extend
the belts to wipe. Allow the belts to dry
naturally, preferably away from direct sunlight.
Touchscreen and Instrument Panel
Clean the touchscreen and instrument panel
using a soft lint-free cloth specifically designed
to clean monitors and displays. Do not use
cleaners (such as a glass cleaner) and do not
use a wet wipe or a dry statically-charged cloth
(such as a recently washed microfiber).
Chrome and Metal Surfaces
Polish, abrasive cleaners or hard cloths can
damage the finish on chrome and metal
surfaces.
Cautions for Interior Cleaning
WARNING: If you notice any damage on
an airbag or seat belt, contact Tesla
immediately.
WARNING: Do not allow any water,
cleaners, or fabric to enter a seat belt
mechanism.
CAUTION: Using solvents (including
alcohol), bleach, citrus, naphtha, or
silicone based products or additives on
interior components can cause damage.
book.book Page 13 Friday, July 19, 2013 12:53 PM

CleaningCleaning
7.14MODEL S OWNERS MANUAL

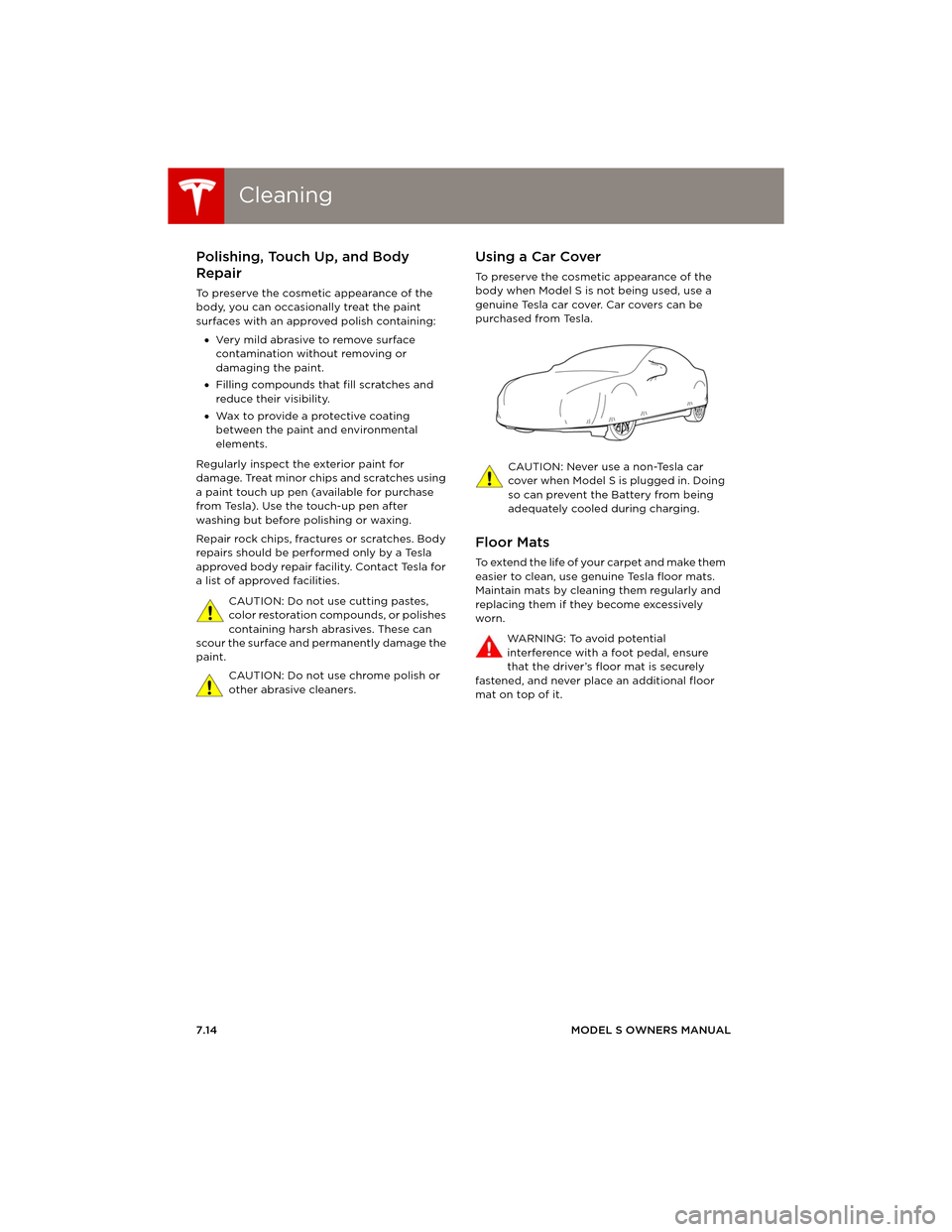

Polishing, Touch Up, and Body
Repair
To preserve the cosmetic appearance of the
body, you can occasionally treat the paint
surfaces with an approved polish containing:
•Very mild abrasive to remove surface
contamination without removing or
damaging the paint.
•Filling compounds that fill scratches and
reduce their visibility.
•Wax to provide a protective coating
between the paint and environmental
elements.
Regularly inspect the exterior paint for
damage. Treat minor chips and scratches using
a paint touch up pen (available for purchase
from Tesla). Use the touch-up pen after
washing but before polishing or waxing.
Repair rock chips, fractures or scratches. Body
repairs should be performed only by a Tesla
approved body repair facility. Contact Tesla for
a list of approved facilities.
CAUTION: Do not use cutting pastes,
color restoration compounds, or polishes
containing harsh abrasives. These can
scour the surface and permanently damage the
paint.
CAUTION: Do not use chrome polish or
other abrasive cleaners.
Using a Car Cover
To preserve the cosmetic appearance of the
body when Model S is not being used, use a
genuine Tesla car cover. Car covers can be
purchased from Tesla.
CAUTION: Never use a non-Tesla car
cover when Model S is plugged in. Doing
so can prevent the Battery from being
adequately cooled during charging.
Floor Mats
To e x t e n d t h e l i f e o f y o u r c a r p e t a n d m a k e t h e m
easier to clean, use genuine Tesla floor mats.
Maintain mats by cleaning them regularly and
replacing them if they become excessively
worn.
WARNING: To avoid potential
interference with a foot pedal, ensure
that the driver’s floor mat is securely
fastened, and never place an additional floor
mat on top of it.
maintenance.fm Page 14 Thursday, July 25, 2013 12:49 PM

Wiper Blades and Washer Jets
MAINTENANCE7.15

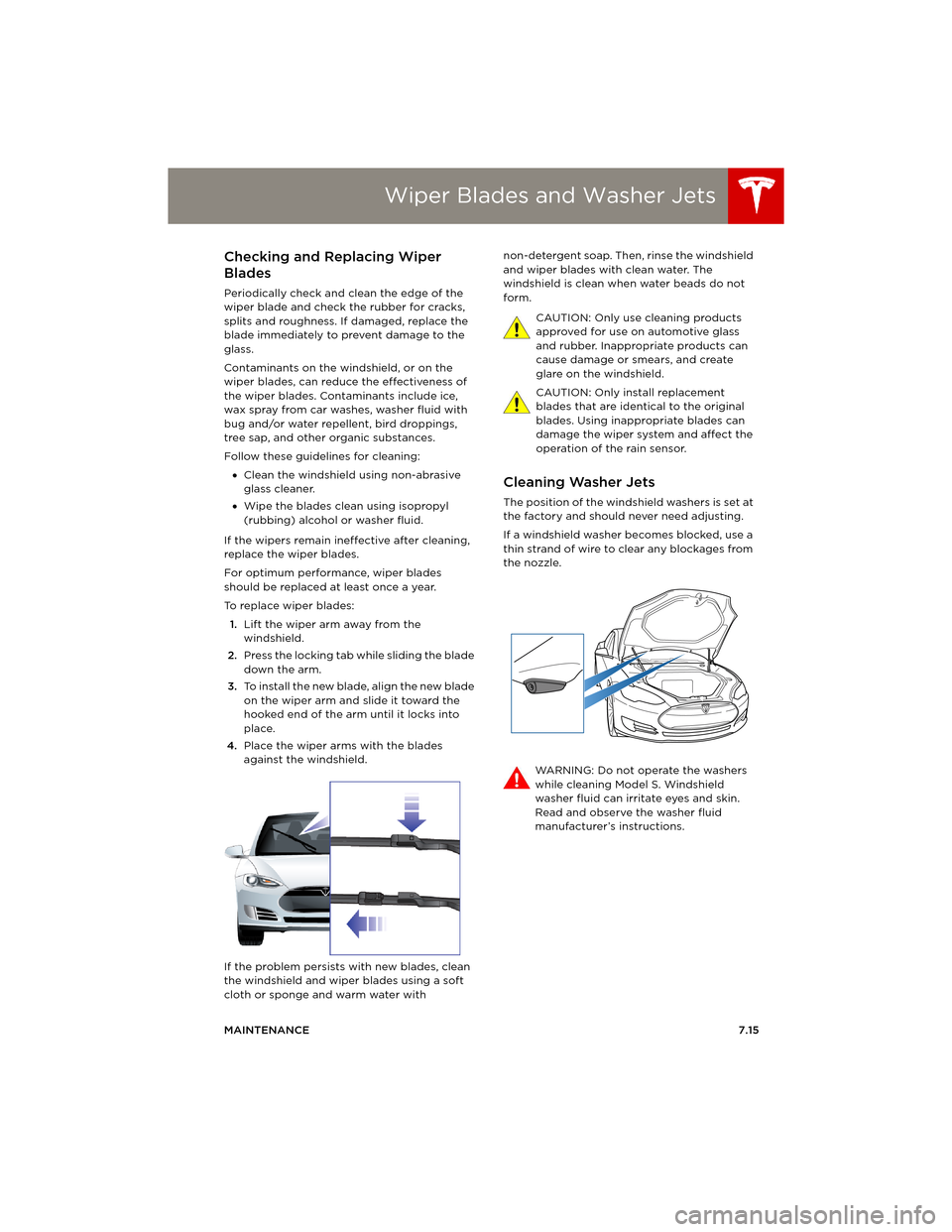

Wiper Blades and Washer JetsChecking and Replacing Wiper
Blades
Periodically check and clean the edge of the
wiper blade and check the rubber for cracks,
splits and roughness. If damaged, replace the
blade immediately to prevent damage to the
glass.
Contaminants on the windshield, or on the
wiper blades, can reduce the effectiveness of
the wiper blades. Contaminants include ice,
wax spray from car washes, washer fluid with
bug and/or water repellent, bird droppings,
tree sap, and other organic substances.
Follow these guidelines for cleaning:
•Clean the windshield using non-abrasive
glass cleaner.
•Wipe the blades clean using isopropyl
(rubbing) alcohol or washer fluid.
If the wipers remain ineffective after cleaning,
replace the wiper blades.
For optimum performance, wiper blades
should be replaced at least once a year.
To replace wiper blades:
1.Lift the wiper arm away from the
windshield.
2.Press the locking tab while sliding the blade
down the arm.
3.To install the new blade, align the new blade
on the wiper arm and slide it toward the
hooked end of the arm until it locks into
place.
4.Place the wiper arms with the blades
against the windshield.
If the problem persists with new blades, clean
the windshield and wiper blades using a soft
cloth or sponge and warm water with non-detergent soap. Then, rinse the windshield
and wiper blades with clean water. The
windshield is clean when water beads do not
form.
CAUTION: Only use cleaning products
approved for use on automotive glass
and rubber. Inappropriate products can
cause damage or smears, and create
glare on the windshield.
CAUTION: Only install replacement
blades that are identical to the original
blades. Using inappropriate blades can
damage the wiper system and affect the
operation of the rain sensor.
Cleaning Washer Jets
The position of the windshield washers is set at
the factory and should never need adjusting.
If a windshield washer becomes blocked, use a
thin strand of wire to clear any blockages from
the nozzle.
WARNING: Do not operate the washers
while cleaning Model S. Windshield
washer fluid can irritate eyes and skin.
Read and observe the washer fluid
manufacturer’s instructions.
book.book Page 15 Friday, July 19, 2013 12:53 PM

Fluid ReservoirsFluid Reservoirs
7.16MODEL S OWNERS MANUAL

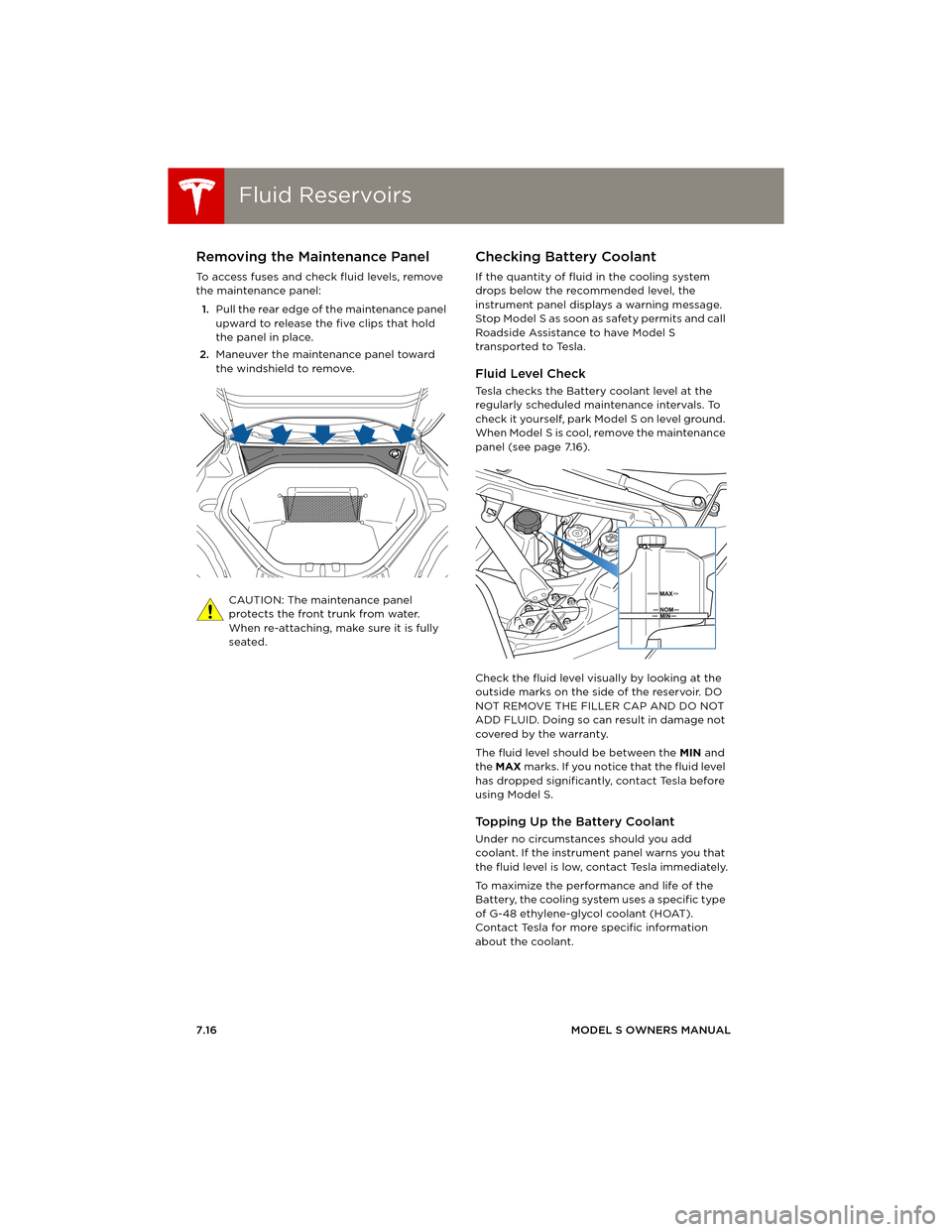

Fluid ReservoirsRemoving the Maintenance Panel
To access fuses and check fluid levels, remove
the maintenance panel:
1.Pull the rear edge of the maintenance panel
upward to release the five clips that hold
the panel in place.
2.Maneuver the maintenance panel toward
the windshield to remove.
CAUTION: The maintenance panel
protects the front trunk from water.
When re-attaching, make sure it is fully
seated.
Checking Battery Coolant
If the quantity of fluid in the cooling system
drops below the recommended level, the
instrument panel displays a warning message.
Stop Model S as soon as safety permits and call
Roadside Assistance to have Model S
transported to Tesla.
Fluid Level Check
Tesla checks the Battery coolant level at the
regularly scheduled maintenance intervals. To
check it yourself, park Model S on level ground.
When Model S is cool, remove the maintenance
panel (see page 7.16).
Check the fluid level visually by looking at the
outside marks on the side of the reservoir. DO
NOT REMOVE THE FILLER CAP AND DO NOT
ADD FLUID. Doing so can result in damage not
covered by the warranty.
The fluid level should be between the MIN and
the MAX marks. If you notice that the fluid level
has dropped significantly, contact Tesla before
using Model S.
To p p i n g U p t h e B a t t e r y C o o l a n t
Under no circumstances should you add
coolant. If the instrument panel warns you that
the fluid level is low, contact Tesla immediately.
To maximize the performance and life of the
Battery, the cooling system uses a specific type
of G-48 ethylene-glycol coolant (HOAT).
Contact Tesla for more specific information
about the coolant.
book.book Page 16 Friday, July 19, 2013 12:53 PM

Fluid Reservoirs
MAINTENANCE7.17

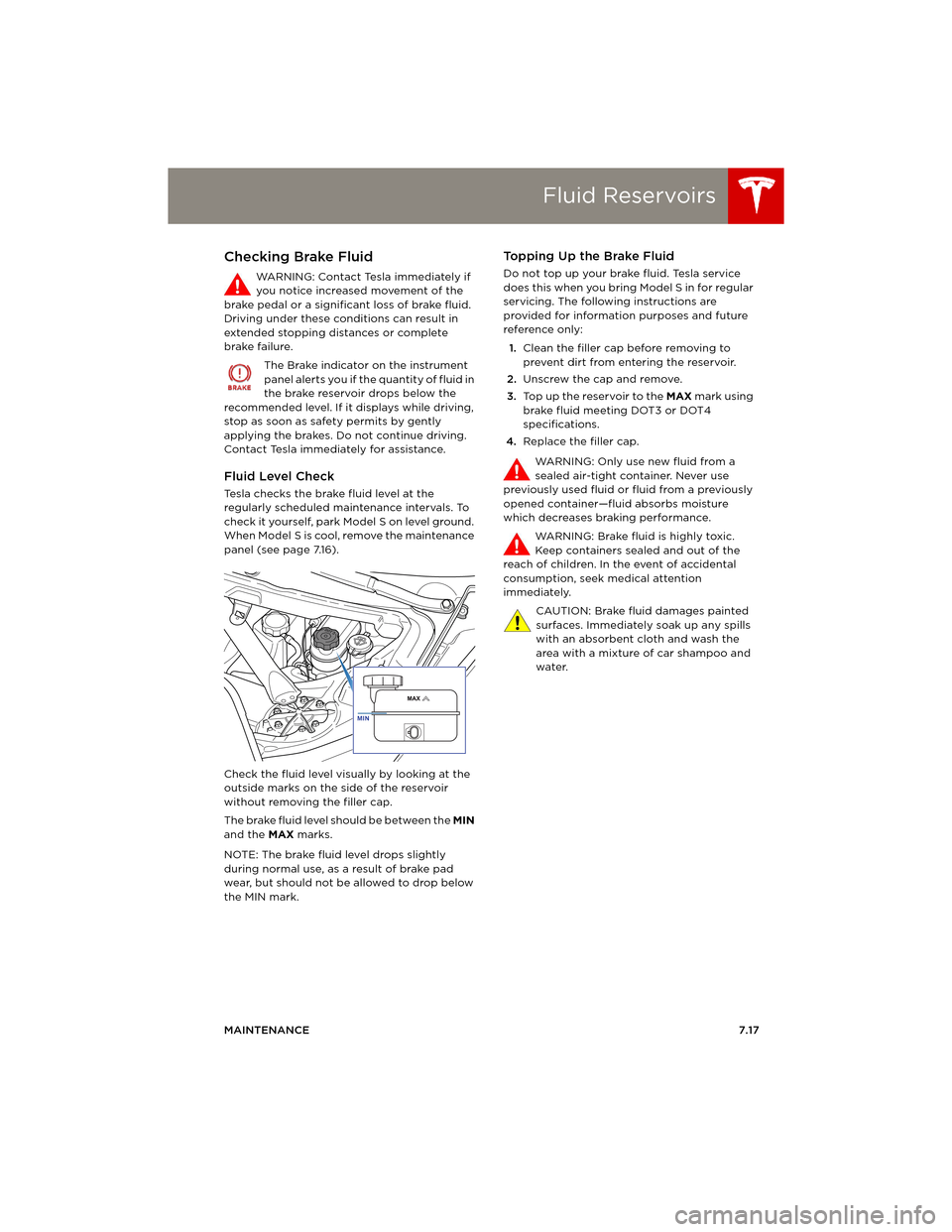

Checking Brake Fluid
WARNING: Contact Tesla immediately if
you notice increased movement of the
brake pedal or a significant loss of brake fluid.
Driving under these conditions can result in
extended stopping distances or complete
brake failure.
The Brake indicator on the instrument
panel alerts you if the quantity of fluid in
the brake reservoir drops below the
recommended level. If it displays while driving,
stop as soon as safety permits by gently
applying the brakes. Do not continue driving.
Contact Tesla immediately for assistance.
Fluid Level Check
Tesla checks the brake fluid level at the
regularly scheduled maintenance intervals. To
check it yourself, park Model S on level ground.
When Model S is cool, remove the maintenance
panel (see page 7.16).
Check the fluid level visually by looking at the
outside marks on the side of the reservoir
without removing the filler cap.
The brake fluid level should be between the MIN
and the MAX marks.
NOTE: The brake fluid level drops slightly
during normal use, as a result of brake pad
wear, but should not be allowed to drop below
the MIN mark.
To p p i n g U p t h e B r a k e F l u i d
Do not top up your brake fluid. Tesla service
does this when you bring Model S in for regular
servicing. The following instructions are
provided for information purposes and future
reference only:
1.Clean the filler cap before removing to
prevent dirt from entering the reservoir.
2.Unscrew the cap and remove.
3.Top up the reservoir to the MAX mark using
brake fluid meeting DOT3 or DOT4
specifications.
4.Replace the filler cap.
WARNING: Only use new fluid from a
sealed air-tight container. Never use
previously used fluid or fluid from a previously
opened container—fluid absorbs moisture
which decreases braking performance.
WARNING: Brake fluid is highly toxic.
Keep containers sealed and out of the
reach of children. In the event of accidental
consumption, seek medical attention
immediately.
CAUTION: Brake fluid damages painted
surfaces. Immediately soak up any spills
with an absorbent cloth and wash the
area with a mixture of car shampoo and
water.
book.book Page 17 Friday, July 19, 2013 12:53 PM

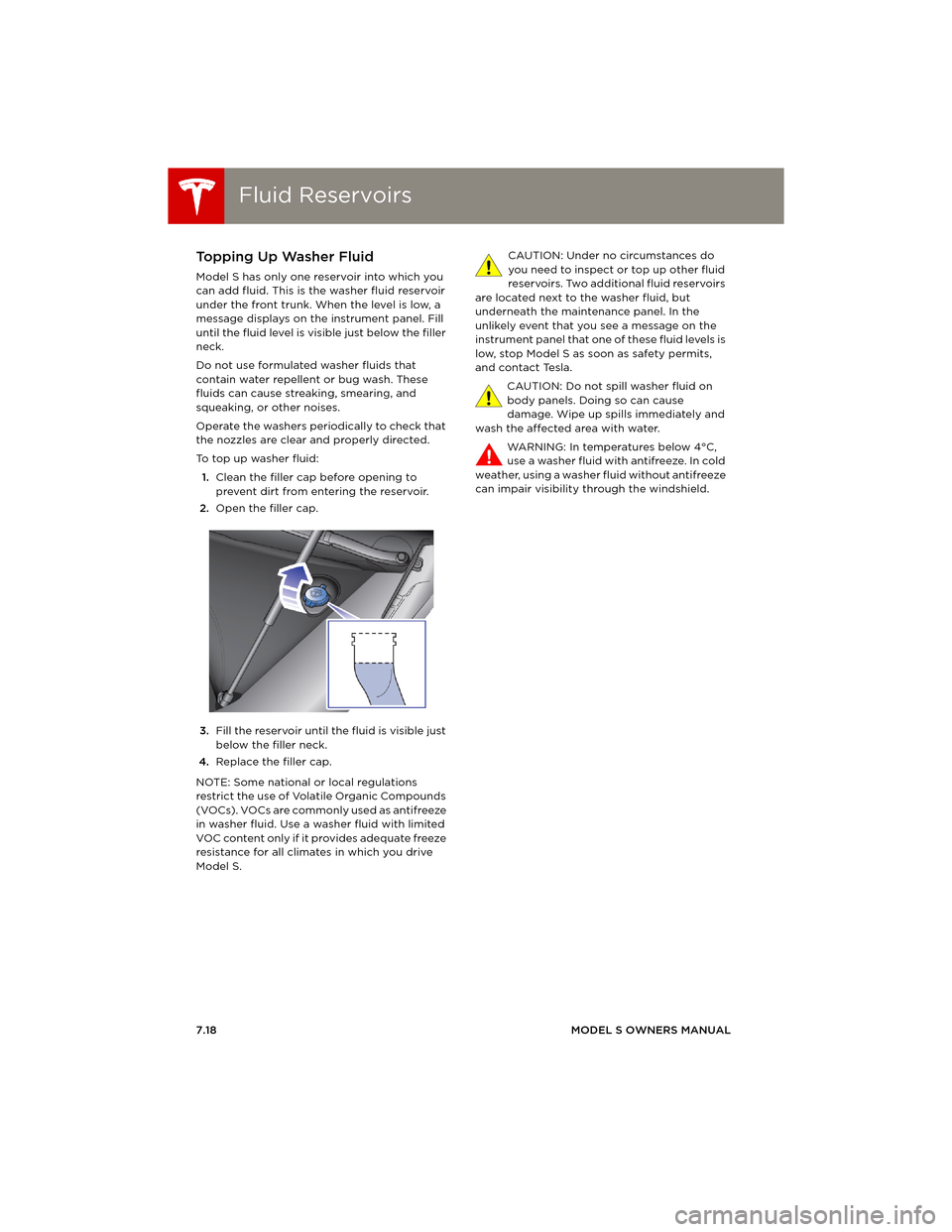

Fluid ReservoirsFluid Reservoirs
7.18MODEL S OWNERS MANUAL
Topping Up Washer Fluid
Model S has only one reservoir into which you
can add fluid. This is the washer fluid reservoir
under the front trunk. When the level is low, a
message displays on the instrument panel. Fill
until the fluid level is visible just below the filler
neck.
Do not use formulated washer fluids that
contain water repellent or bug wash. These
fluids can cause streaking, smearing, and
squeaking, or other noises.
Operate the washers periodically to check that
the nozzles are clear and properly directed.
To top up washer fluid:
1.Clean the filler cap before opening to
prevent dirt from entering the reservoir.
2.Open the filler cap.
3.Fill the reservoir until the fluid is visible just
below the filler neck.
4.Replace the filler cap.
NOTE: Some national or local regulations
restrict the use of Volatile Organic Compounds
(VOCs). VOCs are commonly used as antifreeze
in washer fluid. Use a washer fluid with limited
VOC content only if it provides adequate freeze
resistance for all climates in which you drive
Model S.CAUTION: Under no circumstances do
you need to inspect or top up other fluid
reservoirs. Two additional fluid reservoirs
are located next to the washer fluid, but
underneath the maintenance panel. In the
unlikely event that you see a message on the
instrument panel that one of these fluid levels is
low, stop Model S as soon as safety permits,
and contact Tesla.
CAUTION: Do not spill washer fluid on
body panels. Doing so can cause
damage. Wipe up spills immediately and
wash the affected area with water.
WARNING: In temperatures below 4°C,
use a washer fluid with antifreeze. In cold
weather, using a washer fluid without antifreeze
can impair visibility through the windshield.
book.book Page 18 Friday, July 19, 2013 12:53 PM

Fuses
MAINTENANCE7.19
FusesFuse Box Locations
Three fuse boxes are located under the
maintenance panel, located in the front trunk.
For instructions on how to remove this panel,
see page 7.16.
1.Fuse box 1 (see page 7.20). DO NOT replace
these fuses. If one of them fails, contact
Te s l a .
2.Fuse box 2. (see page 7.21).
3.Fuse box 3 (see page 7.22).
If Model S is equipped with the cold weather
option, an additional fuse box (4) is located
under the driver’s side trim panel.
Replacing a Fuse
To remove a fuse box cover, press the plastic
tabs on either side.
Identify the fuse protecting the affected circuit.
Refer to the label on the inside of the fuse box
cover or the fuse tables provided in this section.
Pull the fuse to remove it. A break in the wire
inside the fuse indicates that the fuse has
blown.
NOTE: Do not replace fuses in fuse boxes
1 and 4, and do not remove or replace any
relays. If one of these fails, contact Tesla.
WARNING: Always manually power
Model S off before replacing a fuse (see
page 4.6).
CAUTION: Only use Tesla approved
replacement fuses of the same rating and
specification. Using an incorrect fuse can
damage the electrical system and result
in a fire.
CAUTION: If a replacement fuse blows
after installation, contact Tesla to have
the electrical system checked.
book.book Page 19 Friday, July 19, 2013 12:53 PM

FusesFuses
7.20MODEL S OWNERS MANUAL
Fuse Box 1
Access to fuse box 1 requires removal of components that must be performed by a Tesla service
technician. The following fuse list is provided only to assist you in determining if a fuse in this box
needs to be replaced. Contact Tesla Service if one of these fuses needs to be replaced.
Fuse RatingCircuit Protected
NOTE: THESE FUSES MUST BE REPLACED BY A TESLA SERVICE TECHNICIAN
1 5 A Accessory sensor, radio, USB hub
2 5 A Headlight leveling system (EU/China Coil Suspension vehicles only)
3 5 A Vanity lights, rear view mirror
4 30 A Outboard rear seat heaters (cold weather option)
5 15 A Seat heater (driver’s seat)
6 20 A Base audio amplifier
7 15 A Seat heater (front passenger seat)
820 APremium audio amplifier
9 25 A Sunroof
10 5 A Passive safety restraints
11 5 A Steering column controls
12 5 A Sensor for Drive mode and Yaw Rate (Stability/Traction Control)
13 15 A Wiper park
14 5 A Drive inverter
15 20 A Electric parking brake
16 5 A Parking/blind spot sensors
17 20 A Electric parking brake
18 5 A Not used
19 5 A In-vehicle HVAC sensor
20 5 A Cabin air heater logic
21 15 A Battery coolant pump 1
22 5 A Inlet actuators
23 15 A Powertrain coolant pump
24 5 A Cabin climate control
25 15 A Battery coolant pump 2
26 - Not used
27 10 A Thermal controller
book.book Page 20 Friday, July 19, 2013 12:53 PM

Fuses
MAINTENANCE7.21
Fuse Box 2
Fuse RatingCircuit Protected
28 25 A Window lift motor (right rear)
29 10 A Contactor power
30 25 A Window lift motor (right front)
31 - Not used
32 10 A Door controls (right side)
33 - Not used
34 30 A Rear center seat heaters, washer/wiper de-ice (cold weather option)
35 15 A 12V power socket
36 25 A Air suspension
37 25 A Window lift motor (left rear)
38 5 A Driver's seat memory
39 25 A Window lift motor (left front)
40 5 A Rear door handles
41 10 A Door controls (left side)
42 30 A Powered liftgate
43 5 A Perm. power sensor, brake switch
44 5 A Charger (charge port)
45 20 A Passive entry (horns)
46 30 A Body controls (group 2)
47 5 A Glove box light
48 10 A Body controls (group 1)
49 5 A Instrument panel
50 5 A Siren, intrusion/tilt sensor (Europe only)
51 20 A Touchscreen
52 30 A Heated rear window
53 5 A Battery management system
54 - Not used
55 30 A Left front electric seat
56 30 A Right front electric seat
57 25 A Cabin fan
58 - Not used
59 - Not used
book.book Page 21 Friday, July 19, 2013 12:53 PM

FusesFuses
7.22MODEL S OWNERS MANUAL
Fuse Box 3
Fuse Box 4
If Model S is equipped with the cold weather option, an additional fuse box (4) is located under the
driver’s side trim panel. Access to fuse box 4 requires removal of several components that must be
performed by a Tesla service technician. The following fuse list is provided only to assist you in
determining if a fuse in this box needs to be replaced. Contact Tesla Service if one of these fuses
needs to be replaced.
Fuse RatingCircuit Protected
71 40 A Condenser fan (left)
72 40 A Condenser fan (right)
73 40 A Vacuum pump
74 20 A 12V drive rail (cabin)
75 5 A Power steering
76 5 A ABS
77 25 A Stability control
78 20 A Headlights - high/low beam
79 30 A Light - exterior/interior
Fuse RatingCircuit Protected
NOTE: THESE FUSES MUST BE REPLACED BY A TESLA SERVICE TECHNICIAN
101 15 A Left rear seat heater
102 15 A Right rear seat heater
103 15 A Middle rear seat heater control
104 15 A Middle rear seat heater
105 15 A Wiper de-icer
106 - Not used
book.book Page 22 Friday, July 19, 2013 12:53 PM
