5718-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
WARNING
■When using the full-size spare tire (vehicles with a tire pressure warn-
ing system)
●Replace the full-size spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
• ABS & Brake assist
•VSC
•TRC
• Automatic High Beam
(if equipped)• Cruise control (if equipped)
•EPS
• PCS (if equipped)
• LDA (Lane departure alert)
(if equipped)
UK AURIS_HB_OM_Europe_OM12K97E.book 571 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5728-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

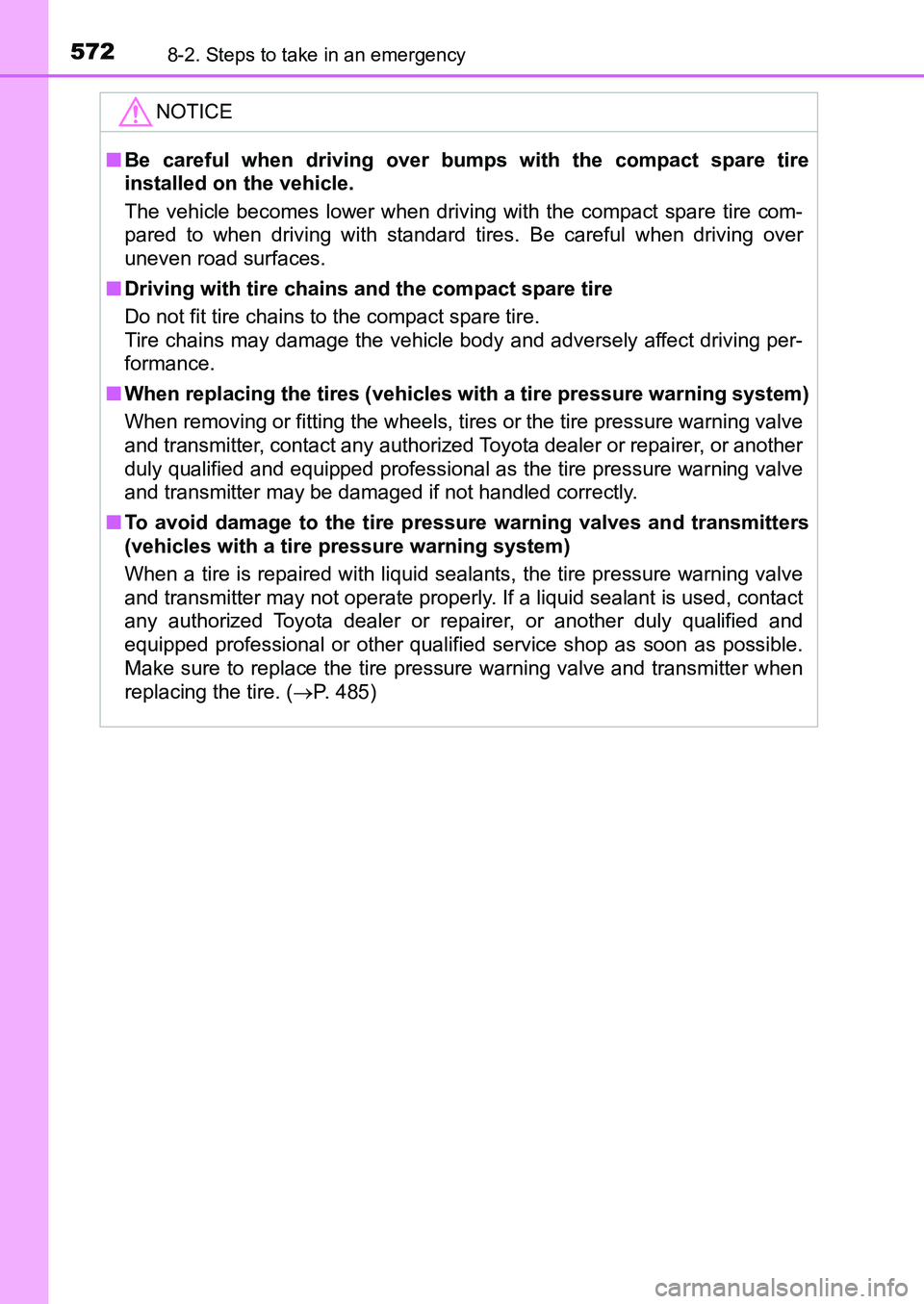

NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (P. 485)
UK AURIS_HB_OM_Europe_OM12K97E.book 572 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5738-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

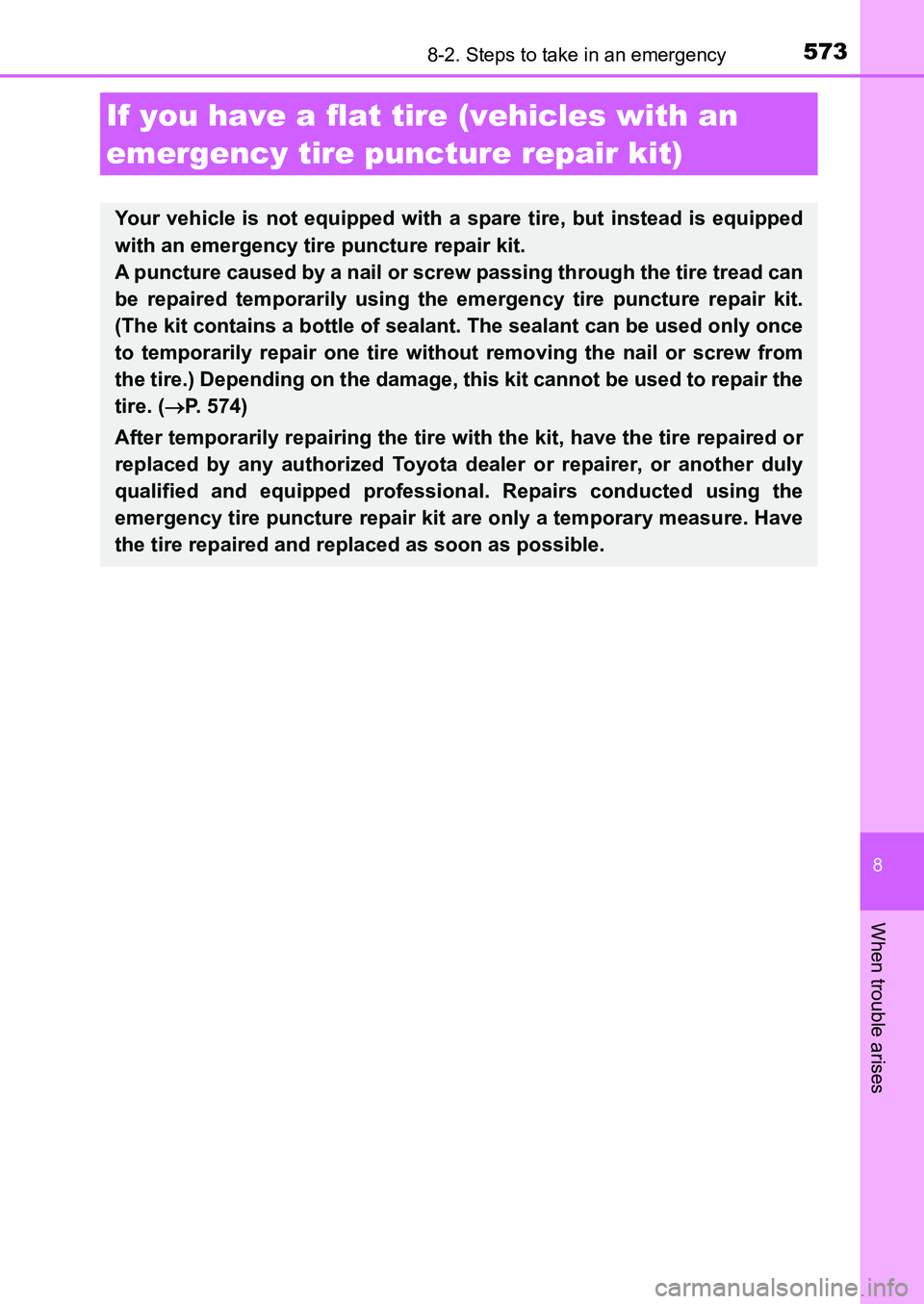

If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped
with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) Depending on the damage, this kit cannot be used to repair the
tire. (P. 574)
After temporarily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Repairs conducted using the
emergency tire puncture repair kit are only a temporary measure. Have
the tire repaired and replaced as soon as possible.
UK AURIS_HB_OM_Europe_OM12K97E.book 573 ページ ２０１６年６月２７日　月曜日　午後５時４２分

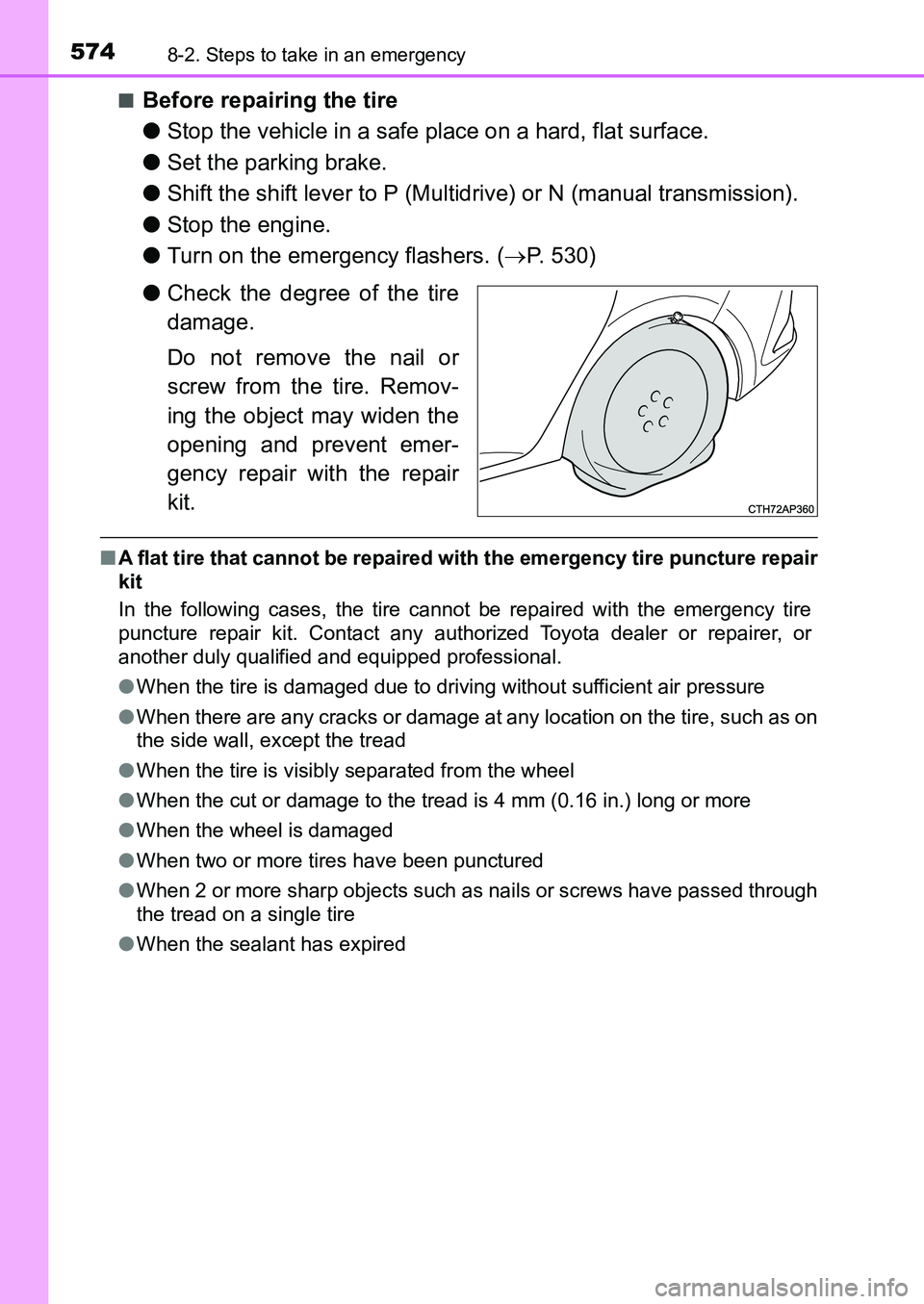

5748-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)■
Before repairing the tire
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P (Multidrive) or N (manual transmission).
●Stop the engine.
●Turn on the emergency flashers. (P. 530)
●Check the degree of the tire
damage.
Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and prevent emer-
gency repair with the repair
kit.
■A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
●When the sealant has expired
UK AURIS_HB_OM_Europe_OM12K97E.book 574 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5758-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

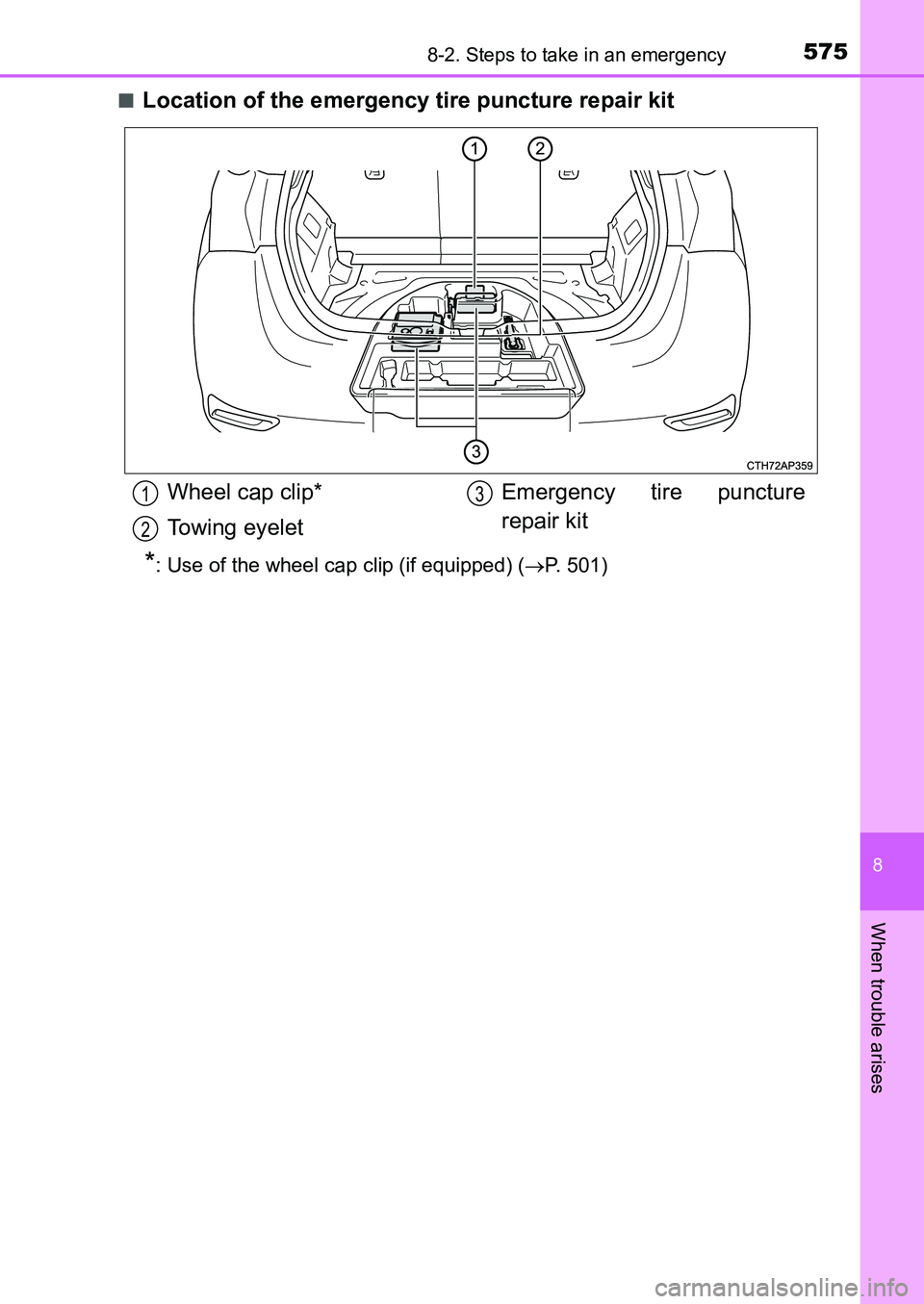

■Location of the emergency tire puncture repair kit
*: Use of the wheel cap clip (if equipped) (P. 501)
Wheel cap clip*
Towing eyeletEmergency tire puncture
repair kit1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 575 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5768-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)■

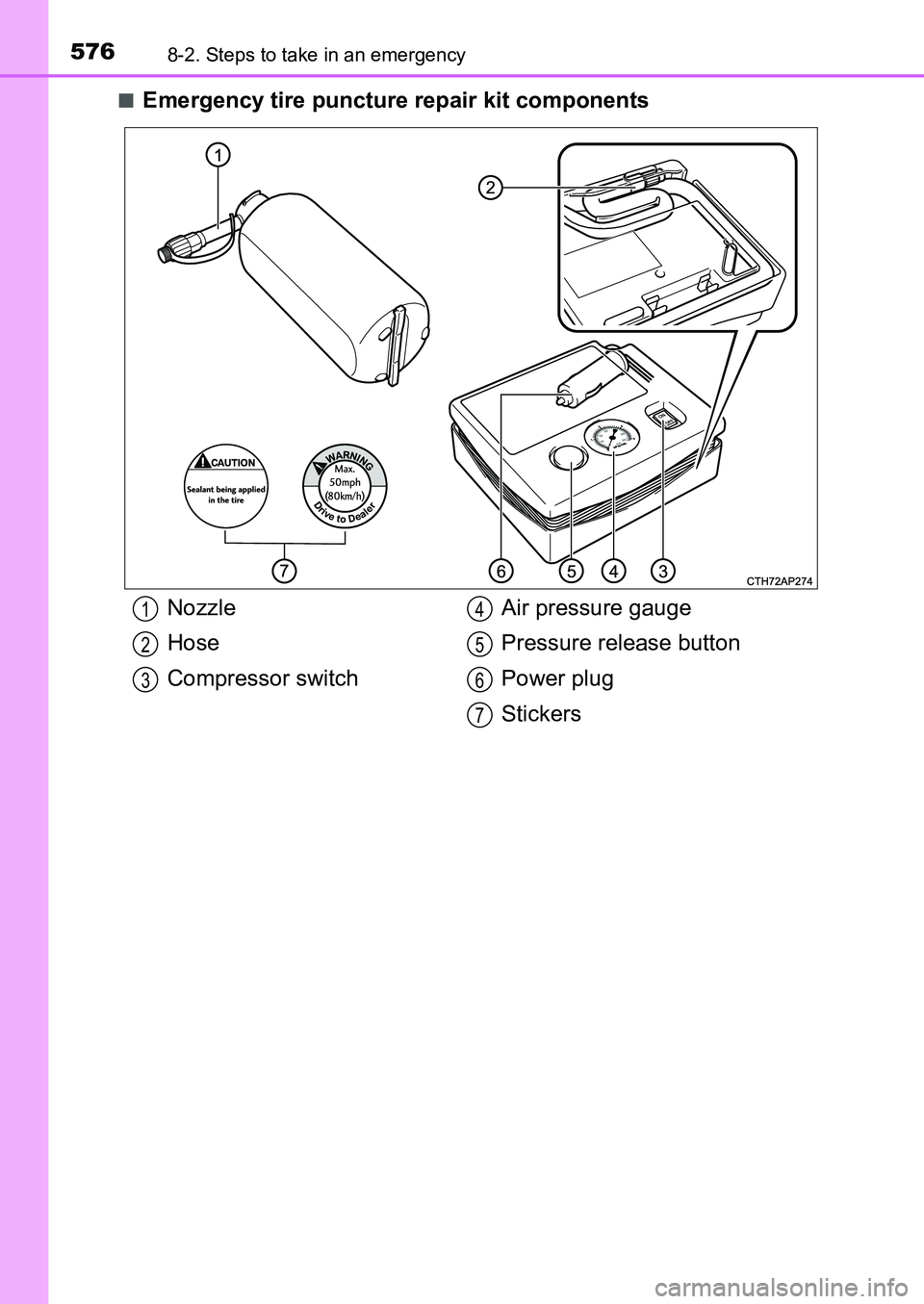

Emergency tire puncture repair kit components
Nozzle
Hose
Compressor switchAir pressure gauge
Pressure release button
Power plug
Stickers1
2
3
4
5
6
7
UK AURIS_HB_OM_Europe_OM12K97E.book 576 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5778-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

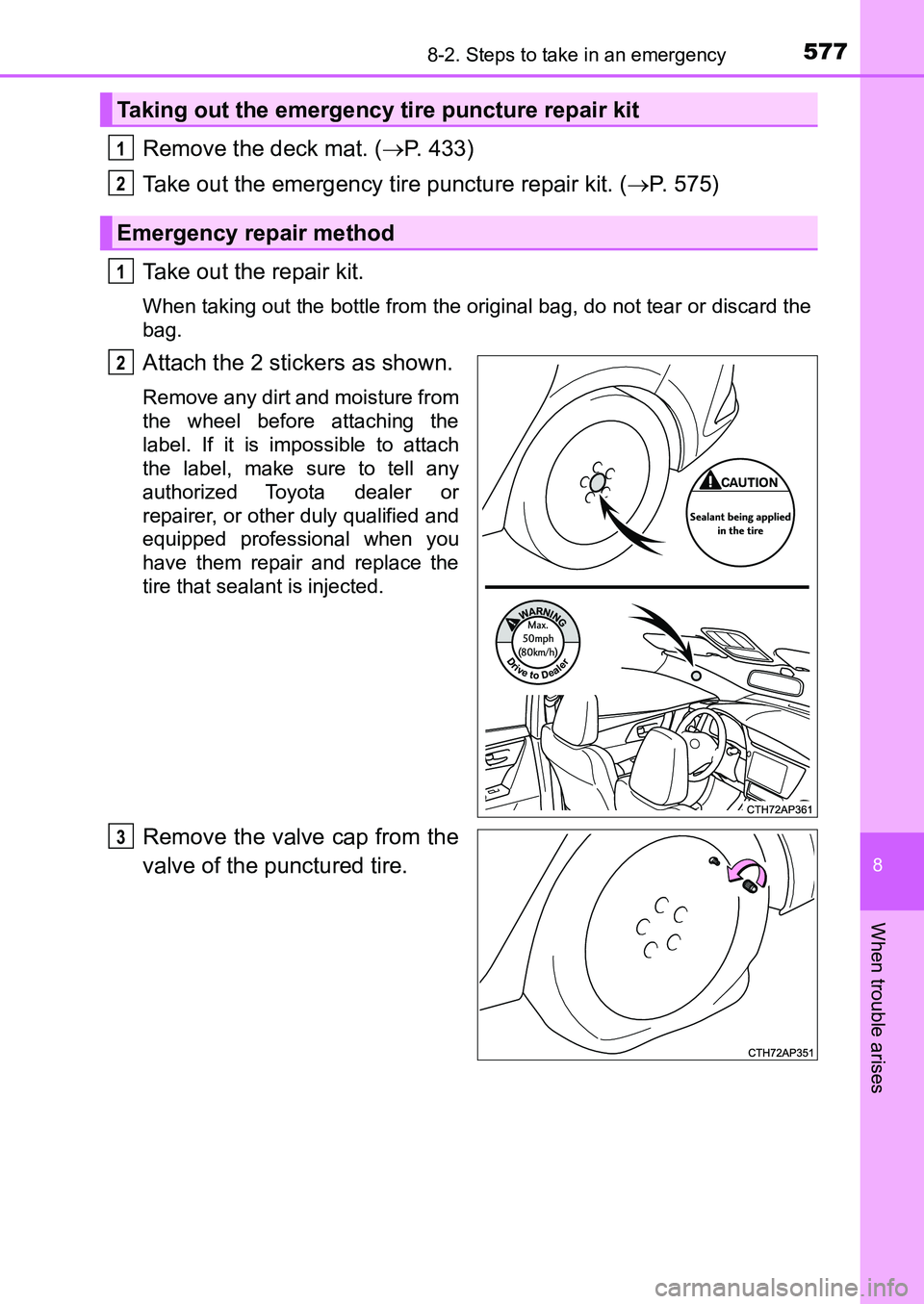

Remove the deck mat. (P. 433)
Take out the emergency tire puncture repair kit. (P. 575)
Take out the repair kit.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Taking out the emergency tire puncture repair kit
Emergency repair method
1
2
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 577 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5788-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

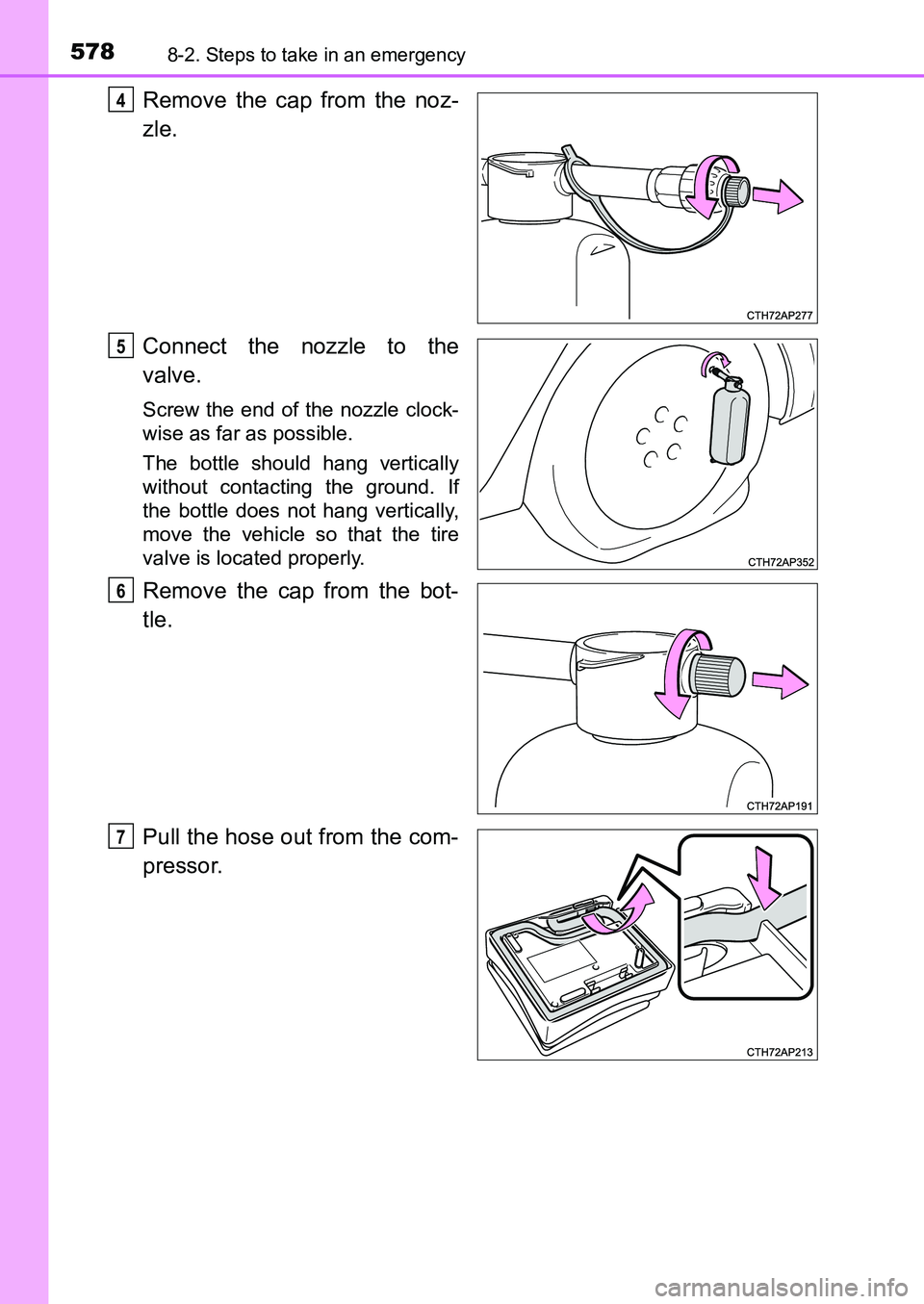

Remove the cap from the noz-
zle.
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
4
5
6
7
UK AURIS_HB_OM_Europe_OM12K97E.book 578 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5798-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

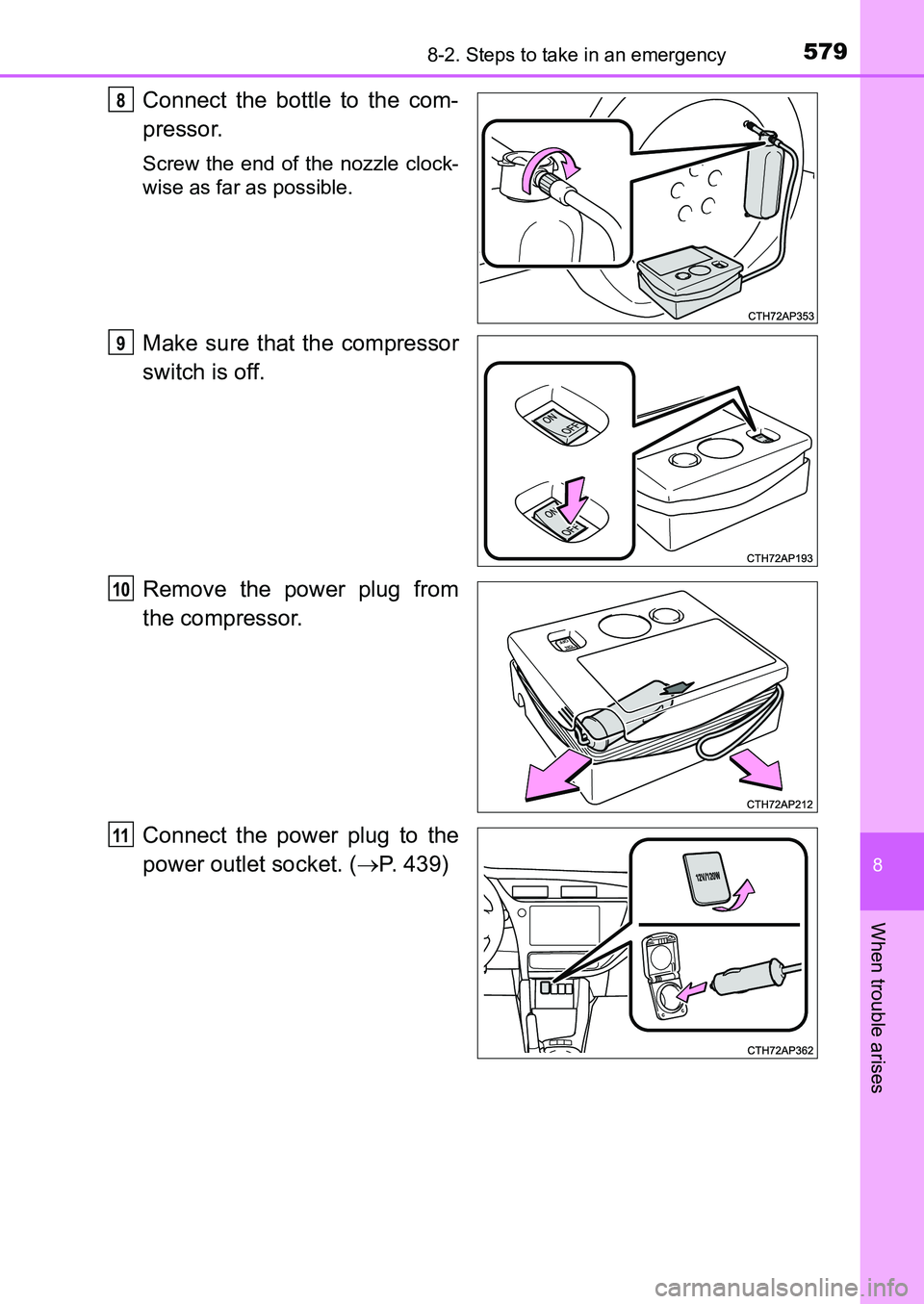

Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (P. 439)
8
9
10
11
UK AURIS_HB_OM_Europe_OM12K97E.book 579 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5808-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

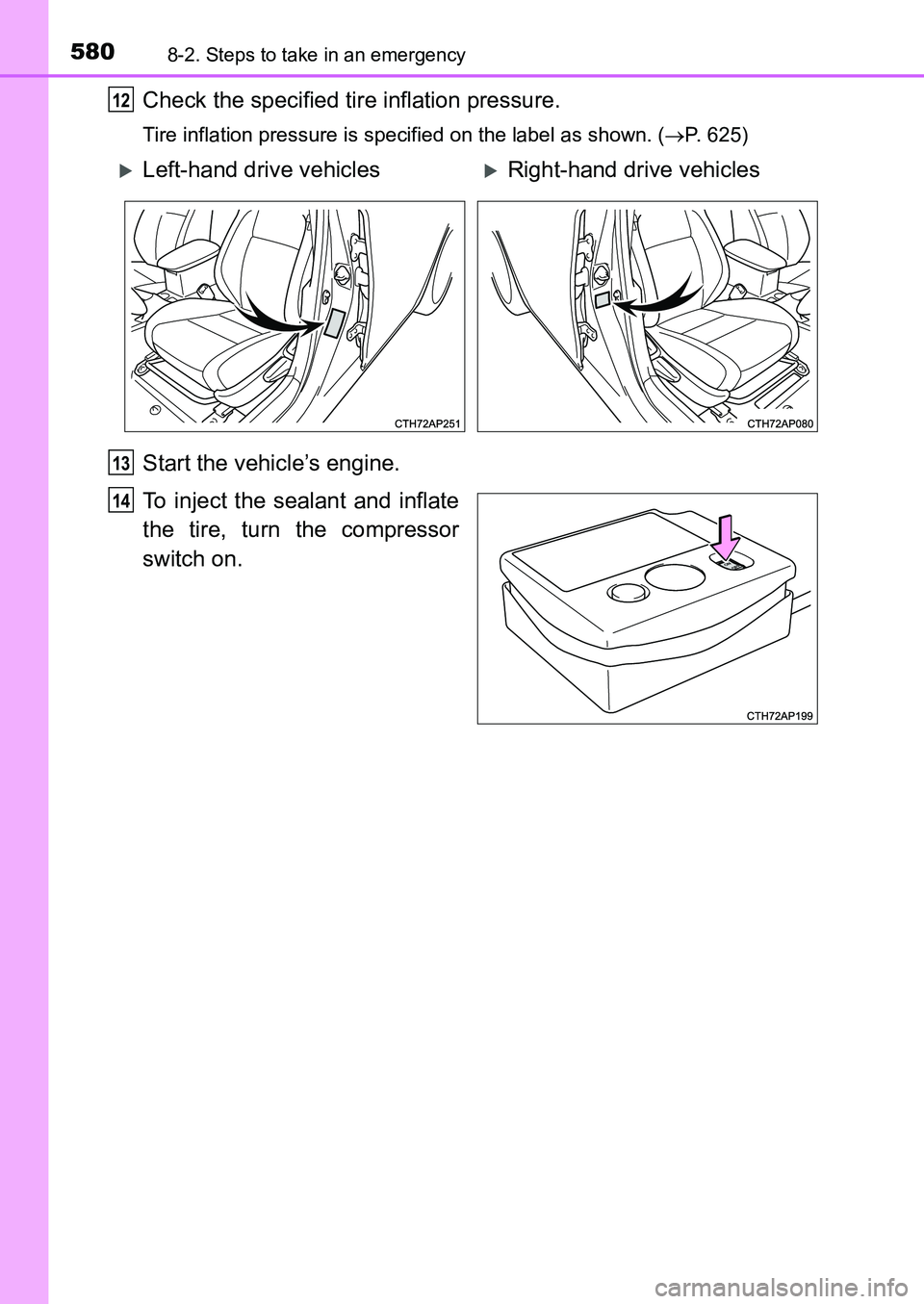

Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 625)
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
12
Left-hand drive vehiclesRight-hand drive vehicles
13
14
