TOYOTA AURIS 2017 Owners Manual (in English)

5918-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
Use the mechanical key (P.
124) in order to perform the fol-
lowing operations:
Locks all the doors
Unlocks all the doors
If the electronic key does not operate properly
(vehicles with a smart entry & start system)
If communication between the electronic key and vehicle is
interrupted (P. 149) or the electronic key cannot be used
because the battery is depleted, the smart entry & start system,
push button start and wireless remote control cannot be used. In
such cases, the doors can be opened and the engine can be
started by following the procedure below.

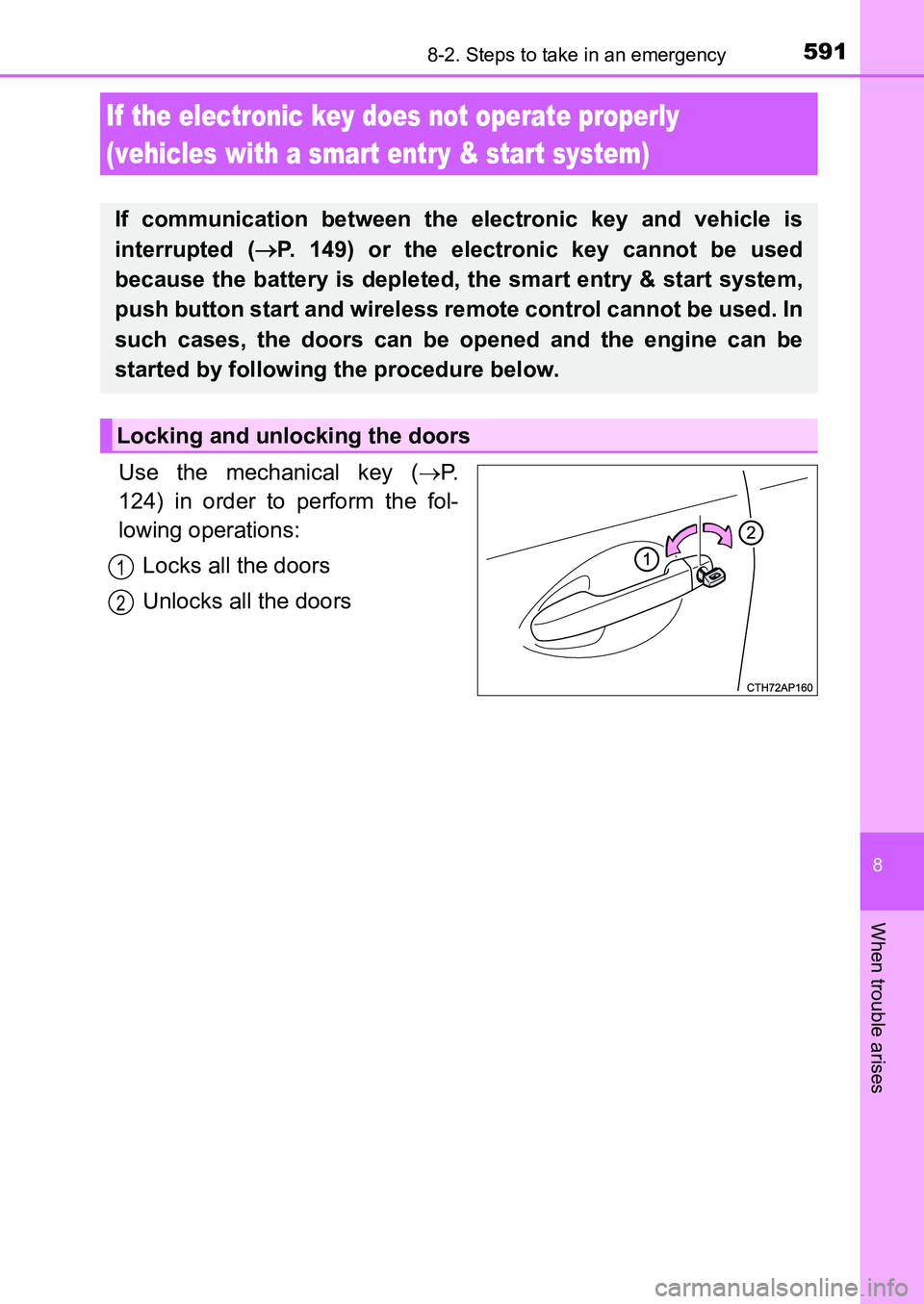

Locking and unlocking the doors
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 591 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5928-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
Multidrive: Ensure that the shift lever is in P and depress the brake
pedal.
Manual transmission: Shift the shift lever to N and depress the
clutch pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Vehicles with a 3-ring meter: Firmly depress the brake pedal
(Multidrive) or clutch pedal (manual transmission) and check that
the smart entry & start system indicator light (green) turns on.
Vehicles with a 2-ring meter: Firmly depress the brake pedal
(Multidrive) or clutch pedal (manual transmission) and check that
is shown on the multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.

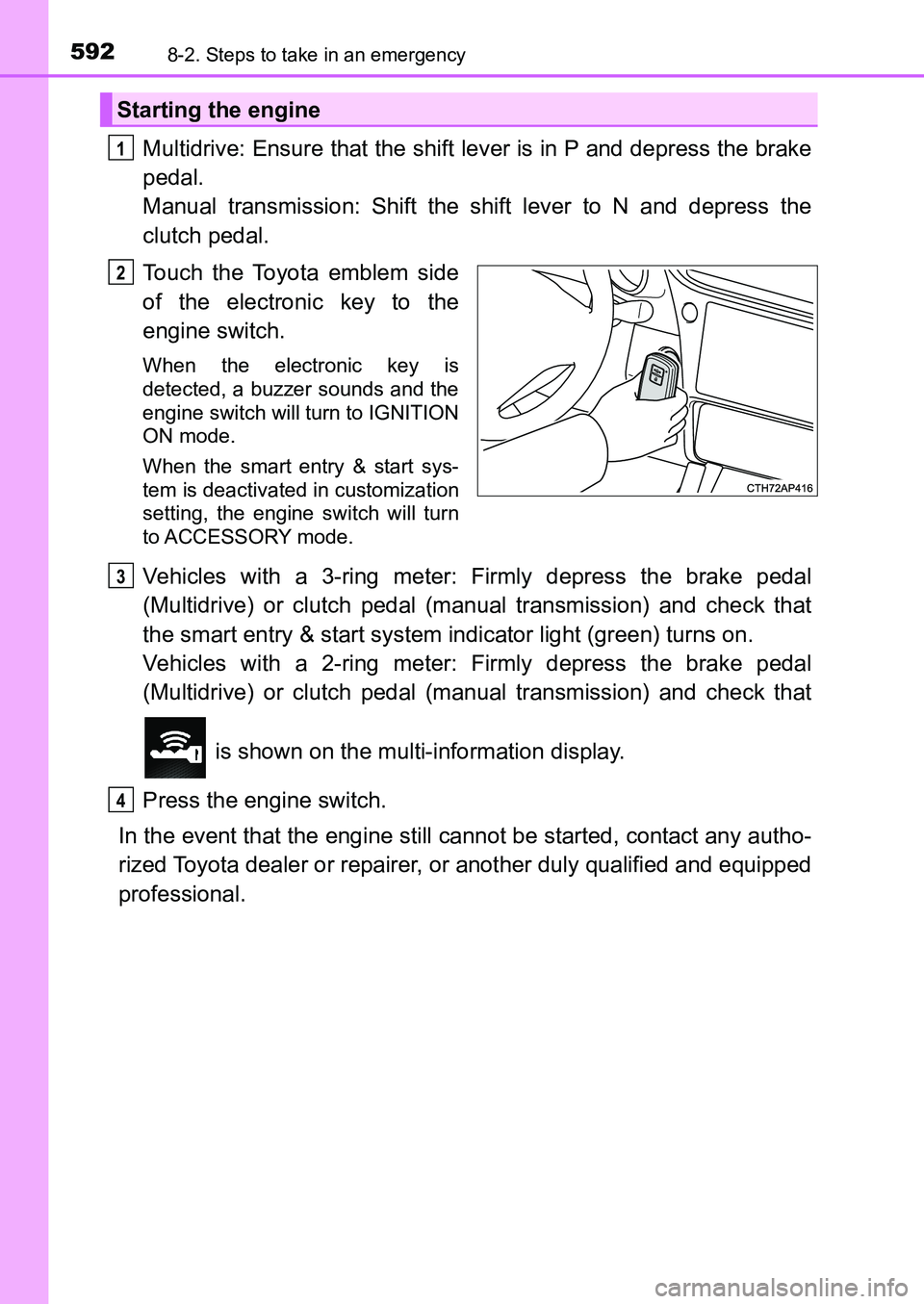

Starting the engine
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 592 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5938-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

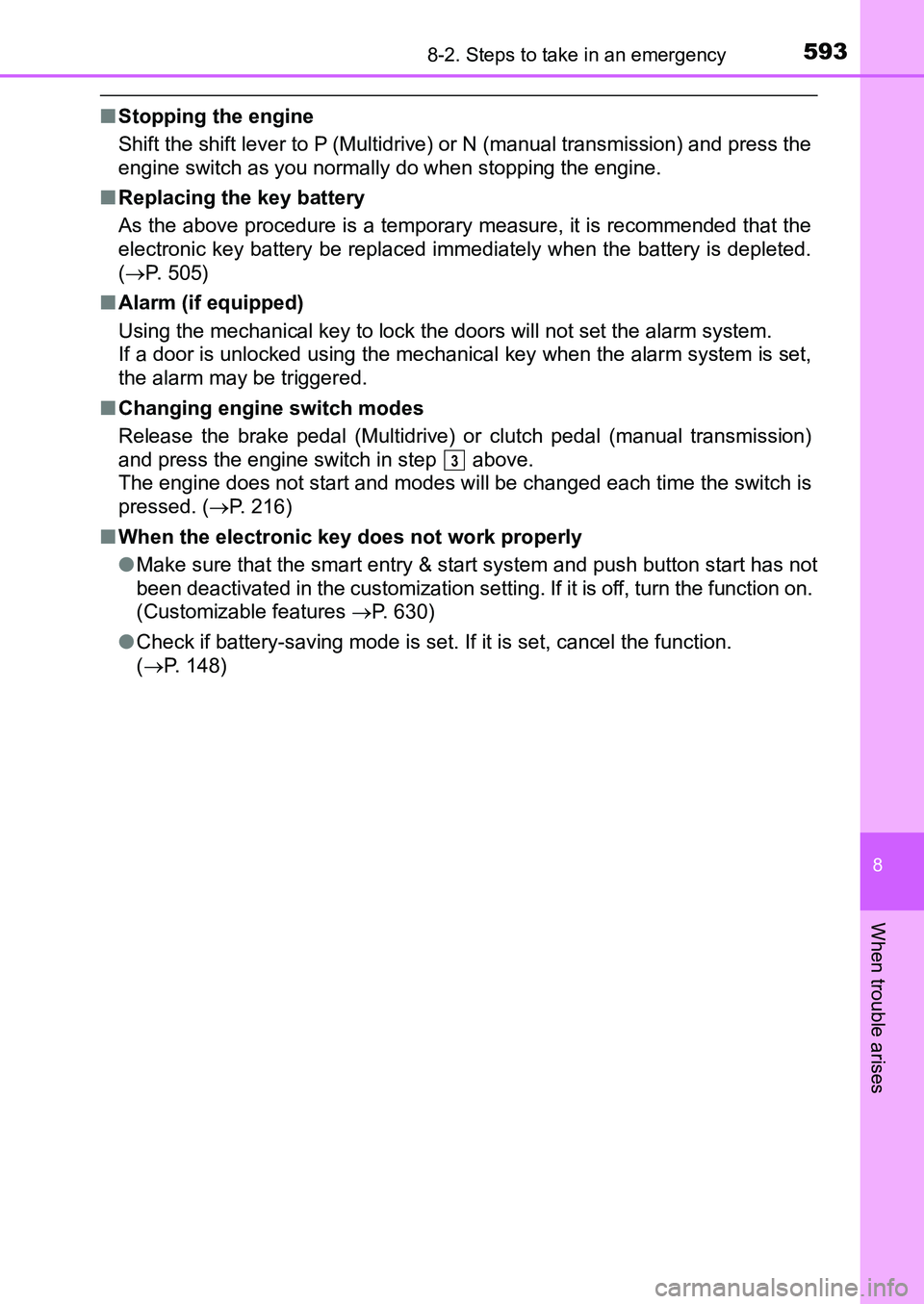

■Stopping the engine
Shift the shift lever to P (Multidrive) or N (manual transmission) and press the
engine switch as you normally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 505)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.
■Changing engine switch modes
Release the brake pedal (Multidrive) or clutch pedal (manual transmission)
and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. (P. 216)
■When the electronic key does not work properly
●Make sure that the smart entry & start system and push button start has not
been deactivated in the customization setting. If it is off, turn the function on.
(Customizable features P. 630)
●Check if battery-saving mode is set. If it is set, cancel the function.
(P. 148)
3
UK AURIS_HB_OM_Europe_OM12K97E.book 593 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5948-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

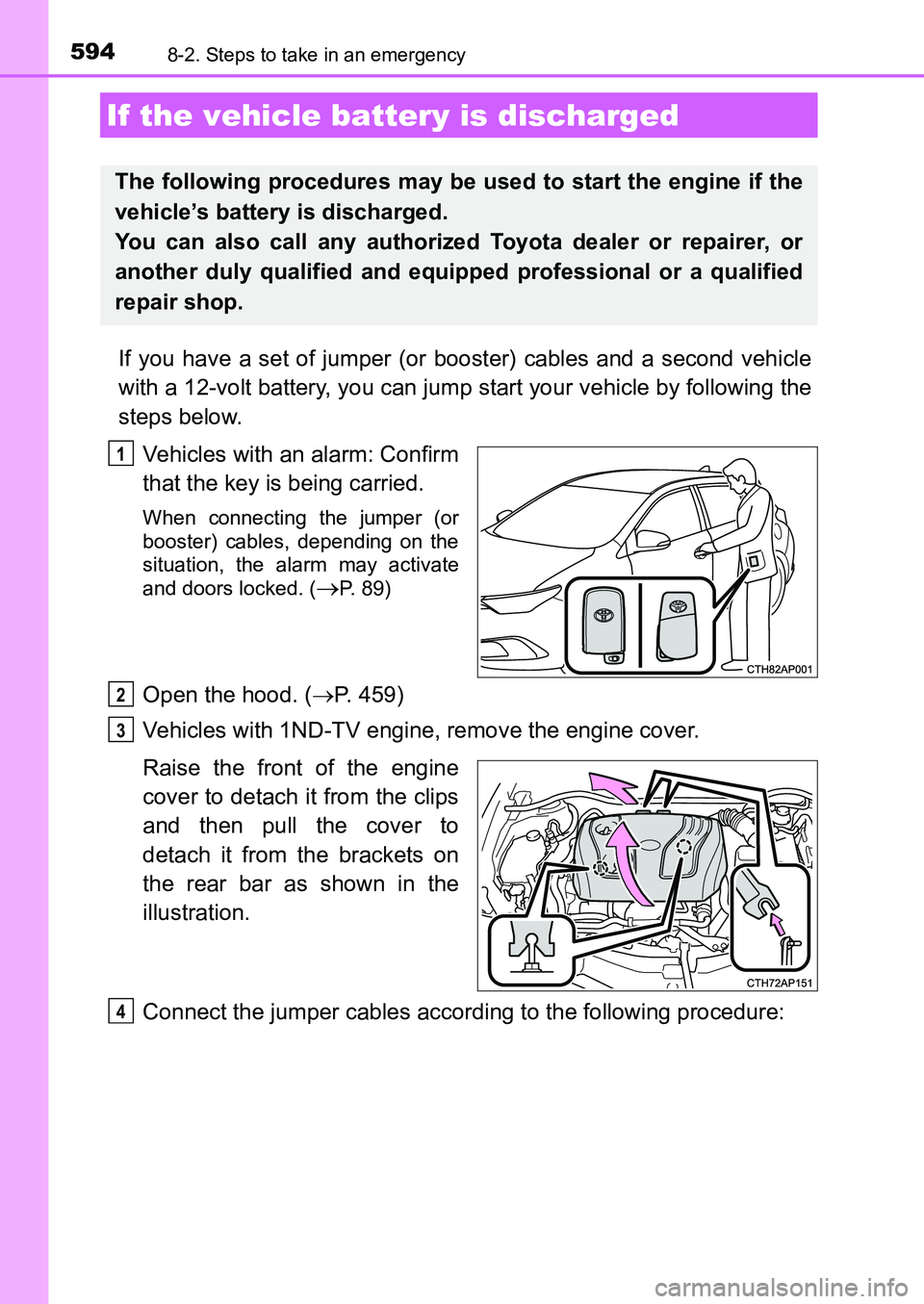

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Vehicles with an alarm: Confirm
that the key is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (
P. 89)
Open the hood. (P. 459)
Vehicles with 1ND-TV engine, remove the engine cover.
Raise the front of the engine
cover to detach it from the clips
and then pull the cover to
detach it from the brackets on
the rear bar as shown in the
illustration.
Connect the jumper cables according to the following procedure:
If the vehicle battery is discharged
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional or a qualified
repair shop.
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 594 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5958-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

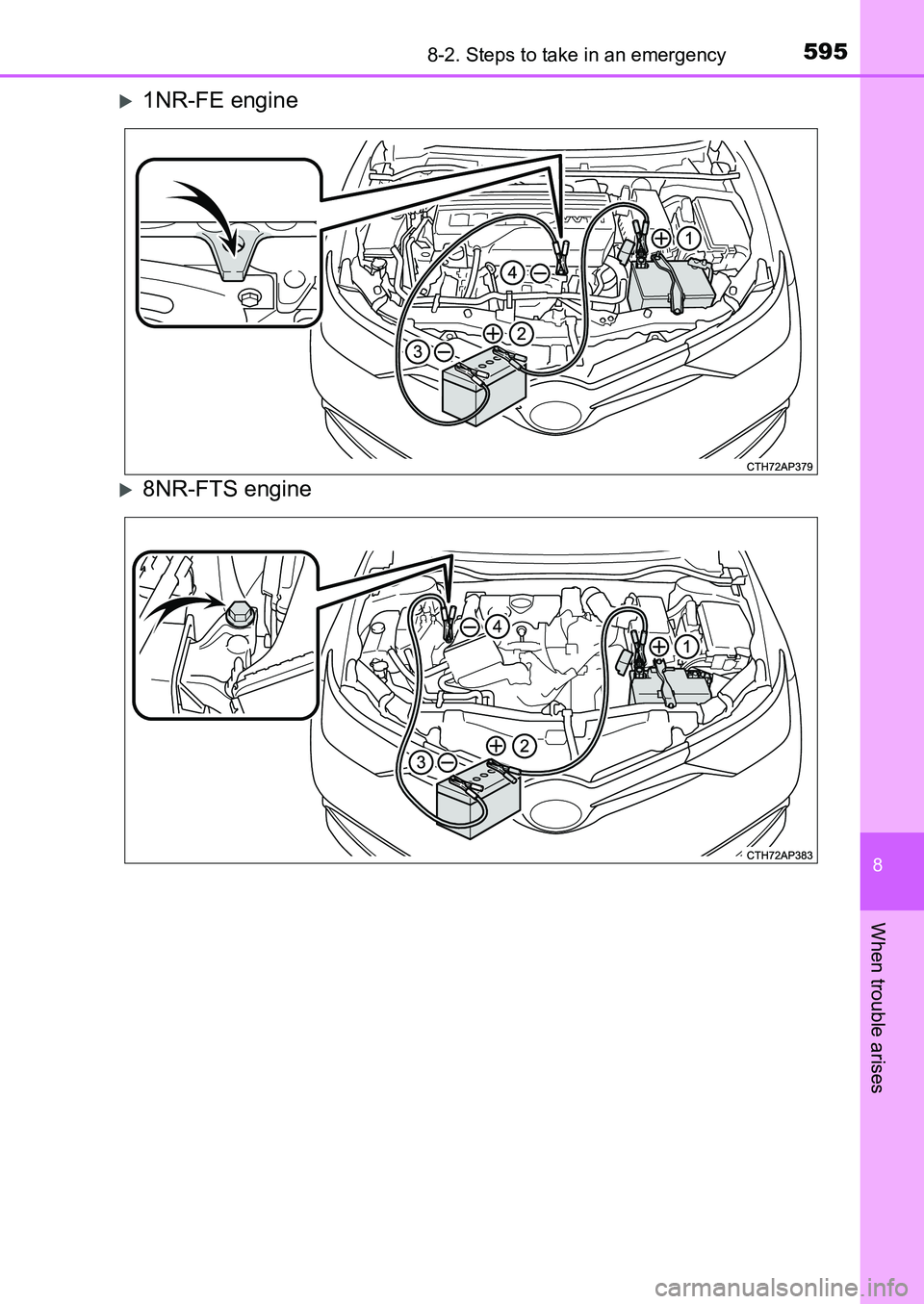

1NR-FE engine
8NR-FTS engine
UK AURIS_HB_OM_Europe_OM12K97E.book 595 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5968-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

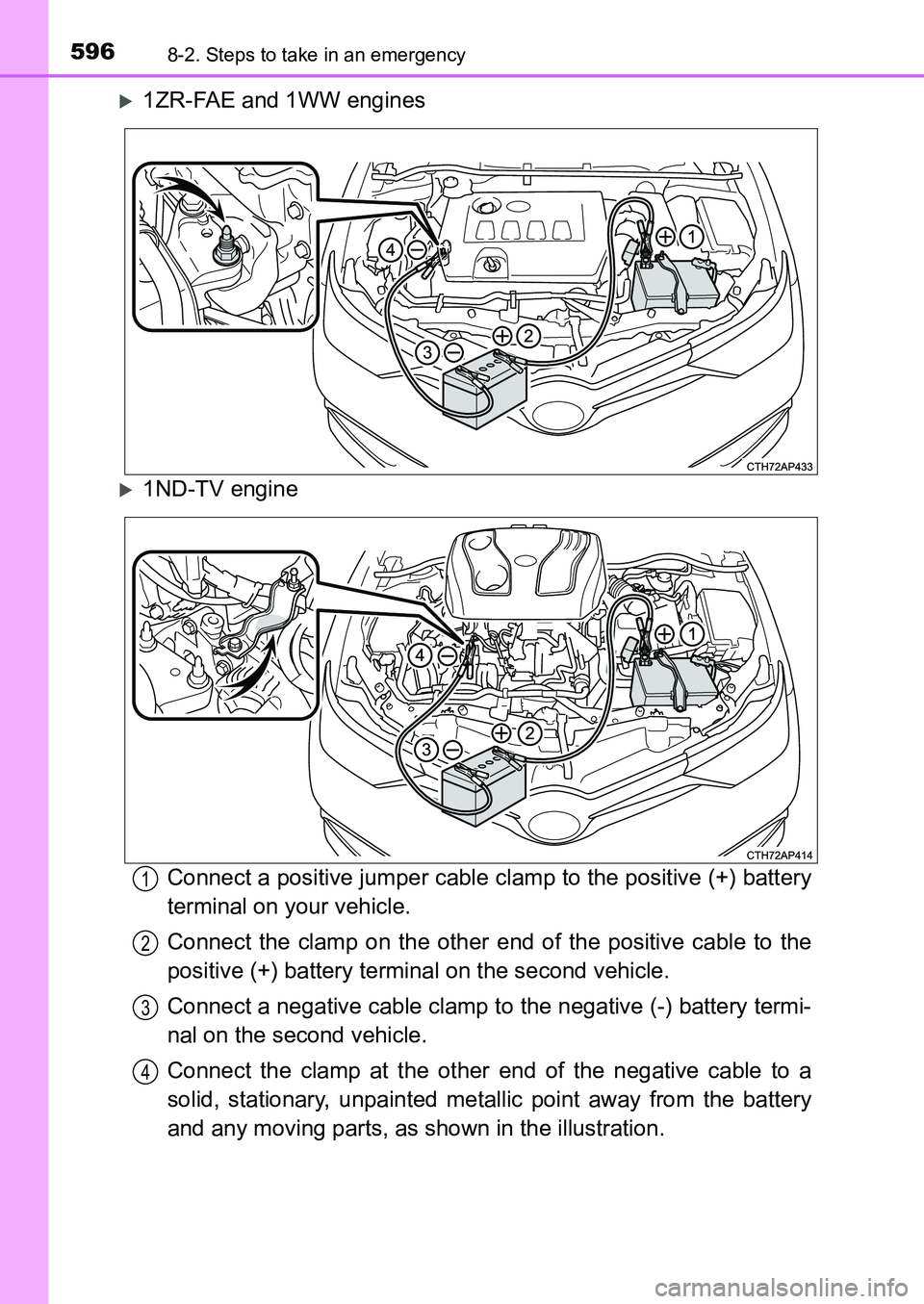

1ZR-FAE and 1WW engines
1ND-TV engine
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 596 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5978-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

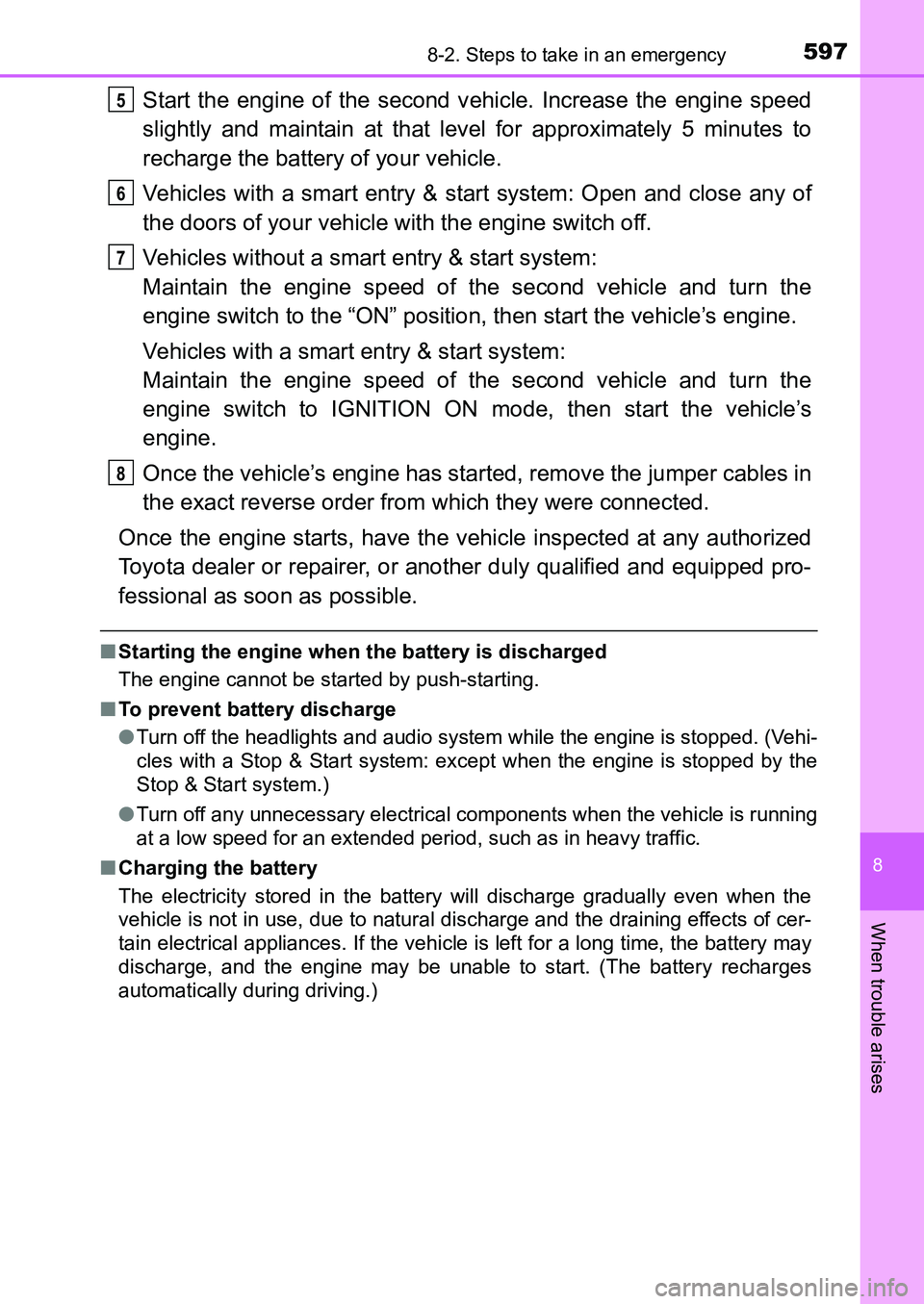

Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with a smart entry & start system: Open and close any of
the doors of your vehicle with the engine switch off.
Vehicles without a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” position, then start the vehicle’s engine.
Vehicles with a smart entry & start system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle’s
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and audio system while the engine is stopped. (Vehi-
cles with a Stop & Start system: except when the engine is stopped by the
Stop & Start system.)
●Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
5
6
7
8
UK AURIS_HB_OM_Europe_OM12K97E.book 597 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5988-2. Steps to take in an emergency

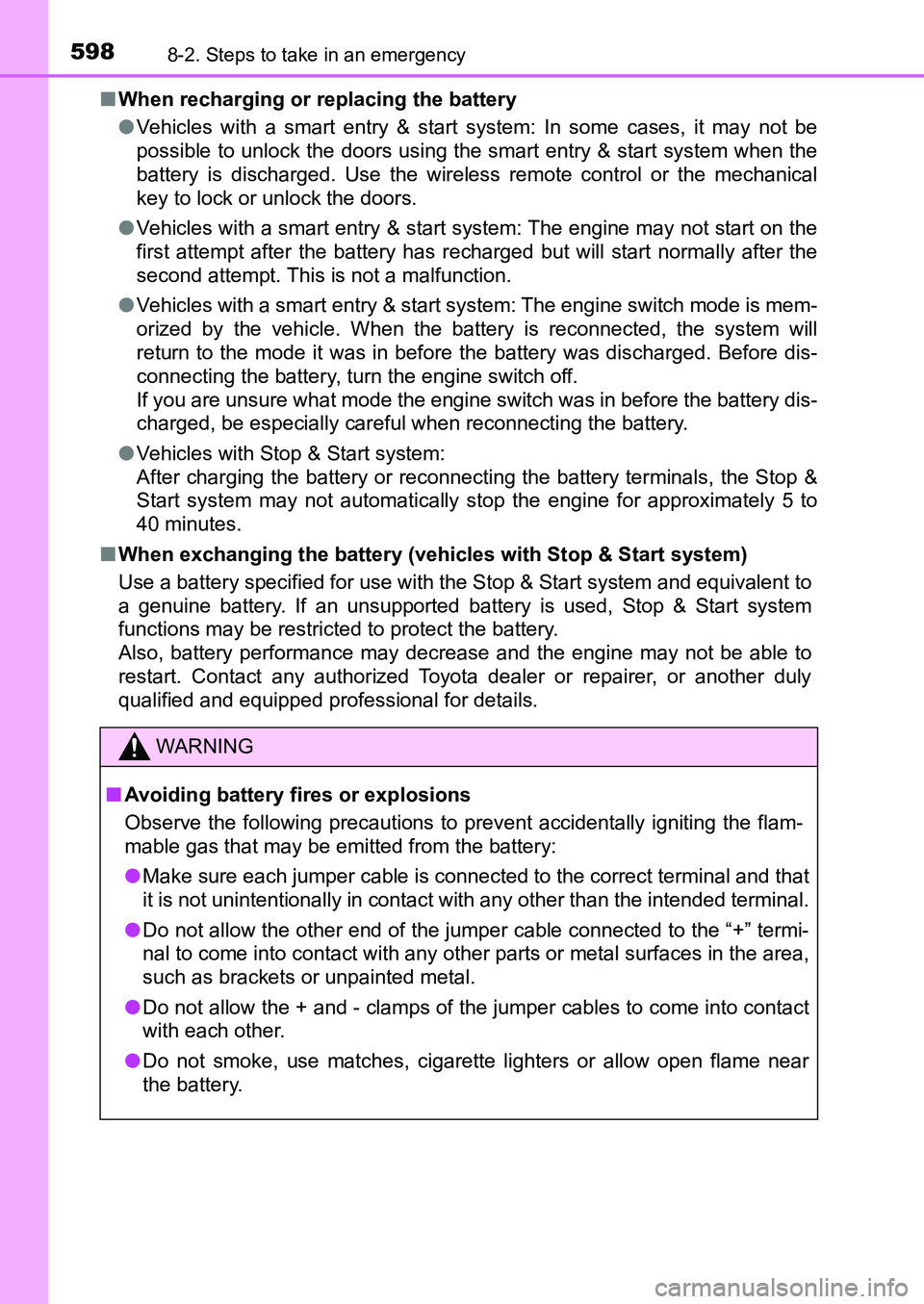

UK AURIS_HB_EE (OM12K97E)■When recharging or replacing the battery
●Vehicles with a smart entry & start system: In some cases, it may not be
possible to unlock the doors using the smart entry & start system when the
battery is discharged. Use the wireless remote control or the mechanical
key to lock or unlock the doors.
●Vehicles with a smart entry & start system: The engine may not start on the
first attempt after the battery has recharged but will start normally after the
second attempt. This is not a malfunction.
●Vehicles with a smart entry & start system: The engine switch mode is mem-
orized by the vehicle. When the battery is reconnected, the system will
return to the mode it was in before the battery was discharged. Before dis-
connecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
●Vehicles with Stop & Start system:
After charging the battery or reconnecting the battery terminals, the Stop &
Start system may not automatically stop the engine for approximately 5 to
40 minutes.
■When exchanging the battery (vehicles with Stop & Start system)
Use a battery specified for use with the Stop & Start system and equivalent to
a genuine battery. If an unsupported battery is used, Stop & Start system
functions may be restricted to protect the battery.
Also, battery performance may decrease and the engine may not be able to
restart. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for details.
WARNING
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
UK AURIS_HB_OM_Europe_OM12K97E.book 598 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5998-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

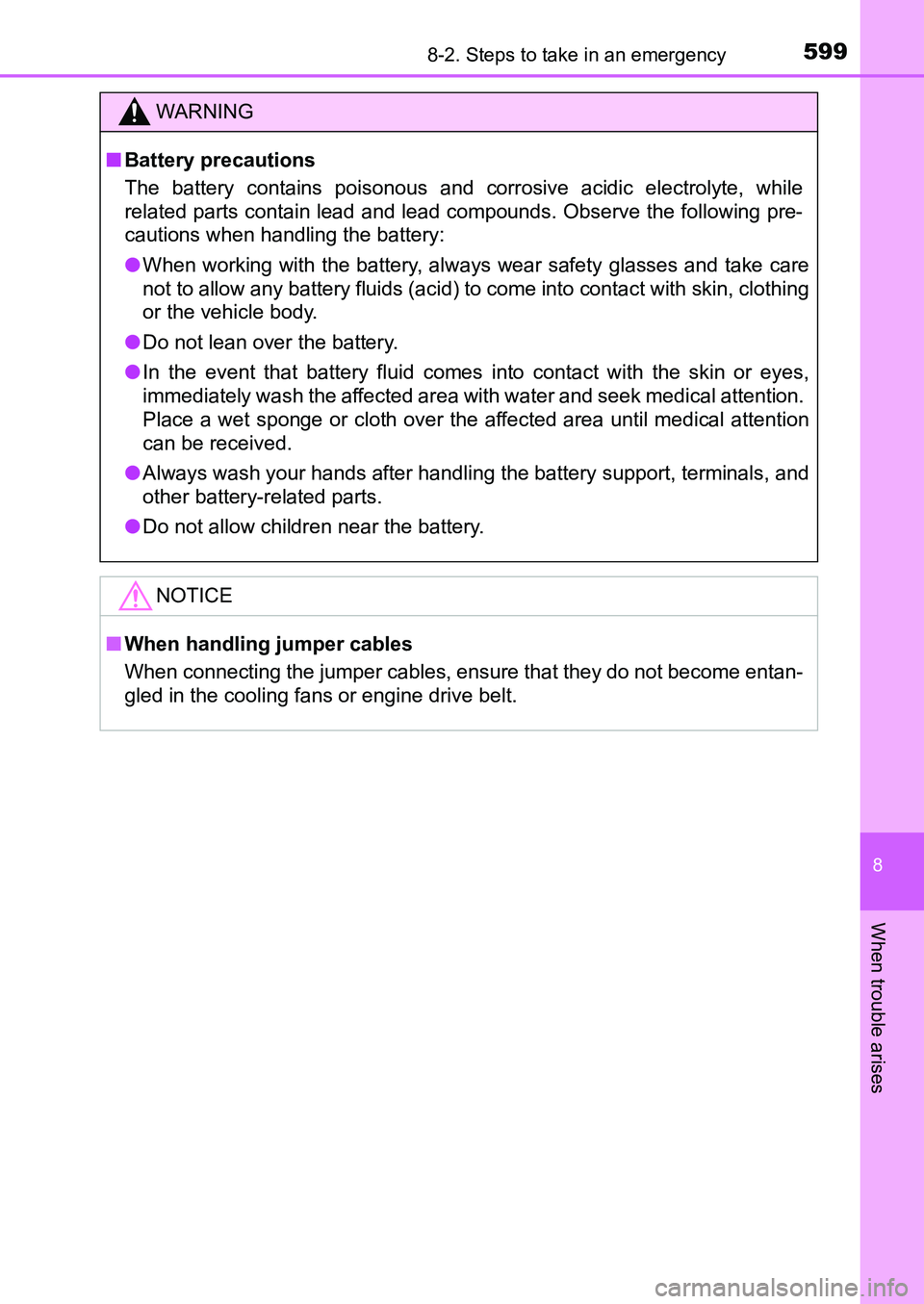

WARNING
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
●When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
●Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or engine drive belt.
UK AURIS_HB_OM_Europe_OM12K97E.book 599 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6008-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

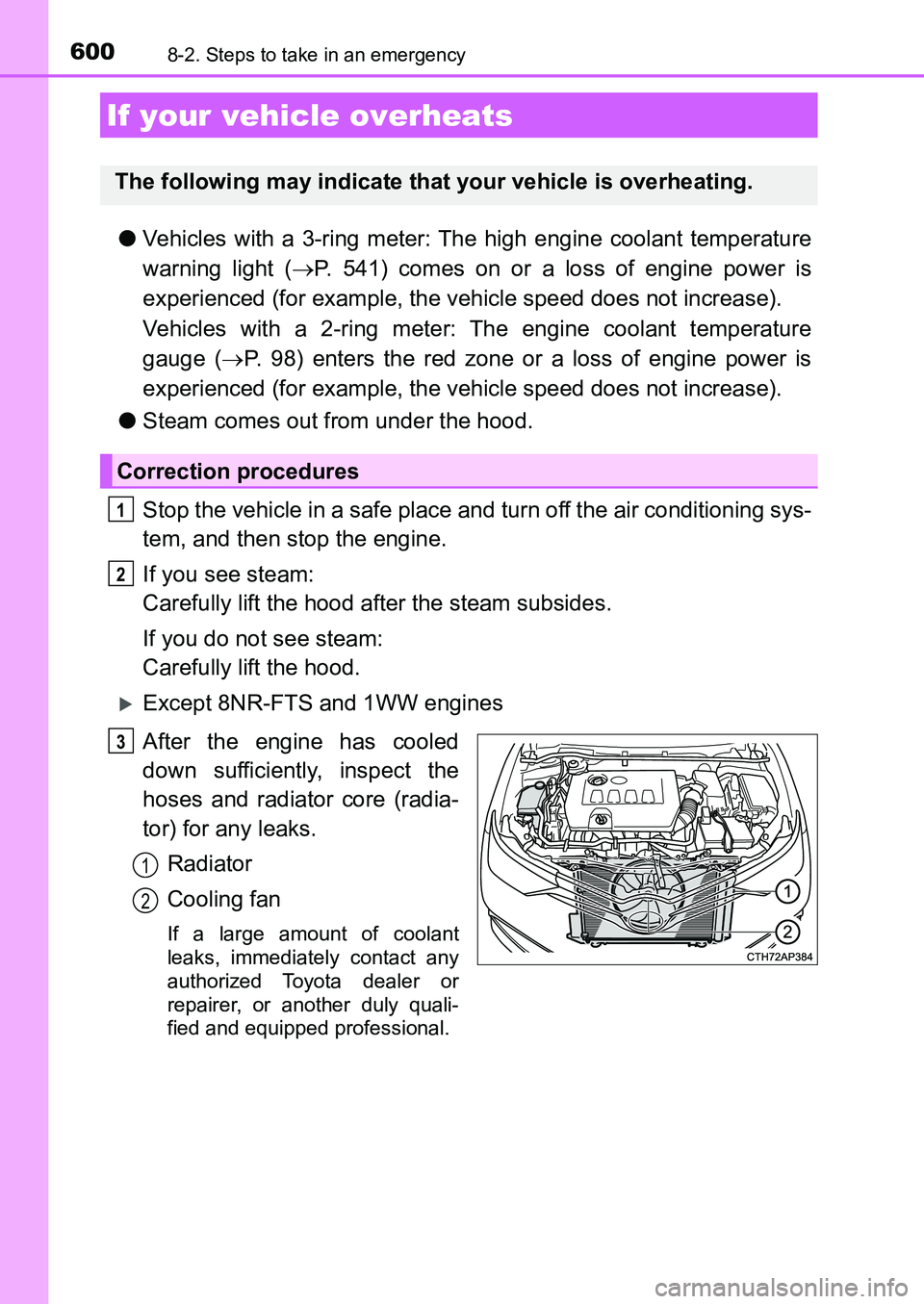

●Vehicles with a 3-ring meter: The high engine coolant temperature
warning light (P. 541) comes on or a loss of engine power is
experienced (for example, the vehicle speed does not increase).
Vehicles with a 2-ring meter: The engine coolant temperature
gauge (P. 98) enters the red zone or a loss of engine power is
experienced (for example, the vehicle speed does not increase).
●Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
Except 8NR-FTS and 1WW engines
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 600 ページ ２０１６年６月２７日　月曜日　午後５時４２分
