TOYOTA AURIS 2017 Owners Manual (in English)

6219-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
1NR-FE, 1ZR-FAE and 1ND-TV engines
8NR-FTS engine

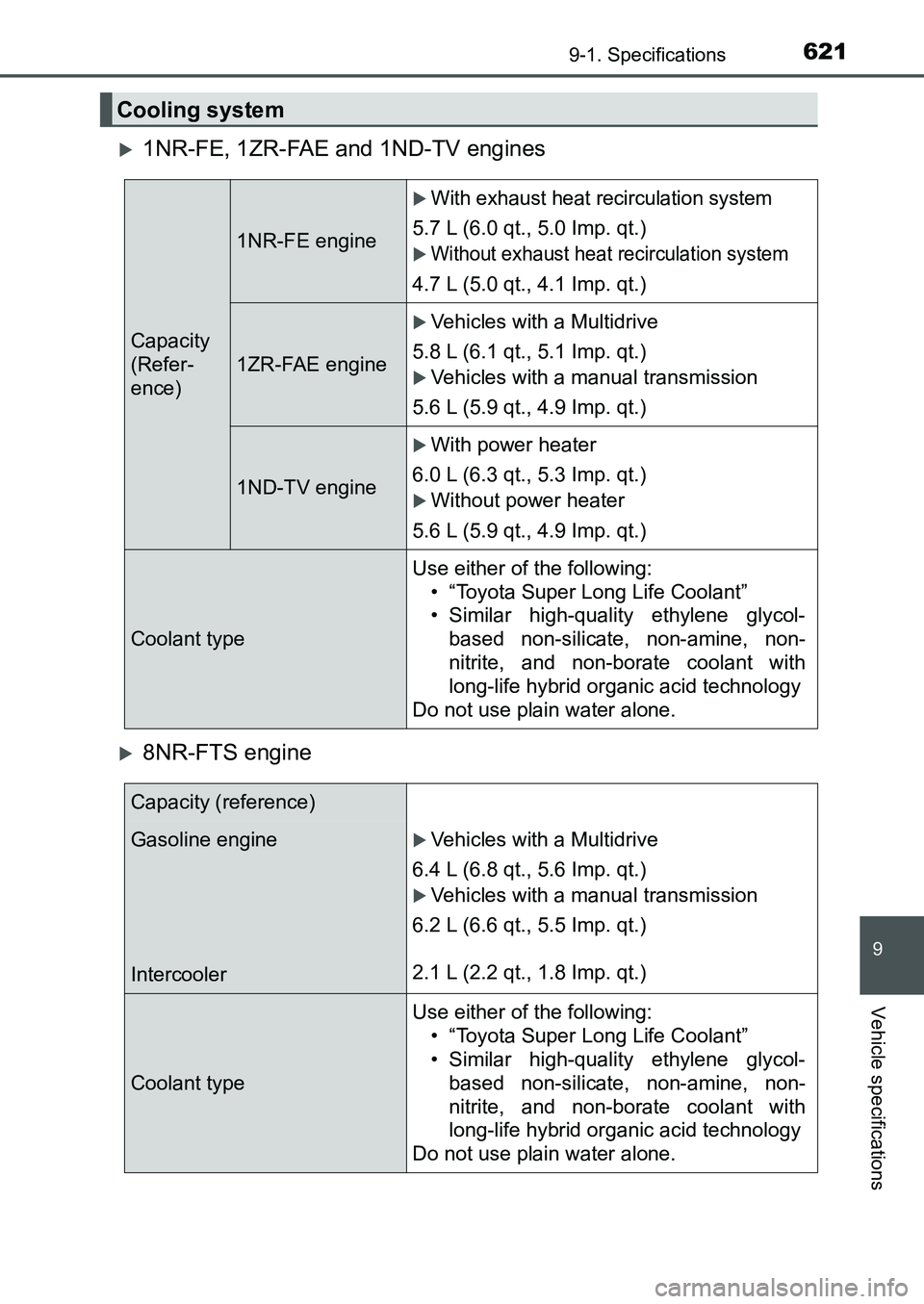

Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Capacity (reference)
Gasoline engine
IntercoolerVehicles with a Multidrive
6.4 L (6.8 qt., 5.6 Imp. qt.)
Vehicles with a manual transmission
6.2 L (6.6 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
UK AURIS_HB_OM_Europe_OM12K97E.book 621 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6229-1. Specifications
UK AURIS_HB_EE (OM12K97E)

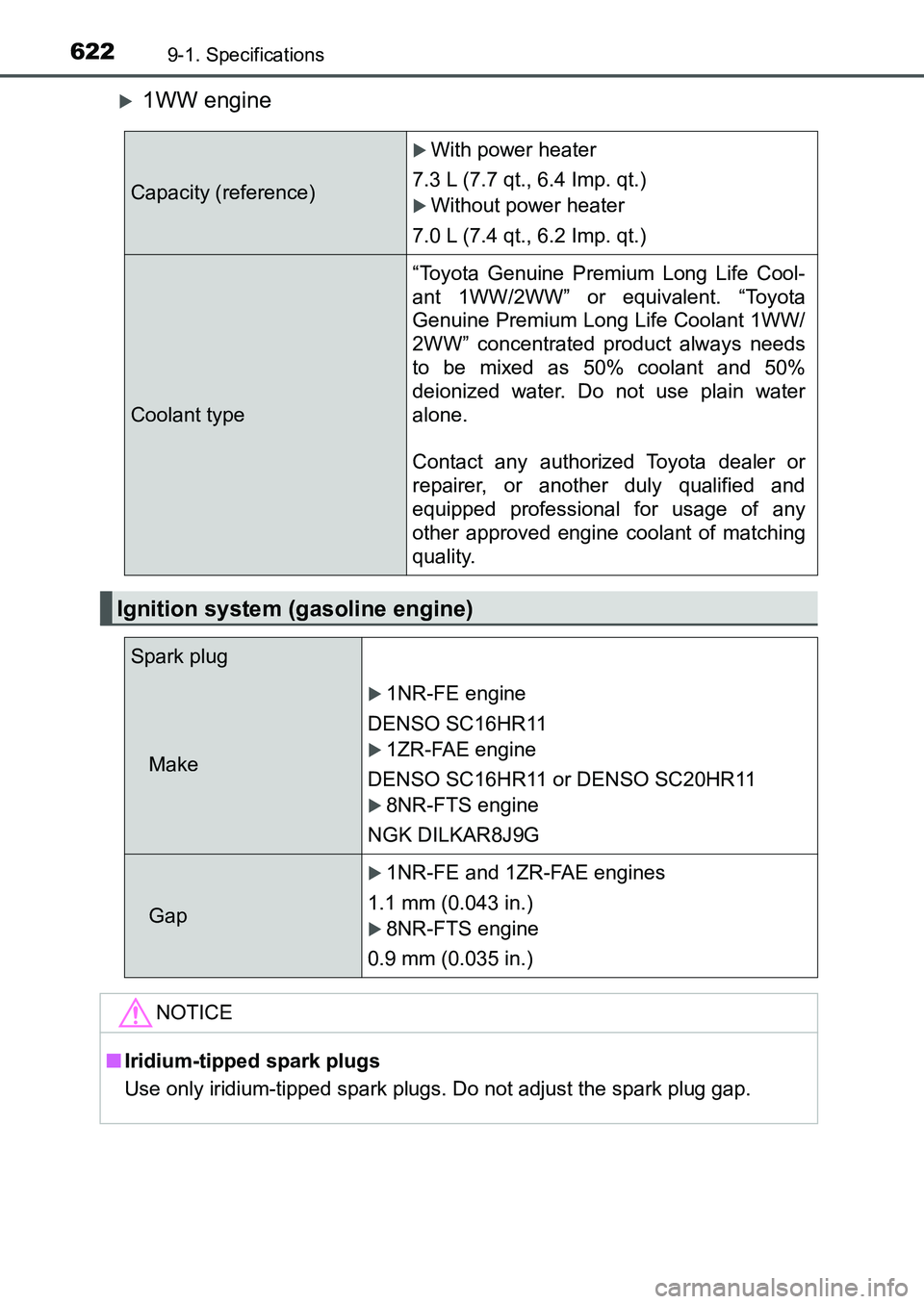

1WW engine
Capacity (reference)
With power heater
7.3 L (7.7 qt., 6.4 Imp. qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp. qt.)
Coolant type“Toyota Genuine Premium Long Life Cool-
ant 1WW/2WW” or equivalent. “Toyota
Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs
to be mixed as 50% coolant and 50%
deionized water. Do not use plain water
alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional for usage of any
other approved engine coolant of matching
quality.
Ignition system (gasoline engine)
Spark plug
Make
1NR-FE engine
DENSO SC16HR11
1ZR-FAE engine
DENSO SC16HR11 or DENSO SC20HR11
8NR-FTS engine
NGK DILKAR8J9G
Gap
1NR-FE and 1ZR-FAE engines
1.1 mm (0.043 in.)
8NR-FTS engine
0.9 mm (0.035 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
UK AURIS_HB_OM_Europe_OM12K97E.book 622 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6239-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

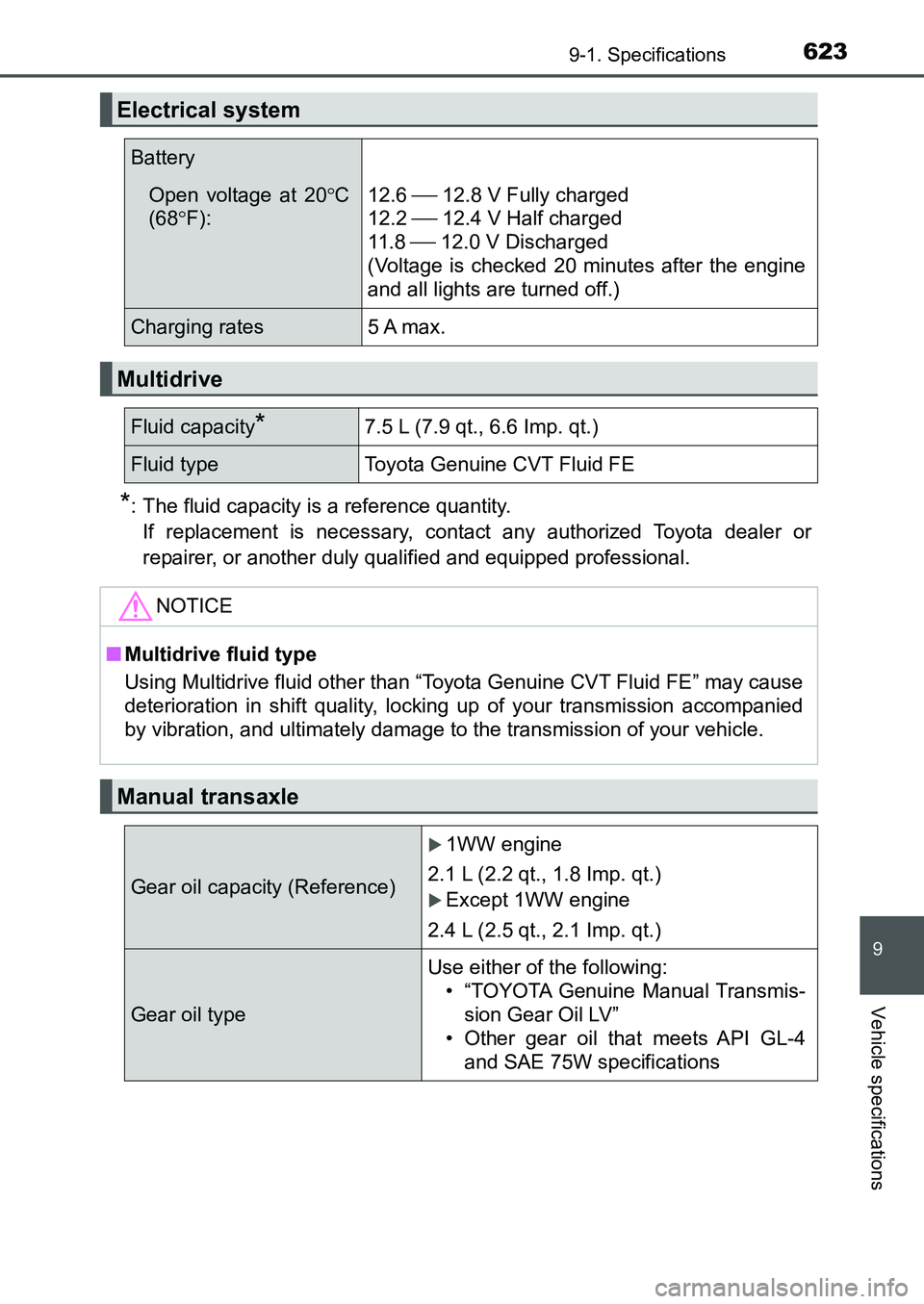

Electrical system
Battery
Open voltage at 20C
(68F):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.
Manual transaxle
Gear oil capacity (Reference)
1WW engine
2.1 L (2.2 qt., 1.8 Imp. qt.)
Except 1WW engine
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
UK AURIS_HB_OM_Europe_OM12K97E.book 623 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6249-1. Specifications
UK AURIS_HB_EE (OM12K97E)
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)

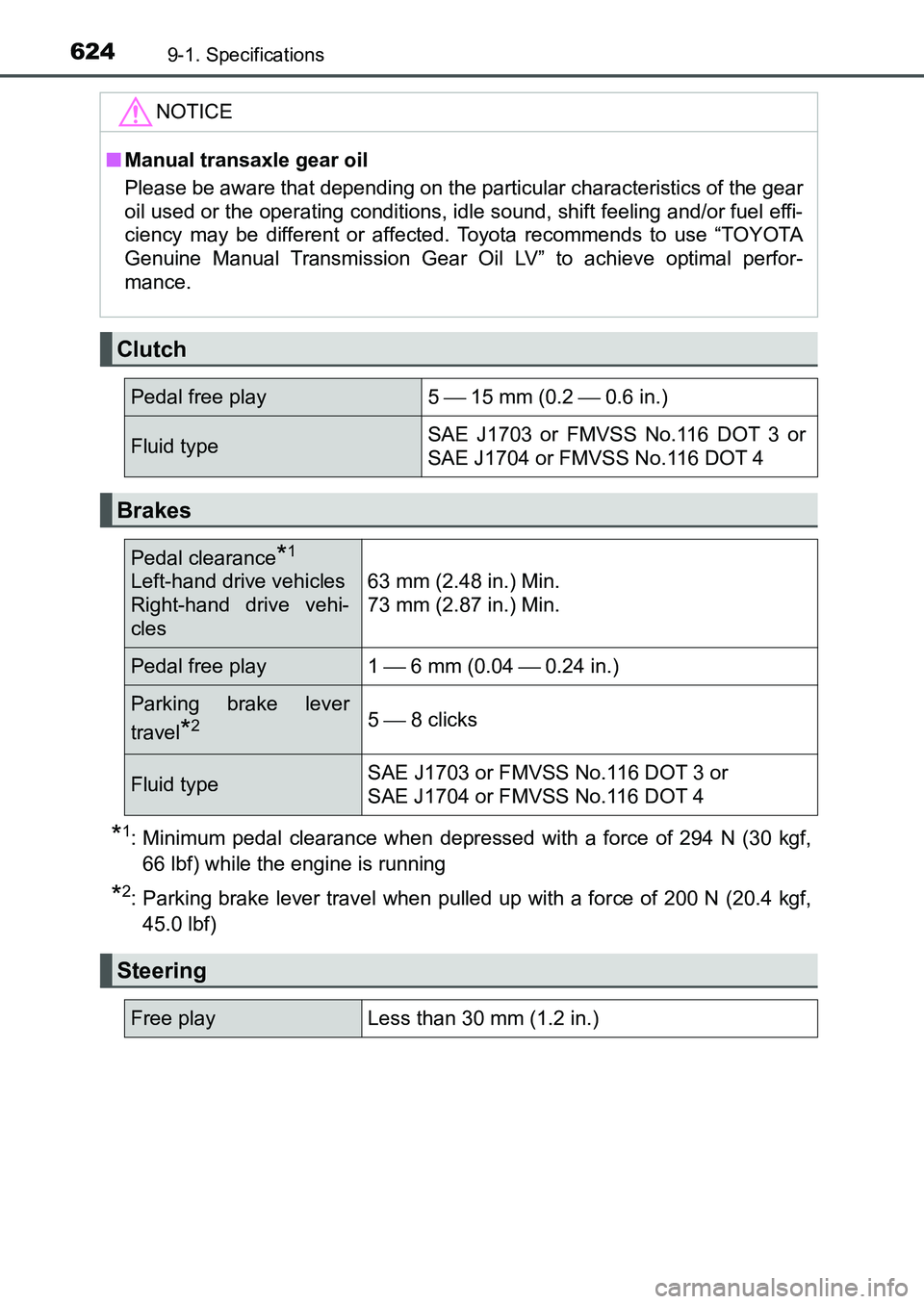

NOTICE
■Manual transaxle gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehi-
cles63 mm (2.48 in.) Min.
73 mm (2.87 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever
travel
*25  8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
UK AURIS_HB_OM_Europe_OM12K97E.book 624 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6259-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications

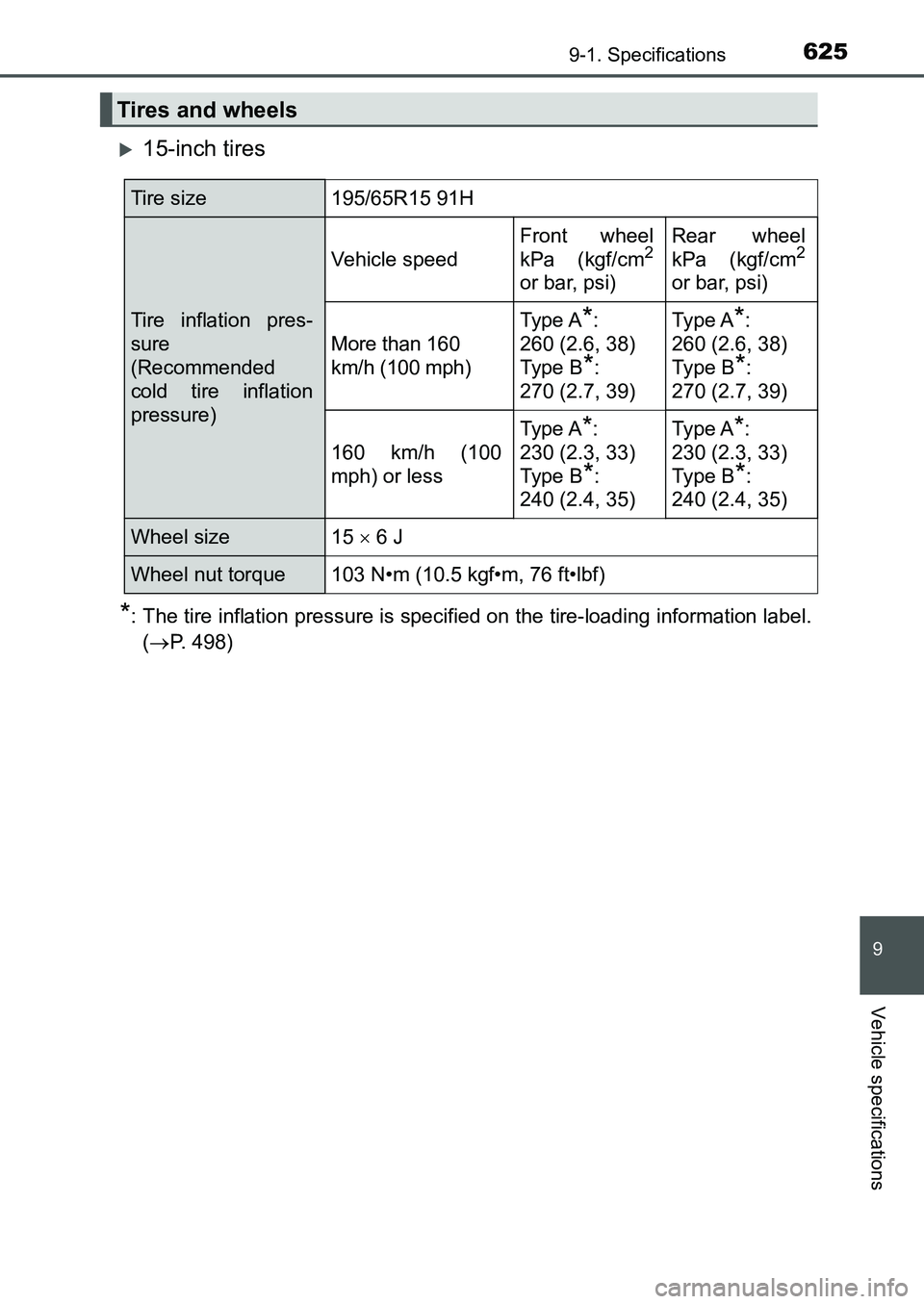

15-inch tires
*: The tire inflation pressure is specified on the tire-loading information label.
(P. 498)
Tires and wheels
Tire size195/65R15 91H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)
Type A*:
260 (2.6, 38)
Type B
*:
270 (2.7, 39)
Type A*:
260 (2.6, 38)
Type B
*:
270 (2.7, 39)
160 km/h (100
mph) or less
Type A*:
230 (2.3, 33)
Type B
*:
240 (2.4, 35)
Type A*:
230 (2.3, 33)
Type B
*:
240 (2.4, 35)
Wheel size15  6 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
UK AURIS_HB_OM_Europe_OM12K97E.book 625 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6269-1. Specifications
UK AURIS_HB_EE (OM12K97E)

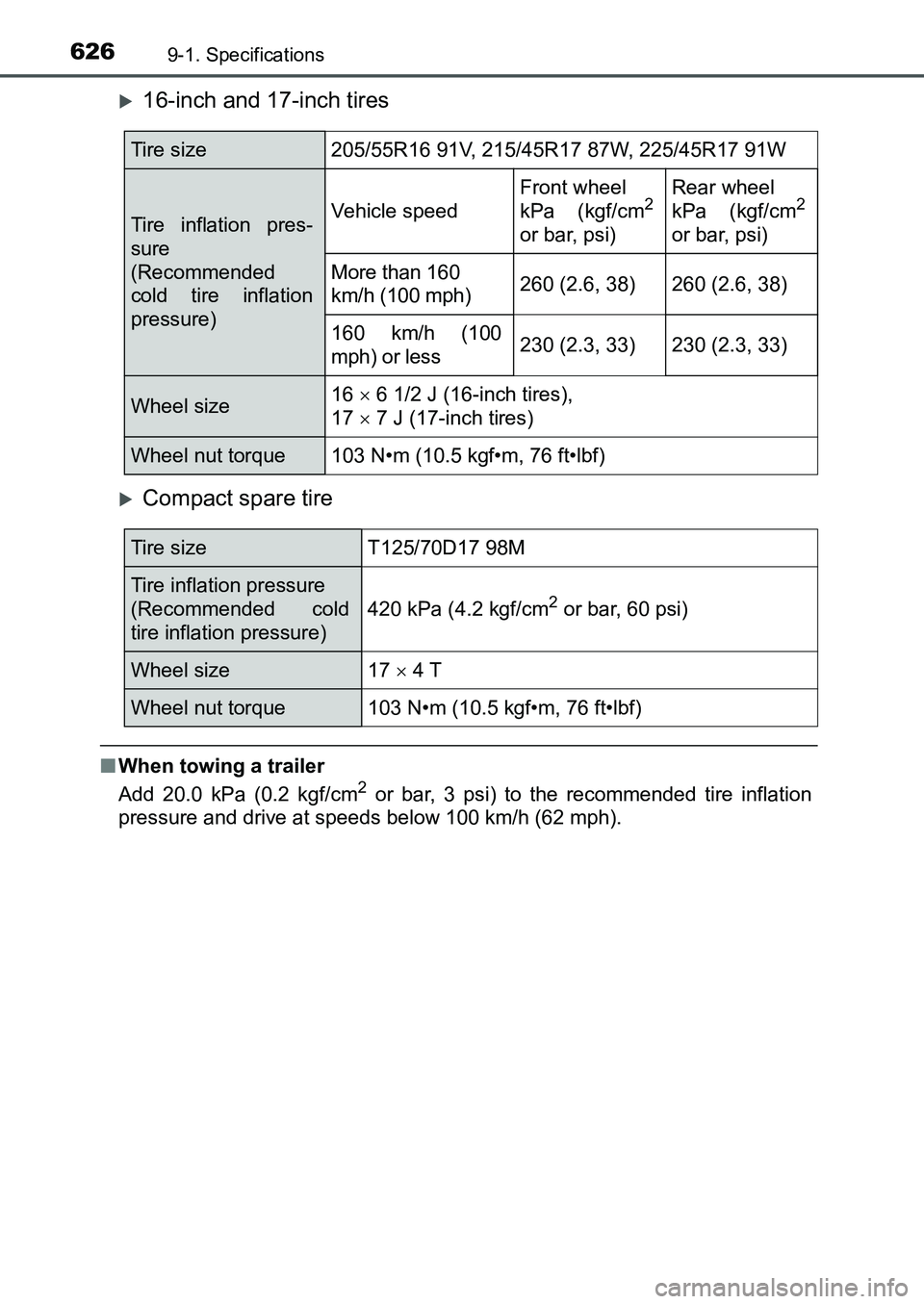

16-inch and 17-inch tires
Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size205/55R16 91V, 215/45R17 87W, 225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size16  6 1/2 J (16-inch tires),
17  7 J (17-inch tires)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
UK AURIS_HB_OM_Europe_OM12K97E.book 626 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6279-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
Light bulbs
Light BulbsWTy p e
Exterior
Halogen headlights*55A
Front fog lights*19B
Front turn signal lights21C
Side turn signal lights5C
Rear turn signal lights21D
Stop lights21E
Back-up light16F
Licence plate lights5F
Interior
Vanity lights*5G
Front interior lights/personal lights8F
Rear interior light*8G
Rear personal lights*8F
Luggage compartment light5G
A: HIR2 halogen bulbs
C: Wedge base bulbs (amber)
E: Single end bulbs (clear)
G: Double end bulbs
*: If equippedB: H16 halogen bulbs
D: Single end bulbs (amber)
F: Wedge base bulbs (clear)
UK AURIS_HB_OM_Europe_OM12K97E.book 627 ページ ２０１６年６月２７日　月曜日　午後５時４２分

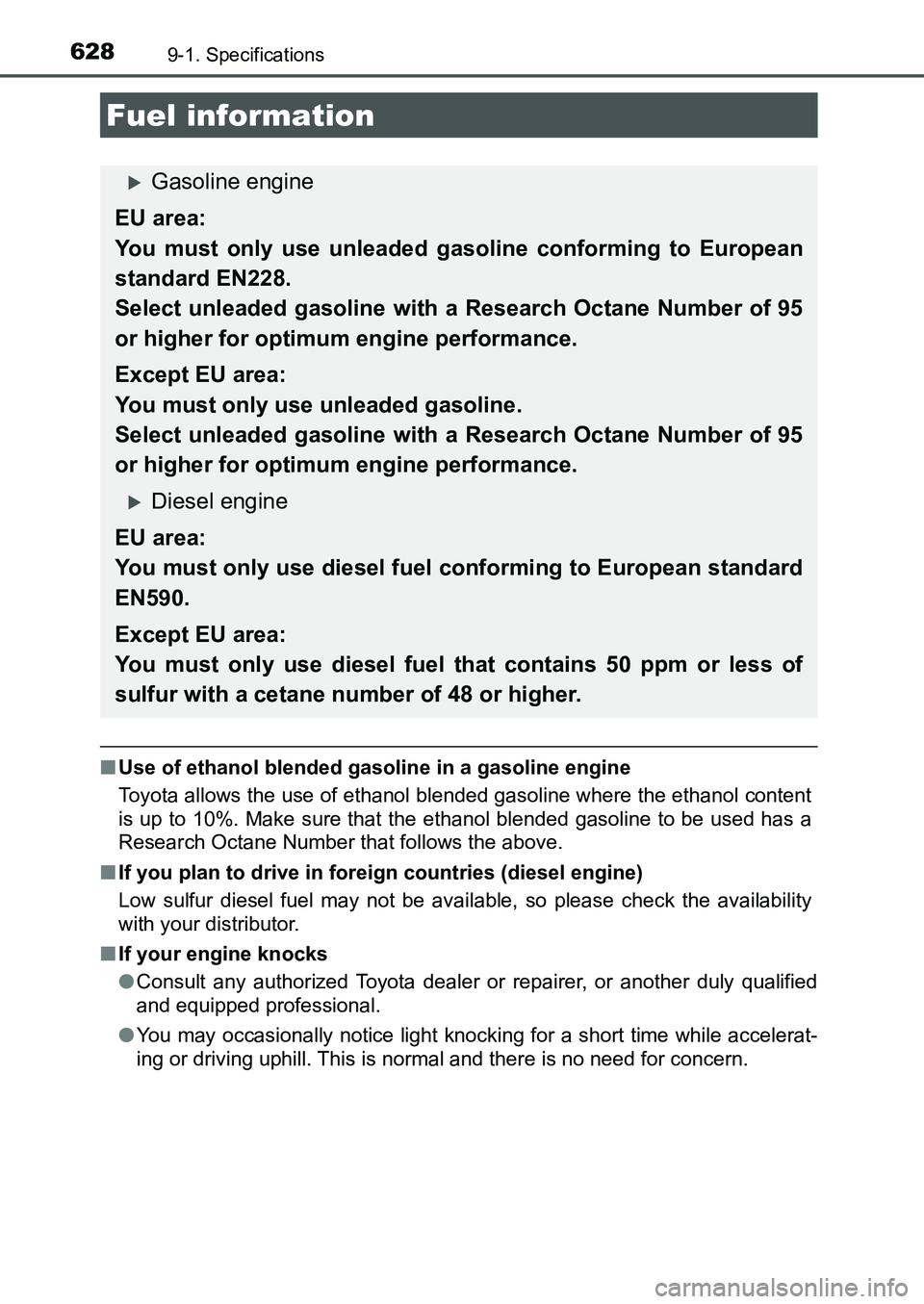

6289-1. Specifications
UK AURIS_HB_EE (OM12K97E)
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
■If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Fuel information
Gasoline engine
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Diesel engine
EU area:
You must only use diesel fuel conforming to European standard
EN590.
Except EU area:
You must only use diesel fuel that contains 50 ppm or less of
sulfur with a cetane number of 48 or higher.
UK AURIS_HB_OM_Europe_OM12K97E.book 628 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6299-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications

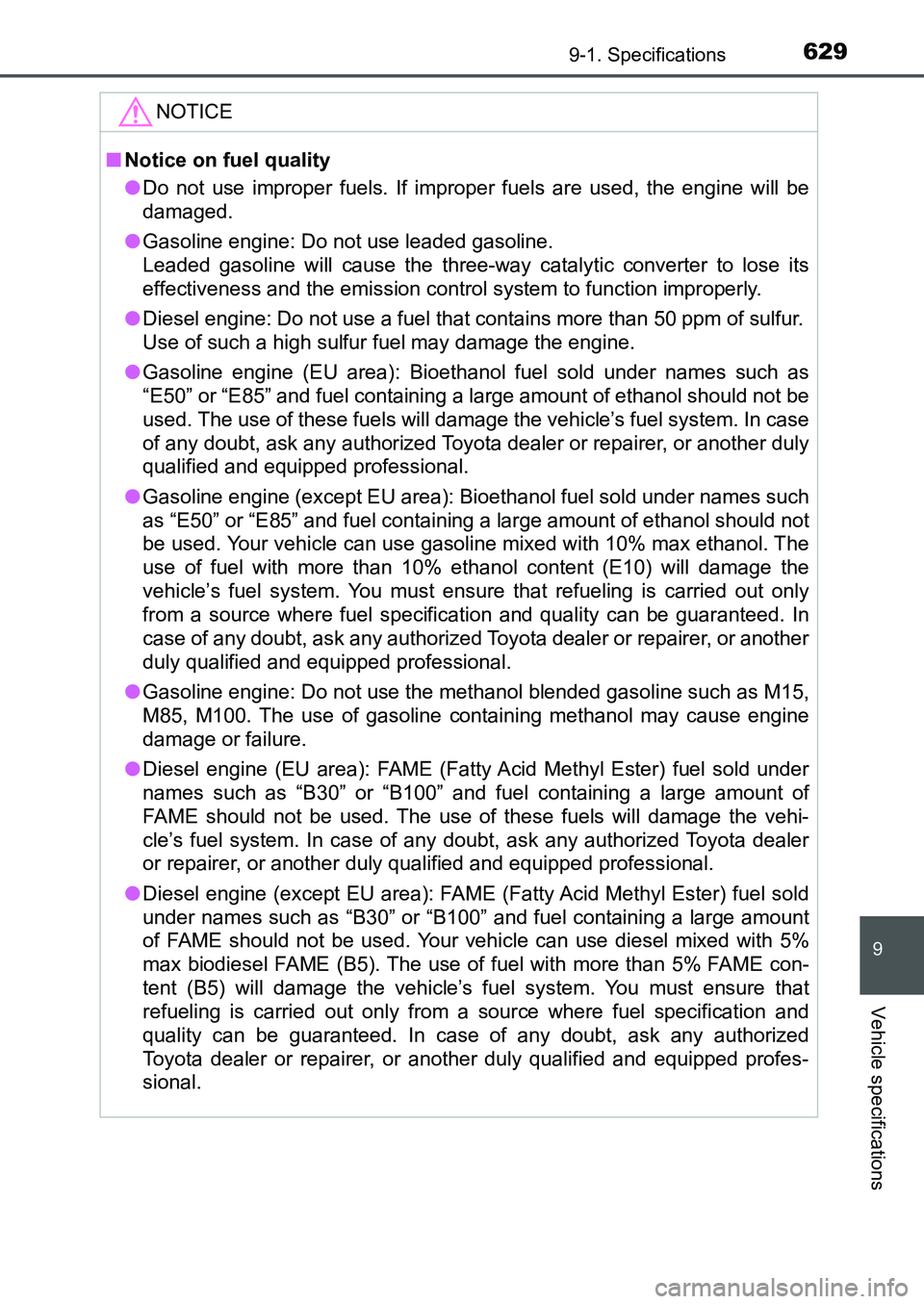

NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
●Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
●Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
●Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
●Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
●Gasoline engine: Do not use the methanol blended gasoline such as M15,
M85, M100. The use of gasoline containing methanol may cause engine
damage or failure.
●Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
●Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that
refueling is carried out only from a source where fuel specification and
quality can be guaranteed. In case of any doubt, ask any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
UK AURIS_HB_OM_Europe_OM12K97E.book 629 ページ ２０１６年６月２７日　月曜日　午後５時４２分

630
UK AURIS_HB_EE (OM12K97E)

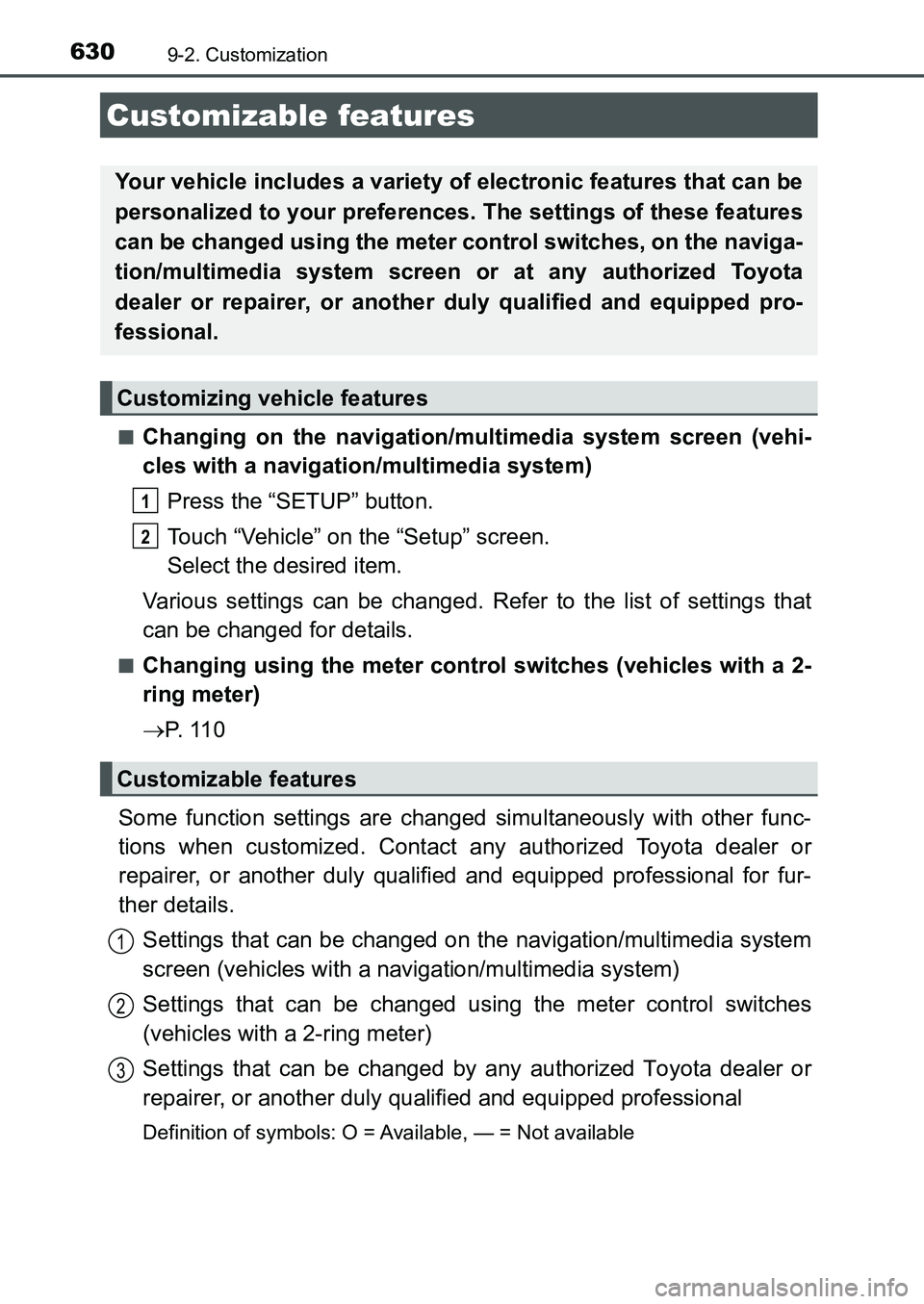

9-2. Customization
■Changing on the navigation/multimedia system screen (vehi-
cles with a navigation/multimedia system)
Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
■Changing using the meter control switches (vehicles with a 2-
ring meter)
P. 1 1 0
Some function settings are changed simultaneously with other func-
tions when customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
Settings that can be changed on the navigation/multimedia system
screen (vehicles with a navigation/multimedia system)
Settings that can be changed using the meter control switches
(vehicles with a 2-ring meter)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the meter control switches, on the naviga-
tion/multimedia system screen or at any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional.
Customizing vehicle features
Customizable features
1
2
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 630 ページ ２０１６年６月２７日　月曜日　午後５時４２分
