6018-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
8NR-FTS and 1WW engines
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
3
1
2
4
1
2
3
Except 8NR-FTS and 1WW
engines8NR-FTS engine
1WW engine
UK AURIS_HB_OM_Europe_OM12K97E.book 601 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6028-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

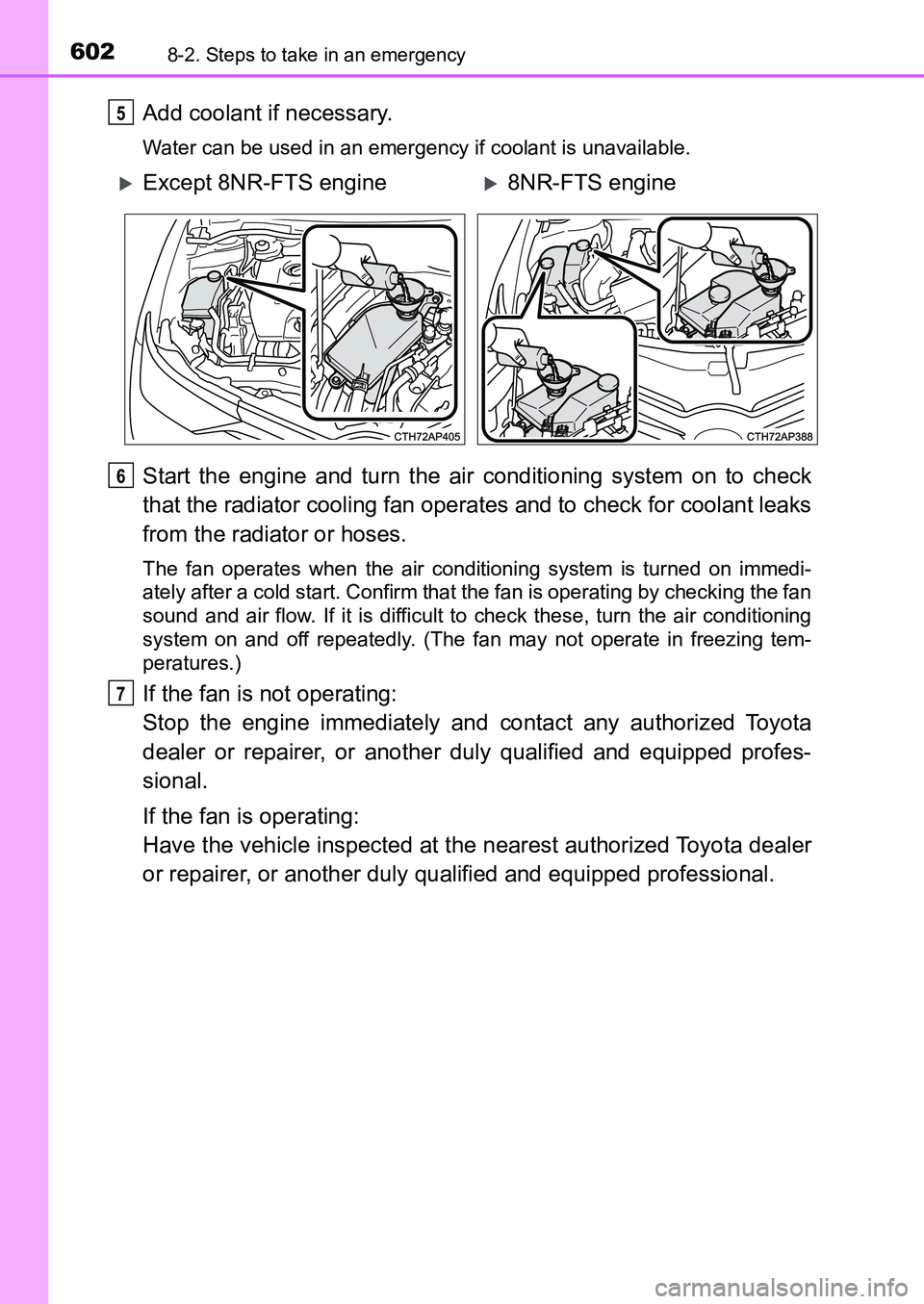

Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
5
Except 8NR-FTS engine8NR-FTS engine
6
7
UK AURIS_HB_OM_Europe_OM12K97E.book 602 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6038-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

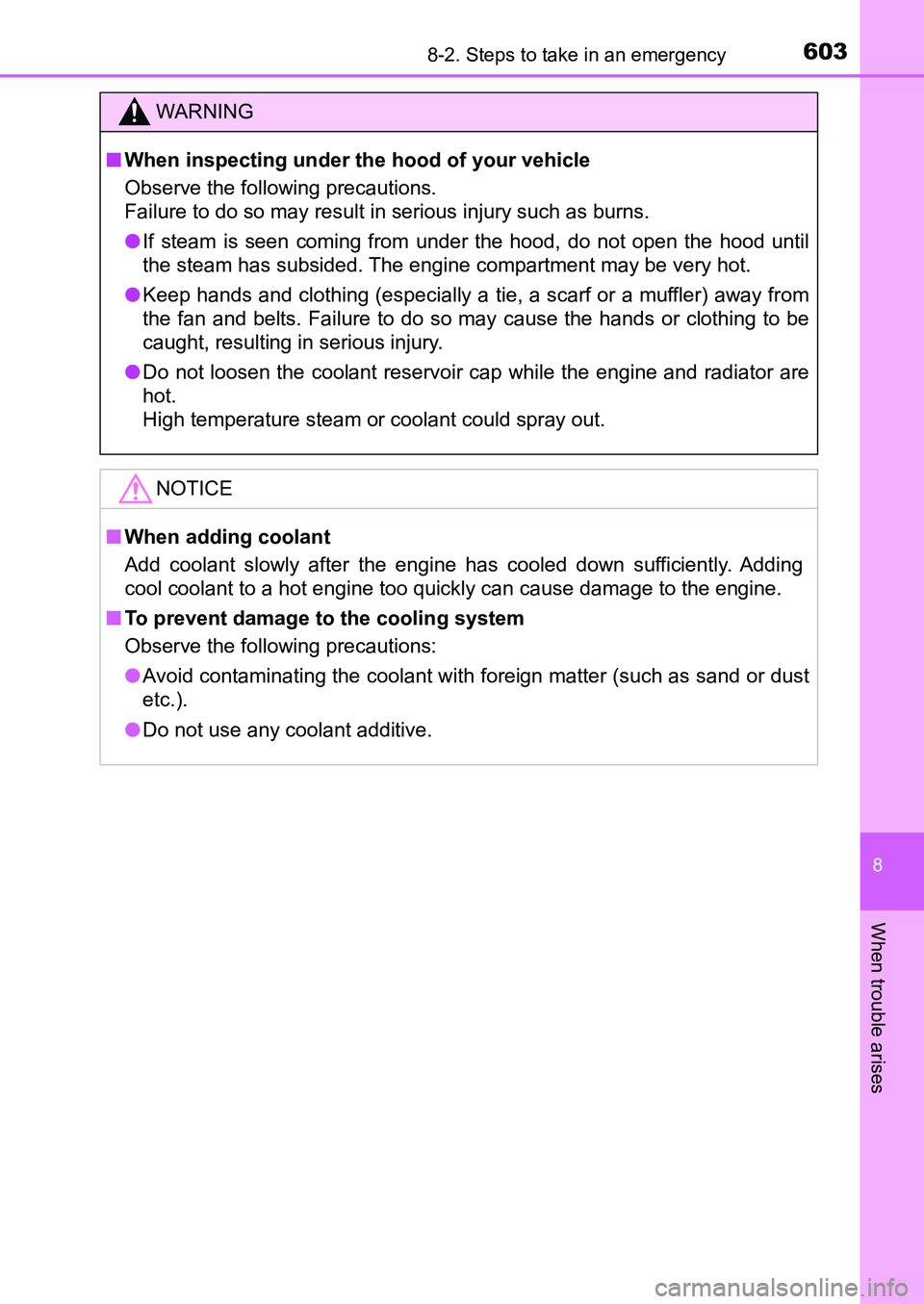

WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
●Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
●Do not use any coolant additive.
UK AURIS_HB_OM_Europe_OM12K97E.book 603 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6048-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

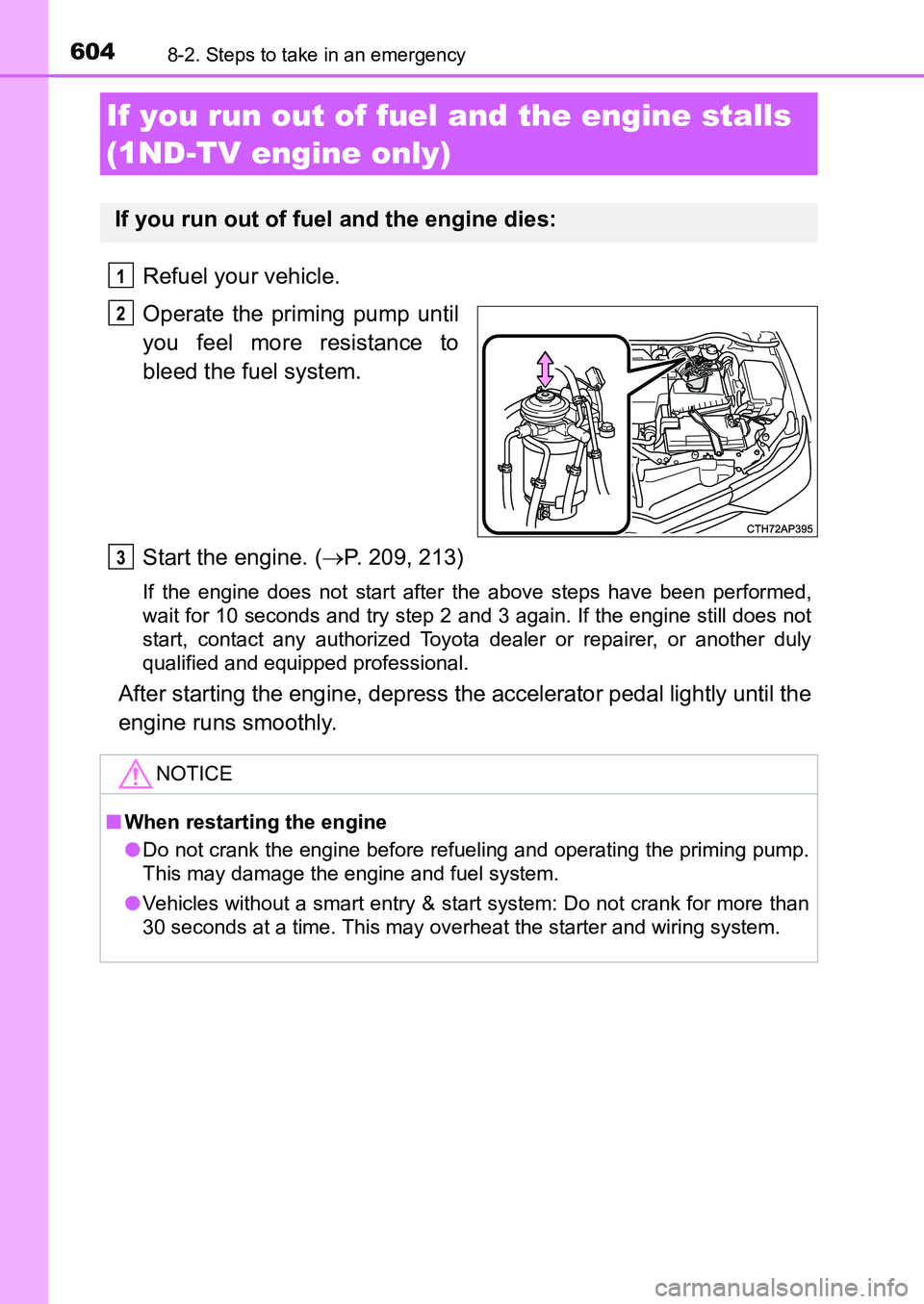

Refuel your vehicle.
Operate the priming pump until
you feel more resistance to
bleed the fuel system.
Start the engine. (P. 209, 213)
If the engine does not start after the above steps have been performed,
wait for 10 seconds and try step 2 and 3 again. If the engine still does not
start, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.
If you run out of fuel and the engine stalls
(1ND-TV engine only)
If you run out of fuel and the engine dies:
1
2
NOTICE
■When restarting the engine
●Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
●Vehicles without a smart entry & start system: Do not crank for more than
30 seconds at a time. This may overheat the starter and wiring system.
3
UK AURIS_HB_OM_Europe_OM12K97E.book 604 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6058-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises

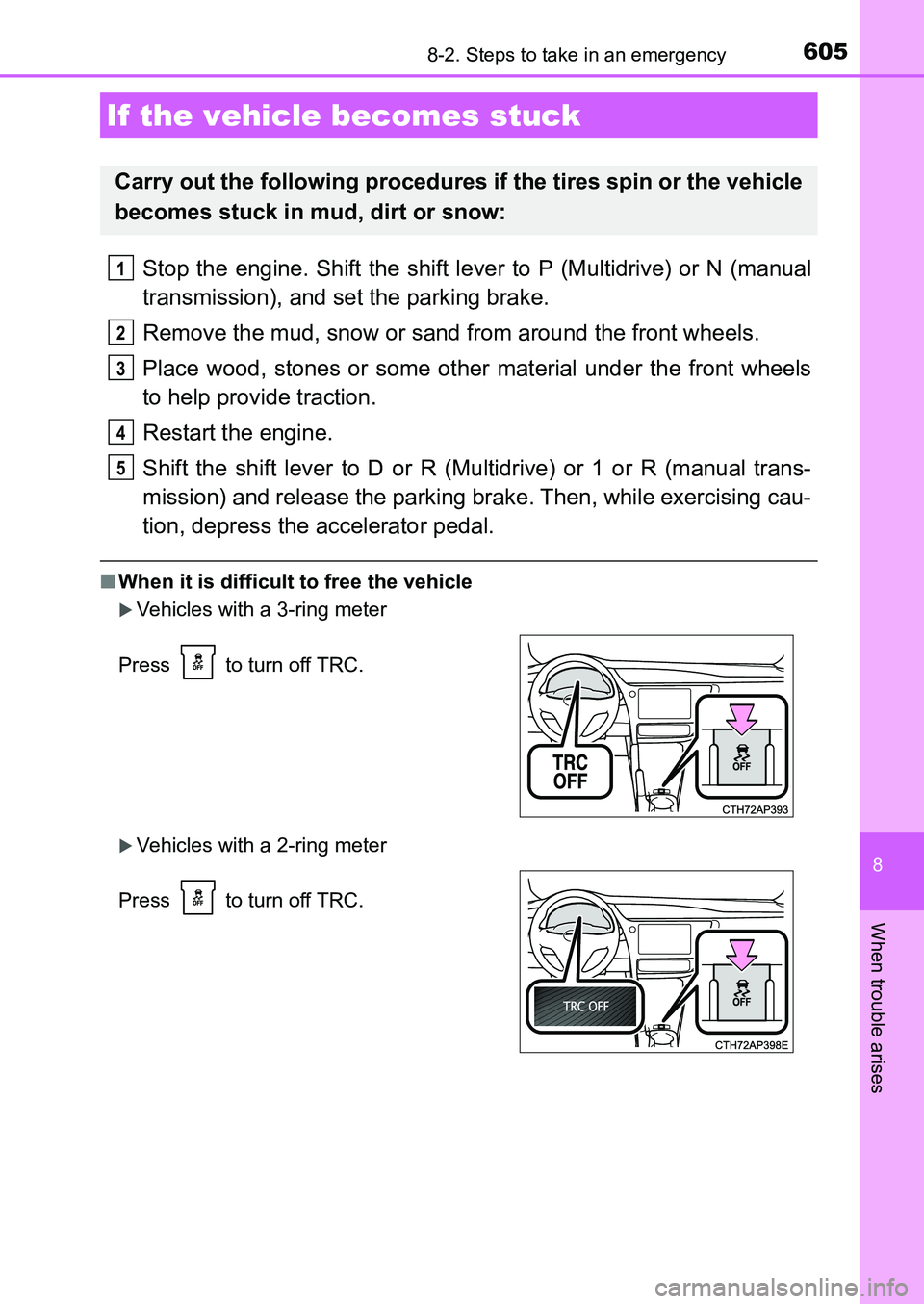

Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
transmission), and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
■When it is difficult to free the vehicle
Vehicles with a 3-ring meter
Vehicles with a 2-ring meter
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
Press to turn off TRC.
1
2
3
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 605 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6068-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)

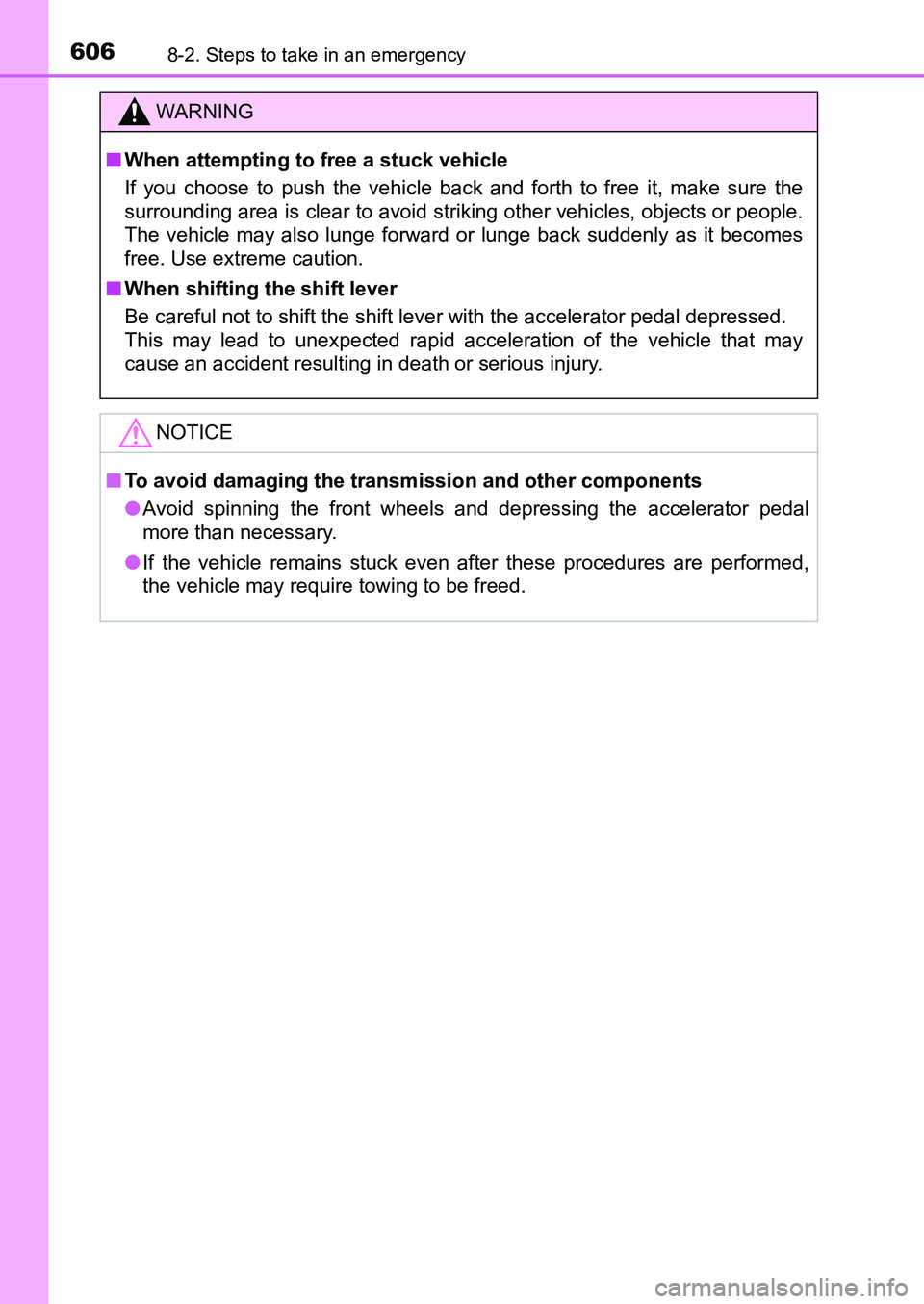

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
UK AURIS_HB_OM_Europe_OM12K97E.book 606 ページ ２０１６年６月２７日　月曜日　午後５時４２分

607

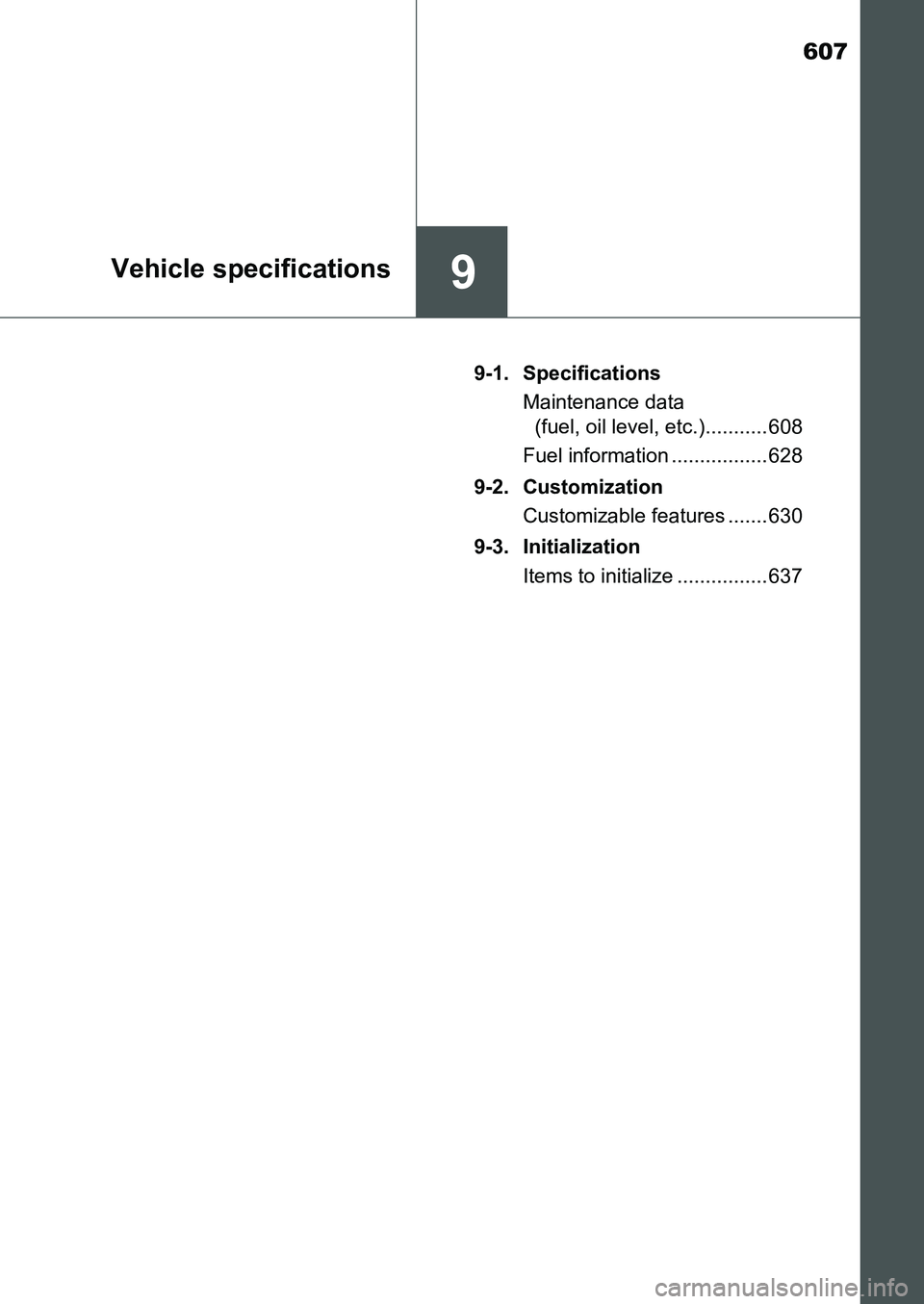

9Vehicle specifications
UK AURIS_HB_EE (OM12K97E)9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 608
Fuel information ................. 628
9-2. Customization
Customizable features ....... 630
9-3. Initialization
Items to initialize ................ 637
UK AURIS_HB_OM_Europe_OM12K97E.book 607 ページ ２０１６年６月２７日　月曜日　午後５時４２分

608
UK AURIS_HB_EE (OM12K97E)
9-1. Specifications

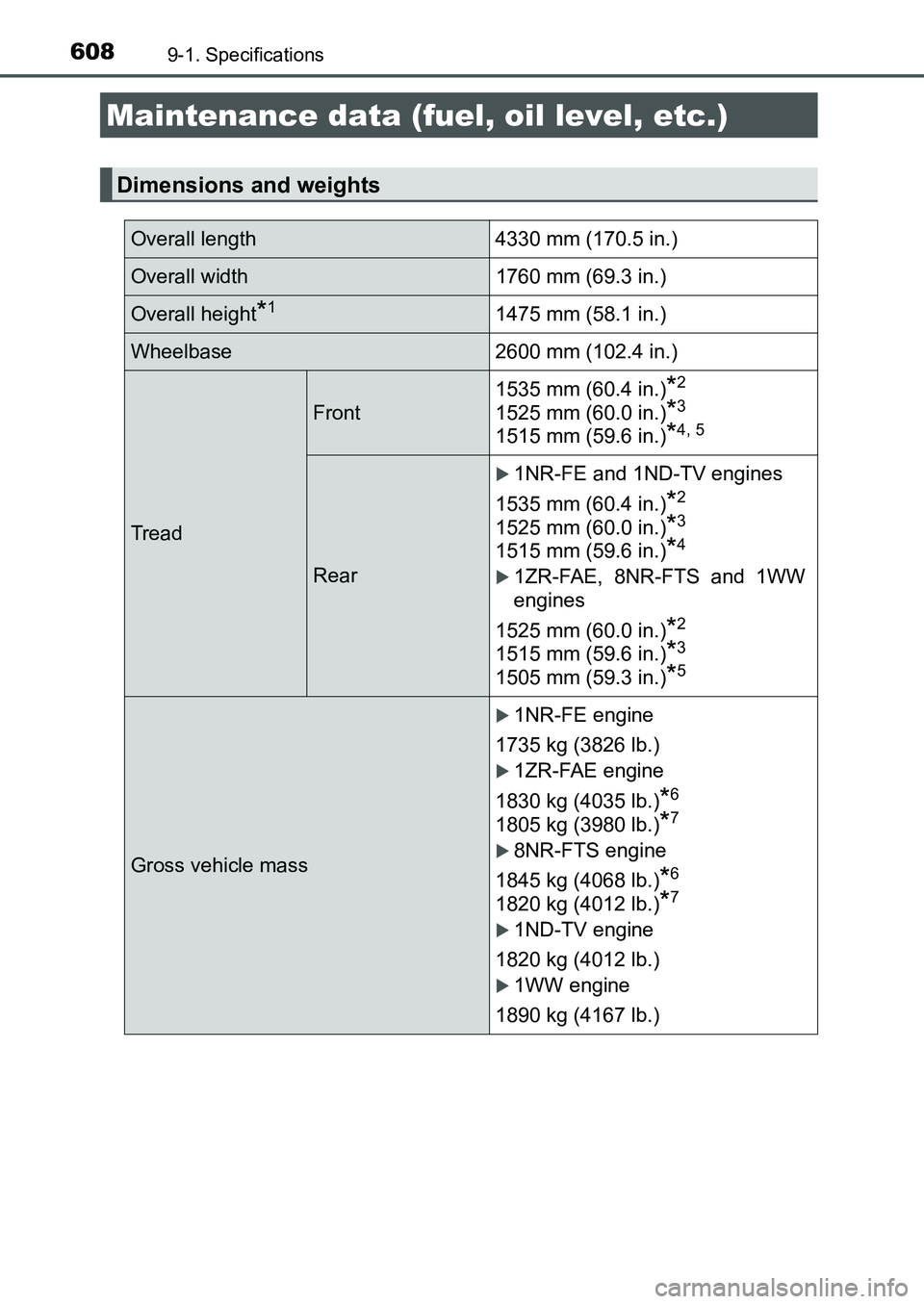

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4330 mm (170.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11475 mm (58.1 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
1ZR-FAE, 8NR-FTS and 1WW
engines
1525 mm (60.0 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
Gross vehicle mass
1NR-FE engine
1735 kg (3826 lb.)
1ZR-FAE engine
1830 kg (4035 lb.)
*6
1805 kg (3980 lb.)*7
8NR-FTS engine
1845 kg (4068 lb.)
*6
1820 kg (4012 lb.)*7
1ND-TV engine
1820 kg (4012 lb.)
1WW engine
1890 kg (4167 lb.)
UK AURIS_HB_OM_Europe_OM12K97E.book 608 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6099-1. Specifications
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with a Multidrive
*7: Vehicles with a manual transmission
Maximum
permissible axle
capacityFront
1NR-FE, 1ZR-FAE, 8NR-FTS
and 1ND-TV engines
1020 kg (2249 lb.)
1WW engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
65 kg (143 lb.)
Towing capacityWith brake
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
1300 kg (2867 lb.)
Without brake 450 kg (992 lb.)
UK AURIS_HB_OM_Europe_OM12K97E.book 609 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6109-1. Specifications
UK AURIS_HB_EE (OM12K97E)■

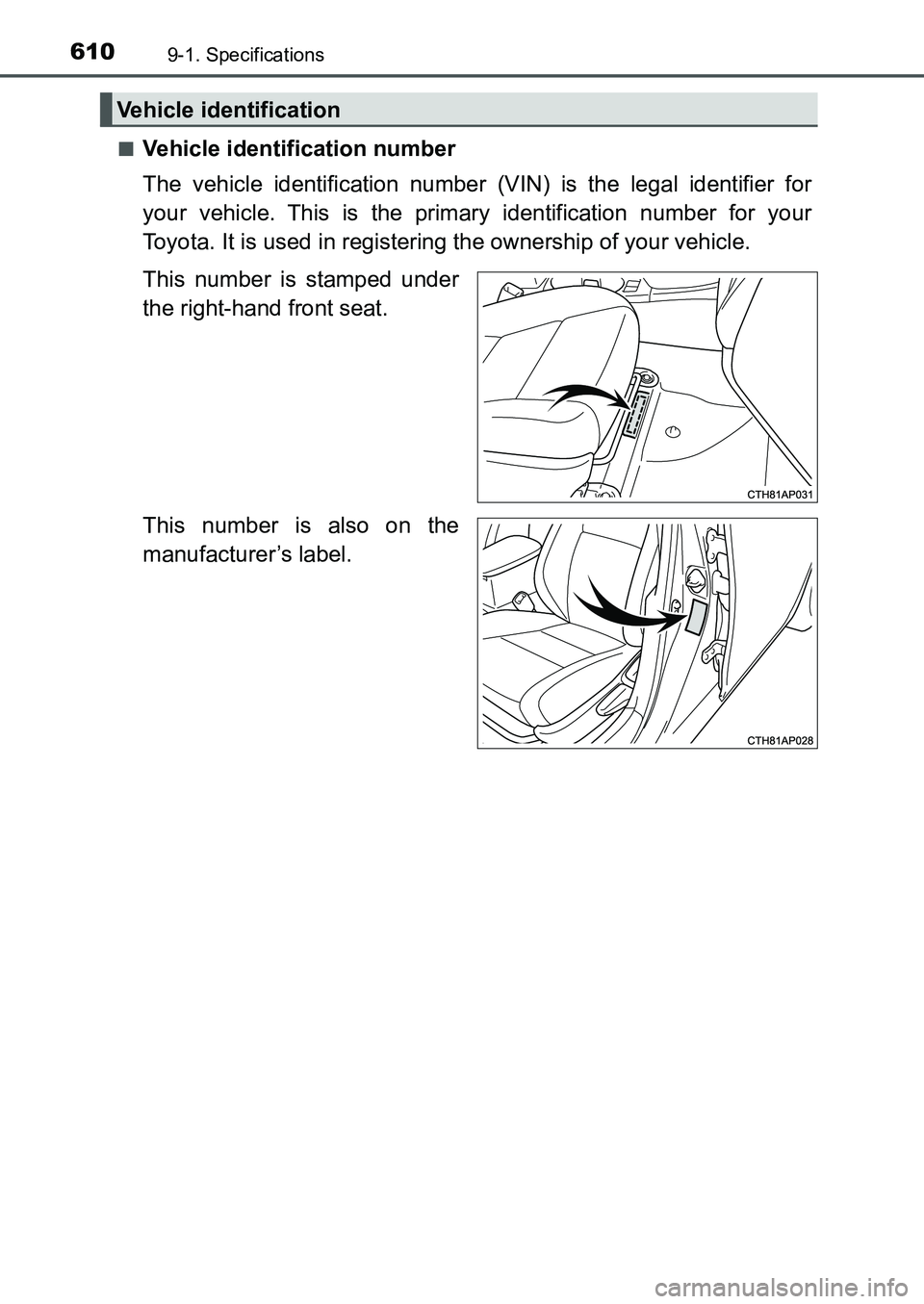

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification
UK AURIS_HB_OM_Europe_OM12K97E.book 610 ページ ２０１６年６月２７日　月曜日　午後５時４２分
