TOYOTA AURIS 2017 Owners Manual (in English)

6319-2. Customization
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications

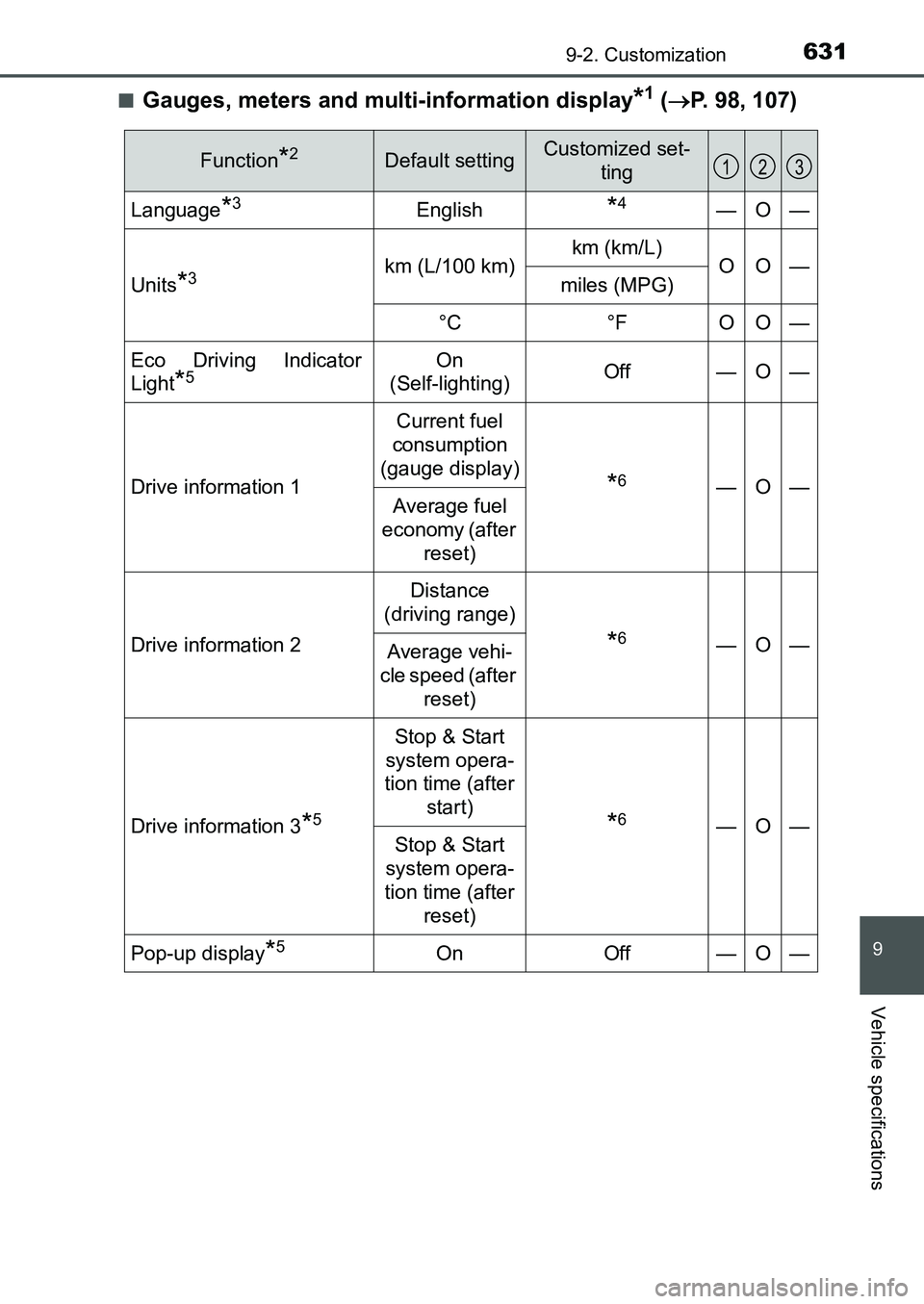

■Gauges, meters and multi-information display*1 (P. 98, 107)
Function*2Default settingCustomized set-
ting
Language*3English*4—O—
Units*3km (L/100 km)km (km/L)OO—miles (MPG)
°C°FOO—
Eco Driving Indicator
Light
*5On
(Self-lighting)Off—O—
Drive information 1
Current fuel
consumption
(gauge display)
*6—O—Average fuel
economy (after
reset)
Drive information 2
Distance
(driving range)
*6—O—Average vehi-
cle speed (after
reset)
Drive information 3*5
Stop & Start
system opera-
tion time (after
start)
*6—O—Stop & Start
system opera-
tion time (after
reset)
Pop-up display*5OnOff—O—
123
UK AURIS_HB_OM_Europe_OM12K97E.book 631 ページ ２０１６年６月２７日　月曜日　午後５時４２分

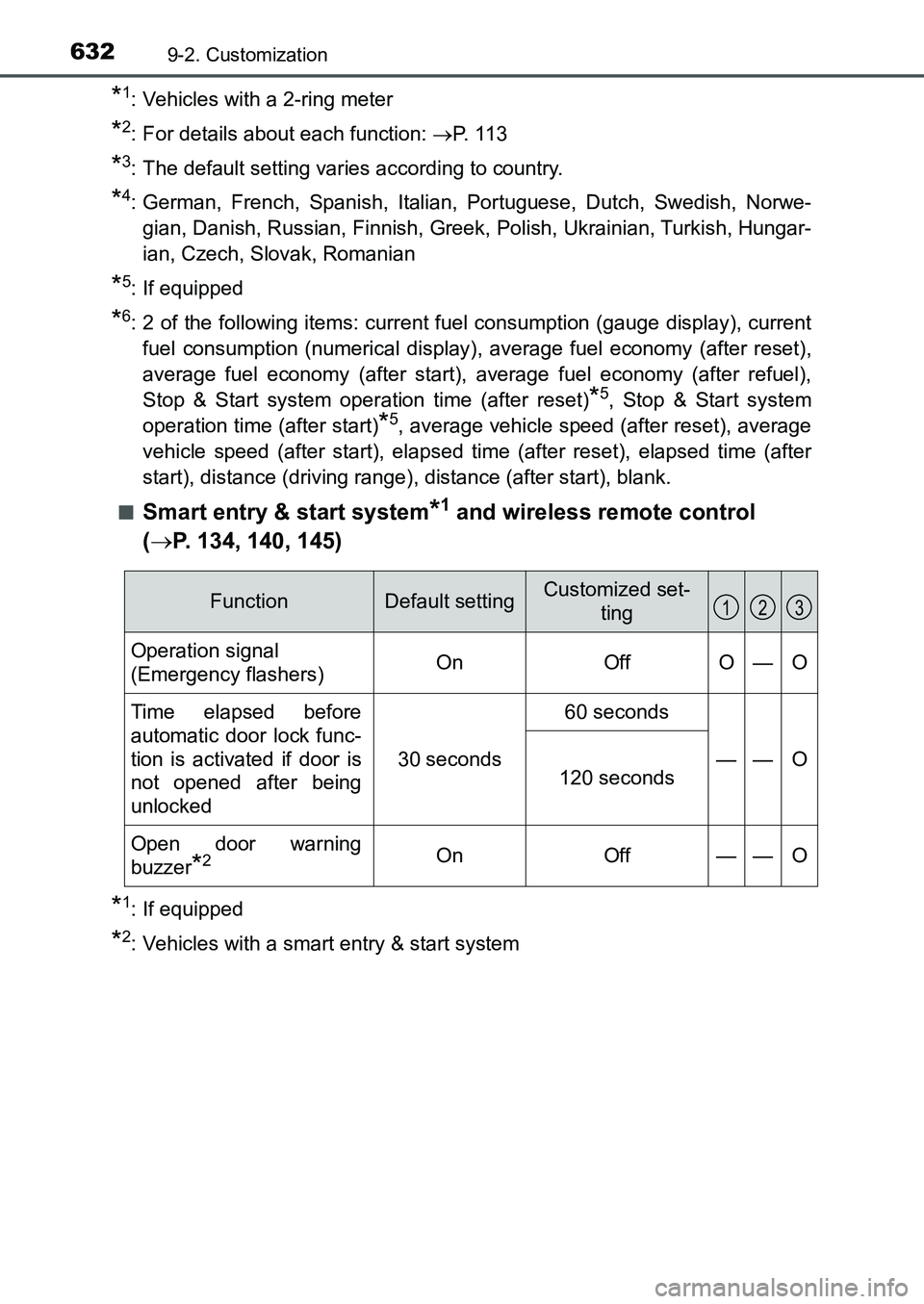

6329-2. Customization
UK AURIS_HB_EE (OM12K97E)
*1: Vehicles with a 2-ring meter
*2: For details about each function: P. 1 1 3
*3: The default setting varies according to country.
*4: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*5: If equipped
*6: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
Stop & Start system operation time (after reset)
*5, Stop & Start system
operation time (after start)
*5, average vehicle speed (after reset), average
vehicle speed (after start), elapsed time (after reset), elapsed time (after
start), distance (driving range), distance (after start), blank.
■
Smart entry & start system*1 and wireless remote control
(P. 134, 140, 145)
*1: If equipped
*2: Vehicles with a smart entry & start system
FunctionDefault settingCustomized set-
ting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning
buzzer
*2OnOff——O
123
UK AURIS_HB_OM_Europe_OM12K97E.book 632 ページ ２０１６年６月２７日　月曜日　午後５時４２分

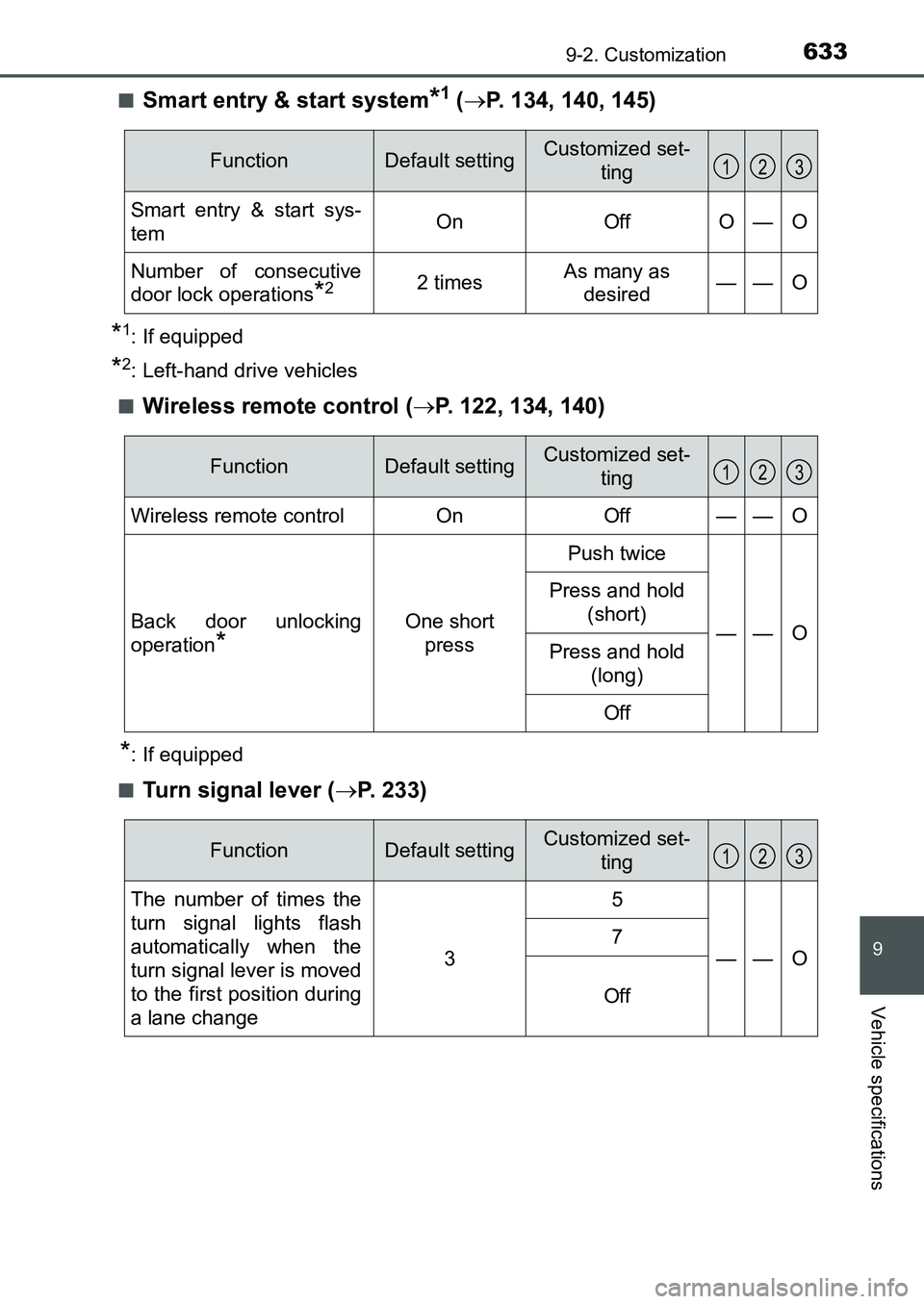

6339-2. Customization
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
■Smart entry & start system*1 (P. 134, 140, 145)
*1: If equipped
*2: Left-hand drive vehicles
■
Wireless remote control (P. 122, 134, 140)
*: If equipped
■
Turn signal lever (P. 233)
FunctionDefault settingCustomized set-
ting
Smart entry & start sys-
temOnOffO—O
Number of consecutive
door lock operations
*22 timesAs many as
desired——O
123
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOff——O
Back door unlocking
operation
*
One short
press
Push twice
——O
Press and hold
(short)
Press and hold
(long)
Off
123
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
3
5
——O
7
Off
123
UK AURIS_HB_OM_Europe_OM12K97E.book 633 ページ ２０１６年６月２７日　月曜日　午後５時４２分

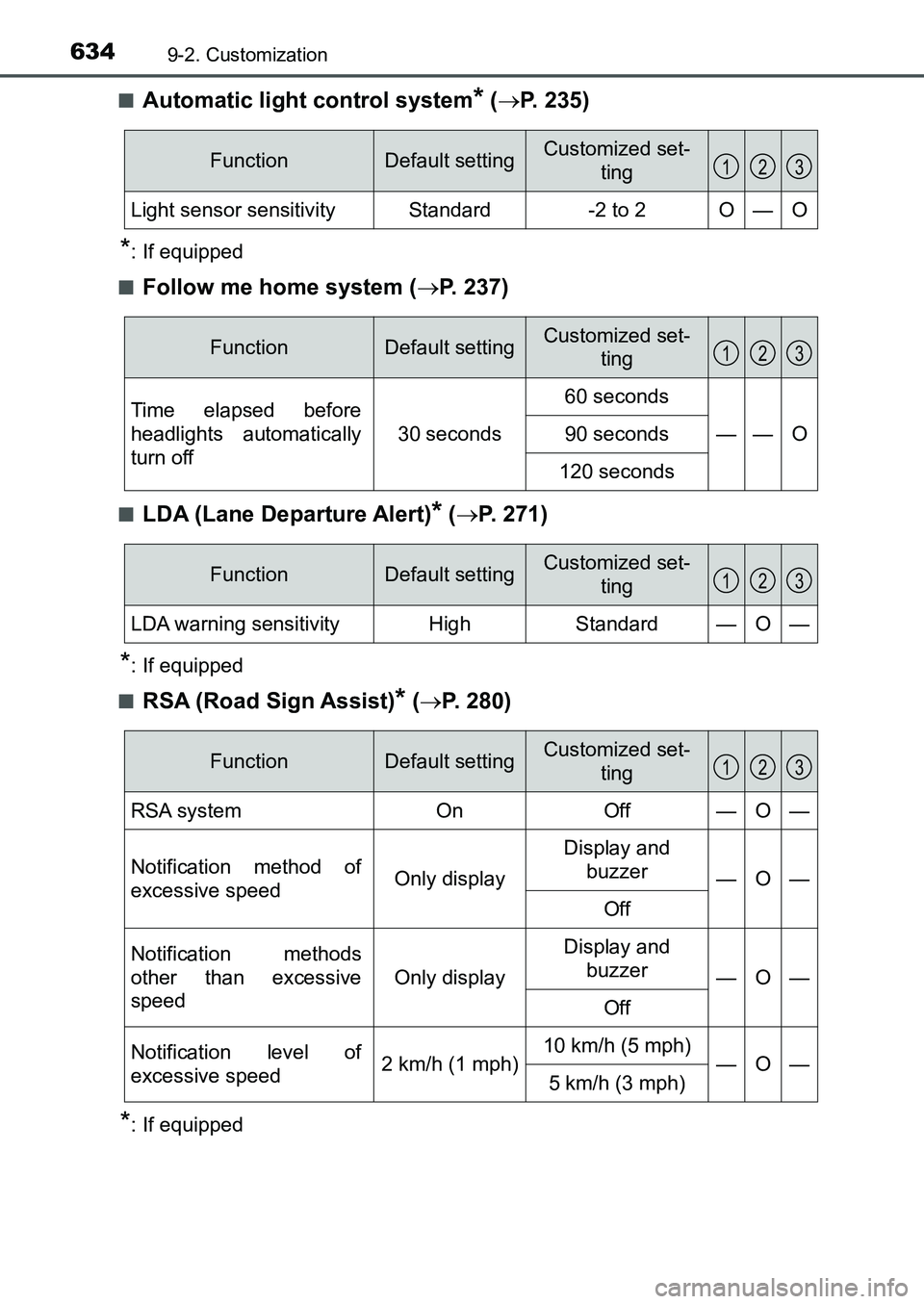

6349-2. Customization
UK AURIS_HB_EE (OM12K97E)■
Automatic light control system* (P. 235)
*: If equipped
■
Follow me home system (P. 237)
■LDA (Lane Departure Alert)* (P. 271)
*: If equipped
■
RSA (Road Sign Assist)* (P. 280)
*: If equipped
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
123
FunctionDefault settingCustomized set-
ting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
——O90 seconds
120 seconds
123
FunctionDefault settingCustomized set-
ting
LDA warning sensitivityHighStandard—O—
123
FunctionDefault settingCustomized set-
ting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and
buzzer
—O—
Off
Notification methods
other than excessive
speed
Only display
Display and
buzzer
—O—
Off
Notification level of
excessive speed 2 km/h (1 mph)10 km/h (5 mph)—O—5 km/h (3 mph)
123
UK AURIS_HB_OM_Europe_OM12K97E.book 634 ページ ２０１６年６月２７日　月曜日　午後５時４２分

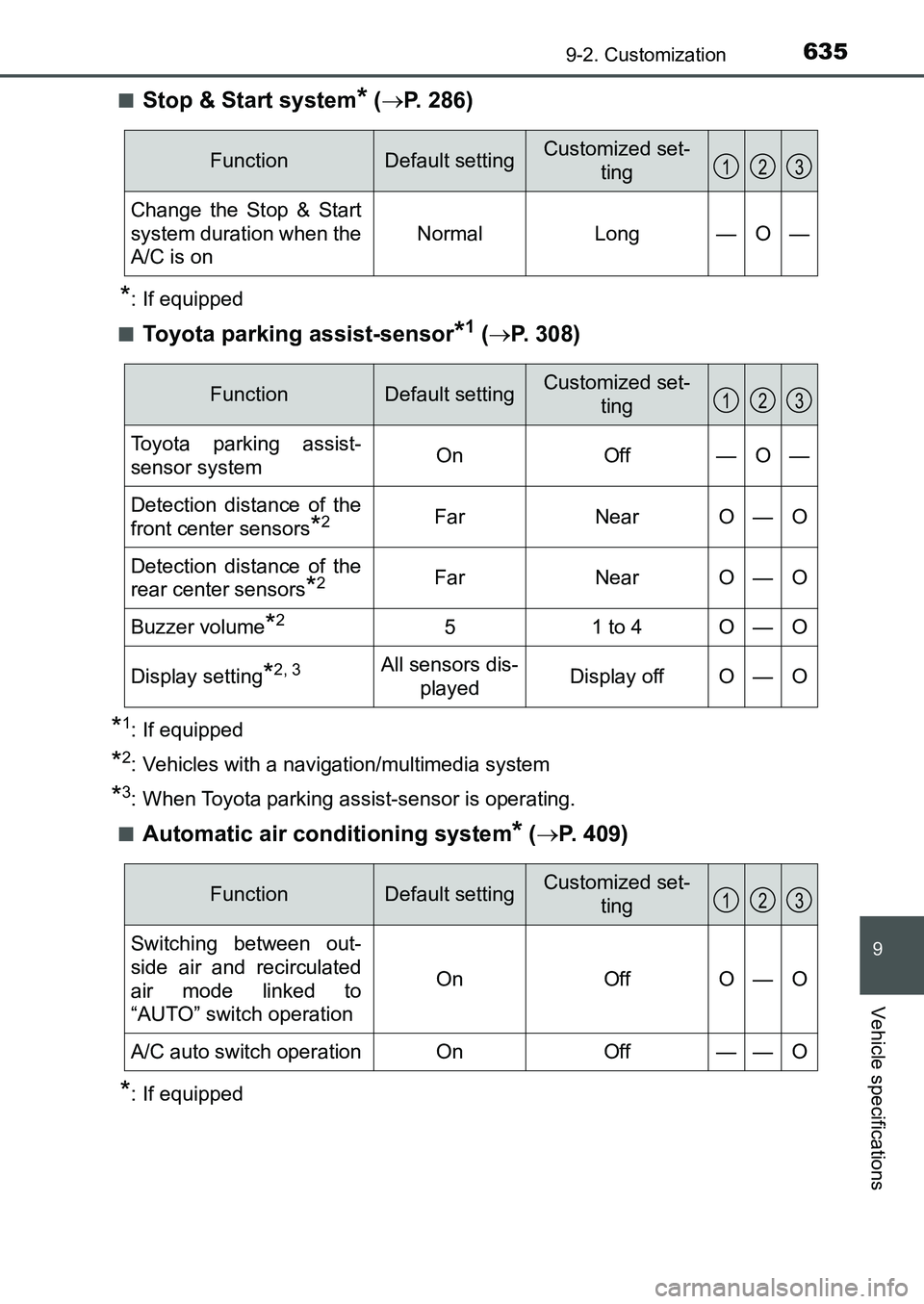

6359-2. Customization
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
■Stop & Start system* (P. 286)
*: If equipped
■
Toyota parking assist-sensor*1 (P. 308)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
■
Automatic air conditioning system* (P. 409)
*: If equipped
FunctionDefault settingCustomized set-
ting
Change the Stop & Start
system duration when the
A/C is on
NormalLong—O—
123
FunctionDefault settingCustomized set-
ting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors
*2FarNearO—O
Detection distance of the
rear center sensors
*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors dis-
playedDisplay offO—O
123
FunctionDefault settingCustomized set-
ting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO—O
A/C auto switch operationOnOff——O
123
UK AURIS_HB_OM_Europe_OM12K97E.book 635 ページ ２０１６年６月２７日　月曜日　午後５時４２分

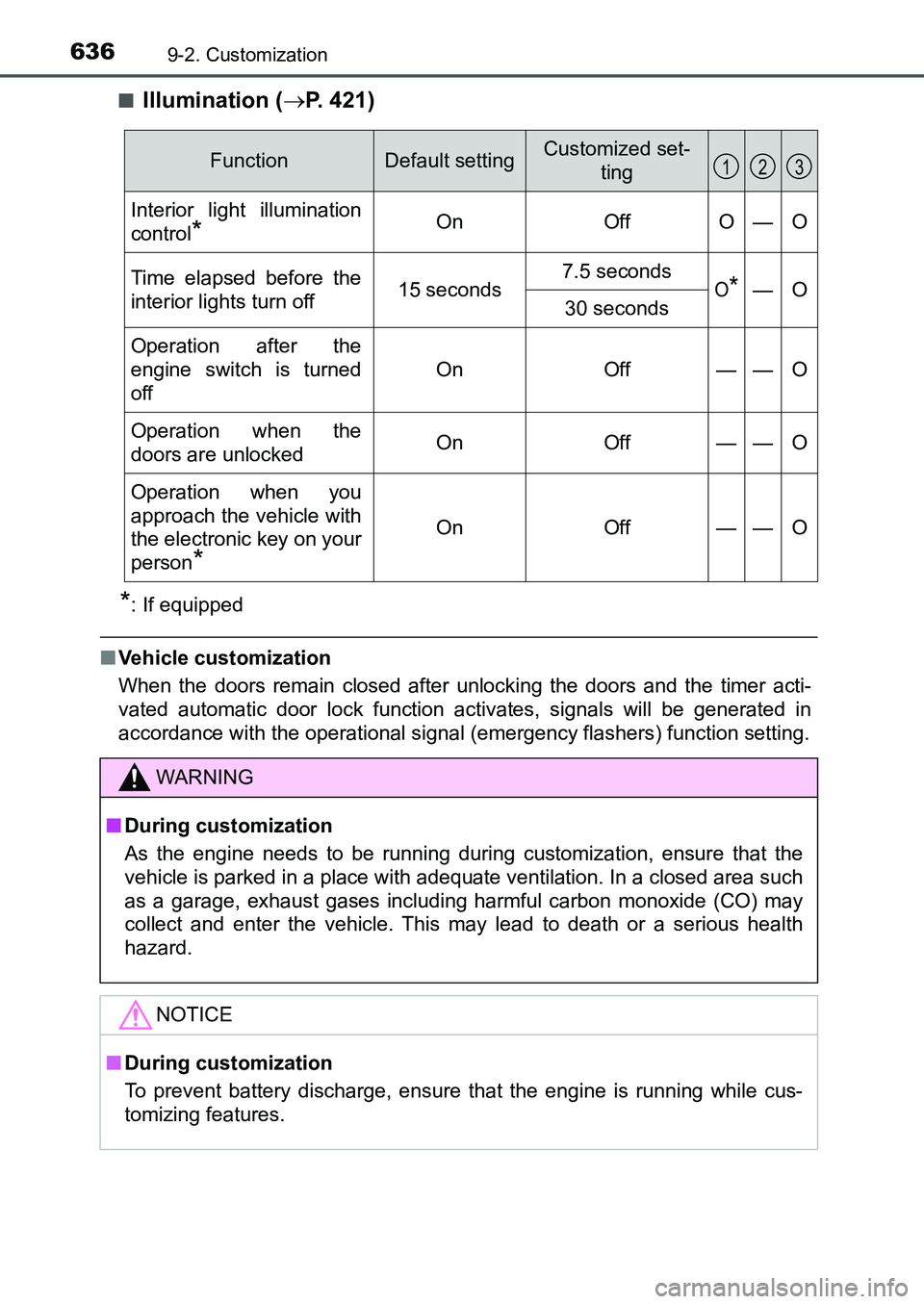

6369-2. Customization
UK AURIS_HB_EE (OM12K97E)■
Illumination (P. 421)
*: If equipped
■Vehicle customization
When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operational signal (emergency flashers) function setting.
FunctionDefault settingCustomized set-
ting
Interior light illumination
control
*OnOffO—O
Time elapsed before the
interior lights turn off15 seconds7.5 secondsO*—O30 seconds
Operation after the
engine switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
*
OnOff——O
123
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
UK AURIS_HB_OM_Europe_OM12K97E.book 636 ページ ２０１６年６月２７日　月曜日　午後５時４２分

637
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
9-3. Initialization
*: If equipped
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
tem
*
• When rotating front and rear
tires which have different tire
inflation pressures
• When changing the tire size
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
P. 486
UK AURIS_HB_OM_Europe_OM12K97E.book 637 ページ ２０１６年６月２７日　月曜日　午後５時４２分

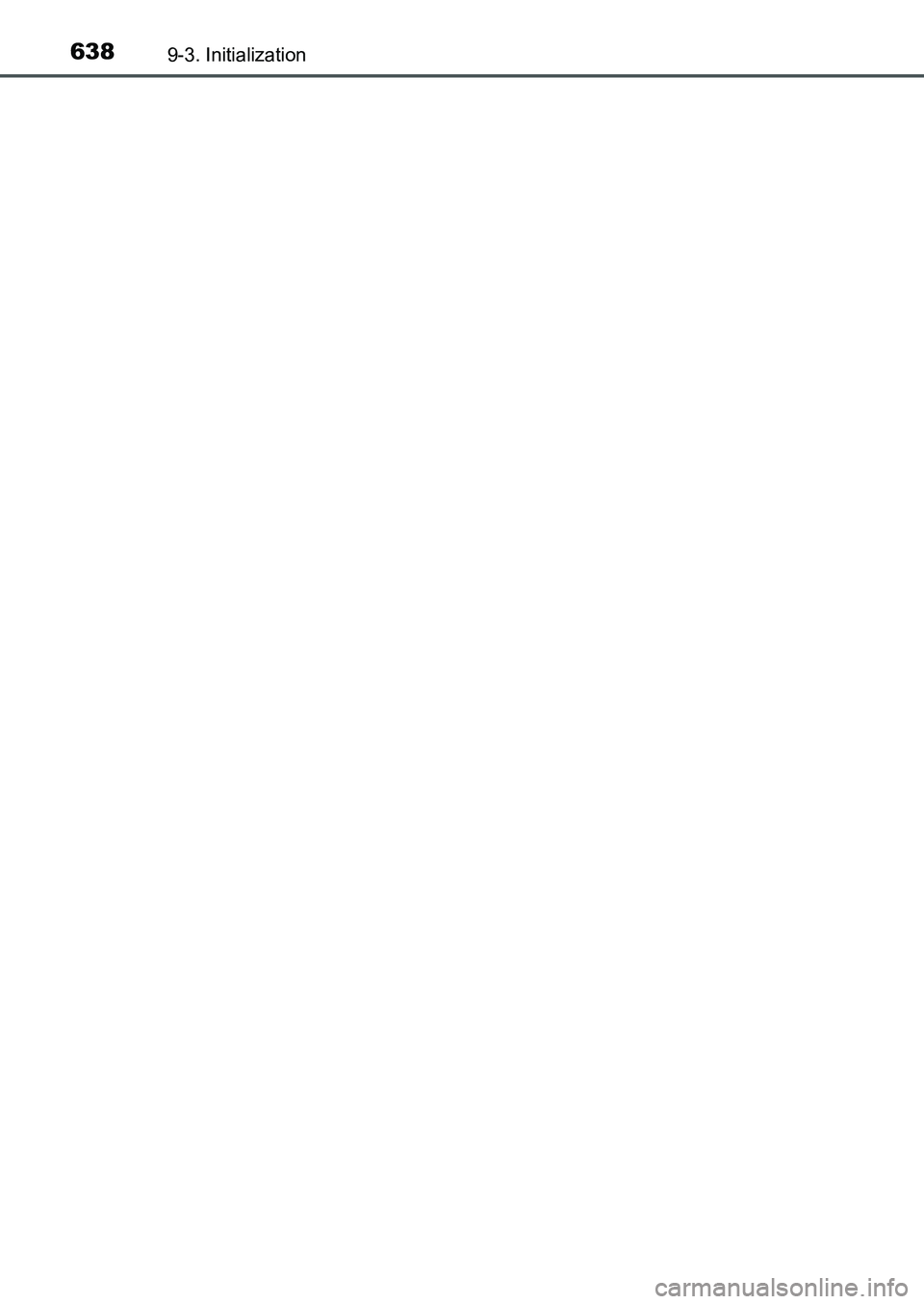

6389-3. Initialization
UK AURIS_HB_EE (OM12K97E)
UK AURIS_HB_OM_Europe_OM12K97E.book 638 ページ ２０１６年６月２７日　月曜日　午後５時４２分

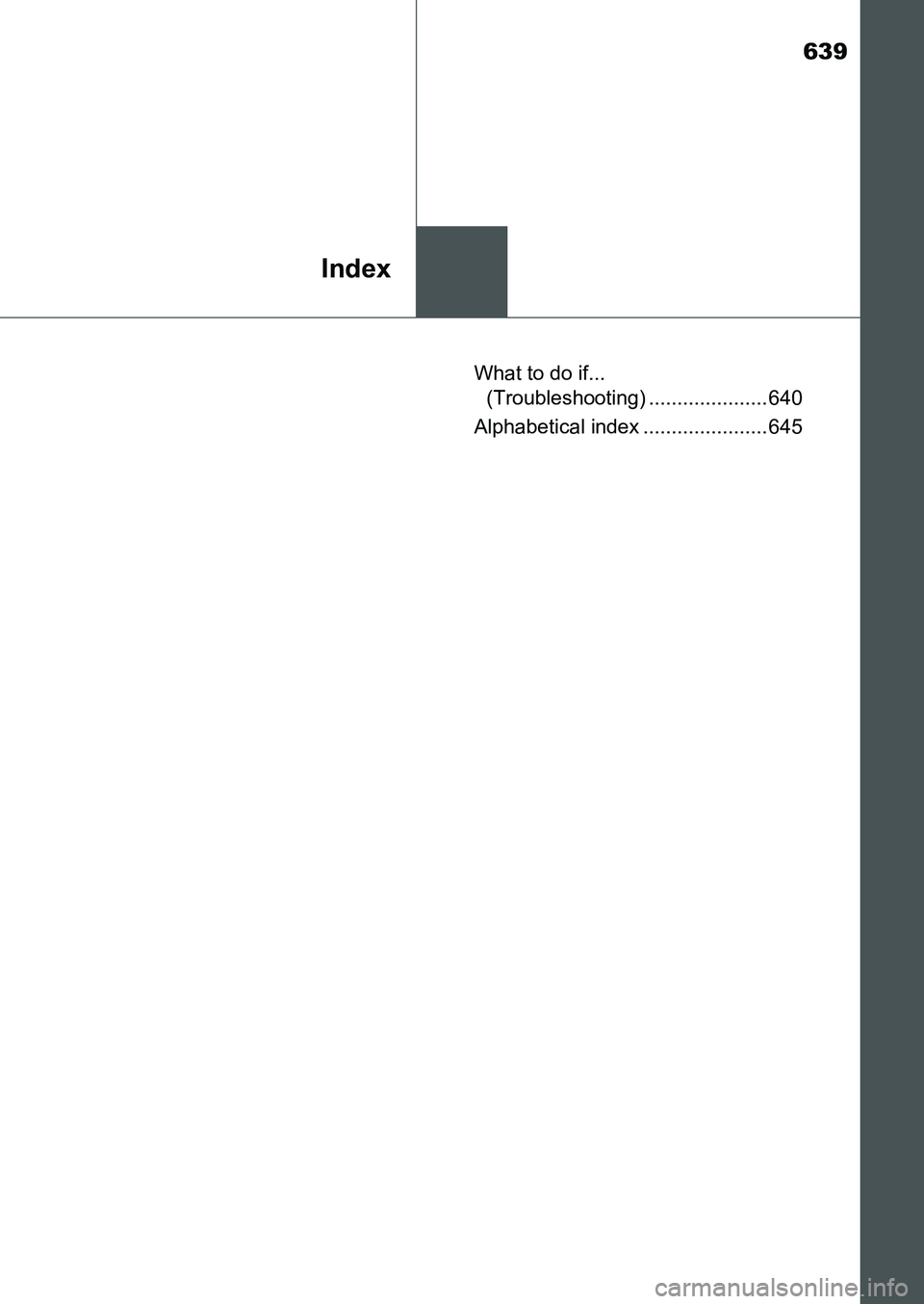

639
Index
UK AURIS_HB_EE (OM12K97E)What to do if...
(Troubleshooting) ..................... 640
Alphabetical index ...................... 645
UK AURIS_HB_OM_Europe_OM12K97E.book 639 ページ ２０１６年６月２７日　月曜日　午後５時４２分

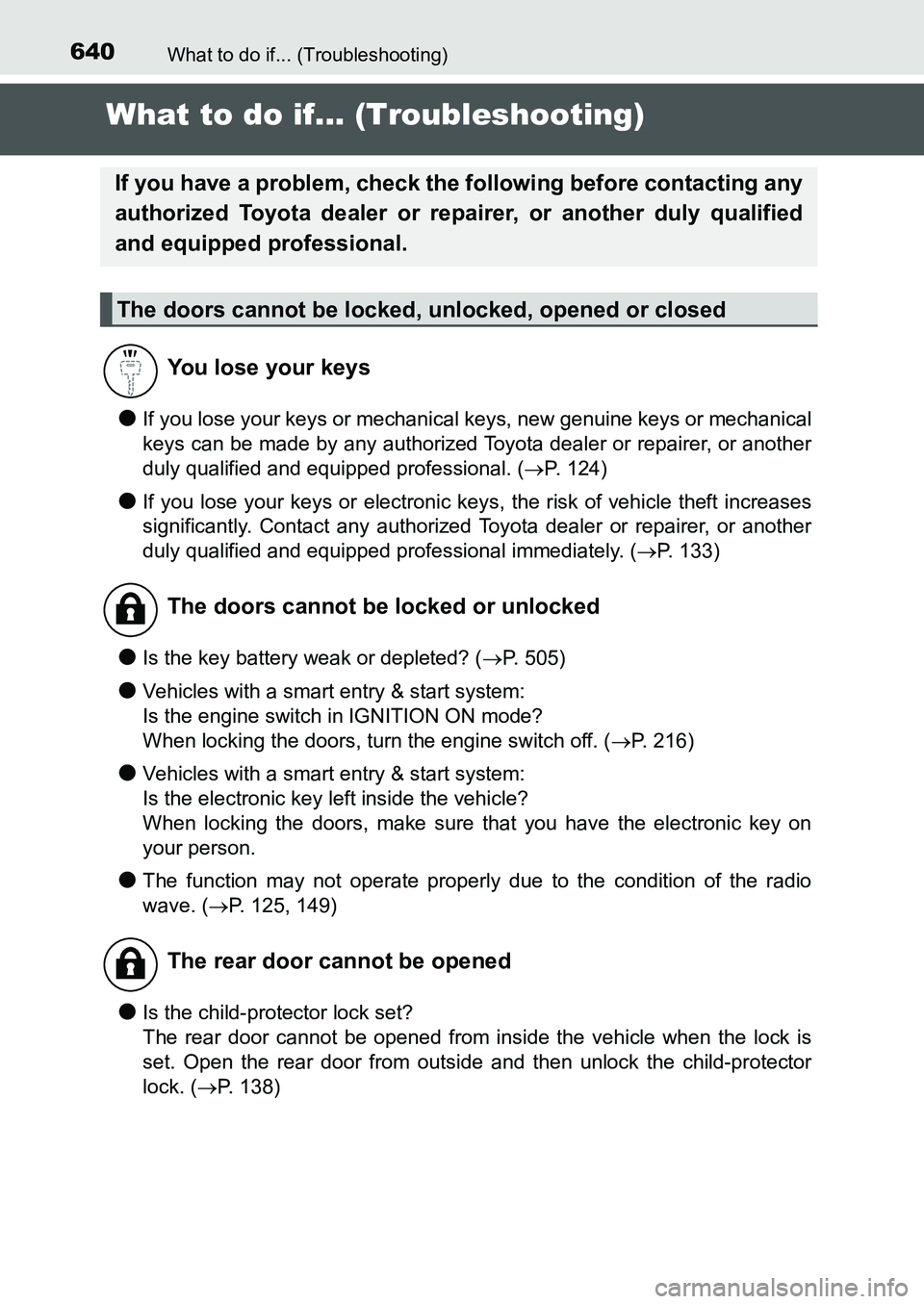

640
UK AURIS_HB_EE (OM12K97E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. (P. 124)
●If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately. (P. 133)
●Is the key battery weak or depleted? (P. 505)
●Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 216)
●Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 125, 149)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 138)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
