TOYOTA AURIS 2018 Owners Manual (in English)

3515-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system

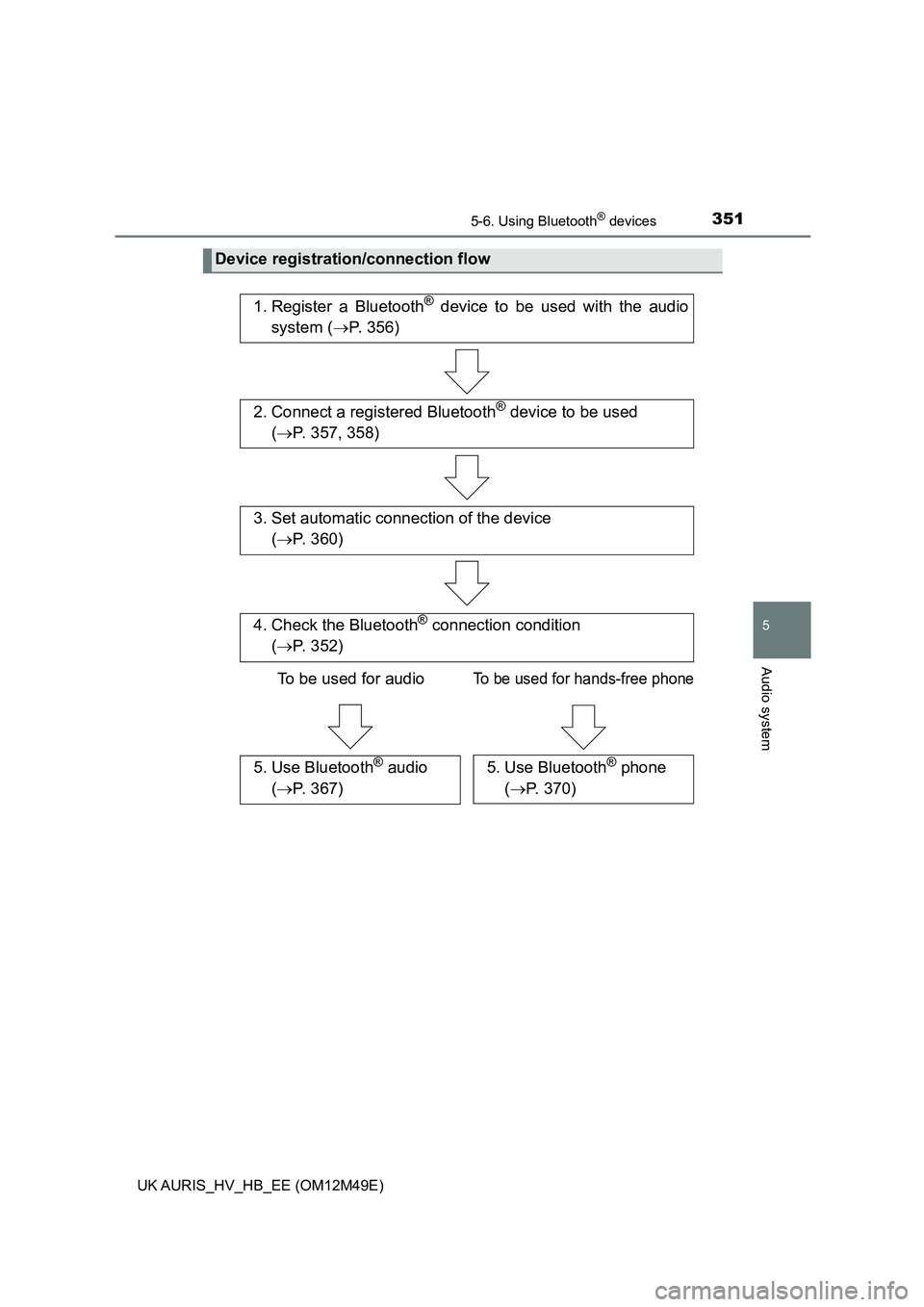

Device registration/connection flow
1. Register a Bluetooth® device to be used with the audio
system ( P. 356)
2. Connect a registered Bluetooth® device to be used
( P. 357, 358)
To be used for audioTo be used for hands-free phone
3. Set automatic connection of the device
( P. 360)
4. Check the Bluetooth® connection condition
( P. 352)
5. Use Bluetooth® audio
( P. 367)
5. Use Bluetooth® phone
( P. 370)

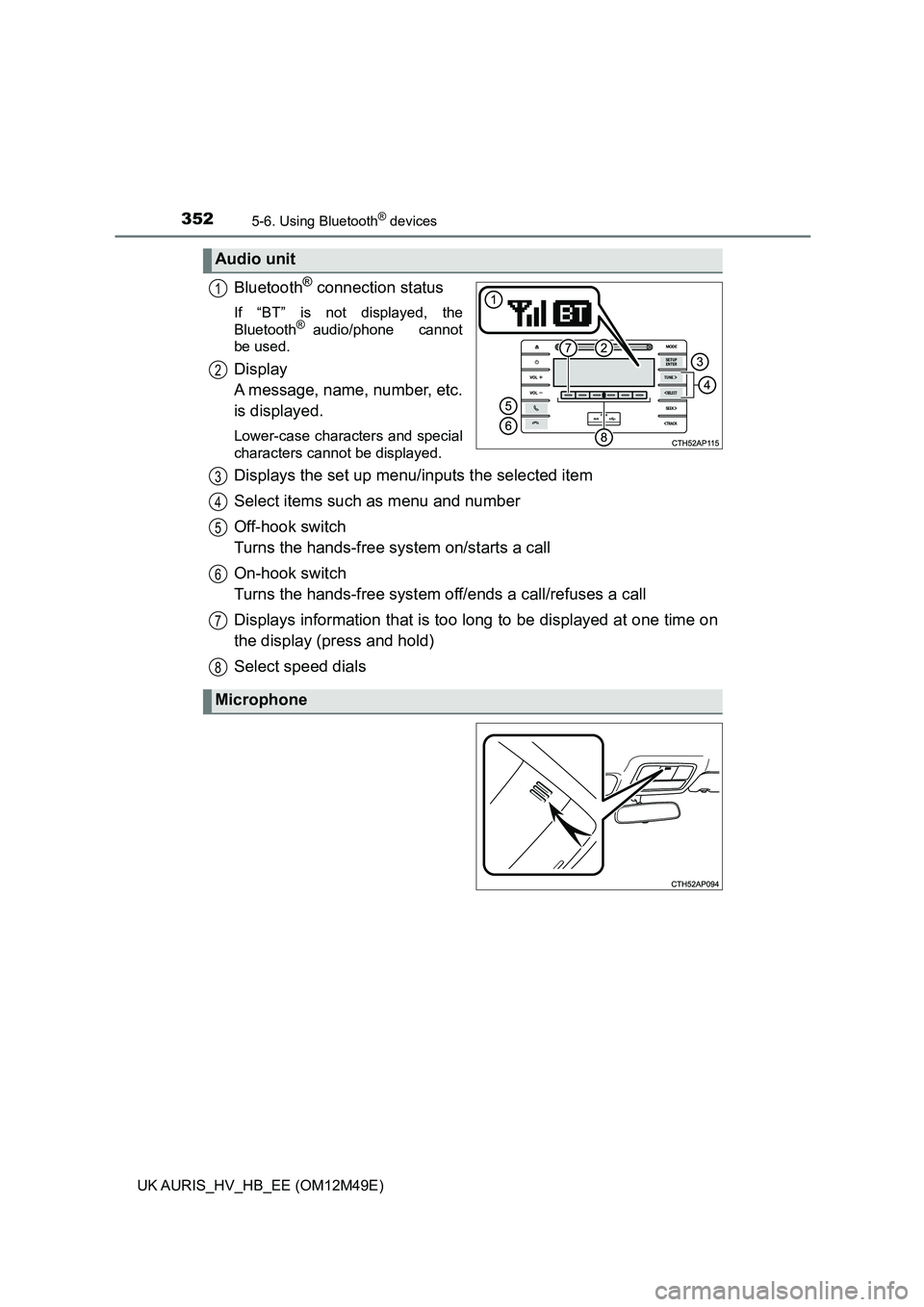

3525-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
Bluetooth® connection status
If “BT” is not displayed, the
Bluetooth® audio/phone cannot
be used.
Display
A message, name, number, etc.
is displayed.
Lower-case characters and special
characters cannot be displayed.
Displays the set up menu/inputs the selected item
Select items such as menu and number
Off-hook switch
Turns the hands-free system on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Displays information that is too long to be displayed at one time on
the display (press and hold)
Select speed dials
Audio unit
1
2
Microphone
3
4
5
6
7
8

3535-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
To enter a menu, press the “SETUP/ENTER” button and navigate
menus by using the “” and “SETUP/ENTER” but-
tons:

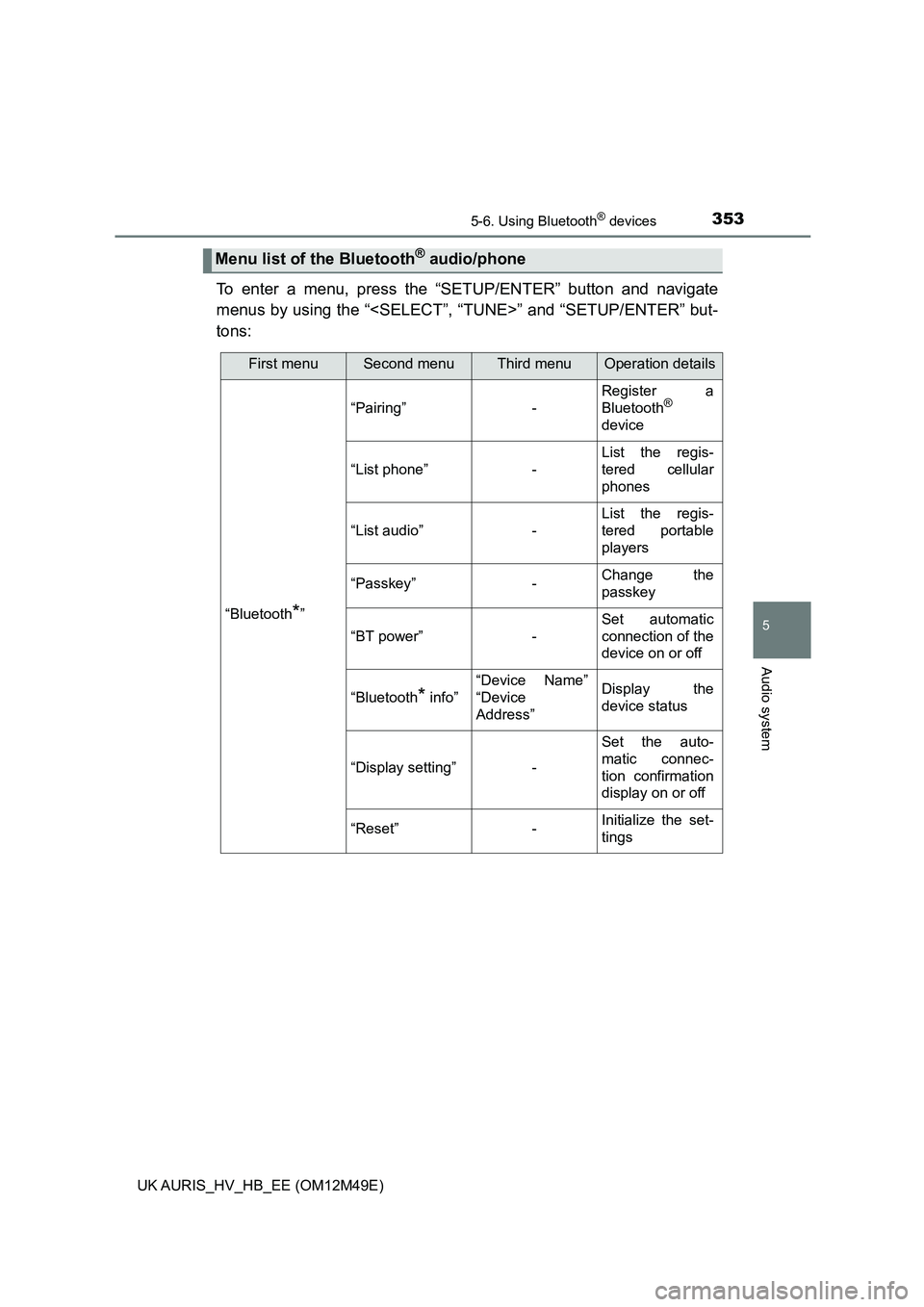

Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth*”
“Pairing”-
Register a
Bluetooth®
device
“List phone”-
List the regis-
tered cellular
phones
“List audio”-
List the regis-
tered portable
players
“Passkey”-Change the
passkey
“BT power”-
Set automatic
connection of the
device on or off
“Bluetooth* info”
“Device Name”
“Device
Address”
Display the
device status
“Display setting”-
Set the auto-
matic connec-
tion confirmation
display on or off
“Reset”-Initialize the set-
tings

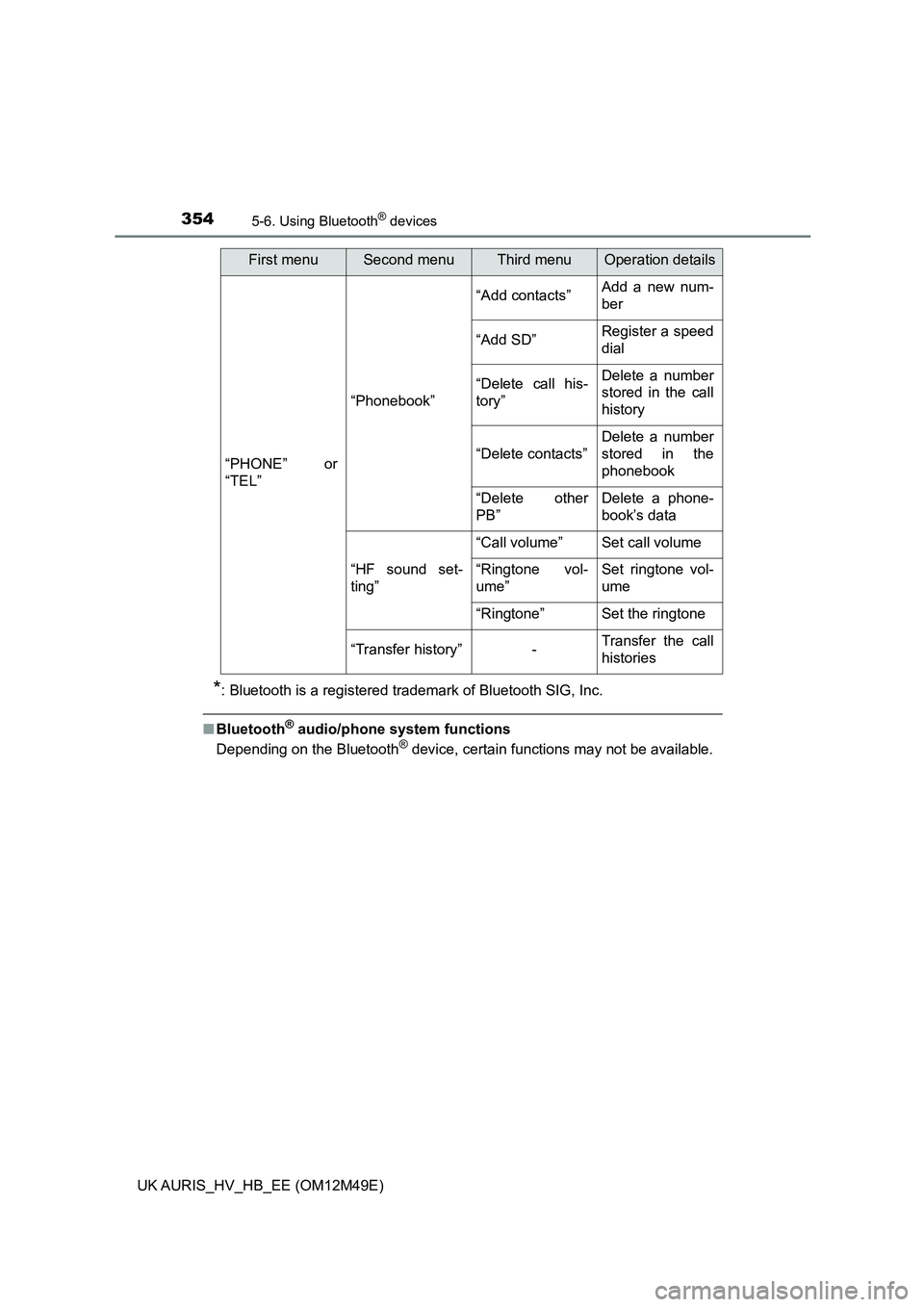

3545-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
■Bluetooth® audio/phone system functions
Depending on the Bluetooth® device, certain functions may not be available.
“PHONE” or
“TEL”
“Phonebook”
“Add contacts”Add a new num-
ber
“Add SD”Register a speed
dial
“Delete call his-
tory”
Delete a number
stored in the call
history
“Delete contacts”
Delete a number
stored in the
phonebook
“Delete other
PB”
Delete a phone-
book’s data
“HF sound set-
ting”
“Call volume”Set call volume
“Ringtone vol-
ume”
Set ringtone vol-
ume
“Ringtone”Set the ringtone
“Transfer history”-Transfer the call
histories
First menuSecond menuThird menuOperation details

3555-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
Vo l u m e
The voice guidance volume
cannot be adjusted using these
buttons.
Off-hook switch
Turns the hands-free system
on/starts a call
On-hook switch
Turns the hands-free system off/ends a call/refuses a call
Talk switch
A message will be displayed.

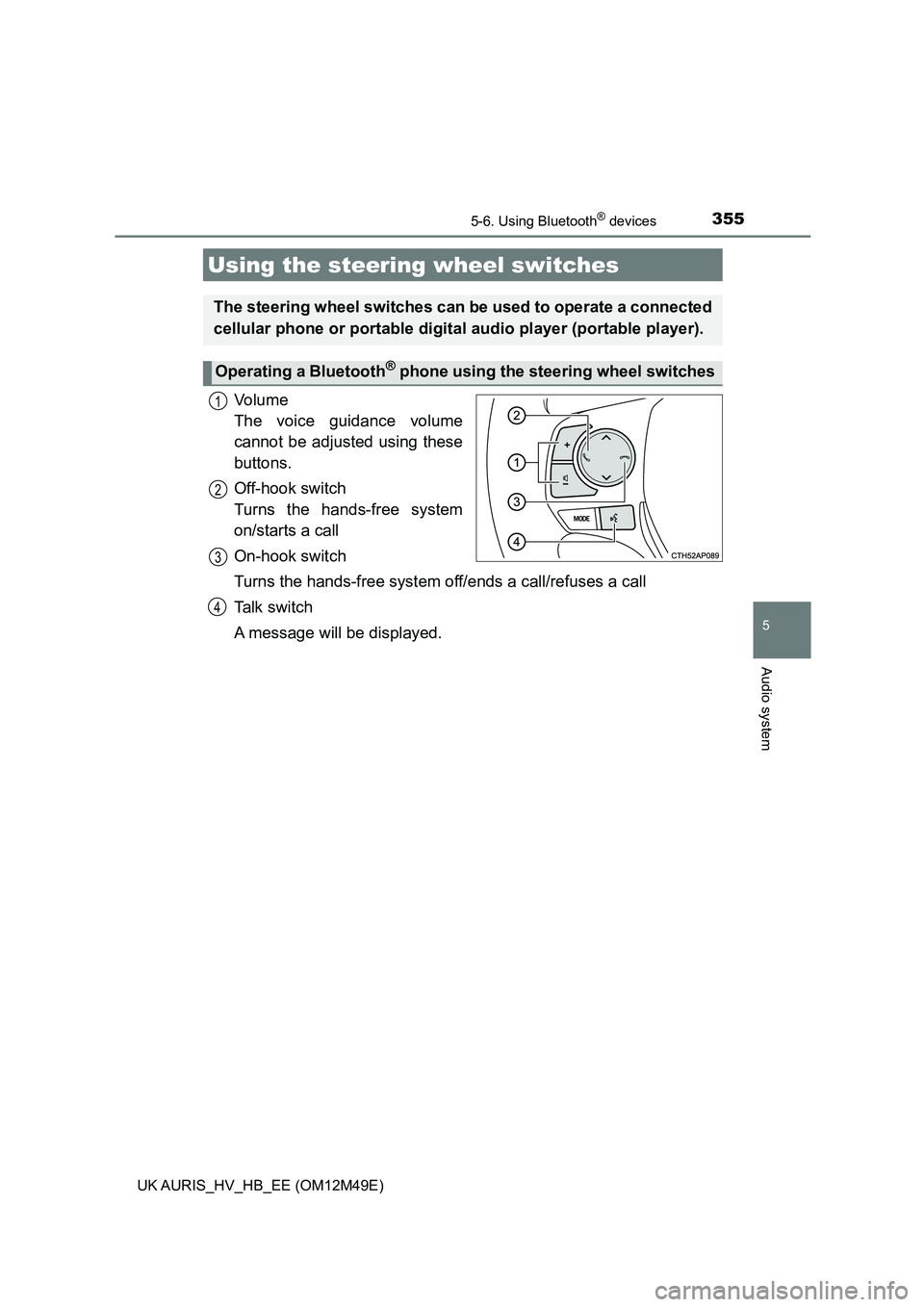

Using the steering wheel switches
The steering wheel switches can be used to operate a connected
cellular phone or portable digita l audio player (portable player).
Operating a Bluetooth® phone using the steering wheel switches
1
2
3
4

3565-6. Using Bluetooth® devices
UK AURIS_HV_HB_EE (OM12M49E)
Press the “SETUP/ENTER” button and select “Bluetooth*” using
the “” button.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Press the “SETUP/ENTER” button a nd select “Pairing” using the
“” button.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairin g) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be register ed at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is press ed and the “PHONE” or “TEL” mode is
entered when no phones have been registered, the registration
screen will be automatically displayed.

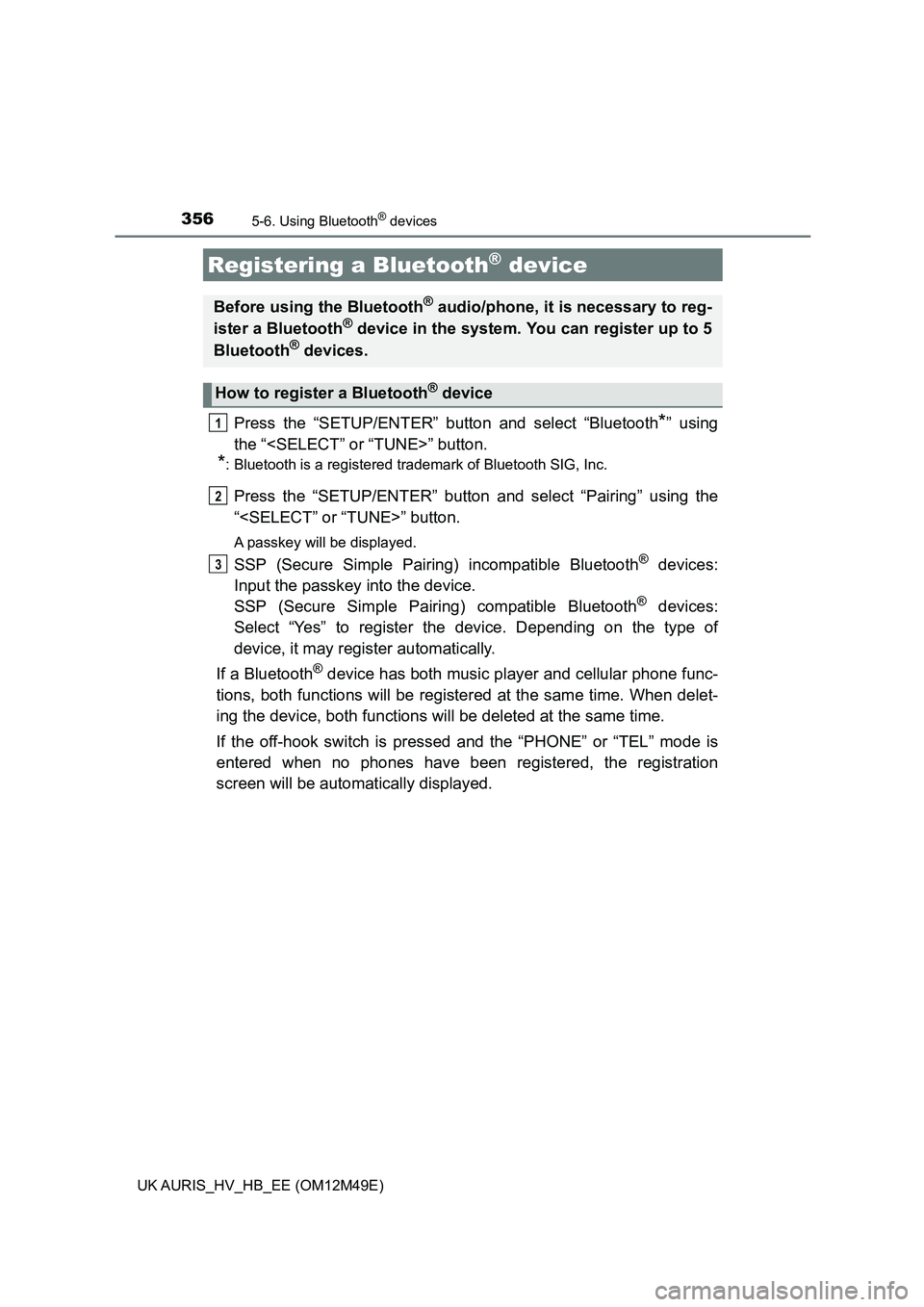

Registering a Bluetooth® device
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3

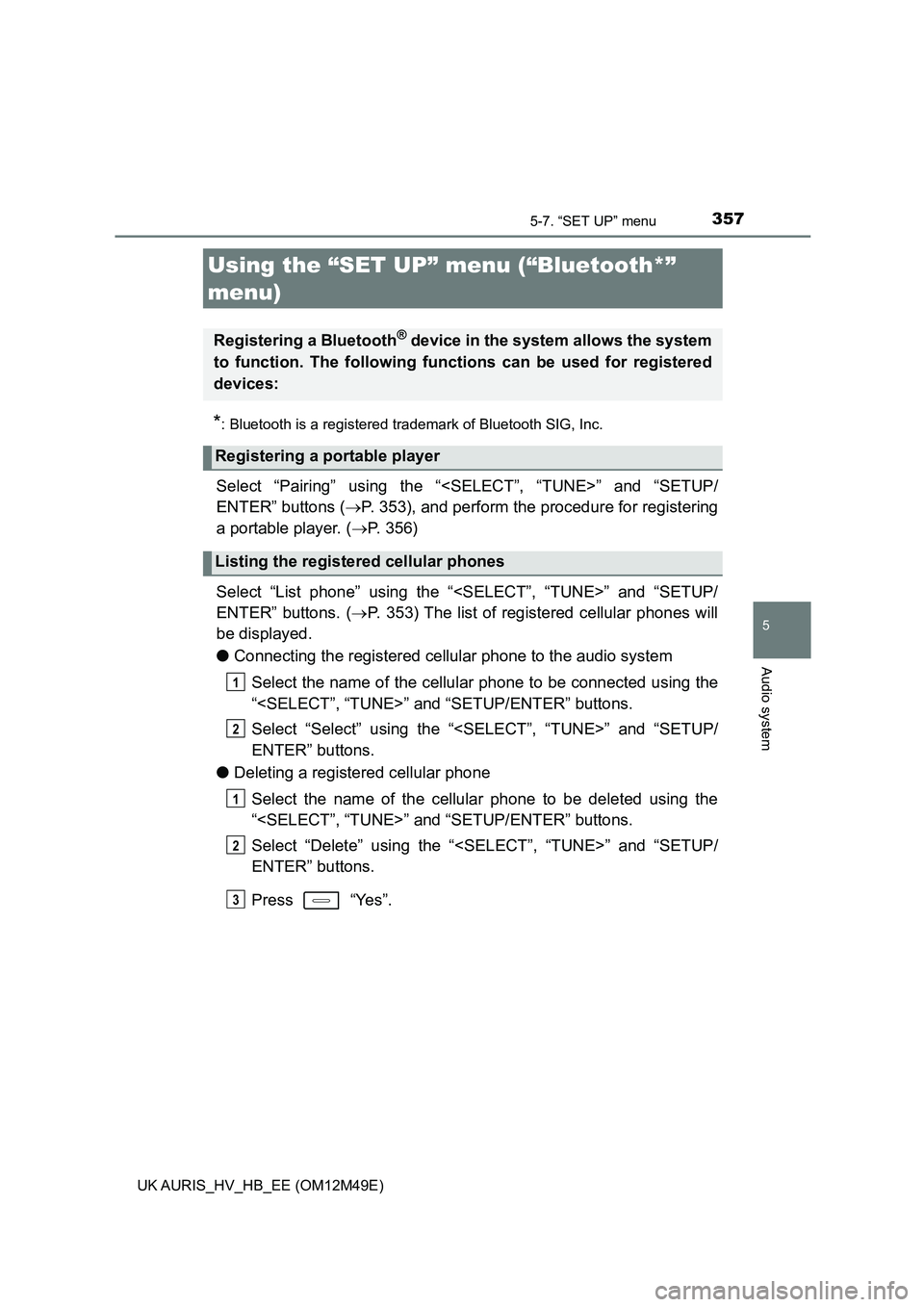

357
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
5-7. “SET UP” menu
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select “Pairing” using the “” and “SETUP/
ENTER” buttons ( P. 353), and perform the procedure for registering
a portable player. ( P. 356)
Select “List phone” using the “” and “SETUP/
ENTER” buttons. ( P. 353) The list of registered cellular phones will
be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “< SELECT”, “TUNE>” and “SETUP/
ENTER” buttons.
Press “Yes”.
Using the “SET UP” menu (“Bluetooth*”
menu)
Registering a Bluetooth® device in the system allows the system
to function. The following functi ons can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones
1
2
1
2
3

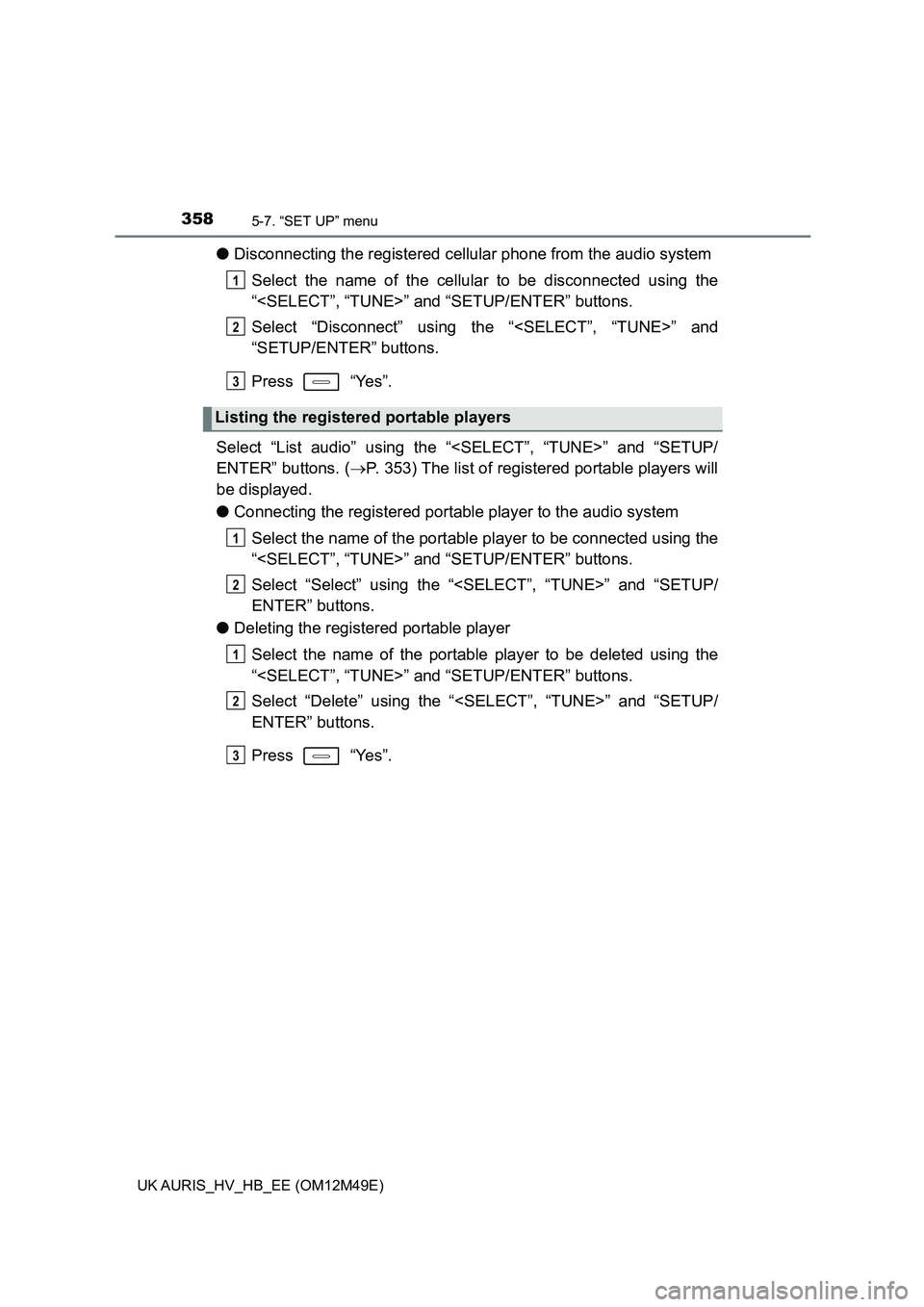

3585-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
●Disconnecting the registered cellular phone from the audio system
Select the name of the cellular to be disconnected using the
“” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
Select “List audio” using the “” and “SETUP/
ENTER” buttons. ( P. 353) The list of registered portable players will
be displayed.
● Connecting the registered portable player to the audio system
Select the name of the portable pl ayer to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
● Deleting the registered portable player
Select the name of the portable player to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “< SELECT”, “TUNE>” and “SETUP/
ENTER” buttons.
Press “Yes”.
Listing the registered portable players
1
2
3
1
2
1
2
3

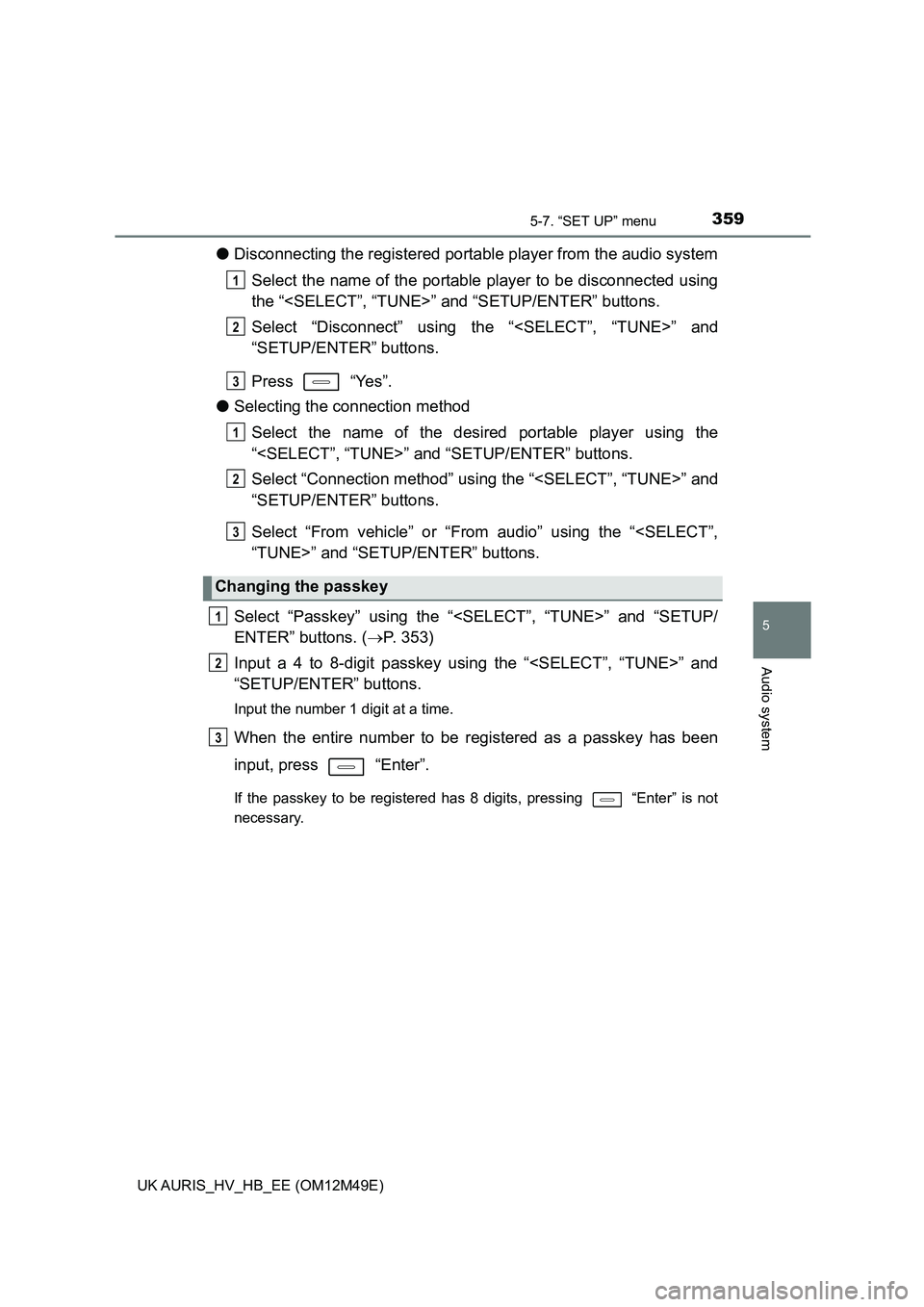

3595-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
5
Audio system
●Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
● Selecting the connection method
Select the name of the desired portable player using the
“” and “SETUP/ENTER” buttons.
Select “Connection method” usin g the “” and
“SETUP/ENTER” buttons.
Select “From vehicle” or “From audio” using the “ “TUNE>” and “SETUP/ENTER” buttons.
Select “Passkey” using the “” and “SETUP/
ENTER” buttons. ( P. 353)
Input a 4 to 8-digit passkey using the “” and
“SETUP/ENTER” buttons.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press “Enter”.
If the passkey to be registered has 8 digits, pressing “Enter” is not
necessary.
Changing the passkey
1
2
3
1
2
3
1
2
3

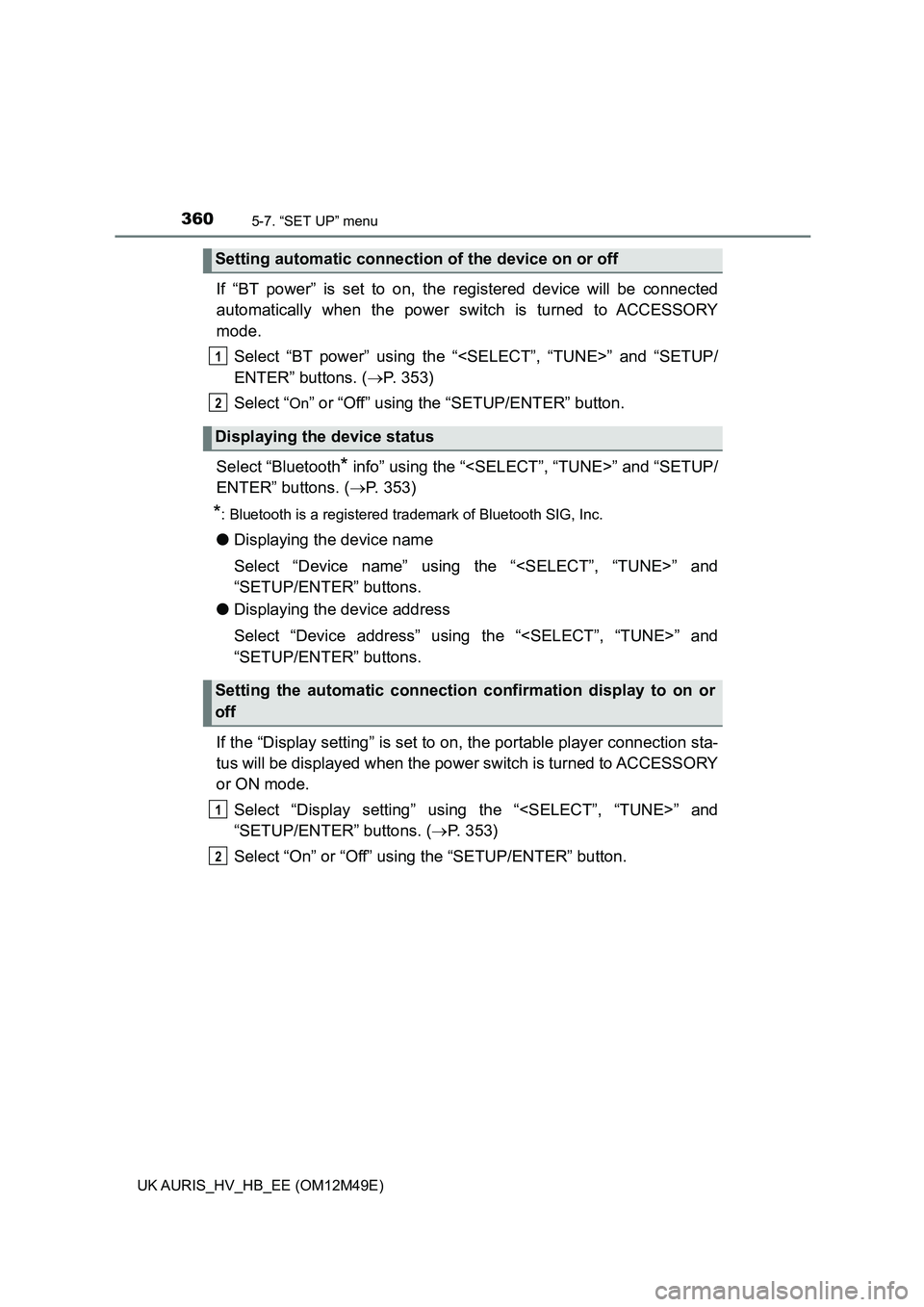

3605-7. “SET UP” menu
UK AURIS_HV_HB_EE (OM12M49E)
If “BT power” is set to on, the registered device will be connected
automatically when the power switch is turned to ACCESSORY
mode.
Select “BT power” using the “” and “SETUP/
ENTER” buttons. ( P. 353)
Select “On” or “Off” using the “SETUP/ENTER” button.
Select “Bluetooth* info” using the “” and “SETUP/
ENTER” buttons. ( P. 353)
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
●Displaying the device name
Select “Device name” using the “” and
“SETUP/ENTER” buttons.
● Displaying the device address
Select “Device address” using the “” and
“SETUP/ENTER” buttons.
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the power switch is turned to ACCESSORY
or ON mode.
Select “Display setting” using the “” and
“SETUP/ENTER” buttons. ( P. 353)
Select “On” or “Off” using the “SETUP/ENTER” button.
Setting automatic connection of the device on or off
Displaying the device status
Setting the automatic connecti on confirmation display to on or
off
1
2
1
2
