TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

3915-9. Bluetooth® Phone
AURIS Touring Sports_EE (12K53E)
5
Audio system

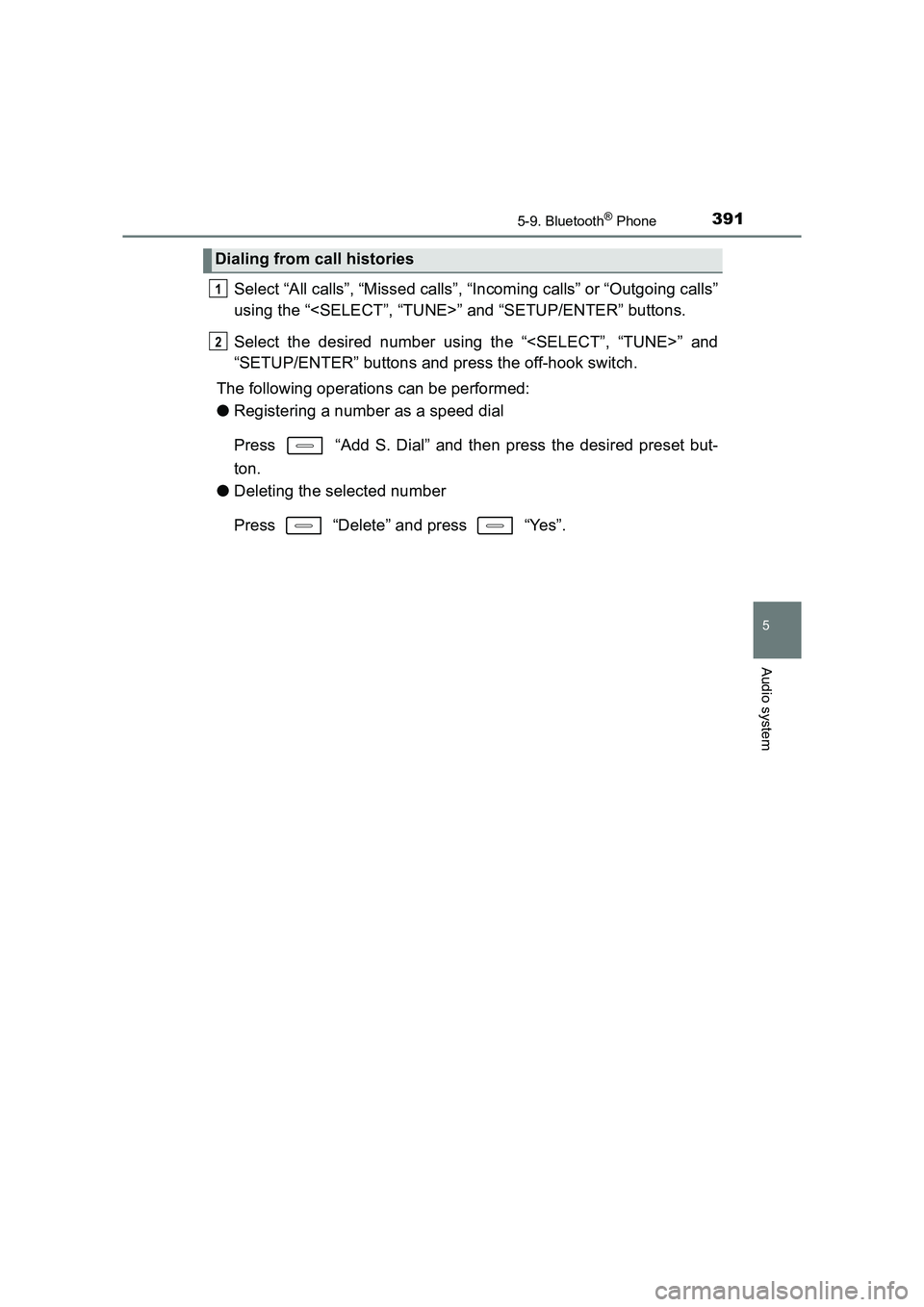

Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “” and “SETUP/ENTER” buttons.
Select the desired number using the “” and
“SETUP/ENTER” buttons and press the off-hook switch.
The following operations can be performed:
● Registering a number as a speed dial
Press “Add S. Dial” and then press the desired preset but-
ton.
● Deleting the selected number
Press “Delete” and press “Yes”.
Dialing from call histories
1
2

3925-9. Bluetooth® Phone
AURIS Touring Sports_EE (12K53E)

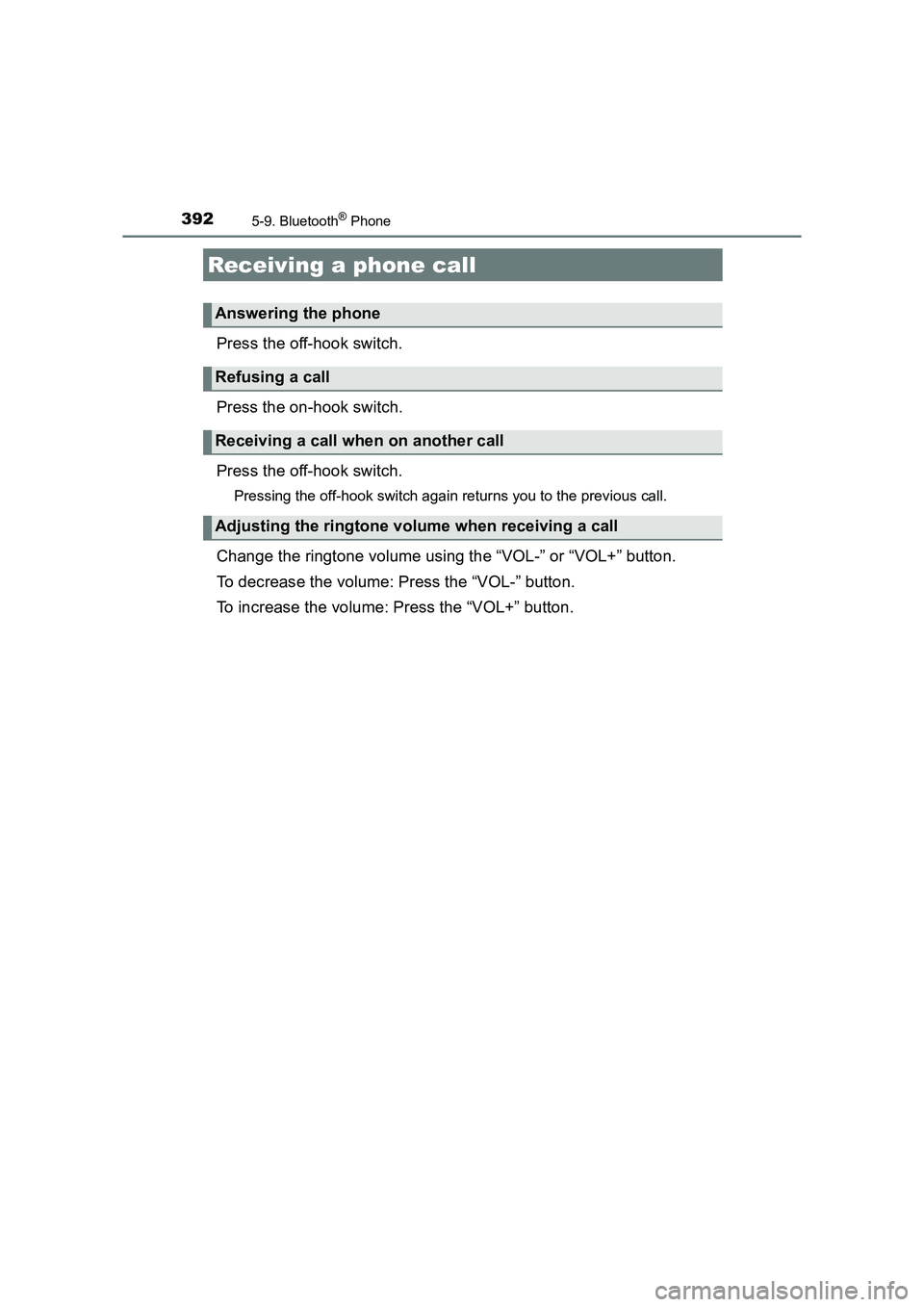

Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
Change the ringtone volume using the “VOL-” or “VOL+” button.
To decrease the volume: Press the “VOL-” button.
To increase the volume: Press the “VOL+” button.
Receiving a phone call
Answering the phone
Refusing a call
Receiving a call when on another call
Adjusting the ringtone volume when receiving a call

3935-9. Bluetooth® Phone
AURIS Touring Sports_EE (12K53E)
5
Audio system

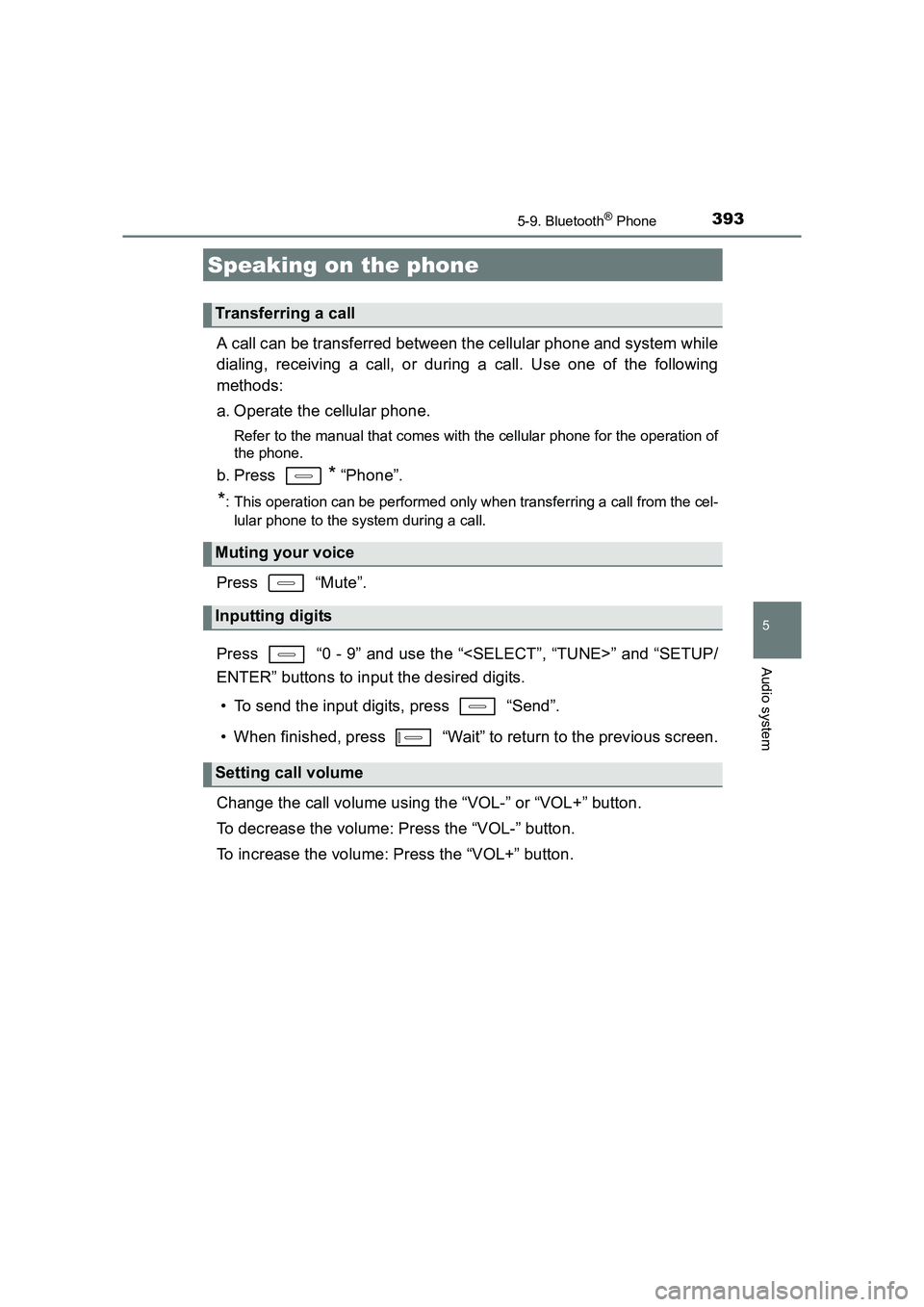

A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b. Press * “Phone”.
*: This operation can be performed only when transferring a call from the cel-lular phone to the system during a call.
Press “Mute”.
Press “0 - 9” and use the “” and “SETUP/
ENTER” buttons to input the desired digits.
• To send the input digits, press “Send”.
• When finished, press “Wait” to return to the previous screen.
Change the call volume using the “VOL-” or “VOL+” button.
To decrease the volume: Press the “VOL-” button.
To increase the volume: Press the “VOL+” button.
Speaking on the phone
Transferring a call
Muting your voice
Inputting digits
Setting call volume

3945-9. Bluetooth® Phone
AURIS Touring Sports_EE (12K53E)

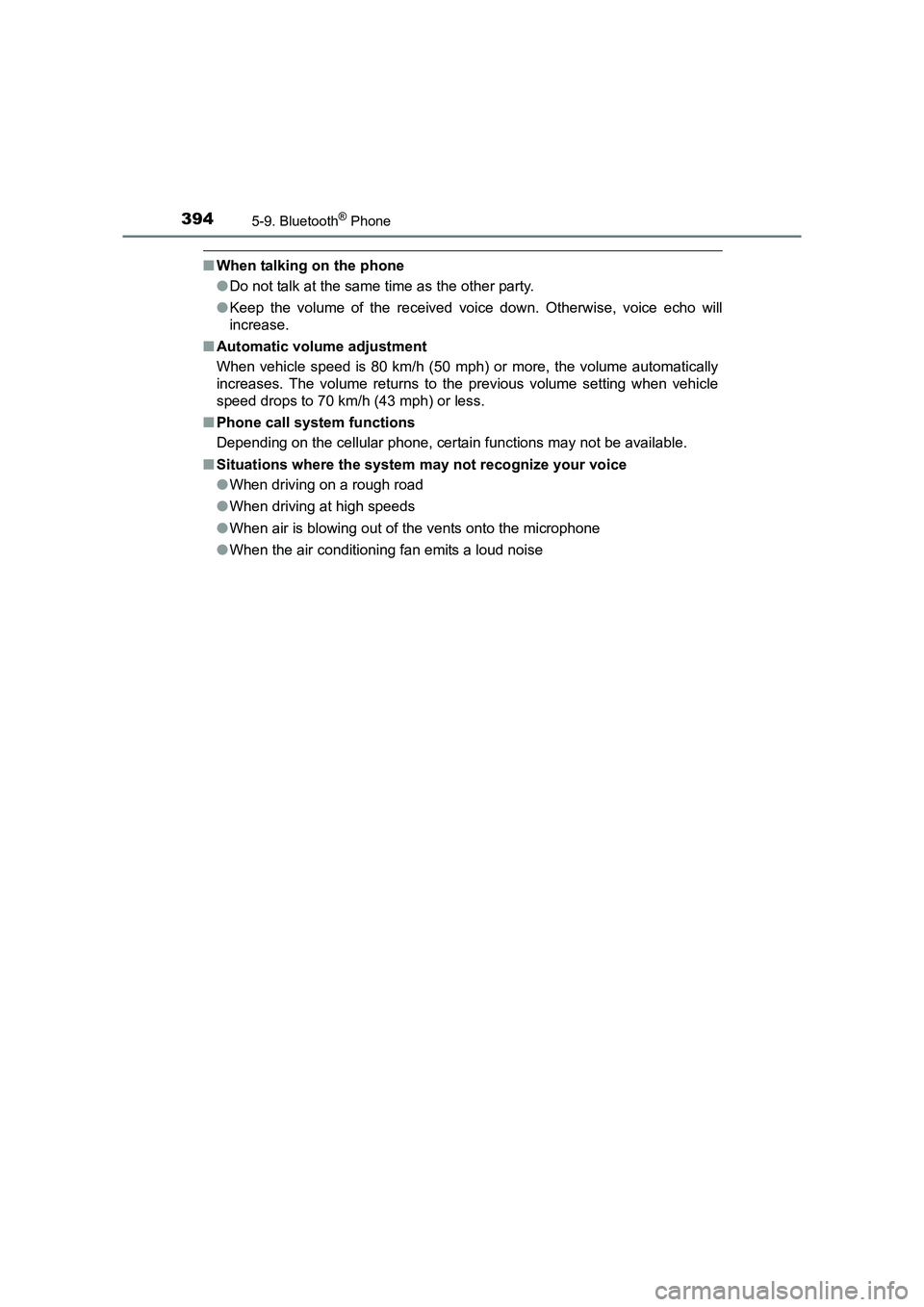

■When talking on the phone
●Do not talk at the same time as the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certai n functions may not be available.
■ Situations where the system may not recognize your voice
●When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise

395
AURIS Touring Sports_EE (12K53E)
5
Audio system

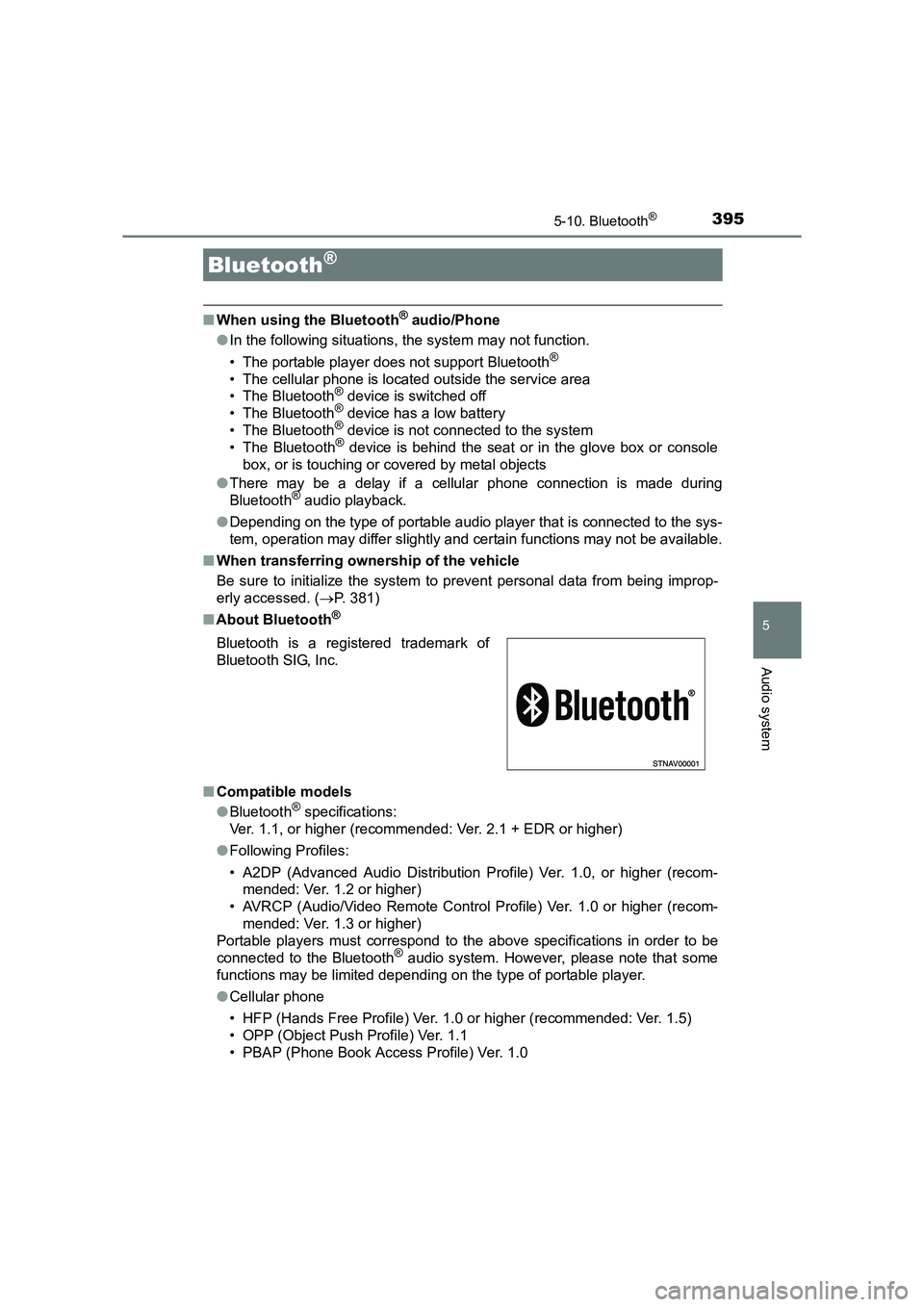

5-10. Bluetooth®
■When using the Bluetooth® audio/Phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or is touching or covered by metal objects
● There may be a delay if a cellul ar phone connection is made during
Bluetooth
® audio playback.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( →P. 381)
■ About Bluetooth
®
■Compatible models
●Bluetooth® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom- mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

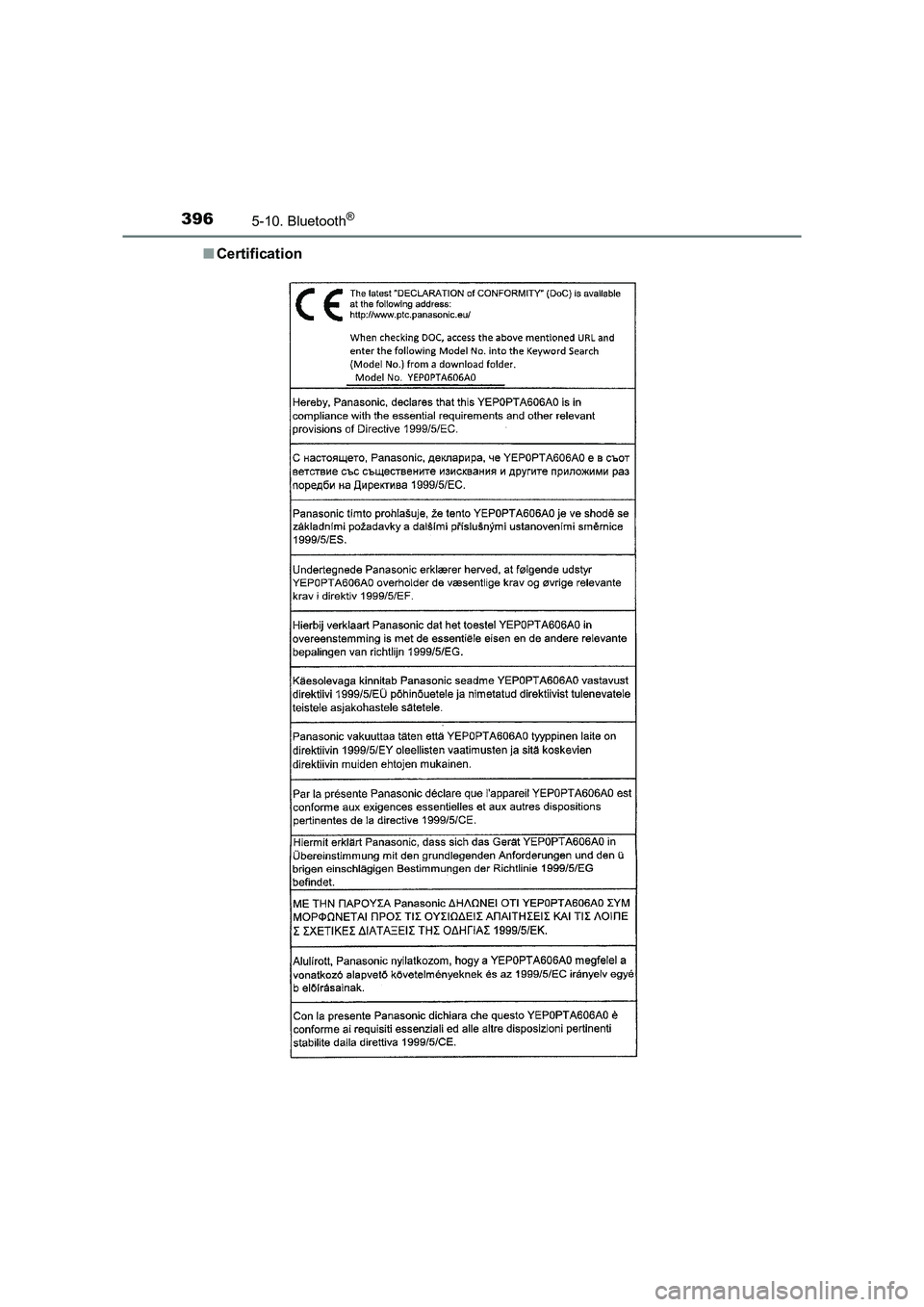

3965-10. Bluetooth®
AURIS Touring Sports_EE (12K53E)■
Certification

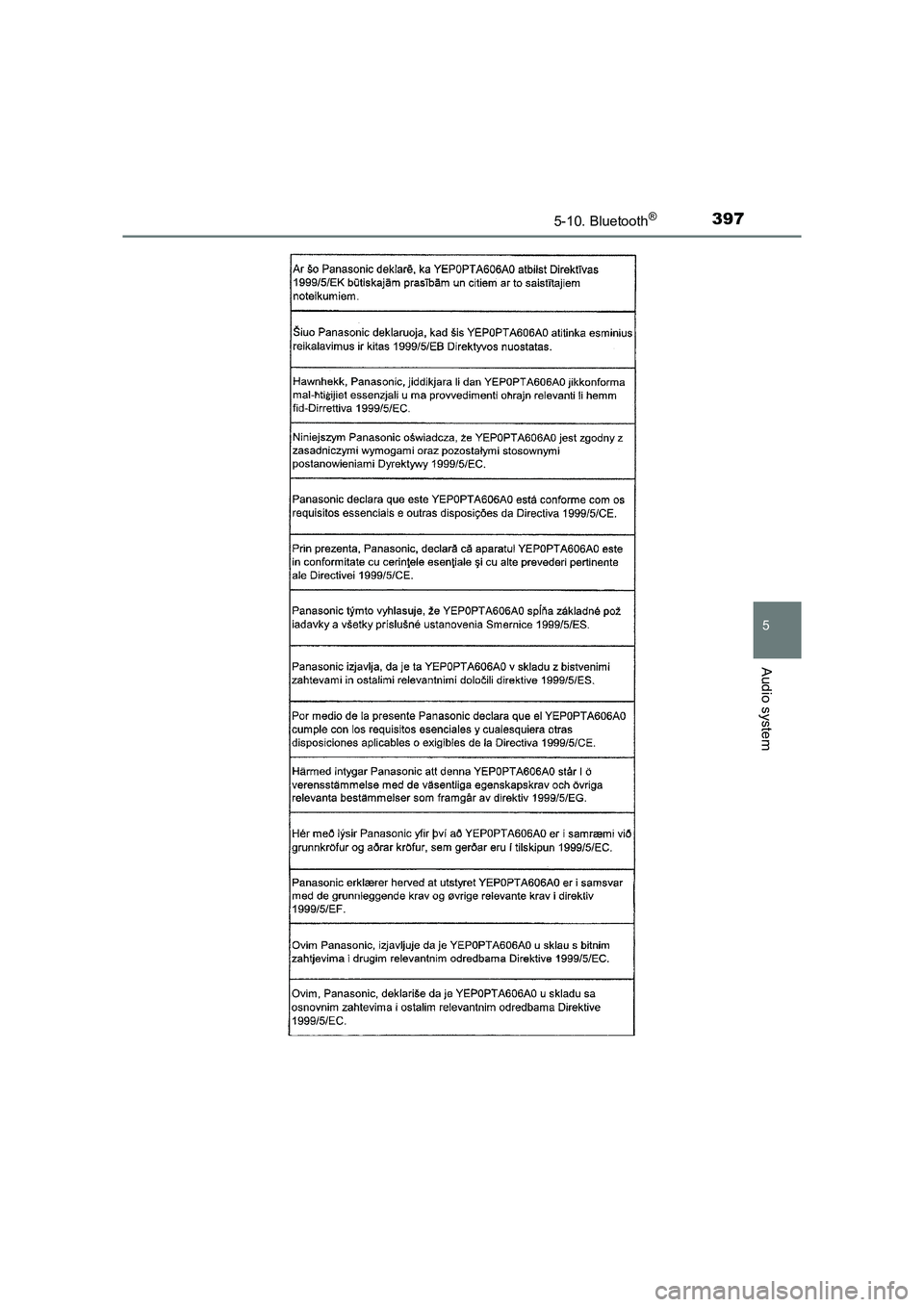

3975-10. Bluetooth®
AURIS Touring Sports_EE (12K53E)
5
Audio system

3985-10. Bluetooth®
AURIS Touring Sports_EE (12K53E)

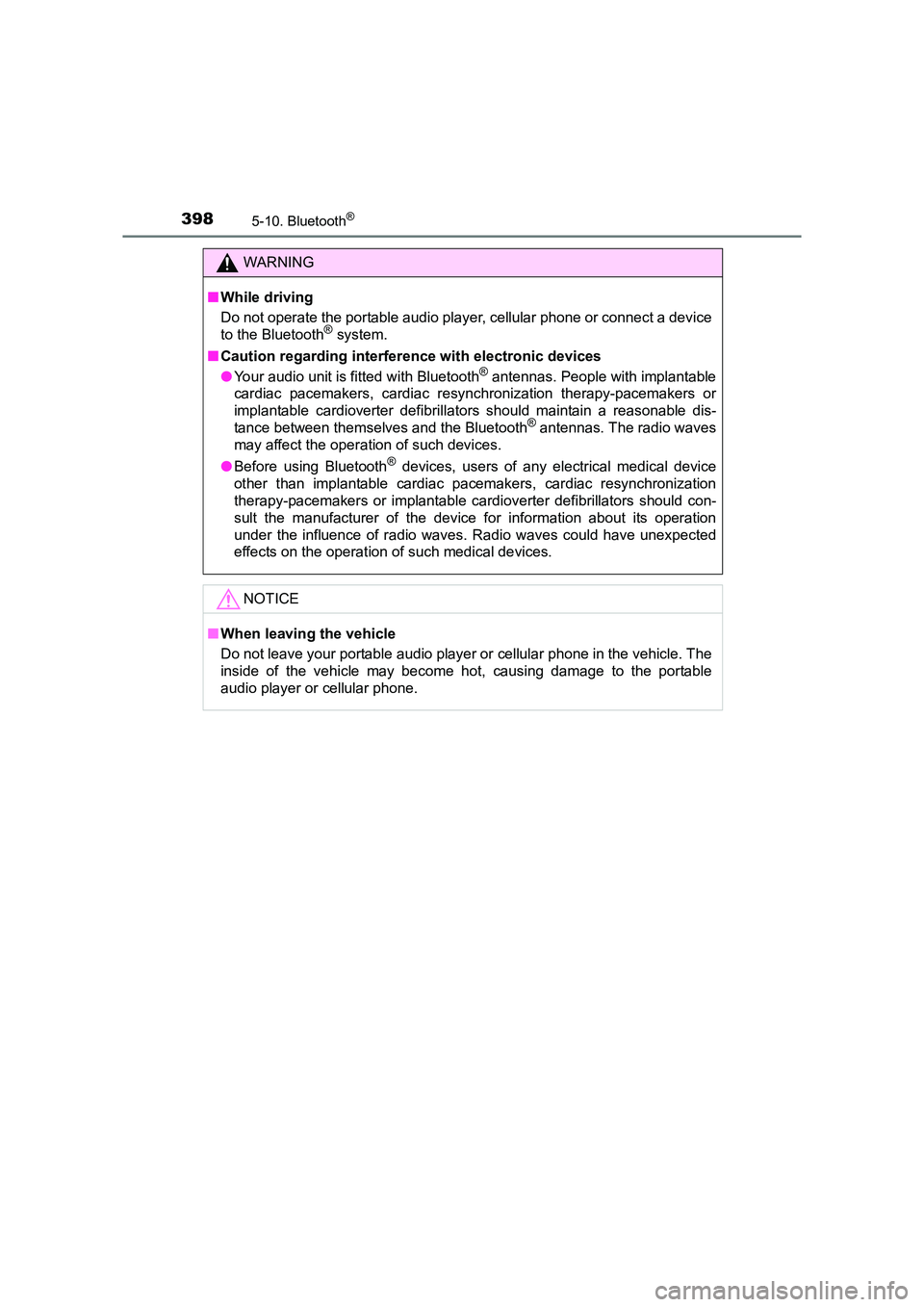

WARNING
■ While driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth
® system.
■ Caution regarding interferen ce with electronic devices
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.

399

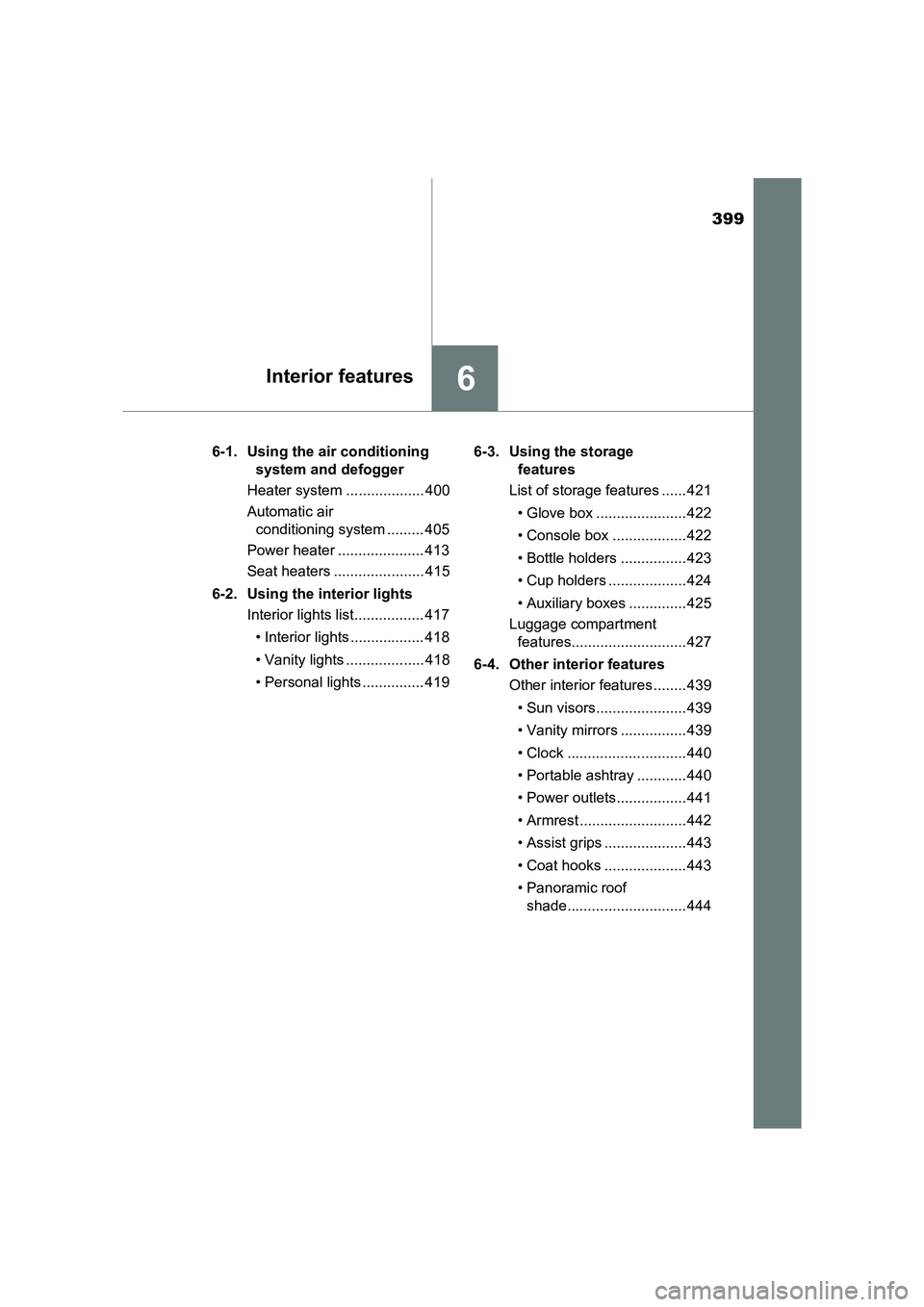

6Interior features
AURIS Touring Sports_EE (12K53E)6-1. Using the air conditioning
system and defogger
Heater system ................... 400
Automatic air conditioning system ......... 405
Power heater ..................... 413
Seat heaters ...................... 415
6-2. Using the interior lights Interior lights list................. 417
• Interior lights .................. 418
• Vanity lights ................... 418
• Personal lights ............... 419 6-3. Using the storage
features
List of storage features ...... 421
• Glove box ...................... 422
• Console box .................. 422
• Bottle holders ................ 423
• Cup holders ................... 424
• Auxiliary boxes .............. 425
Luggage compartment features............................ 427
6-4. Other interior features Other interior features ........ 439
• Sun visors...................... 439
• Vanity mirrors ................ 439
• Clock ............................. 440
• Portable ashtray ............ 440
• Power outlets................. 441
• Armrest .......................... 442
• Assist grips .................... 443
• Coat hooks .................... 443
• Panoramic roof shade............................. 444

400
AURIS Touring Sports_EE (12K53E)

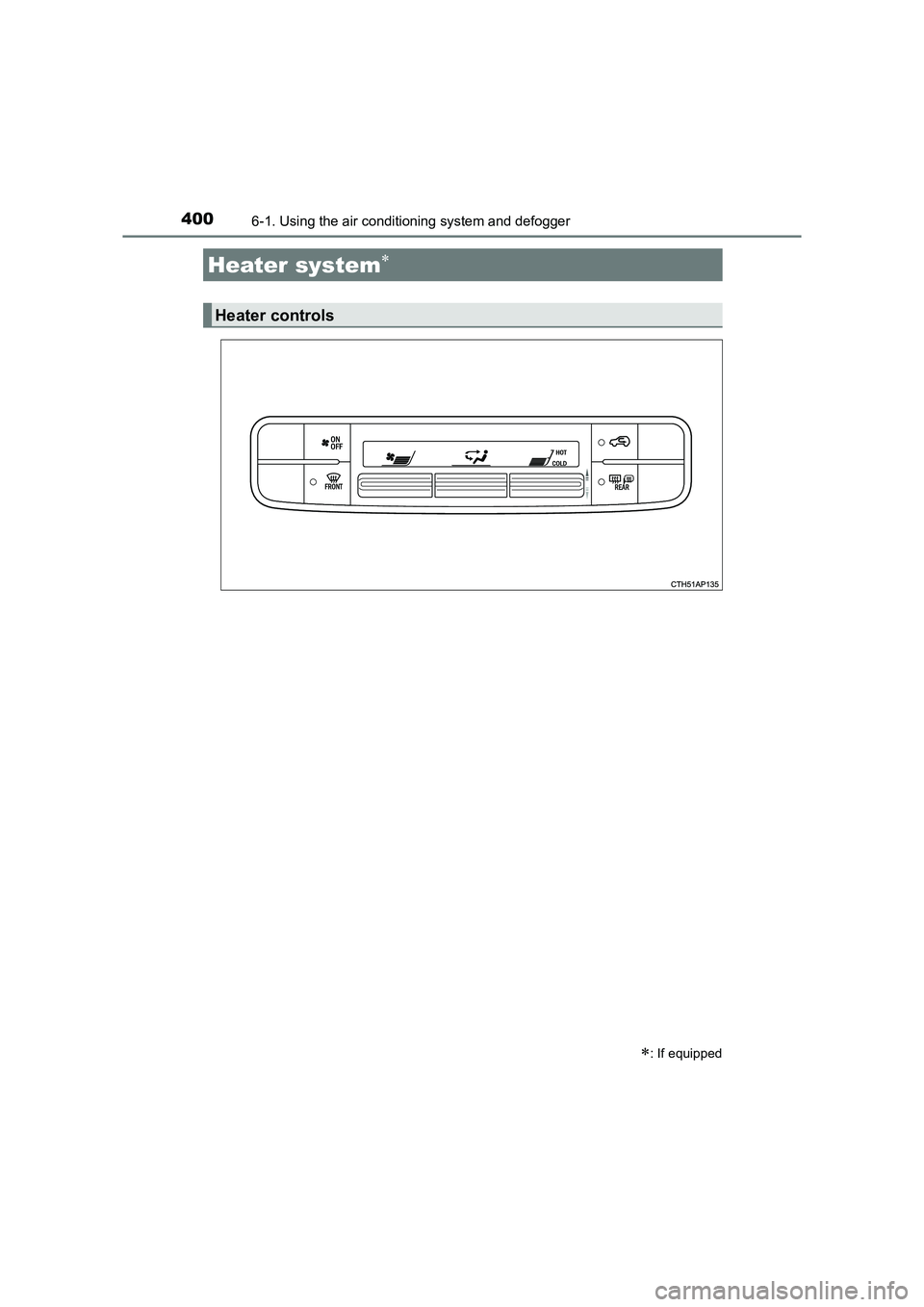

6-1. Using the air conditioning system and defogger
Heater system∗
∗: If equipped
Heater controls
