TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

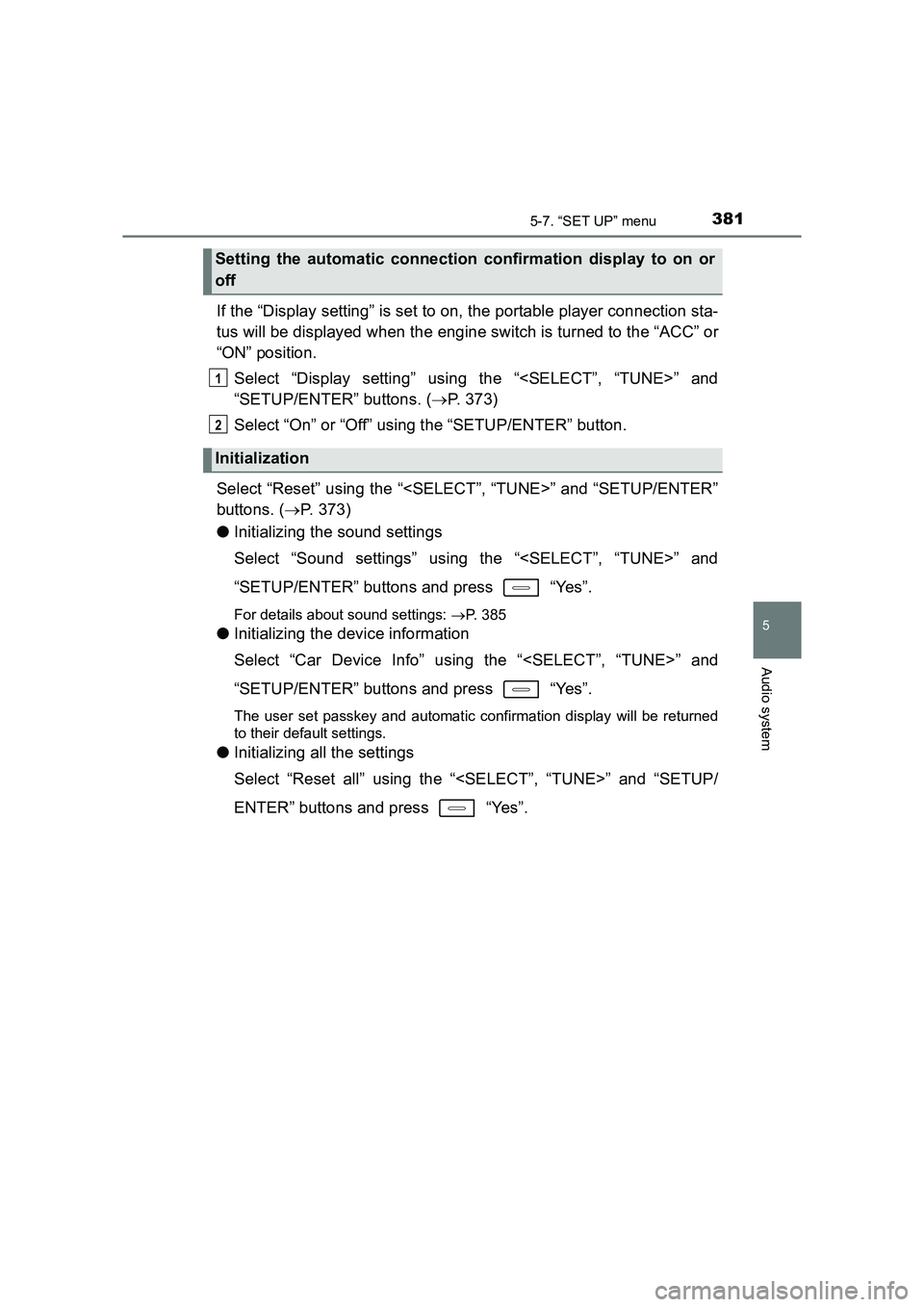

3815-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
5
Audio system
If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position.Select “Display setting” using the “” and
“SETUP/ENTER” buttons. ( →P. 373)
Select “On” or “Off” using the “SETUP/ENTER” button.
Select “Reset” using the “” and “SETUP/ENTER”
buttons. ( →P. 373)
● Initializing the sound settings
Select “Sound settings” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
For details about sound settings: →P. 385
● Initializing the device information
Select “Car Device Info” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
The user set passkey and automatic confirmation display will be returned
to their default settings.
●Initializing all the settings
Select “Reset all” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
Setting the automatic connection confirmation display to on or
off
Initialization
1
2

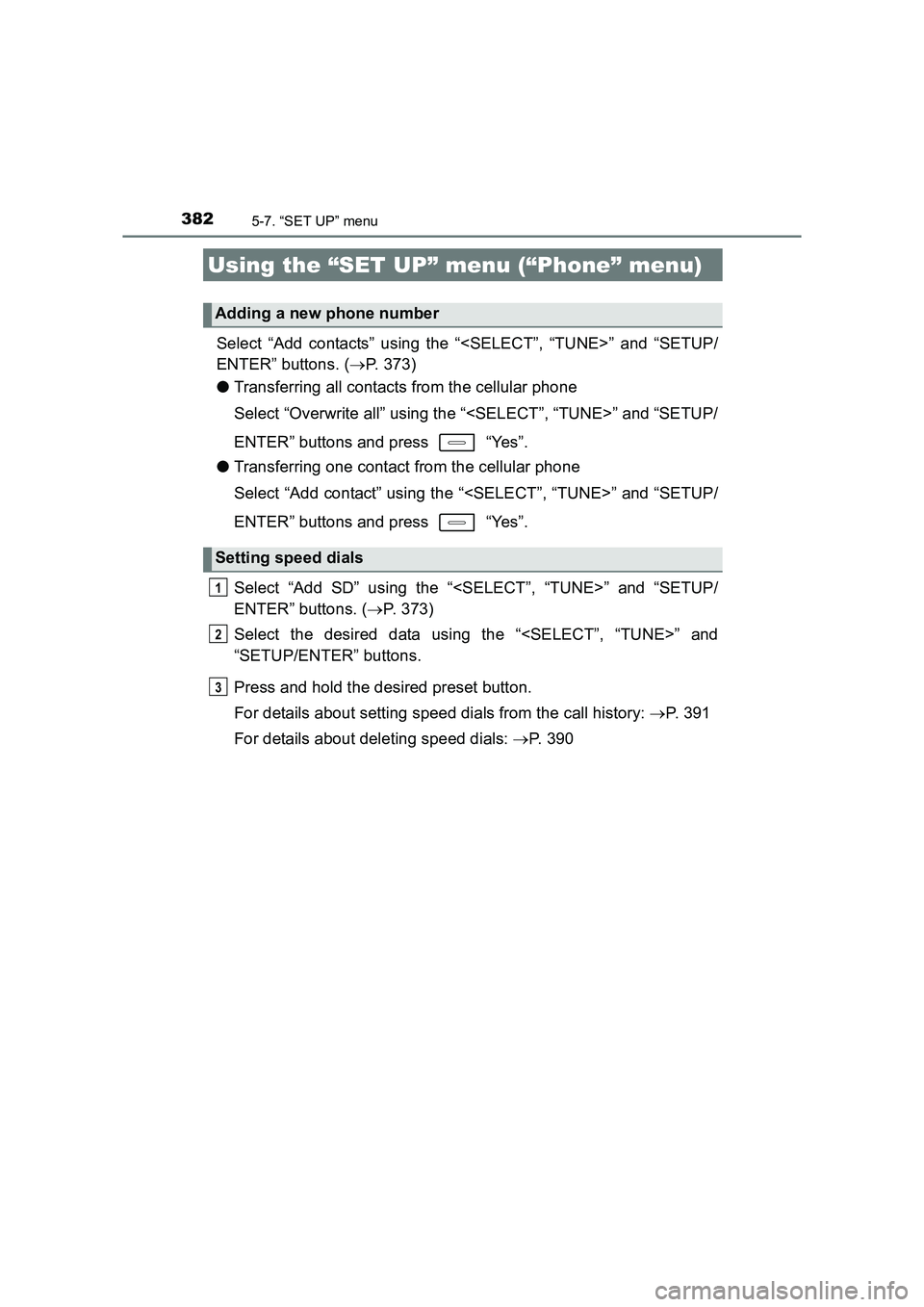

3825-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
Select “Add contacts” using the “” and “SETUP/
ENTER” buttons. (→P. 373)
● Transferring all contacts from the cellular phone
Select “Overwrite all” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
● Transferring one contact from the cellular phone
Select “Add contact” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
Select “Add SD” using the “” and “SETUP/
ENTER” buttons. ( →P. 373)
Select the desired data using the “” and
“SETUP/ENTER” buttons.
Press and hold the desired preset button.
For details about setting speed dials from the call history: →P. 3 9 1
For details about deleting speed dials: →P. 3 9 0
Using the “SET UP” menu (“Phone” menu)
Adding a new phone number
Setting speed dials
1
2
3

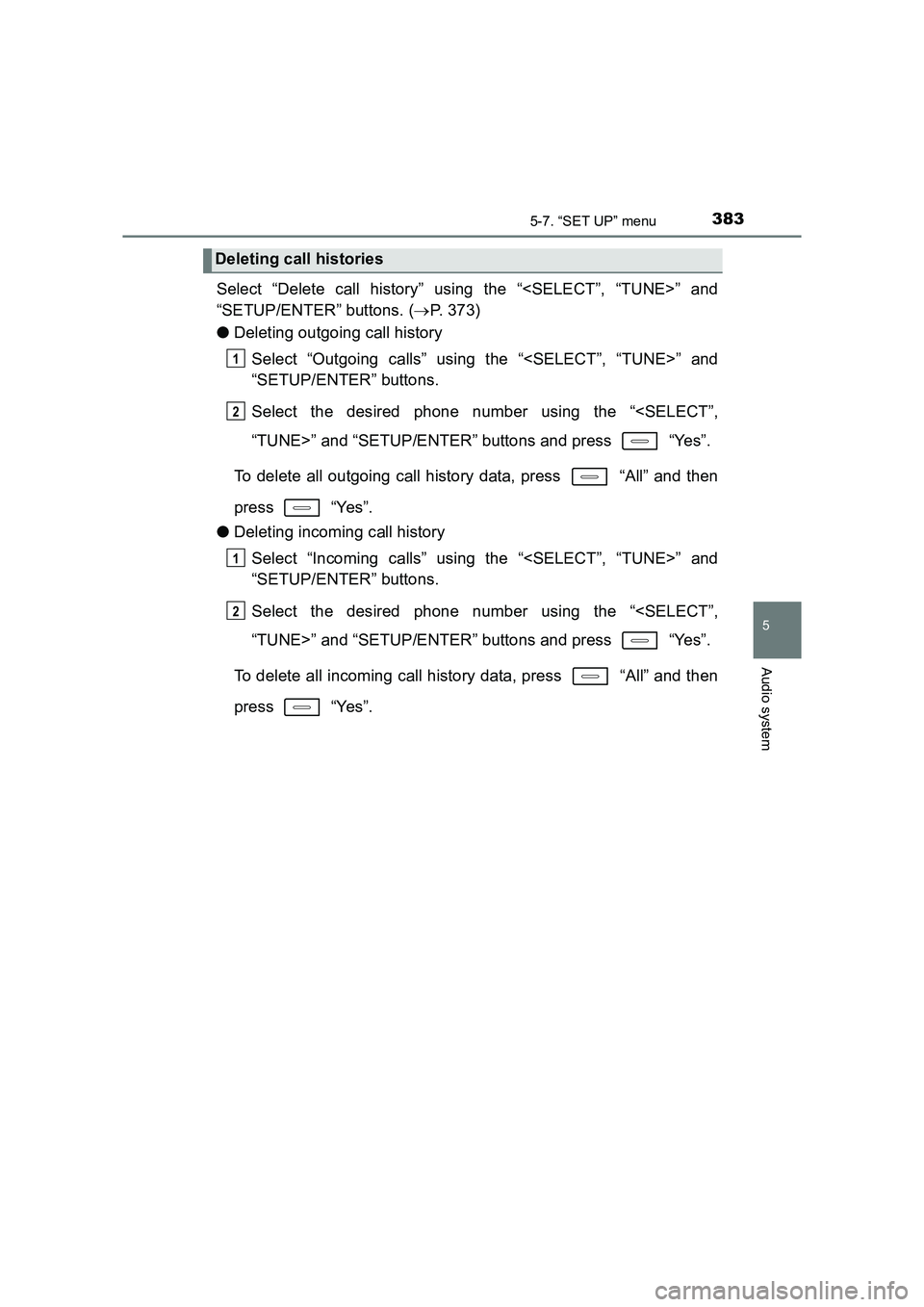

3835-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
5
Audio system
Select “Delete call history” using the “” and
“SETUP/ENTER” buttons. (→P. 373)
● Deleting outgoing call history
Select “Outgoing calls” using the “” and
“SETUP/ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all outgoing call history data, press “All” and then
press “Yes”.
● Deleting incoming call history
Select “Incoming calls” using the “” and
“SETUP/ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all incoming call history data, press “All” and then
press “Yes”.
Deleting call histories
1
2
1
2

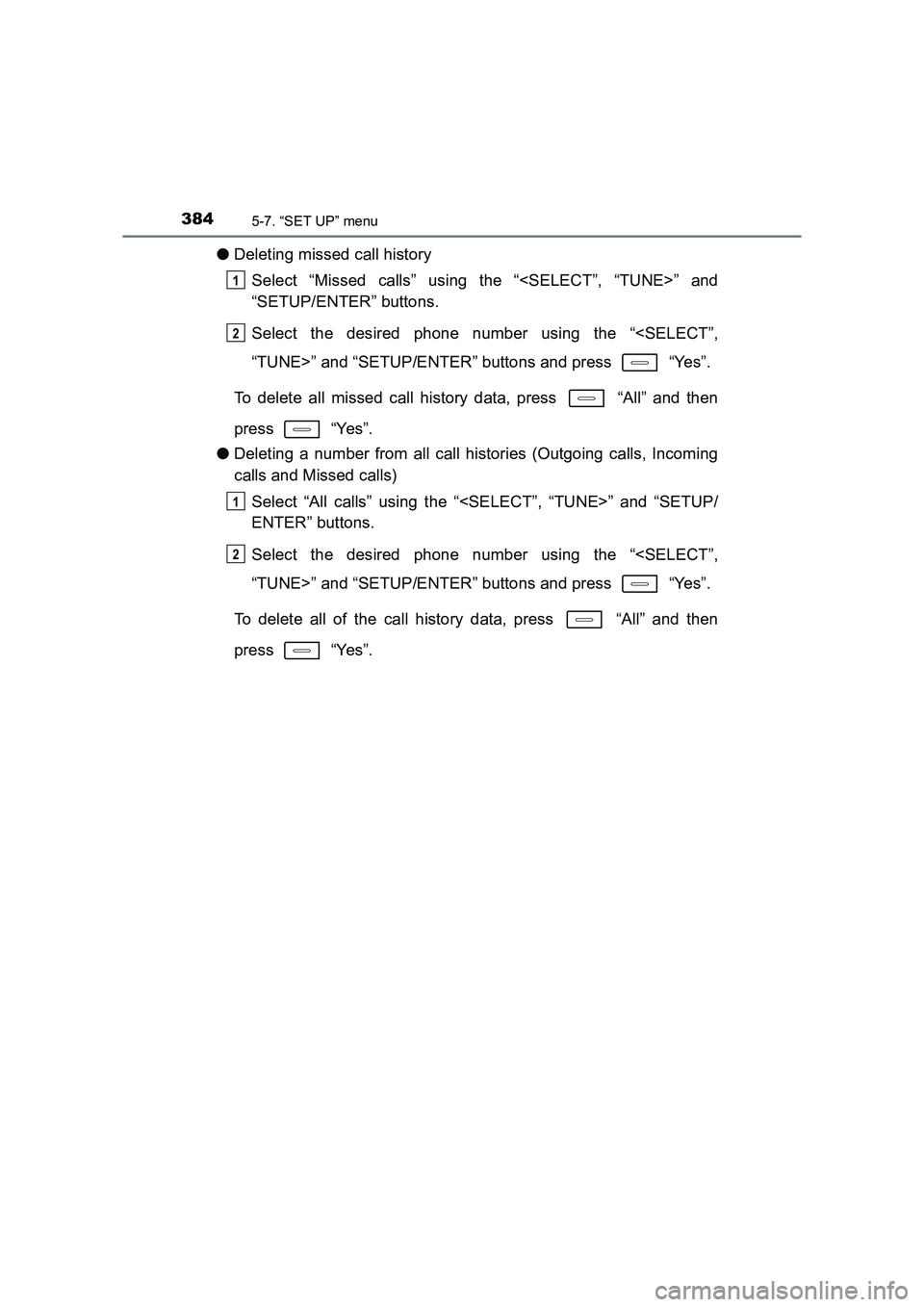

3845-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
●Deleting missed call history
Select “Missed calls” using the “” and
“SETUP/ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all missed call history data, press “All” and then
press “Yes”.
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “” and “SETUP/
ENTER” buttons.
Select the desired phone number using the “ “TUNE>” and “SETUP/ENTER” buttons and press “Yes”.
To delete all of the call history data, press “All” and then
press “Yes”.
1
2
1
2

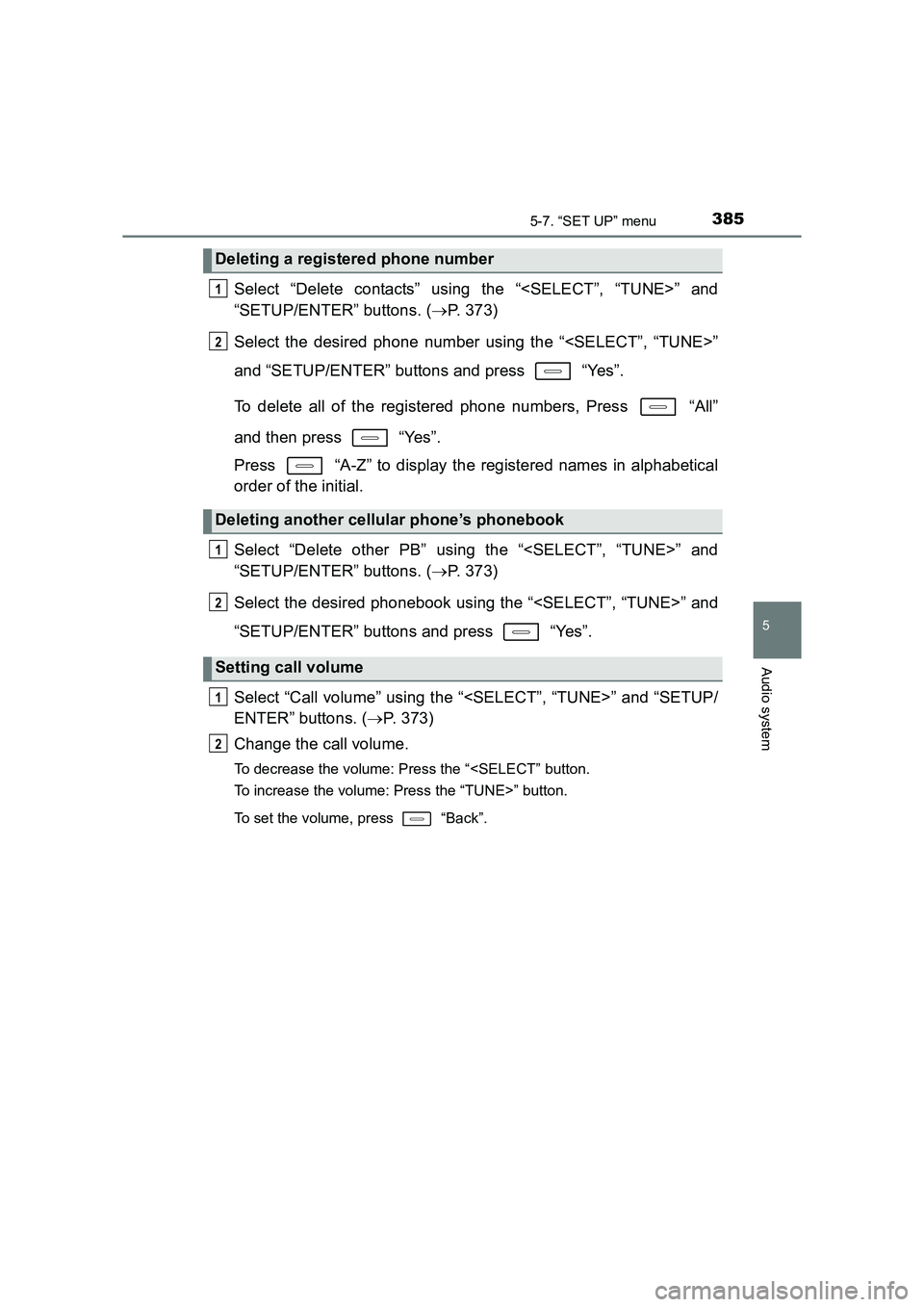

3855-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
5
Audio system
Select “Delete contacts” using the “” and
“SETUP/ENTER” buttons. (→P. 373)
Select the desired phone number using the “”
and “SETUP/ENTER” buttons and press “Yes”.
To delete all of the registered phone numbers, Press “All”
and then press “Yes”.
Press “A-Z” to display the registered names in alphabetical
order of the initial.
Select “Delete other PB” using the “” and
“SETUP/ENTER” buttons. ( →P. 373)
Select the desired phonebook using the “” and
“SETUP/ENTER” buttons and press “Yes”.
Select “Call volume” using the “” and “SETUP/
ENTER” buttons. ( →P. 373)
Change the call volume.
To decrease the volume: Press the “ To increase the volume: Press the “TUNE>” button.
To set the volume, press “Back”.
Deleting a registered phone number
Deleting another cellular phone’s phonebook
Setting call volume
1
2
1
2
1
2

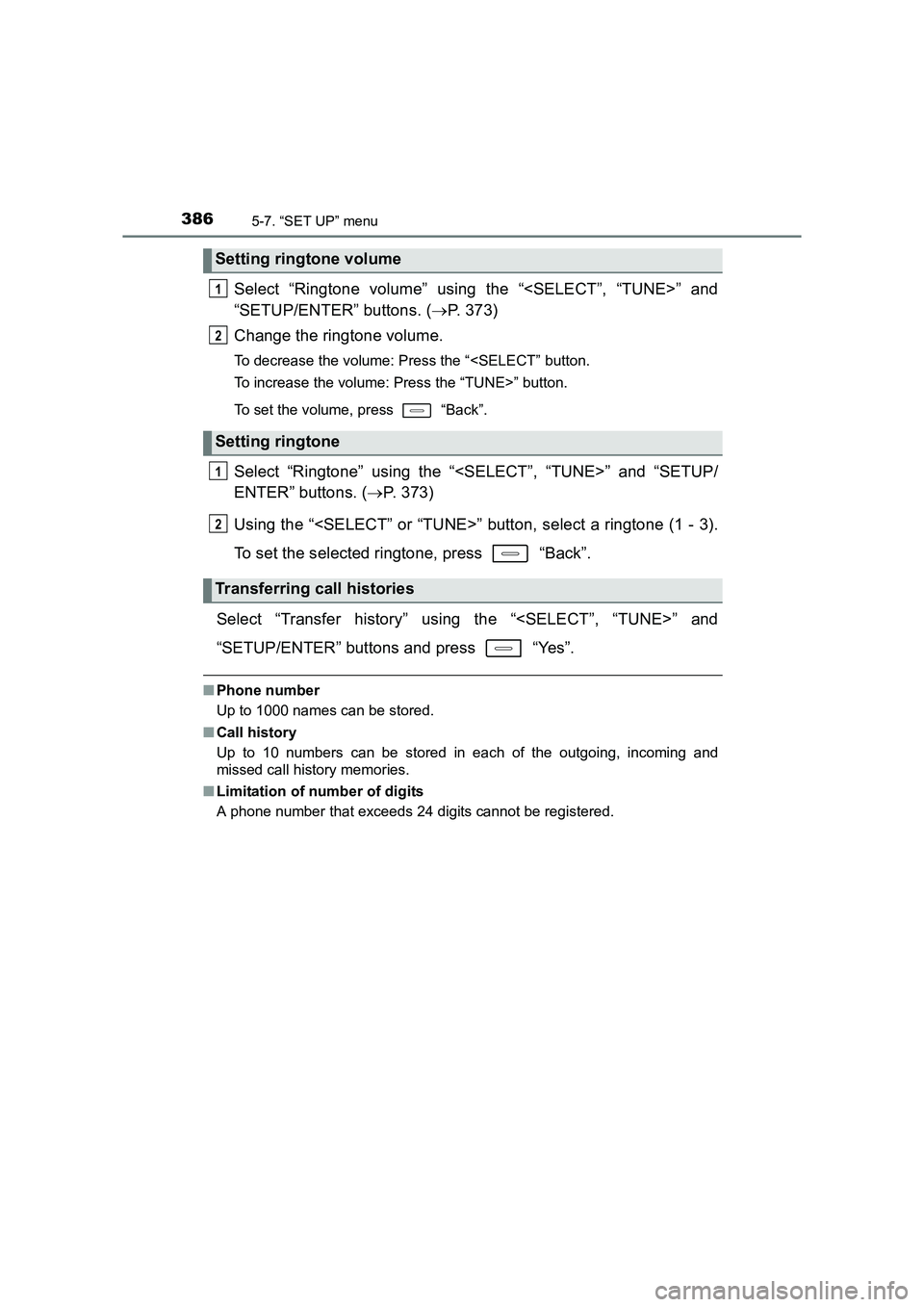

3865-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
Select “Ringtone volume” using the “” and
“SETUP/ENTER” buttons. (→P. 373)
Change the ringtone volume.
To decrease the volume: Press the “ To increase the volume: Press the “TUNE>” button.
To set the volume, press “Back”.
Select “Ringtone” using the “” and “SETUP/
ENTER” buttons. ( →P. 373)
Using the “” button, select a ringtone (1 - 3).
To set the selected ringtone, press “Back”.
Select “Transfer history” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
■ Phone number
Up to 1000 names can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
Setting ringtone volume
Setting ringtone
Transferring call histories
1
2
1
2

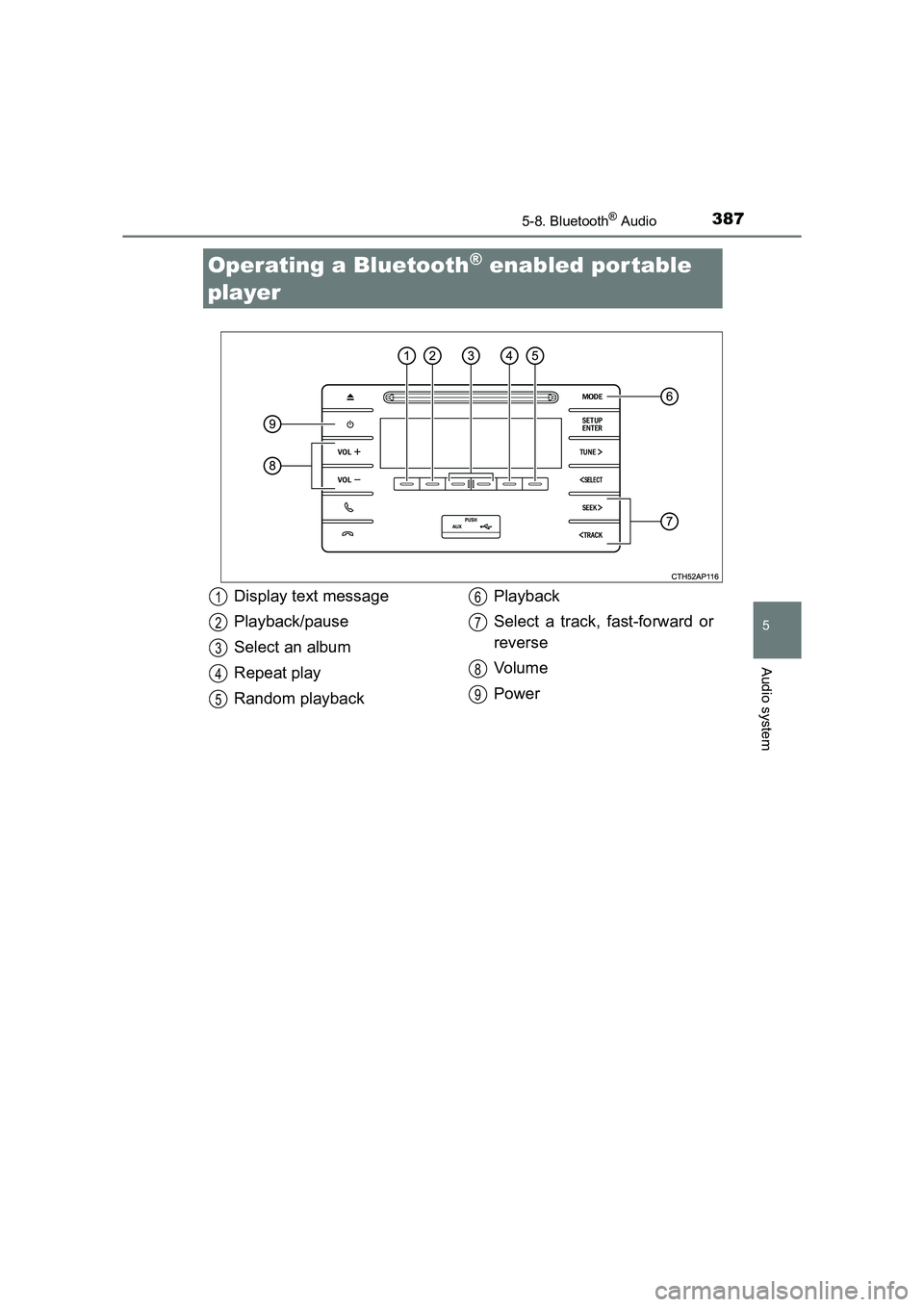

387
AURIS Touring Sports_EE (12K53E)
5
Audio system
5-8. Bluetooth® Audio
Operating a Bluetooth® enabled por table
player
Display text message
Playback/pause
Select an album
Repeat play
Random playback Playback
Select a track, fast-forward or
reverse
Vol um e
Power1
2
3
4
5
6
7
8
9

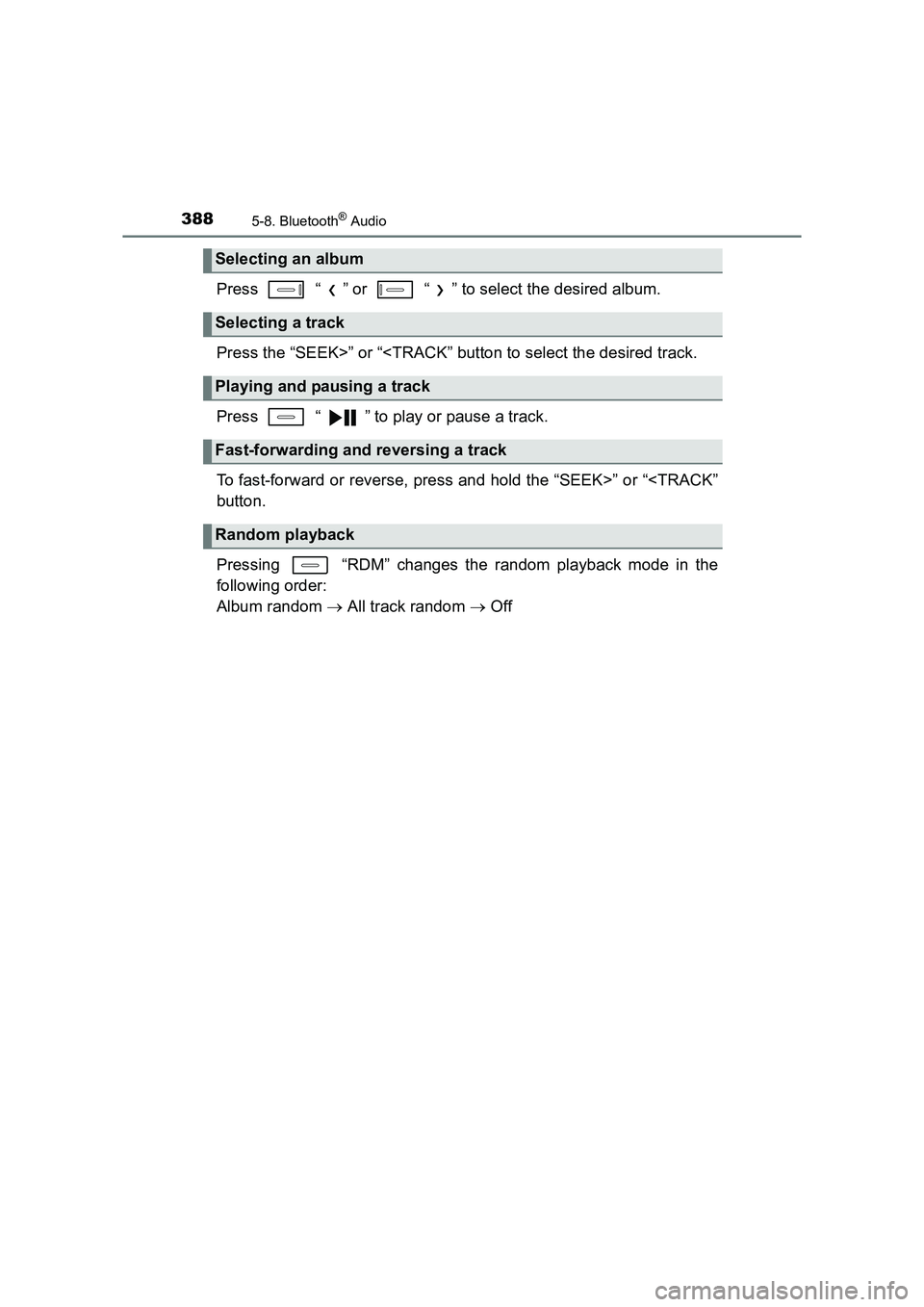

3885-8. Bluetooth® Audio
AURIS Touring Sports_EE (12K53E)
Press “ ” or “ ” to select the desired album.
Press the “SEEK>” or “ Press “ ” to play or pause a track.
To fast-forward or reverse, press and hold the “SEEK>” or “ button.
Pressing “RDM” changes the random playback mode in the
following order:
Album random → All track random → Off
Selecting an album
Selecting a track
Playing and pausing a track
Fast-forwarding and reversing a track
Random playback

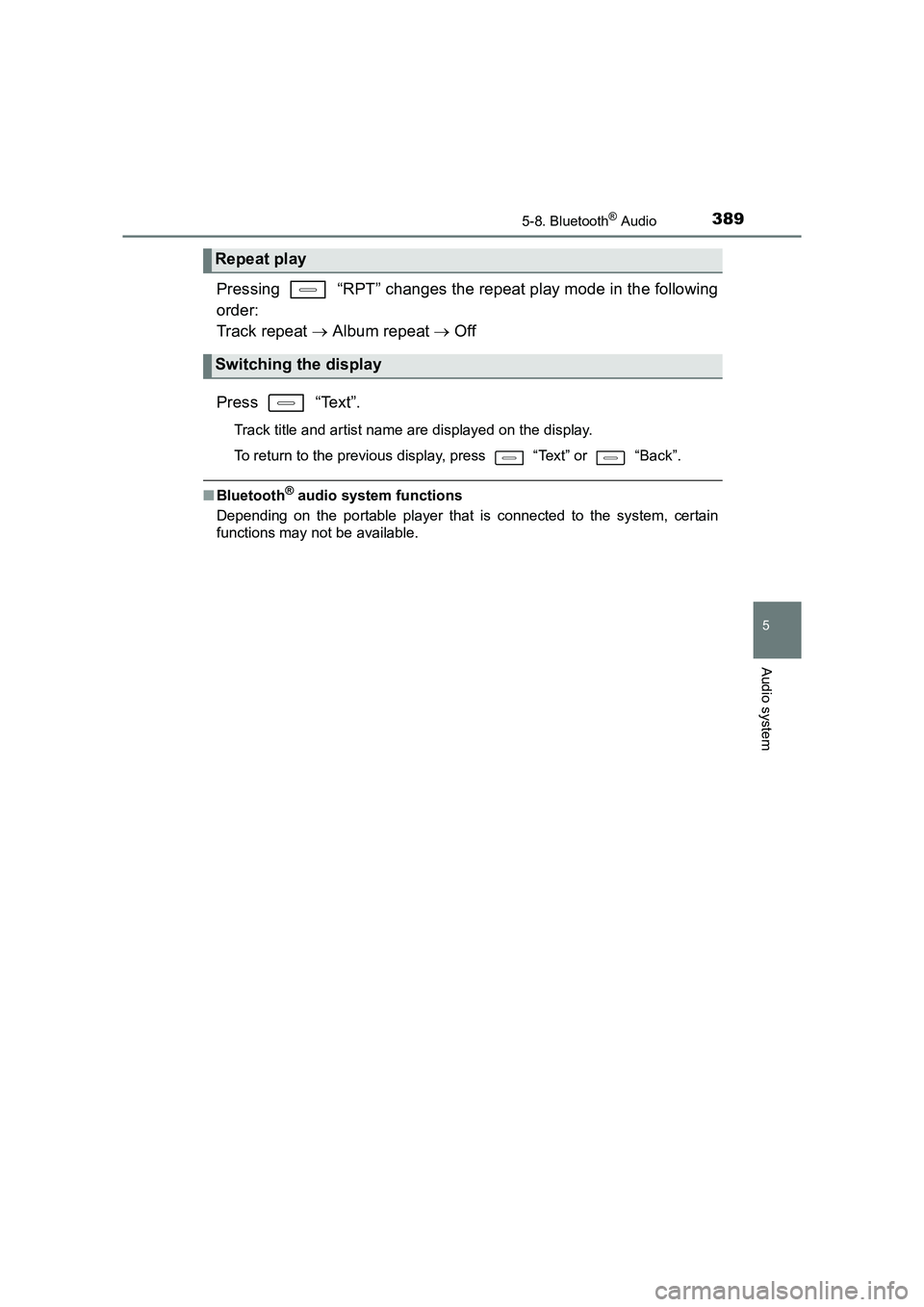

3895-8. Bluetooth® Audio
AURIS Touring Sports_EE (12K53E)
5
Audio system
Pressing “RPT” changes the repeat play mode in the following
order:
Track repeat → Album repeat → Off
Press “Text”.
Track title and artist name are displayed on the display.
To return to the previous display, press “Text” or “Back”.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Repeat play
Switching the display

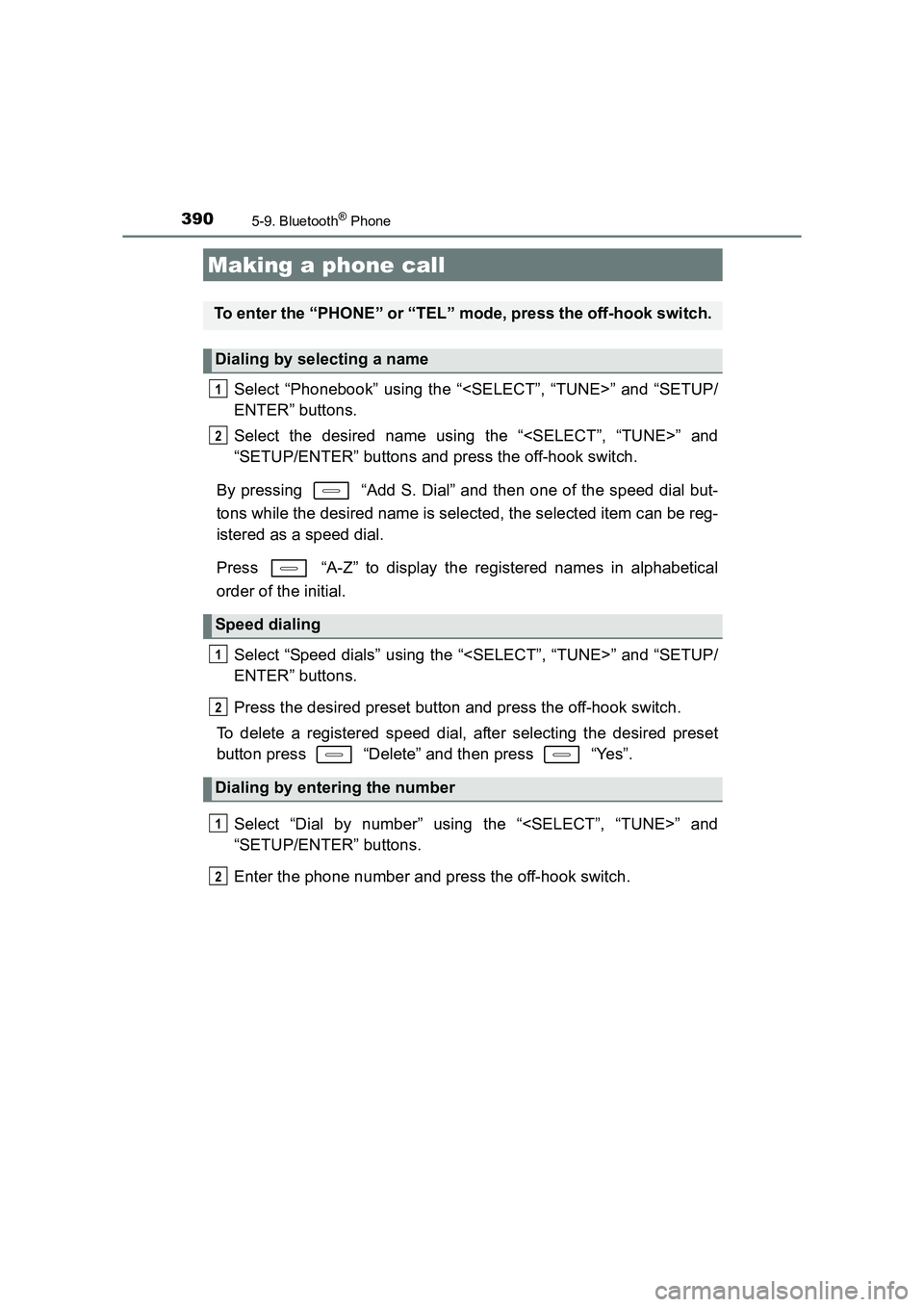

390
AURIS Touring Sports_EE (12K53E)
5-9. Bluetooth® Phone
Select “Phonebook” using the “” and “SETUP/
ENTER” buttons.
Select the desired name using the “” and
“SETUP/ENTER” buttons and press the off-hook switch.
By pressing “Add S. Dial” and then one of the speed dial but-
tons while the desired name is selected, the selected item can be reg-
istered as a speed dial.
Press “A-Z” to display the registered names in alphabetical
order of the initial.
Select “Speed dials” using the “” and “SETUP/
ENTER” buttons.
Press the desired preset button and press the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button press “Delete” and then press “Yes”.
Select “Dial by number” using the “” and
“SETUP/ENTER” buttons.
Enter the phone number and press the off-hook switch.
Making a phone call
To enter the “PHONE” or “TEL” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
Dialing by entering the number
1
2
1
2
1
2
