TOYOTA AURIS TOURING SPORTS 2016 Owners Manual

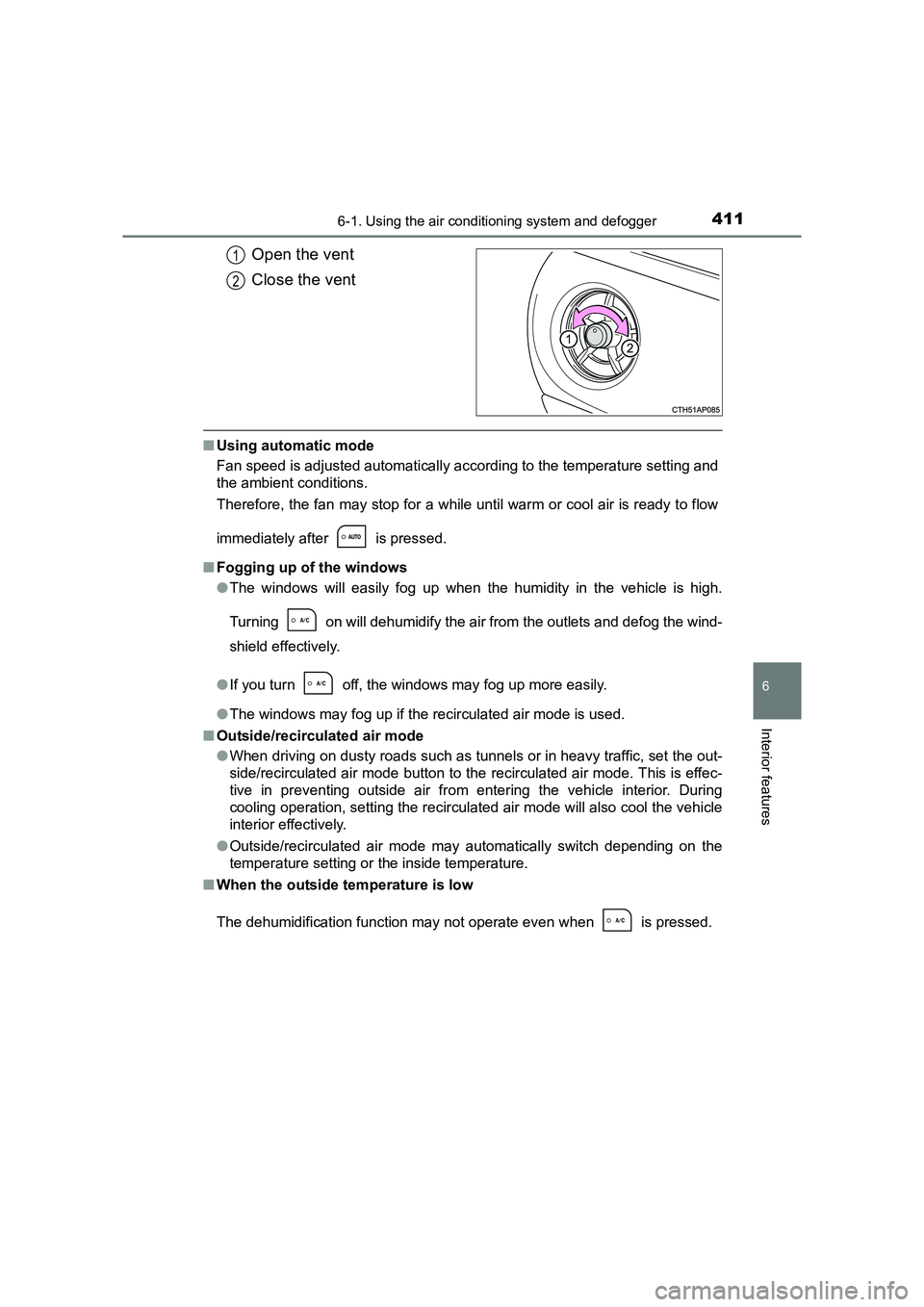

4116-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features
Open the vent
Close the vent
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculat ed air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature is low
The dehumidification function may not operate even when is pressed.
1
2

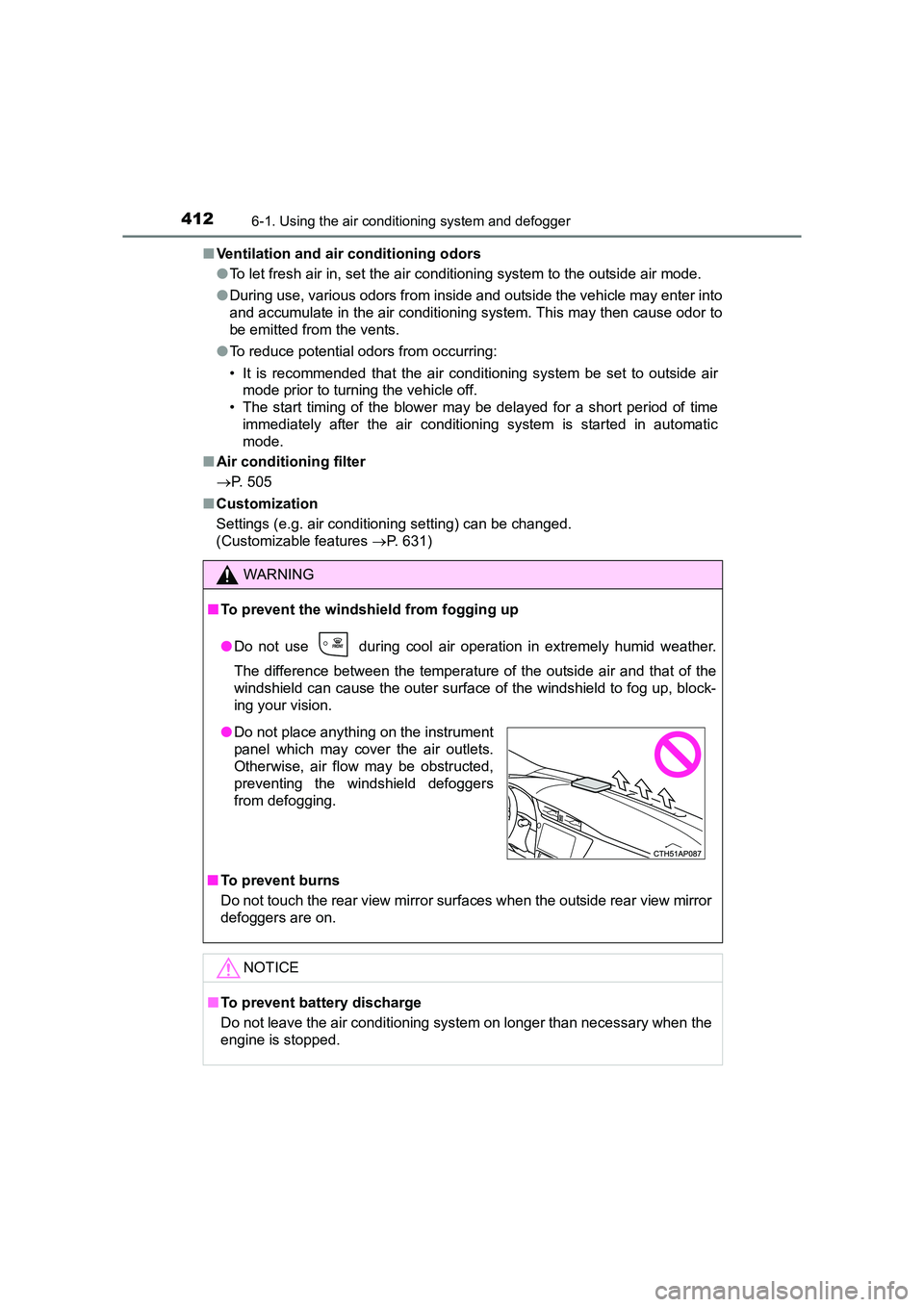

4126-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)■
Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air condi tioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
→ P. 505
■ Customization
Settings (e.g. air conditioni ng setting) can be changed.
(Customizable features →P. 631)
WARNING
■ To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.

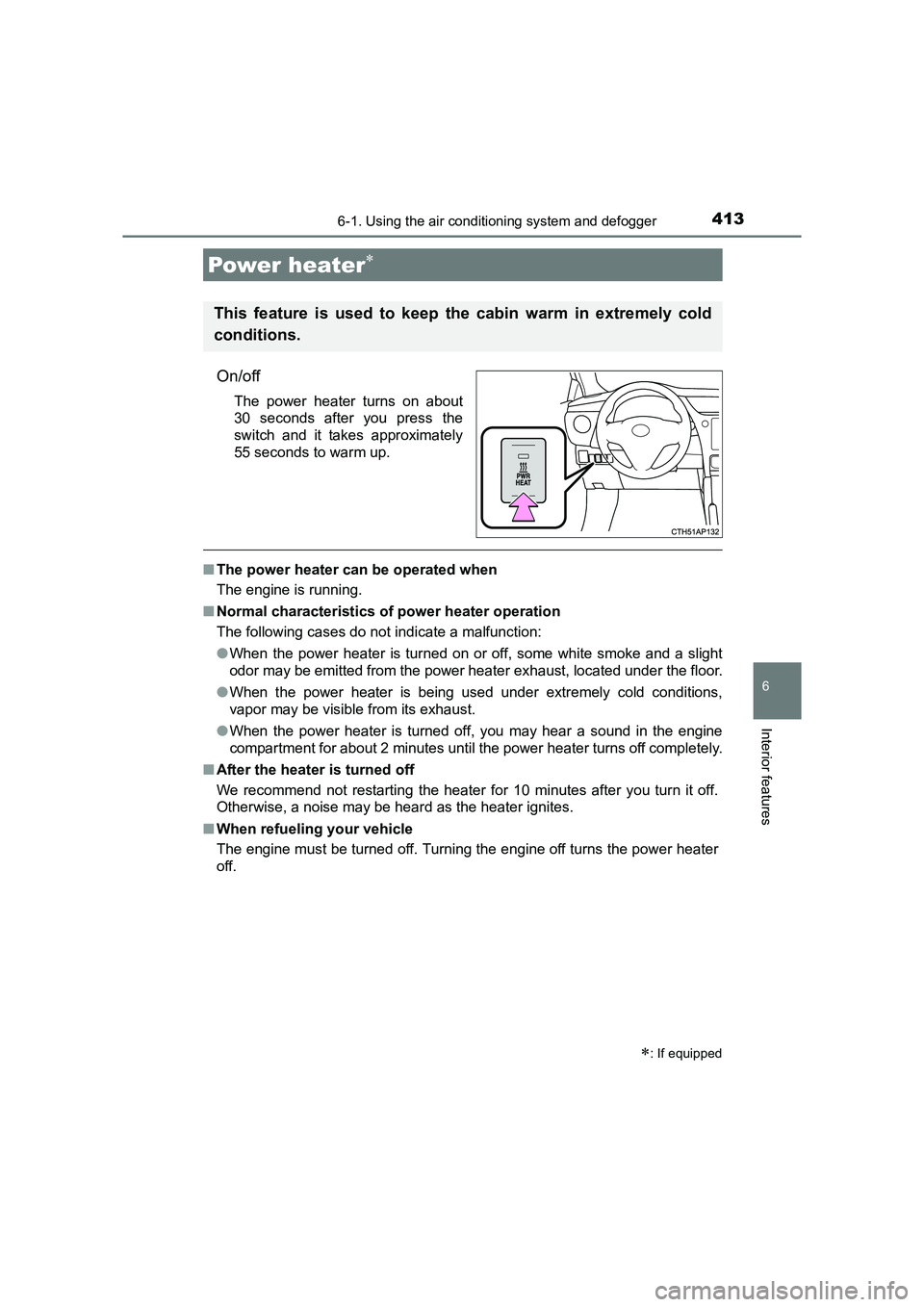

4136-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features
On/off
The power heater turns on about
30 seconds after you press the
switch and it takes approximately
55 seconds to warm up.
■The power heater can be operated when
The engine is running.
■ Normal characteristics of power heater operation
The following cases do not indicate a malfunction:
●When the power heater is turned on or off, some white smoke and a slight
odor may be emitted from the power heater exhaust, located under the floor.
● When the power heater is being used under extremely cold conditions,
vapor may be visible from its exhaust.
● When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off completely.
■ After the heater is turned off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
■ When refueling your vehicle
The engine must be turned off. Turning the engine off turns the power heater
off.
Power heater∗
∗: If equipped
This feature is used to keep the cabin warm in extremely cold
conditions.

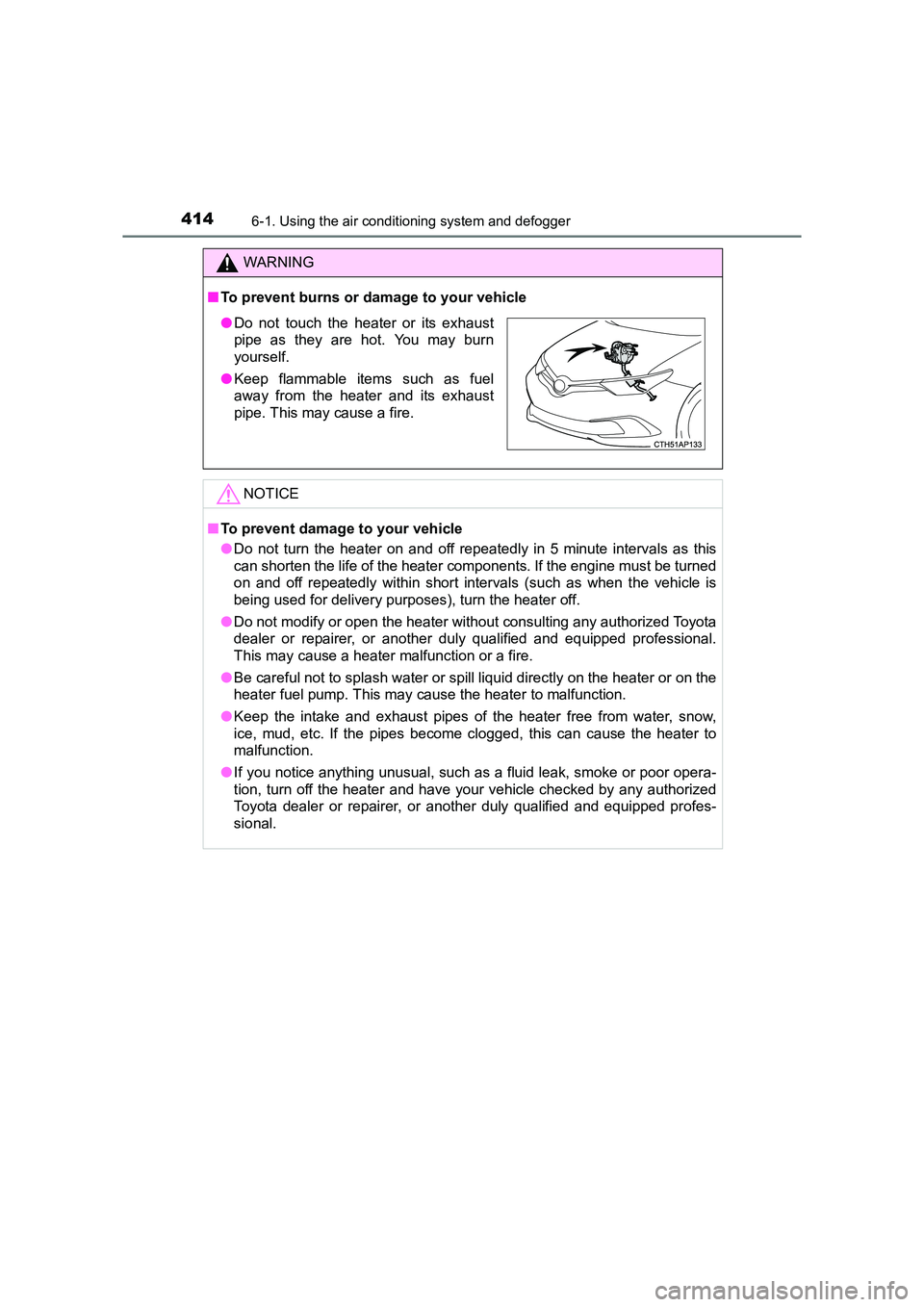

4146-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
WARNING
■ To prevent burns or damage to your vehicle
NOTICE
■To prevent damage to your vehicle
●Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
● Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
This may cause a heater malfunction or a fire.
● Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump. This may cause the heater to malfunction.
● Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
● If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
●Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
● Keep flammable items such as fuel
away from the heater and its exhaust
pipe. This may cause a fire.

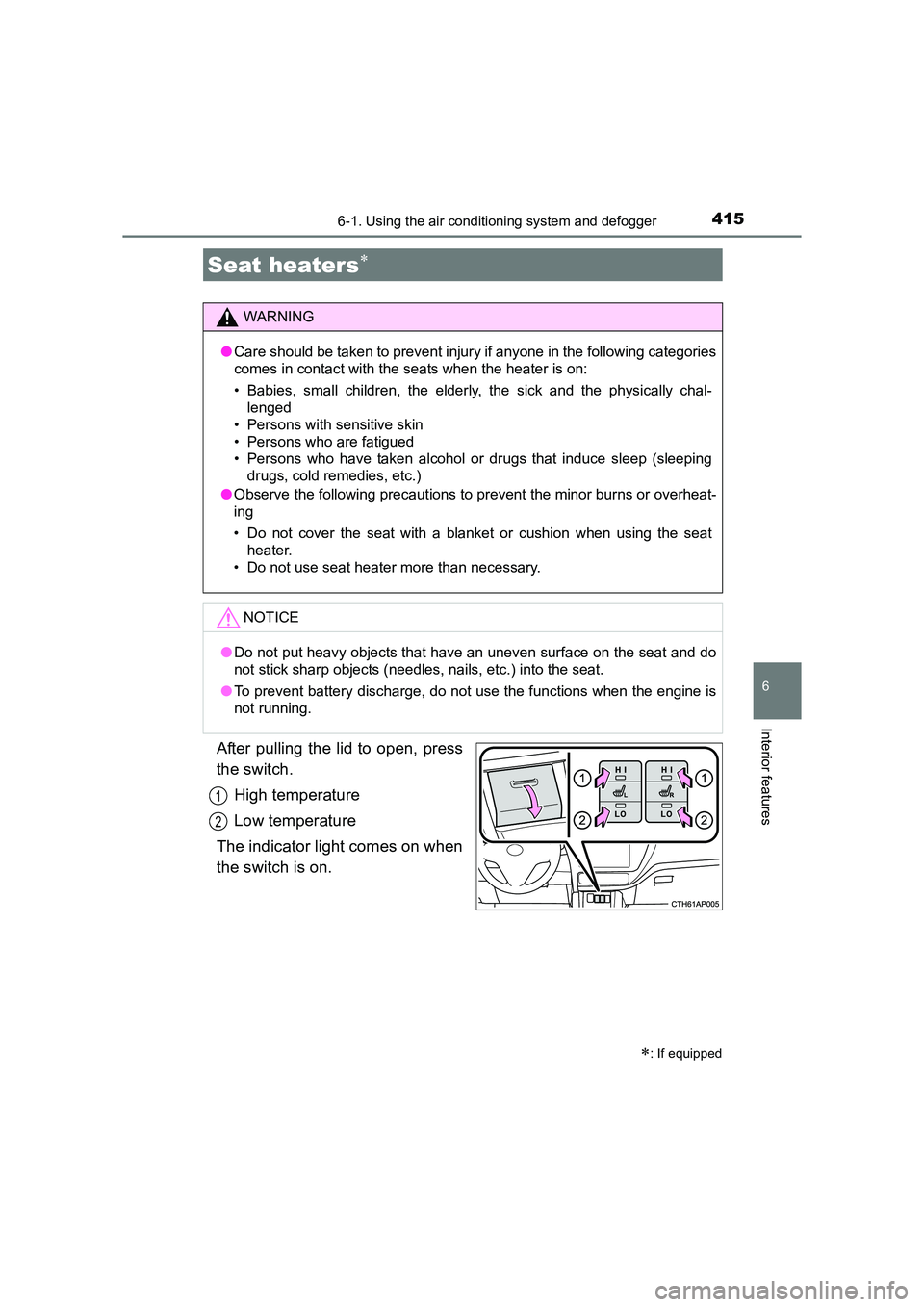

4156-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features
After pulling the lid to open, press
the switch.High temperature
Low temperature
The indicator light comes on when
the switch is on.
Seat heaters∗
∗: If equipped
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Observe the following precautions to prevent the minor burns or overheat-
ing
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent battery discharge, do not use the functions when the engine is
not running.
1
2

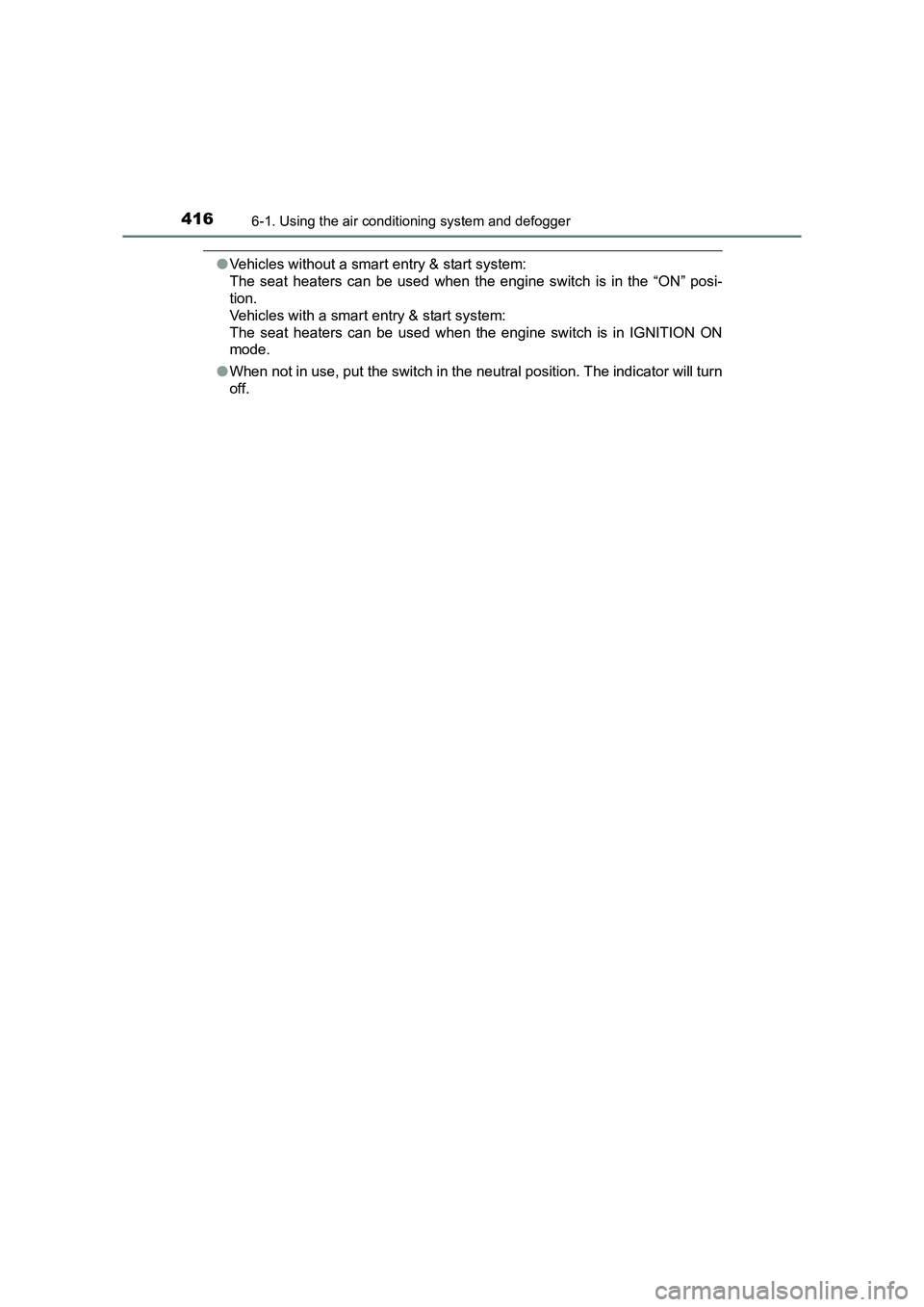

4166-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
●Vehicles without a smart entry & start system:
The seat heaters can be used when the engine switch is in the “ON” posi-
tion.
Vehicles with a smart entry & start system:
The seat heaters can be used when the engine switch is in IGNITION ON
mode.
● When not in use, put the switch in the neutral position. The indicator will turn
off.

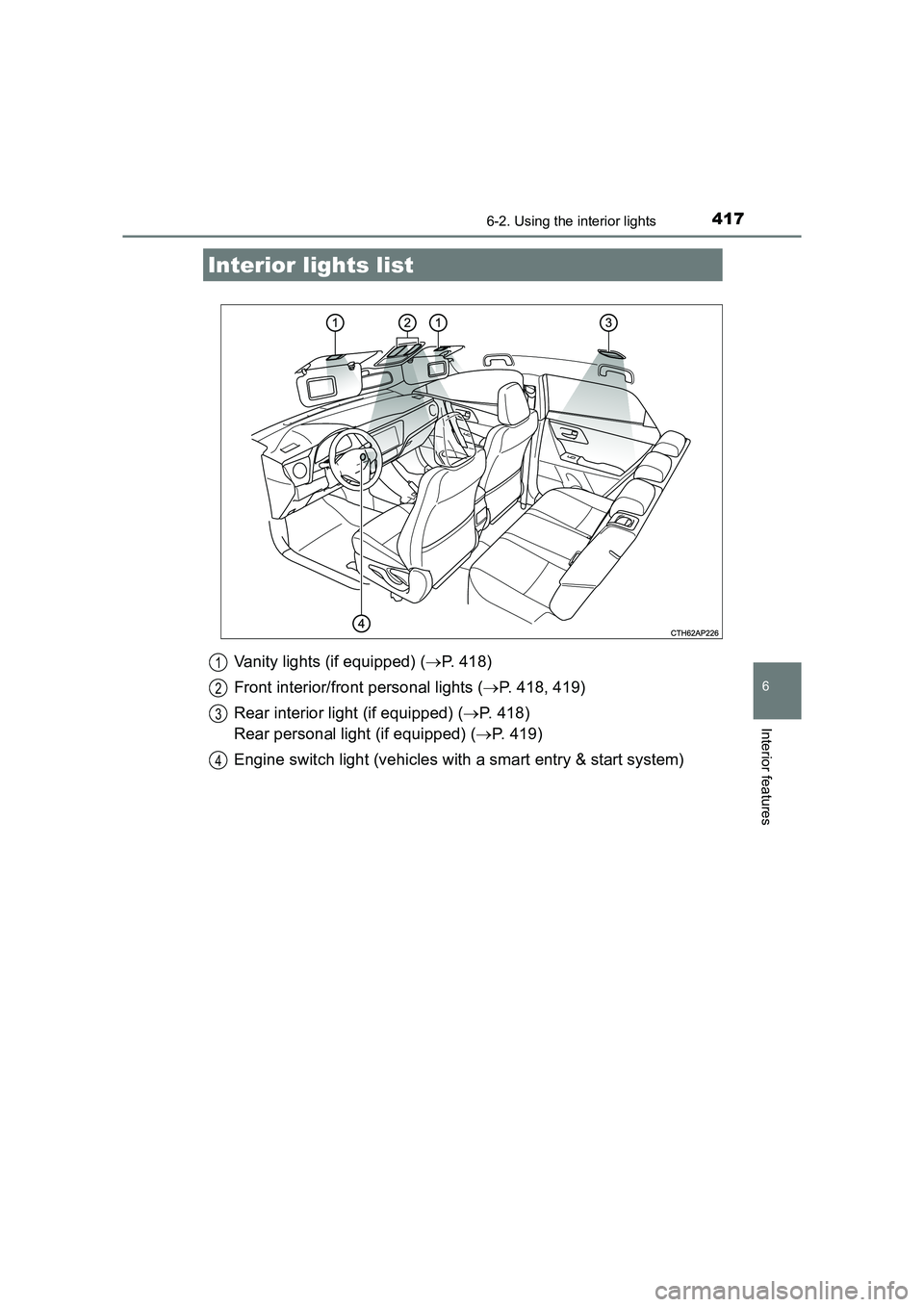

417
AURIS Touring Sports_EE (12K53E)
6
Interior features
6-2. Using the interior lights
Vanity lights (if equipped) (→P. 418)
Front interior/front personal lights ( →P. 418, 419)
Rear interior light (if equipped) ( →P. 418)
Rear personal light (if equipped) ( →P. 419)
Engine switch light (vehicles with a smart entry & start system)
Interior lights list
1
2
3
4

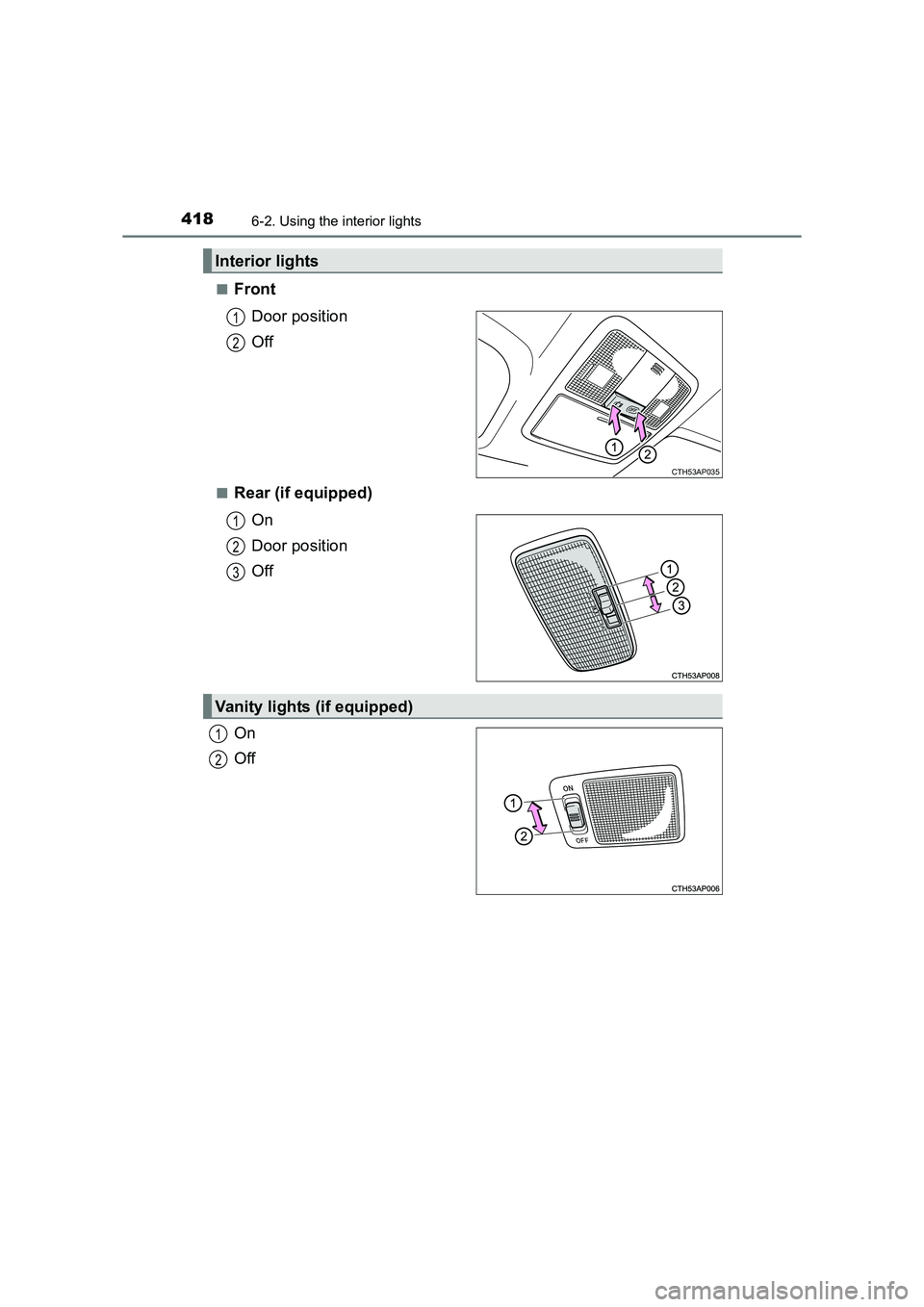

4186-2. Using the interior lights
AURIS Touring Sports_EE (12K53E)■
Front
Door position
Off
■Rear (if equipped)On
Door position
Off
On
Off
Interior lights
CTH53AP035
1
2
1
2
3
Vanity lights (if equipped)
1
2

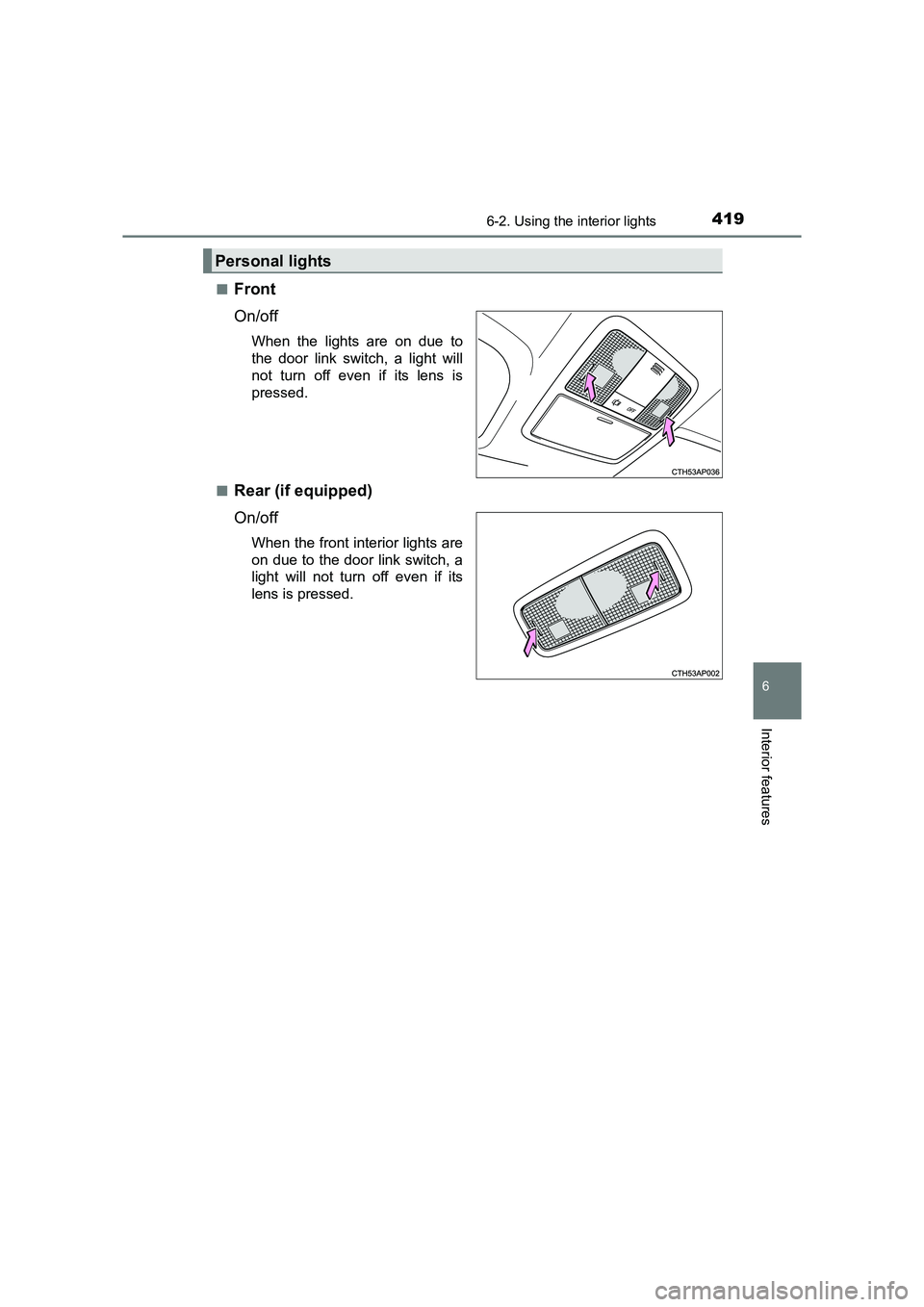

4196-2. Using the interior lights
AURIS Touring Sports_EE (12K53E)
6
Interior features
■Front
On/off
When the lights are on due to
the door link switch, a light will
not turn off even if its lens is
pressed.
■
Rear (if equipped)
On/off
When the front interior lights are
on due to the door link switch, a
light will not turn off even if its
lens is pressed.
Personal lights

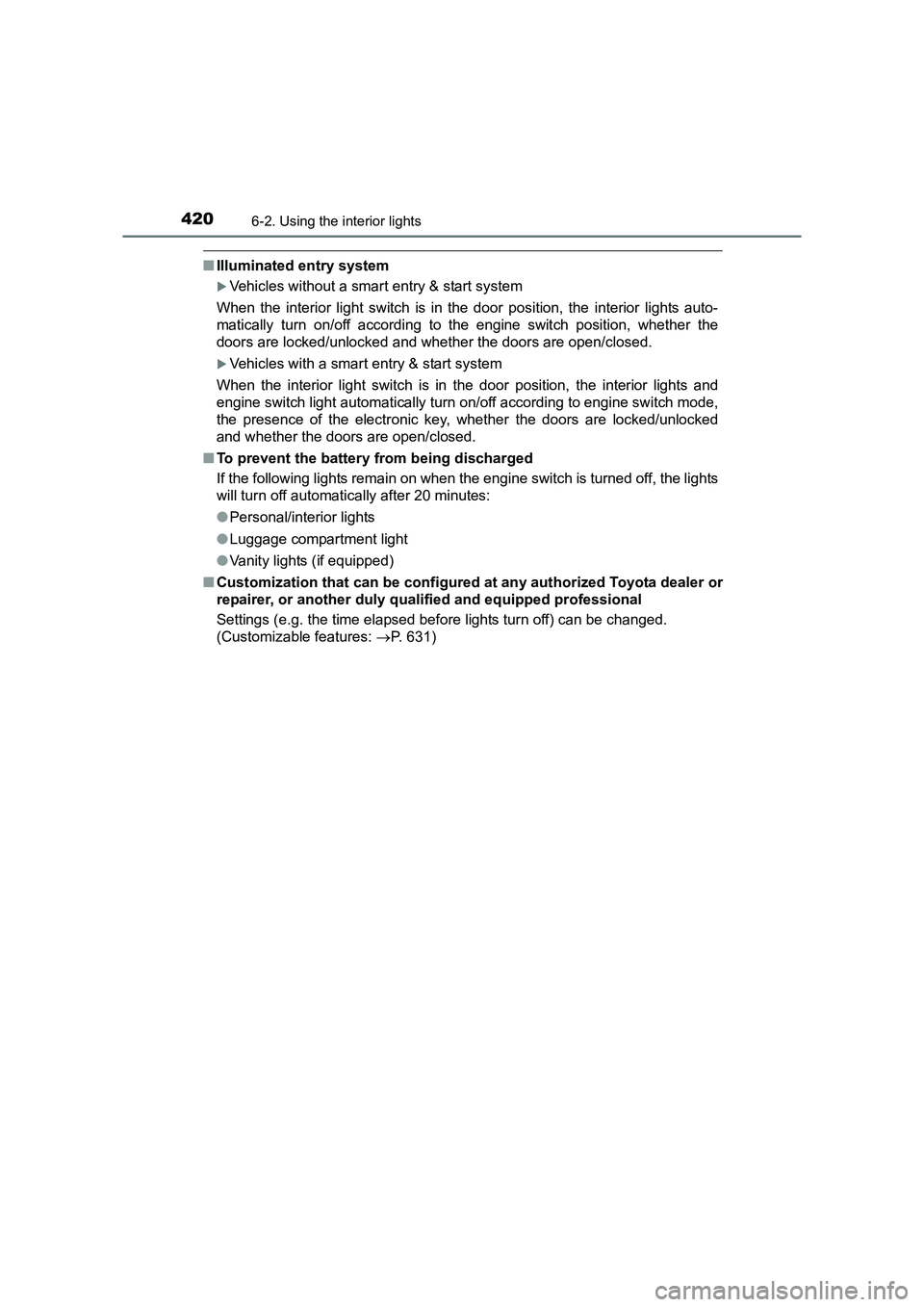

4206-2. Using the interior lights
AURIS Touring Sports_EE (12K53E)
■Illuminated entry system
XVehicles without a smart entry & start system
When the interior light switch is in the door position, the interior lights auto-
matically turn on/off according to the engine switch position, whether the
doors are locked/unlocked and whether the doors are open/closed.
XVehicles with a smart entry & start system
When the interior light switch is in the door position, the interior lights and
engine switch light automatically turn on/off according to engine switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.
■ To prevent the battery from being discharged
If the following lights remain on when the engine switch is turned off, the lights
will turn off automatically after 20 minutes:
●Personal/interior lights
● Luggage compartment light
● Vanity lights (if equipped)
■ Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly quali fied and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 631)
