4016-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features

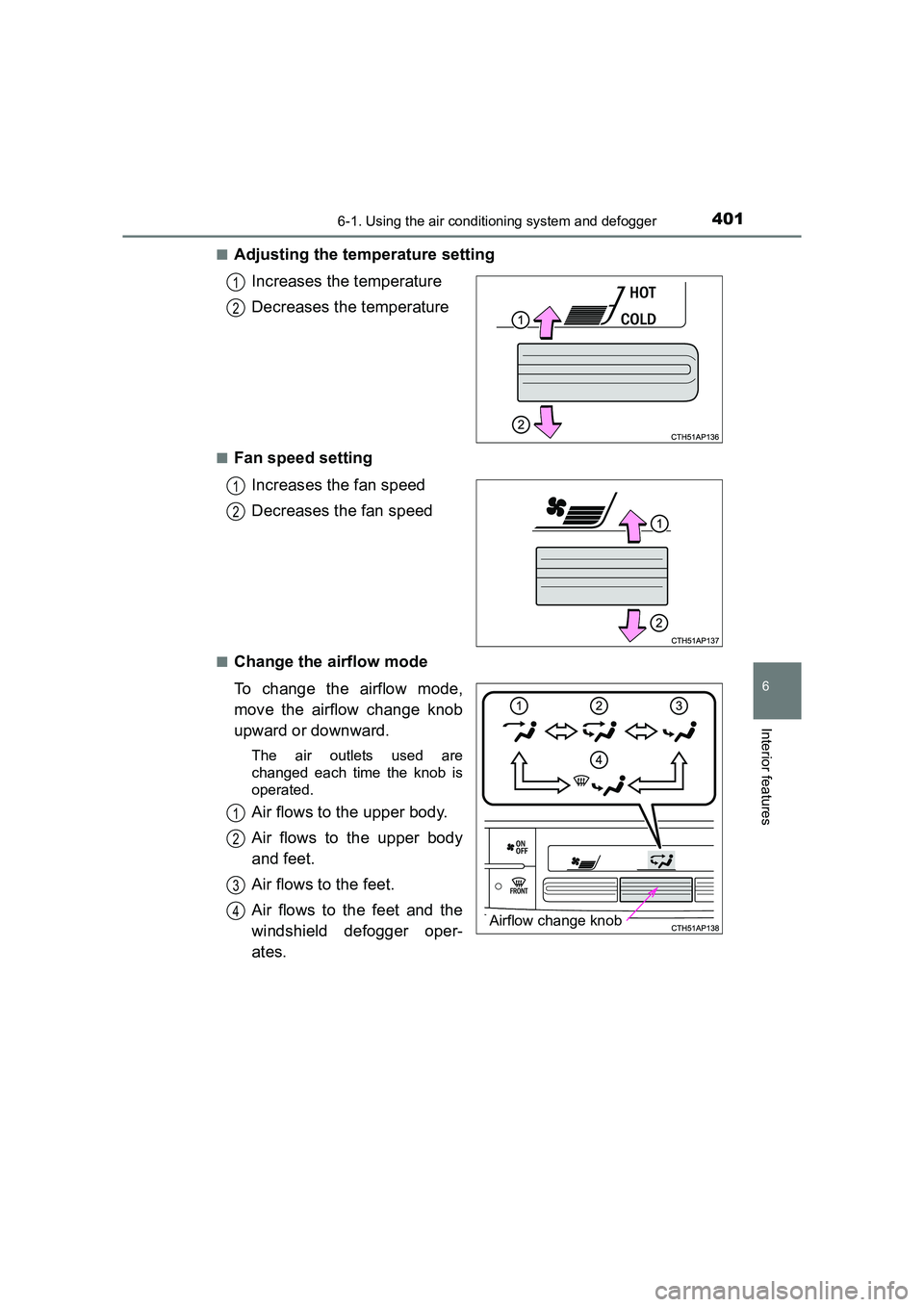

■Adjusting the temperature settingIncreases the temperature
Decreases the temperature
■Fan speed setting
Increases the fan speed
Decreases the fan speed
■Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
1
2
1
2
Airflow change knob
1
2
3
4

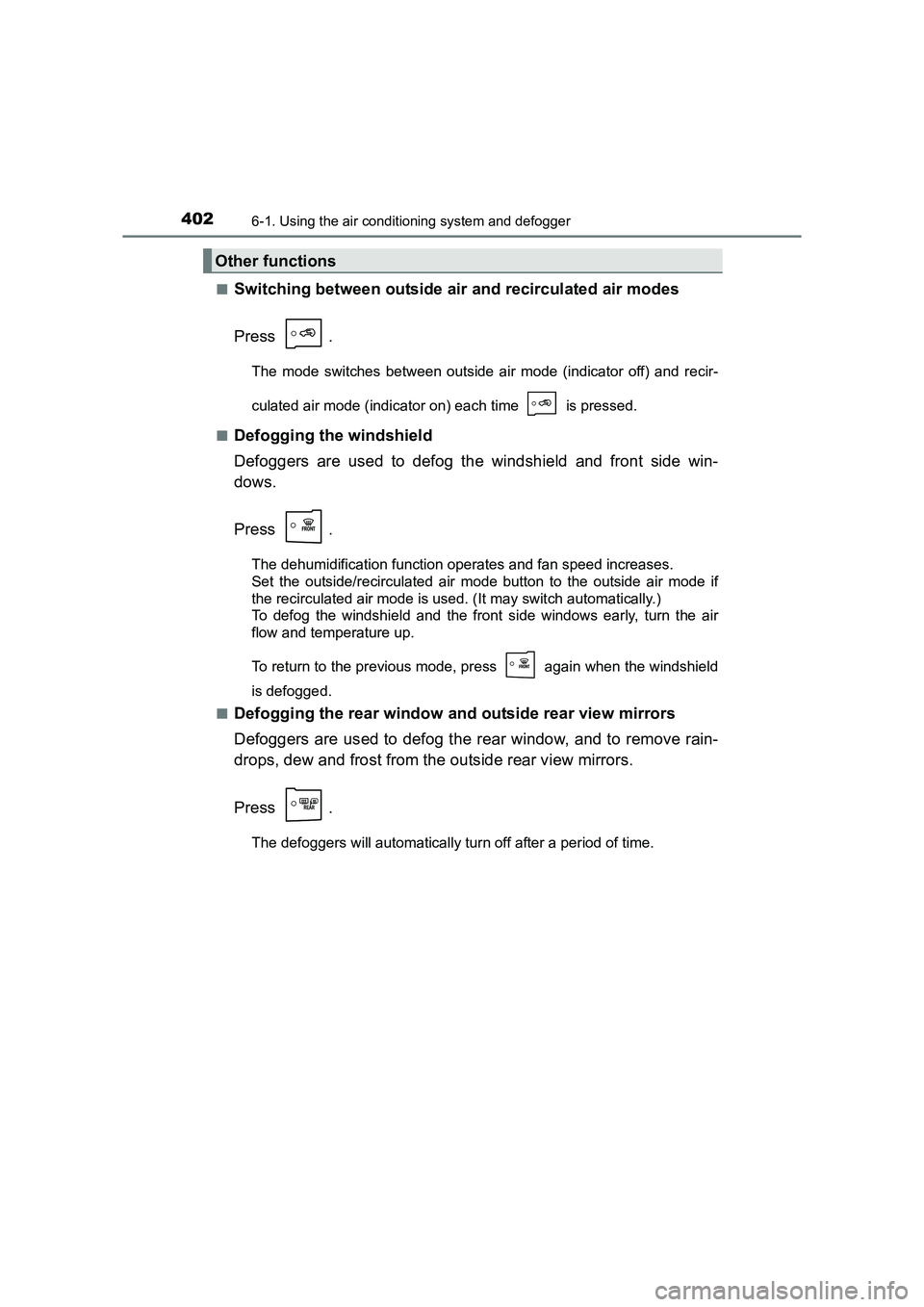

4026-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the front side windows early, turn the air
flow and temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions

4036-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features
■Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
(→ P. 401)
: Some models
■
Adjusting the position of and opening and closing the air out-
lets
XFront center outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
XFront side outlets
Direct air flow to the left or right,
up or down.
Air outlets
1
2

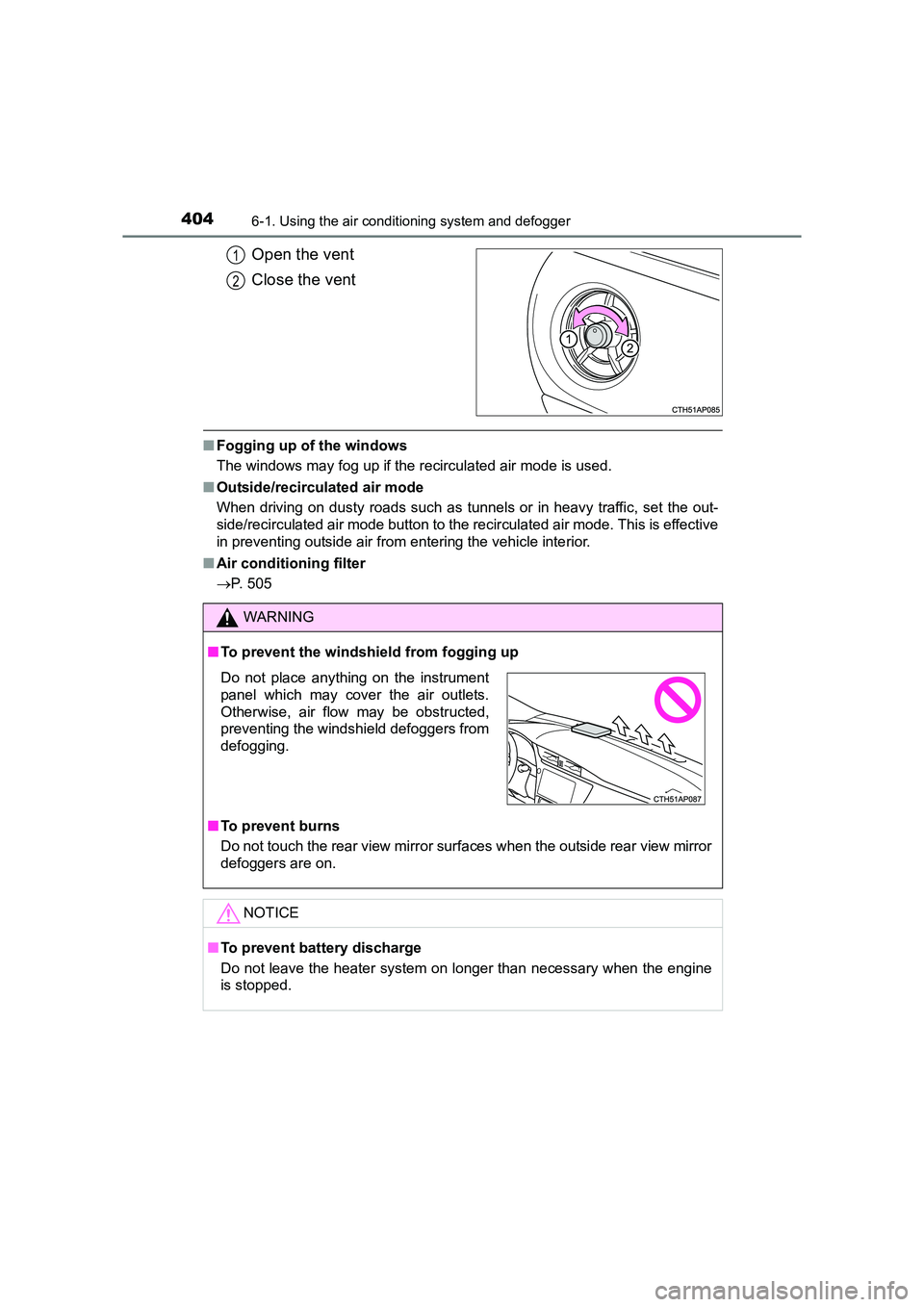

4046-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
Open the vent
Close the vent
■Fogging up of the windows
The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior.
■ Air conditioning filter
→ P. 505
1
2
WARNING
■ To prevent the windshield from fogging up
■ To prevent burns
Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
NOTICE
■To prevent battery discharge
Do not leave the heater system on longer than necessary when the engine
is stopped.
Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers from
defogging.

4056-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features

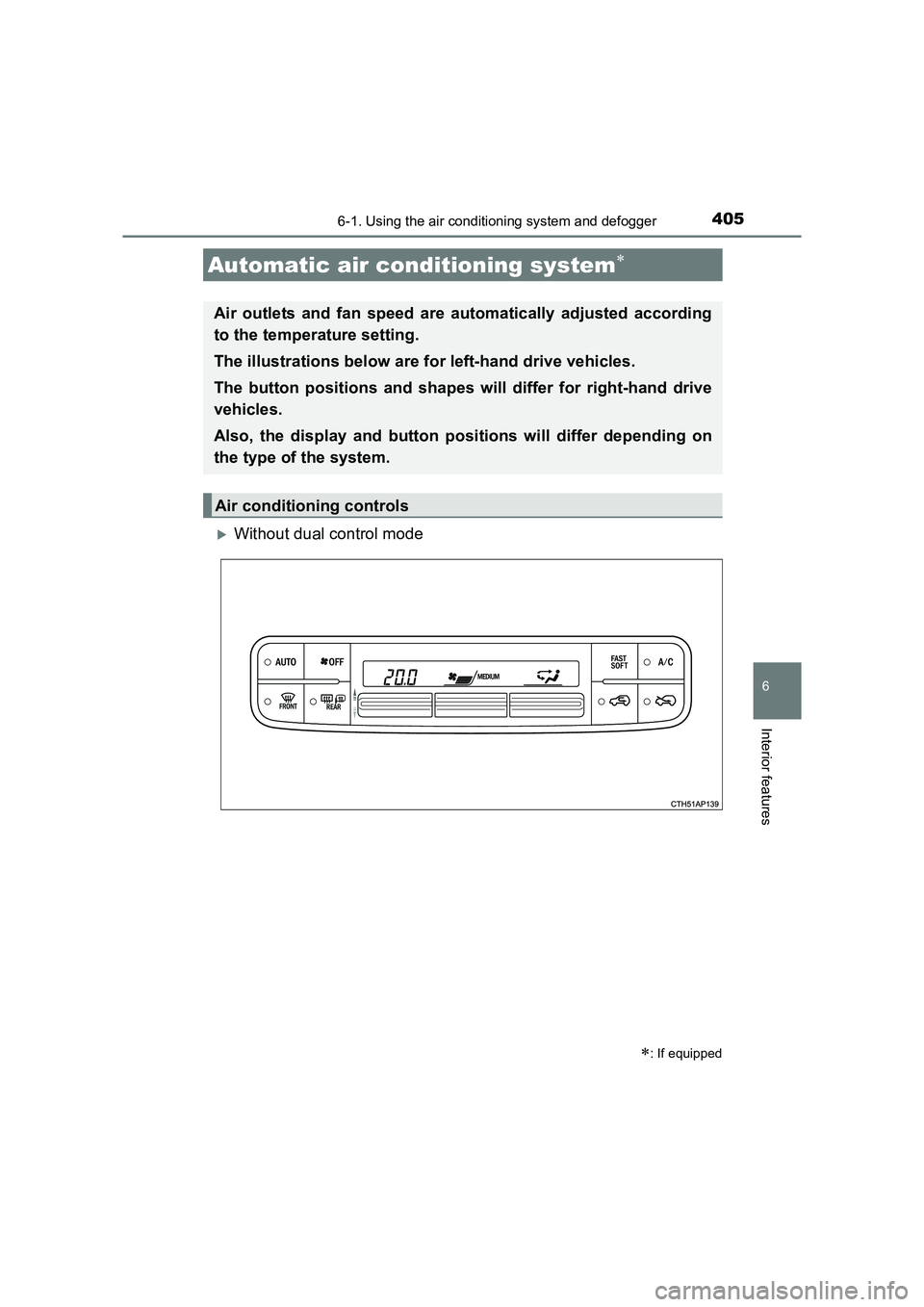

XWithout dual control mode
Automatic air conditioning system∗
∗: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive
vehicles.
Also, the display and button positions will differ depending on
the type of the system.
Air conditioning controls

4066-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)

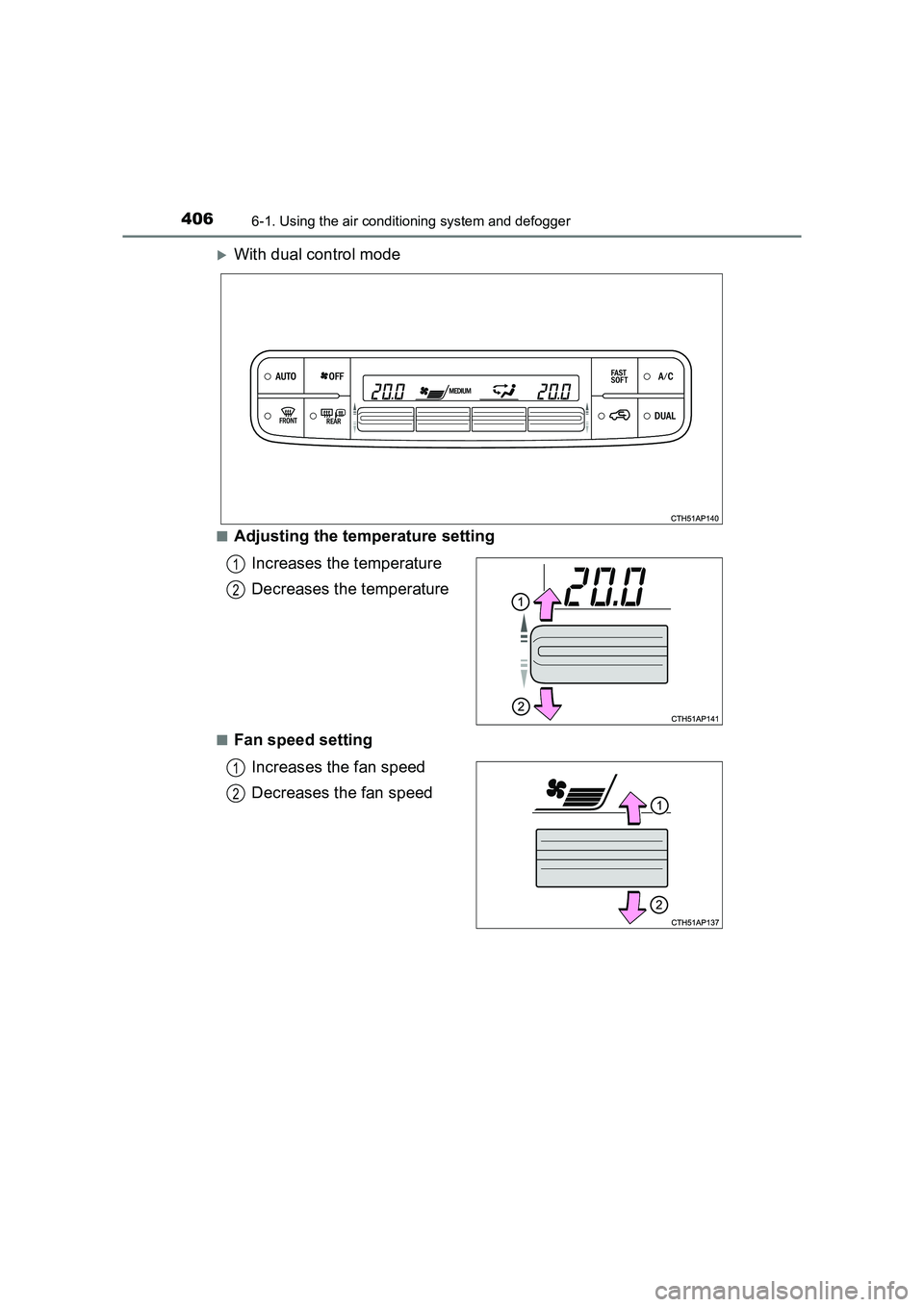

XWith dual control mode
■Adjusting the temperature settingIncreases the temperature
Decreases the temperature
■Fan speed settingIncreases the fan speed
Decreases the fan speed
1
2
1
2

4076-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features

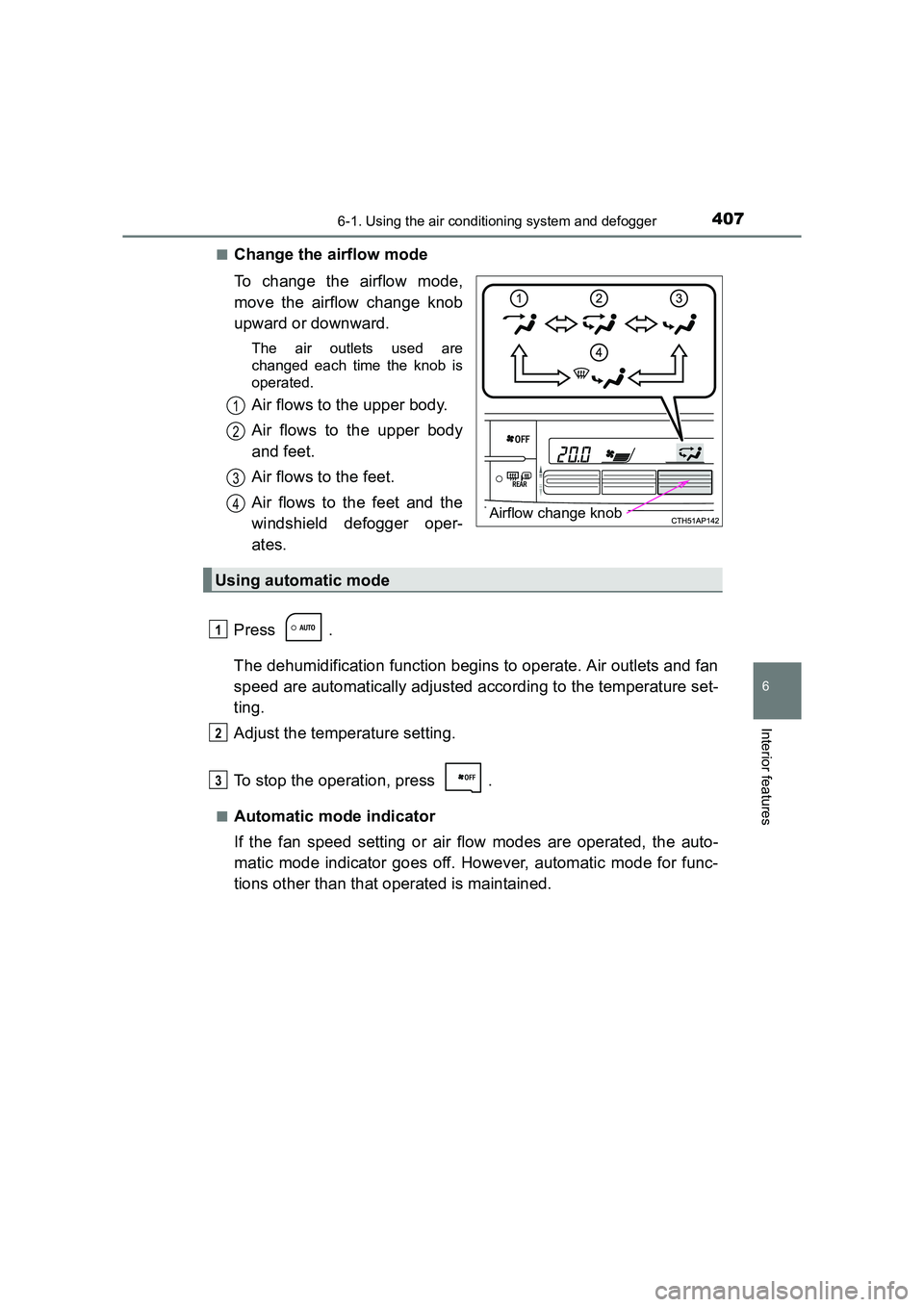

■Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
Airflow change knob
1
2
3
4
Using automatic mode
1
2
3

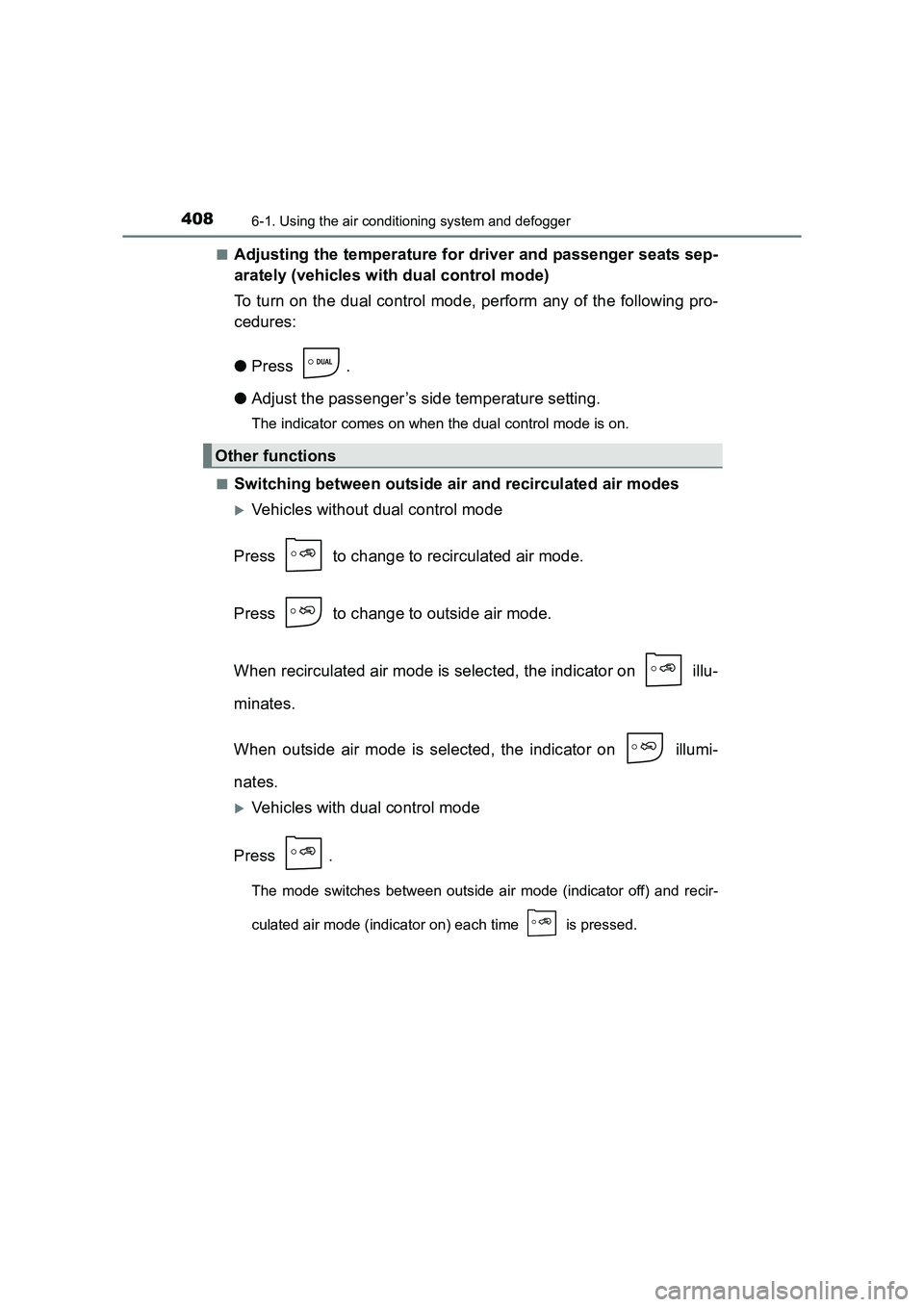

4086-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)■
Adjusting the temperature for driver and passenger seats sep-
arately (vehicles with dual control mode)
To turn on the dual control mode, perform any of the following pro-
cedures:
●
Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the dual control mode is on.
■
Switching between outside air and recirculated air modes
XVehicles without dual control mode
Press to change to recirculated air mode.
Press to change to outside air mode.
When recirculated air mode is selected, the indicator on illu-
minates.
When outside air mode is selected, the indicator on illumi-
nates.
XVehicles with dual control mode
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
Other functions

4096-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)
6
Interior features

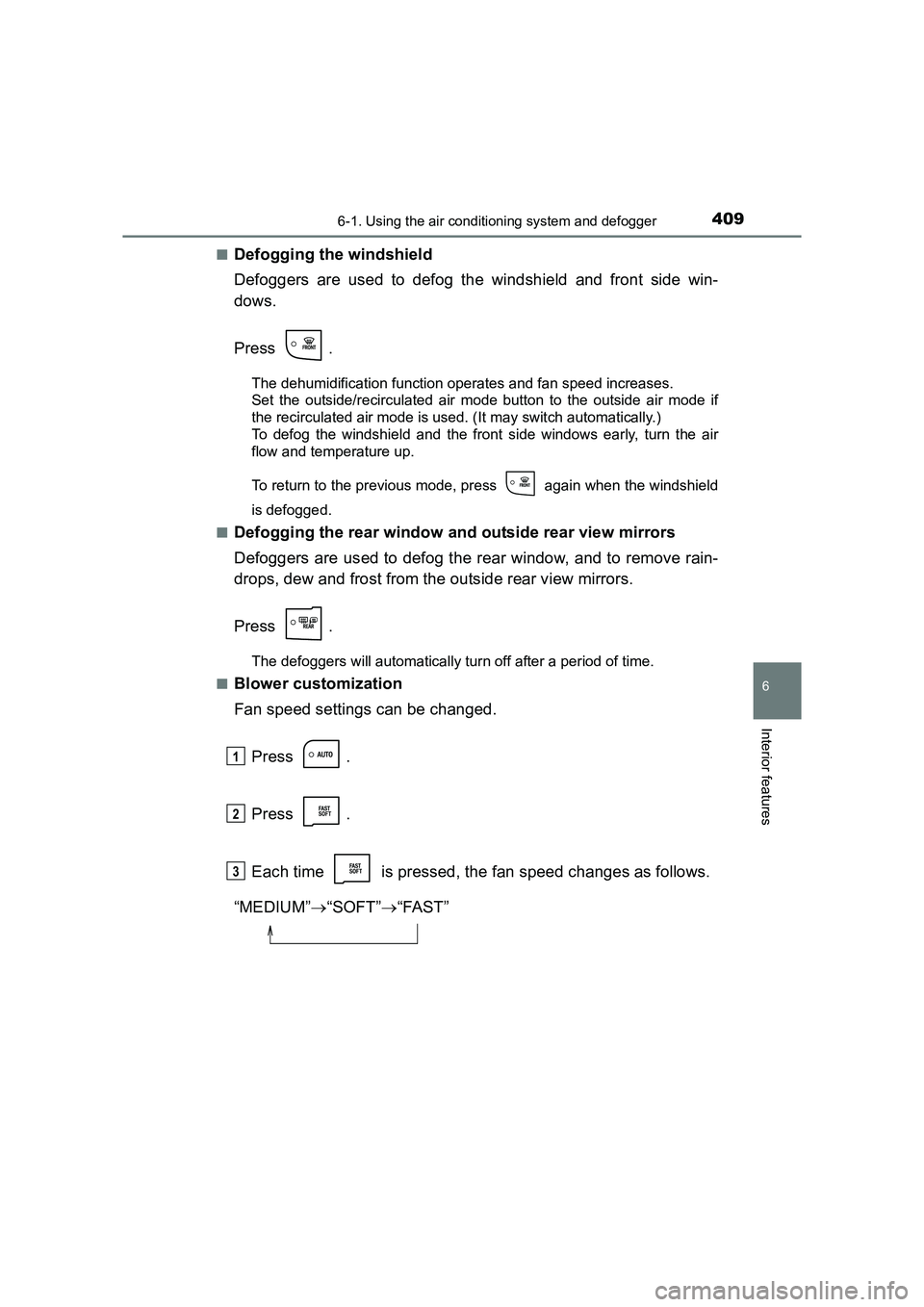

■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the front side windows early, turn the air
flow and temperature up.
To return to the previous mode, press again when the windshield
is defogged.
■
Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■
Blower customization
Fan speed settings can be changed.
Press .
Press .
Each time is pressed, the fan speed changes as follows.
“MEDIUM” →“SOFT” →“FAST”
1
2
3

4106-1. Using the air conditioning system and defogger
AURIS Touring Sports_EE (12K53E)■

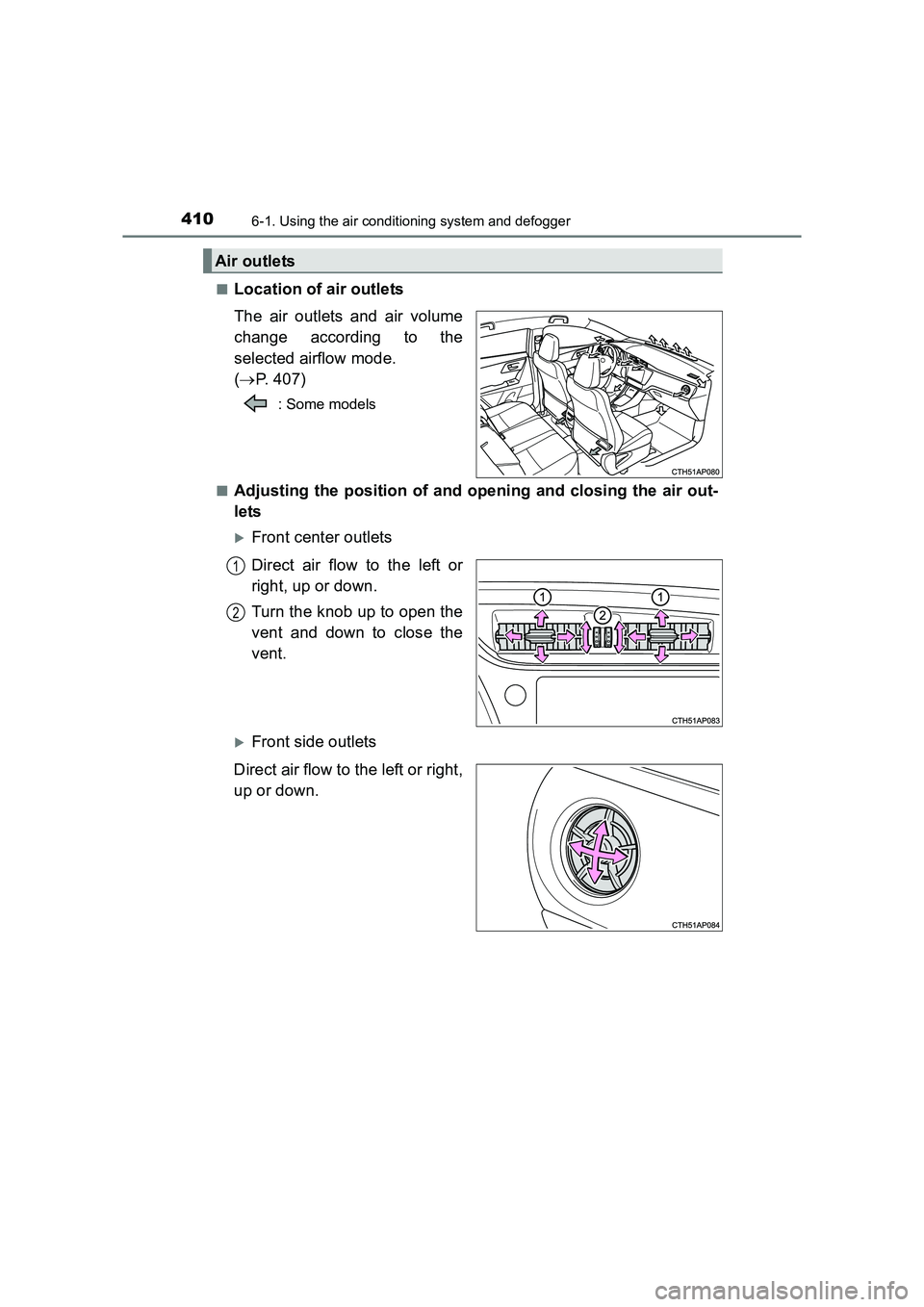

Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
(
→ P. 407)
: Some models
■
Adjusting the position of and opening and closing the air out-
lets
XFront center outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
XFront side outlets
Direct air flow to the left or right,
up or down.
Air outlets
1
2
