TOYOTA AVALON 2005 XX30 / 3.G Navigation Manual

AVALON_Navi_U (L/O 0501)
93
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
3. Select your desired day and/or night
map color and then select the
“OK” switch to return the map
screen.
Select the
“Normal” switch to default
the map color.
Select the
“Auto” switch to select the
map color automatically.
When you select the
“Auto” switch, the
map color is changed in every three
month.When the “Auto reroute” feature is
turned on, the system will automatically
search for a new route to the destina-
tion if you leave the guidance route.
This feature does not operate while you
are driving on roads where the guid-
ance is not available.
To turn the “Auto reroute” mode on:
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
Map color Automatic rerouting

AVALON_Navi_U (L/O 0501)
94
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)
3. Select the “On” switch of “Auto
reroute”.
Selected switch is highlighted in green.
INFORMATION
If your vehicle leaves the guidance
route, the system searches for a new
route to the destination. The new
route may or may not take you back
to the previous route depending on
how far you are off the original guid-
ance route.
When the “Estimated travel time” fea-
ture is turned on, the time estimated to
reach the destination is displayed on
the route guidance screen.
To turn the “Estimated travel time”
mode “On”:
1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch.
3. Select the “Change speed”
switch on the “Setup” screen.
Time to destination

AVALON_Navi_U (L/O 0501)
95
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)
4. You can set the speed as your de-
sire by operating the select and
scroll lever of the navigation control-
ler. Select the item by moving the
lever vertically, and move the lever
horizontally to set the speed.
If you select the
“Default” switch, the
default speed is set at each item.
5. After you finish setting the desired
speeds, select the
“OK” switch on
the right side of the screen.
6. The “Setup” screen will be dis-
played. Select the
“On” switch of
“Estimated travel time”.
Selected switch is highlighted in green.
INFORMATION
The displayed time to the destina-
tion is the approximate driving time
calculated based on the speeds you
selected and your actual position
along the guidance route.
The time shown may vary greatly
depending on your progress along
the route (which may be affected by
road conditions such as traffic
jams, construction work, etc.).
Up to 99 hours 59 minutes can be
displayed.
1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch.
3. Select the “Adjust” switch. The
“Adjust time zone” screen appears
on the display.
Adjust time zone

AVALON_Navi_U (L/O 0501)
96
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)

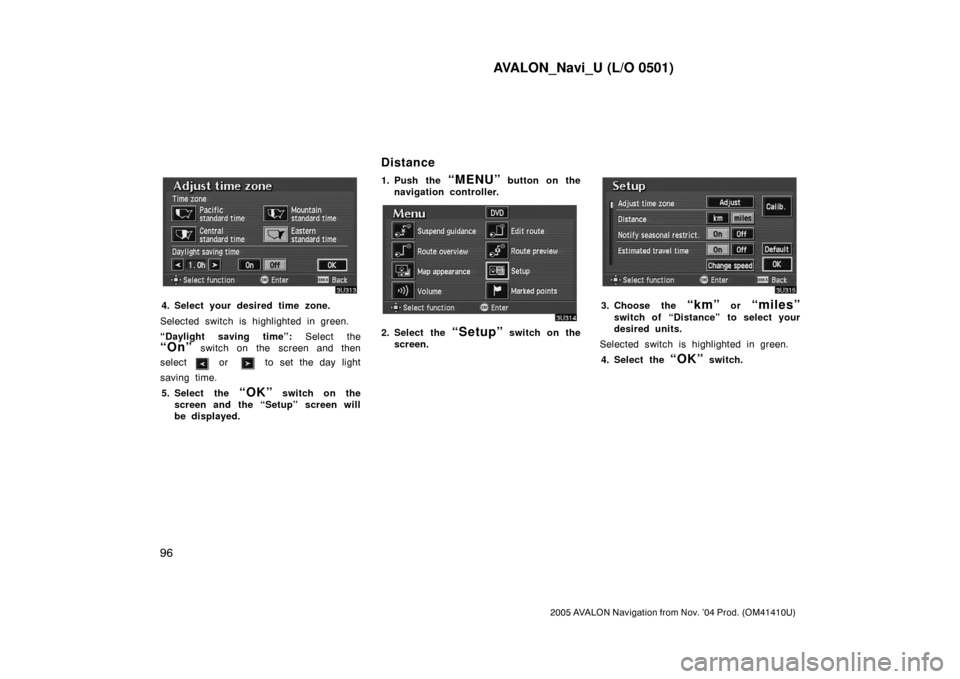

4. Select your desired time zone.
Selected switch is highlighted in green.
“Daylight saving time”: Select the
“On” switch on the screen and then
select
or to set the day light
saving time.
5. Select the
“OK” switch on the
screen and the “Setup” screen will
be displayed.1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Choose the “km” or “miles”
switch of “Distance” to select your
desired units.
Selected switch is highlighted in green.
4. Select the
“OK” switch.
Distance

AVALON_Navi_U (L/O 0501)
97
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)

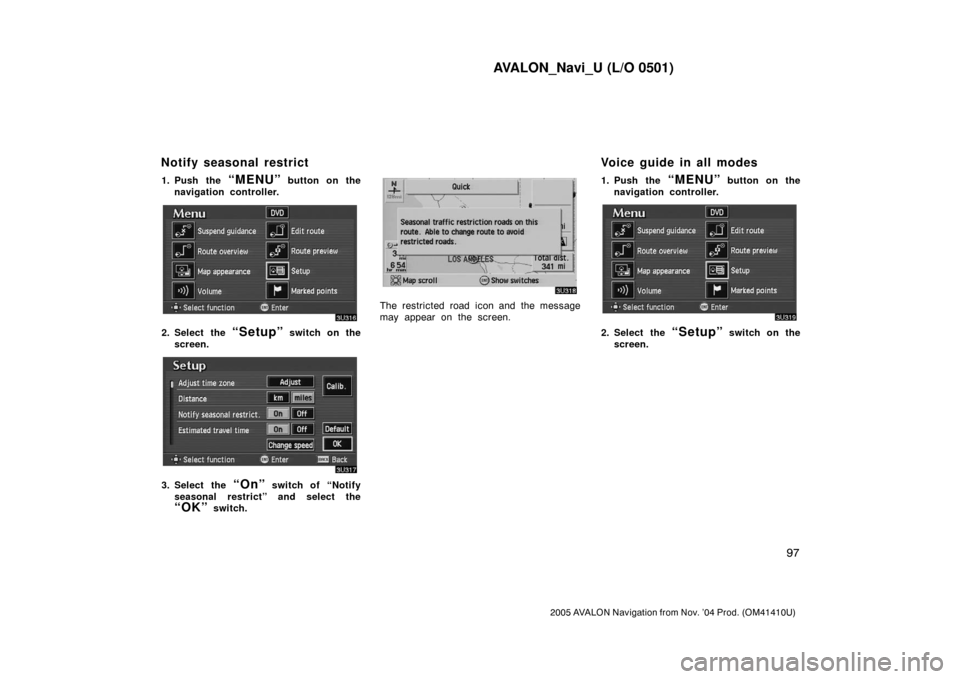

1. Push the “MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Select the “On” switch of “Notify
seasonal restrict” and select the
“OK” switch.
The restricted road icon and the message
may appear on the screen.1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.

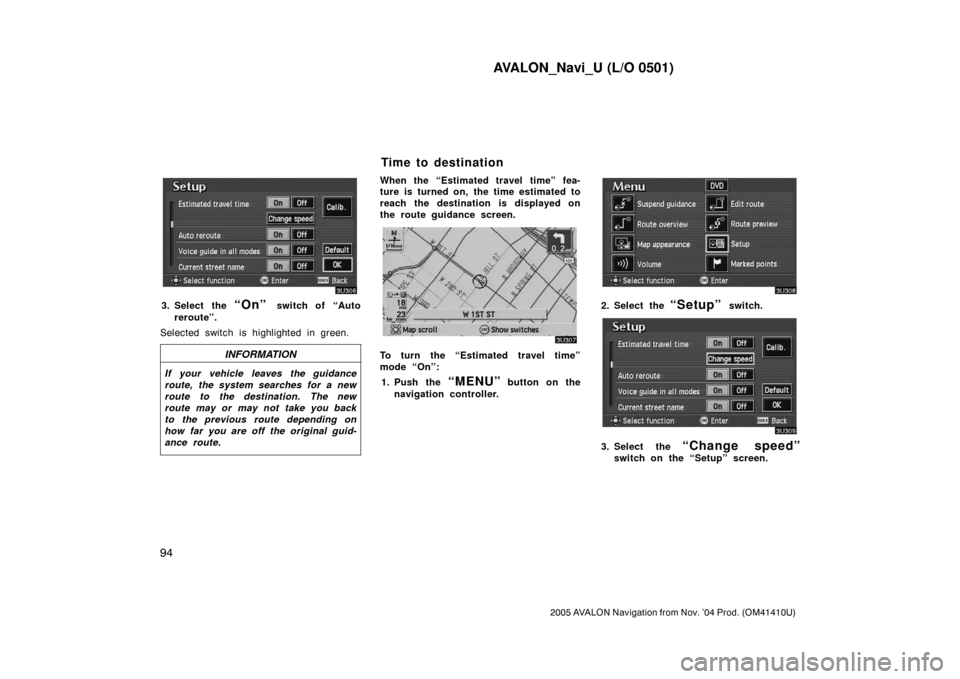

Notify seasonal restrict Voice guide in all modes

AVALON_Navi_U (L/O 0501)
98
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)

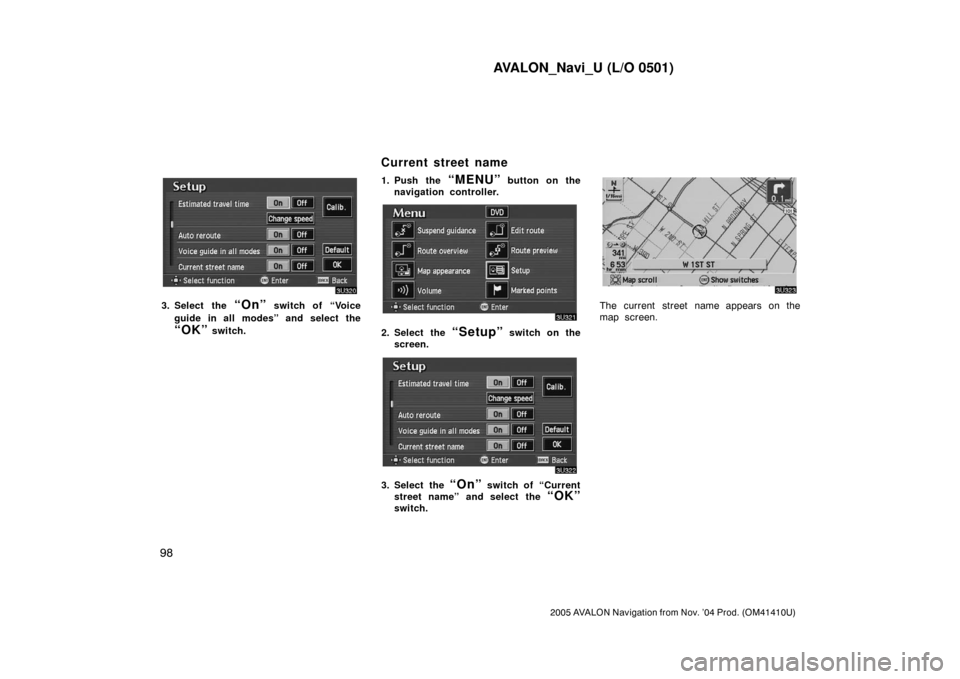

3. Select the “On” switch of “Voice
guide in all modes” and select the
“OK” switch.1. Push the
“MENU” button on the
navigation controller.
2. Select the “Setup” switch on the
screen.
3. Select the “On” switch of “Current
street name” and select the
“OK”
switch.
The current street name appears on the
map screen.
Current street name

AVALON_Navi_U (L/O 0501)
99
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)

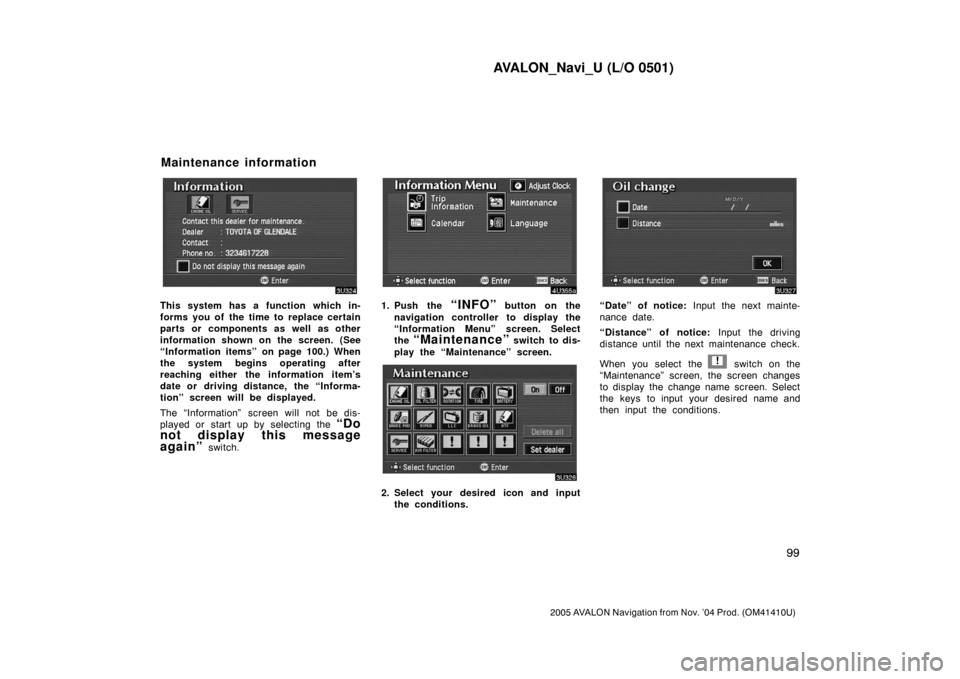

This system has a function which in-
forms you of the time to replace certain
parts or components as well as other
information shown on the screen. (See
“Information items” on page 100.) When
the system begins operating after
reaching either the information item’s
date or driving distance, the “Informa-
tion” screen will be displayed.
The “Information” screen will not be dis-
played or start up by selecting the
“Do
not display this message
again”
switch.
1. Push the “INFO” button on the
navigation controller to display the
“Information Menu” screen. Select
the
“Maintenance” switch to dis-
play the “Maintenance” screen.
2. Select your desired icon and input
the conditions.
“Date” of notice: Input the next mainte-
nance date.
“Distance” of notice: Input the driving
distance until the next maintenance check.
When you select the
! switch on the
“Maintenance” screen, the screen changes
to display the change name screen. Select
the keys to input your desired name and
then input the conditions.
Maintenance information

AVALON_Navi_U (L/O 0501)
100
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)
After you input that information, select the
“OK” switch. The screen then returns to
the “Maintenance” screen. The icon’s color
will change to green after the date or driv-
ing distance is inputted. The icon’s color
will change to orange when your Toyota
needs to be serviced. The following
switches appear on the screen.
“Delete all”: Cancel all conditions which
have been inputted.
“Reset all”: Reset all items which satisfy
either condition.
Select the
“Off” switch at the top of the
“Maintenance” screen, and the information
screen will no longer be displayed.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Owner ’s
Manual Supplement” or “Scheduled
Maintenance”.
Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been inputted and the ac-
tual date and driving distance.
Information items
Scheduled maintenance
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake lining
Replace wiper blades
Replace engine coolant
Replace brake fluid
Replace ATF
Replace air filter
Personal

AVALON_Navi_U (L/O 0501)
101
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)

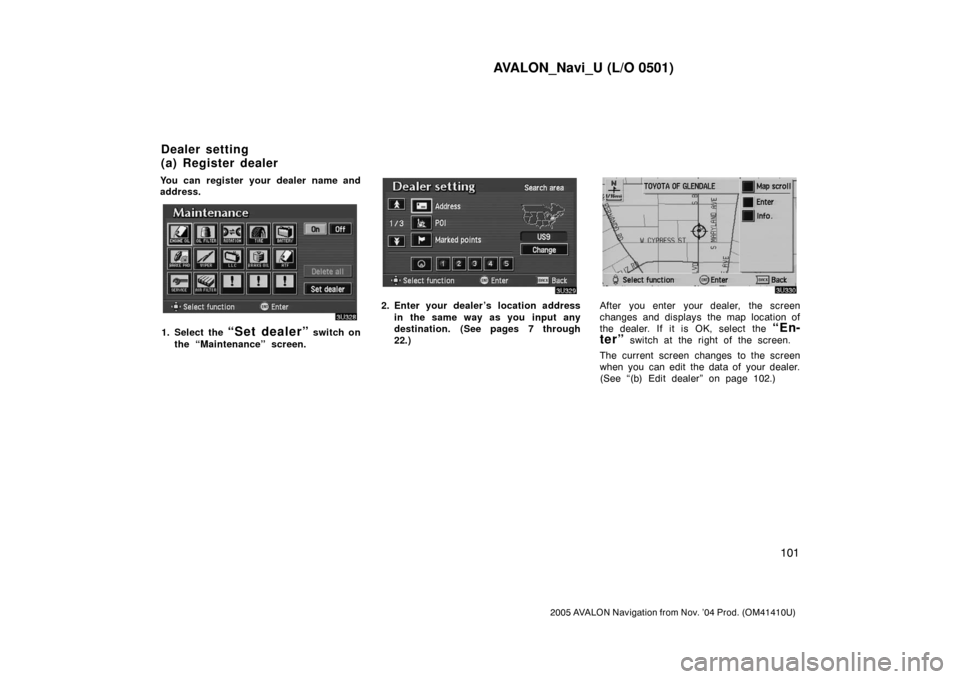

You can register your dealer name and
address.
1. Select the “Set dealer” switch on
the “Maintenance” screen.
2. Enter your dealer ’s location address
in the same way as you input any
destination. (See pages 7 through
22.)After you enter your dealer, the screen
changes and displays the map location of
the dealer. If it is OK, select the
“En-
ter”
switch at the right of the screen.
The current screen changes to the screen
when you can edit the data of your dealer.
(See “(b) Edit dealer” on page 102.)
Dealer setting
(a) Register dealer

AVALON_Navi_U (L/O 0501)
102
2005 AVALON Navigation from Nov. ’04 Prod. (OM41410U)

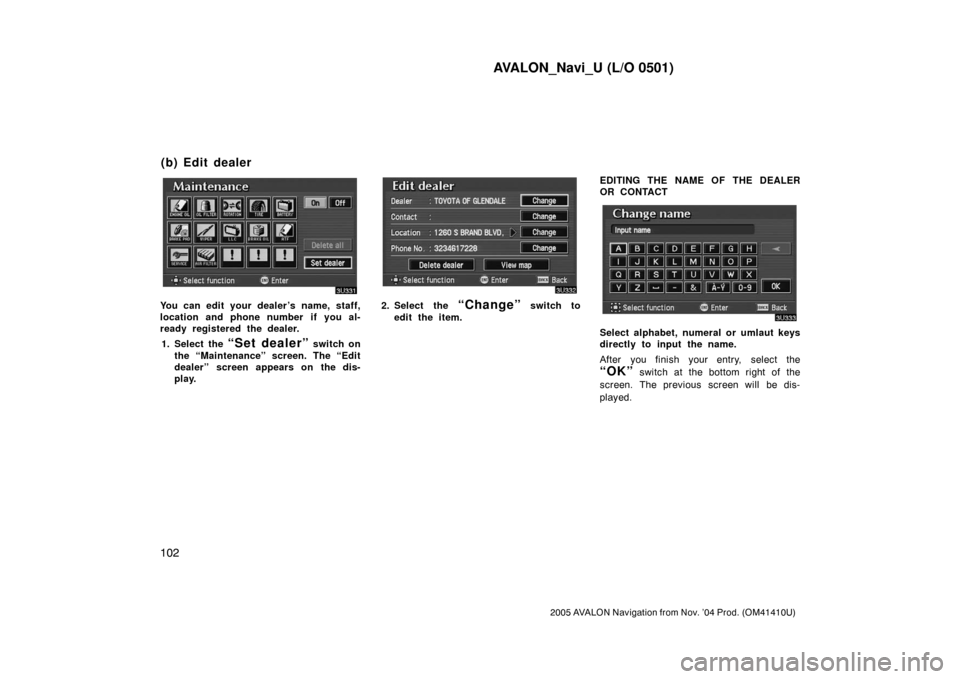

You can edit your dealer’s name, staff,
location and phone number if you al-
ready registered the dealer.
1. Select the
“Set dealer” switch on
the “Maintenance” screen. The “Edit
dealer” screen appears on the dis-
play.
2. Select the “Change” switch to
edit the item.EDITING THE NAME OF THE DEALER
OR CONTACT
Select alphabet, numeral or umlaut keys
directly to input the name.
After you finish your entry, select the
“OK” switch at the bottom right of the
screen. The previous screen will be dis-
played.
(b) Edit dealer
