TOYOTA AVALON 2021 (in English) User Guide

9
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
-$:-*/%&3 ""',4
&/(*/&
-7 (3',4
&/(*/&
Engine maintenance
Engine oil filler cap
Engine oil filler capEngine oil level dipstick
Engine oil level dipstick Engine coolant reservoir
Engine coolant reservoirWasher fluid tank
Washer fluid tank
MY21_Avalon_QRG_V2_ML_0709.indd 97/13/20 1:14 PM

10

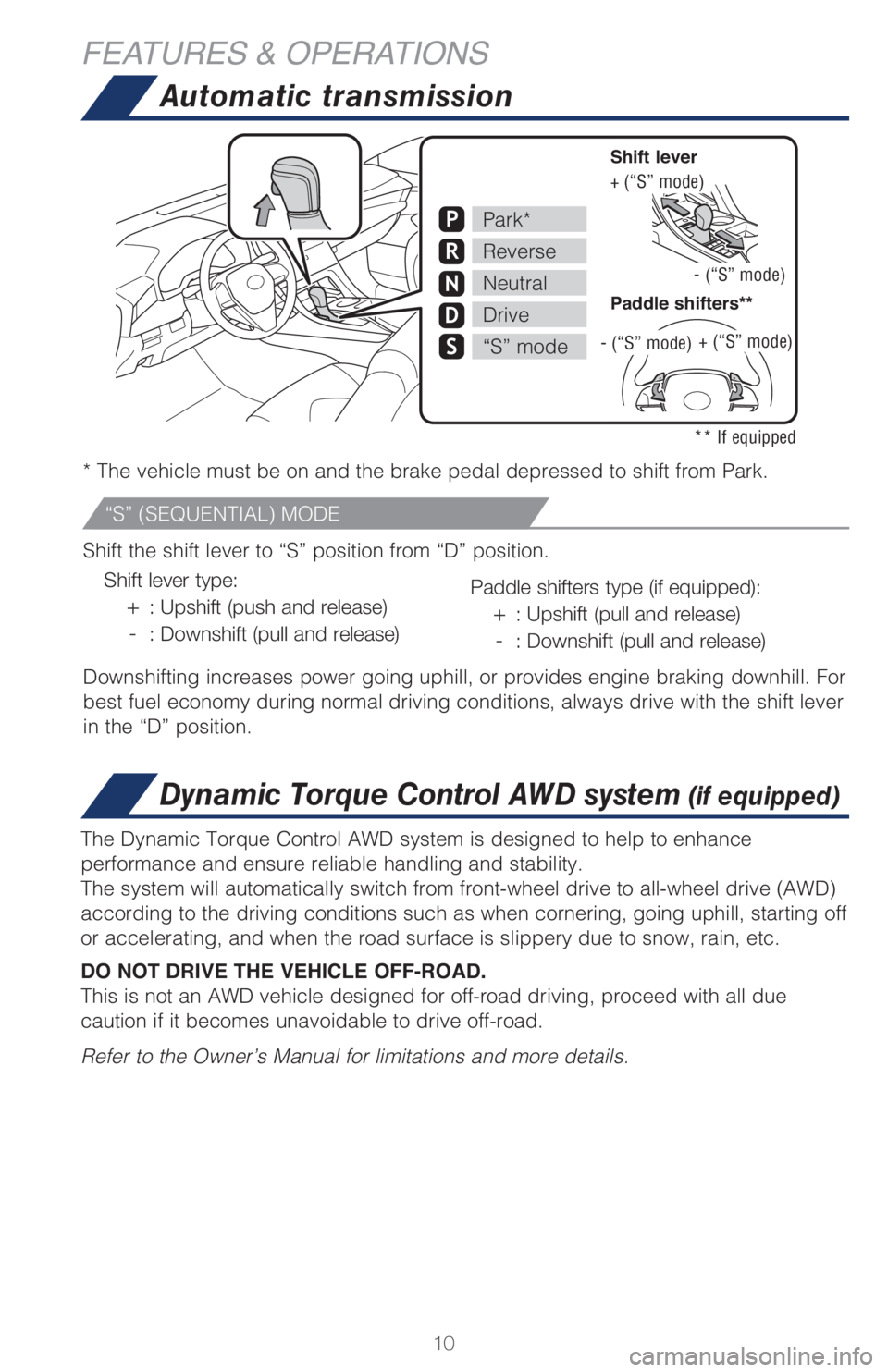

Automatic transmission
* The vehicle must be on and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
+ (“S” mode)
Shift lever
Paddle shifters**
** If equipped
- (“S” mode)
- (“S” mode)
+ (“S” mode)
P
R
N
D
Park*
Reverse
Neutral
Drive
“S” mode
i4w 4&26&/5*"-
.0%&
Shift lever type:
+ : Upshift (push and release)
- : Downshift (pull and release)Paddle shifters type (if equipped):+ : Upshift (pull and release)
- : Downshift (pull and release)
Dynamic Torque Control AWD system (if equipped)
The Dynamic Torque Control AWD system is designed to help to enhance
performance and ensure reliable handling and stability.
5IFTZTUFNXJMMBVUPNBUJDBMMZTXJUDIGSPNGSPOUXIFFMESJWFUPBMMXIFFMESJWF "8%

according to the driving conditions such as when cornering, going uphill, starting off
or accelerating, and when the road surface is slippery due to snow, rain, etc.
DO NOT DRIVE THE VEHICLE OFF-ROAD.
This is not an AWD vehicle designed for off-road driving, proceed with all due
caution if it becomes unavoidable to drive off-road.
Refer to the Owner’s Manual for limitations and more details.
FEATURES & OPERATIONS
MY21_Avalon_QRG_V2_ML_0709.indd 107/13/20 1:14 PM

11
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

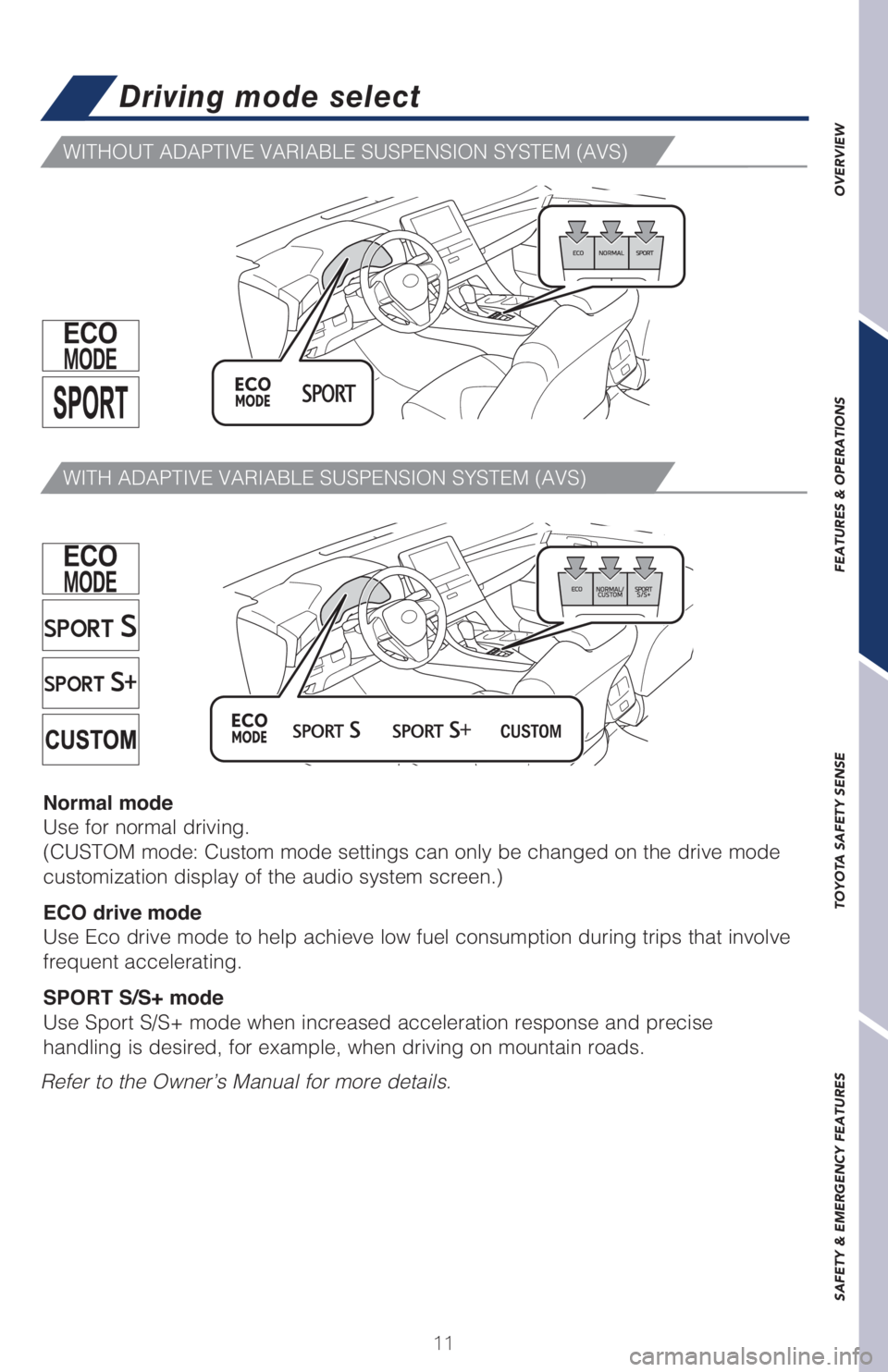

Driving mode select
Normal mode
Use for normal driving.
$6450.NPEF$VTUPNNPEFTFUUJOHTDBOPOMZCFDIBOHFEPOUIFESJWFNPEF
DVTUPNJ[BUJPOEJTQMBZPGUIFBVEJPTZTUFNTDSFFO

ECO drive mode
Use Eco drive mode to help achieve low fuel consumption during trips that involve
frequent accelerating.
SPORT S/S+ mode
Use Sport S/S+ mode when increased acceleration response and precise
handling is desired, for example, when driving on mountain roads.
Refer to the Owner’s Manual for more details.
8*5)065"%"15*7&7"3*"#-&4641&/4*0/4:45&. "74

8*5)"%"15*7&7"3*"#-&4641&/4*0/4:45&. "74

MY21_Avalon_QRG_V2_ML_0709.indd 117/13/20 1:14 PM

12

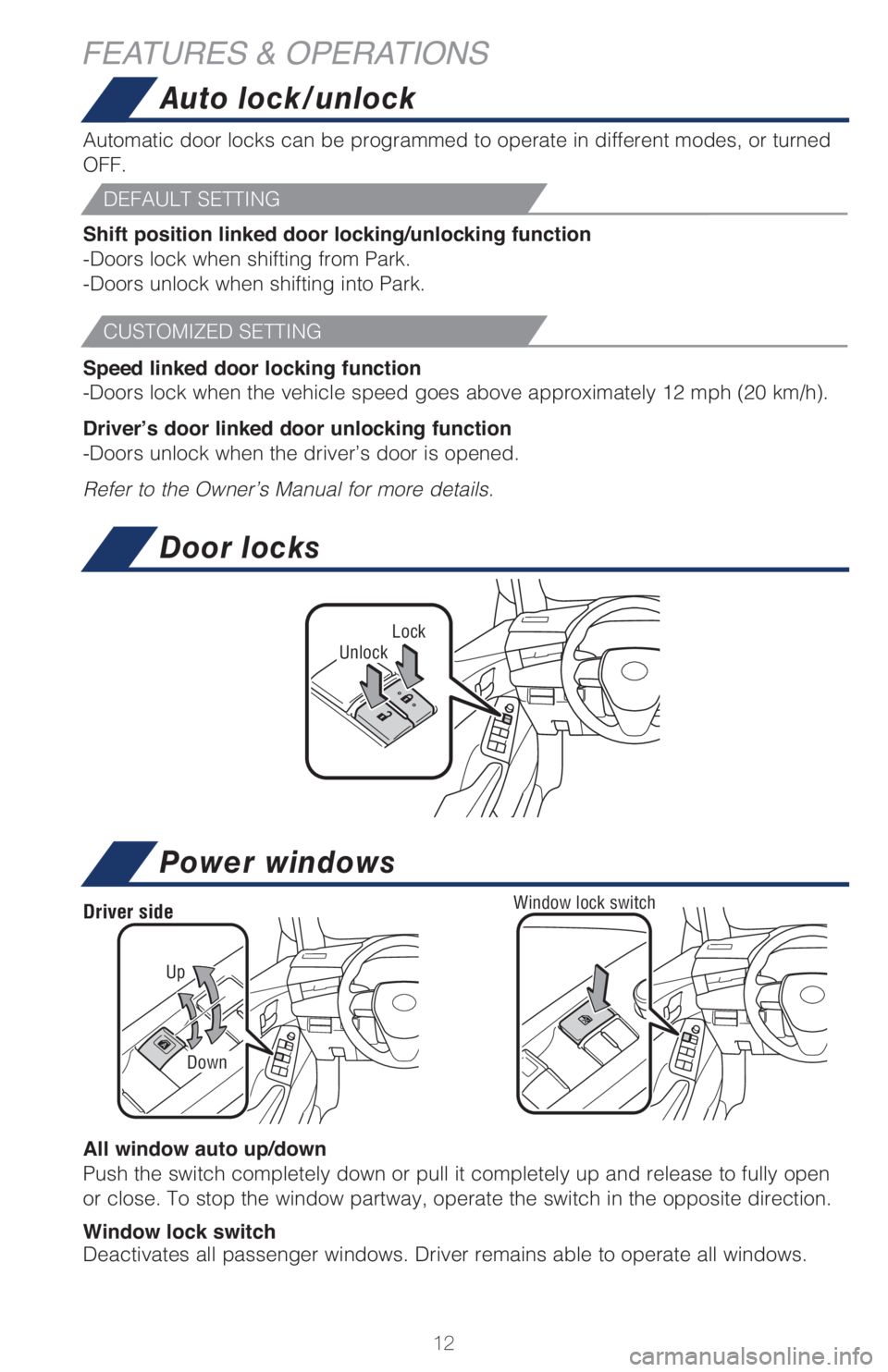

Power windows
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver remains able to operate all windows.
Up
Down
Driver sideWindow lock switch
LockUnlock
Door locks
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-%PPSTMPDLXIFOUIFWFIJDMFTQFFEHPFTBCPWFBQQSPYJNBUFMZNQI LNI

'ULYHU

13
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
."/6"- *'&26*11&%

108&3 *'&26*11&%

Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power easy access system (if equipped): The steering wheel and driver’s seat
move in accordance with power switch mode and the driver’s seat belt condition.
UpControl switch
Away from
the driver
Length
Toward
the driver
DownAngle
Length

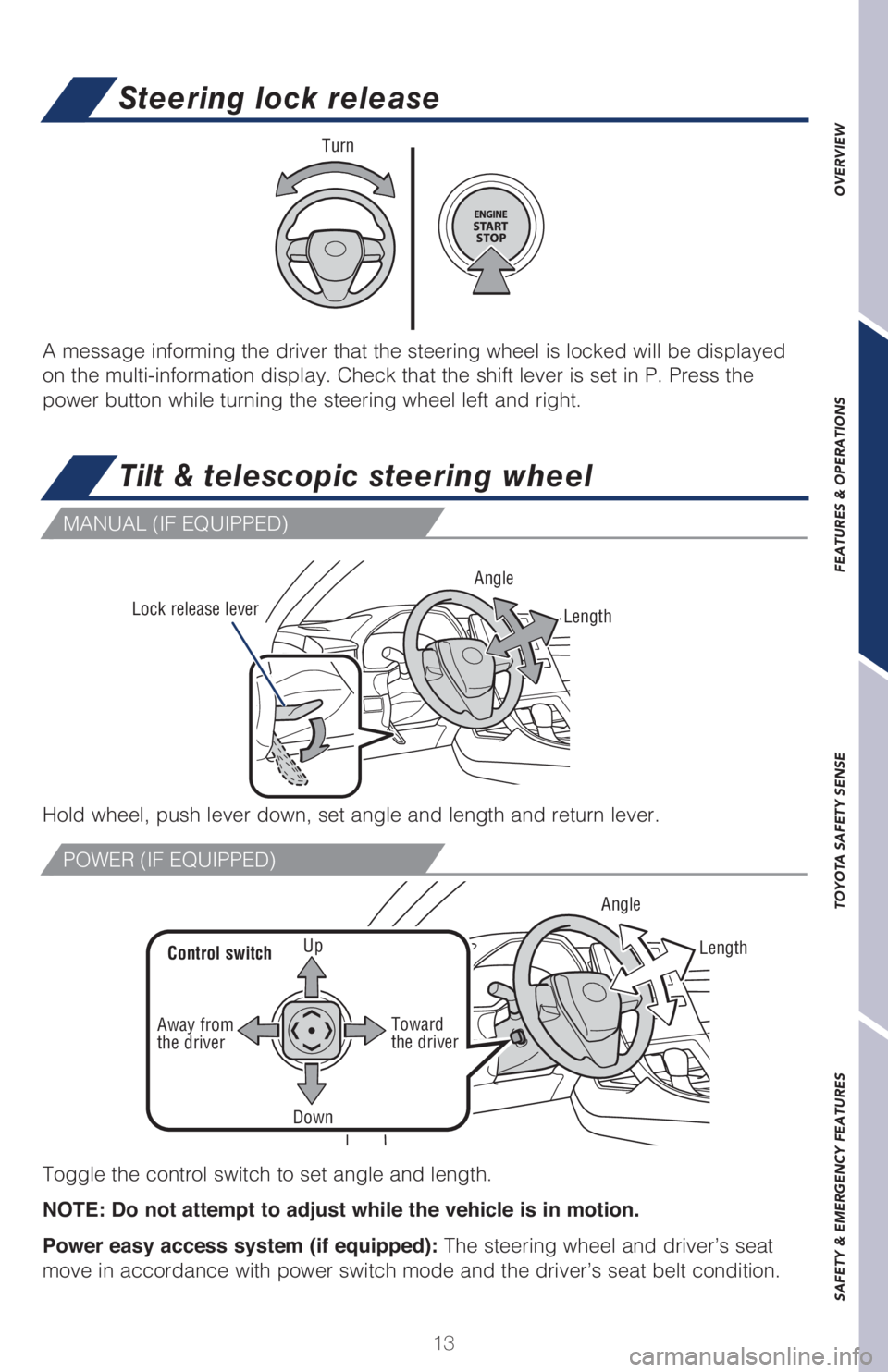

Tilt & telescopic steering wheel
Steering lock release
A message informing the driver that the steering wheel is locked will be displayed
on the multi-information display. Check that the shift lever is set in P. Press the
power button while turning the steering wheel left and right.
Turn
MY21_Avalon_QRG_V2_ML_0709.indd 137/13/20 1:15 PM

14
FEATURES & OPERATIONS
Electric parking brake
Driver sideAutomatic modeManual mode
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated” displays in the Multi-Information Display
.*%
8IJMFEFQSFTTJOHCSBLF
TIJGUJOHJOUP1QPTJUJPOXJMMBVUPNBUJDBMMZTFUUIF
brake and turn the parking brake indicator and parking brake light on. To release
brake, depress brake and shift out of P. The indicator and the light turn off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator and the light turn off.
Parking brake light
Standby indicatorOperated indicator
Parking brake light
The brake hold system keeps the brake applied when the shift lever is in D, S or N
with the system on and the brake pedal has been depressed to stop the vehicle.
The system releases the brake when the accelerator pedal is depressed with the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
BRAKE HOLD
PARKING BRAKE
MY21_Avalon_QRG_V2_ML_0709.indd 147/13/20 1:15 PM

15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Head-Up Display (if equipped)
Refer to the Owner’s Manual for more settings and customizable features.
Return to
previous screen
Indicators
Push: enter/
Push and hold:
reset
Scroll/search
screens
“ODO/TRIP” switch
Speed limit display
(with navigation system) Full-Speed Range DRCC and
Lane Departure Alert display
Menu icons
Shift positionDisplay area
Clock
Speedometer Outside temperature
Odometer/trip
meter display
Press meter control switches to change and select information in the following:
Driving assist system information Driving information
Vehicle information Audio system-linked display
Settings display
Warning message display
The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driver, such as the current vehicle speed.
Refer to the Owner’s Manual for more details.
Driving assist
system status/
navigation system-
linked display areaShift position/speed
limit display area
Eco Driving Indicator/
Tachometer Information display areaVehicle speed display
MY21_Avalon_QRG_V2_ML_0709.indd 157/13/20 1:15 PM

16
FEATURES & OPERATIONS

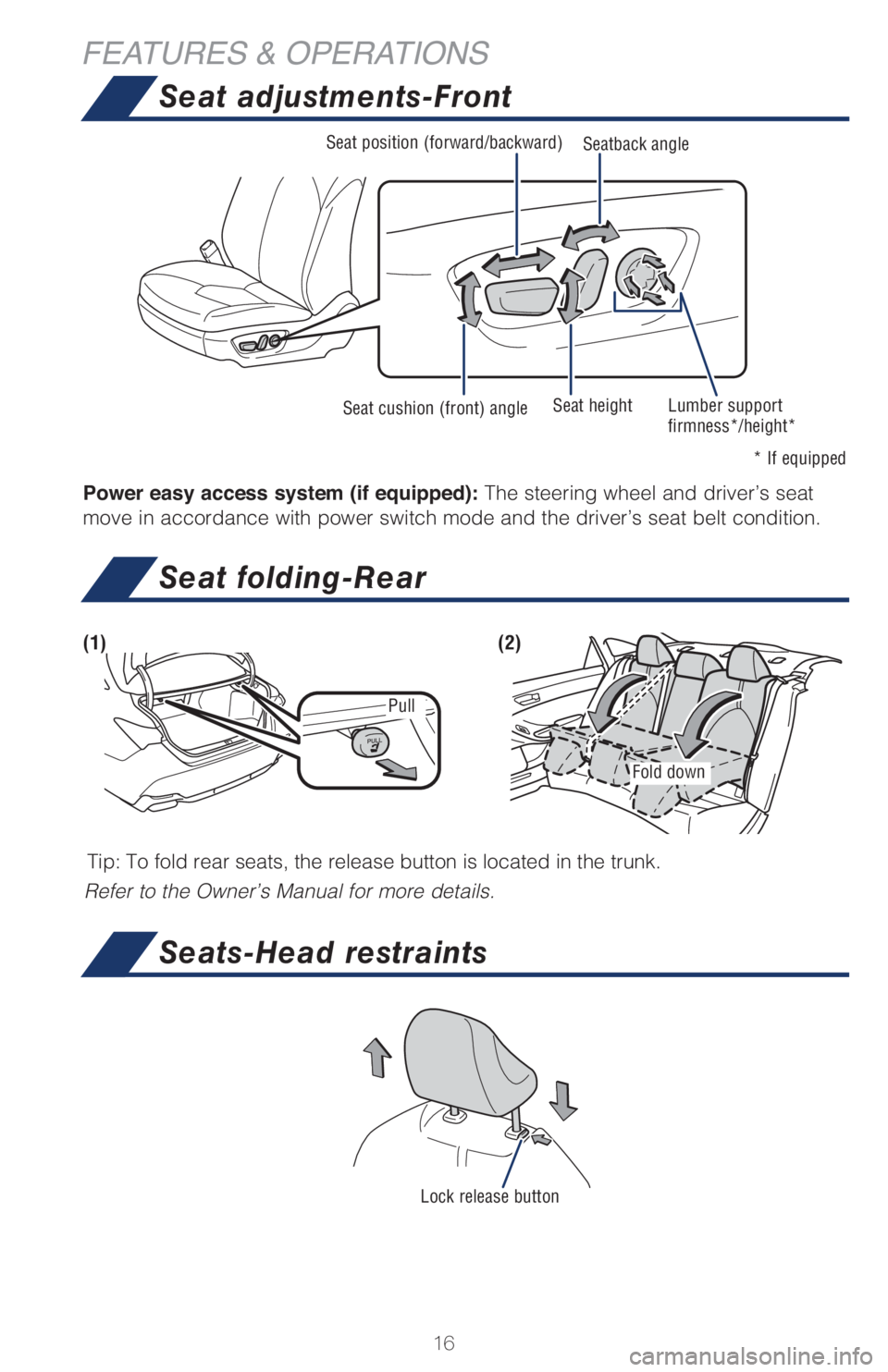

Seat adjustments-Front
Seat position (forward/backward)
Seat cushion (front) angleSeat height
* If equipped Lumber support
firmness*/height* Seatback angle
Seats-Head restraints
Lock release button
Seat folding-Rear
(1)(2)
Tip: To fold rear seats, the release button is located in the trunk.
Refer to the Owner’s Manual for more details.
Pull
Fold down
Power easy access system (if equipped): The steering wheel and driver’s seat
move in accordance with power switch mode and the driver’s seat belt condition.
MY21_Avalon_QRG_V2_ML_0709.indd 167/13/20 1:15 PM

17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

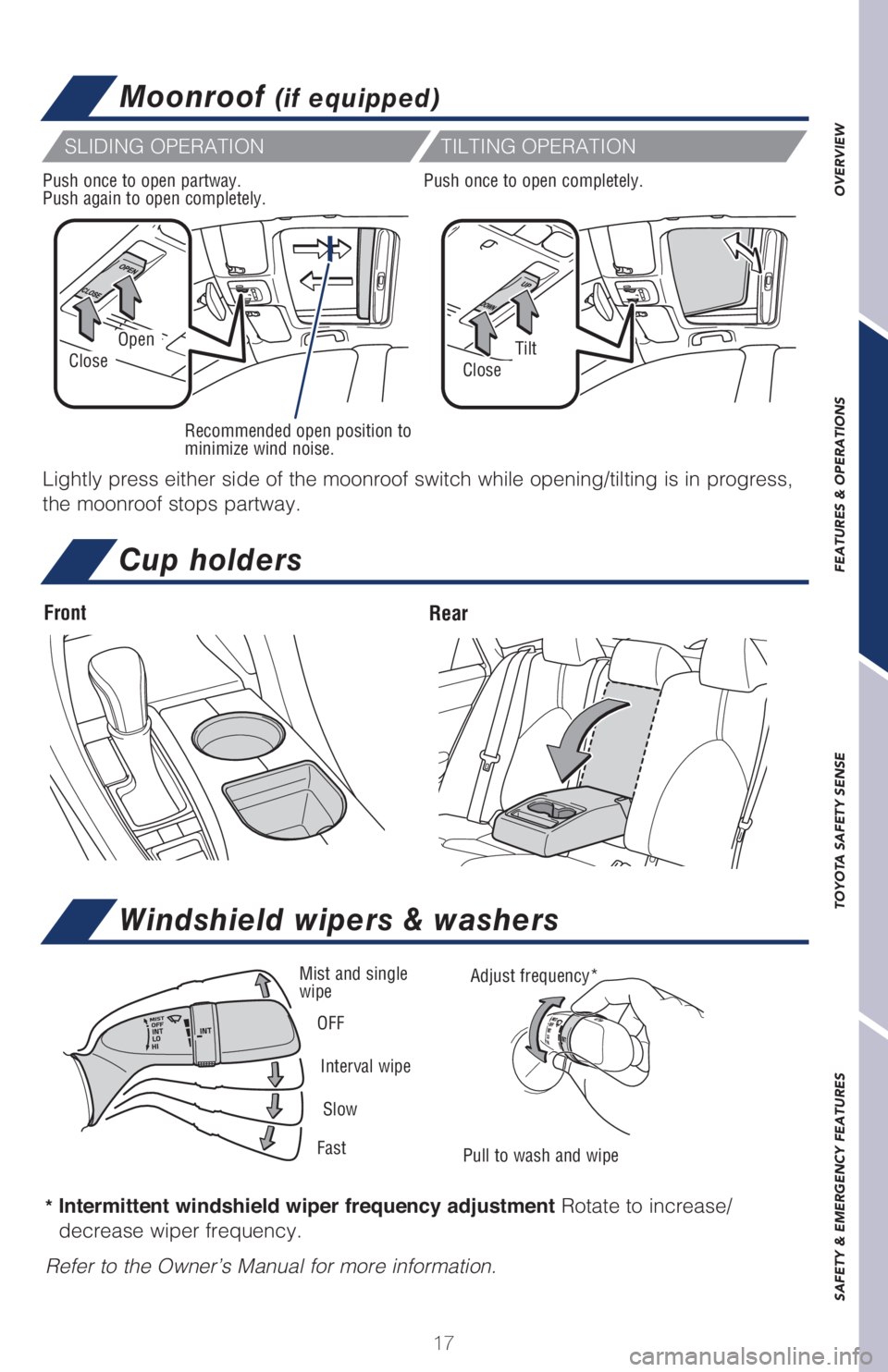

Windshield wipers & washers
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wiper frequency.
Refer to the Owner’s Manual for more information.
Adjust frequency*
Pull to wash and wipeMist and single
wipe
Interval wipe
Slow
Fast
OFF
Moonroof (if equipped)
OpenTiltCloseClose
Recommended open position to
minimize wind noise.
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
Push once to open partway.
Push again to open completely.Push once to open completely.
SLIDING OPERATION
TILTING OPERATION
Cup holders
FrontRear
MY21_Avalon_QRG_V2_ML_0709.indd 177/13/20 1:15 PM

18
FEATURES & OPERATIONS

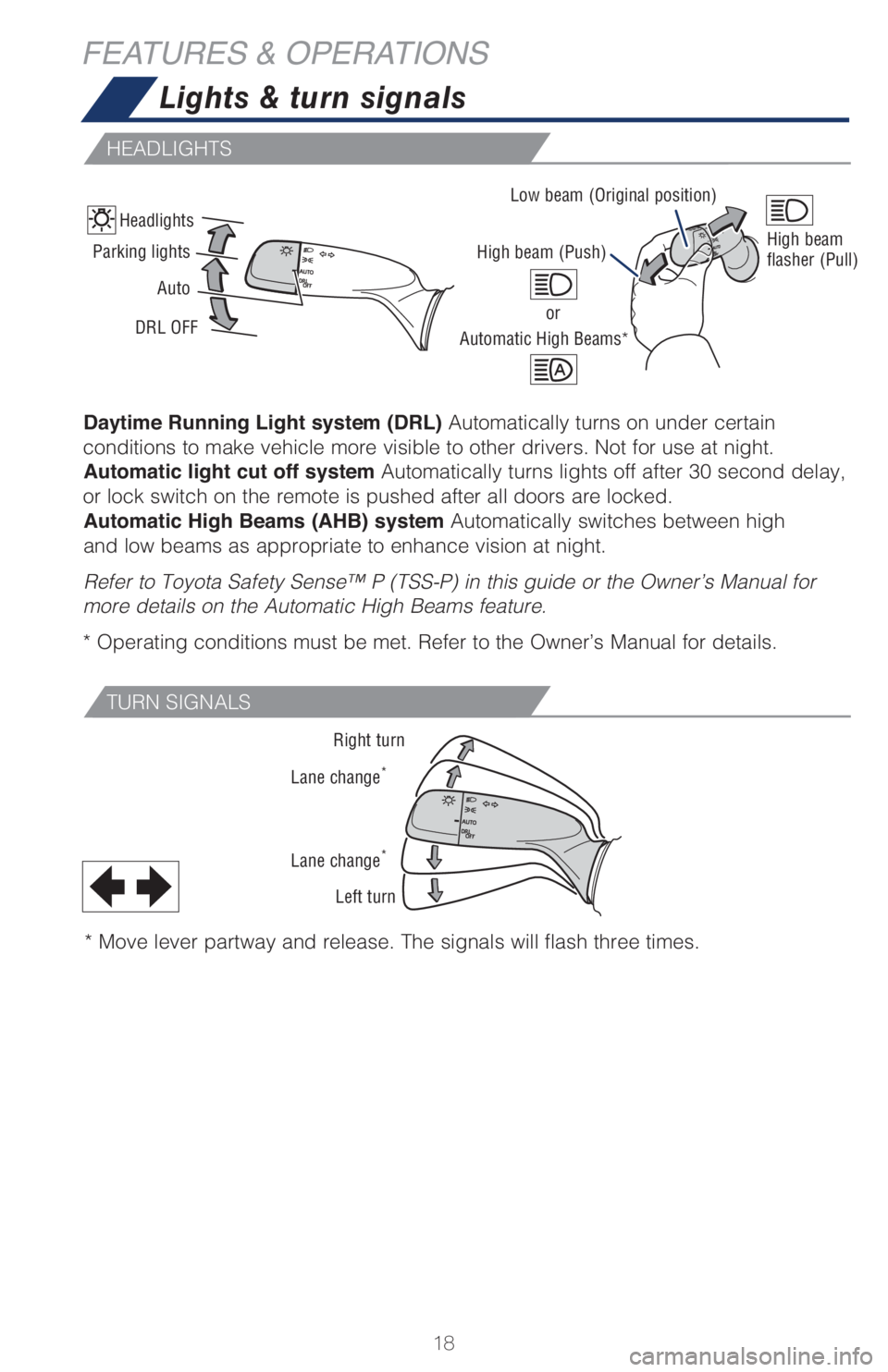

Right turn
Lane change
*
Lane change*
Left turn
* Move lever partway and release. The signals will flash three times.
Low beam (Original position)
High beam (Push)
or
Automatic High Beams*
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
Automatic light cut off system Automatically turns lights off after 30 second delay,
or lock switch on the remote is pushed after all doors are locked.
Automatic High Beams (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for
more details on the Automatic High Beams feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
Headlights
Parking lightsHigh beam
flasher (Pull)
Auto
DRL OFF
Lights & turn signals
HEADLIGHTS
TURN SIGNALS
